Ganz ZN-S1000VNE User manual


2010/2‐1
1
ZN-S1000VE QuickInstallationGuide 

ThismanualhasbeendesignedtoguideyouthroughbasicsettingsofyourIPdevices,suchasinstallationand
configurationforusingthem.
 
Step1.ConnectcablestoIPdevice
Connecteachcabletothedevice.Toseethecorrectpositionsofallconnectors,refertothefollowingimage
below.

Step2.Setupnetworkenvironment
ThedefaultIPaddressofyourIPdeviceis192.168.XXX.XXX.YoucanfindtheavailableIPaddressfromthe
MACaddressofyourdevice.PleasemakesurethedeviceandyourPCareonthesamenetworksegment
beforerunningtheinstallation.IfthenetworksegmentwasdifferentbetweenyourPCandthedevice,change
yourPC’ssettingsasbelow.

IPaddress:192.168.xxx.xxx
Subnetmask:255.255.0.0


VIN
DC12V
LAN
*Modelshereinandtheirappearance
aresubjecttochangewithoutanyprior
notice.
RESETButton


2010/2‐1
2
STEP3.Viewvideoonwebpage
ViewthelivevideoonawebpageusingyourIPdeviceanditsIPaddress.TohavethecorrectIPaddress
readyanduseitonawebpage:
1. ConvertaMACaddresstoanIPaddress.
(TheMACaddressisattachedonthesideorbottomofthedevice.)



2. OpenawebbrowserandentertheIPaddressofthedevice.
3. ClickContinuetothiswebsite(notrecommended)asbelow.
(TheexplanationandcapturedimagesatthismanualaremainlyonthebasisofInternetExplorer7.0)


4. Clickpop‐upblockedandinstalltheActiveXcontrolasbelow.YouneedtoinstalltheActiveXfor
displayingtheimages.



MACaddress=00‐13‐23‐01‐14‐B1 →IPaddress=192.168.20.177
theHexadecimalnumbertoDecimalnumber.


2010/2‐1
3

5. Waitforafewsecondswhilethewebpageloads.Thelivevideoisdisplayedasbelow.


6. Ifthelivevideoisnotdisplayedand“CannotCreateXMLDOMDocumentInstallMSXML4.0”
messageisshownasbelow,pleasedownloadandInstallfromthelinkbelow.
http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B‐B4F2‐46DA‐B4B6‐
C5D7485F2B42&displaylang=en
(VCALibraryrequiresMSXML4.0librarywhichisanxmlparsermadebyMicrosoft.)




2010/2‐1
4
Step4. SettingIPAddress
TosetuptheNetworkconfiguration:

1. ClickSetupontheupperrightofthewebpage.Theloginpageisdisplayedasbelow.
2. Enterthedefaultusername(root)andthedefaultpassword(pass),andthenselectOK.



3. ClickSystemOptions,andthenselectTCP/IPfromthedrop‐downmenu.

TochangetheIPaddress,pleasemakesuretocheckandhavethecorrectSubnetmaskandGatewayready.To
useDHCP,selectObtainanIPaddressviaDHCP.

Tolearnhowtosetupthewebpageforadvancedconfiguration,refertotheWebPageUser'sManual,which
isavailableontheSDKatthefollowingpath.
{SDK root}\DOC\
Thedefaultusername
andpasswordare:
rootandpass.


2010/2‐1
5
Advancedsetup(ZNS-GITIPAdminTool)

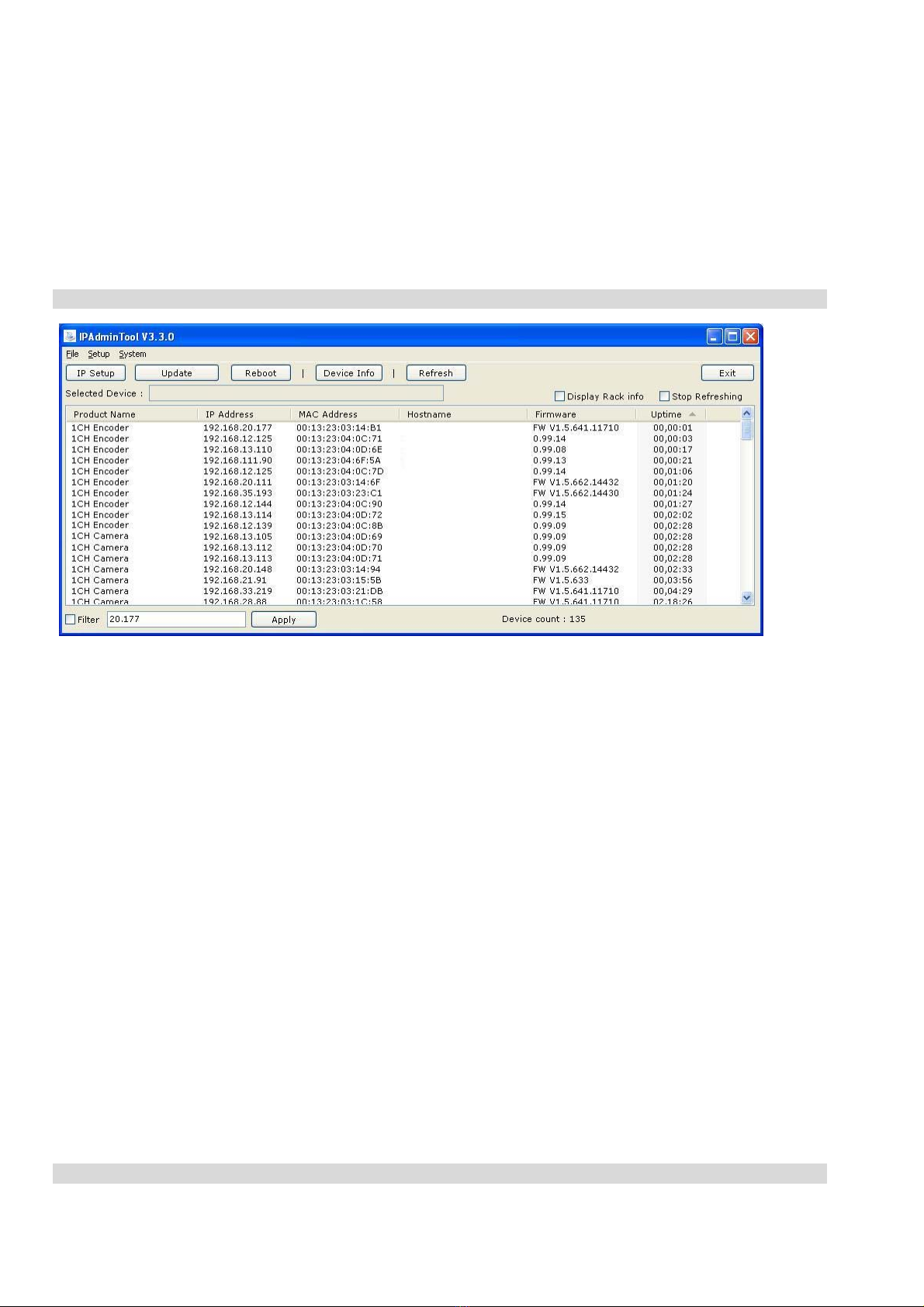

ZNS‐GITIPAdminToolisautilityprogramforIPproducts.FollowinglistshowsapartoffeaturesthatZNS‐GIT
IPAdminToolprovides.
zConfigureIPaddress,SubnetmaskandGateway
zShowsnetworkrelatedinformationsuchasMACaddress
zUpdatesfirmware
zRebootsthedevice
ZNS‐GITIPAdminToolisprovidedwithSDKatthefollowingSDKpath.
{SDK root}\BIN\TOOLS\AdminTool\
Rebooting
Resetcanbecarriedoutasfollows:
1. Whilethedeviceisinuse,pressandholdtheReset.
2. ReleasetheResetbuttonafter3seconds.
3. Waitforthesystemtoreboot.
ResettingtotheFactoryDefaultSettings
Thiswillresetallparameters,includingtheIPaddress,totheFactoryDefaultinitialization.
ToperformtheFactoryDefaultsettings:
1. Disconnectthepowersupplyfromthedevice.
2. ConnectthepowertothedevicewiththeResetbuttonpressedandheld.
3. ReleasetheResetbuttonafter5seconds.
4. Waitforthesystemtoreboot.


MoreInformation
Tolearnmoreaboutusingotherfeaturesofyourdevices,refertothemanual,whichisavailableontheSDKat
thefollowingpath.
{SDK root}\DOC\
