GE JVM3160DFCC User manual

Installation
Instructions
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Read these instructions completely and carefully.
IMPORTANT –Save these
instructions for local inspector’s use.
IMPORTANT –Observe all
governing codes and ordinances.
 Note to Installer –Be sure to leave these
instructions with the consumer.
BEFORE YOU BEGIN
 Note to Consumer –Keep these instructions
for future reference.
 6NLOOOHYHO – Installation of this appliance requires basic
mechanical and electrical skills.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the warranty.
2YHUWKH5DQJH
0LFURZDYH2YHQ
AVM4160, JNM3161, and JVM3160
49-40675-1
(06-13 GE)
Popcorn
Convenience Cooking
Express Cook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30 Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Popcorn
Convenience Cooking
Express Cook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30 Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Throughout this manual, features and appearance may
vary from your model.

2
Outside Back Exhaust.................................. 20-23
Installation Overview................................20
Preparing Rear Wall for
Outside Back Exhaust................................20
Attach Mounting Plate to Wall..........20, 21
Preparation of Top Cabinet.......................21
Adapting Blower for Outside
Back Exhaust.......................................... 21, 22
Mount the Microwave Oven ..............22, 23
%HIRUH<RX8VH<RXU0LFURZDYH2YHQ ..................... 24
CONTENTS
General information
Important Safety Instructions........................................ 3
Electrical Requirements.................................................. 3
Tools You Will Need ......................................................... 4
Hood Exhaust................................................................. 5,6
'DPDJH²6KLSPHQW,QVWDOODWLRQ .................................. 7
Parts Included................................................................... 7
0RXQWLQJ6SDFH ................................................................ 8
6WHSE\VWHSLQVWDOODWLRQJXLGH
3ODFHPHQWRI0RXQWLQJ3ODWH................................... 9-11
Removing the Mounting Plate............................. 9
Finding the Wall Studs.......................................... 9
Determining Mounting Plate Location ..............10
Aligning the Mounting Plate.............................. 11
Installation Types..................................................... 12-23
Recirculating.................................................. 13-15
Attach Mounting Plate to Wall................13
Preparation of Top Cabinet......................13
Installing the Charcoal Filter....................14
Mount the Microwave Oven ..............14, 15
Installing the Charcoal Filter
without Top Access............................15
Outside Top Exhaust..................................... 16-19
Attach Mounting Plate to Wall.................16
Preparation of Top Cabinet.......................17
Adjust Blower Motor..................................17
Assemble and Install Adaptor..................18
Mount the Microwave Oven .....................18
Adjust the Exhaust Adaptor......................19
Connecting Ductwork................................19
A
B
C
Installation Instructions

A qualified electrician must perform a ground continuity
check on the wall receptacle before beginning the
installation to ensure that the outlet box is properly
grounded. If not properly grounded, or if the wall
receptacle does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified electrician
should be employed to correct any deficiencies.
WARNING:
5LVNRI(OHFWULF6KRFN
Can cause injury or death:
5HPRYHKRXVHIXVHRU
RSHQFLUFXLWEUHDNHUEHIRUH
EHJLQQLQJLQVWDOODWLRQWRDYRLG
VHYHUHRUIDWDOVKRFNLQMXU\
WARNING:5LVNRI(OHFWULF6KRFN
Can cause injury or death: THIS APPLIANCE MUST BE
PROPERLY GROUNDED WRDYRLGVHYHUHRUIDWDOVKRFN
120 V Models
The power cord of this
appliance is equipped with
DWKUHHSURQJJURXQGLQJ
SOXJZKLFKPDWHVZLWK
DVWDQGDUGWKUHHSURQJ
JURXQGLQJZDOOUHFHSWDFOH
to minimize the possibility
RIHOHFWULFVKRFNKD]DUG
from this appliance.
IMPORTANT SAFETY INSTRUCTIONS
3
ELECTRICAL REQUIREMENTS
Installation Instructions
Ensure proper
ground exists
before use.
CAUTION:For personal safety, the
PRXQWLQJVXUIDFHPXVWEHFDSDEOHRIVXSSRUWLQJWKH
FDELQHWORDGLQDGGLWLRQWRWKHDGGHGZHLJKWRIWKLV
²SRXQGSURGXFWSOXVDGGLWLRQDOPLFURZDYHRYHQ
ORDGVRIXSWRSRXQGVRUDWRWDOZHLJKWRI²
pounds.
CAUTION:For personal safety, this product
FDQQRWEHLQVWDOOHGLQFDELQHWDUUDQJHPHQWVVXFKDVDQ
island or a peninsula. It must be mounted to BOTH a top
FDELQHW$1'DEDFNZDOO
CAUTION:7RDYRLGWKHULVNRISHUVRQDO
LQMXU\EDFNLQMXU\RURWKHULQMXULHVGXHWRH[FHVVLYH
ZHLJKWRIWKHPLFURZDYHRUSURSHUW\GDPDJH\RXZLOO
QHHGWZRSHRSOHWRLQVWDOOWKLVPLFURZDYH
:KHUHDVWDQGDUGWZRSURQJZDOOUHFHSWDFOHLV
encountered, it must be replaced with a properly
JURXQGHGWKUHHSURQJZDOOUHFHSWDFOHLQVWDOOHGE\D
qualified electrician.
WARNING:5LVNRI(OHFWULF6KRFN
Can cause injury or death: DONOT, under any
FLUFXPVWDQFHVFXWGHIRUPRUUHPRYHDQ\RIWKHSURQJV
from the power cord. Do not use with an extension cord.
Failure to comply may cause fire.
120 V Models
This product requires a three-prong grounded outlet.
Product rating is 120 volts AC, 60 Hertz, 15 amps, and 1.70
kilowatts. This product must be connected to a supply
circuit of the proper voltage and frequency. Wire size must
conform to the requirements of the National Electrical
Code or the prevailing local code for this kilowatt rating.
The power supply cord and plug should be brought to a
separate 15 to 20 ampere branch circuit single grounded
outlet. The outlet box should be located in the cabinet
above the microwave oven and away from any potential
microwave ducting. The outlet box and supply circuit
should be installed by a qualified electrician and conform
to the National Electrical Code or the prevailing local code.

4
Installation Instructions
TOOLS YOU WILL NEED
#1 and #2 Phillips
screwdriver Pencil
Ruler or tape measure and
straight edge
Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with 3ø16s, 7ø16s,
1ø2sand 5ø8sdrill bits
Hammer (optional)
Stud finder
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Gloves Saw (saber, hole or keyhole)
Level Duct and masking
tape
Scissors (to cut
template, if necessary)
Safety goggles

5
Installation Instructions
HOOD EXHAUST
NOTE: 5HDGWKHVHQH[WWZRSDJHVRQO\LI\RXSODQWRYHQW\RXUH[KDXVWWRWKHRXWVLGH,I\RXSODQWRUHFLUFXODWHWKHDLU
EDFNLQWRWKHURRPSURFHHGWRSDJH6.%HORZDUHH[DPSOHVRI2XWVLGH7RS([KDXVWDQG2XWVLGH%DFN([KDXVWGXFWV\VWHP
OD\RXWV1RWHWKHSRVLWLRQRIWKHPLFURZDYHRYHQUHODWLYHWRWKHGXFWV\VWHP
2876,'(723(;+$867(;$03/(21/<
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
(6sRound)
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
7RWDO/HQJWK  )W
*IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will
have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
The following chart describes an example of one possible
ductwork installation.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
2876,'(%$&.(;+$867(;$03/(21/<
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31ø4sx 10sRectangular)
90° Elbow 10 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
7RWDO/HQJWK  )W

EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor*
Wall Cap 40 Ft. x ( ) = Ft.
90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
Straight Duct 6sRound or 1 Ft. x ( ) = Ft.
3
1ø4sx 10sRectangular
7RWDO'XFWZRUN    )W
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent
hood.
6
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order
to allow free movement of the damper .
NOTE: If you need to install ducts, note that the total duct
length of 31ø4sx 10srectangular or 6sdiameter round duct
VKRXOGQRWH[FHHGHTXLYDOHQWIHHW
Outside ventilation requires a HOODEXHAUST DUCT.
Read the following carefully:
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. $OVRPDNHVXUHGDPSHUVVZLQJIUHHO\DQG
QRWKLQJLVEORFNLQJWKHGXFWV
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 31ø4sx 10srectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6sdiameter duct.
0D[LPXPGXFWOHQJWK
For satisfactory air movement, the total duct length of
31ø4sx 10srectangular or 6sdiameter round duct should
QRWH[FHHGHTXLYDOHQWIHHW
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their actual
physical size. When calculating the total duct length, add the
equivalent lengths of all transitions and adaptors plus the
length of all straight duct sections. The chart below shows
you how to calculate total equivalent ductwork length using
the approximate feet of equivalent length of some typical
duct pieces.
Installation Instructions

PART QUANTITY
Top Cabinet
Template 1
Rear Wall
Template 1
Installation
Instructions
and
Owners
Manual
1
1
Grease
Filters 2
Exhaust
Adaptor
1
Tray 1
Turntable
Ring 1
PART QUANTITY
Wood Screws
(3/16” x 2”) 2
Toggle Bolts (and
wing nuts) (1/4” x 3”) 4
Self-aligning Machine
Screw (1/4”-28 x
3-1/4”) 3
Nylon Grommet (for
metal cabinets) 2
Power Cord Strap
(plastic) 1
7
Installation Instructions
,IWKHXQLWLVGDPDJHGLQVKLSPHQW return
the unit to the store in which it was bought for
repair or replacement.
,IWKHXQLWLVGDPDJHGE\WKHFXVWRPHU repair or
replacement is the responsibility of the customer.
,IWKHXQLWLVGDPDJHGE\WKHLQVWDOOHU (if other than
the customer), repair or replacement must
be made by arrangement between customer
and installer.
'$0$*(²6+,30(17
INSTALLATION PARTS INCLUDED
INSTALLATION
INSTRUCTIONS
OWNERS
MANUAL
ADDITIONAL PARTS
PARTS INCLUDED
You will find the installation hardware contained
in a packet with the unit. Check to make sure you
have all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
≤
≤
≤

8
Installation Instructions
MOUNTING SPACE NOTES:
The space between the cabinets must be 30swide
and free of obstructions.
If the space between the cabinets is greater than
30s, a Filler Panel Kit may be used to fill in the gap
between the microwave oven and the cabinets.
Your Owner’s Manual contains the kit number for
your model.
This microwave oven is for installation over ranges
up to 36swide.
If you are going to vent your microwave oven to the
outside, see Hood Exhaust Section for exhaust duct
preparation.
When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for power
cord clearance.
0D[LPXPFDELQHWGHSWKDERYHDQGEHVLGHWKHXQLW
is 12¾s.
)RUPRGHOVVHWXSLQ5HFLUF([KDXVW'RQRWDOORZ
cabinetry or other objects to block the airflow of the
vent.
7KHSURGXFWVKRXOGQRWEHLQVWDOOHGRYHUDQ\FRRNWRS
or range with a combined BTU greater than 60,000
BTU.
Backsplash
66sor
more from
the floor
to the
top of the
microwave
oven
30s
2s
30s
min.
16-½s
Bottom edge of
cabinet needs to
be 30sor more
from the cooking
surface
12¾s
max.

9
Installation Instructions
Find the studs, using one of the following methods:
A. Stud finder. OR
B. Use a hammer to tap lightly across the mounting
surface to find a solid sound. This will indicate
a stud location.
After locating the stud(s), find the center by probing
the wall with a small nail to find the edges of the stud.
Then place a mark halfway between the edges.
The center of any adjacent studs should be 16sor 24s
from this mark.
Draw a line down the center of the studs.
IMPORTANT: The microwave must be connected to at
least one wall stud.
1
Open the box and fold back all four carton flaps fully
against the carton sides. Remove the following items
from the protective foam: installation instructions,
filters, exhaust adaptor, damper, and the small
hardware bag. Do not remove the foam protecting
the front of the microwave oven.
Then carefully roll the microwave oven and carton
over onto the top side. The microwave oven should
be resting in the foam.
REMOVING THE MICROWAVE
29(1)5207+(&$5721
REMOVING THE MOUNTING PLATE
FINDING THE WALL STUDS
B
A
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Carton
Pull the carton up and off the microwave oven.
Open the microwave oven door and remove the
plastic sheet and tape from inside the microwave
oven door. Remove the tape covering the turntable
hub.
Foam
2
3
6
Set the microwave oven upright. Remove and
properly discard plastic bags and foam.
1
The mounting plate is attached to the back of the
microwave oven. Remove the two screws holding it
to the microwave oven. The plate will be used as the
rear wall template and for mounting the microwave
oven to the wall.
4
5

10
DETERMINING MOUNTING PLATE LOCATION UNDER YOUR CABINET
C
Your cabinets may have decorative trim that interferes
with the microwave oven installation. You may need to
remove the decorative trim to install the microwave oven
properly and to make it level.
THE MICROWAVE OVEN MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang, install the
mounting plate down the same distance as the front
overhang depth. This will keep the microwave oven level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside depth
of the front overhang.
For this type of installation with front overhang,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
Plate Position – flat bottom cabinet
3ODWH3RVLWLRQ²FDELQHWZLWKIURQWRYHUKDQJ
Mounting Plate Tabs
Touching the Cabinet
Bottom
Mounting Plate
with Tabs Below
Cabinet Bottom
the Same Distance
as the Front
Overhang Depth
At least 30s, up to 36s
Plate Position – recessed cabinet bottom
Mounting Plate
Tabs Touching the
Back Frame of the
Cabinet
30sto Cooktop
30sto Cooktop
1
2
3
Installation Instructions

11
Installation Instructions
ALIGNING THE MOUNTING PLATE
Draw a vertical line on the wall at the center of the 30s
wide space.
Use the mounting plate as the template for the rear wall.
Place the mounting plate on the wall, making sure that
the tabs are WRXFKLQJWKHERWWRPRIWKHFDELQHWRU
WKHOHYHOOLQHGUDZQLQ6WHS&IRUFDELQHWVZLWKIURQW
RYHUKDQJ/LQHXSWKHQRWFKDQGFHQWHUOLQHRQ
WKHPRXQWLQJSODWHWRWKHFHQWHUOLQHRQWKHZDOO
While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C, and D (see illustration
above/actual plate marked with arrows). Four holes
PXVWEHXVHGIRUPRXQWLQJ
NOTE: Holes C and D are inside area E. If neither C nor D
is in a stud, find a stud somewhere in area E and draw a
fifth circle to line up with the stud. It is important to use
at least one wood screw mounted firmly in a stud
to support the weight of the microwave oven.
6HWWKHPRXQWLQJSODWHDVLGH
WARNING:5LVNRIHOHFWULFVKRFN&DQFDXVH
LQMXU\RUGHDWK7DNHFDUHWRQRWGULOOLQWRHOHFWULFDOZLULQJ
inside walls or cabinets.
Drill holes on the circles. If there is a stud, drill a 3ø16shole
for wood screws. For holes that don’t line up with a stud,
drill a 5ø8shole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
2
3
4
Draw a
Vertical Line
on Wall from
Center of Top
Cabinet
Area E
Hole A Hole B
Hole D
Notch
Hole C
D
CAUTION:
:HDUJORYHVWRDYRLGFXWWLQJ
ILQJHUVRQVKDUSHGJHV
1
30”

12
This microwave oven is designed for adaptation to the
following 3 types of ventilation:
$5HFLUFXODWLQJ1RQ9HQWHG'XFWOHVV
%2XWVLGH7RS([KDXVW9HUWLFDO'XFW
&2XWVLGH%DFN([KDXVW+RUL]RQWDO'XFW
127(7KLVPLFURZDYHRYHQLVVKLSSHGDVVHPEOHGIRU
5HFLUFXODWLQJ6HOHFWWKHW\SHRIYHQWLODWLRQUHTXLUHGIRU
your installation and proceed to that section.
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
BOUTSIDE TOP EXHAUST
9(57,&$/'8&7
6HHSDJH
Adaptor in Place for
Outside Top Exhaust
2
OUTSIDE BACK EXHAUST
+25,=217$/'8&7
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
6HHSDJH
C
RECIRCULATING
1219(17(''8&7/(66
Popcorn
Convenience Cooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
6HHSDJH
A Charcoal Filter Accessory Kit is required for the non-vented
exhaust. (See your Owner’s Manual for the kit number.)
A
Installation Instructions
INSTALLATION TYPES &KRRVH$%RU&

Installation Instructions
13
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP CABINET
A2
RECIRCULATING 1RQ9HQWHG'XFWOHVV
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Charcoal Filter (Supplied with AVM4160 and
JVM3160 models)
A4. Mount the microwave oven
A5. Installing/Replacing the Charcoal Filter Without
Access to Top Screws and the Unit Has Already
Been Mounted.
Read the instructions on the TOP CABINET
TEMPLATE.
Tape it underneath the top cabinet.
Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION::HDUVDIHW\JRJJOHVZKHQ
GULOOLQJKROHVLQWKHFDELQHWERWWRP
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
A
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch the
bottom of the cabinet or the horizontal level line when
pushed flush against the wall and that the plate is
properly centered under the cabinet.
CAUTION:%HFDUHIXOWRDYRLGSLQFKLQJ
ILQJHUVEHWZHHQWKHEDFNRIWKHPRXQWLQJSODWHDQG
the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
ATTACH THE MOUNTING PLATE
TO THE WALL
A1
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3ø4sonto each bolt.
1
4
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
7RXVHWRJJOHEROWV:
2

14
Installation Instructions

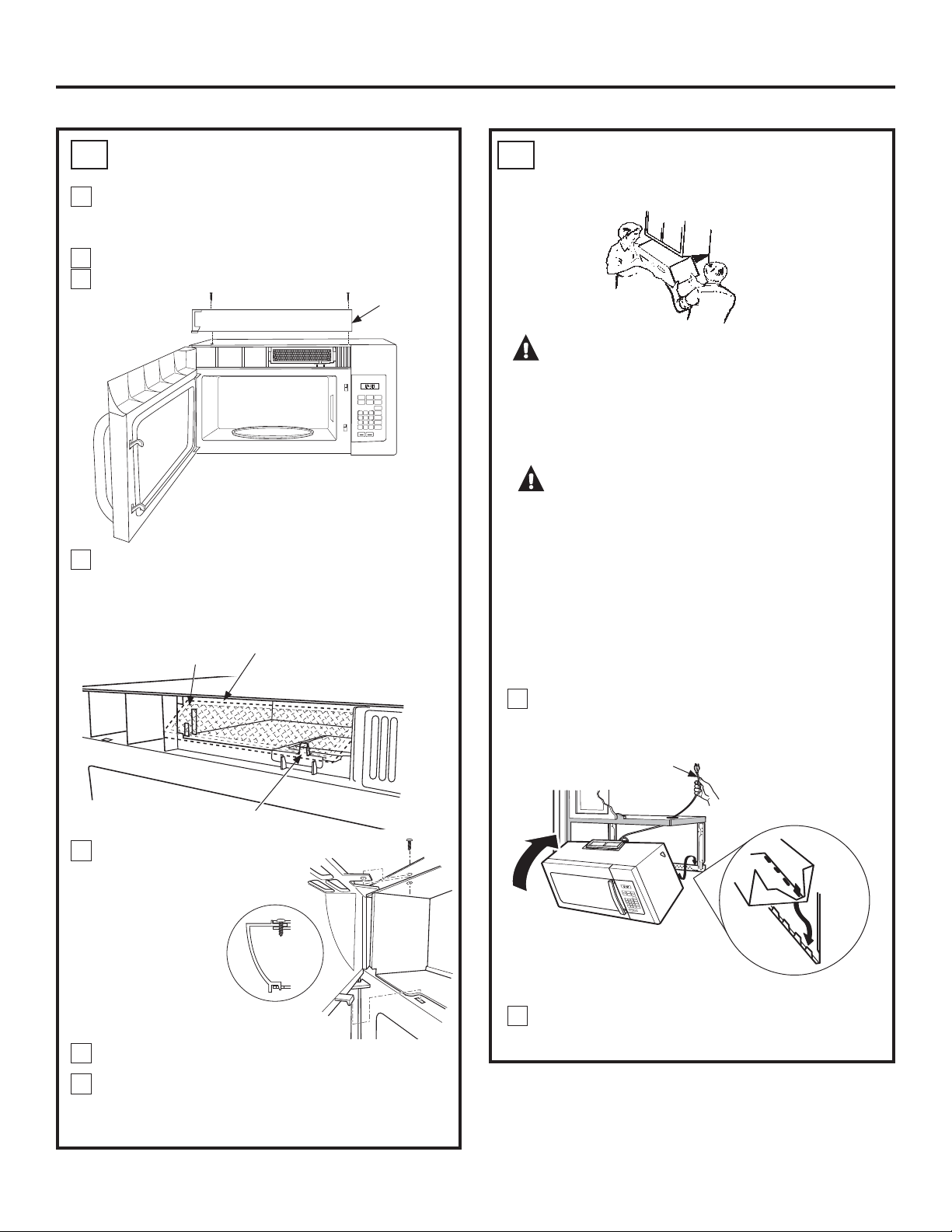

A4
CAUTION:7RDYRLGWKHULVNRISHUVRQDO
LQMXU\EDFNLQMXU\RURWKHULQMXULHVGXHWRH[FHVVLYH
ZHLJKWRIWKHPLFURZDYHRUSURSHUW\GDPDJH\RX
ZLOOQHHGWZRSHRSOHWRLQVWDOOWKLVPLFURZDYH
IMPORTANT: Do not grip or use handle during
installation.
WARNING:5LVNRI(OHFWULF6KRFN&DQ
FDXVHLQMXU\RUGHDWK,ILQVWDOOLQJXQLWZLWKPHWDO
FRXQWHUWRSVFRYHUWKHHGJHRIWKHSRZHUVXSSO\
FRUGKROHZLWKWKHSRZHUVXSSO\FRUGEXVKLQJ
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
MOUNT THE MICROWAVE OVEN
NOTE: When mounting the microwave, thread power
cord through hole in bottom of top cabinet. Keep it
tight throughout Steps 1–3. Do not pinch cord or lift
microwave oven by pulling cord.
Lift microwave, tilt it forward, and hook slots at
back bottom edge onto four lower tabs of mounting
plate.
Rotate front of microwave oven up against cabinet
bottom.
1
2
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Power Cord
INSTALLING THE CHARCOAL FILTER
A3
Filter (dashed to show
details of groves)
Bottom Tab
Grooves in
Microwave for
Filter on Each Side
Remove 2 screws on top of microwave oven, just
above the grille panel, using a Phillips screwdriver.
If two screws are not accessible, see section A6.
Open the door.
Remove the grille.
Insert the top of the filter up and into the grooves on
both sides of the inside of the top opening. Once you
have cleared the bottom tab, push the bottom of the
filter in until it rests in place behind the tab.
2
1
3
4
Popcorn
Convenience Cooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Replace the grille
by inserting the top
grill flange into the
slots in the case as
shown.
Replace the 2 top screws.
Close the door.
5
6
7
Grille
Grille
Grille

15
Installation Instructions
A4 MOUNT THE MICROWAVE OVEN
FRQW
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
5
4
Tighten the three screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Install grease filters. See the Owner’s Manual
packed with the microwave oven.
Insert 3 self-aligning screws (1ø4s-28 x 21ø4”) through
outer top cabinet holes. Turn two full turns on each
screw.
3
Cabinet Front
Cabinet Bottom Shelf Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
Self-Aligning Screws
This distance
can NOT
exceed 2”
to ensure
proper
installation
,167$//,1*5(3/$&,1*7+(
CHARCOAL FILTER WITHOUT
ACCESS TO TOP SCREWS AND THE
UNIT HAS ALREADY BEEN MOUNTED
A5
DISMOUNT THE MICROWAVE OVEN
CAUTION:7RDYRLGWKHULVNRISHUVRQDO
LQMXU\EDFNLQMXU\RURWKHULQMXULHVGXHWRH[FHVVLYH
ZHLJKWRIWKHPLFURZDYHRUSURSHUW\GDPDJH\RXZLOO
QHHGWZRSHRSOHWRXQLQVWDOOWKLVPLFURZDYH
IMPORTANT: Do not grip or use handle during removal.
WARNING:5LVNRI(OHFWULF6KRFN&DQ
FDXVHLQMXU\RUGHDWK,IUHPRYLQJXQLWZLWKPHWDO
FRXQWHUWRSVFRYHUWKHHGJHRIWKHSRZHUVXSSO\FRUG
KROHZLWKWKHSRZHUVXSSO\FRUGQ\ORQJURPPHW
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Loosen the 3 screws on the top of the microwave
oven (inside the cabinet).
1
Lift microwave, tilt it forward and unhook slots at
back bottom edge from the four lower tabs of the
mounting plate.
2
Replace the filter using instructions from section A3.
Reinstall unit following instructions from A4.
3
4

OUTSIDE TOP EXHAUST 9HUWLFDO'XFW
Insert the toggle wings into the holes in the wall and
place the mounting plate against the wall.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch the
bottom of the cabinet when pushed flush against the
wall and that the plate is properly centered under the
cabinet.
CAUTION: %HFDUHIXOWRDYRLGSLQFKLQJ
ILQJHUVEHWZHHQWKHEDFNRIWKHPRXQWLQJSODWHDQG
the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
B
4
ATTACH THE MOUNTING PLATE
TO THE WALL
B1
16
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud. Recommended locations on the mounting
plate are indicated by A, B, C and D.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3ø4sonto each bolt.
1
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
INSTALLATION OVERVIEW
B1. Attach Mounting Plate to Wall
B2. Prepare Top Cabinet
B3. Adjust Blower Motor
B4. Install Exhaust Adaptor
B5. Mount Microwave Oven
B6. Adjust Exhaust Adaptor
B7. Connect Ductwork
Wall
Mounting
Plate
Mounting Plate
Spacing for Toggles More
Than Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
7RXVHWRJJOHEROWV:
Installation Instructions
2
AB
CD

17
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
B2
Read the instructions on the TOP CABINET TEMPLATE.
Tape it underneath the top cabinet.
Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION::HDUVDIHW\JRJJOHVZKHQ
GULOOLQJKROHVLQWKHFDELQHWERWWRP
Installation Instructions
ADJUST BLOWER MOTOR
$'-867%/2:(502725FRQW
B3
B3
Remove the screws holding the blower unit and
the screws securing the blower plate. Remove
the blower plate from the outer case by sliding it
toward the back of the microwave and pulling up.
1
Blower Plate
Blower Motor Screws
Blower
Motor
Screw
2
Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
Roll the blower so that fan blade openings are
facing the top of the oven. Place the blower back
into the opening.
Slide the blower plate back onto the microwave
by placing the side tabs into the slots and pushing
gently until the back tab is seated into the rear slot.
Replace 3 screws.
Note: Make sure the wires remain routed through the
openings in the motor frame. To avoid damage to
the fan motor wiring, insert motor carefully such that
the fan motor wiring does not contact the microwave
power cord bracket.
3
4
Back of
Mircrowave
Rotate 90°
Back of
Mircrowave
Fan Blades
Wires
WARNING:5LVNRI(OHFWULF6KRFN
Can cause injury or death. Do not pull or stretch the
EORZHUXQLWZLULQJ0DNHVXUHWKHZLUHVDUHQRW
pinched.
Side Tab
Side Slot Rear Slot
Rear Tab

18
Installation Instructions
MOUNT THE MICROWAVE OVEN
B5
CAUTION:7RDYRLGWKHULVNRISHUVRQDO
LQMXU\EDFNLQMXU\RURWKHULQMXULHVGXHWRH[FHVVLYH
ZHLJKWRIWKHPLFURZDYHRUSURSHUW\GDPDJH\RX
ZLOOQHHGWZRSHRSOHWRLQVWDOOWKLVPLFURZDYH
IMPORTANT: Do not grip or use handle during
installation.
W A R N I N G : 5LVNRI(OHFWULF6KRFN&DQ
FDXVHLQMXU\RUGHDWK,ILQVWDOOLQJXQLWZLWKPHWDO
FRXQWHUWRSVFRYHUWKHHGJHRIWKHSRZHUVXSSO\
FRUGKROHZLWKWKHSRZHUVXSSO\FRUGEXVKLQJ
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE: When mounting the microwave, thread power
cord through hole in bottom of top cabinet. Keep it
tight throughout Steps 1–3. Do not pinch cord or lift
microwave oven by pulling cord.
Lift microwave, tilt it forward, and hook slots at
back bottom edge onto four lower tabs of mounting
plate.
Rotate front of microwave oven up against cabinet
bottom.
1
2
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Power Cord
ASSEMBLE AND INSTALL ADAPTOR
B4
Place the microwave oven in its upright position, with
the top of the unit facing up and the front of the unit
facing toward you.
Remove the screw on the back side of the blower
plate and raise the blower plate off of the microwave.
Slide the damper from left to right into the tabs on the
blower plate. The yellow tape on the damper should
be facing away from you.
Remove the yellow tape from the damper. 0DNHVXUH
WKDWWKHGDPSHUSLYRWVHDVLO\EHIRUHPRXQWLQJ
PLFURZDYHRYHQ
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave oven is installed.
Position the blower plate with damper back on the
microwave and secure it with the screws that were
removed.
1
2
3
4
5
Damper
Blower
Plate

CONNECTING DUCTWORK
19
3
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
Cabinet Front
Cabinet Bottom Shelf Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the microwave
oven by turning the screw at least two full
turns after the threads have engaged. (It will be
completely tightened later.) Insert 2 self-aligning
screws (1ø4s-28 x 2 1ø4s) through outer top cabinet
holes. Turn two full turns on each screw.
Tighten the three screws to the top of the microwave
oven. (While tightening screws, hold the microwave
oven in place against the wall and the top cabinet.)
Install grease filters. See the Owner’s Manual packed
with the microwave oven.
5
4
Installation Instructions
ADJUST THE EXHAUST ADAPTOR
A5
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Microwave
Oven
Damper
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
Popcorn
ConvenienceCooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
House Duct
Self-Aligning Screw
MOUNT THE MICROWAVE OVEN
FRQW
B5
A6
This distance
can NOT
exceed 2”
to ensure
proper
installation

OUTSIDE BACK EXHAUST +RUL]RQWDO'XFW
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
C1
Popcorn
Convenience Cooking
ExpressCook
Potato
Start
Pause
Cancel
Off
Beverage
Reheat
Set
Clock
Turntable
Surface
Light
Vent
Add
30Sec.
Power
Level
0
8
5
2
7
4
1
9
6
3
Cook
Time
Defrost
Weight/Time
Timer
On/Off
INSTALLATION OVERVIEW
C1. Prepare Rear Wall
C2. Attach Mounting Plate to Wall
C3. Prepare Top Cabinet
C4. Adjust Blower
C5. Mount the Microwave Oven
Installation Instructions
C
20
ATTACH THE MOUNTING PLATE
TO THE WALL
C2
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3ø4sonto each bolt.
1
2
You need to cut an opening in the rear wall for outside
exhaust.
Read the instructions on the REAR WALL TEMPLATE.
Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the mounting
plate.
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
