GMC GPSM006 User manual

1
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
GPSM006

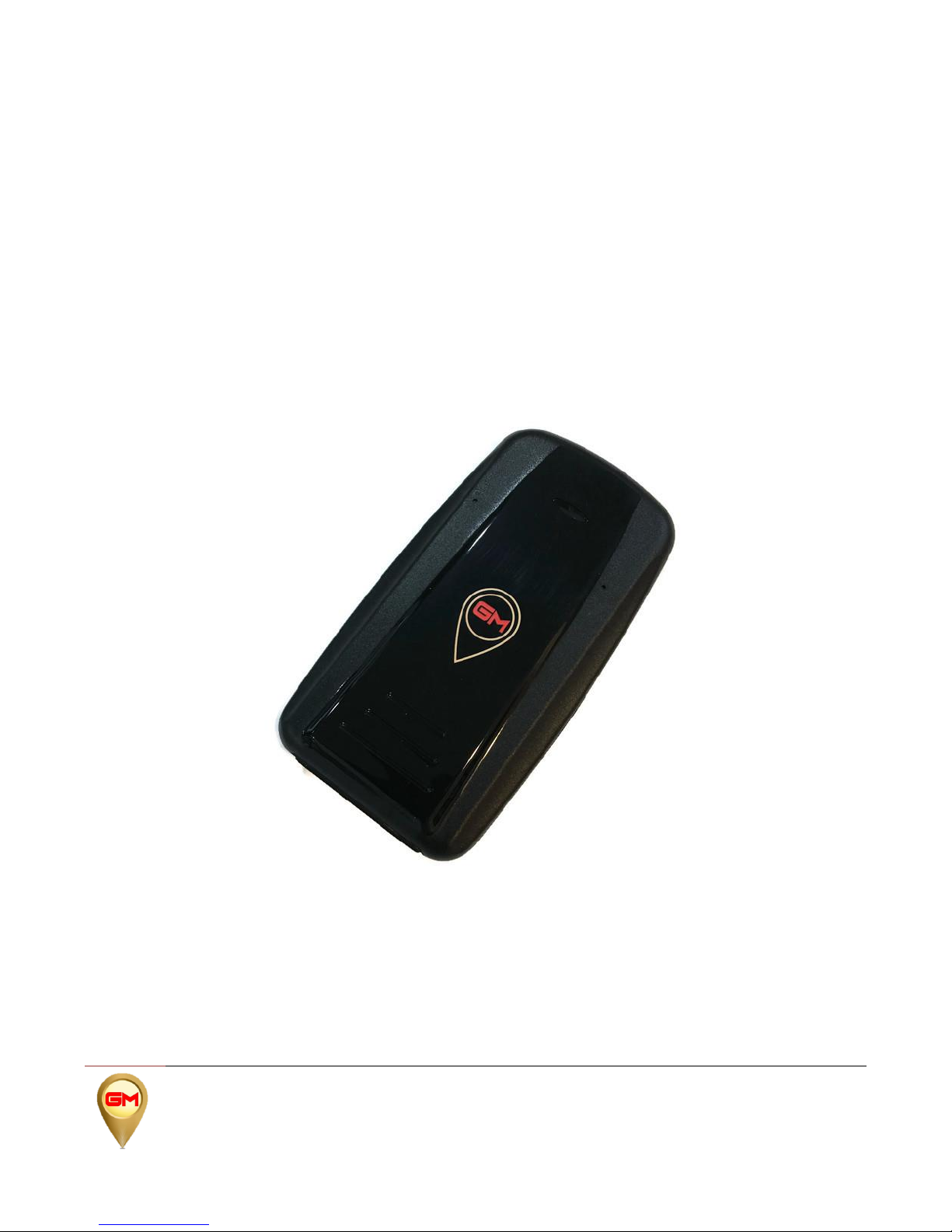

Power Magnetic GPS
Tracker Manual
(GSM+GPS+GPRS+SMS)
[MAGNETIC GPS CAR TRACKER]

2
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
LED Lights
Blue LED light is for the GPS. Blinking means it’s connected and constantly means it’s searching for
satellites.
Green LED light is for the GSM. Blinking means it’s connected and constantly means it’s searching or
that the GPRS setting are incorrect/not set.
Quick Start Guide
Installing the SIM card
*Please make sure the SIM card is not password protected
Sim card slot
Off/On button
USB charged Port
Alarm Sensor
Power Magnetic
mAGmagnets
USB charged
USB micro 5 pin

3
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Content Specs.
Content
Specs.
Dim.
115mm x 60mm x 25mm
Weight
204g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS chip
UBLOX
GPS sensitivity
-159dBm
GPS accuracy
5m
Time To First Fix
Cold status 35-80s
Warm status 35s
Hot status 1s
Car charger
12—24V input
5V output
Wall charger
110－220V input
5V output
Battery
Chargeable changeable 3.7V 8000mAh Li-ion battery
Standby
100 days
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
Userage:
SIM card installation
1.Open the rubber plug .
2. Insert the GSM SIM card.
3.Close the rubber plug.
Battery and Charger
Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger provided by the
manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 80days. After first use, the battery usually
should be charged fully in 5--8 hours.
Cautions:
a: For it’s Li-ion battery, which contains harmful chemicals and may burst, please don’t bump, puncture it violently and
keep it off fire.
b: Please charge the battery in time to keep it working normally.

4
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Startup
Put the SIM card and battery in place.
Turn on the unit outdoors by pressing the “on/off” button until the indicator is on.
Eg: Step 1. pw,123456,zx,016*******#(GPS SIM Card Number)
Step 2. admin 123456+space+your phone number
Step 3. apn123456+space+local apn contect
Step 4. adminip123456+space+101.1.16.228+space+7700
In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. The indicator
will keep flashing every 3 seconds when the unit has received the signals.
When this unit receives GPS signals normally, you can use it and do any setting as the instructions of this manual.
Green LED for GPRS working status
Status of indicator
Meaning
Slow flash (flash 1s after every 2s)
GSM / GPRS conversation start
Continuously in bright status
No GPRS signal
Green Led off
Device fault or dormant
Blue LED for GPS working status
Status of indicator
Meaning
Slow flash (flash 1s after every 2s)
GPS location successful
Continuously in bright status
Searching GPS signal
Blue led off
Device fault or dormant
Red LED for power charging status
1.Google link: click link, there is map when positioning ok, no map means no positioning.
2.V:A GPS signal ok.V:V no GPS signal
3.2016-04-18 11:26:48:the last time receive GPS signal.
4.Spd:000km/h: the speed of tracker ran.
5.Bat:6 battery balance（the range is from 1 to 6）
6.ID:4209504543: ID code of device(used for connect tracking website or APP)
7.S31G07；plmn：50216 GSM operator data
8.Lac：21042，cellid:12543 LBS data
Status of indicator
Meaning
Red led on all the time
Charging
red led flash
Low battery
red led off
Full battery or charged full

5
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Change the password
Set Password: Send sms: “password+old password+space+new password” to the unit to change the
password.
For Example, pls send sms: “password123456 000000”to terminal device, it will reply sms: “password OK”.
New password 000000 changed in success.
Be keep the new password in mind,you have to upload the software to restore the original setting in case
of losing the new password.
Make sure the new password is in 6 digits Arabic numbers, or the tracker can’t recognize the password.
Make sure that all the symbol“+”in sms commends is just for quick understanding, which don’t need to
enter “+”in sms, and “space”means press the spacebar button of the cell phone.
Authorization
Send SMS：“ admin+password+space+cell phone number”to set up a authorized number. The
other authorized numbers should be set by the first authorized number. If the number is successfully
authorized, the unit will reply “admin ok!”in SMS.
Send SMS：“ noadmin+password+space+authorized number”to delete the authorized number.
for example, please send：“ admin123456 0126366366”to tracker to set 0126366366 as an authorized
number.
When the authorized number call the device, it will hang up your phone and reply a real-time latitude and
longitude information, as below:

6
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Single Locating
If there is no authorized number, when any number dials up the unit, it will report a Geo- info; If there is
already an authorized number, then it will not respond when an unauthorized number calls it up.
Single message inquires the latitude and longitude information, any telephone number can send
instruction “where” to the equipment, the equipment will reply the latitude and longitude information to
this telephone.
When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as below:
Tracking location, When GPS signals is weak, the position of latitude and longitude included in the SMS is
the position that the tracker received GPS signals at last. If it is different with its exact current location, pay
attention to check the time included in the SMS you got.
Auto Track
Send SMS command “t030s005n+password” to the tracker device, it will report the “no reply”at 30s
intervals for 5 times. (s:second, m:minute, h:hour). This command setting must be in 3 digits and the
maximum value is 255.
Unlimited times auto track: Send SMS “t030s***n+password” to the tracker device, it will reply the “no
reply” continuously at 30 seconds intervals.
Cancellation: Send SMS “notn+password” to the tracker device, it will report the “notn ok”.
Note: the interval must not less than 20s.
Monitor (Voice Surveillance)
The command to switch between Track and Monitor are “tracker”and “monitor”.
The default mode is “track”(Track mode).
Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to “monitor”mode.
Send SMS “tracker+password” to the unit, it will reply “tracker ok!” and restore to “track” mode

7
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker

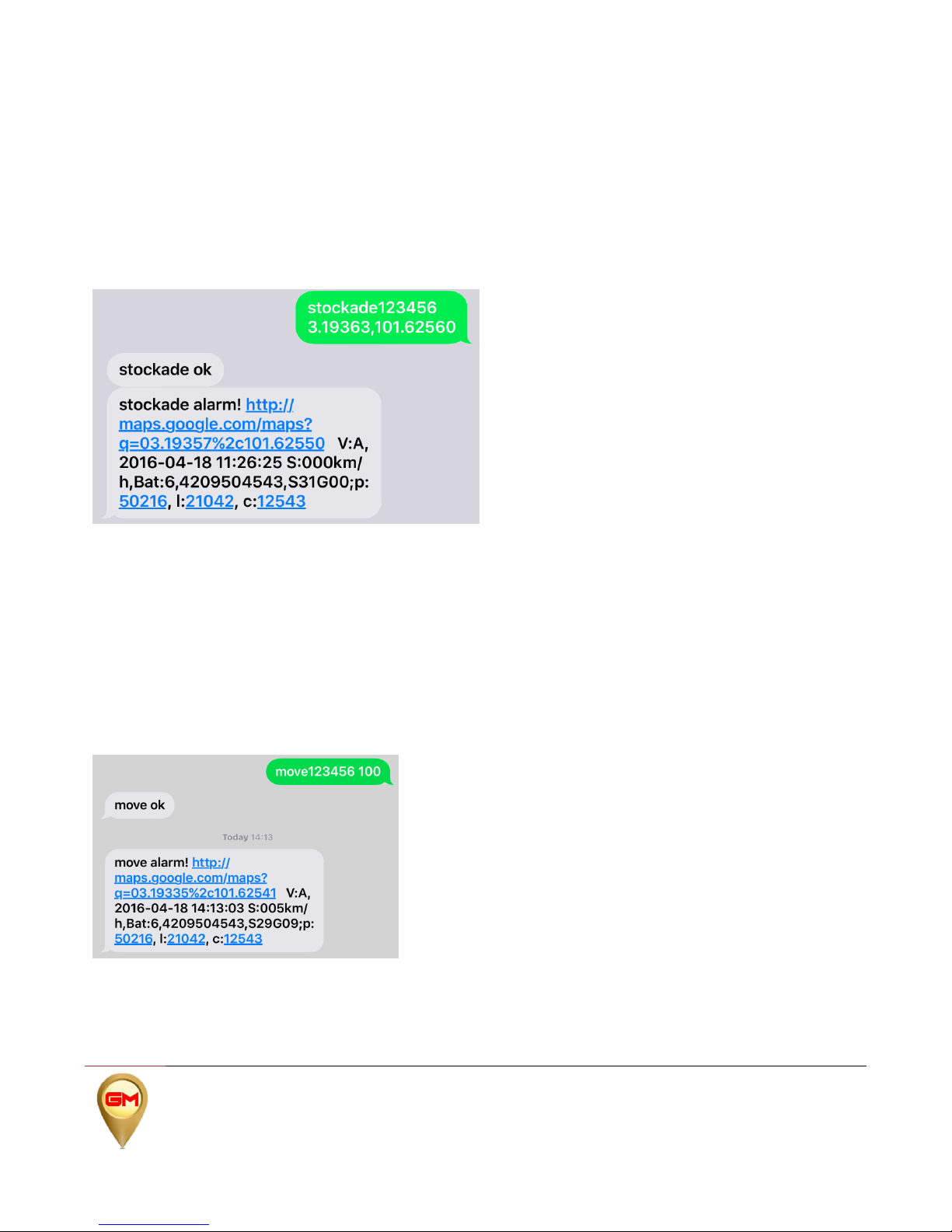

Geo-fence
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to
the authorized numbers when it breaches the district.
Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS:
“stockade+password+space+latitude,longitude; latitude,longitude” to unit to set the restricted district.
Remark: The first latitude & longitude is coordinate of the top left corner of the Geo-fence, while the second
latitude & longitude is the coordinate of the bottom right corner.
Cancel: Send SMS:” nostockade+password” to deactivate this function, tracker will reply “nostockade
ok”.
Movement alert
Set up: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS:
“move+password” to the unit, then the unit will reply “move ok!”. In case of such a movement（the unit
default distance is 100M）, it will send SMS “Move ALARM+ Latitude and longitude”to the authorized
number
Cancel: Send SMS:” nomove+password” to deactivate the movement alert, tracker will reply “nomove ok”.

8
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Overspeed alert:
Set up: Send SMS: “speed+password+space+050”to the unit (suppose the speed is 50km/h), and it will
reply “speed ok!”. When the target moves exceeding 50 km/h, the unit will send SMS :”speed ALARM !+
Latitude and longitude” to the authorized numbers every 5 minutes.
Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm, tracker will reply “nospeed ok”.
Remark: The recommended speed should be not less than 50km/h. For below that rate, it will be effected the
accuracy by gps signals drift etc.
Low battery alert
When GPS device battery is going to be about 3.7V, it will send SMS: “bat:l”at 30 minutes interval.
Terminal (local) Time Setting
Send SMS “time+space+zone+password+space+local time”.
For example, Send SMS “time zone123456 8”(time zone of China).
If the local time zone is negative as “-3”, then it should set as SMS: “time zone123456 -3”.
Bat:low
http://maps.google.com/maps?
q=00.00000%2c000.00000
v:V,2016-04-18 11:26:48
Spd:000km/h,bat:2,ID:4209504543
,S31G07;plmn:50216,lac:21042,cell
id:12543

9
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Sleeping power-save mode
On normal status, when the unit stoped over 10minutes, it will change to sleeping mode, on this mode, the
power consumption is 4mah/h only. When it get any command or been moved, it will start GPS locating
automatically.
Forced sleeping mode, Setting: Send SMS “sleep+password”, the unit will reply “sleep ok”, it enter to
forced sleeping power-save mode.
Start device, send SMS “nosleep+password”,the unit will reply “nosleep ok”, it start GPRS and GPS
locating.
Restore factory settings
Note: It is effective sending by authorized number
Send SMS command “format”, the unit will reply “The tracher will immediateiy restore the factory setting. All
previous settings will be canceled.”
OR
Send “begin+password” in SMS to the unit, it will replay “begin ok” and initialize all the setting. (Default
Password:123456)
For example, send SMS “begin123456” to the tracker via a cell phone, If succeeded, it will replay “begin
ok”

10
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker

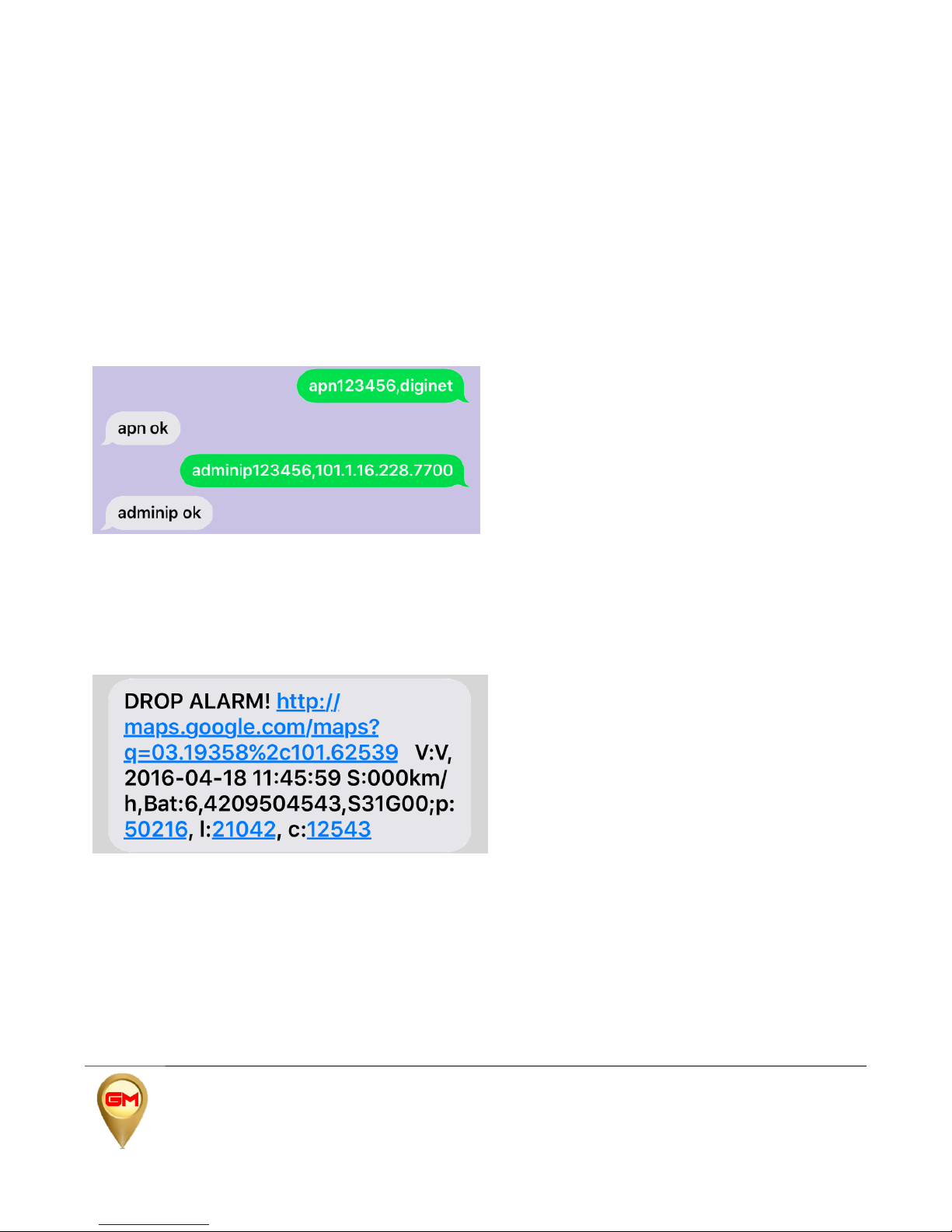

GPRS setting
User must send SMS via cell phone to set up IP, port and APN before starting GPRS.
Setting up APN
APN standards for Access Point Name and differs from country to country. For more information about the
local APN, inquire with your local GPRS network operator.
Text the tracker a SMS “apn+password + Space + your local APN” via a cell phone and if succeeded in
setup, the tracker will return the message “apn ok”.
e.g. send SMS command “apn123456 cmnet”. If succeeded, “apn ok” is returned by the tracker in SMS.
Notes: 123456 refer to password of tracker and CMNET is the APN of China Mobile (One of GSM
Operator in china).
Set IP Send SMS command：adminip123456,101.1.16.228.7700 if succeeded, “adminip ok”
Dropped Alarm
When device have been attracted on metal 10 minutes after ( the Dropped button have been pressed 10
minutes ) ,if it device was dropped , it would alarm to the user by SMS or calling .

11
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Shock alert
Note: It is effective sending by authorized number
Send SMS command“shock+password”, the unit will reply “shock ok.”
Cancel: Send SMS command “noshock+password”, the unit will reply “noshock ok.”
Faults & The Solutions
Faults
Solution
Startup Fail
Check the battery and see if it is fully charged or
correctly installed.
Hang up Fail
In existence of an authorized number, and unauthorized
number dials up the unit. Please initialize the unit and
re-set up the authorized numbers.
Monitoring Failure
Please check sure authorization number is set to the
correct time.
No GSM Signal
Please make sure SIM Card is GSM Net and installed
correctly; also call display should be on; but no call
transfer and PIN code off.
Command List (Please note 123456 is the default password).
Feature name
Active command
Replay
Cancel
command
Replay
Begin(blank before
set)
begin123456
Begin ok
Admin number
admin123456+space+numb
er
Admin ok
noadmin123456+s
pace+number
Noadmin ok
Sos number
sos123456+space+number
Sos number ok
nosos123456+spac
e+number
Nosos number ok
Sossms
sosms123456
Sossms ok
nosossms123456
Nosossms ok
Soscall
soscall123456
Soscall123456 ok
nososcall123456
Nososcall ok
Password
password123456+space+ne
w
Password ok
Sever ip & port
adminip123456+space+ip+s
pace+port
Adminip ok

12
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
APN
apn123456+space+local
apn content
Apn ok
LBS
Addjz=1
Open LBS
Addjz=0
Close LBS
GPRS
gprs123456
Gprs ok
nogprs123456
Nogprs ok
Time Zone
Timezone123456+space+8
Timezone ok
Timezone123456+
space+-8
Timezone ok
Restore factory
setting
farmat
No replay
Upload
frequency(10-180s)
upload123456+time
Upload ok
Sleep working mode
sleep123456+space+time
Sleep time ok
Wake up by
sms,call press
button
Shock working
mode
No sleep working
mode
nosleep123456
Nosleep ok
Get location
where or G123456#
Google map link
One way
communication
monitor123456
Monitor ok
In this mode,you
could hear the
voice araound
units after call it
Shock alarm
shock123456
Shock ok
noshock123456
Noshock ok
Shock call alarm
vibcall123456
Shock call alarm ok
Shock sms alarm
vibsms123456
Shock sms alarm ok
Move alarm
(distance:100-
5000m)
move123456+
space+distance
Move ok
nomove123456
Nomove ok
Overspeed
alarm(50-120km/h)
speed123456+space+max
speed
Speed ok
nospeed123456
Nospeed ok
Set a geo-
fence(stockade)
stockade+123456+space+lo
ng,lat;long,lat
Stockade ok
nostockade123456
Nostockade ok
Check setting of
device
Param1
Software version,date,
imei,ip & port,apn,web
platform
Param2
Admin number,sos
number,move
distance,speed,etc
Status of device
status
Bat:4,gprs:1,gsm:3,gsm:
1,acc:0,oil:0,power:1,s:0
Language
Lag1
Switched to english

13
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Webplatform and GMGPS app
If you wish to use the web platform or GMGPS application you’ll need the server and port settings to be
able to connect to them. Below you can find the default server settings:
Server URL
Sever IP
Port
www.gm63gps.com
101.1.16.228
7700
Login on web platform
Go to the following url: www.gm63gps.com and login with your IMEI number
(see image) and password (default: 123456).
Keep this information to yourself and please be aware who you share this
information with. It is wise to change your password from day 1. This can be
done on the website by clicking on “change password” in the top-right corner.
Login in iOS and Android app
GMGPS app is compatible with iOS and android. After downloading the application start the app, press on
“log in by IMEI” and login with your IMEI (see 5.1) and password (default: 123456). By default the server
must be set to www.gm63gps.com.
App download
Android & iOS version: scan below QR code or Search GMGPS & “GMGPS”in app store
Login using your IMEI and password.
IMEI Number

14
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Functionalities in the GMGPS APP
Real-time
Follow the selected tracker on a map
Historical
See all previous location updates
Geofence
Manually set a safezone
Issue Command
Send commands to the tracker by SMS or GPRS
Device Info
View and edit the tracker information
Device (message)
This is where you can view all given alert message
Alarm Setting
This is where you can turn on/off each alarm message

15
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Login/登陆

16
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Realtime/实时跟踪
Historical/历史轨迹

17
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Geofence/ 电子栅栏

18
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker

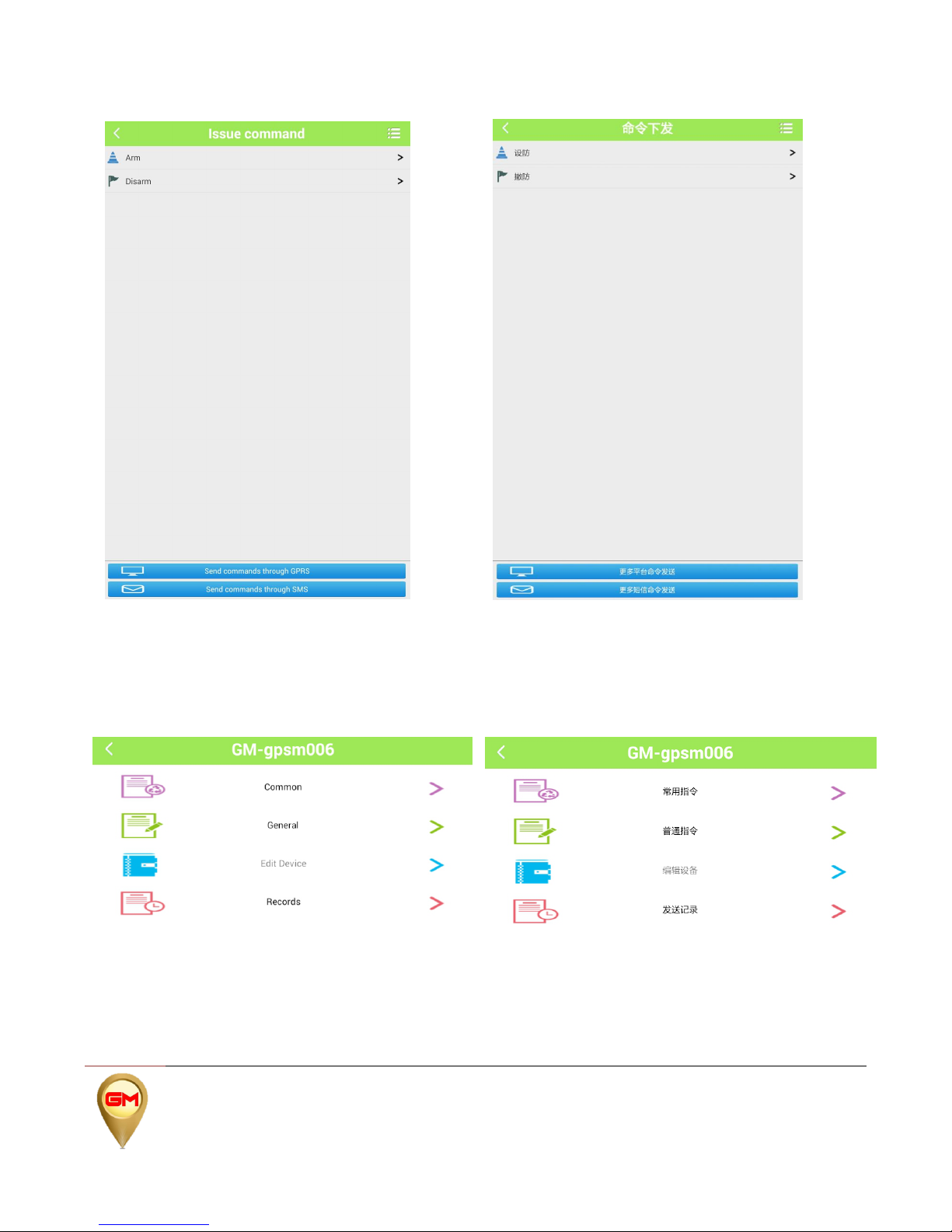

Issue Command /命令下发

19
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker
Command/ 常用指令
Set Master number/ 设置主控号码

20
GM SAFETY TRAINING SDN BHD (1173191-T) GMGPS Tracker

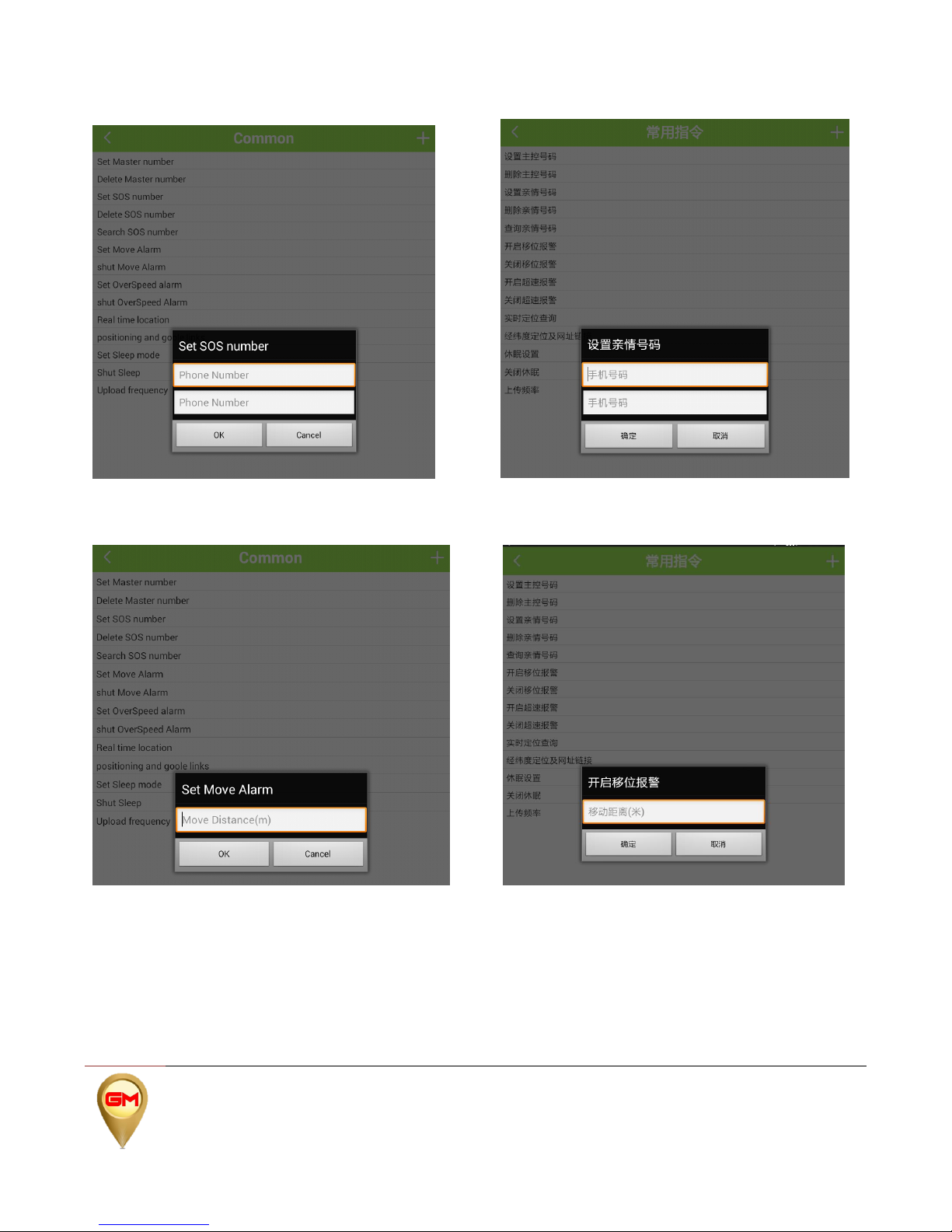

Set SOS number/ 设置亲情号码
Set Move Alarm/ 开启移位报警
