Grizzly H8070 User manual

COPYRIGHT © OCTOBER, 2012 BY GRIZZLY INDUSTRIAL, INC. REVISED OCTOBER, 2013 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JM15437 PRINTED IN USA
The Model T25414 is the same kit as the Model H8070, except it features an alder body without the curly
maple veneered top. Except for the differences noted in this insert, all other content in the Model H8070
owner's manual applies to this kit. Before working with your new kit, you MUST read and understand this
insert and the entire Model H8070 manual.
If you have any further questions about this manual insert or the differences between the Model T25414 and
the Model H8070, contact our Technical Support at [phone] or email [email protected].
MODEL T25414
HEIRLOOM
COUNTRY/BLUEGRASS
ALDER GUITAR KIT
MANUAL INSERT
V1.10.13

-2- T25414 Manual Insert
T25414 Parts Inventory
Figure 2. Guitar parts.
6
3
4
7
8
5
13
Figure 1. Boxed components.
1
2
REF PART # DESCRIPTION
1 PT25414001 ALDER GUITAR BODY
2 PH8070002 NECK
3 PH8070003 PICK GUARD
4 PH8070004 NECKPLATE
5 PH8070005 TUNING MACHINE 6-PC
6 PH8070006 CONTROL PLATE
7 PH8070007 BRIDGE
8 PH8070008 PICKUP
9 PH8070009 HEX NUT BUSHING
10 PH8070010 OUTPUT JACK COVER
11 PH8070011 OUTPUT JACK
12 PH8070012 STRING SET 6-PC
13 PH8070013 STRAP BUTTON
14 PH8070014 CHROME SCREW 5 X 45MM
15 PH8069018 CHROME SCREW 3.5 X 25MM
16 PH8069019 CHROME SCREW 3.1 X 12MM
17 PH8070017 CHROME SCREW 2.1 X 14MM
18 PH8070018 CHROME SCREW 2.5 X 16MM
19 PH8069021 CHROME SCREW 2.5 X 14MM
20 PH8070020 ROUND STRING RETAINER
21 PH8070021 STRING NUT
22 PH8070022 FERRULE
23 PAW04M HEX WRENCH 4MM
24 PAW01.5M HEX WRENCH 1.5MM
25 PW01M FLAT WASHER 8MM
Inventory
Figure 3. More guitar parts.
10
18
21
11
12
16
15
14
22
23 19
20
24
9
17
13
25

COPYRIGHT © NOVEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC. REVISED OCTOBER, 2013 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL8552 PRINTED IN KOREA

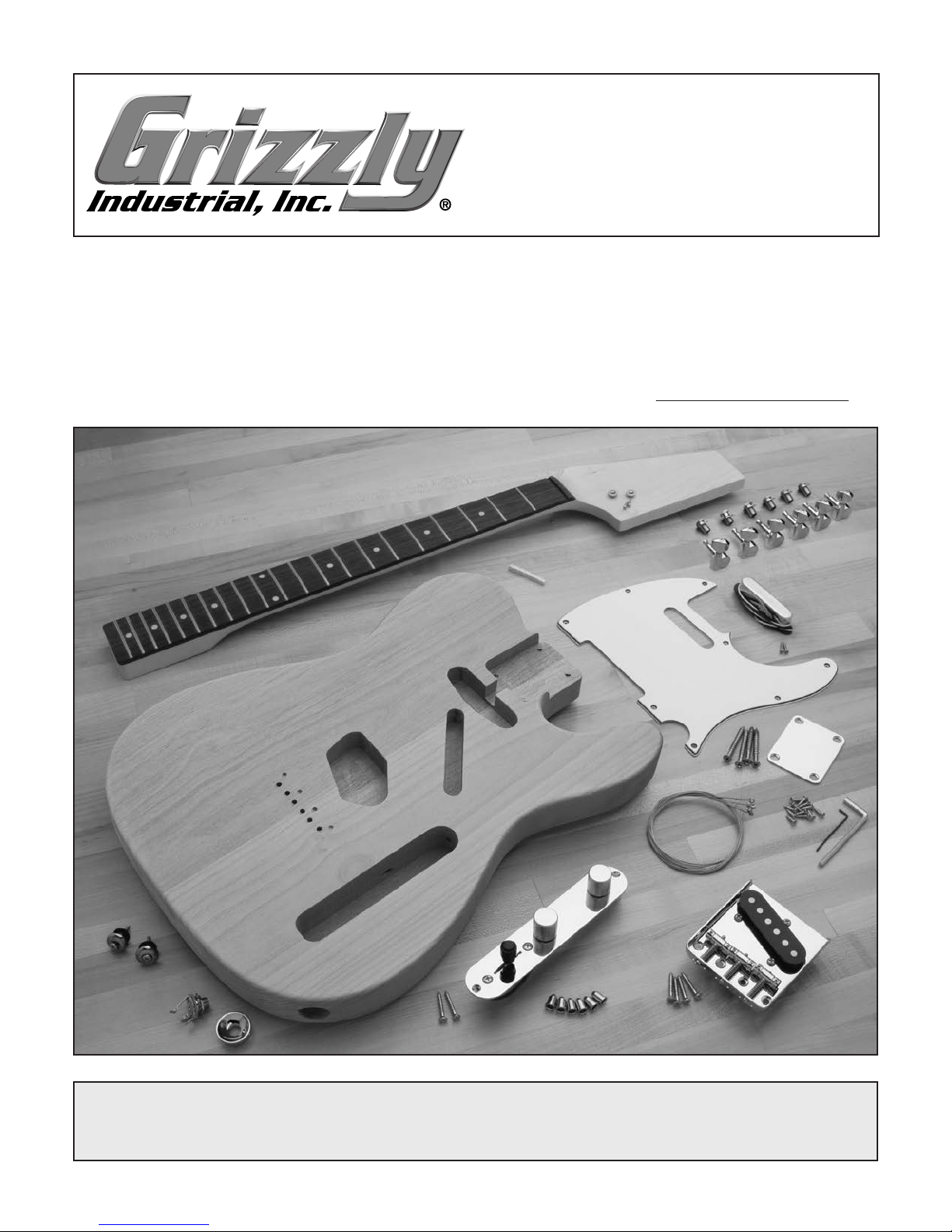

MODEL H8070
HEIRLOOM CLASSIC-STYLE
GUITAR KIT
OWNER'S MANUAL
(For models manufactured since 7/06)
V1.10.13

For Your Own Safety,
Read Instruction Manual
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activi-
ties contains chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
Your risk from these exposures varies, depending on how often you do this type of work.
To reduces your exposure to these chemicals: Work in well ventilated area, and work with
approved safety equipment, such as those dust masks that are specifically designed to filter
out microscopic particles.
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other masonry products.
• Arsenic and chromium from chemically-treated lumber.

Table of Contents
SECTION 1: SAFETY....................................................................................................................... 2
SECTION 2: INTRODUCTION.......................................................................................................... 3
Foreword .................................................................................................................................... 3
Contact Info ................................................................................................................................ 3
SECTION 3: PARTS INVENTORY................................................................................................... 4
Inventory ..................................................................................................................................... 4
Supplies/Tools ............................................................................................................................ 5
Identification ............................................................................................................................... 6
SECTION 4: ASSEMBLY ................................................................................................................. 7
Shaping Headstock .................................................................................................................... 7
Sanding Body ............................................................................................................................. 8
Sanding Neck ............................................................................................................................. 8
Finishing Neck ............................................................................................................................ 9
Finishing Body ............................................................................................................................ 9

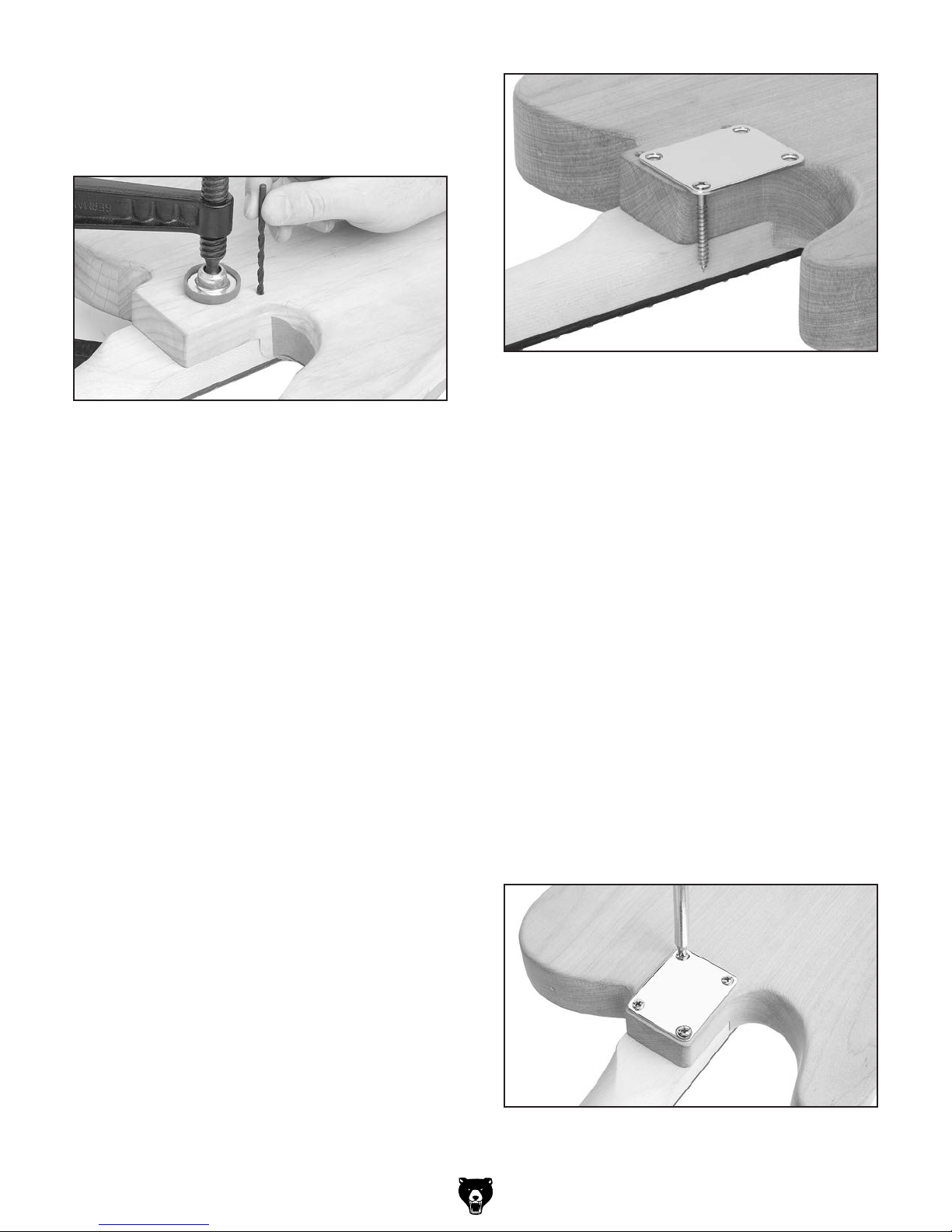

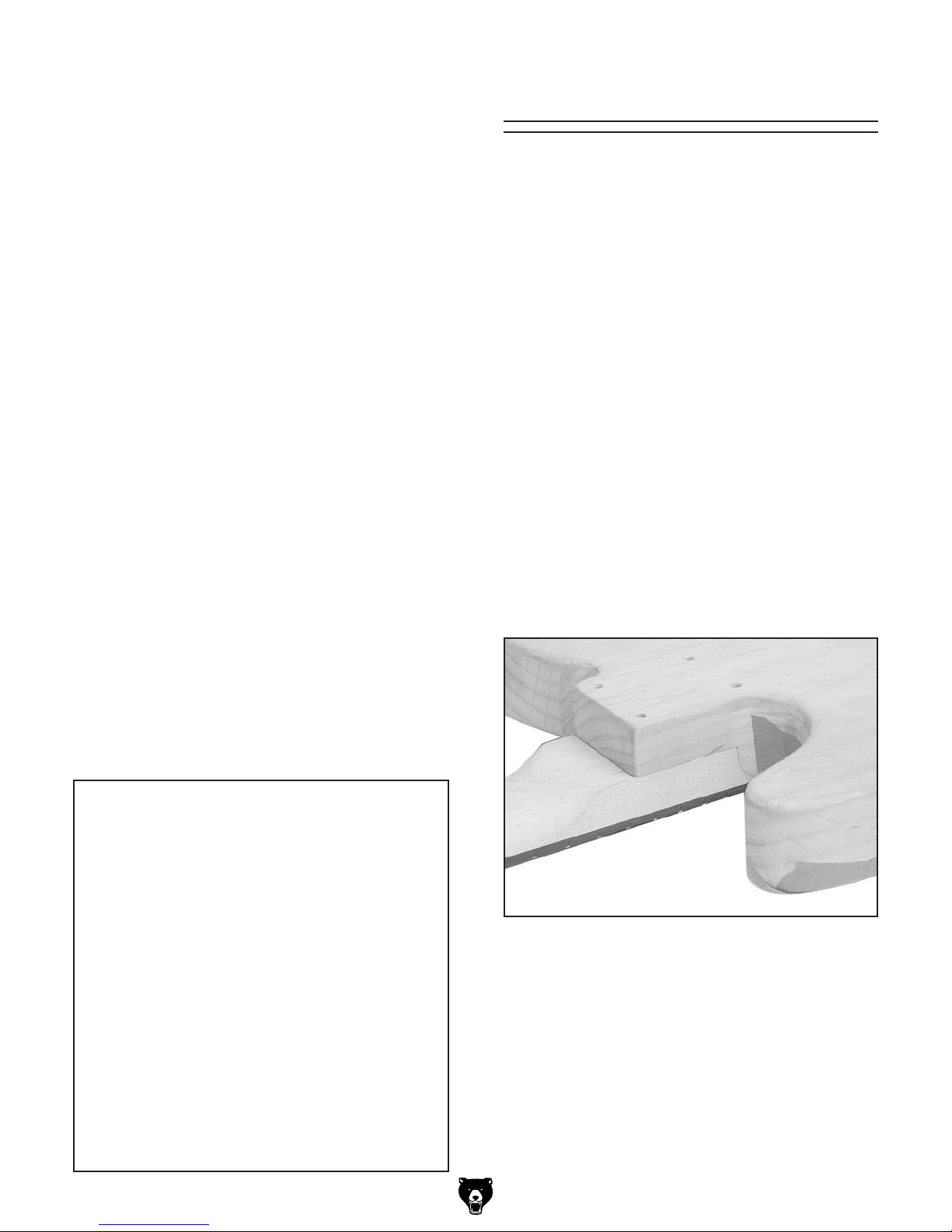

Mounting Neck ......................................................................................................................... 10

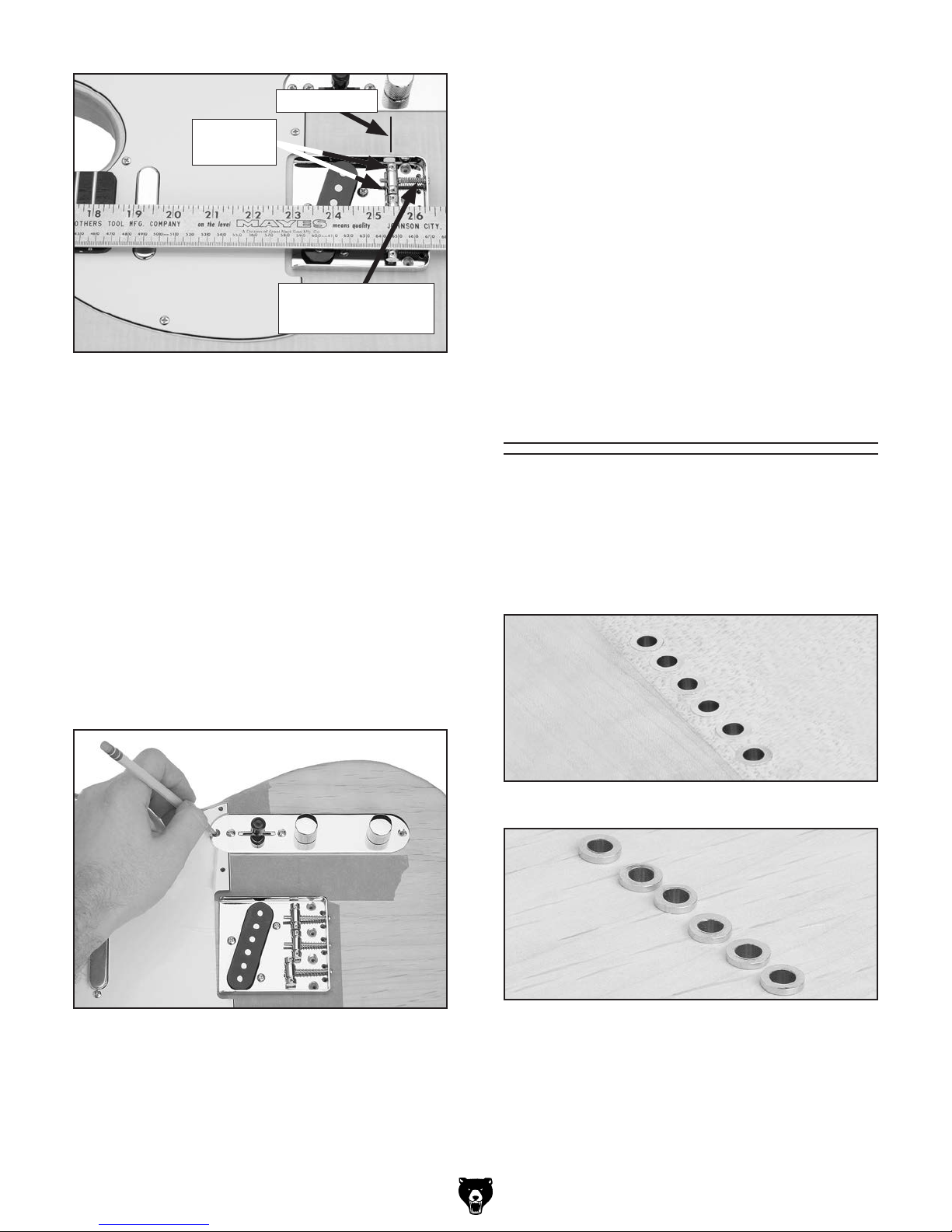

Positioning Pick Guard, Control Plate & Bridge ....................................................................... 12
Installing Ferrules ..................................................................................................................... 13

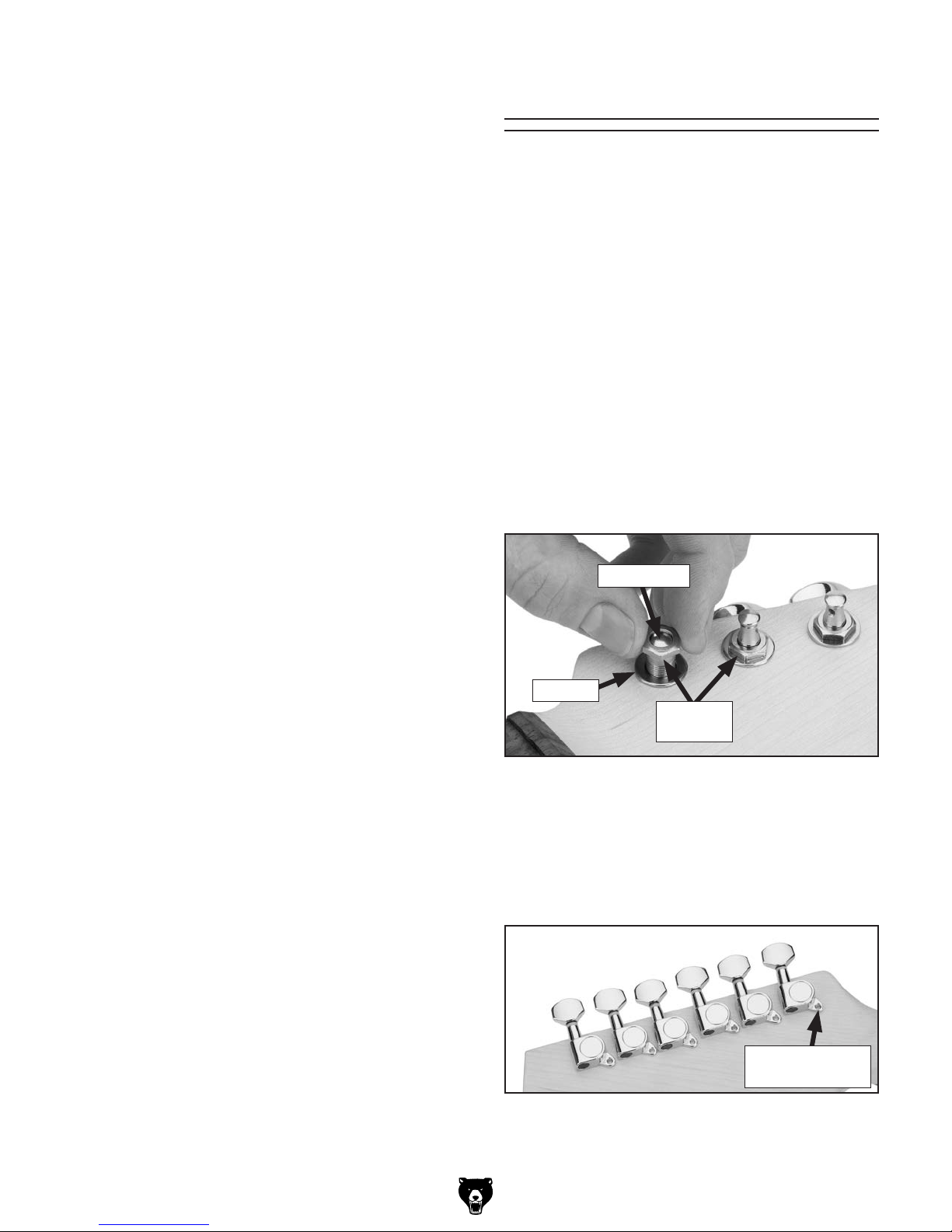

Mounting Tuners ...................................................................................................................... 14
Wiring Pickups.......................................................................................................................... 15
Installing Output Jack ............................................................................................................... 16
Installing Bridge, Pickups & Controls ....................................................................................... 16
Strap Buttons............................................................................................................................ 17
Installing Nut............................................................................................................................. 17
Winding Strings ........................................................................................................................ 18
String Retainers........................................................................................................................ 19
SECTION 5: SETUP ....................................................................................................................... 20
General ..................................................................................................................................... 20
Neck Adjustment ...................................................................................................................... 20
String Height............................................................................................................................. 21
Pickup Height ........................................................................................................................... 22
Tuning ...................................................................................................................................... 22
Setting Intonation ..................................................................................................................... 23
SECTION 6: REFERENCE INFO ................................................................................................... 24
Accessories .............................................................................................................................. 24
Electrical Components ............................................................................................................. 27
Wiring Diagram......................................................................................................................... 29
WARRANTY AND RETURNS ........................................................................................................ 30

SECTION 1: SAFETY
These instructions assume that you are intimately familiar with the safe operation and use of
woodworking machinery and woodworking tools, and understand the techniques used to build this
project. If you do not qualify for both of these criteria, STOP building this project for your own
safety. Read and understand the owners manual for the machinery you intend to use, take a wood-
working class or visit your local library for more information. Woodworking machinery and tools
are inherently dangerous because they use sharp edges that can and will cause serious personal
injury including amputation and death. Do not underestimate the ability of these tools and machin-
ery to cause injury. Never operate any tool without all guards in place and always wear approved
safety glasses. For your own safety, please heed this warning.
Always wear safety glasses or goggles when operating equipment. Everyday glasses or read-
ing glasses are not safety glasses. Be certain the safety glasses you wear meet the appropri-
ate standards of the American National Standards Institute (ANSI).
Because there are various ways to cut and join wood, you can make substitutions for the methods
stated in this plan. We try to suggest the easiest methods possible. However, only you know your
skills with each piece of machinery. Never compromise your safety by using a cutting method
with which you are not comfortable. Instead, find an alternative approach that will yield the same
result.

Model H8070 (Mfg. Since 7/06) -3-
Foreword
SECTION 2: INTRODUCTION
We are proud to offer the Model H8070 Heirloom
Classic-Style Guitar Kit. This kit is a part of a
growing Grizzly family of fine woodworking prod-
ucts. When assembled according to the guide-
lines set forth in this manual, you can expect
years of enjoyment from your guitar.
We are pleased to provide this manual for the
Model H8070. It was written to guide you through
assembly, review safety considerations, and cover
general information. It represents our effort to pro-
duce the best documentation possible.
Most importantly, we stand behind our products. If
you have any questions or parts requests, please
call or write us at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
H8070 as supplied when the manual was pre-
pared. However, owing to Grizzly’s policy of con-
tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com.
Contact Info

-4- Model H8070 (Mfg. Since 7/06)
SECTION 3: PARTS INVENTORY
Figure 1. Boxed components.
Inventory 1
REF PART# DESCRIPTION QTY
1 PH8070001 Guitar Body 1
2 PH8070002 Neck 1
3 PH8070003 Pick Guard 1
4 PH8070004 Neckplate 1
5 PH8070005 Tuning Machine 6
6 PH8070006 Control Plate 1
7 PH8070007 Bridge 1
8 PH8070008 Pickup 1
9 PH8070009 Hex Nut Bushing 6
10 PH8070010 Output Jack Cover 1
11 PH8070011 Output Jack 1
12 PH8070012 String 6
13 PH8070013 Strap Button 2
14 PH8070014 Chrome Screw 5 x 45mm 4
15 PH8070015 Chrome Screw 3.5 x 25mm 8
16 PH8070016 Chrome Screw 3.1 x 12mm 12
17 PH8070017 Chrome Screw 2.1 x 14mm 6
18 PH8070018 Chrome Screw 2.5 x 16mm 2
19 PH8070019 Chrome Screw 2.5 x 14mm 2
20 PH8070020 Round String Retainer 2
21 PH8070021 String Nut 1
22 PH8070022 Ferrule 6
23 PAW04M Hex Wrench 4mm 1
24 PAW01.5M Hex Wrench 1.5mm 1
25 PW01M Flat Washer 8mm 6
2
Figure 2. Guitar parts.
6
3
4
7
8
5
Figure 3. More guitar parts.
10
18
21
11
12 13
16
15
14
22
23 19
20
24
9
17
25

Model H8070 (Mfg. Since 7/06) -5-
Most wood components in this kit are fully
machined at the factory and are ready for assem-
bly. A small amount of sanding and finishing is
needed to complete your guitar.
Recommended Tools & Supplies:
• Sharp Pencil
• Drill Press
•
Drill Bits:
1
⁄ 16 ",
3
⁄ 32 ",
5
⁄ 32 ",
5
⁄ 16 ",
11
⁄ 32 ",
25
⁄ 64 "
• Electric/Cordless Drill
• Depth Stop
• NIOSH Approved Respirator
• ANSI Approved Safety Glasses
• Aluminum-Oxide Sanding Paper #150, #220
and #320 Grit
• Wet and Dry Sanding Paper #400, #600, and
#1000 Grit
• Flexible Sanding Block
• Wood Glue
• Chisel or Razor Blade
• Phillips Screwdriver #1, #2
•
1
⁄ 4 " Steel Rod or a Coat Hanger
• Masking Tape
• Tack Cloth
Supplies/Tools
• Bandsaw with
1
/ 4 " Blade or Coping Saw
• Tack Cloth or Soft Cloth
• Sanding Sealer
• Assorted Wood Files
• Buffing Compounds
• Oil Wood Finish
• Soldering Iron and Solder
• Peghead Reamer or a Round File
• Rubber Dead Blow Hammer
• Tweezers, Pliers, Wire Cutters
• C-Clamps
• Temporary Wood Handle:
Approximately 1" x 2" x 16"
• Guitar Capo
• Feeler Gauge Set
• Spray Primer and Finish (See Note Below)
• 18" Metal Straightedge (
1
⁄ 32 " Resolution)
• 36" Metal Straightedge
•
Steel Ruler (1⁄64" Resolution)
• Wood Dowel
• Wood Blocks: 4" x 4" x 12" (2)
•
Wood Shim: 7⁄16" Thick
Note: Use the same type of paint for primer
and finish—either enamel or lacquer base.
Do not use different base paints for priming
or finishing or your results may not be desir-
able.

-6- Model H8070 (Mfg. Since 7/06)
Identification
Headstock
Neck
Strap
Button Bridge
Fret
Tuning Post
Figure 4. Model H8070 controls.
Figure 5. Model H8070 headstock features.
Volume
Knob
Tone
Knob
Output
Jack
Pickups
Strap
Button
Three-Way
Switch
String Retainers
Nut
String Slot
Neck Pocket
Tuner or Tuning Machine
