GTD GTAL-SW50C User manual

Page 1 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.

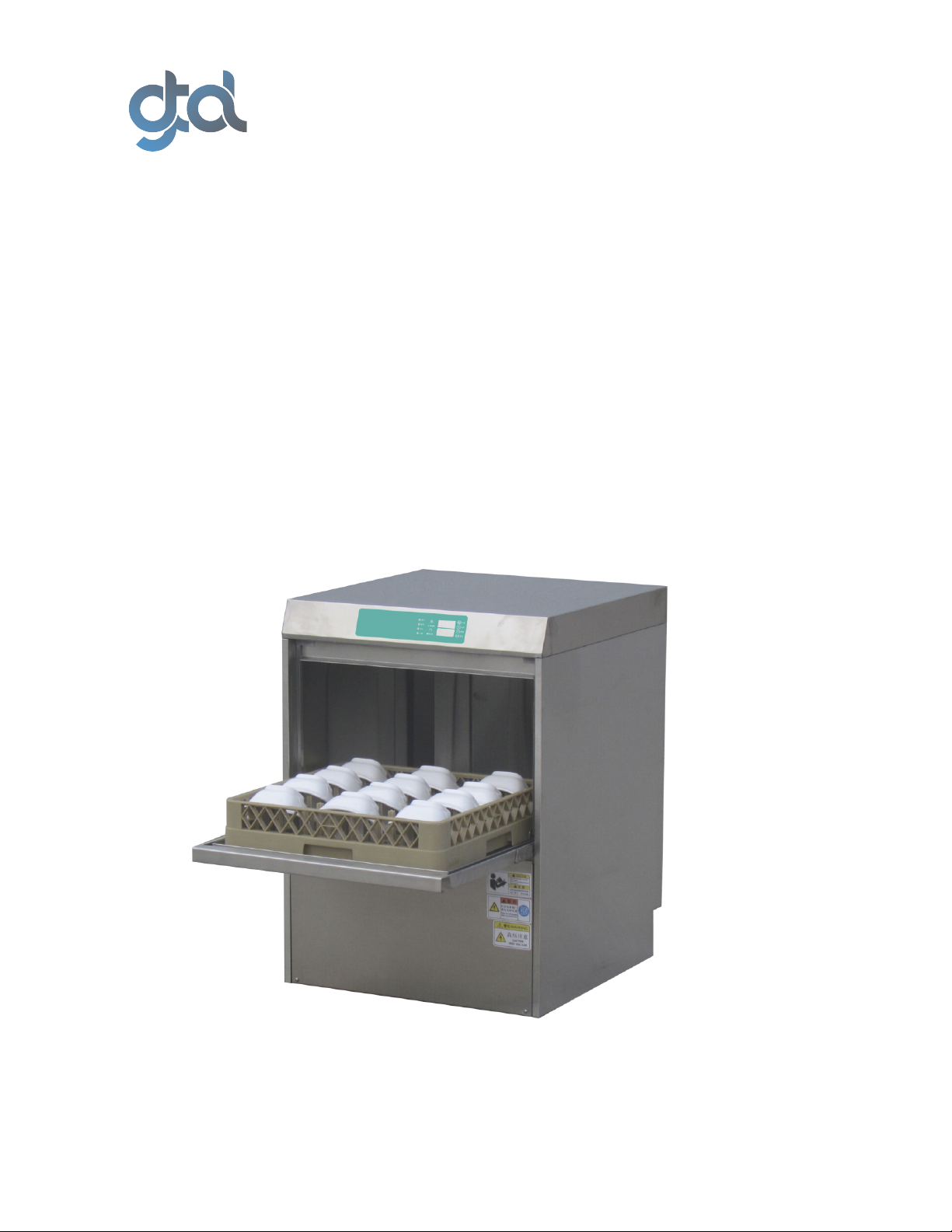

USER MANUAL
UNDERCOUNTER DISHWASHER
GTAL-SW50C

Page 2 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Table of Contents
Model &Name ........................................................................................................................ 3
Diagrammatic representation ................................................................................................. 3
Function & Characteristics ...................................................................................................... 4
Technical Data ........................................................................................................................ 4
Main Structure & Working Principle ........................................................................................ 5
Installation ............................................................................................................................. 5
Water supply & Connection ............................................................................................................. 5
Drain water ...................................................................................................................................... 5
Power supply ................................................................................................................................... 6
Operation panel ..................................................................................................................... 6
Operating Steps ............................................................................................................................... 6
Test Steps ............................................................................................................................... 7
Safe installation the usage of dishwasher ............................................................................... 7
Operation instruction ............................................................................................................. 8
Operation cautions ................................................................................................................. 8
The position of washing item .................................................................................................. 9
Safety cautions ..................................................................................................................... 10
Diagrams .............................................................................................................................. 11
Diagram1 SW50C Appearance ................................................................................................. 11

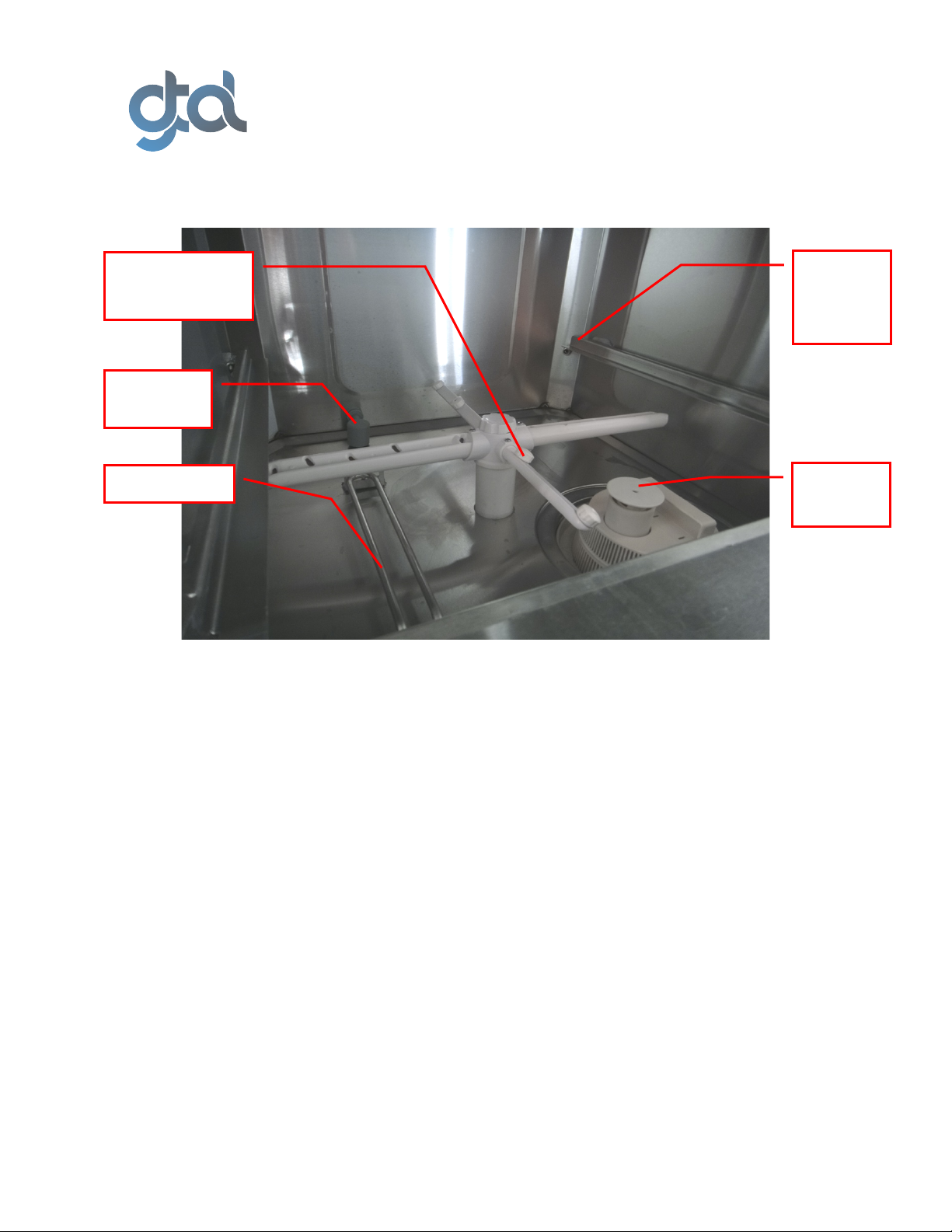

Diagram2 Washing tank parts .................................................................................................. 12

Page 3 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Model & Name
Model: SW50C
Name: Under counter Dishwasher
Diagrammatic representation

Page 4 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Function & Characteristics
To ensure high quality washing results, the machine adopted the most popular design of rotary washing
arms and rinse arms. The operating board is equipped with a microcomputer control system, ensuring
high washing standard of various dishes and glass. This product is best suited for bar, coffee-shop, tea-
room etc.
The product comes with the following features:
1. Wash tank and booster install with heat insulation device and energy saving mechanism.
2. Wash tank water is filtrated two times, so that the water for washing will be cleaner. Water is
recycled.
3. Self-cleaning function of machine ensures that the machine is cleaned conveniently and
ensuring the good sanitation and cleanliness to the highest standard.
4. System Control includes washing detergent and rinse detergent filling program. This program
works efficiently and seamlessly with GTAL Specialized Feeder on detergent and rinse chemical
addictive.
Technical Data
Rack size 500×500×100 mm
Operation Time 60/90/120S
Capacity 20~50 racks/h
Rated Voltage Optional 220 V &380V
Rated Frequency 50 Hz/60HZ
Pump Power 0.55KW
Tank Heat Power 2 KW
Rinse Heat Power 6 KW
Tank Volume 25 L
Rinse Water Consumption 3L/rack
Shell Size 600×600×820 mm
Net Weight ~80Kg
Total Power 6.55kW

Page 5 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Main Structure & Working Principle
The machine is built consisted of the following: stainless-steel frame, washing system, rinse system and
electric control etc. It draws the water from the wash tank through the pump which also pressurizes and
circulates the water. The temperature of the water in the wash tank is always controlled at the range of
50℃ by the temperature controller. During cleaning operation with the tray in the washer, the upper
and lower washing arms will be rotated by the water pressure. The advantage of this cleaning method is
that the washing arms can clean the bowls and plates in every angles. Upon completing wash with
detergent, the rinse system will kick in within the range of 82℃ high temperature clean water sprayed
from the rinse arm. The last rinse is then used as the next washing water. The rinse detergent can
evaporate the water in the dishware without any trace.
Installation
The machine must installed by qualified installation person. That machines should be installed on solid
floor with drainage.
• Dimension: 600×600×820 mm
• Check Up: Check whether the machine is firm, fasten all bolts in the machine.
• Leveling: Leveling machine by adjusting the foot of machine, then do the calibration of
horizontal and vertical direction by level tester to make sure the machine is stationary.
Water supply & Connection
• Requirement
Water pressure: 0.25 – 0.50 Mpas
The least water flux: 20L/min
Consumption: about3L/cycle
• Connection
Before connection, use the hose which is supplied to connect to the washing pipe. Water outlet
pressure should be over 0.50MPa.
Drain water
Use supplied hose to connect to the drainage outlet.
Note: Do not recycle the water.

Page 6 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Power supply
• 380V Power Connection: Total voltage is 380V and 50Hz three-phase five-wire system with
reliable grounding. The diameter of electric wire is 2.5mm².
• 220V Power Connection:(220V 50Hz) Power line dimension is 3×6mm² with reliable grounding.
• Please add a circuit breaker in the device's external, the specification of circuit breaker :40A
three-phase four-pole Leakage protection switch. (Neutral wire should pass circuit breaker).
Operation panel
Operation of the machine
(0) Running
(1) Water level
(2) Filling
(3) Door sensor
Operating Steps
1. After completion of water injection, the washing heater and rinsing heater will start to heat to
the setting temperature. (such as, 50 ~ 60 ℃ for washing temperature, rinsing temperature 80 ~
85 ℃)
2. When the wash sequence ends, it will be prompted by a buzzer for 4 seconds. When the buzzer
stops, the washing will end. When the running indicator is off, open the cover door, pull out the
washing basket and prepare for the next operation
3. After the completion of work, press button 1 to turn off the machine, pull out the drain plug
(overflow rod) in the washing tank, discharge the sewage and clean the inside of the machine.

Page 7 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Test Steps
1. Connect the power line, water inlet & water outlet according to the technical data.
2. Make sure all the devices mentioned above is connected. Confirm all the parts is ready, such as
filter, tray, drainage & vertical component. If you’re adding water into the machine manually,
please turn off the machine before doing so
Attention: When setting the temperature, the test person should communicate with user.
Because the rinse temperature is depending on the different kinds of dishware.
Safe installation the usage of dishwasher
Attention: Machine consists of electricity and mechanical device. Any improper installation & operation
will lead to possible accident and damaging the equipment’s.
1. Installation cautions
Please ask the qualified personnel to install the machine according to installation instruction,
connecting the correct voltage &electric current & please add circuit breakers outside.
2. Training & Guidance
Read & understand the operation instruction. Then train workers. The children and weakling are
not allowed to operate the machine
3. Hot surface
Please pay attention to some parts of machine where will get hot
4. Chemical
a. The washing detergent for the dishwasher is harmful. Please use the detergent
according to the safety instruction which listed in the tag on the detergent bottle and
abide to the safety data of material.
b. Please use it carefully, if chemical is installed upside down, please wear the eye shade
and protective clothing during operations.
5. Hot water
The safety switch of door is used for urgent use. And the temperature of the washing water is
50℃.Don't put hand into the clean water, because the water combines with alkalinity washing
detergent.
6. Machine cleaning
Washing the inner of machine, especially for glass washing machine, please pay attention to the
cullet.

Page 8 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
7. Line change
To avoid the potential dangerous, if there is problem with circuit, please ask the manufacturer
or the service agent or the person who is qualified to change it.
Operation instruction
1. Power on to wash
a. Push the basket into the machine and close the door
b. Turn on the power and the water will be added automatically.
c. Select the washing cycle(washing1&washing2) based on the dirty degree of dish
2. Turn off the machine
Attention: It is very important that to turn off the machine every night.
a. Open the door and pull out the overflow pole.
b. The drainage time is about 2 min.
c. Please clear away the residue on the filter after drainage and clean the machine.
3. Clean machine
We suggest washing the washing & rinse arm regularly, disassemble the washing & rinse arm,
then wash it. You can loosen the screw to disassemble the arm.
Please use toothpick or hairpin to clean the rinse nozzle. If there is need, you can disassemble
the rinse arm then use the water to wash the nozzle.
Operation cautions
1. Hot water supply
Supplying the proper temperature & pressure of water is the basic condition when use the
machine. Because the improper hot water will lead to the delay of the operation cycle (As for
the details, please refer to the installation information). Using the softened water in the area
where the hardness of water is high, especially when wash the glass.
2. Pre-rinse
Please wipe the plates in advance according to the food hygiene rules. The best way is using the
hot water to swash the plates or wipe it or soak in water. The dishware should be soak in hot
water in advance, it’s better to add the soaking detergent in water which you can ask the
supplier for details.
3. Rack
Don't let the rack and containers be overloaded, and don't stack the dishware. Because the

Page 9 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
recycle time is short and the water consumption is low in every cycle. It is bad to overload the
rack.
4. Recycle time
The longer recycle time will not lead to the increasing of water consumption. Therefore, it's
better to choose the longest recycle time if possible.
5. Washing detergent
The correct type of washing detergent with good quality will determine the machine
performance. We suggest using Low foam type products. We also advise you to cooperate with
the supplier who can supply the washing detergent which is specialized for the dishwasher-The
best thing is you and supplier are in the same area. So that you can learn how to use the soak
solution, washing detergent and rinse detergent from supplier.
6. Dry
The dishwasher of single tank type has no dry system. But it will dry more quickly when it
washed in high temperature with rinse detergent .We suggest stop the racks in the machine for
2-3min before take the dishware out from the rack .But the time will be reduced if you use the
rinse detergent correctly, furthermore, it will reduce the water tension, make the water
volatilized quickly .As for the rinse detergent and dispenser, please refer to the information
which is provided by supplier.
7. Daily cleaning
Please drain off water and clean the machine after work every day. Taking out the filter to clean
after drainage. And washing the washing &rinse arm regularly. Disassemble the rinse nozzle and
use the clean water to wash it. Then assemble all parts after cleaning.
The position of washing item

Page 10 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Safety cautions
1. The machine plate is engraved with the product specification, please check if the Power
standard conform to machine standard and joint them according to manual indication.
a. Only qualified technician could be permitted to operate or maintain the electrical parts
of the machine.
b. Please Disconnect the power and water supply when taking down the shell to install or
maintain the machine.
2. Operation
a. The machine should be handled by the people who has been trained.
b. Please wear the gloves when you ready to take out the racks from the machine in order
to avoid burns.
c. Don't put anything on the machine to prevent the machine from overturning.
d. The water in the washing tank can't drink.
e. To be careful when open the door while washing, because the water will spill out from
machine
f. Don't add any menstruum into washing water
3. Sanitation
Don't use water cannons to wash machine shell during washing or after washing.
4. Storage and Installation Area
If the machine installed in the place where the temperature is below 0℃, please make sure
drain off water completely. Because if the water freezes in the machine will damage the spare
parts, such as solenoid valve, heater, etc.
5. Waste machine disposal
Please don't use the reject machine in order to avoid the potential accident. And turn off power
or pull out the main fuse when disposal the machine. The machine can dispose as recycling
(Separating the stainless steel, plastic).

Page 11 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Diagrams
Diagram1 SW50C Appearance

Page 12 of 12
This manual does not apply to persons who have physical, sensory, intellectual disabilities, or lack of experience and knowledge.
Diagram2 Washing tank parts
Washing
detergent
interface
Overflow
pole
Washing & rinse
assembly
Water level
switch
Wash heater
