Currys Essentials CDW45W10 Service manual

SLIMLINE DISHWASHER
INSTALLATION/INSTRUCTION MANUAL
CDW45W10

Contents
Unpacking.................................................................................................................................... 3
Installation ................................................................................................................................... 4
Location...........................................................................................................................................................................................4
Product Overview........................................................................................................................ 8
Internal View..................................................................................................................................................................................8
Rear View ........................................................................................................................................................................................8
Control Panel Overview .............................................................................................................. 9
Before Operating....................................................................................................................... 10
To Open the door...................................................................................................................................................................... 10
To Close the door...................................................................................................................................................................... 10
Adding the Detergent Powder and Tablet....................................................................................................................... 11

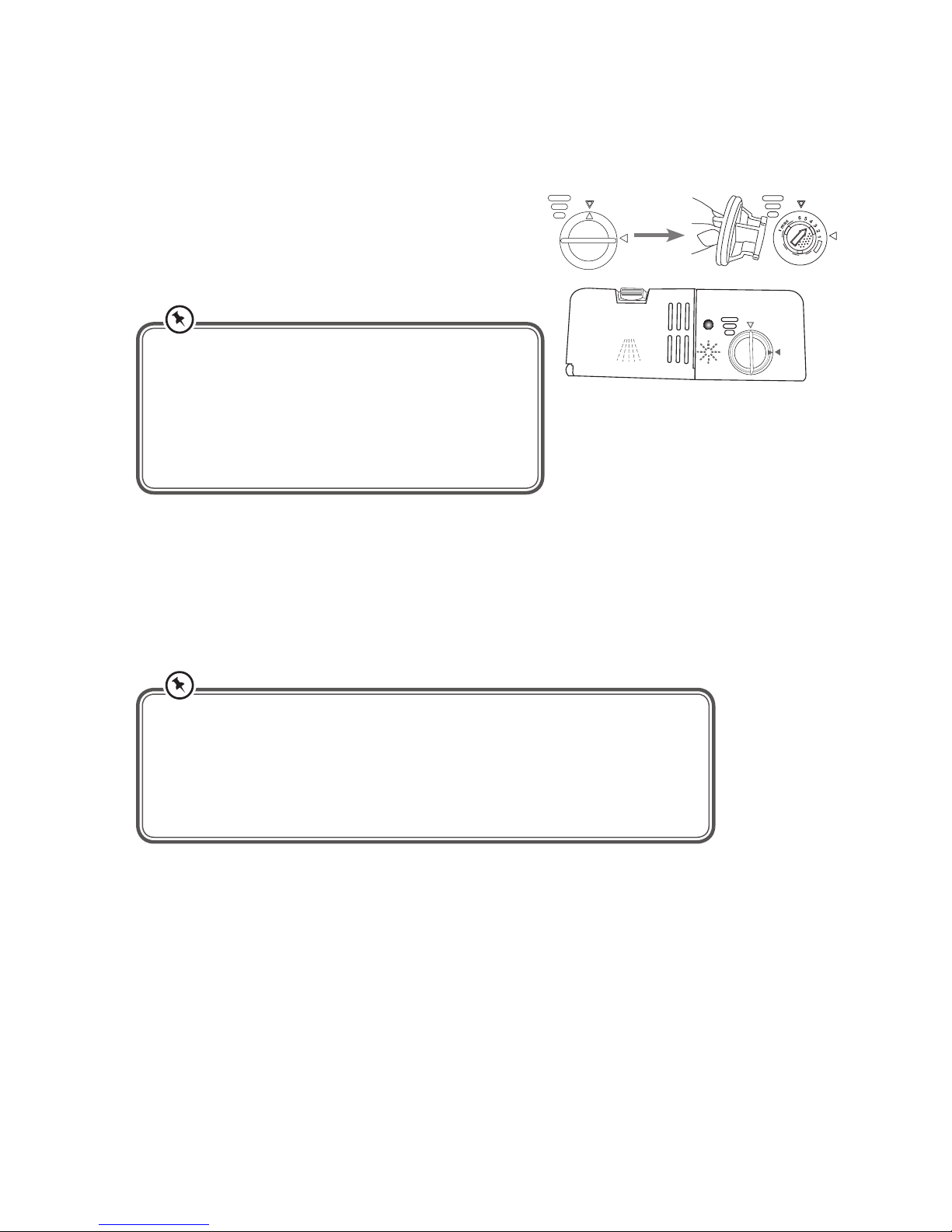

Adding of Rinse Aid ................................................................................................................................................................. 12
Adjusting Rinse Aid Reservoir .............................................................................................................................................. 12

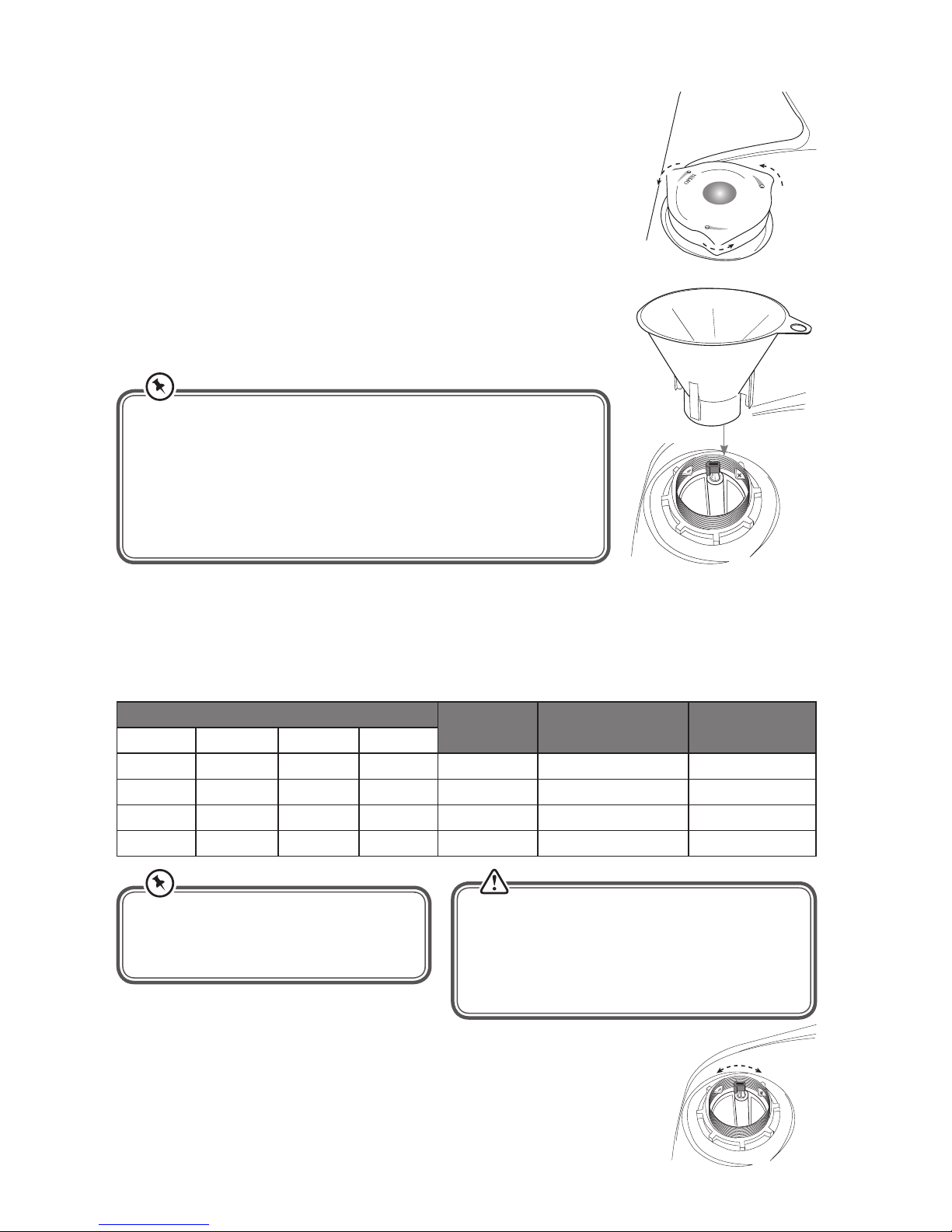

Adding of Salt.............................................................................................................................................................................13
Adjusting of Salt Consumption ........................................................................................................................................... 13
Loading the Dishwasher ........................................................................................................... 14
Before Loading the Dishwasher .......................................................................................................................................... 14
Upper Basket .............................................................................................................................................................................. 14

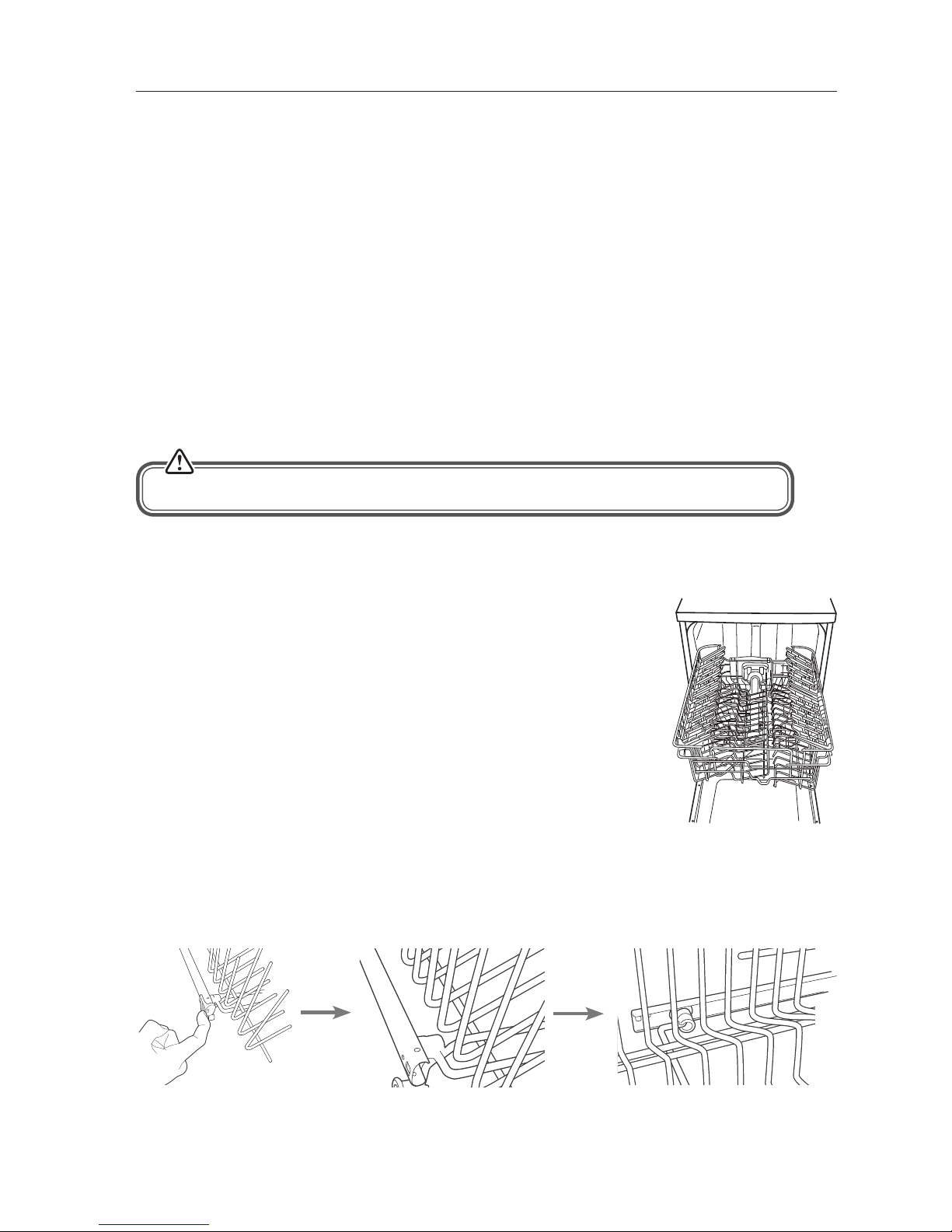

Adjusting the Upper Basket.................................................................................................................................................. 14
Hinged Cup Rack ...................................................................................................................................................................... 15
Loading the Upper Basket for 8 Place Settings.............................................................................................................. 15
Lower Basket .............................................................................................................................................................................. 15
Hinged Spikes ............................................................................................................................................................................ 15
Loading the Lower Basket for 8 Place Settings.............................................................................................................. 16
Cutlery Basket ............................................................................................................................................................................ 16

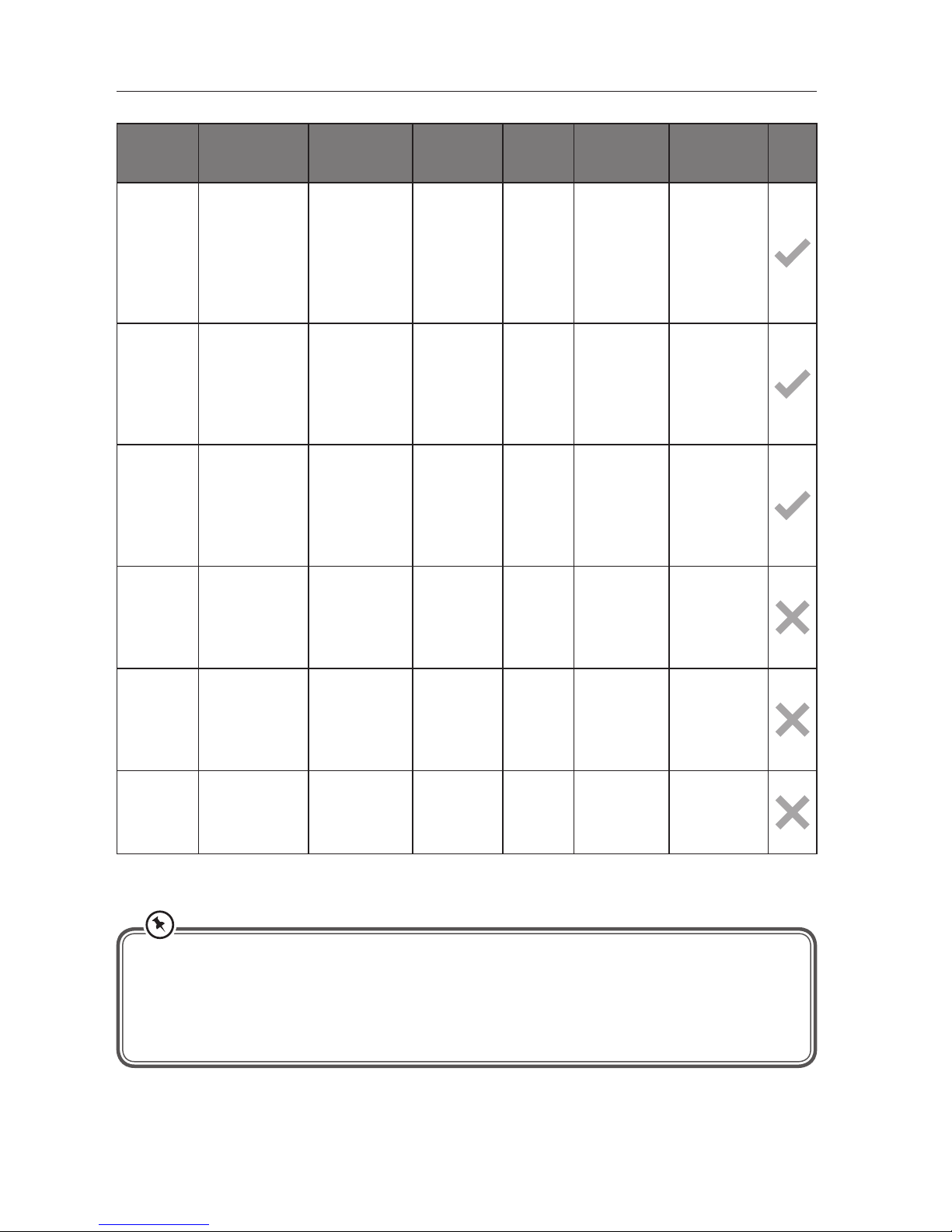

Wash Cycle Table........................................................................................................................ 17
Starting a Wash Cycle ................................................................................................................ 18
Changing a Programme ............................................................................................................ 18
At the End of a Programme....................................................................................................... 18
Switching o the Dishwasher................................................................................................... 19
Unloading the Dishwasher ....................................................................................................... 19
Half Load .................................................................................................................................... 19

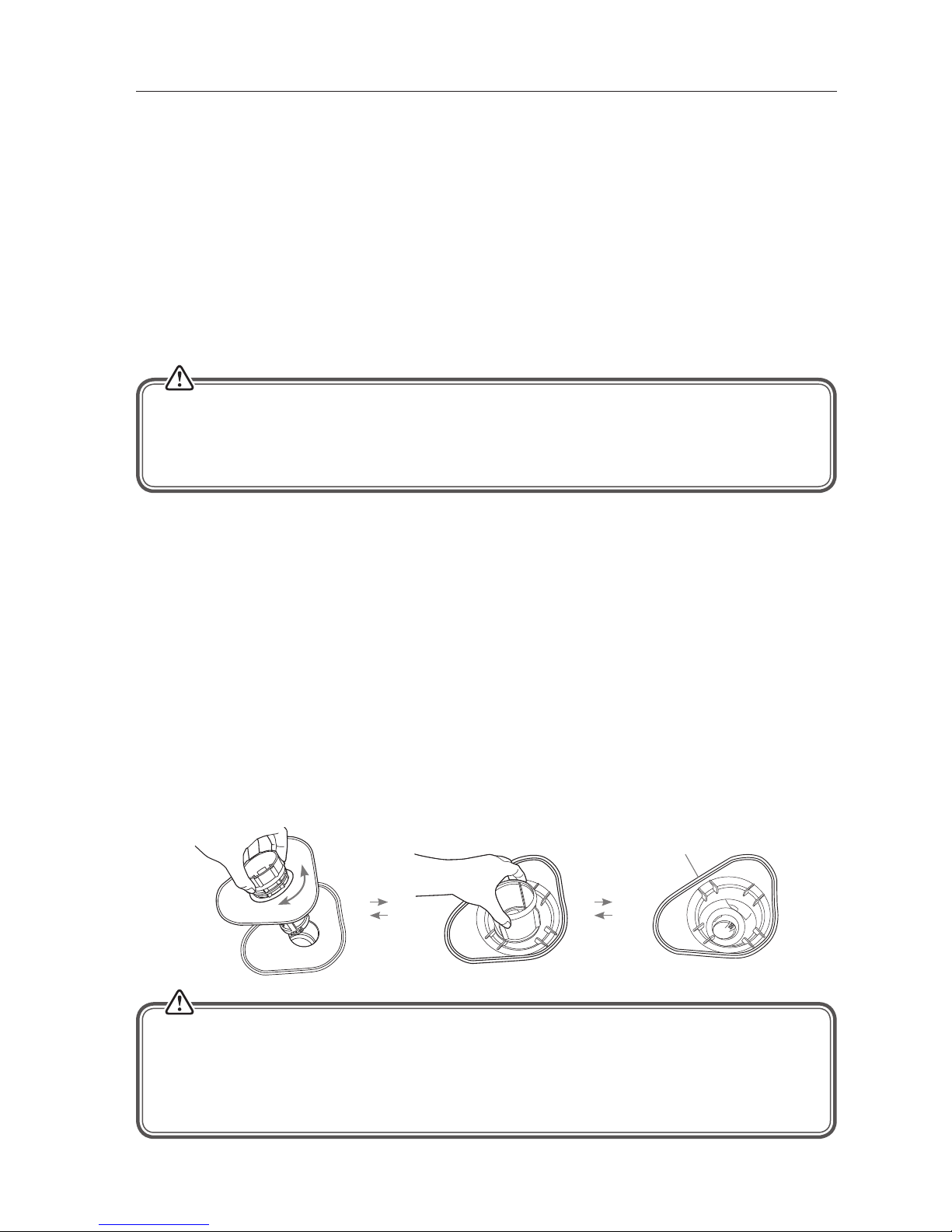

Cleaning After Use..................................................................................................................... 20
External Care .............................................................................................................................................................................. 20
Frost Precaution ........................................................................................................................ 21
Maintenance After Prolonged Period of Non-Operation ....................................................... 21
Moving the Dishwasher ............................................................................................................ 21
Helpful Tips and Guide.............................................................................................................. 22
Fault Code.................................................................................................................................................................................... 22
Technical Problems .................................................................................................................................................................. 22
Disposal of Dishwasher............................................................................................................. 24
Disposal of Packing Material .................................................................................................... 24
Specication .............................................................................................................................. 25
Safety Warnings......................................................................................................................... 26

3

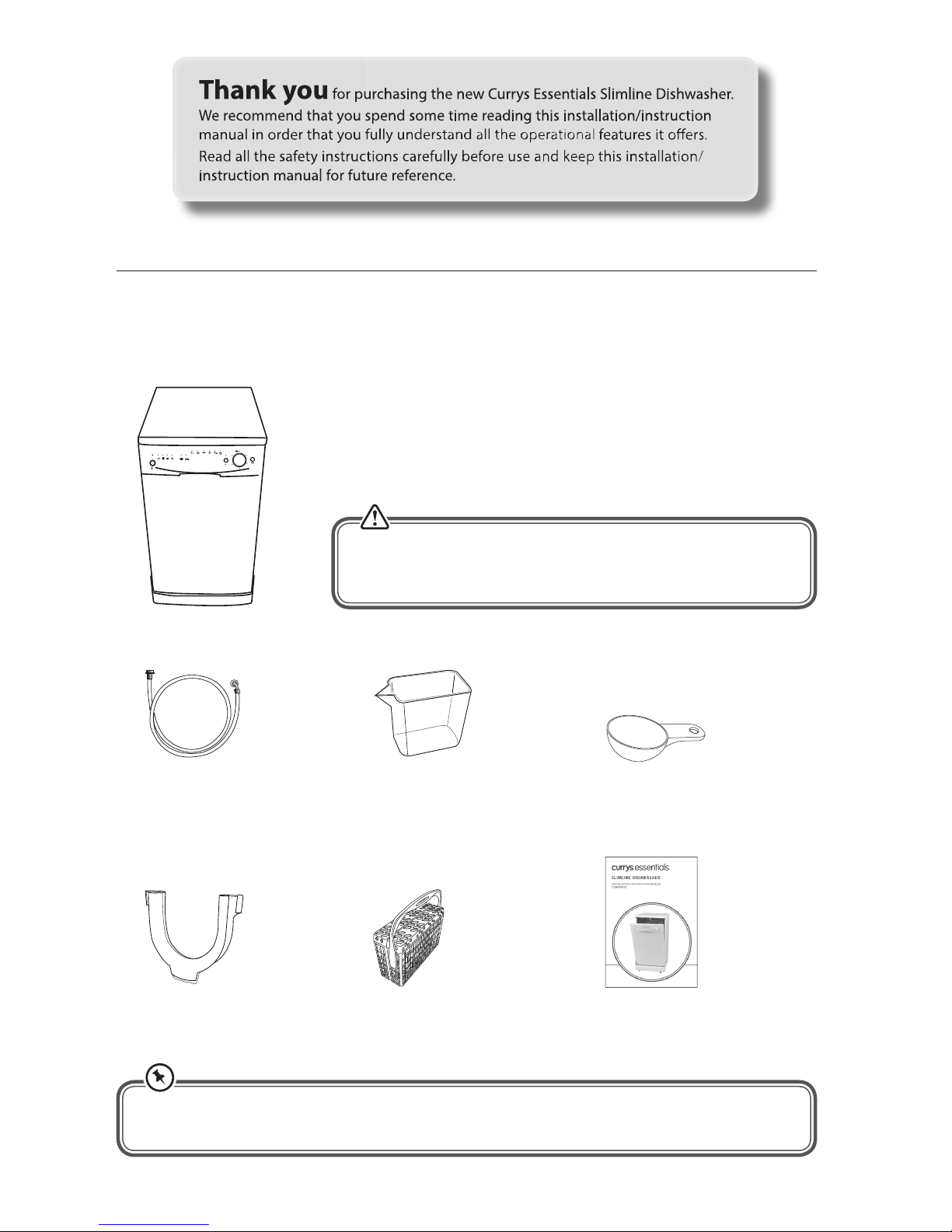

The Main Unit - Front View
Water supply hose x 1
P.N.: 673005400045
U-shape hose holder x 1
P.N.: 673006200003
Measuring cup x 1
60ml (approx.)
P.N.: 673006200004
Installation/Instruction manual x 1
P.N.: CDW45W10-004
Cutlery Basket x 1
P.N.: 673002200049
INTENSIVE NORMAL ECONOMY RINSE RAPID SOAK
1
2
1 2 3 4 5 6
ON
OFF
START
RESET
PROG 1
2
3
4
5
6
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
This product has been wet tested to ensure correct operation. As
a result some water may remain inside the unit. This is normal and
safe. Remove any water droplets from the exterior if necessary.
Detergent measuring spoon x 1
1 full spoon = 20g (approx.)
P.N.: 673002200079
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.

4
INSTALLATION
1. Please ensure the dishwasher is installed
by a qualified technician. Refer to the tools
required.
All parts removed must be saved to do
the reinstallation in the future. Ensure
the dishwasher is unplugged and empty.
We recommend that 2 people handle the
dishwasher during installation.
level
level
level
level
850
450
620
450
580
850
30
min.100
80
unit in mm
Location
When selecting a position for your freestanding
dishwasher you should make sure the installation
surface is flat and firm, and the room is well
ventilated. Avoid locating your dishwasher near
a heat source, eg. cooker, boiler or radiator.
Extreme cold ambient temperatures may also
cause the appliance not to perform properly. This
dishwasher is not designed for use in a garage or
outdoor installation.
Do not drape the dishwasher with any covering.
When installing, ensure that free space is left at
the sides.
2. Ensure there is clearance each side of the
unit to allow slight sideways movement for
servicing when required. Good levelling is
essential for correct closure and sealing of the
door. When the unit is correctly levelled, the
door should not catch the inner liner on either
side of the cabinet. The adjustable feet may
be loosened or tightened in order to obtain
the optimum levelling of the unit.

5
INSTALLATION

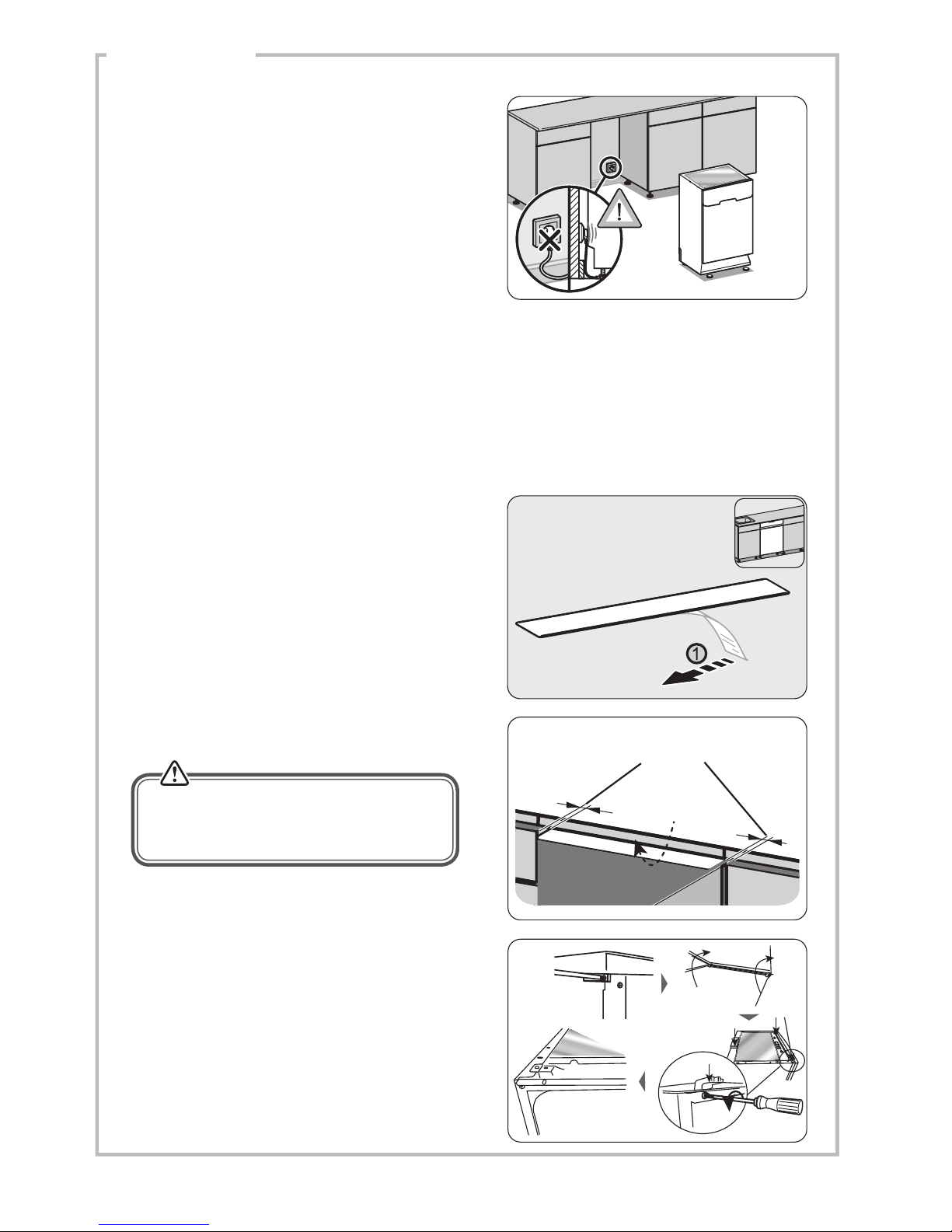

4. The condensation strip must be fitted to
the underside of the worktop above your
dishwasher to protect it against any moisture.
Its purpose is to protect your worktop’s
underside from steam rising from the
dishwasher.
• Ensure the surface is clean prior to sticking
the condensation strip to the underside of
the worktop.
• Remove the backing paper from the
condensation strip.
Failure to attach the condensation strip
could result in damage to the underside of
your worktop!
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Leave some space
3. If required, the worktop of the dishwasher can
be removed. The height without the worktop
is 820 mm. The minimum dimensions required
to accommodate the dishwasher within fitted
kitchen furniture units.
Do not connect the unit to the mains before
installation. Ensure you are not installing the
unit right in front of the mains. This is to avoid
potential damage to the back of the unit.
• Stick the condensation strip to the
underside of the worktop.
Remove
Remove
Remove
Unscrew
5. The worktop can be removed by removing
the fixing screws located at the rear of the
dishwasher. After removing the screws, lift
and push the worktop forward to release the
lugs from the front section of the dishwasher.
The polystyrene block and the lugs should be
saved for future use.

6
INSTALLATION
6. Position the dishwasher next to a water tap
and a drain. Ensure the water inlet and drain
hoses are not kinked or squashed. The unit
must not stand on the mains cable.
7. Make sure your plumbing is suitable for use
with the dishwasher. If in doubt contact
a qualified plumber. This unit MUST BE
connected to COLD WATER MAINS using the
new water inlet hose. OLD HOSE SETS MUST
NOT BE RE-USED. The water pressure from
the water mains needs to be at a minimum of
0.04 MPa and a maximum of 1.00MPa.
• Connect one end of the safety water
supply hose to your dishwasher, and then
connect the other end of the hose to
your water mains. Please ensure the black
rubber seal is in place.
• After connecting the hose, turn on your
water mains and check for leaks.
• Connect the dishwasher to the mains
socket.
• Do not bend your drain hose.
safety water supply hose
Connect to
another
appliance
if required.
water mains
Y-Adaptor
(not included)
You may use a Y-adaptor (not included)
For additional water feed for another
appliance, for instance a washing machine.
This is only applicable for cold water
mains. A Y-adaptor is available from most
DIY stores.

7
INSTALLATION
ST4 screws
water drain hose
U-shaped drain hose
holder
• You may use the U-shaped drain hose
holder to secure your drain hose and to
avoid bending it.
• Secure the water drain hose to the waste
pipe to avoid it coming off during the
washing process.
The waste pipe must only be connected to
the foul drains and not the surface water
drainage system.
The water drain hose should be placed
between 40 cm and 100 cm from the floor
level and must not be extended, otherwise
the unit may not be able to expel the
waste water properly.
Please close the hydrant after using.

8

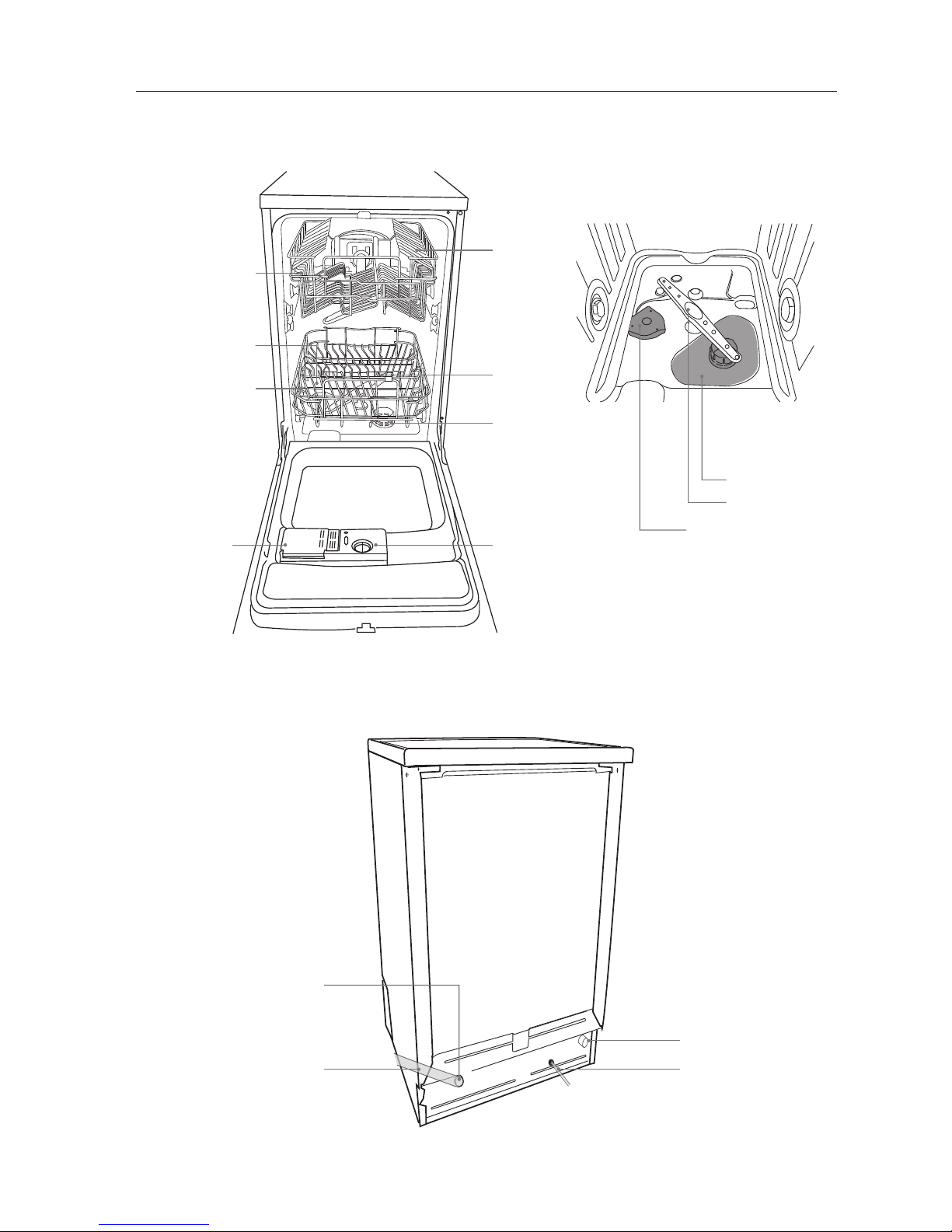

Product Overview
Internal View
Rear View
Upper
Basket
Lower
Basket
Rinse Aid
Reservoir
Detergent
Dispenser
Filter
Spray Arm
Spray Arm
Filtering System
Salt Reservoir
Salt Reservoir
Water Inlet
Mains Cable
Drain Hose
Drain Oulet
Cup Rack

9
Control Panel Overview
INTENSIVE NORMAL ECONOMY RINSE RAPID SOAK
1
2
1 2 3 4 5 6
O N
O FF
START
RESET
PROG 1
2
3
4
5
6
1
1. On/Off Button
• To turn the dishwasher on and off.
Power on light
• Illuminates when On/Off button is pressed.
2. Washing Cycle Indicator
• Illuminates when different washing cycle (pre-wash, main wash, rinse and drying) of the selected
programme is in progress.
Pre-wash
Main wash
Rinse
Drying
3. Rinse Aid Refill Warning Light
• Illuminates when the rinse aid dispenser needs refilling.
Salt Refill Warning Light
• Illuminates when the salt reservoir needs refilling.
4. Half Load Button
• Press the button to select the half load washing cycle.
1
2Half load indicator light
• Illuminates when the half load washing cycle is selected.
5. Programme Control Dial
• Turn the dial to select your required washing programme.
6. Start/Reset Button
• To start or reset the dishwasher.
2 3 4 5 6

10
Before Operating
To open the door
• Pull the door handle to open the door.
• If the door is opened during operation, all functions are automatically interruped.
To close the door
• After loading the dishes, push the baskets fully into the dishwasher.
• Life the door upwards and push until it clicks into position.
• Do not slam the dishwasher door.
When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some
items are not suitable for dishwashers, for examples:
Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used
in these items is not dishwasher-proof either, and the wooden handles may come loose after being
washed in a dishwasher.
Craft items, antiques, valuables vases and decorative glassware are also not suitable for
dishwashers.
Plastic items (e.g. tupperware) which are not heat resistant may melt or lose shape due to the high
temperatures in the dishwasher.
Copper, brass, tin and aluminium items may discolour or become matt.
Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash
delicate glassware, or glassware containing lead crystal in a dishwasher. Please wash delicate
glassware by hand instead.
Silver and aluminium parts have a tendancy to discolour during washing. Residues like egg white,
egg yolk and mustartd often cause discolouring and staining on silver. Therefore, please clean the
residues from silver immediately after use.
