Harrier 485V User guide

OWNER’S HANDBOOK
(English Version)
FROM SERIAL NO: 485V001001 HANDBOOK: 485102 (Rev.0.)
Issue : 20.10.00
Harrier
48
CODE 485V

MODEL CODE 485V
Engine Briggs & Stratton Diamond XTL-45
Engine Type 12G882-1512-21
Engine / Cutterblade Speed 2950 rpm
Fuel Type Unleaded Petrol
Fuel Capacity 1.5 litres
Oil Type SAE 30 engine oil
Oil Sump Capacity 0.6 litres
Spark Plug 802592E
Spark Plug Gap 0.76mm
Width of Cut 480mm
Height of Cut 12 - 65mm
Overall Dimensions 1040 x 514 x 1377mm
Dry Weight 49 Kg
1. Spark Plug Lead
2. Air Cleaner Cover
3. Engine Cover
4. Fuel Cap
5. Serial Number Label
6. Oil Filler Cap & Dipstick
7. Rear Deflector
8. Engine Start Grip
9. Throttle Control
10. Cutterblade Stop Lever
11. Handlebar
12. Ground Drive Clutch Lever
13. Blade Brake Clutch Lever
14. Grassbag Assembly
15. Handlebar Securing Knobs
16. Handlebar Height Adjust Knob
17. Height of Cut Lever
18. Exhaust Guard
1C485V02A
17
1
2
3
4
7
8
9
10
11
12
13
14
15
16
18
56
1.1
Main Features
Specifications
MAIN FEATURES /SPECIFICATIONS

1.17 Maintenance Schedule
1.18 - 1.24 Mower Maintenance
1.18 - Engine
1.18 - Throttle Cable Adjustment
1.18 - Carburettor Adjustments
1.19 - Oil Service
1.19 - Air Cleaner Service
1.20 - Spark Plug Service
1.20 - Keeping Engine Clean
1.20 - Grassbag
1.21 - Deck Housing
1.21 - Securing Nuts and Bolts
1.21 - Clutch Cable Adjustment
1.22 - Lubrication
1.22 - Cutterblade Removal
1.23 - Cutterblade Assembly
1.23 - Cutterblade Sharpening
1.24 - Storage
1.25 - 1.26 Trouble Shooting
1.27 Declaration of Conformity
1.28 - 1.29 Parts List
1.30 Parts list Diagram
1.31 Customer Info/Notes
1.1 Main Features/Specifications
1.2 Contents
1.3 Introduction
1.4 Warranty
1.5 - 1.8 Safety Precautions

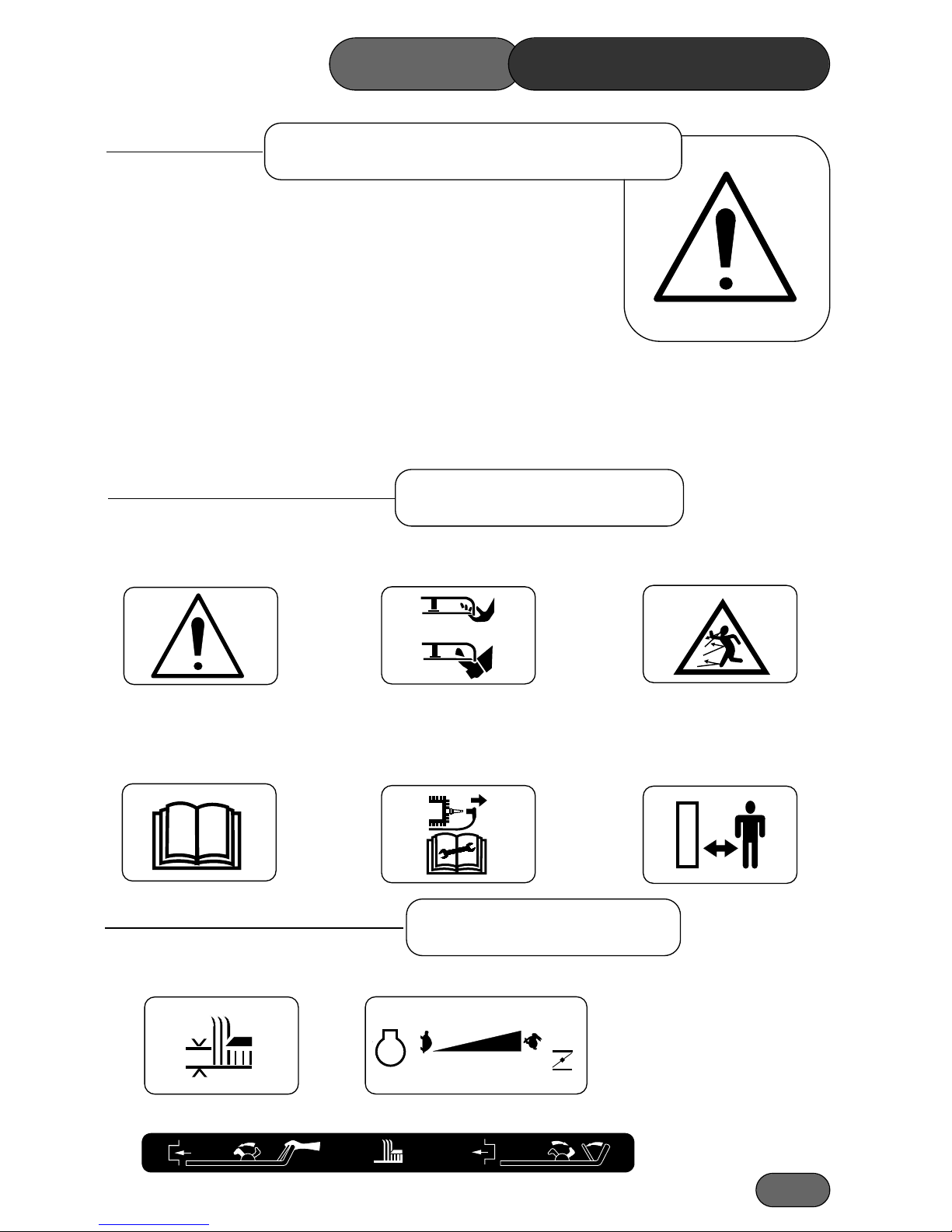

1.8 Safety Symbols
1.8 Decal Symbols
1.9 Assembling the Mower
1.9 - Delivery Checklist

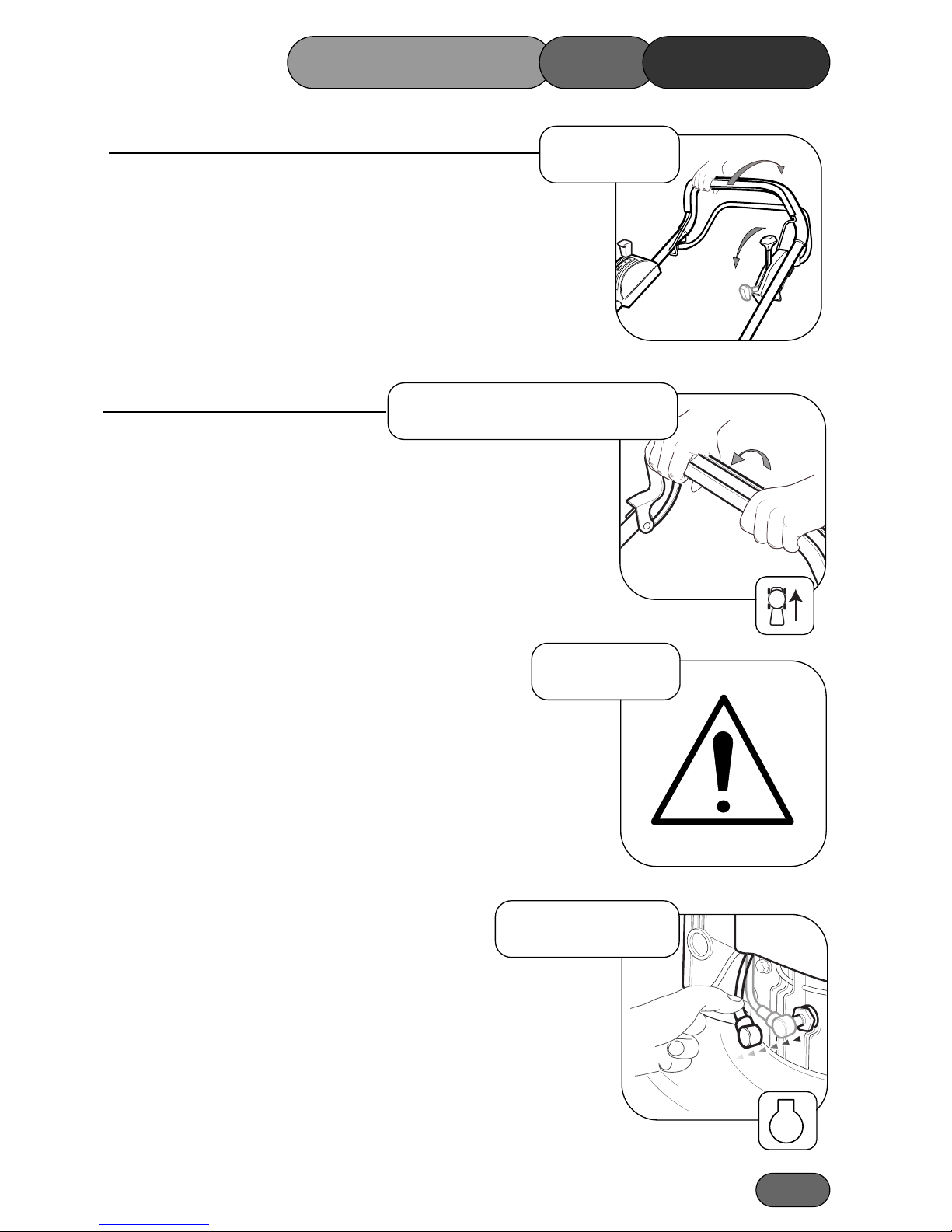

1.9 - Handlebar
1.9 - Adjust Handlebar Height
1.9 - Grassbag Attachment
1.10 Before Starting the Mower
1.10 - Prevent Engine Damage
1.10 - Oil Type
1.10 - Check Oil Level
1.10 - Fuel Type
1.11 - 1.14 Operating The Mower

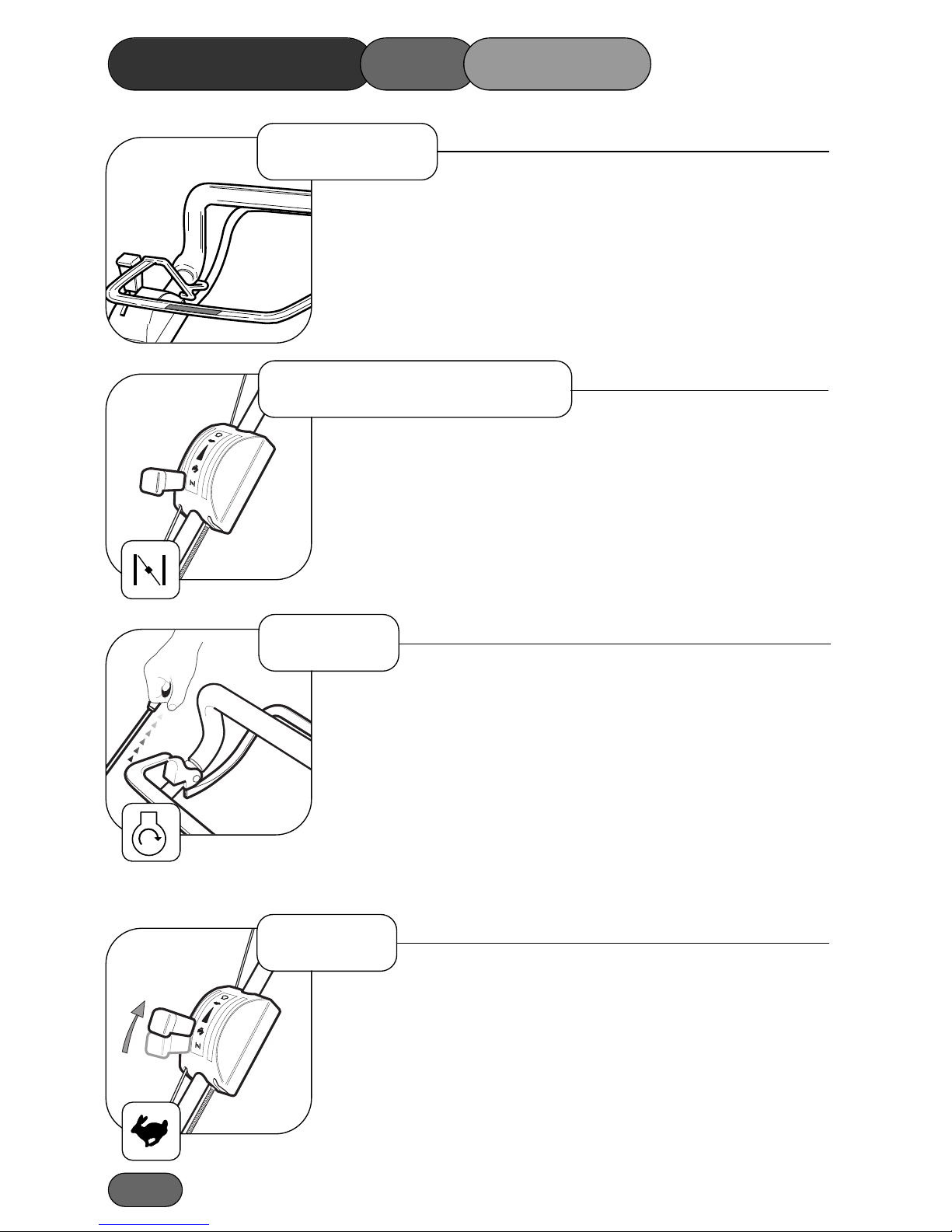

1.11 - Controls
1.11 - Starting Step 1
1.11 - Step 2
1.11 - Step 3
1.12 - Step 4
1.12 - Forward Travel
1.12 - Turning
1.12 - Stopping

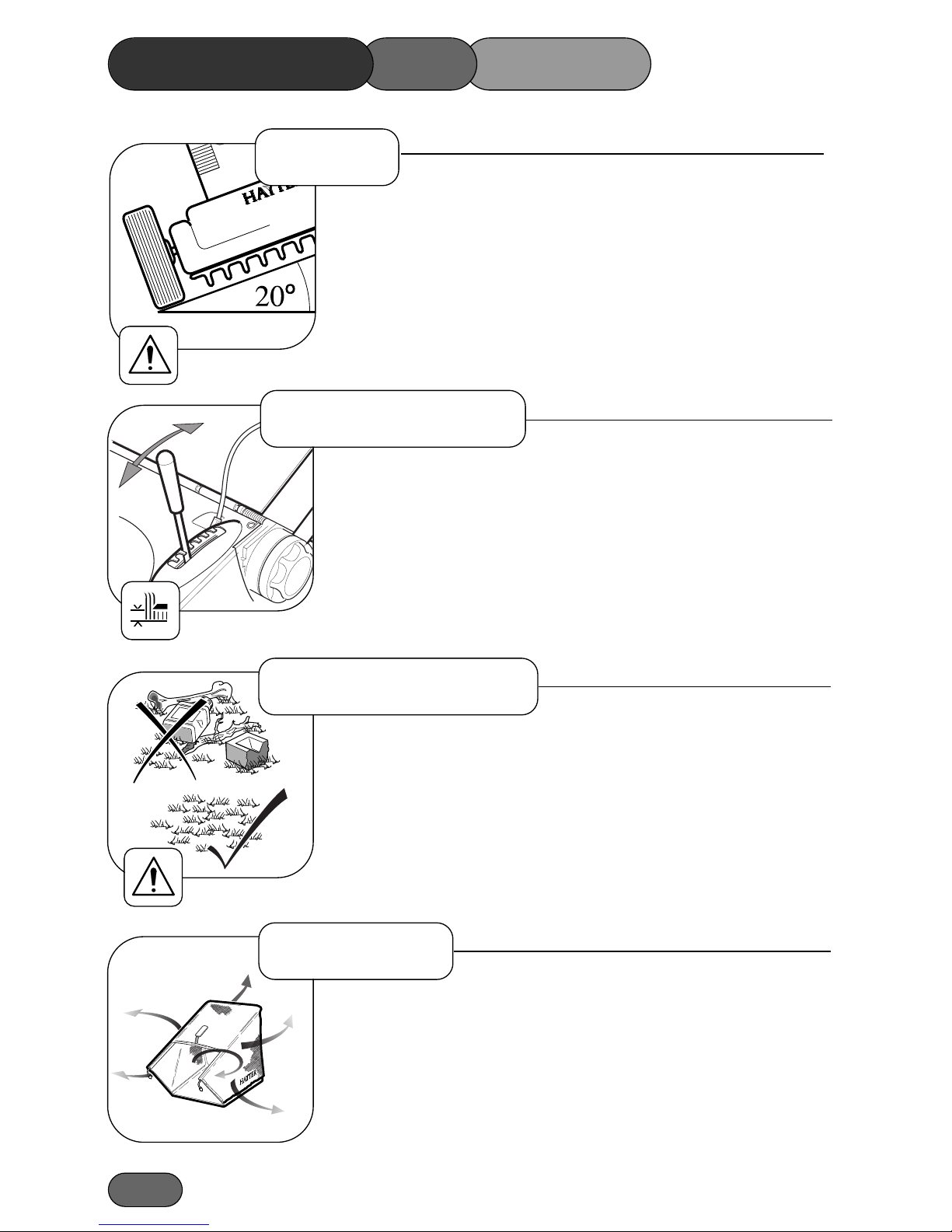

1.13 - Slopes
1.13 - Height of Cut
1.13 - Before Mowing
1.13 - Grassbag
1.14 - Without Grass Collection
1.14 - Heavy Growth
1.14 - Friction Device
1.14 - Non-Grassed Areas
1.15 - 1.16 Lawn Care Calendar - Guide Only

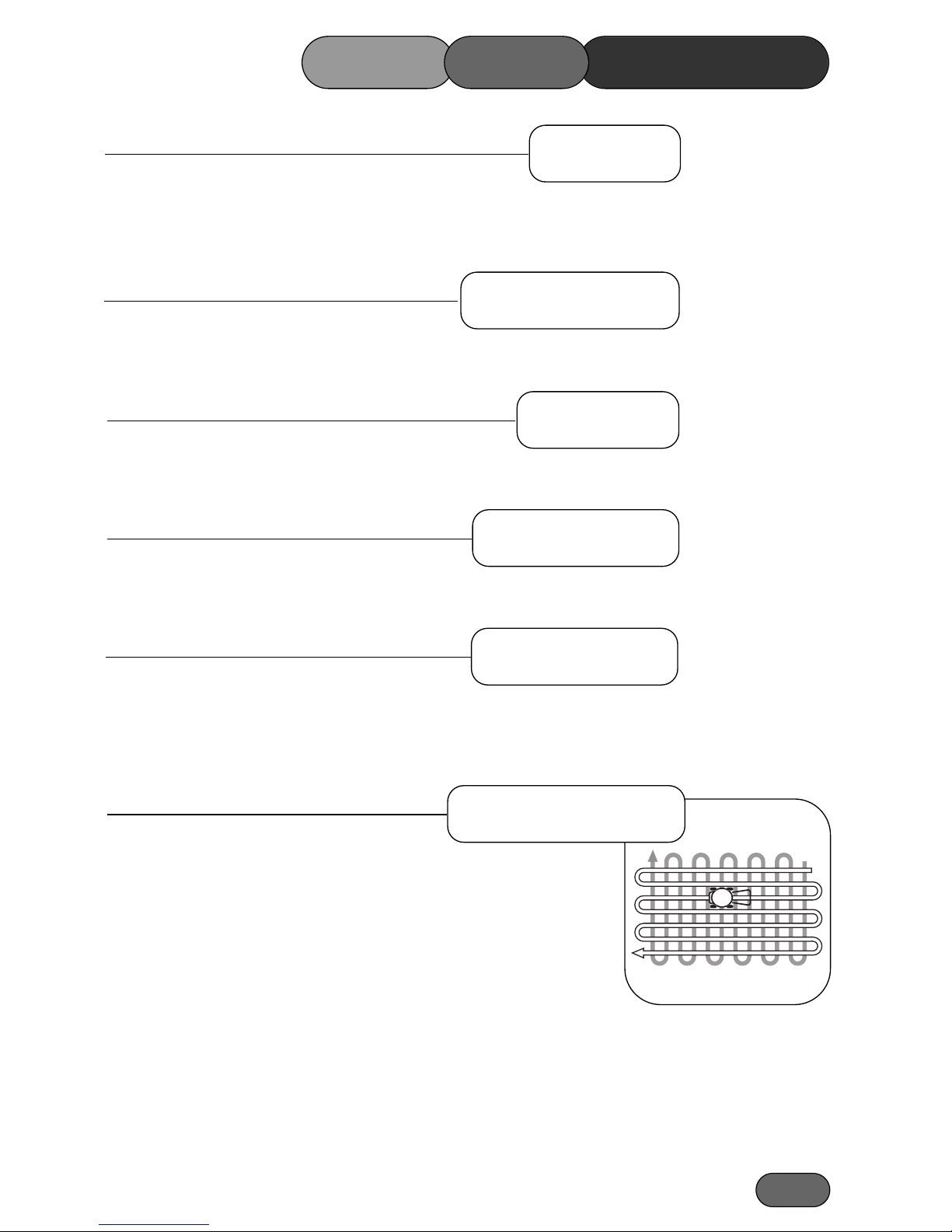

1.16 - Lawn Stripes
CONTENTS
1.2

Thank you for purchasing a Hayter mower. The following pages are designed to help you gain
safe and efficient service from your mower.
IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives
essential information regarding mower safety, operation, maintenance and specifications. Read
and understand this handbook prior to operating your mower for the first time. Make sure you
are familiar with all the controls and points of regular maintenance. If you have any doubts,
consult your local Hayter authorised dealer who will be pleased to give you assistance.
IMPORTANT: This mower is designed solely for use in a domestic grass cutting
environment. Use in any other way is considered as contrary to the intended use. Compliance
with and strict adherence to the conditions of operation, service and repair as specified in this
handbook also constitute essential elements of the intended use.
This mower should be operated, serviced and repaired only by persons who are familiar with
its particular characteristics and who are acquainted with the relevant safety procedures.
The safety precautions listed in this handbook and all other generally recognised regulations on
safety must be observed at all times.
Any arbitrary modifications carried out to this machine may relieve Hayter Limited of
liability for any resulting damage or injury.
Hayter mowers are robustly constructed and designed for efficient economical
performance under normal mowing conditions. Correct operation and maintenance will ensure
a long and satisfactory service life. Prior to despatch from our factory every effort is made to
ensure that your mower is delivered in perfect condition.
Throughout this handbook all references to left and right are as viewed from behind the han-
dlebar, in the direction of forward travel.
This handbook is based on information available at the time of publication.
HAYTER LIMITED reserve the right to amend product specifications without prior notification.
INTRODUCTION
1.3

LIMITED WARRANTY
Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects
in material and workmanship under normal use and service for a period of three years from the
date of purchase. The manufacturer of the engines furnish their own warranty and services are
provided through their authorised network (Refer to "Engine Warranty Statement"). To qualify
for the full benefit of the warranty, the warranty registration card must be returned within 60 days
of purchase. Subject to the conditions and exclusions noted in this limited warranty, we shall at
our option, repair or replace any warranted part during the applicable period. If you are in doubt
or experience any difficulty, please consult a Hayter Authorised Service Dealer for clarification.
To qualify for the extended warranty (second and third year) of the three year limited warranty
the machine must have annual services carried out by an Authorised Hayter Service Dealer.
These chargeable services should be carried out within 12 and 24 months of the date of purchase.
Excluded from the extended warranty period are those items which are subject to normal wear
and tear e.g. tyres, wheels, cutterblades, cables, batteries and other consumable wearing parts.
All consumer machines which are fitted with a genuine Hayter friction disc as original
equipment before use, are covered by a Lifetime Warranty against the engine crankshaft
bending. Note: friction washers, blade brake units and other such devices are not applicable.
Only machines fitted with a genuine Hayter friction disc, which are used in accordance with the
recommended operating and maintenance procedures, are covered.
This warranty does not apply to any unit that has been tampered with, altered, misused, abused or
used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does
not cover minor mechanical adjustments unless they are due to defective material or
workmanship. Consult the Owner’s Handbook or a Hayter Authorised Service Dealer for
assistance when making these adjustments.
A warranty period of 90 days applies to machines used for commercial purposes.
To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of
purchase stating the machine serial number and date of purchase. The service receipt(s) or this
Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as
proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in
this limited warranty, the authorised dealer will, at our option, repair or replace any warranted
part within the duration of the warranty period.
This limited warranty gives you specific legal rights and is in addition to any statutory rights to
which you may be entitled and your statutory rights are not affected by this warranty. If you need
additional information concerning this written warranty, or assistance in obtaining services,
please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop’s Stortford,
Hertfordshire CM23 4BU
UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages or
contact:- Freephone 0800 616298.
Date.................................................................... Date.............................................................
Signed................................................................ Signed..........................................................
Issue: 12.10.00
DEALER STAMP
DEALER STAMP
1st Year
Service
Record
2nd Year
Service
Record
WARRANTY
1.4
