Harrier 305R User guide

(Push) (Auto Drive)
HANDBOOK: 305144 (REV .2.)
ISSUE 23.03.01
(English Version)
FROM SERIAL NO:
305R002014, 306R009912, 307R005969
CODE
305R . 306R . 307R
(Auto Drive -
Electric Start)
OWNER'S HANDBOOK
Harrier
41

Engine Briggs & Stratton Quantum XM 45
Engine type 127802-0867-01(305R) 127882-1958-01(306R) 127887-1959-01(307R)
Engine/Cutterbar speed 3100 rpm
Fuel type Unleaded petrol
Fuel capacity 1.5 litres
Oil type SAE 30 engine oil
Oil sump capacity 0.6 litres
Cutting width 410mm
Cutting height 12 - 65mm
Overall dimensions 1,340 x 451 x 1,041mm
Dry Weight 28.4 Kg (305R) 30.2 Kg (306R) 33.8 Kg (307R)

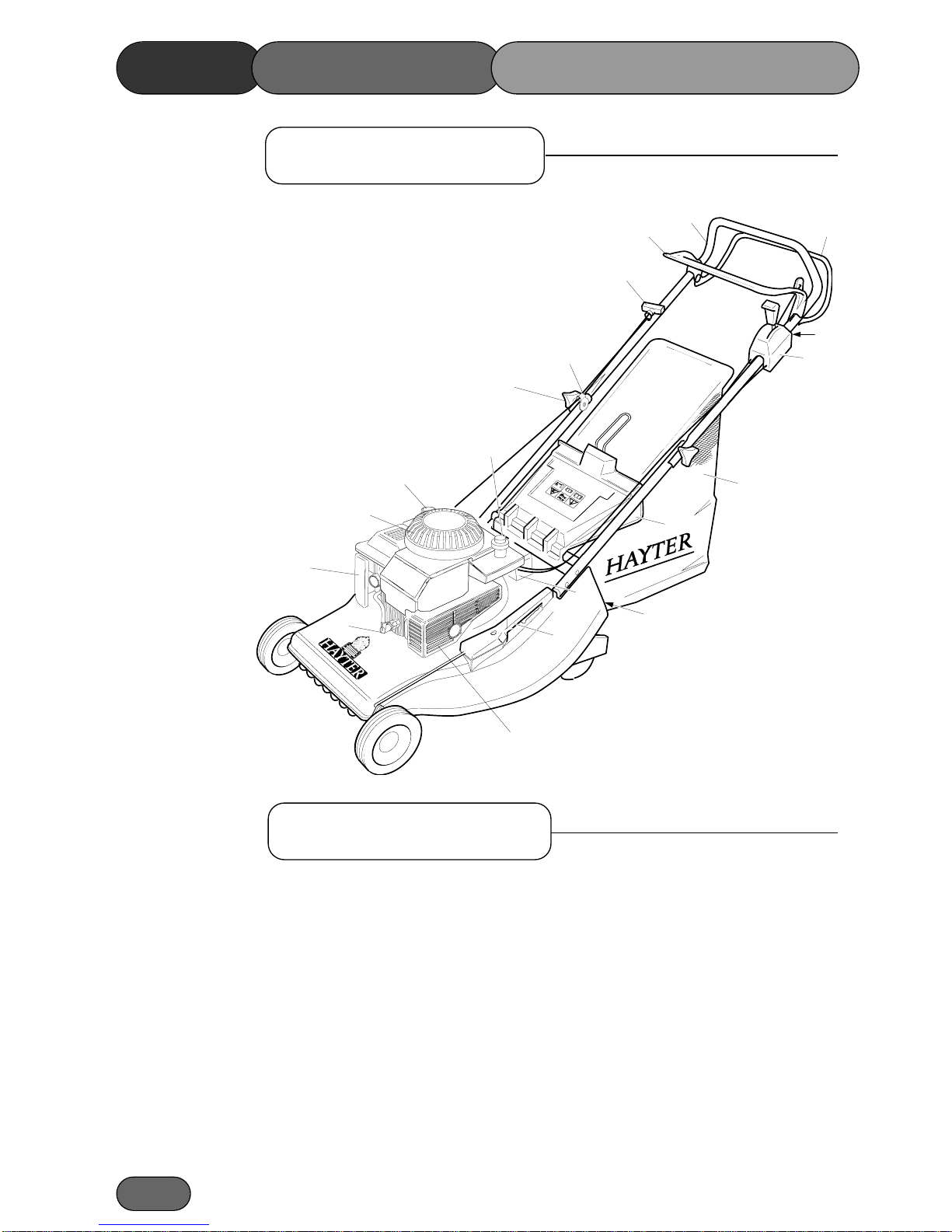

1 Handlebar.
2 Ground Drive Clutch Lever (306R/307R Only).
3 Throttle Control.
4 Grassbag Assembly.
5 Rear Deflector.
6 Serial Number Decal.
7 Height of Cut Adjuster.
8 Spark Plug Lead.
9 Fuel Filler Cap.
10 Oil Filler Cap and Dipstick.
11 Handlebar Securing Knob.
12 Rope Guide.
13 Engine Start-Grip.
14 Engine Stop lever.
15 Ignition Key (307R Only)
16 Battery (307R Only)
17 Muffler Guard
18 Air Cleaner
19 Finger Guard
15
16
2D305POOC
12
3
4
5
6
7
8
9
10
11
12
13
14
19
18
17
Specifications
Main Features
MAIN FEATURES /SPECIFICATIONS
1.2

1.19 - 1.25 Mower Maintenance
1.19 - Engine
1.19 - Throttle Cable Adjustment
1.19 - Carburettor Adjustments
1.20 - Oil Service
1.20 - Air Cleaner Service
1.21 - Spark Plug Service
1.21 - Keeping Engine Clean
1.21 - Grassbag
1.22 - Deck Housing
1.22 - Securing Nuts and Bolts
1.22 - Clutch Cable Adjustment
1.23 - Lubrication
1.23 - Cutterblade Removal
1.24 - Cutterblade Assembly
1.24 - Cutterblade Sharpening
1.25 - Storage
1.26 - Battery Charging
1.27 - 1.28 Trouble Shooting
1.29 Declaration of Conformity
1.30 - 1.31 Parts List
1.32 Parts list Diagram
1.33 Customer Info/Notes
1.2 Main Features/Specifications
1.3 Contents
1.4 Introduction
1.5 Warranty
1.6 - 1.9 Safety Precautions
1.9 Safety Symbols
1.9 Decal Symbols
1.10 Assembling the Mower
1.10 - Delivery Checklist
1.10 - Handlebar
1.10 - Grassbag Attachment
1.11 Before Starting the Engine
1.11 - Prevent Engine Damage

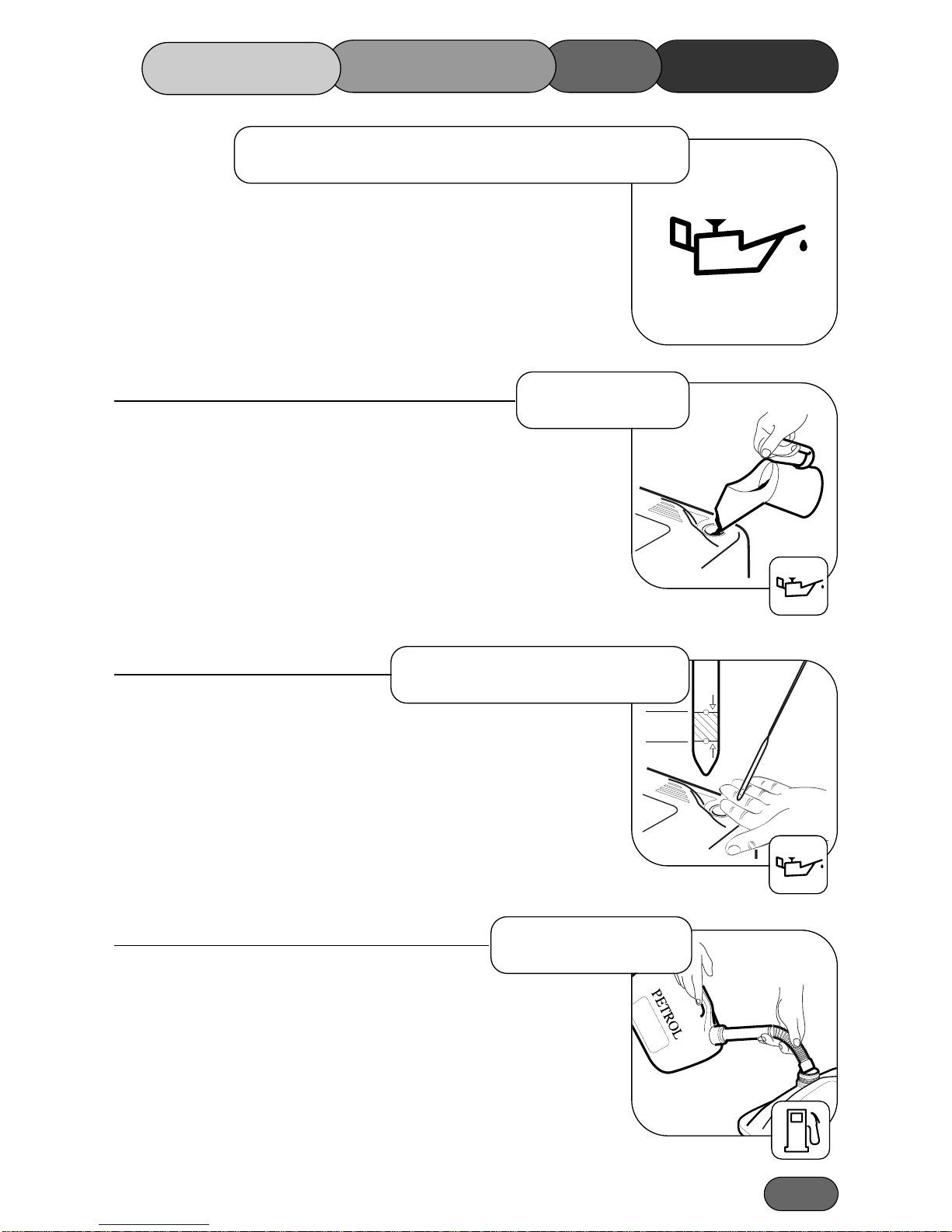

1.11 - Oil Type
1.11 - Check Oil Level
1.11 - Fuel Type
1.12 - 1.15 Operating The Mower
1.12 - Controls
1.12 - Starting Step 1
1.12 - Step 2
1.12 - Step 3
1.13 - Electric Start
1.13 - Forward Travel
1.13 - Turning
1.13 - Stopping
1.14 - Slopes
1.14 - Height of Cut
1.14 - Before Mowing
1.14 - Grassbag
1.15 - Without Grass Collection
1.15 - Heavy Growth
1.15 - Friction Disc
1.15 - Non-Grassed Areas
1.16 - 1.17 - Lawn Care Calendar - Guide Only

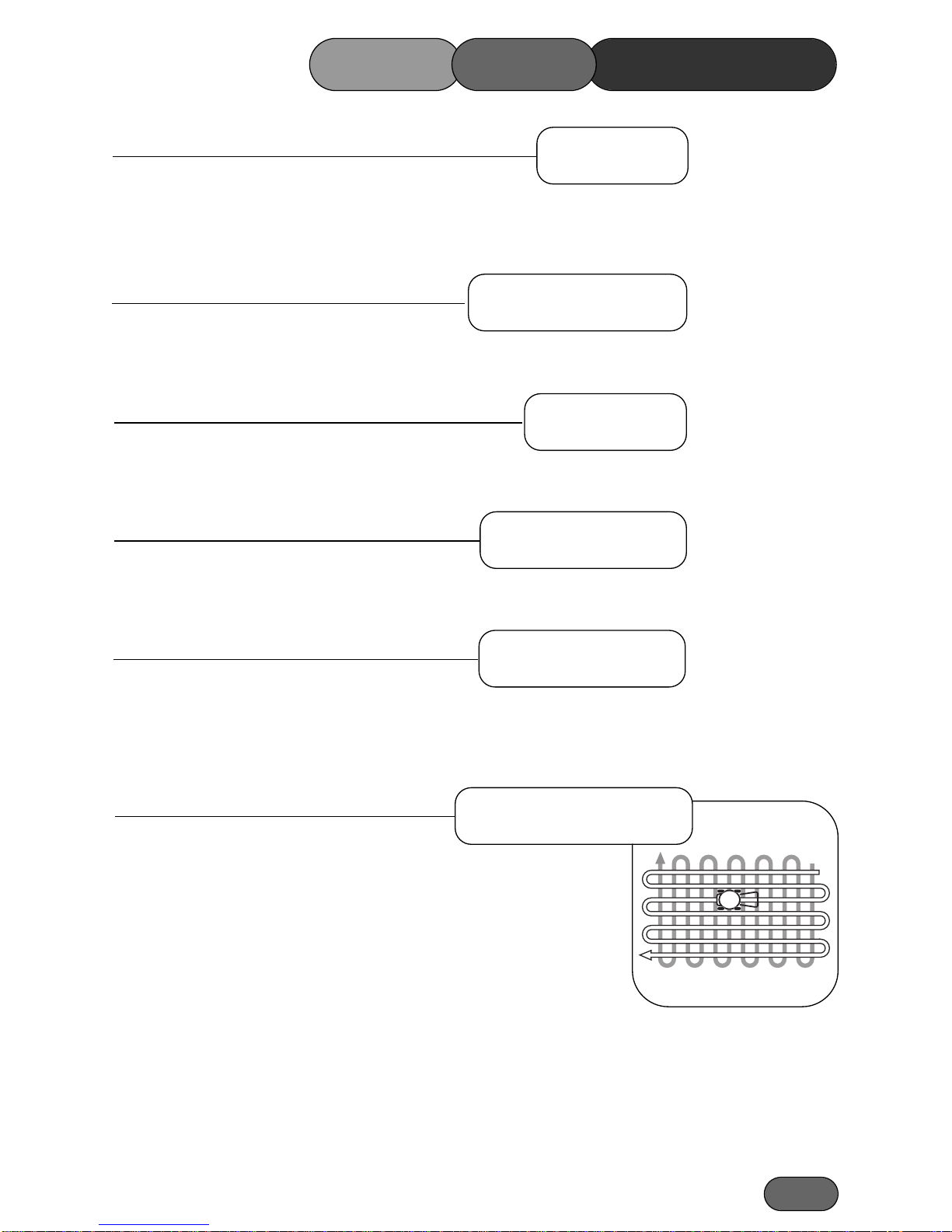

1.17 - Lawn Stripes
1.18 Maintenance Schedule
CONTENTS
1.3

INTRODUCTION
1.4
Thank you for purchasing a Hayter mower. The following pages are designed to help you gain
safe and efficient service from your mower.
IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it gives
essential information regarding mower safety, operation, maintenance and specifications. Read
and understand this handbook prior to operating your mower for the first time. Make sure you
are familiar with all the controls and points of regular maintenance. If you have any doubts,
consult your local Hayter authorised dealer who will be pleased to give you assistance.
IMPORTANT: This mower is designed solely for use in a domestic grass cutting
environment. Use in any other way is considered as contrary to the intended use. Compliance
with and strict adherence to the conditions of operation, service and repair as specified in this
handbook also constitute essential elements of the intended use.
This mower should be operated, serviced and repaired only by persons who are familiar with
its particular characteristics and who are acquainted with the relevant safety procedures.
The safety precautions listed in this handbook and all other generally recognised regulations on
safety must be observed at all times.
Any arbitrary modifications carried out to this machine may relieve Hayter Limited of
liability for any resulting damage or injury.
Hayter mowers are robustly constructed and designed for efficient economical
performance under normal mowing conditions. Correct operation and maintenance will ensure
a long and satisfactory service life. Prior to despatch from our factory every effort is made to
ensure that your mower is delivered in perfect condition.
Throughout this handbook all references to left and right are as viewed from behind the han-
dlebar, in the direction of forward travel.
This handbook is based on information available at the time of publication.
HAYTER LIMITED reserve the right to amend product specifications without prior notification.

WARRANTY
1.5
LIMITED WARRANTY
Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects
in material and workmanship under normal use and service for a period of three years from the
date of purchase. The manufacturer of the engines furnish their own warranty and services are
provided through their authorised network (Refer to "Engine Warranty Statement"). To qualify
for the full benefit of the warranty, the warranty registration card must be returned within 60 days
of purchase. Subject to the conditions and exclusions noted in this limited warranty, we shall at
our option, repair or replace any warranted part during the applicable period. If you are in doubt
or experience any difficulty, please consult a Hayter Authorised Service Dealer for clarification.
To qualify for the extended warranty (second and third year) of the three year limited warranty
the machine must have annual services carried out by an Authorised Hayter Service Dealer.
These chargeable services should be carried out within 12 and 24 months of the date of purchase.
Excluded from the extended warranty period are those items which are subject to normal wear
and tear e.g. tyres, wheels, cutterblades, cables, batteries and other consumable wearing parts.
All consumer machines which are fitted with a genuine Hayter friction disc as original
equipment before use, are covered by a Lifetime Warranty against the engine crankshaft
bending. Note: friction washers, blade brake units and other such devices are not applicable.
Only machines fitted with a genuine Hayter friction disc, which are used in accordance with the
recommended operating and maintenance procedures, are covered.
This warranty does not apply to any unit that has been tampered with, altered, misused, abused or
used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does
not cover minor mechanical adjustments unless they are due to defective material or
workmanship. Consult the Owner’s Handbook or a Hayter Authorised Service Dealer for
assistance when making these adjustments.
A warranty period of 90 days applies to machines used for commercial purposes.
To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of
purchase stating the machine serial number and date of purchase. The service receipt(s) or this
Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as
proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in
this limited warranty, the authorised dealer will, at our option, repair or replace any warranted
part within the duration of the warranty period.
This limited warranty gives you specific legal rights and is in addition to any statutory rights to
which you may be entitled and your statutory rights are not affected by this warranty. If you need
additional information concerning this written warranty, or assistance in obtaining services,
please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop’s Stortford,
Hertfordshire CM23 4BU
UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages or
contact:- Freephone 0800 616298.
Date.................................................................... Date.............................................................
Signed................................................................ Signed..........................................................
Issue: 12.10.00
DEALER STAMP
DEALER STAMP
1st Year
Service
Record
2nd Year
Service
Record

SAFETY PRECAUTIONS
1.6
This safety alert symbol indicates important safety messages. When
you see this symbol be alert to the possibility of injury. Carefully read
the following and inform others.
Your mower is perfectly safe if used correctly. Failure to observe the
following precautions may result in serious injury.
Before using the mower read the owners handbook carefully. Pay par-
ticular attention to the safety precautions. Ensure that you are familiar
with the controls and the proper use of the equipment. Learn how to
stop the mower quickly in an emergency.
Never allow children or people unfamiliar with these instructions to
use the mower.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the user is responsible for accidents or hazards
occurring to other people or their property.
While mowing, always wear substantial footwear and long trousers.
Do not operate the equipment when barefoot or wearing sandals.
Thoroughly inspect the area where the mower is to be used and remove
all objects which may be thrown by the machine.
WARNING: Petrol is highly flammable.
- Store fuel in containers specifically designed for this purpose.
- Add fuel before starting the engine. Never remove the cap from the
fuel tank or add petrol while the engine is running or when the engine
is hot. Allow the engine to cool for at least two minutes before refu-
elling.
- Do not attempt to start the engine if petrol is spilled or a smell of
petrol is present. Move the mower away from the area of spillage
and avoid creating any source of ignition until petrol vapours have
dissipated.
Safety Alert Symbol
Preparation
Training

PRECAUTIONSSAFETY
1.7
- Always use fresh fuel. Stale fuel can block the carburettor and cause
leakage.
- Replace fuel tank and oil tank caps securely.
A damaged cutterblade or loose fixing bolt are major hazards. Before
use, always visually inspect the cutting mechanism to ensure that it is
in good condition. A damaged cutterblade must be replaced immedi-
ately with a genuine Hayter replacement part
Do not operate the engine in a confined space where exhaust fumes
(carbon monoxide) can collect. Refuel outdoors only and do not smoke
while refuelling.
Always pull the starter cord slowly until resistance is felt. Then pull
the cord rapidly to avoid kickback and prevent hand or arm injury.
Mow only in daylight or good artificial light.
Avoid using the mower on wet grass, where feasible.
Always be sure of your footing on slopes.
Walk, never run.
Mow across the face of slopes, never up and down.
Exercise extreme caution when changing direction on slopes.

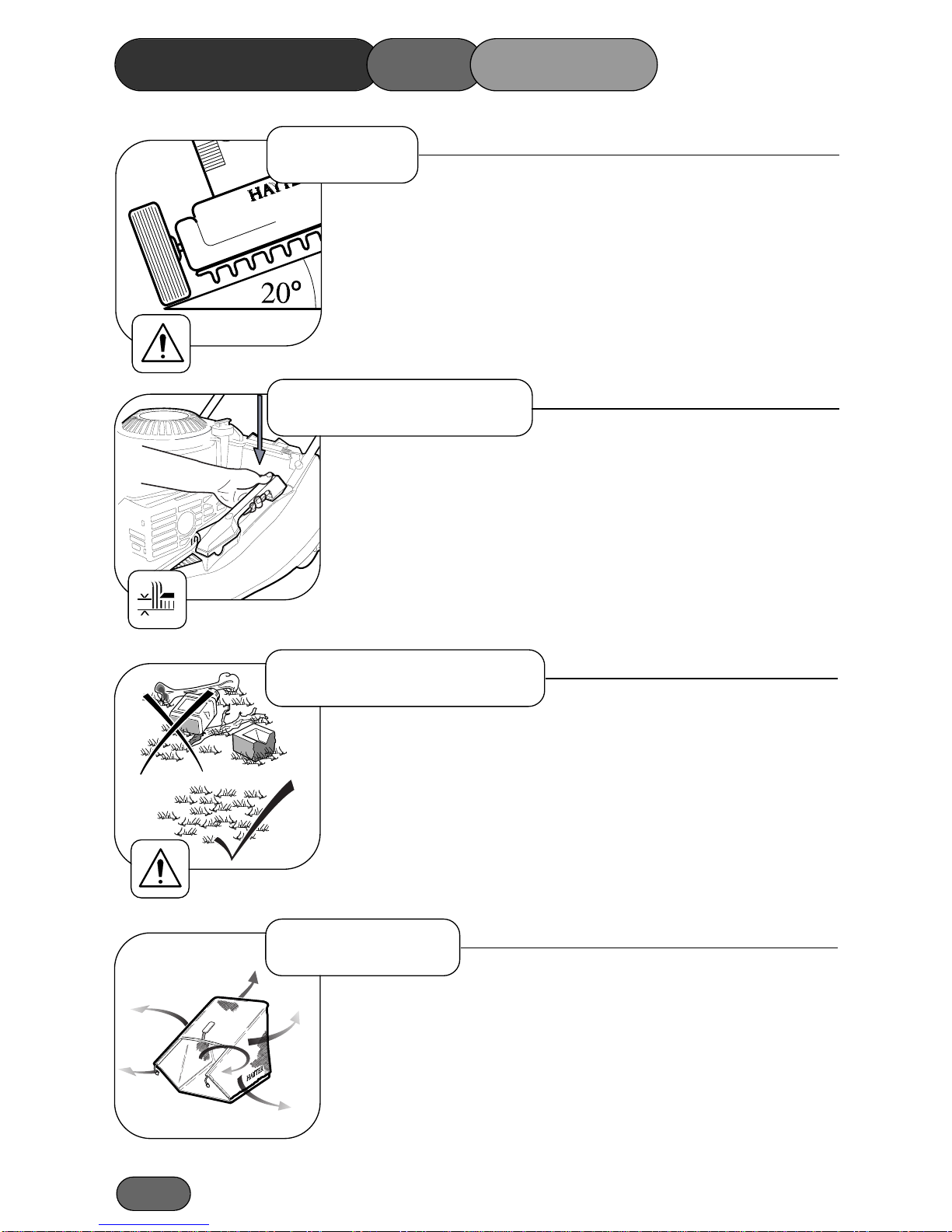

Do not mow excessively steep slopes of more than 20 degrees.
Use extreme caution when reversing or pulling the mower towards you.
Stop the engine before moving the mower across areas other than grass.
Never operate the mower unless the guards are securely in position and
in good condition.
Do not change the engine governor settings or overspeed the engine.
Disengage the rear roller drive clutch before starting the engine.
Start the engine carefully, with feet well away from the cutterblade.
Operation
Preparation

Do not tilt the mower when starting the engine.
Do not put hands or feet near or under rotating parts.
Never pick up or carry the mower while the engine is running.
Never lift the rear deflector while the engine is running.
Never touch the exhaust/exhaust guard or cooling fins when the engine
is hot.
Stop the engine and disconnect the spark plug lead:
- Before clearing blockages or unclogging the discharge chute.
- Before cleaning/checking or working on the mower.
- After striking a foreign object. Inspect the mower for damage and
ensure necessary repairs are made before re-starting.
- If the mower starts to vibrate abnormally (check immediately).
Stop the engine:
- Whenever you leave the mower.
- Before refuelling.
Keep all nuts, bolts and screws tight to ensure that the equipment is in
safe operating condition.
Frequently check fuel lines and fittings for cracks or leaks and replace
if necessary.
Never check for a spark when the spark plug is removed. (Use approved
tester)
Inspect the exhaust periodically and replace if worn or leaking.
Never crank the engine with the spark plug removed.
Never start the engine with the air-cleaner or air-cleaner cover
removed.
Never store the mower with petrol in the tank within an enclosed area
where fumes may reach an open flame or spark.
SAFETY PRECAUTIONS
1.8
Operation
Maintenance & Storage

SAFETY PRECAUTIONS
1.9
Allow the engine to cool before storing in any enclosure. To reduce the
fire hazard, keep the engine and the surrounding deck area free of
grass, leaves, or excessive grease.
Check the rear deflector and grassbag frequently for wear or deterioration.
Replace worn or damaged parts for safety.
If the fuel tank has to be drained, this should be done outdoors and
when the engine is cool.
Wear strong work gloves when removing and reassembling the cut-
terblade.
Always replace worn or faulty parts with genuine Hayter parts.
Maintenance & Storage
Safety Symbols
Safety Alert - Be aware to the
possibility of injury. Danger of severing toes or fin-
gers in cutting mechanism.
Carefully read the Owners
Handbook before using the
machine.
Danger of being hit by thrown
objects.
Stop engine and remove spark
plug lead before working on
the mower.
Keep bystanders at a safe dis-
tance from the mower.
Engine Stop
(Symbol) Height of Cut Adjustment
(Symbol) Throttle Control
(Symbols)
Decal Symbols
STOP
305113
CS198
Height of Cut Indicator
(Symbol)
2
4
6

ASSEMBLING THE MOWER
1.10
Remove the mower from the packaging and check that the following
items have been supplied correctly. If any items are missing contact,
your local Hayter dealer.
1. Engine Handbook.
2. Warranty Reg. Card.
3. Grassbag.
4. Charger (307R)
5. Ignition Key (307R)

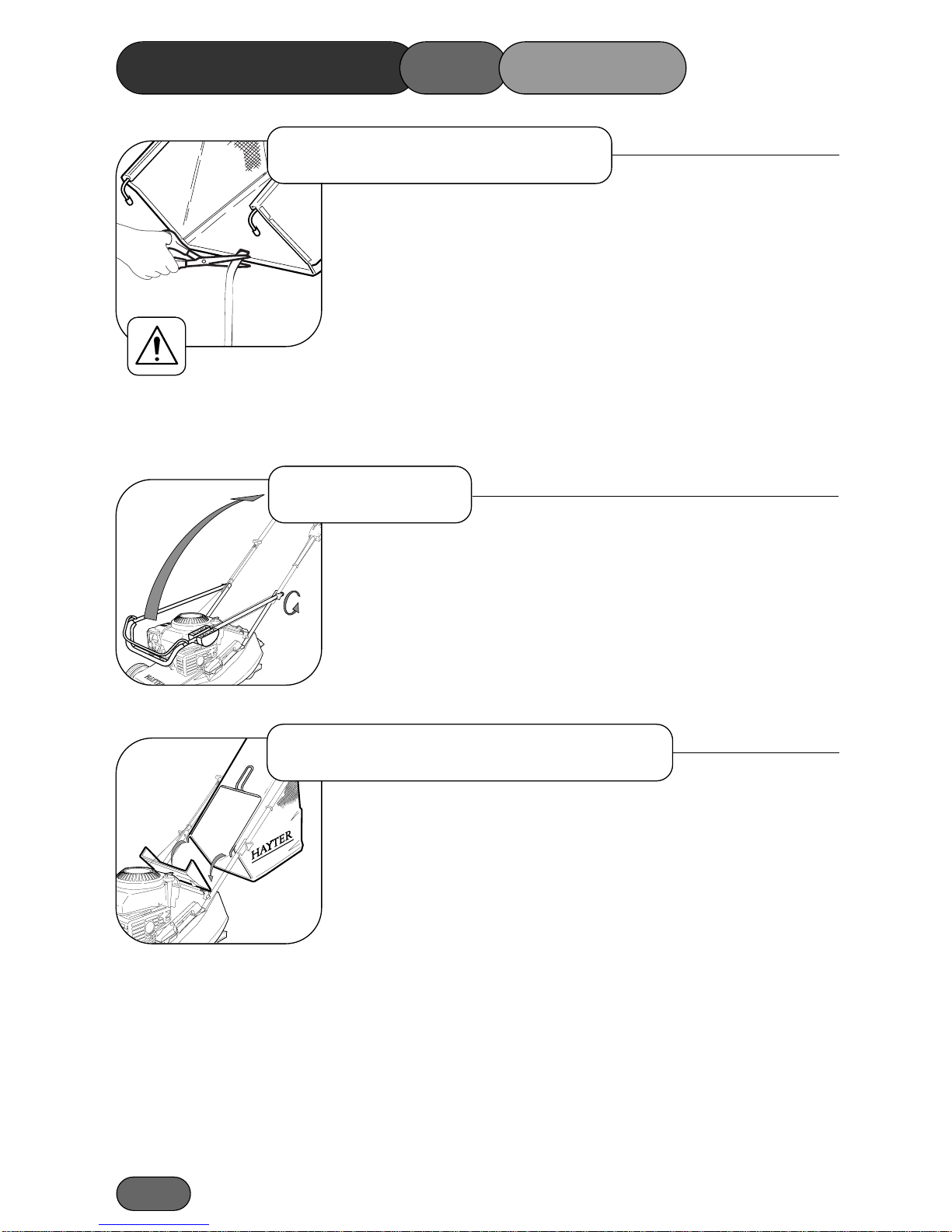

To prevent accidents cut off the long ribbon attached to the grass-
bag and discard.
Unscrew the handlebar securing knobs sufficiently to allow the handle-
bar to pivot. Move the engine stop lever away from the engine to avoid
damage and unfold the handlebar to the operating position. Tighten both
handlebar knobs to secure the handlebar in position.
Take care to ensure that the control cables do not become snagged at
the pivot point.
Raise the rear deflector, lower the grassbag through the handlebar and
hook in position. Lower the deflector to rest on the grassbag
Handlebar
Delivery Checklist
Grassbag Attachment

MOWERTHESTARTING
1.11
To prevent engine damage the engine is shipped without oil or
petrol. The engine must be filled with the correct grade of oil and
petrol before starting the engine.
Always use high quality detergent oil classified SAE 30 oil. Never use
additives with recommended oil.
To prolong the life of your engine it is important that the oil is changed
after the first 5 hours of use - refer to ‘Maintenance Schedule’.
Clean around the oil filler cap before removing. With the mower on a
level surface, unscrew and remove the oil filler - dipstick. Wipe oil
from it with a clean cloth. Screw the oil filler - dipstick back in place,
then unscrew and remove it to check the oil level.
The oil level is correct when it is at the full mark on the dipstick.
DO NOT OVERFILL.
Always use clean, fresh unleaded petrol. Purchase fuel in quantities
that can be used within 30 days. Never mix oil with petrol. For added
engine protection Briggs & Stratton recommend the use of their fuel
additive which is available from an authorised Briggs & Stratton ser-
vice dealer.
Fill to base of neck to allow for fuel expansion. Do not overfill the
fuel tank.
Prevent Engine Damage
O
I
L
ADD FULL
V15C
0.15
Litres
Oil Type
Check Oil Level
Fuel Type
BEFORE

Controls
Operate all control levers several times and ensure that the cables
move freely. Check that the engine stop and ground drive clutch levers
return freely to their rest position when released.
Whilst operating the engine throttle mechanism slight resistance
should be felt when moving the lever to the ‘choke’position.
Move the throttle control lever to the ‘choke’position before starting
a cold engine. Move the throttle control lever to the ‘fast’ position
before starting a warm engine.
Stand behind the mower and hold the handlebar together with the
engine stop lever with your left hand. With your right hand hold the
engine start - grip and pull slowly until resistance is felt, then pull
rapidly to crank the engine. carefully return the start grip to the storage
position when the engine starts.
If the engine does not start after 5 attempts - refer to “Trouble
Shooting”.
The engine stop lever must be held firmly against the handlebar to
start and keep the engine running. If the engine stop lever is
released the engine will stop.
Allow the engine to warm up and move the throttle lever to the ‘fast’
position after starting a cold engine.
To prevent damage never pull the engine start grip when the
engine is running.
Starting - Step 1
OPERATING THE MOWER
1.12
Step 2
Step 3

MOWERTHEOPERATING
1.13
Stand behind the mower and hold the handlebar together with the
engine stop lever. Turn the ignition key in a clockwise direction and
hold in position to crank the engine. When the engine starts release
the key and move the throttle to the fast position after starting a cold
engine.
note: cranking the engine for more than 15 seconds in any one minute
can damage the starter motor.
If necessary the engine can be started manually without using the igni-
tion switch.
To prevent engine damage do not operate the ignition key when
the engine is running.
Hold the handlebar and operate the ground drive clutch lever to power
the mower in a forward direction.
When the ground drive clutch lever is disengaged the mower may be
pushed. This feature is useful when mowing in confined areas.
If the engine stop lever is released the engine will stop.
To make a wide turn steer the mower with the handlebar in the direc-
tion required.
To make a tight turn release the ground drive clutch lever, apply down-
ward pressure on the handlebar to raise the front wheels just above
ground level and steer in the required direction.
To prevent accidents do not raise the front of the mower exces-
sively when making a turn. Never raise the rear of the mower
when the engine is running.
Release the ground drive clutch lever, reduce the throttle setting and
release the engine stop lever.
Emergency stop: Release both ground drive clutch lever and engine
stop lever together.
If the engine fails to stop, move the throttle lever to the ‘slow’posi-
tion and disconnect the spark plug lead.
Forward Travel
Turning
Stopping
STOP
CS146
CS075
Electric Start
(Electric start Only)
(Autodrive Only)

1.14
To prevent engine damage do not use the mower on slopes greater
than 20 degrees.
Hold the trigger against the handle and raise or lower the mower using
the handle to achieve the desired height of cut. Release the trigger to
secure the mower at the required position.
There are seven height of cut positions. The setting is indicated by the
position of the connecting rod relative to the height of cut indicator.
Always select a height of cut to suit operating conditions. Aim to pre-
vent engine overloading and blockages by avoiding low cuts in long
grass conditions. Be prepared to make two cuts when the grass is long.
To prevent accidents thoroughly inspect the area and remove all
objects which when contacted by the mower cutterblade could
become dangerous projectiles. Inspect the area for hidden obstruc-
tions which when contacted by the cutterblade could risk health
and safety. Remember the location of these obstructions and
ensure that you mow around them.
Raise the rear deflector and lift the grassbag through the handlebar and
lower the rear deflector to rest against the rear of the mower.
To empty the grassbag, pour out the grass clippings and shake the
grassbag vigorously to clean the airways. Good grass collection
depends on good air flow through the grassbag. When collecting grass
clippings it is important that the grassbag is emptied regularly to pre-
vent blockages and engine overloading.
Height of Cut
Before Mowing
305113
CS284
Grassbag
OPERATING THE MOWER
Slopes

1.15

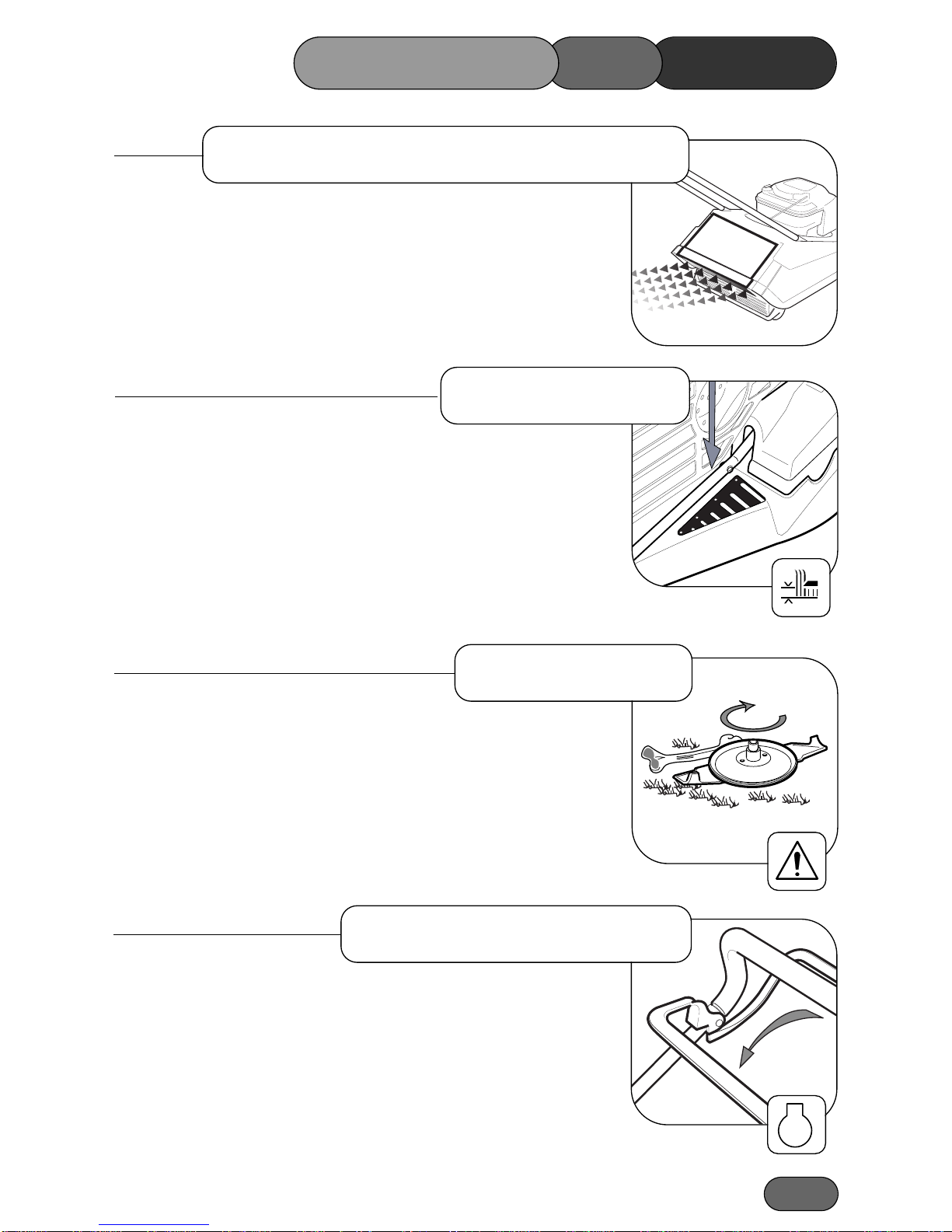

Remove the grassbag and operate the mower with the rear deflector in
the closed position.
Areas of heavy growth should be mown without collecting the clip-
pings. If collection is required, first mow the area without the grass-
bag at the maximum height of cut setting. Allow the grass clippings to
dry out and then mow the area at the maximum height of cut setting
with the grassbag fitted. Reduce the height of cut and mow the area
again as necessary until the required finish is obtained.
To prevent grass damage do not remove more than one third of grass
height in one cut.
The cutterblade is driven by the engine via a friction disc to help pre-
vent damage occurring to the engine crankshaft and cutting mecha-
nism when a hidden obstruction or overload is encountered.
Always stop the engine when a hidden obstruction or excessive vibra-
tion is encountered. Disconnect the spark plug lead and examine the
cutting mechanism. ALWAYS replace a damaged cutterblade - refer to
“Maintenance”.
When moving the mower across non-grassed areas, stop the engine
and set the mower to the maximum height of cut to protect the cutting
mechanism.
2
4
6
Heavy Growth
Friction Disc
305113
CS284
Non-Grassed Areas
STOP
CS146
MOWERTHEOPERATING
Without Grass Collection

1.16
There is very little work to do this month apart from brushing away
leaves. Keep off the grass if frozen or waterlogged.
Rake the grass thoroughly. Spike the lawn to aerate and stimulate soil
organisms and root growth and apply lawn sand if necessary.
The yearly lawn work programme really starts this month. As soon as
the ground conditions are suitable, the first cut can be made. The first
cut should merely “top”the grass as close cutting at this stage could
result in severe yellowing or browning. Two cuts are generally suffi-
cient this month.
Mow often enough to stop grass growing away. Dig out patches of
coarse grass or resistant weed. Re-seed bare patches.
Keep mowing increasing the frequency as required. Treat with selec-
tive weed killers or combined weed/feed preparations if you did not
feed the lawn in April.
Summer mowing should now be under way. It should be necessary to
mow the lawn twice a week. Raking before mowing is important this
month as the combined action keeps runners of clover under control.
Water the grass if necessary, and remember to soak thoroughly.
Treat the grass with the second application of fertiliser or weed
killer/fertiliser. Water when necessary and rake occasionally.As a gen-
eral rule the grass clippings should be removed each time you mow. If
weather conditions are dry and hot and the grass is weed free, leave the
clippings on the lawn to help maintain ground moisture.
January
LAWN CARE CALENDAR
February
March
April
May
June
July
To be used as a guide only.

1.17
Keep mowing regularly and watering as necessary. Fill any cracks
caused by drought with a mixture of sharp sand and soil. In dry weath-
er conditions leave the grass longer to help retain ground moisture.
Raise the height of cut to allow the grass to thicken and protect the
roots from the winter frost and snow.
Rake out the thatch from the turf and spike the lawn to assist in
drainage. Brush in peat and sharp sand.
Use a stiff broom to disperse worm casts before mowing. Keep turf
free from leaves.
Apart from brushing away leaves, December is a slack end of a busy
year. Keep off the lawn if it is very wet or frozen.
The way to achieve a neat striped effect is for the lawn being cut in
parallel stripes, alternate stripes being mown in opposite directions. A
much more important routine is to cut at right angles to the line of the
previous mowing. If the work has been carried in a north-south line,
then the next cutting should be in an east-west direction. The cross-
cutting keeps down the coarse weed grasses.
To prevent grass damage do not remove more than one third of the
grass height in one cut.
CALENDAR
August
LAWN CARE
September
October
November
December
1
2
1CG480V05A
Lawn Stripes

1.18
Follow the hourly or calendar intervals, whichever occurs first. More
frequent service will be required if working for prolonged periods
under dusty, dry conditions, or when airborne debris is present or after
extensive operation cutting tall, dry grass.
After the very first five hours change the engine oil
Check the oil level
Remove grass debris from around the engine, exhaust/exhaust guard and
air ways in the top cowl and underside of the deck housing.
Remove grass debris from the grassbag and check for signs of damage.
Check the condition of guards and safety devices and cutterblades
Check condition of cutterblade.
Change the engine oil if continuously operating under heavy load or
high ambient temperature.
Service the air cleaner.
Lubricate wheels, pivot points and linkages and grease the inner con-
trol cables at point of entry and exit from their outer casing.
Check the clutch cable adjustment.
Sharpen the cutterblade.
Change the engine oil.
Clean the engine cooling system. Clean more often under dusty condi-
tions or when airborne debris is present or after prolonged operation
whilst cutting tall, dry grass.
Replace the spark plug.
MAINTENANCE SCHEDULE
100Hrs or Every Season
25Hrs or Every Season
Daily
50Hrs or Every Season
First 5Hrs

1.19
To prevent accidents stop the engine disconnect the spark plug
lead before attempting to carry out maintenance procedures on
the mower.
1. Finger Guard
2. Carburettor
3. Spark Plug / Lead
4. Exhaust Guard
5. Exhaust
6. Oil filler Cap/ Dipstick
7. Start Grip
8. Fuel Cap
10. Air Cleaner
Loosen the outer cable clamp screw (1) and move the governor control
lever (2) to the left as far as possible. Insert a large, flat blade screw
driver (3) into the slot in the engine control bracket (4) at the angle
shown. Push the governor control lever to the right until it just touch-
es the screw driver blade. Move the throttle control lever to the ‘fast’
position (not the ‘choke’position) and re-tighten the outer cable clamp
screw. Replace the engine cowl.
Should only be made by an authorised Briggs & Stratton dealer. Under
no circumstances should the engine be adjusted to run at a speed in
excess of that shown on the Declaration of Conformity.
MOWER
3D319R08
7
8
9
2
4
5
6
1
3
1
23
4
Engine
Throttle Cable Adjustment
Carburettor Adjustments
MAINTENANCE

1.20
1
Check the oil level daily before starting the engine and ensure that the
correct oil level is maintained. Refer to-‘Before Starting the Mower’
for oil checking and filling instructions.
Change the engine oil after the first 5 hours of operation and thereafter
according to the ‘Maintenance Schedule’:-
1. Drain fuel by running the engine until the fuel tank is empty.
2. Remove the spark plug lead.
3. Allow the engine to cool.
4. Drain the oil while the engine is warm.(Not hot)
5. Tip the mower over on to its left hand side thus ensuring that
the air cleaner is kept uppermost to prevent engine damage.
6. Remove the oil filler dipstick and drain the oil into a suitable
container.
7. Refill with new oil of the recommended SAE viscosity grade.
(Refer to-‘Before Starting the Mower’)
To service the air cleaner, loosen screw (1) and remove cover (2).
Remove cartridge (3) and clean by tapping gently on a flat surface. If
very dirty, replace.
- Do not use petroleum solvents.
- Do not use pressurised air.
- Do not oil the cartridge.
After servicing, install the cartridge into the cover. Insert the tabs on
the bottom of the cover into the slots in the bottom of the base (4). Tilt
the cover upwards and securely tighten the screw to the base.
MOWER
1
2
3
4
Oil Service
Air Cleaner Service
MAINTENANCE
