Hayter 10/30 Setup guide

1740517
ILLUSTRATED PARTS LIST
133E
CODE
CODE 133E
HERITAGE TRACTOR
10/30
PART NO: 111-1179 (Rev A)
SERIAL NO.
470000001
ISSUE 01/23/2007

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Chassis & Hood ................................................................................................................................................... 4
Steering ................................................................................................................................................................ 8
Motion Drive ......................................................................................................................................................... 10
Mower Housing .................................................................................................................................................... 14
Mower Housing Suspension ................................................................................................................................ 18

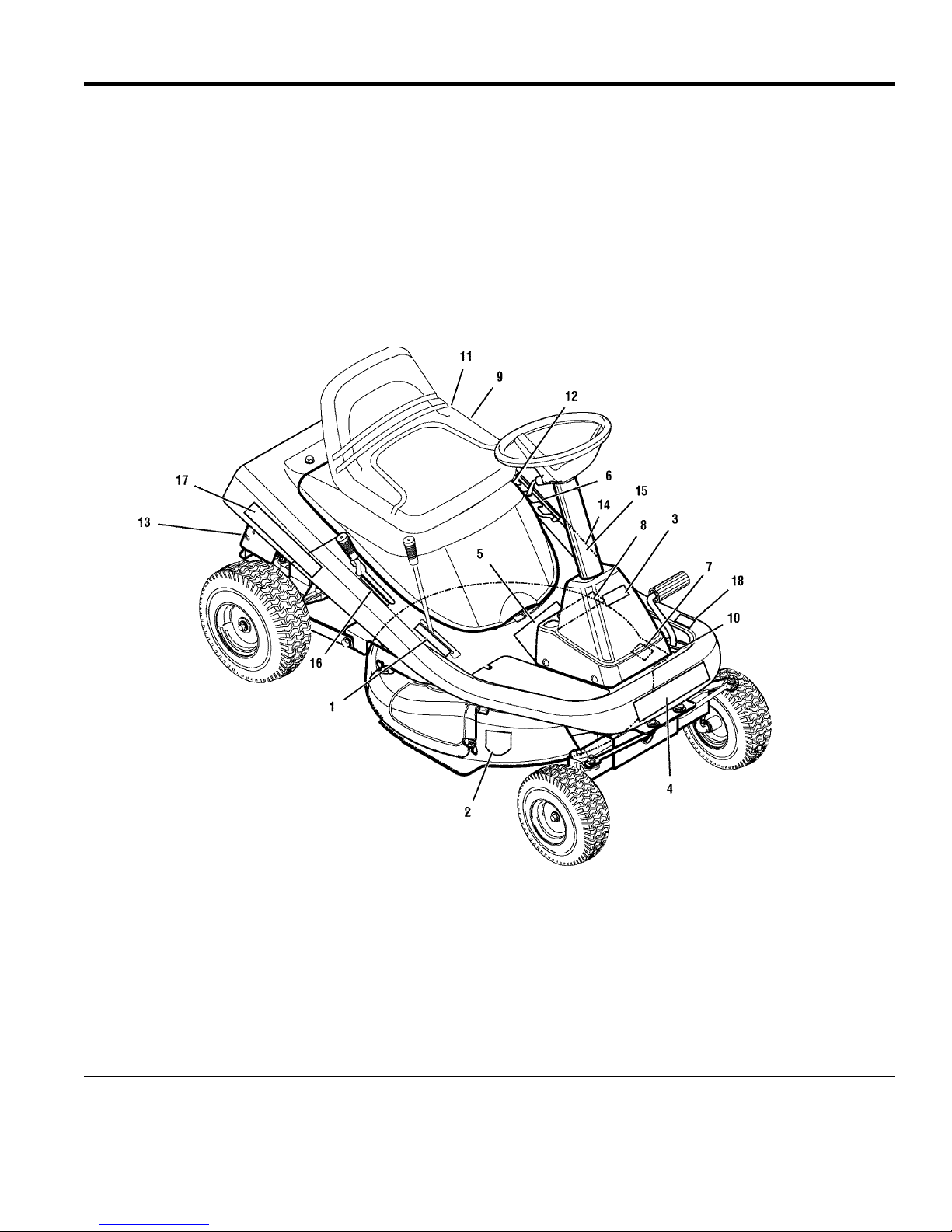

Decals .................................................................................................................................................................. 20
Electrical System .................................................................................................................................................. 22

Chassis & Hood
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0003
The above parts group applies to the following Mfg. Nos.:
4
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Chassis & Hood
Footnotes
Seat1 MU690566MA
Hood2 MU1401379E549MA
Washer3 MU017X47MA
Bolt, Wing4 MU1001054MA
Bolt, Carriage5 MU002X16MA
Bracket, Hinge6 MU1401378E701MA
Bolt, Shoulder7 MU009X29MA
Bolt, Shoulder8 MU009X56MA
Rod, Battery10 MU1401113MA
Nut, Flange11 MU015X84MA
Plate, Rear12 MU1401025E701MA
Screw13 MU26X249MA
Plate, Hitch14 MU1401050E701MA
Cover15 MU1401087MA
Screw16 MU26X263MA
Tray, Battery17 MU1401076E701MA
Nut, Flange18 MU015X79MA
Washer19 MU017X45MA
Pin, Cotter20 MU0031X6MA
Cap, Fuel Tank (Included when ordering Ref. No. 22)21 MU092317MA
Tank, Fuel22 MU1401361MA
Screw (Included when ordering Ref. No. 22)23 MU06X111MA
Screw24 MU26X253MA
Screw25 MU26X263MA
Rod, Hood Prop26 MU1401110MA
Spring, Seat Deck27 MU1401282MA
Bracket, Prop Rod28 MU1401297E701MA
Screw29 MU26X201MA
Nut, NY-Lock30 MU15X116MA
Control, Throttle31 MU1401248MA
Cover, Detent (Black)32 MU1401084MA
Bolt, Shoulder33 MU009X47MA
Footmat, Left (Black)36 MU1401229MA
Footmat, Right (Black)37 MU1401228MA
Frame39 MU1401371E701MA
Deck, Seat40 MU1401349E549MA
Bumper41 MU094744MA
Nut (Included when ordering Ref. No. 22)42 MU15X116MA
Screw43 MU0025X2MA
Kit, Foil Heat Shield44 MU7601036MA
Trim, Left45 MU1401076MA
Trim, Right46 MU1401072MA
Fastener, Panel47 MU0196X1MA
Plenum48 MU1401380MA
The above parts group applies to the following Mfg. Nos.:
5
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

Chassis & Hood
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0003
The above parts group applies to the following Mfg. Nos.:
6
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Chassis & Hood
Footnotes
Nut, Hex 5/16-1849 MU15X123MA
Valve, Fuel Shutoff50 MU698183
Shield, Heat51 MU1401401MA
Hose, Clamp52 MU095197MA
Fuel, Hose53 MU1401346E701MA
Heat Shield, Hood54 MU1401385MA
Reflector Tape, Heat Shield Hood55 MU1401208MA
Reflector Tape, Heat Shield Upper56 MU1401209MA
Bag, Parts-- MU1401361
Book, Instruction-- 111-1179
Manual, Parts LIst-- 111-1012
The above parts group applies to the following Mfg. Nos.:
7
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

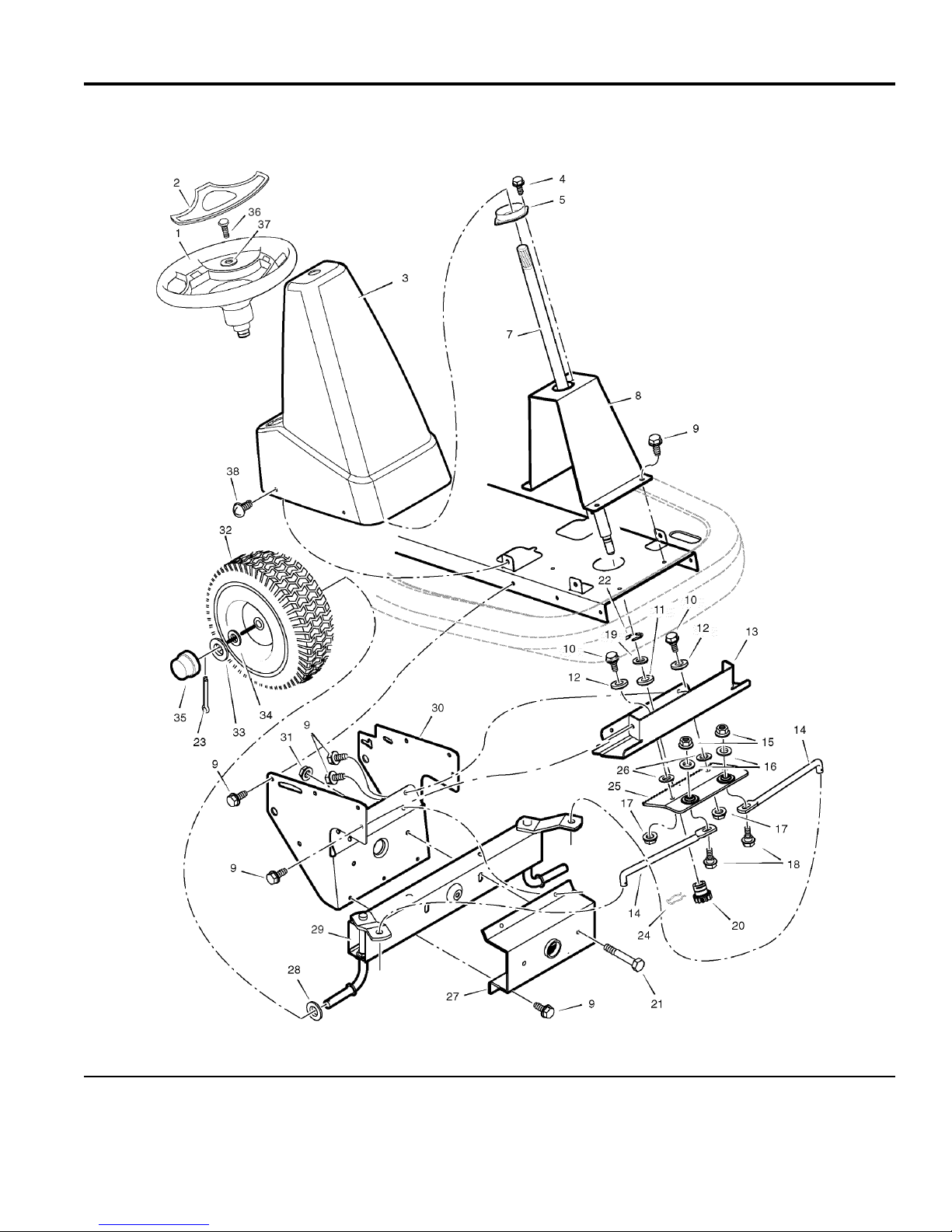

Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0007
The above parts group applies to the following Mfg. Nos.:
8
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Steering
Footnotes
Wheel, Steering1 MU1001980MA
Cap, Steering2 MU1001982MA
Console, High -Black3 MU1401067MA
Screw4 MU26X250MA
Bearing, Upper Steering5 MU1401090MA
Shaft, Steering7 MU1401100MA
Support, Steering8 MU1401055E701MA
Screw9 MU26X249MA
Bolt, Shoulder10 MU009X67MA
Bearing, Lower Steering11 MU1401098MA
Roller12 MU1401102MA
Plate, Gear Mounting13 MU1401058E701MA
Link, Drag14 MU1401123E701MA
Nut, Flange15 MU015X84MA
Washer16 MU17X104MA
Nut, Flange17 MU015X88MA
Bolt, Hex18 MU01X111MA
Washer19 MU17X118ZMA
Gear, Pinion20 MU1401099MA
Bolt, Hex21 MU01X146MA
E-Ring, Retainer22 MU011X23MA
Pin, Cotter23 MU030X35MA
Retainer, Spring24 MU094131MA
Rack, Steering25 MU1401046E701MA
Washer26 MU17X201MA
Bracket, Axle Front27 MU1401376E701MA
Washer28 MU17X157MA
Axle & Spindle Assembly29 MU1401250E701MA
Bracket, Support30 MU1401059E701MA
Nut, Flange31 MU15X118MA
Wheel, Front32 MU1401381601MA
Washer33 MU17X197MA
Washer34 MU17X157MA
Cap, Hub35 MU094618MA
Bolt36 MU0025X3MA
Washer37 MU17X146MA
Screw38 MU26x270MA
The above parts group applies to the following Mfg. Nos.:
9
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

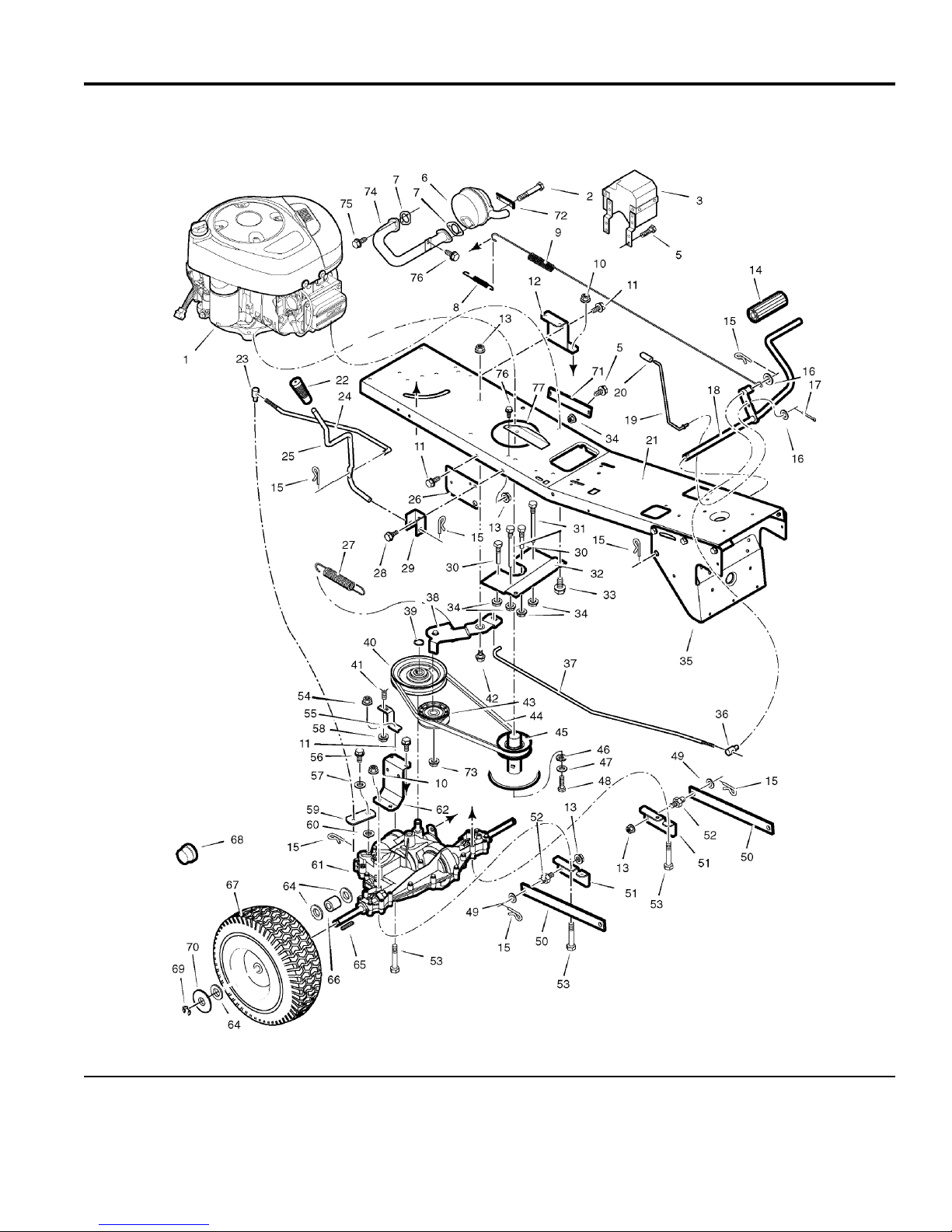

Motion Drive
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0005
The above parts group applies to the following Mfg. Nos.:
10
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Motion Drive
Footnotes
* Engine, Briggs & Stratton (2158070331E1)1 -----
Bolt, Hex2 MU01X134MA
Shield Assembly, Heat3 MU1401375MA
Screw5 MU0025X2MA
Muffler6 MU1401358MA
Gasket, Muffler7 MU692236
Spring, Extension8 MU165X75MA
Spring, Extension9 MU165X148MA
Nut10 MU015X88MA
Screw11 MU26X249MA
Bracket, Left Transaxle12 MU1401268E701MA
Nut, Flange13 MU015X84MA
Cover, Pedal14 MU021544MA
Pin, Cotter15 MU030X20MA
Washer16 MU017X53MA
Pin, Cotter17 MU030X20MA
Pedal Assembly18 MU1401127E701MA
Rod, Parking Brake19 MU1401112MA
Grip, Parking Brake Rod20 MU091079MA
Frame21 MU1401371E701MA
Grip, Shift Lever22 MU092697MA
Nut, Adjusting23 MU1401148ZMA
Link, Shift24 MU1401122MA
Lever, Shift25 MU1401111MA
Bracket, Lift Pivot26 MU1401032E701MA
Spring, Extension27 MU165X147MA
Bolt, Shoulder28 MU009X39MA
Bracket, Pivot29 MU1401043E701MA
Guide, Belt -Short30 MU1401104MA
Guide, Belt -Long31 MU1401105MA
Plate, Belt Guide32 MU1401057E701MA
Bolt33 MU0025X7MA
Nut, Flange34 MU015X79MA
Bracket, Support35 MU1401059E701MA
Nut, Adjusting36 MU094815ZMA
Rod, Clutch37 MU1401078MA
Clutch Arm Assembly38 MU1401128E701MA
Ring, Retainer39 MU0011X7MA
Pulley, Drive40 MU1401077MA
Bolt, Carriage41 MU002X53MA
Bolt, Shoulder42 MU009X39MA
Pulley, Idler43 MU1401252MA
Belt, Motion Drive44 MU37X110MA
Pulley, Split Stack45 MU1401066MA
NOTE* For information on Replacement Parts for this engine contact the manufacturer.
NOTE** For information on Replacement Parts for this transaxle contact the manufacturer.
The above parts group applies to the following Mfg. Nos.:
11
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

Motion Drive
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0005
The above parts group applies to the following Mfg. Nos.:
12
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Motion Drive
Footnotes
Washer, Star46 MU019X35MA
Washer47 MU17X170MA
Bolt, Hex48 MU01X140MA
Washer49 MU17X102MA
Arm, Rear50 MU1401031E701MA
Bracket, Rear Hanger51 MU1401039E701MA
Pin, Threaded Shoulder52 MU094067MA
Bolt, Hex53 MU01X155MA
Bolt54 MU01X120MA
Bracket, Torque Reactor55 MU1401051E701MA
Screw56 MU06X105MA
Washer, Shift Yoke57 MU017x38MA
Nut58 MU015X43MA
Yoke, Shift59 MU1401351ZMA
Washer60 MU17X148MA
** Transaxle, Peerless61 -----
Bracket, Right Transaxle62 MU1401042E701MA
Washer64 MU17X160MA
Key, Square65 MU056534MA
Spacer, Rear Wheel66 MU1401103MA
Wheel, Rear -15"67 MU1401120MA
Cap, Hub68 MU094618MA
E-Ring69 MU0011X3MA
Washer70 MU17X195MA
Plate, Reinforcement71 MU1401260E701MA
Lock, Screw72 MU092378MA
Nut73 MU015X43MA
Tube, Exhaust74 MU1401357MA
Screw75 MU06x103MA
Screw76 MU26x263MA
Shield, Heat77 MU1401396MA
NOTE* For information on Replacement Parts for this engine contact the manufacturer.
NOTE** For information on Replacement Parts for this transaxle contact the manufacturer.
The above parts group applies to the following Mfg. Nos.:
13
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

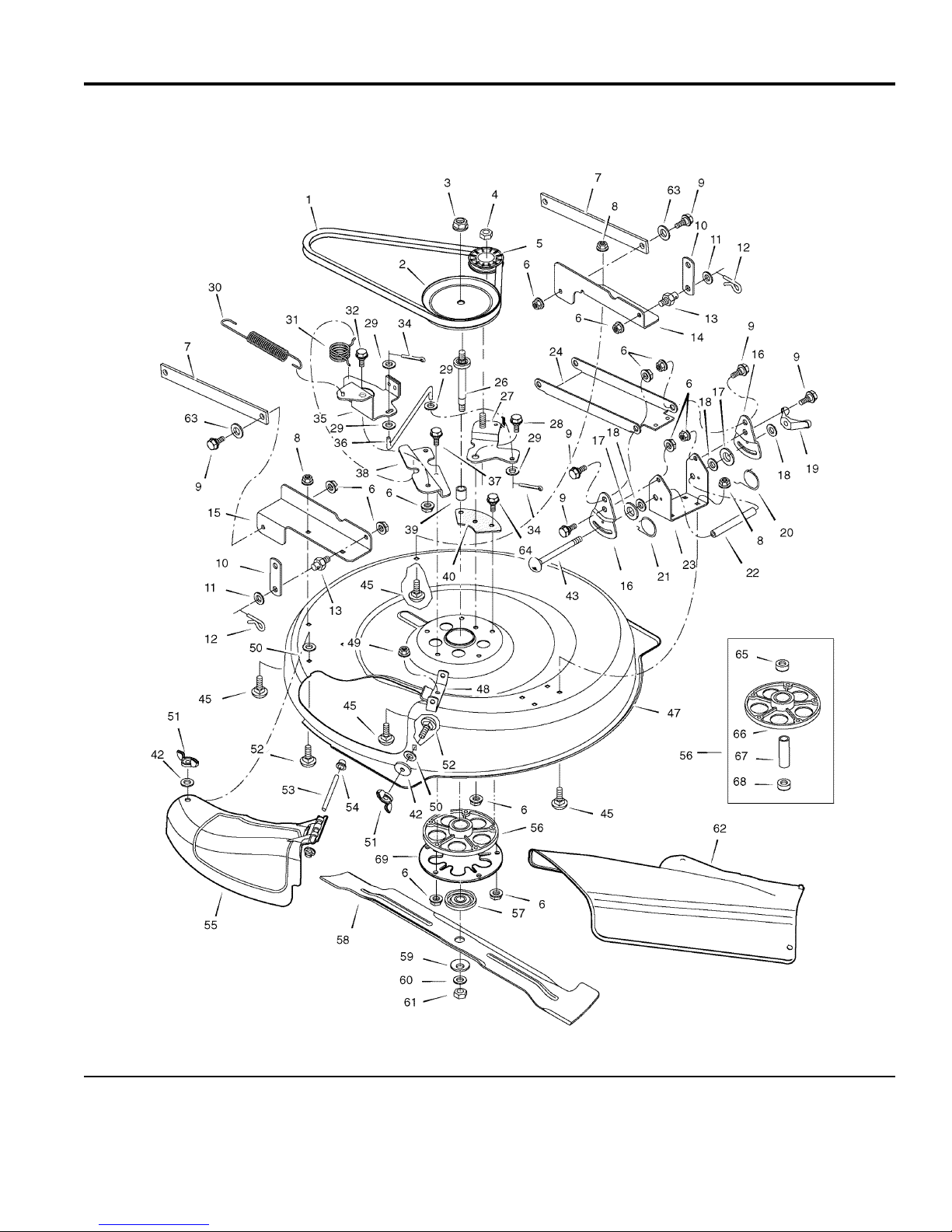

Mower Housing
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0011
The above parts group applies to the following Mfg. Nos.:
14
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Mower Housing
Footnotes
Belt, Blade Drive1 MU37X111MA
Pulley, Input2 MU1401092MA
Locknut3 MU15X140MA
Nut, Flange4 MU015X98MA
Pulley, Idler5 MU1401252MA
Nut, Flange6 MU015X84MA
Arm, Rear7 MU1401031E701MA
Nut, Flange8 MU015X79MA
Bolt, Shoulder9 MU009X58MA
Link, Lift10 MU1401033E701MA
Washer11 MU17X102MA
Pin, Hair12 MU0031X4MA
Pin, Threaded Shoulder13 MU094067MA
Bracket, Left Rear14 MU1401047E701MA
Bracket, Right Rear15 MU1401235E701MA
Plate, Adjustment16 MU1401038E701MA
Pad, Friction17 MU094137MA
Washer18 MU017X45MA
Wingnut19 MU095004MA
Spring, Left Torsion20 MU166X43MA
Spring, Right Torsion21 MU166X42MA
Tube, Spacer22 MU1401095MA
Bracket, Deck23 MU1401037E701MA
Hanger, Front24 MU1401040E701MA
Shaft, Splined26 MU1401065MA
Arm Assembly, Idler27 MU1401258E701MA
Bolt, Shoulder28 MU009X39MA
Washer29 MU017X47MA
Spring, Extension30 MU165X157MA
Spring, Torsion31 MU166X46MA
Bolt, Shoulder32 MU009X42MA
Pin, Cotter34 MU030X20MA
Arm Assembly, Brake35 MU1401185E701MA
Link, Idler Arm36 MU1401119MA
Bolt37 MU0025X7MA
Bracket, Brake Mounting38 MU1401052E701MA
Spacer, Jackshaft39 MU1401094MA
Plate, Idler Mounting40 MU1401259ZMA
Washer42 MU019X45MA
Bolt, Carriage43 MU002X94MA
Bolt, Carriage45 MU002X53MA
Housing, Blade47 MU1401028E701MA
Hinge, Mulching Cover48 MU1401106E701MA
Nut, Flange49 MU015X88MA
The above parts group applies to the following Mfg. Nos.:
15
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

Mower Housing
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0011
The above parts group applies to the following Mfg. Nos.:
16
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Mower Housing
Footnotes
Nut, Speed50 MU028X76MA
Wingnut51 MU014X86MA
Bolt, Carriage52 MU002X74MA
Rod, Chute Deflector53 MU091767ZMA
Cap, Push54 MU028X23MA
Cover, Mulch55 MU1401080MA
Mandrel Housing56 MU094305MA
Adapter, Blade57 MU1001035MA
Blade58 MU1401079E701MA
Washer, Cup59 MU17X166MA
Washer60 MU17X165MA
Nut, Blade Mount61 MU15X100MA
Deflector, Chute62 MU1401081MA
Washer63 MU17X120MA
Bolt64 MU001X84MA
Bearing, Upper Jackshaft65 MU092281MA
Jackshaft, Housing66 MU94282MA
Bearing, Spacer67 MU090904MA
Bearing, Lower Jackshaft68 MU092282MA
Plate, Jackshaft Support69 MU1001952E701MA
The above parts group applies to the following Mfg. Nos.:
17
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

Mower Housing Suspension
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0009
The above parts group applies to the following Mfg. Nos.:
18
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO
Mower Housing Suspension
Footnotes
Grip, Lift Lever1 MU092697MA
Lever, Lift2 MU1401117MA
Spring, Extension3 MU165X154MA
Pad, Friction4 MU094137MA
Washer5 MU017X45MA
Wingnut6 MU095004MA
Link, Lift7 MU1401033E701MA
Tube, Spacer8 MU1401096MA
Pin, Hair9 MU0031X4MA
Bolt, Carriage10 MU002X93MA
Bracket, Front Hanger Pivot11 MU1401030E701MA
Pin, Front Hanger12 MU1401118MA
Screw13 MU26X249MA
Arm Assembly, Lifter14 MU1401129E701MA
Washer15 MU17X206MA
Screw, Guide16 MU093349MA
Nut, Flange17 MU015X79MA
Nut, Flange18 MU015X84MA
Spring, Leaf19 MU1401147MA
Hanger, Front20 MU1401040E701MA
Lever, PTO21 MU1401116MA
Screw22 MU26X263MA
Grip, PTO23 MU094198MA
Bracket, PTO24 MU1401369E701MA
Bolt, Shoulder25 MU009X42MA
Spring, Extension26 MU165X157MA
Spring, Extension27 MU165X92MA
Plate, Reinforcement30 MU1401260E701MA
Screw31 MU26X267MA
The above parts group applies to the following Mfg. Nos.:
19
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R

Decals
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0015
The above parts group applies to the following Mfg. Nos.:
20
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
309029x11E - 10/30, Heritage Tractor (2007)
TP 400-4456-00-RD-R
