Hayter SST38/ST42 User manual

English Version
FROM SERIAL NO: 150A001001, 151A001001, 153A001001 MANUAL PART NO: 150005 (REV.0.)
Issue: 15.01.02
OPERATOR'S MANUAL
GARDEN TRACTOR
AND
POWERED SWEEPER
COLLECTOR
CODES 150A / 151A / 153A
THIS MANUAL SHOULD BE REGARDED AS PART OF THE
MACHINE, AS IT GIVES ESSENTIAL INFORMATION REGARDING
MACHINE SAFETY, OPERATION AND SPECIFICATIONS.
SST38/ST42

ATTENTION
THIS SYMBOL MEANS
BE ALERT!
YOUR SAFETY IS INVOLVED
READ THIS MANUAL BEFORE USING THE ST38/ST42 GARDEN TRACTOR AND
POWERED SWEEPER COLLECTOR. IT IS ESSENTIAL THAT OPERATORS
STUDY IT FOR THEIR OWN SAFETY.

150005MA010302A
CONTENTS
1.4 1.4
SAFETY PRECAUTIONS. 1.6 - 1.12
Training. 1.6
Preparation. 1.6 - 1.7
Operation. 1.7 - 1.8
Maintenance and storage. 1.9
Decals 1.10 - 1.12
EC CONFORMITY INFORMATION. 1.13 - 1.14
EC Declaration of Conformity. 1.13
EC Declaration of Incorporation 1.14
INTRODUCTION. 1.15
SPECIFICATIONS 1.16 - 1.17
Engine 1.16
Detail Specifications 1.16 - 1.17
Weights and Dimensions 1.17
Recommended Lubricants 1.17
OPERATING THE TRACTOR. 1.18 - 1.27
Safety Notice. 1.18
Operator Controls. 1.18
Before Starting the Engine. 1.19
Parking Brake. 1.19
Seat Position. 1.20
Headlights. 1.20
Cutterblade Control. 1.20
Height of Cut Setting. 1.20
Cutterdeck Level Setting. 1.21
Throttle Control. 1.22
Choke Control. 1.22
Travel. 1.22
Ignition Key. 1.22
Fuel Filler Cap. 1.23
Engine Oil Filler Cap. 1.23
Transaxle Bypass Lever. 1.23
Starting and Stopping the Engine. 1.24
Operator Safety System. 1.24
CONTENTS Page No.

150005MA010302A
CONTENTS
1.5 1.5
CONTENTS Page No.
Sweeper Drive Switch. 1.25
Sweeper Working Height Setting. 1.25
Emptying the Sweeper collector. 1.25
Sweeper Collector Lift Lever. 1.26
Attaching/Detaching the Sweeper Collector. 1.26 - 1.27
MAINTENANCE 1.28 - 1.37
Maintenance 1.28
Engine 1.29
Engine Oil 1.30
Oil Filter 1.30
Fuel and Carburation 1.31
Battery 1.32
Spark Plug 1.32
Headlights 1.32
Electrical 1.32
Tyres and Wheels. 1.33
Lubrication 1.34
Cutterdeck 1.35 - 1.36
Powered Sweeper Collector 1.37
GRASS CUTTING FAULTS. 1.38
TROUBLE SHOOTING. 1.39 - 1.41
ELECTRICAL CIRCUIT DIAGRAM 1.42 - 1.43

150005MA010302A
SAFETY PRECAUTIONS
1.6 1.6
TRAINING
Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Learn
how to stop the tractor quickly in an emergency.
Never allow children or people unfamiliar with these instructions to use the garden tractor and powered
sweeper collector. Local regulations may restrict the age of the operator.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or
their property.
Do not carry passengers.
All drivers should seek and obtain professional and practical instruction. Such instruction should emphasise:
The need for care and concentration when working with this garden tractor and powered sweeper collector.
The need to slow down when making tight turning manoeuvres. Failure to take adequate care can affect
stability leading to loss of control of the tractor.
Control of a ride-on machine sliding on a slope will not be regained by application of the brake.
The main reasons for loss of control are:
- Insufficient wheel grip.
- Being driven too fast.
- Inadequate braking.
- The type of machine is unsuitable for the task.
- Lack of awareness of the effect of ground conditions, especially slopes.
- Incorrect load distribution.
PREPARATION
While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when
barefoot or wearing open sandals. Eye protection should be worn.
Thoroughly inspect the area where the equipment is to be used and remove all objects which can be
thrown by the machine.
READ THIS MANUAL BEFORE USING THE TRACTOR, IT IS ESSENTIAL THAT OPER-
ATORS STUDY IT FOR THEIR OWN SAFETY.
THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS.
A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.
-
-
-

150005MA010302A
SAFETY PRECAUTIONS
1.7 1.7
PREPARATION Continued.
Warning - petrol is highly flammable:
- Store fuel in containers specially designed for this purpose.
- Refuel outdoors only and do not smoke while refuelling.
- Add fuel before starting the engine. Never remove the cap from the tank or add petrol while the
engine is running or when the engine is hot. Allow the engine to cool for at least two minutes
before refuelling.
- Do not attempt to start the engine if petrol is spilled or a smell of petrol is present. Move the
machine away from the area of the spillage and avoid creating any source of ignition until the
petrol vapours have dissipated.
- Always use fresh fuel. Stale fuel can block the carburettor and cause leakage.
- Replace fuel tank and oil tank caps securely.
Ensure that the cutterdeck is fully raised before transporting the tractor.
Replace faulty silencers.
Check the condition of the tyres and ensure that they are inflated to the correct pressures.
Check that the garden tractor and powered sweeper collector are in good working order, paying particular
attention to the brakes and steering. Also ensure that the forward/reverse travel control pedal moves freely
to neutral when released.
Before use, always visually inspect to see that the blades, blade bolts and cutterdeck assembly are not worn
or damaged. Replace worn or damaged components.
Check that all linkages, connections and pivot nuts are secure and that wheel nuts are torqued correctly.
OPERATION
Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
Mow only in daylight or in good artificial light.
Before attempting to start the engine, engage the parking brake, switch off the cutterblade and powered sweep-
er collector drives and ensure that the forward/reverse travel control pedal is in the neutral position.
Watch out for traffic when crossing or near roadways.
Use extreme caution when reversing.
Switch off the cutterblade and powered sweeper collector brush drives before crossing surfaces other than grass.
When using the garden tractor, never direct the discharge of material toward bystanders or allow anyone near the
machine while in operation.

150005MA010302A
SAFETY PRECAUTIONS
1.8 1.8
OPERATION Continued.
Never operate the garden tractor or powered sweeper collector with defective guards or shields or without
safety protective devices in place and in good working order.
Do not change governor settings to increase the speed of the engine. Operating an engine at excessive speed
increases the hazard of injury.
Before leaving the operator’s position:
- Switch off the drive to the cutterblades and powered sweeper collector and lower the powered
sweeper collector to the ground.
- Engage the parking brake.
- Stop the engine and remove the ignition key.
Switch off the drive to the cutterblades and powered sweeper collector, stop the engine and disconnect the
spark plug lead or remove the ignition key before:
- Clearing blockages.
- Checking, cleaning or working on the mower or powered sweeper collector.
- Refuelling.
- Removing the powered sweeper collector.
- After striking a foreign object (inspect the mower for damage and make repairs before restart-
ing the tractor).
- If the machine starts to vibrate abnormally check immediately and call dealer if necessary.
Reduce the throttle setting during engine run out.
Do not use on a slope of more than 10 degrees.
Ground conditions affect traction. Particular conditions may not permit safe operation on the slope
limits stated.

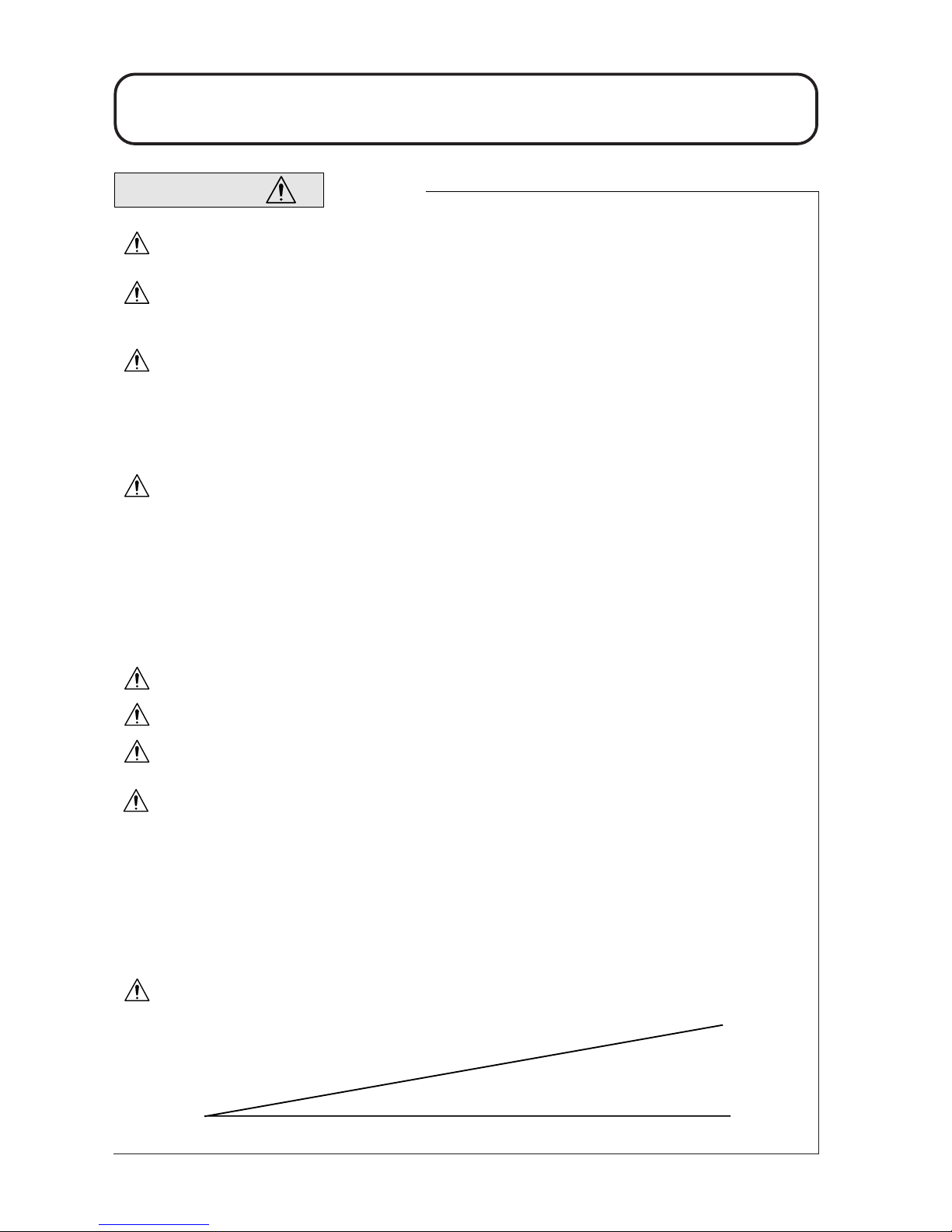

Remember there is no such thing as a" safe" slope. Travel on a grass slope requires particular care.
To guard against overturning:
- Exercise extreme care when changing direction on a slope.
- Do not stop or start suddenly when going up or downhill.
- Engage drive slowly, especially when travelling downhill.
- Tractor speed should be kept low on slopes and during tight turns.
- Stay alert for humps and hollows and other hidden hazards.
- Keep away from sharp inclines and steep drops.
- Never mow across the face of a slope.
Never park on a slope.
Ground level
10 Degree slope

150005MA010302A
1.9 1.9
SAFETY PRECAUTIONS
MAINTENANCE AND STORAGE
Never store the tractor with petrol in the tank inside a building where fumes may reach an open flame or spark.
When the tractor is to be parked, stored or left unattended turn the in-line fuel tap to the closed position,
apply the parking brake and remove the ignition key.
When the tractor is to be parked, stored or left unattended, raise the cutterdeck to the highest cut height and
lower the powered sweeper collector to the ground.
Check that all nuts, bolts and screws are tight to be sure the equipment is in safe working condition.
Allow the engine to cool before storing in any enclosure.
To reduce the risk of fire, keep the engine, silencer, fuel tank and battery compartment free of grass, leaves
or excessive grease.
Frequently check fuel lines and fittings for cracks or leaks and replace if necessary.
Replace worn or damaged parts for safety.
Ensure that all safety decals are properly secured and in good condition.
If the fuel tank has to be drained, this should be done outdoors.
Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades
and fixed parts of the tractor.
Never work on the tractor or sweeper collector while the engine is running.
Health and Safety at Work Act:
In accordance with section 6 of the Health and Safety at Work Act 1974, the garden tractor and powered
sweeper collector have been designed and constructed so that, in so far as is reasonably practical, they will
not endanger the safety and health of those working with them. This is, however, subject to the equipment
being properly used and maintained according to the conditions stated in this manual and elsewhere, which
have been found necessary as a result of the research and testing of Hayter Limited.

150005MA010302A
1.10 1.10
SAFETY PRECAUTIONS

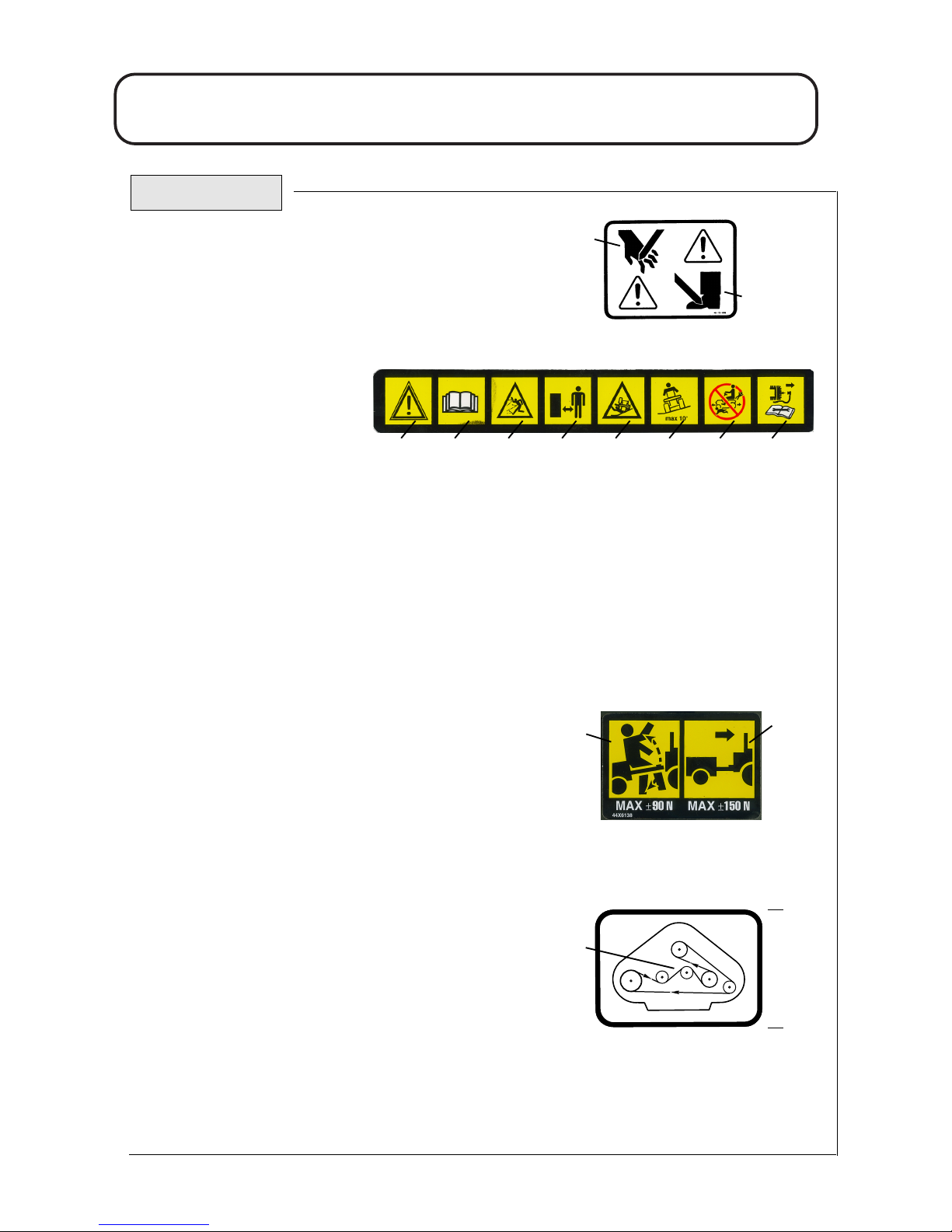

DECALS
Decal - Caution: Hands and Feet Part No: 40-13-010
Location: Cutterdeck.
a) Warning-Danger of Severing Fingers.
b) Warning-Danger of Severing Toes.
Decal - General Warning Part No: MU44x6815
Location: Footwell.
a) Warning-Safety Alert. Be aware of the possibility of injury.
b) Carefully read the operator’s manual before using the equipment.
c) Warning-Danger of being hit by thrown objects.
d) Keep bystanders at safe distances from the tractor during operation.
e) Warning-Be aware that the tractor can roll over.
f) Machine rollover. Do not use tractor on slopes of more than 10 degrees.
g) Do not operate the tractor where children may be present.
h) Stop the engine and disconnect the spark plug lead or remove ignition key
before working on the equipment.
Decal - Drawbar Warning Part No: MU44x6138
Location: Chassis Bulkhead.
a) Maximum vertical load at rear hitch point.
b) Maximum horizontal load at rear hitch point.
Decal - Cutterdeck Drive Belt Routing Part No: 150037
Location: Cutterdeck.
a) Drive belt routing.
abcdef gh
a
b
150037 REV. 0
ab
a

150005MA010302A
1.11 1.11
SAFETY PRECAUTIONS

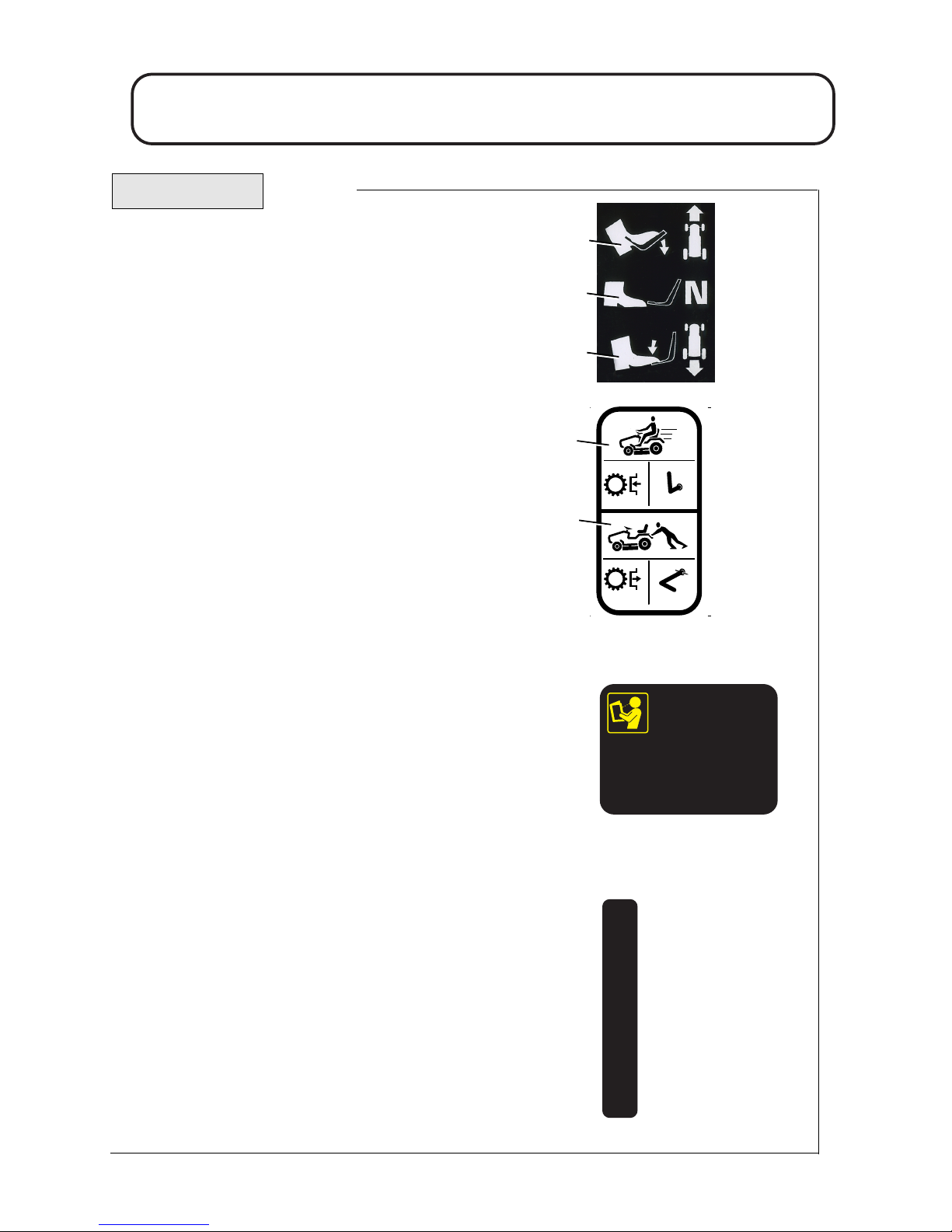

DECALS Continued.
Decal - Drive Part No: MU710720
Location: Platform RH side.
a) Forward Travel
b) Neutral
c) Reverse Travel
Decal - Transaxle Bypass Lever Part No: 150038
Location: Rear chassis bulkhead.
To Move the tractor by pushing.
a) Rear axle engaged for operation.
b) Rear axle disengaged for pushing.
Decal - Level Position Part No: MU44x6456
Location: Platform LH side.
Position for levelling the cutterdeck.
Decal - Height of Cut Part No: MU44x6279
Location: Platform LH side.
Six Height of Cut Settings
150038 REV. 0
DECK LEVEL
POSITION
ONLY
LIFT HERE TO
REMOVE COVER
6
5
4
3
2
1
a
b
c
a
b

150005MA010302A
SAFETY PRECAUTIONS
1.12 1.12
DECALS Continued.
Decal - Powered Sweeper Collector Part No: 153061
Location: LH side adjacent to side belt guard.
a) Warning - Danger of hand/arm entanglement - belt drive.
b) Do not open or remove belt drive system covers while the engine is
running.
c) Exposure to thrown or flying objects.
d) Keep shield/cover in place while the sweeper is rotating.
e) Warning - Danger of hand/arm entanglement - sweeper brush.
f) Do not touch the sweeper brush while the engine is running.
Decal - Serial Number
Location: ST38/ST42 Garden Tractors: Under seat.
Location: Powered Sweeper Collector: LH side under belt guard.
MOULDINGS
Guard - Rear Flap Part No: 150048
Location: Rear chassis bulkhead.
a) Warning - Danger of hand/arm entanglement
b) Do not open or remove belt drive system covers while the equip-
ment is running.
ST42
- GARDEN TRACTOR
SPELLBROOK, BISHOP’S STORTFORD,
HERTS. CM23 4BU. ENGLAND.
Kg
300
RPM 2950
Serial No: 151A001001
CODE 151A
kW 13.5 2002
100dB
SWEEPER COLLECTOR
SPELLBROOK, BISHOP’S STORTFORD,
HERTS. CM23 4BU. ENGLAND.
Kg
85.0
RPM -----
Serial No: 153A001001
CODE 153A
kW -----
ST38
- GARDEN TRACTOR
SPELLBROOK, BISHOP’S STORTFORD,
HERTS. CM23 4BU. ENGLAND.
Kg
290
RPM 2950
Serial No: 150A001001
CODE 150A
kW 11.6 2002
100dB
a c e
b d f
a b

150005MA010302A
1.13 1.13
EC CONFORMITY INFORMATION
EC DECLARATION OF CONFORMITY
VIBRATION INFORMATION
Lawnmower vibration information. RMS acceleration measured in 3 - axes at operators contact position
on the: - steering wheel does not exceed 2.5ms-2
- at seat does not exceed 0.5ms-2
EC DECLARATION OF CONFORMITY
HAYTER LIMITED,
Spellbrook, Bishop’s Stortford, Herts CM23 4BU ENGLAND
declare that the lawnmower:
Models: ST38 ST42
Machine Type No. CODE 150A CODE 151A
Category: Ride-on Lawn Mower Ride-on Lawn Mower
Type: Rotary Rotary
Engine manufacturer: Briggs & Stratton Briggs & Stratton
Speed of rotation: 2850 rpm 2850 rpm
Width of cutting device: 956 mm 1065 mm
Speed of rotation of the cutting device: 2550 rpm 2550 rpm
Complies with the provisions of Directive: 98/37/EC Essential Health & Safety Requirements Relating to the
Design & Construction of Machinery and Safety Components.
Also Directive 89/336/EEC amended by 92/31/EEC Electromagnetic Compatibility.
Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors. (ANNEX VI)
Notified Body: Sound Research Laboratories Ltd. Holbrook House, Little Waldingfield,
Sudbury, Suffolk, ENGLAND
Notified body identification No: 1088
Guaranteed sound power level: 100 dB(A) 100 dB(A)
Standards used: EN292, EN836 and ENISO14982
Authorised Signature
Signed Date: 01.03.02.
Technical Documentation Kept at:
M.A. Wright HAYTER LIMITED,
(Technical Director) Spellbrook, Bishop’s Stortford,
Herts CM23 4BU ENGLAND

150005MA010302A
1.14 1.14
EC CONFORMITY INFORMATION
EC DECLARATION OF INCORPORATION
EC DECLARATION OF INCORPORATION
HAYTER LIMITED,
Spellbrook, Bishop’s Stortford, Herts CM23 4BU ENGLAND
declare that the lawnmower attachment:
Machine Type No. CODE 153A
Category: Sweeper Collector
Type: Rotary Brush
Complies with the provisions of Directive: 98/37/EC Essential Health & Safety Requirements Relating to the
Design & Construction of Machinery and Safety Components.
Standards Used: EN292, EN836.
Authorised Signature
Signed Date: 01.03.02
Technical Documentation Kept at:
M.A. Wright HAYTER LIMITED,
(Technical Director) Spellbrook, Bishop’s Stortford,
Herts CM23 4BU ENGLAND
WARNING: Under no circumstances can attachments other than those covered by the above EC
Declaration of Incorporation or other attachments that may be introduced by Hayter Limited in
the future, having a similar EC Declaration, be supplied for or fitted to the Code 150A or Code
151AGarden Tractors. Unauthorised use of other equipment will invalidate the EC Declaration of
Conformity and may cause the mowers to be unsafe.

150005MA010302A
1.15 1.15
INTRODUCTION
INTRODUCTION
The Hayter Heritage ST38 and ST42 Garden Tractors are petrol engine powered self propelled machines
with a belt driven hydraulic transaxle for ground drive, cutterdeck and optional rear powered sweeper col-
lector. The machines operate in two wheel drive.
The Hayter Heritage ST38 and ST42 Garden Tractors are designed solely for use in a domestic grass cut-
ting environment. Use in any other way is considered as contrary to the intended use. Compliance with
and strict adherence to the conditions of operation, service and repair as specified in this Operators
Manual also constitute essential elements of the intended use. The way in which these machines are oper-
ated and maintained will have a profound effect on their performance and reliability.
This manual contains advice on the Hayter Heritage ST38 and ST42 Garden Tractors and optional Sweeper
Collector which should be operated, serviced and repaired only by persons who are familiar with their par-
ticular characteristics and who are acquainted with the relevant safety procedures.
The safety precautions listed herein and all other generally recognised regulations on safety must be observed
at all times.
Any arbitrary modifications carried out to these machines may relieve Hayter Limited of liability for any
resulting damage or injury.
Optional Extras: Powered Sweeper Collector
Left and Right: Throughout this manual the terms 'Left' and 'Right' refer to the machine when looking in
the direction of forward travel.
This manual is based on information available at the time of publication.
HAYTER LIMITED reserve the right to amend product specifications without prior notification.

150005MA010302A
1.16 1.16
SPECIFICATIONS
ENGINE
Tractor Model:
Type:
Power Rating:
Capacity:
Air Cleaner:
Cooling System:
Battery:
Alternator:
Starter:
Cold Starting:
Idle Speed:
Fuel Type:
Oil Type:
DETAIL SPECIFICATIONS
Tractor Model:
Travel Speed:
Forward:
Reverse:
Cutting Width:
Cutting Height:
Fuel Tank:
ST38
Briggs and Stratton
15.5 HP Intek Anti-vibration
system single cylinder
15.5 HP at 3000rpm
465cc
Dual Element Air Cleaner
Fan Assisted Air Cooled
12v 35a.h Sealed Lead Acid Battery
16 Amps
12v Regular
Choke-cable operated by
Throttle Control
1750 (+/- 100) rpm
Unleaded Petrol
SAE 30 Engine Oil
ST38
0-10.5 km/hr (0-6.5mph)
0-9 km/hr (0-5.5mph)
956mm
20-90mm
10.5ltr
IMPORTANT: PREVENT DAMAGE - for further information regarding the engine, refer to -
ENGINE MANUAL.
ST42
Briggs and Stratton
18 HP Intek 90oV-Twin
18 HP at 3000rpm
656cc
Dual Element Air Cleaner
Fan Assisted Air Cooled
12v 35a.h Sealed Lead Acid Battery
16 Amps
12v Regular
Choke-cable operated by knob
1750 (+/- 100) rpm
Unleaded Petrol
SAE 30 Engine Oil
ST42
0-10.5 km/hr (0-6.5mph)
0-9 km/hr (0-5.5mph)
1065mm
20-90mm
10.5ltr

150005MA010302A
1.17 1.17
SPECIFICATIONS
DETAIL SPECIFICATIONS Continued.
Optional Sweeper
Collector:
Grass Collector
Capacity:
Sweeping Width:
Sweeper Brush
Diameter:
Sweeping Height:
WEIGHTS AND DIMENSIONS
Tractor Model:
Height:
Width:
Length:
Tractor Weight:
Optional Sweeper
Collector:
Height:
Width:
Length:
Weight:
RECOMMENDED LUBRICANTS
Grease Points: A good quality medium grease.
Engine: SAE 30 engine oil.
Rear Transaxle: 20w-50 engine oil.
ST38
250Ltr
695mm
320mm
0-50mm
ST38
1100mm
1050mm
2900mm
290Kg
ST38
80Kg
1110mm
960mm
1220mm
ST42
250Ltr
695mm
320mm
0-50mm
ST42
1100mm
1150mm
2900mm
300Kg
ST42
80Kg
1110mm
960mm
1220mm

150005MA010302A
1.18 1.18
OPERATING THE TRACTOR
SAFETY NOTICE
WARNING: PREVENT ACCIDENTS - Before operating the equipment it is essential that;
- The operator reads and understands all safety instructions and symbols.
- The operator is familiar with the controls.
- The daily maintenance checks have been properly carried out and the
equipment is in good working order.
- The operator should wear safety clothing and eye protection. Failure to do
so could result in risk to health and safety.
- The area where the equipment is to be used is inspected and all objects
which may be thrown by the mower are removed.
- The operator follows safe working practices when working on slopes.
1. Sweeper Drive Switch.
2. Throttle Lever with Integral Engine
Choke Control (ST38 only).
3. Cutterdeck Drive Switch.
4. Ignition Switch.
5. Parking Brake Latch.
6. Parking Brake Pedal
7. Fuel Filler Cap
8. Engine Oil Filler Cap
9. Forward/Reverse Pedal
10. Sweeper Collector Lift Lever
11. Height of Cut Lever
12. Engine Choke Control Knob
(ST42 only)
13. Sweeper Collector Latch Locking
Mechanism
14. Steering Wheel.
15. Sweeper Collector Tipping Lever.
16. Sweeper Working Height Lever.
17. Transaxle Bypass Lever.
6
7814
9
10
11
12
15
16
18
17
(Hidden)
13 (Hidden)
OPERATOR CONTROLS
112
23
4
5

150005MA010302A
1.19 1.19
BEFORE STARTING THE ENGINE
Check Oil Level: Note: The engine was filled with oil at the factory.
Oil Type: SAE30 Engine oil, classified for service - ‘SF’minimum.
Fuel Type: Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within 30
days. Never mix oil with petrol. For added engine protection, Briggs and Stratton recommend the use of
their fuel additive which is available from authorised Briggs and Stratton Service dealers.
Check Fuel Level: Clean around the fuel filler cap before removing it. Do not overfill the tank. Allow
6mm minimum of tank space for expansion.
IMPORTANT: The fuel filler cap must be secured to prevent fuel leakage during operation.
Check Tyres: Check the air pressure in the tyres. Incorrect pressure can cause the unit to ride badly and
may prevent the cutterdeck from cutting level.
Sweeper/Attachments: Check that the sweeper collector has been attached to the tractor and latched
securely. Check that the drive belt is routed correctly around the rear electric clutch pulley on the tractor
and the input pulley on the sweeper collector.
OPERATING THE TRACTOR
PARKING BRAKE
IMPORTANT - Always engage the parking brake when the machine is stationary or left unattended.
Engaging the Parking Brake: Push the brake pedal down and hold while lifting the parking brake latch.
Gradually release the pedal. The brake pedal should remain in the depressed (brake engaged) position.
Releasing the Parking Brake: Push down on the brake pedal. The brake pedal latch will disengage auto-
matically. Gradually release the pedal.
Axle Tyre Type Recommended Tyre Pressures
Working Pressure Max. Pressure
Front Axle Turf Pro 16 x 6.50 x 8-2ply 0.7 bar (10 P.S.I) 1.0 bar (14 P.S.I)
Rear Axle Turf Pro 23 x 9.50 x 12-2ply 0.6 bar (8 P.S.I) 0.7 bar (10 P.S.I)

150005MA010302A
1.20 1.20
OPERATING THE TRACTOR
SEAT POSITION
The seat can be adjusted forward or backwards. Raise the seat (1),
loosen the adjuster knobs (2), adjust the seat to the desired position and
re-tighten the adjuster knobs. Lower the seat.
IMPORTANT - Ensure that the adjuster knobs are fully tightened
before operation.
1. Seat
2. Adjuster Knobs
HEADLIGHTS
The lights are an integral function of the ignition switch. Turn the ignition key to the symbol to switch
them on.
CUTTERBLADE CONTROL
The cutterdeck drive switch engages and disengages drive to the cutterblades.
- Engage Drive: Pull the cutterdeck drive switch out.
- Disengage Drive - Push the cutterdeck drive switch in.
HEIGHT OF CUT SETTING
The height of cut lever is used to raise and lower the cutterdeck to the
desired height of cut.
Move the height of cut lever inwards to disengage it from the height of
cut notches, then push forwards to lower or pull backwards to raise the
height of cut. Release the lever into the required position and ensure
that it locks securely into the appropriate notch. There are six height of
cut positions. These are indicated by the numbered notches, 1 to 6.
IMPORTANT: Always select the height of cut to suit operating con-
ditions. Prevent engine overloading and blockages by avoiding low
cuts in long grass conditions. Be prepared to make two cuts when the
grass is long.
1
2
2
