Henderson ZENITH User manual

ZENITH
Tools required
Contents of kit
Drill and 7mm drill bitTape measure
Optional components
End cap x 4
Door lock
left hand or right hand
Finger pull
(27)
Bottom roller x4
Back rail Front rail
Kit Max opening width (Y)
Z12 1200
Z15 1500
Z18 1800
A = 1/2Y + 16
H-30
H
Posidrive screwdriver
Stanley knife
Hacksaw
Y
A
A
H-30
Y
H
Screw A x 12
(12mm countersunk)
Screw B x 8
(8mm domehead)
Recommended maximum
opening height = 1800mm
INSIDE
OUTSIDE
Top channel Bottom rail Glass rail x 2 Seal x 2
6mm
WATCH THE INSTALLATION VIDEO
Visit: www.pchenderson.com/zenith-installation
Or scan the QR code using your phone
FITTING INSTRUCTIONS - NOTICE DE POSE - MONTAGE HANDLEIDING - MONTAGEANLEITUNG
ISTRUZIONI DI MONTAGGIO - INSTUCCIONES DE MONTAJE
Warranty.This product is covered by a 10 year manufacturer’s warranty. Please see the P C Henderson website for terms and conditions.

Glass cutting Ø22mm
90°

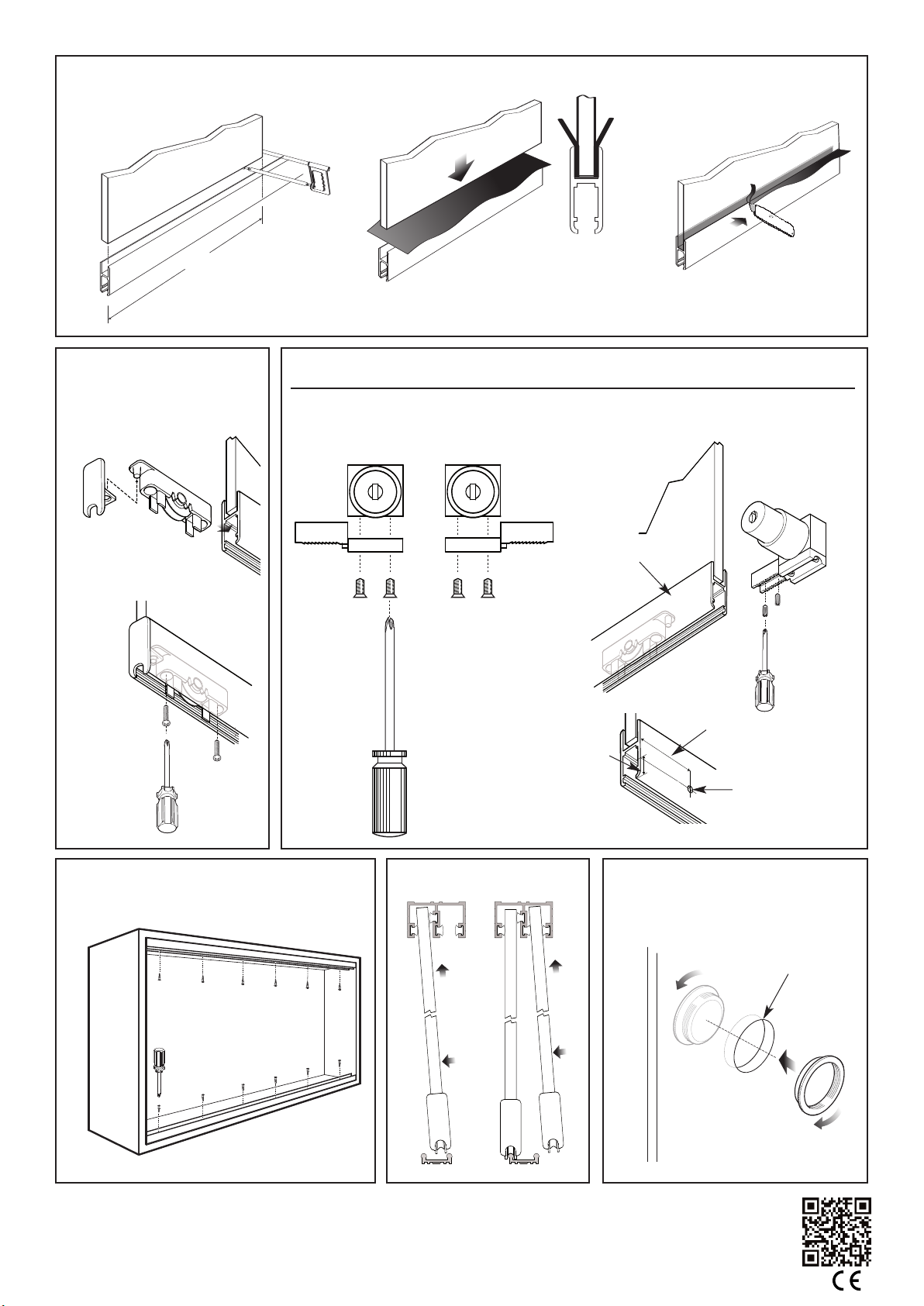

1Fit glass housing profile.
4Fit bottom and top track.
A
2Fit bottom rollers
and end caps.
3Fit Door Locks (optional).
5Fit doors. 6 Fit finger pulls (optional).
(All dimensions are in mm.)
Part No: 300683
November 2019
Issue 8
Screw A
Screw B
A. Unscrew baseplate
from lock if opposite
orientation
B. Rotate as shown
C. Re-tighten screws
Front glass rail
Back glass rail
Fit Door Lock (optional)
Right hand fitment
lock shown, left hand
opposite
Check/Change Hand of Lock
Right Hand Lock Left Hand Lock
Ø7mm
44
12
