hestan KDW series User manual

Use and Care Manual
INDOOR CLEANING
Dishwasher
KDW

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY
BEFORE INSTALLING OR USING YOUR APPLIANCE TO REDUC
E
THE RISK OF FIRE, BURN HAZARD, OR OTHER INJURY. KEEP
THIS MANUAL FOR FUTURE REFERENCE.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed by a qualified installer or service agency.
DO NOT REPAIR, REPLACE OR REMOVE ANY PART OF THE APPLIANCE UNLESS
SPECIFICALLY RECOMMENDED IN THE MANUAL. IMPROPER INSTALLATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER
TO THIS MANUAL FOR GUIDANCE. ALL OTHER SERVICING SHOULD BE DONE BY A
QUALIFIED TECHNICIAN.
INSTALLER: LEAVE THIS MANUAL WITH THE OWNER OF THE APPLIANCE.
HOMEOWNER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY, OR DEATH.
SAFETY DEFINITIONS
THIS INDICATES THAT DEATH OR SERIOUS INJURY MAY
OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING
THIS INDICATES THAT MINOR OR MODERATE INJURY MAY
OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.
THIS INDICATES THAT DAMAGE TO THE APPLIANCE OR
PROPERTY MAY OCCUR AS A RESULT OF NOT OBSERVING
THIS WARNING.

Message from Hestan:
Hestan’s award-winning culinary innovations and purpose-built features
reinvented the restaurant kitchen and redefined culinary experience in some
of America’s most acclaimed restaurants. Hestan now takes this performance
from the back of the house and puts it front and center in yours. Thoughtfully
designed and meticulously built, Hestan will serve you beautifully for many years
to come.
Hestan is the only residential brand born from the dreams and demands of
professional chefs. From ranges to refrigeration, every detail is designed to
deliver the performance and reliability expected in a restaurant – now available
for you.
We appreciate you choosing Hestan, and we promise to deliver the very best to
you.
Welcome to Hestan
©2019 Hestan Commercial Corporation
1
EN

TABLE OF CONTENTS
3 SAFETY PRECAUTIONS - BEFORE YOU BEGIN
5 MODEL NUMBERS
5 RATING LABEL
5 REGULATORY / CODE REQUIREMENTS
6 PRODUCT WARNINGS / SAFETY
9 FEATURES AND CONTROLS
11 OPERATION
28 CLEANING AND USER MAINTENANCE
31 TROUBLESHOOTING
34 PARTS / SERVICE
35 LIMITED WARRANTY
SAFETY PRECAUTIONS - BEFORE YOU BEGIN
When properly cared for, your Hestan appliance will provide safe, reliable service for many years.
When using this appliance, basic safety practices must be followed as outlined below.
IMPORTANT: Save these instructions for the local utility inspector’s use.
INSTALLER: Please leave these instructions with the owner.
OWNER: Please retain these instructions for future reference.
This appliance is NOT designed for installation in manufactured (mobile) homes or recreational
park trailers. Do NOT install this appliance outdoors.
ELECTRICAL SHOCK HAZARD
Disconnect power before installing or servicing appliance. Failure to
do so can result in death or electrical shock.
ELECTRICAL GROUNDING
This appliance must be grounded. Grounding reduces the risk of
electric shock in the event of a short circuit. Read the ELECTRICAL
CONNECTIONS section of the Installation Manual for complete
instructions.
DO NOT ground to a gas pipe.
DO NOT use an extension cord with this appliance.
DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or
GROUNDING circuit could result in an electrical shock.
©2019 Hestan Commercial Corporation
3
EN

INSTALLATION AND HOOK-UP
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF ON THE SHARP EDGES
OF THE APPLIANCE. WEAR SAFETY GLOVES.
INSTALLATION, REPAIRS AND SERVICING MUST BE PERFORMED BY QUALIFIED AND
AUTHORIZED TECHNICIANS. AS WELL AS INVALIDATING THE WARRANTY, WORK
CARRIED OUT BY UNAUTHORIZED PERSONS MAY GENERATE HAZARDS. INSTALLATION
MUST BE PERFORMED IN COMPLIANCE WITH ALL THE DIRECTIVES IN FORCE IN THE
COUNTRY OF INSTALLATION AND, IF THESE DO NOT EXIST: IN THE UNITED STATES THE
NATIONAL ELECTRIC CODE; IN CANADA THE CANADIAN ELECTRIC CODE C22.1 - LATEST
EDITION/PROVINCIAL AND MUNICIPAL CODES AND/OR LOCAL CODES.
BUILDING-IN A DISHWASHER BELOW A COOKTOP IS ABSOLUTELY FORBIDDEN.
CHECK THAT THE VOLTAGE, FREQUENCY OF THE MAIN POWER SUPPLY MATCH THE
VALUES ON THE RATING LABEL ON THE APPLIANCE, LOCATED ON THE RIGHT SIDE
EDGE OF THE DOOR.
IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY THE
MANUFACTURER OR AN AUTHORIZED SERVICE TECHNICIAN.
BEFORE PROCEEDING WITH INSTALLATION, TURN THE CIRCUIT BREAKER OFF THAT
SUPPLIES THE OUTLET FOR THE UNIT.
CHECK THAT THE MAIN SUPPLY IN THE PLACE OF INSTALLATION COMPLIES WITH
THE REGULATIONS IN FORCE IN THE COUNTRY OF USE, AND THAT IT IS CORRECTLY
GROUNDED.
THIS APPLIANCE MUST BE GROUNDED. IN CASE OF A MALFUNCTION, THE GROUND
REDUCES THE RISK OF ELECTROCUTION BY PROVIDING THE ELECTRICAL CURRENT
WITH AN ALTERNATIVE, LESS RESISTANT PATH. THIS APPLIANCE IS FITTED WITH
A SUPPLY CORD CONTAINING AN EARTH WIRE AND PLUG. FIT THE PLUG INTO A
SUITABLE SOCKET, INSTALLED AND EARTHED IN COMPLIANCE WITH THE LAWS IN
FORCE IN THE COUNTRY OF INSTALLATION.
AN INCORRECTLY CONNECTED GROUND WIRE MAY GENERATE THE RISK OF
ELECTROCUTION. IF IN DOUBT AS TO THE CORRECT GROUNDING OF THE APPLIANCE,
CALL IN A QUALIFIED ELECTR-ICIAN OR TECHNICAL SERVICE. DO NOT CHANGE THE
PLUG ATTACHED TO THE APPLIANCE. IF THE PLUG IS NOT SUITABLE FOR THE SOCKET,
CONTACT A QUALIFIED ELECTRICIAN TO INSTALL A SUITABLE SOCKET.
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CONNECTIONS IN ORDER
TO AVOID THE POSSIBILITY OF OVERHEATING OR BURNING, WITH CONSEQUENT FIRE
HAZARD.
SAFETY PRECAUTIONS - BEFORE YOU BEGIN (CONT.)
©2019 Hestan Commercial Corporation
4
EN

REGULATORY / CODE REQUIREMENTS
Installation of this dishwashing appliance must be made in accordance with local codes. In the
absence of local codes, this unit should be installed in accordance with the National Electrical
Code and local codes.
This appliance must be electrically grounded in accordance with local codes or in the absence of
local codes with the National Electrical Code
ANSI/NFPA 70 , or Canadian Electrical code CSA
C22.1
.
MODEL NUMBERS
DISHWASHER MODELS
Model No. Description Circuit Breaker Req’d

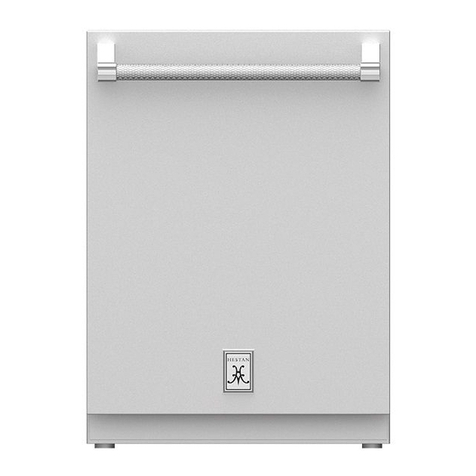

KDW24 24” Dishwasher, Stainless Door 15 Amp
KDW24-OV 24” Dishwasher, Overlay Door 15 Amp
KDW24-XX 24” Dishwasher, Color Door 15 Amp

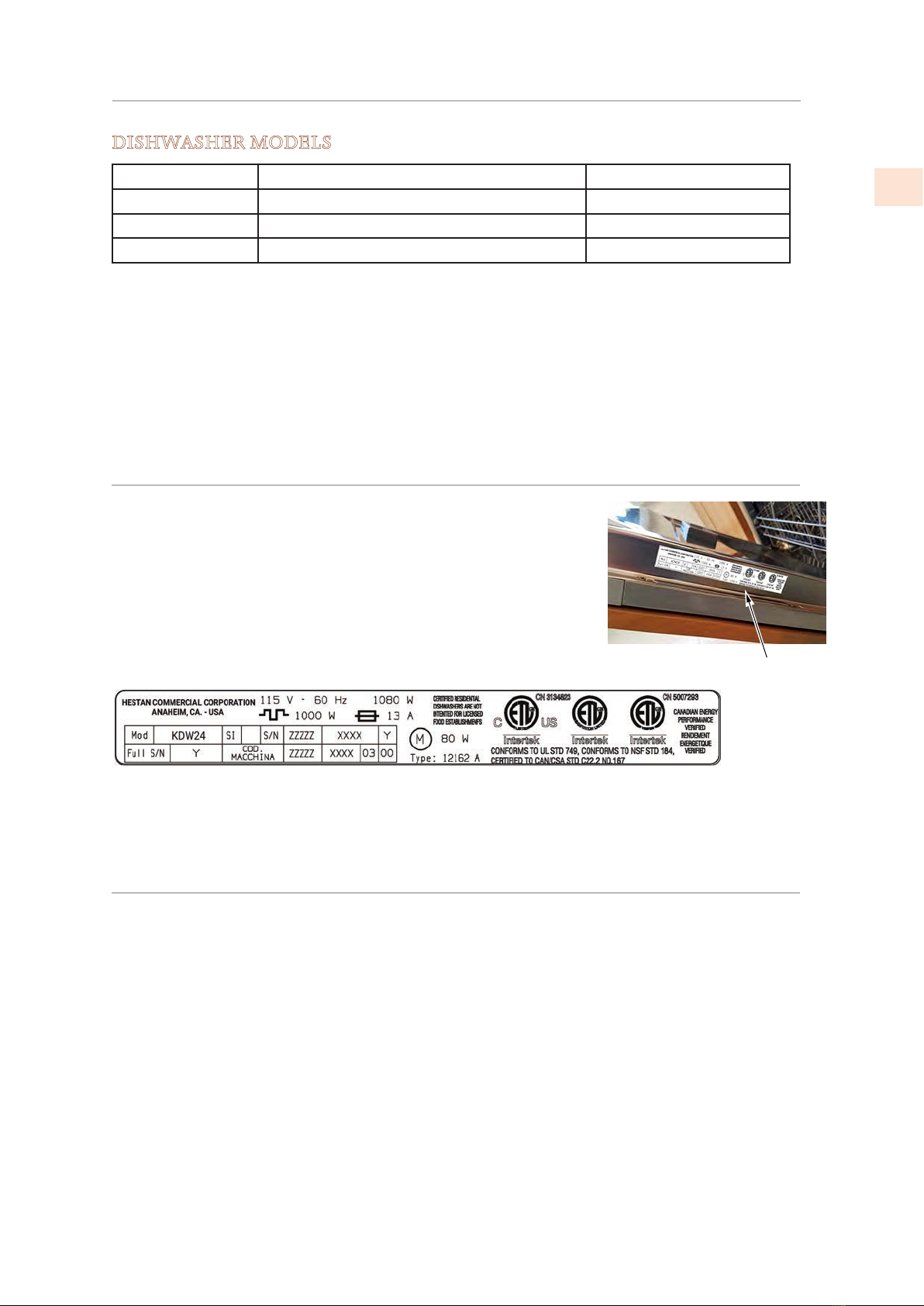

RATING LABEL
The rating label contains important information about your Hestan
appliance such as the model, serial number, and electrical rating.
The rating label is located on the right side of the door edge.
If service is necessary, contact Hestan Customer Care with the
model and serial number information shown on the label.
NOTE: -XX indicates color model.
-BK for Stealth - Black
-YW for Sol - Yellow
-PP for Lush - Purple
-GG for Pacific Fog - Graphite Gray
-WH for Froth - White
-OR for Citra - Orange
-BU for Prince - Blue
-RD for Matador - Red
-BG for Tin Roof - Burgundy
-GR for Grove - Green
-TQ for Bora Bora - Turquoise
Typical Rating Label
Rating Label Location
©2019 Hestan Commercial Corporation
5
EN

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE:
IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISH-WASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN
THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN,
IN COMPLIANCE WITH LOCAL CODES. THIS APPLIANCE IS INTENDED FOR DOMESTIC
USE AND SIMILAR APPLICATIONS SUCH AS THE STAFF KITCHENS OF SHOPS, OFFICES
AND OTHER WORKPLACES, INSTITUTIONS, AND FOR THE USE OF GUESTS AT HOTELS,
HOSTELS, BED AND BREAKFAST ESTABLISHMENTS AND OTHER RESIDENTIAL FACILITIES.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING AND DRYING
DISHES. ANY OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER
DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE DESCRIBED ABOVE.
THE RATING LABEL FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS
IS VISIBLY POSITIONED ON THE OUTER EDGE OF THE DOOR. THE RATING LABEL ON
THE OUTER EDGE OF THE DOOR MUST NEVER BE REMOVED.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS, RECREATIONAL VEHICLES OR
THE LIKE. DISHWASHERS CERTIFIED FOR DOMESTIC USE ARE NOT SUITABLE FOR
COMMERCIAL APPLICATIONS.
ALWAYS TURN OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ENERGY.
CHECK THAT THE VOLTAGE, FREQUENCY AND CIRCUIT BREAKER MATCH THE VALUES
ON THE RATING LABEL OF THE APPLIANCE.
IN THE EVENT OF A FAULT, SHUT OFF THE CIRCUIT BREAKER AND WATER VALVE.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF
IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND
CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE
MANUFACTURER OR BY A QUALIFIED TECHNICIAN.
ONLY USE DETERGENTS SPECIALLY FORMULATED FOR DISHWASHERS.
DO NOT USE DETERGENTS FORMULATED FOR WASHING DISHES BY HAND.
ONLY USE RINSE”AID SPECIALLY FORMULATED FOR DOMESTIC DISHWASHERS.
DO NOT INHALE OR SWALLOW DETERGENT AS THIS MAY CAUSE BURNS AND/OR
PERMANENT DAMAGE TO THE NOSE, MOUTH AND THROAT, AND EVEN LEAD TO
SUFFOCATION; KEEP DETERGENT AWAY FROM YOUR EYES. IF ONE OF THE ABOVE
SITUATIONS OCCURS, SEEK MEDICAL ASSISTANCE IMMEDIATELY.
TO PREVENT CHILDREN FROM COMING INTO- CONTACT WITH DETERGENT, FILL THE
DISHWASHER JUST BEFORE STARTING THE WORK PROGRAM AND THEN KEEP THE
DETERGENT OUT OF THE REACH OF CHILDREN.
THIS DISHWASHER MUST BE USED BY ADULTS. USE BY PERSONS WITH REDUCED
MENTAL AND/OR PHYSICAL CAPABILITIES IS ONLY PERMITTED UNDER THE
SUPERVISION OF A PERSON RESPONSIBLE FOR THEIR SAFETY.
DO NOT ALLOW CHILDREN TO APPROACH AND/OR PLAY IN OR ON THE DISHWASHER.
THE APPLIANCE MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE
PRODUCT WARNINGS / SAFETY
©2019 Hestan Commercial Corporation
6
EN

PERMANENT DAMAGE TO THE EYES, MOUTH AND THROAT, AS WELL AS POSSIBLE
DEATH BY SUFFOCATION; IF THE ABOVE OCCURS, SEEK MEDICAL ASSISTANCE
IMMEDIATELY.
BEWARE; IT IS POSSIBLE FOR CHILDREN TO GET TRAPPED INSIDE THE DISHWASHER!
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY
CAUSE AN EXPLOSION.
DO NOT POUR POWDER AND/OR LIQUID DETERGENT INTO THE RINSEAID CONTAINER
AS THIS WILL DAMAGE THE CONTAINER. DO NOT POUR POWDER AND/OR LIQUID
DETERGENT INTO THE WASTER SOFTENER TANK AS THIS WILL DAMAGE THE TANK.
DO NOT USE INDUSTRIAL DETERGENTS AS THIS MAY DAMAGE THE APPLIANCE AND/OR
TRIGGER VIOLENT CHEMICAL REACTIONS (E.G. EXPLOSIVE GAS).
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
DO NOT INTRODUCE ITEMS OF HEAT-SENSITIVE PLASTIC, SUCH AS DISPOSABLE
CUTLERY OR PLATES, AS THESE MAY BECOME DEFORMED. DO NOT WASH PLASTIC
OBJECTS UNLESS THEY ARE MARKED “DISHWASHER PROOF” OR THE LIKE. FOR
UNMARKED OBJECTS, FOLLOW THE INSTRUCTIONS OF THE MANUFACTURER; IF NO
INFORMATION IS AVAILABLE, DO NOT WASH THESE OBJECTS IN THE DISHWASHER.
DO NOT INTRODUCE ANIMALS INTO THE DISHWASHER.
WHEN OPENING THE DISHWASHER DOOR DURING A CYCLE THERE IS A RISK OF
SCALDING DUE TO THE HEAT CONTAINED INSIDE; DO NOT GET IN THE WAY OF THE
STEAM LEAVING THE APPLIANCE AND DO NOT TOUCH THE COMPONENTS INSIDE.
WAIT 20 MINUTES AFTER THE END OF THE WASHING CYCLE OR AFTER INTERRUPTING
IT BEFORE REMOVING THE DISHES IN ORDER TO ALLOW THEM TO DRY.
IN CERTAIN SITUATIONS, HYDROGEN MAY BE GENERATED INSIDE A HOT WATER
SYSTEM THAT HAS NOT BEEN USED FOR OVER TWO WEEKS. HYDROGEN IS AN
EXPLOSIVE GAS. IF THE HOT WATER SYSTEM HAS NOT BEEN USED FOR TWO WEEKS
OR MORE, OPEN ALL THE HOT WATER VALVES AND ALLOW THE WATER TO RUN
FOR A FEW MINUTES BEFORE USING THE DISHWASHER. THIS WILL DISCHARGE ANY
HYDROGEN BUILDUPS. AS THIS GAS IS FLAMMABLE, DO NOT SMOKE OR USE NAKED
FLAMES WHILE PERFORMING THIS OPERATION.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE
APPLIANCE TO OVERTURN, PUTTING PEOPLE AT RISK. NEVER LEAVE THE DISHWASHER
DOOR OPEN; PEOPLE MIGHT TRIP OVER IT.
DO NOT LEAN AGAINST OR STAND ON THE DISHWASHER RACKS.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR
DISHWASHER.
KNIVES OR OTHER SHARP ENDED COOKING UTENSILS MUST BE PLACED IN THE
CUTLERY BASKET BLADE DOWN, OR LAID HORIZONTAL IN THE UPPER RACK. TAKE
CARE NOT TO CUT YOURSELF AND ENSURE THAT THEY DO NOT PROJECT FROM THE
RACK.
POSITION SHARP/POINTED OBJECTS SO AS TO PREVENT THEM FROM DAMAGING THE
DOOR GASKETS.
PRODUCT WARNINGS / SAFETY (CONT.)
©2019 Hestan Commercial Corporation
7
EN

DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER PANELS HAVE BEEN
POSITIONED CORRECTLY.
DO NOT TAMPER WITH THE DISHWASHER CONTROLS.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN
THE AQUASTOP DEVICE IS TRIPPED (THE ERROR IS INDICATED ON THE DISPLAY), CALL
IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUASTOP DEVICE, THERE IS A SOLENOID VALVE
INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE HOSE AND DO NOT ALLOW THE
SOLENOID VALVE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE WATER
INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE
APPLIANCE (SEE “INSTALLATION” MANUAL). IF THE DISHWASHER FAILS TO OPERATE
CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE
NEAREST TECHNICAL SERVICE CENTER. DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS
IN FORCE CONCERNING SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL
CHECKS SHOULD BE CONDUCTED EXCLUSIVELY BY A TRAINED AND AUTHORIZED
TECHNICIAN: REPAIRS CARRIED OUT BY UNAUTHORIZED PERSONS WILL INVALIDATE
THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
BEFORE CLEANING OR SERVICING THE APPLIANCE, REMOVE THE PLUG OR TURN OFF
THE CIRCUIT BREAKER.
REMOVE THE WASHING COMPARTMENT DOOR AND DISCONNECT THE MAIN POWER
SUPPLY WHEN REMOVING THE OLD DISHWASHER FOR MAINTENANCE OR DISPOSAL.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS ACCOMPANYING THE
PRODUCT, INDICATES THAT THIS APPLIANCE MAY NOT BE TREATED AS HOUSEHOLD
WASTE. INSTEAD IT SHALL BE HANDED OVER TO THE APPLICABLE COLLECTION POINT
FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT. DISPOSAL MUST
BE CARRIED OUT IN ACCORDANCE WITH LOCAL ENVIRONMENTAL REGULATIONS FOR
WASTE DISPOSAL. FOR MORE DETAILED INFORMATION ABOUT TREATMENT, RECOVERY
AND RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY OFFICE, YOUR
HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE
PRODUCT.
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL HELP PREVENT
POTENTIAL NEGATIVE CONSEQUENCES FOR THE ENVIRONMENT AND HUMAN
HEALTH.
PRODUCT WARNINGS / SAFETY (CONT.)
©2019 Hestan Commercial Corporation
8
EN

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS,
ANIMALS OR PROPERTY RESULTING FROM FAILURE TO OBSERVE THE ABOVE
PRECAUTIONS, FROM TAMPERING WITH EVEN A SINGLE COMPONEN-T OF THE
APPLIANCE, OR FROM THE USE OF UNORIGINAL SPARE PARTS.
IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL, CONTACT HESTAN TECHNICAL
SUPPORT.
DO NOT USE STEAM CLEANERS TO CLEAN THE DISHWASHER.
SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE. THEY CAN BE EXTREMELY
DANGEROUS IF SWALLOWED. AVOID CONTACT WITH THE SKIN AND EYES AND KEEP
CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS OPEN. CHECK THAT
THE DETERGENT RECEPTACLE IS EMPTY AFTER COMPLETION OF THE WASH CYCLE.
FEATURES AND CONTROLS
CONTROL PANEL
All dishwasher controls are are located on the top panel of the the door.
The dishwasher can only be switched on, programmed, switched off, etc
with door open.
The controls are depicted below, with a brief description on the following pages.
˜˜˜˜˜˜ ezitinaS ezitinaS
latsyrC latsyrC etacileD etacileD hsa hsaWyliaD WyliaD /repuS /repuS
kaoS kaoS tceleS tceleS tlaS tlaS diA diAesniR esniR
DDA DDA
daoL2/1 daoL2/1
ezitinaS ezitinaS
Energy SaverEnergy Saver tratSyaleD tratSyaleDhsa hsaWkciuQ WkciuQ
latsyrC latsyrC
kaoS kaoS etacileD etacileD hsa hsaWyliaD WyliaD /repuS /repuS ezitinaS ezitinaS tceleS tceleS tlaS tlaS diA diAesniR esniR
DDA DDA
daoL2/1 daoL2/1
ezitinaS ezitinaS
Energy SaverEnergy Saver tratSyaleD tratSyaleDhsa hsaWkciuQ WkciuQ
23
9 8 7 6 4141 3131 10101
2121 1111
4 5
PRODUCT WARNINGS / SAFETY (CONT.)
©2019 Hestan Commercial Corporation
9
EN

FEATURES AND CONTROLS (CONT.)

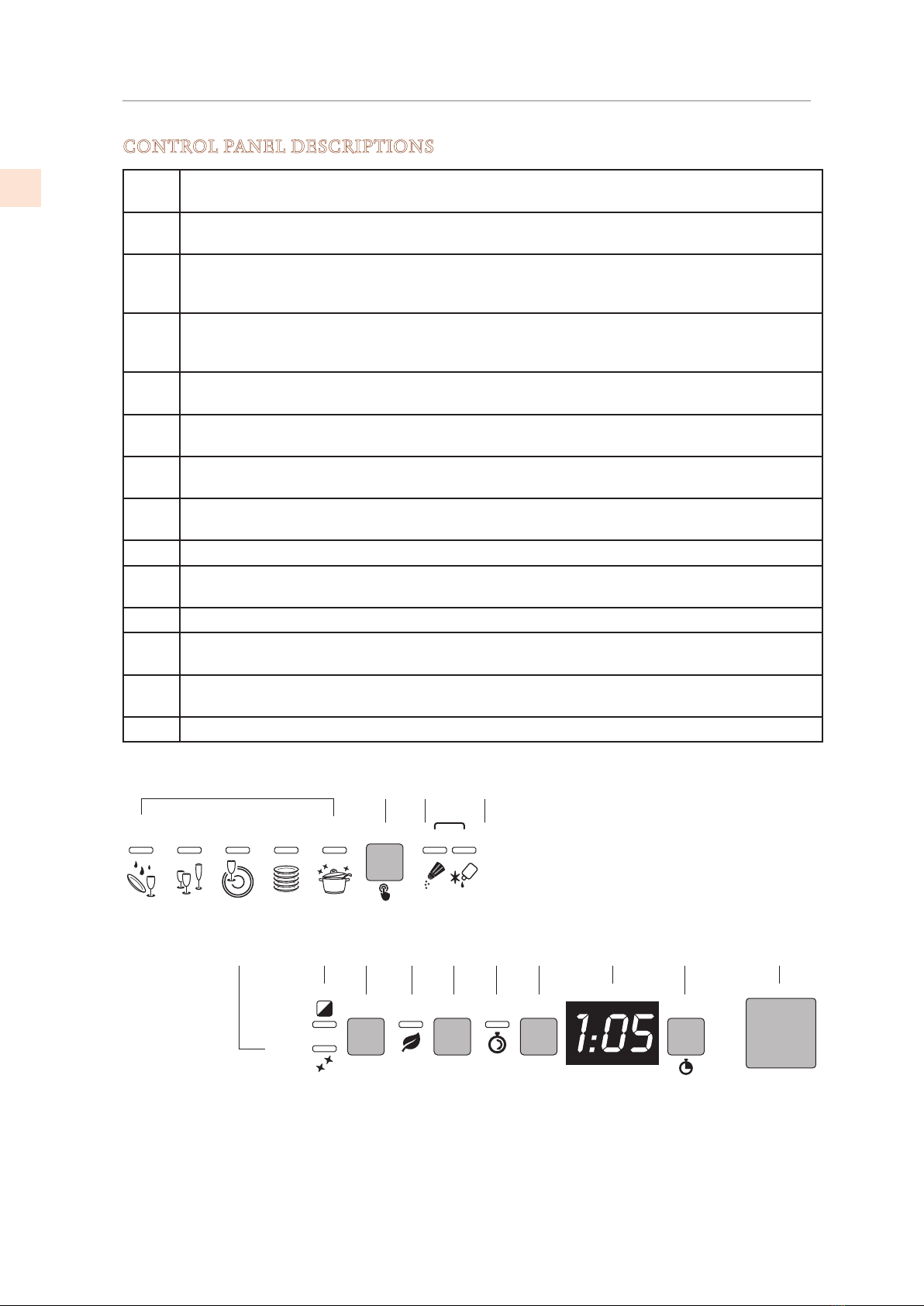

CONTROL PANEL DESCRIPTIONS
1On/Off button
Press to switch the appliance on or off.
2Program indicator lights
These show which program is selected and whether there are any faults (Troubleshooting)
3Program selection button Press repeatedly/as needed to select the required program. Also used to select water hardness adjustment
mode.
4Add Salt indicator light When ON, indicates the appliance has run out of salt.
When FLASHING, indicates that the appliance is in water hardness adjustment mode.
5Add Rinse Aid indicator light
When ON, indicates the appliance has run out of rinse aid.
6Quick Wash option button
Press this button to start one of the quick wash programs (see table).
7Quick Wash programs indicator light
Shows that one of the Quick Wash programs (6-10) will be run.
8Energy Saver option button
Option to reduce energy consumption by opening dishwasher door at end of cycle for drying.
9ON when the Energy Saver option has been selected.
10 Half Load option button
Press to select the half load option
11 ON when the Half Load option has been selected.
12 Sanitation indicator light
Shows that sanitation has been completed (see notes in the programs table)
13 Delay Start button
Press to delay the start of the program up to 24 hours
14 Information display
Crystal Delicate Daily Wash Super/
Sanitize
Soak Salt Rinse Aid Select
ADD
1/2 Load
Sanitize
Energy Saver Quick Wash Delay Start
23
9 8 7 6 14 13 11011
12
4 5
©2019 Hestan Commercial Corporation
10
EN

OPERATION
To select the most suitable program for the dishes to wash, consult the following table which
specifies the most appropriate type of washing sequence depending on the kind of dishes and
how dirty they are:
WASH CYCLES
(1) Only run the Soak program with half loads.
(2) Program for Energy Star.
• The cycle times and electrical energy listed are based on normal soil loads and 120°F (49°C)
incoming water and will vary based on your actual conditions.
• Only “SUPER SANITIZED” program conforms to NSF Std 184 and is certified by INTERTEK
with the ETL SANITATION LISTED.
• When the “Sanitize” light glows it means that the dishwasher and its contents have been
sanitized according to the requirements of the National Sanitation Foundation (NSF).
SOAK
Pans and
dishes awaiting
completion of
the load.
Cold prewash 15 3.5 l
0.95 gal. 0.02
CRYSTAL
Glass, china
and mixed
dishes with
light dirt.
Wash at 113°F
[45°C]
Cold rinse
Rinse at 158°F
[70°C]
Dry
65 12 l
3.17 gal. 0.5
DELICATE
(1)
Dishes washed
immediately
after use.
Wash at 113°F
[45°C]
Cold rinse
Rinse at 149°F
[65°C]
Dry
95-105 12 l
3.17 gal. 0.6-0.9
DAILY Dishes with
normal dirt, in-
cluding dried-
on residues.
Cold prewash
Wash at 149°F
[65°C]
Cold rinse
Rinse at 158°F
[70°C]
[70°C]
Dry
110 13 l
3.45 gal. 1.00
SUPER
SANITIZE
Dishes with
normal dirt, in-
cluding dried-
on residues.
Cold prewash
Wash at 149°F
[65°C]
Cold rinse
Rinse at 158°F
Dry
105-130
3.17 gal
3.96 gal.
12-15 l
1.0-1.2
WASH
(2)
LOAD
CROCKERY
AND
CUTLERY
PROGRAM NUMBER,
SYMBOL, & NAME PROGRAM
PROGRESS
CONSUMPTION
DURA-
TION
MINUTES
(1) WATER ENERGY
KWH (1)
1
2
3
4
5
©2019 Hestan Commercial Corporation
11
EN

OPERATION (CONT.)
WASH CYCLES (Cont.)
(1) The cycle times and electrical energy listed are based on normal soil loads and 120°F [49°C]
incoming water and will vary based on your actual conditions.
After using the above tables to choose the most suitable washing cycle, program the appliance.
Before starting a washing program, make sure that:
• The water supply valve is open.
• The correct amount of detergent has been added to the dispenser (see “ADDING
DETERGENT” on page20).
• The spray arms are able to rotate freely and without obstruction.
• The racks have been correctly loaded (see “USING THE RACKS” on page23).
• The dishwasher door is securely closed.
RAPID 27’
Wash at 100°F
[38°C ]
Rinse at 122°F
[50°C]
27 6.5 l
1.72 gal. 0.4
LIGHT Dishes with
light dirt.
Cold prewash
Wash at 122°F
[50°C]
Cold rinse
Rinse at 158°F
60 13 l
3.45 gal. 0.6
LOAD
CROCKERY
AND
CUTLERY
PROGRAM
PROGRESS
CONSUMPTION
DURA-
TION
MINUTES
(1) WATER ENERGY
KWH (1)
QUICK
[70°C]
ECO
Dishes with
normal dirt,
washed
immediately
after use.
Dishes with
normal dirt,
washed
immediately
after use.
Dishes with
light dirt,
washed
immediately
after use.
Cold prewash
Wash at 140 °F
[60°C]
Cold rinse
Rinse at 158°F
[70°C]
85 13 l
3.17 gal. 0.7
NORMAL
QUICK
Cold prewash
Wash at 158°F
[70°C]
Cold rinse
Rinse at 158°F
[70°C]
90 13 l
3.17 gal. 1.00
STRONG
FAST
Mixed dishes
with normal
dirt without
dried-on resi-
dues.
55
9.5 l
2.51 gal. 1.12
QUICK
and
Wash at 149°F
[65°C]
Cold rinse
Rinse at 158°F
[70°C]
6
7
8
9
10
PROGRAM NUMBER,
SYMBOL, & NAME
©2019 Hestan Commercial Corporation
12
EN

OPERATION (CONT.)
INFORMATION DISPLAYED DISPLAY
Scheduled program duration
Remaining program time
Delayed start : 1 – 24 hours
Error message: Err

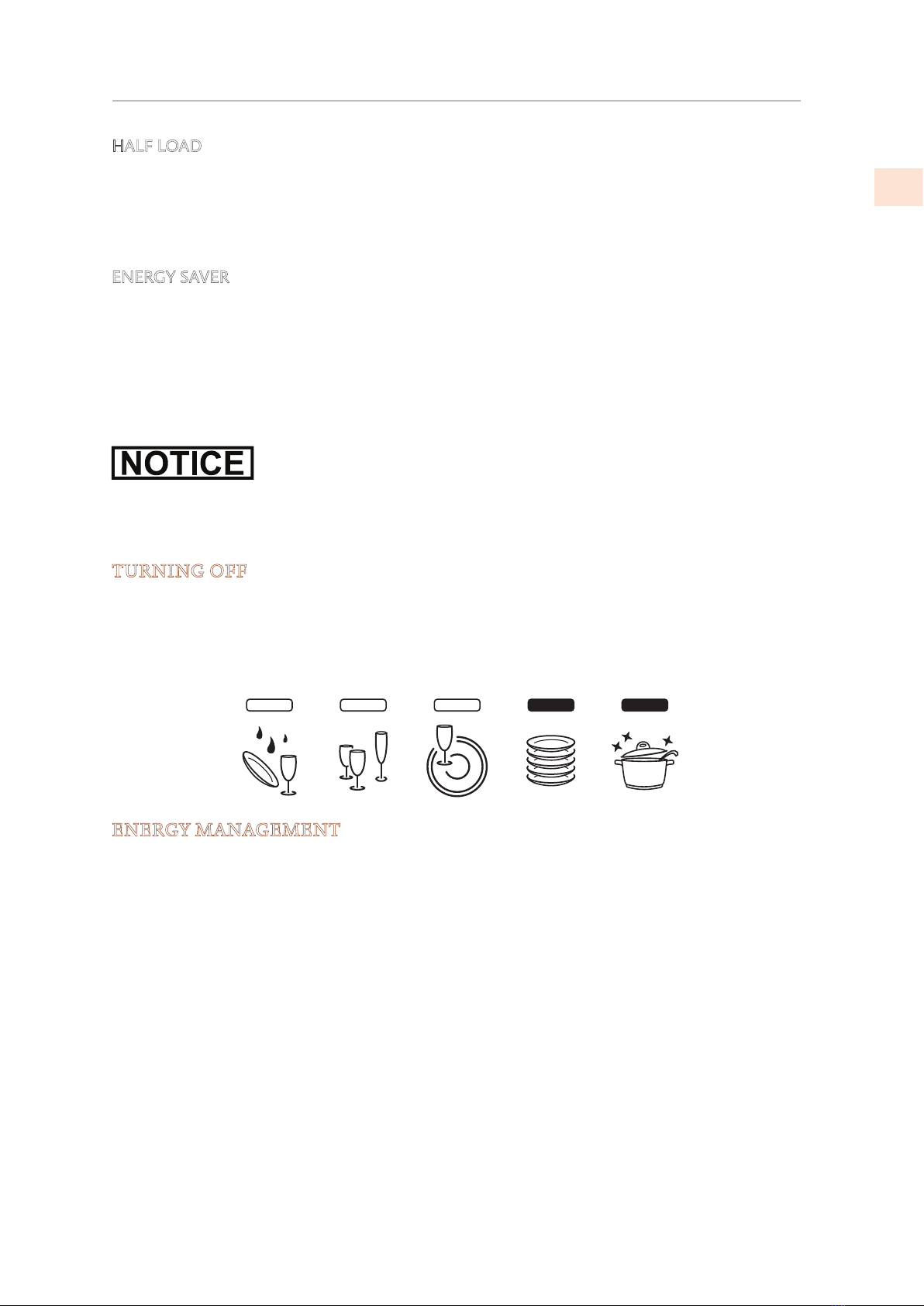

TURNING ON THE DISHWASHER
Press the On/Off button (Item 1, “CONTROL PANEL” on page9) to start the dishwasher.
Then wait for one of the program indicator lights to turn on.
SELECTING AND STARTING A PROGRAM
1. For programs 1-5: press Select (Item 3, “CONTROL PANEL” on page9) several times until
the indicator light corresponding to the required program turns on (Items 2, same page)
2. Select options as needed (“1/2 Load”, “Energy Saver”, “Delay Start”) and close the door. The
program will start after a few seconds. The indicator light will flash while the cycle is running
(see “PROGRAM RUN PROJECTION INDICATOR” on page14).
SELECTING PROGRAMS 6-10
1. To run programs 6, 7, 8, 9, 10, select the corresponding standard program (1-5) and then press
the Quick Wash button (item 6 on page10) .
• For example, to select program 6, press “Select” until “Soak” is indicated, then press the
“Quick Wash” button.
2. Proceed as with programs 1-5.
IMPORTANT
The door of the dishwasher must be closed within 4 seconds after use of the program selection
button (Select )for all functions (e.g. program selection, change, deletion, etc.).
If the door is not closed within 4 seconds, the selected program’s indicator lights will flash rapidly
to indicate that the operation must be confirmed before the door is closed.
To confirm, simply press Select once. The indicators will blink slowly and you can close the door
to start/ resume the dishwasher.
The same applies if the dishwasher is opened with Delay Start set and the cycle not started (e.g.
to add more dishes): Select must be pressed before the door is closed, restarting the program
delay countdown.
If the door of the dishwasher has not been closed or has been incorrectly closed, the washing
cycle will not begin. The “Program Run” light will be ON instead of flashing.
END OF WASH CYCLE
The end of the program is signaled by a short beep. Additionally, the indicator lights of the Daily
Wash and Super Sanitize wash programs will flash. The “Program Run” light will be OFF.
©2019 Hestan Commercial Corporation
13
EN

OPERATION (CONT.)
PROGRAM RUN PROJECTION INDICATOR
When a program is running, a flashing light is projected onto the floor under the right-hand
corner of the door.
• If the program is selected but not running, the light will be steady ON.
At the end of the program, the light goes out.
INTERRUPTING A WASH CYCLE
To interrupt a wash cycle, open the dishwasher door. The cycle will be interrupted, the cycle’s
indicator lights will flash (blink rapidly) and a beep will indicate that the cycle has not finished.
To resume the wash cycle, press Select once (the indicators will then blink slowly) and then
close the door. When the door closes, the cycle will start from where it was interrupted. This
operation should be performed only if necessary as it could cause irregular performance.
CHANGING THE CURRENT WASH CYCLE
To change the current program, simply open the door of the dishwasher and press Select to select
the new program. Close the door to run the new program automatically.
CANCELLING THE CURRENT WASH CYCLE
To cancel the current program:
1. Open the door then press and hold Select (the cycle selection button) for a few seconds until
the indicator lights of the fourth and fifth cycles turn on.
2. Close the door again.
The dishwasher will pump out and finish for about 1 minute. Then it will stop and the “Program
Run” light will go OFF. When you open the door, the indicator lights of the fourth and fifth
cycle will flash.
OPTIONS:
These are functions to tailor the dishwasher program for your particular needs, such as delayed
start, Half load, and more. (For descriptions of the basic cycles, see “Wash Cycles” on page11.)
DELAY START
• Available for all programs except Soak.
The DELAY START function delays the beginning of the wash cycle up to 24 hours beginning
from the moment the delay programming is entered. This makes it possible to use the
dishwasher at a specific time of day.
Before programming a delay, open the door of the dishwasher and select the required washing
program. Select the delay by pressing the Delay Start button. Each time you press the button,
the delay before the appliance starts is increased by 1 hour.
©2019 Hestan Commercial Corporation
14
EN

HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy and reduces the program
duration. Place dishes in both baskets, then load the detergent dispenser (see “USING THE
RINSE-AID AND DETERGENT DISPENSERS” on page19) less than the normal amount for
a full load. Press the Half Load button (item 10 on page 10) so the the Half Load indicator
illuminates (item 11, same page).
ENERGY SAVER
This option can be selected with the wash cycle of choice to further reduce energy consumption.
Drying is aided by a special device that automatically releases the door, which opens slowly
and smoothly by about an inch. This ensures perfect drying and greater control of rinsing
temperatures, which can be kept at lower levels for significant energy saving. Once the door has
opened, the end of the wash cycle is indicated by a short beep.
Energy Saver is activated automatically every time a wash cycle is selected (except for cycles that
do not include the final drying phase) and can be disabled before the cycle is started.
When the function is activated, opening of the door must not be impeded
in any way; do not leave anything in the space in front of the door
necessary to allow it to open.
Do not re-close the door during automatic opening as this would damage the mechanism. Wait
for the mechanism to retract before re-closing the door.
TURNING OFF
At the end of the cycle, the dishwasher emits a short beep and the indicators of the fourth and
fifth cycle flash. Turn off the appliance by opening the door and pressing the ON/OFF button.
ENERGY MANAGEMENT
After 5 minutes of waiting (wash cycle completed, stopped or set but not started) the dishwasher
switches to a standby state to reduce energy consumption.
In this state, the dishwasher indicator panel (lights/display) functions more intermittently,
switching on every 5 seconds.
Delicate Daily Wash
Super/
Sanitize
Crystal
Soak
OPERATION (CONT.)
©2019 Hestan Commercial Corporation
15
EN

REMOVING DISHES
At the end of the wash cycle, wait 20 minutes before removing the dishes in order to allow them
to cool. To prevent any water droplets falling onto dishes from the upper racks, empty the lower
rack items first and then the upper items.
ENERGY SAVING AND ENVIRONMENTAL RESPECT
• Always try to run the dishwasher fully loaded.
• Do not pre-wash the dishes under running water.
• Use the most suitable washing program for each type of load.
• Do not pre-rinse.
• If available, connect the dishwasher to a hot water system with a temperature of up to 140°F
[60°C].
• When possible, skip the drying cycle by opening the door after washing. The air and the
residual heat will dry the dishes to perfection.
FIRST USE
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU
HAVE READ AND UNDERSTOOD ALL THE WARNINGS
CONTAINED IN THE “PRODUCT WARNINGS/SAFETY” SECTION.
Once the dishwasher has been correctly installed, prepare for use as follows:
1. Add the regenerating salt. (see “ADDING SALT” on page18) When using the dishwasher
for the first time, in addition to the salt it is also necessary to add one liter of water to the
container.
2. Add the rinse-aid. (see “USING THE RINSE-AID AND DETERGENT DISPENSERS” on
page19)
3. Adjust the water softening system. (see next page)
4. Add the detergent. (see “ADDING DETERGENT” on page20)
REDUCING THE CONSUMPTION OF DETERGENT
The phosphates contained in dishwasher detergents are harmful to the environment. To avoid
using excessive amounts of detergent and to save on electricity:
• Separate the more delicate items from those that are more resistant to aggressive detergents
and high temperatures;
• Do not pour the detergent directly onto the dishes.
OPERATION (CONT.)
©2019 Hestan Commercial Corporation
16
EN

OPERATION (CONT.)
ADJUSTING THE WATER SOFTENING SYSTEM
The dishwasher’s water softener can be adjusted to suit the hardness of the water it is supplied
with. The hardness is set using the Select (program selection) button.
To access the setting function, hold the Select button down for 15 seconds. The ADD Salt
indicator light flashes, while the Selected Program indicator lights show the current setting.
Each press of the Select button changes the setting following the sequence in the table below:
Contact your local water board for information on the hardness of your water supply.
After adjustment or display of the current setting, simply do not touch the button for a few
seconds; the dishwasher will automatically return to standard mode, ending the adjustment
mode
.
Crystal Delicate Daily Wash Super/
Sanitize
Soak Salt Rinse Aid Select
ADD
Crystal Delicate Daily Wash Super/
Sanitize
Soak Salt Rinse Aid Select
ADD
WATER HARDNESS TABLE
WATER HARDNESS
SETTING
All lights off
One light on
Two lights on
Three lights on
Four lights on
Five lights on
Two lights on
German
degrees (°dH)
French
Degrees (°dF) PPM
0-6
7-10
11-15
16-21
22-28
29-35
36-50
0-11
12-18
19-27
28-37
38-50
51-62
63-90
0-107
125-178
196-267
285-374
392-498
516-623
641-890
©2019 Hestan Commercial Corporation
17
EN

OPERATION (CONT.)
USING THE WATER SOFTENING SYSTEM
The minerals in typical hard water (water hardness index) can cause whitish staining on dishes,
which will tend to become dull over time. The dishwasher is equipped with an automatic
softening system which uses a special regenerating salt to reduce the hardness of the water.
For adjustment, see “ADJUSTING THE WATER SOFTENING SYSTEM” on page17.
SETTING AND USAGE
The dishwasher is factory set for medium water hardness (level 3, for average hardness 41-
60°dF / 24-31°dH / 23.6-35 gpg). When using water of medium hardness, the regenerating salt
container should be refilled after approximately 20 washing cycles.
CAPACITY AND LEVEL INDICATOR
The salt container can hold approximately 3.75 lb [1.7 kg] of granular salt. The dishwasher has
an optical no-salt indicator. The cap of the salt container contains a green float which descends
as the salt concentration in the water drops. When the green float can no longer be seen, the
container must be topped up with regenerating salt.
ADDING SALT
The salt container is situated at the bottom of the dishwasher. After removing the lower rack,
unscrew the salt container cap by turning it counterclockwise and pour in the salt using the
funnel supplied with the dishwasher. Before replacing the cap, remove any salt residues from
around the opening.
• When using the dishwasher for the first time, in addition to the salt it is also necessary to
add one liter of water to the container.
• Each time the salt container is refilled, make sure that the cap is securely closed. The
mixture of water and detergent must never penetrate the salt container, as this would
compromise the operation of the regeneration system. In the event of this occurring, the
warranty will be invalidated.
• Only use regenerating salt specially formulated for domestic dishwashers. If using salt
tablets, do not fill the container completely.
• Do not use table salt as it contains insoluble substances which, over time, may damage the
water softening system.
• When necessary, refill the regenerating salt container before starting the washing program.
In this way, the excess saline solution will be immediately removed by the water; the
prolonged presence of salt water inside the tank may lead to corrosion.
BE CAREFUL NOT TO CONFUSE THE SALT AND DETERGENT
PACKAGES; ADDING DETERGENT TO THE SALT CONTAINER WILL
DAMAGE THE WATER SOFTENING SYSTEM.
Salt container cap Funnel provided
SALT
©2019 Hestan Commercial Corporation
18
EN
