hestan KDW24-XX User manual

Installation Manual
INDOOR CLEANING
Dishwasher
KDW

SAFETY DEFINITIONS
THIS INDICATES THAT DEATH OR SERIOUS INJURY MAY
OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING
THIS INDICATES THAT MINOR OR MODERATE INJURY MAY
OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.
THIS INDICATES THAT DAMAGE TO THE APPLIANCE OR
PROPERTY MAY OCCUR AS A RESULT OF NOT OBSERVING
THIS WARNING.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE
INSTALLING OR USING YOUR APPLIANCE TO REDUCE THE RISK OF FIRE,
BURN HAZARD, OR OTHER INJURY. KEEP THIS MANUAL FOR FUTURE
REFERENCE.
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed by a qualified installer or service agency.
DO NOT REPAIR, REPLACE OR REMOVE ANY PART OF THE APPLIANCE UNLESS
SPECIFICALLY RECOMMENDED IN THE MANUAL. IMPROPER INSTALLATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE.
REFER TO THIS MANUAL FOR GUIDANCE. ALL OTHER SERVICING SHOULD BE
DONE BY A QUALIFIED TECHNICIAN.
INSTALLER: LEAVE THIS MANUAL WITH THE OWNER OF THE APPLIANCE.
HOMEOWNER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
©2021 Hestan Commercial Corporation
EN

TABLE OF CONTENTS
1 SAFETY PRECAUTIONS - BEFORE YOU BEGIN
2 MODEL NUMBERS
2 RATING LABEL
2 REGULATORY / CODE REQUIREMENTS
3 PRODUCT WARNINGS / SAFETY
4 LOCATION AND PREPARATION
8 INSTALLATION
14 OVERLAY PANEL
16 FINAL STEPS
18 SERVICE
ELECTRICAL SHOCK HAZARDELECTRICAL SHOCK HAZARD
Disconnect power before installing or servicing appliance. Failure
to do so can result in death or electrical shock.
ELECTRICAL GROUNDINGELECTRICAL GROUNDING
• This appliance must be grounded. Grounding reduces the risk of
electric shock in the event of a short circuit.
• DO NOT ground to a gas pipe.
• DO NOT use an extension cord with this appliance.
• DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or
GROUNDING circuit could result in an electrical shock.
When properly cared for, your Hestan appliance will provide safe, reliable service for many years.
When using this appliance, basic safety practices must be followed as outlined below.
IMPORTANT: Save these instructions for the local Utility Inspector’s use.
INSTALLER: Please leave these Installation Instructions with the owner.
OWNER: Please retain these Installation Instructions for future reference.
This appliance is NOT designed for installation in manufactured (mobile) homes or recreational
park trailers. Do NOT install this appliance outdoors.
SAFETY PRECAUTIONS - BEFORE YOU BEGIN
2021 Hestan Commercial Corporation
1
EN

REGULATORY / CODE REQUIREMENTS
Installation of this dishwashing appliance must be made in accordance with local codes. In the
absence of local codes, this unit should be installed in accordance with the National Electrical
Code and local codes.
This appliance must be electrically grounded in accordance with local codes or in the absence of
local codes with the National Electrical Code
ANSI/NFPA 70 , or Canadian Electrical code CSA
C22.1
.

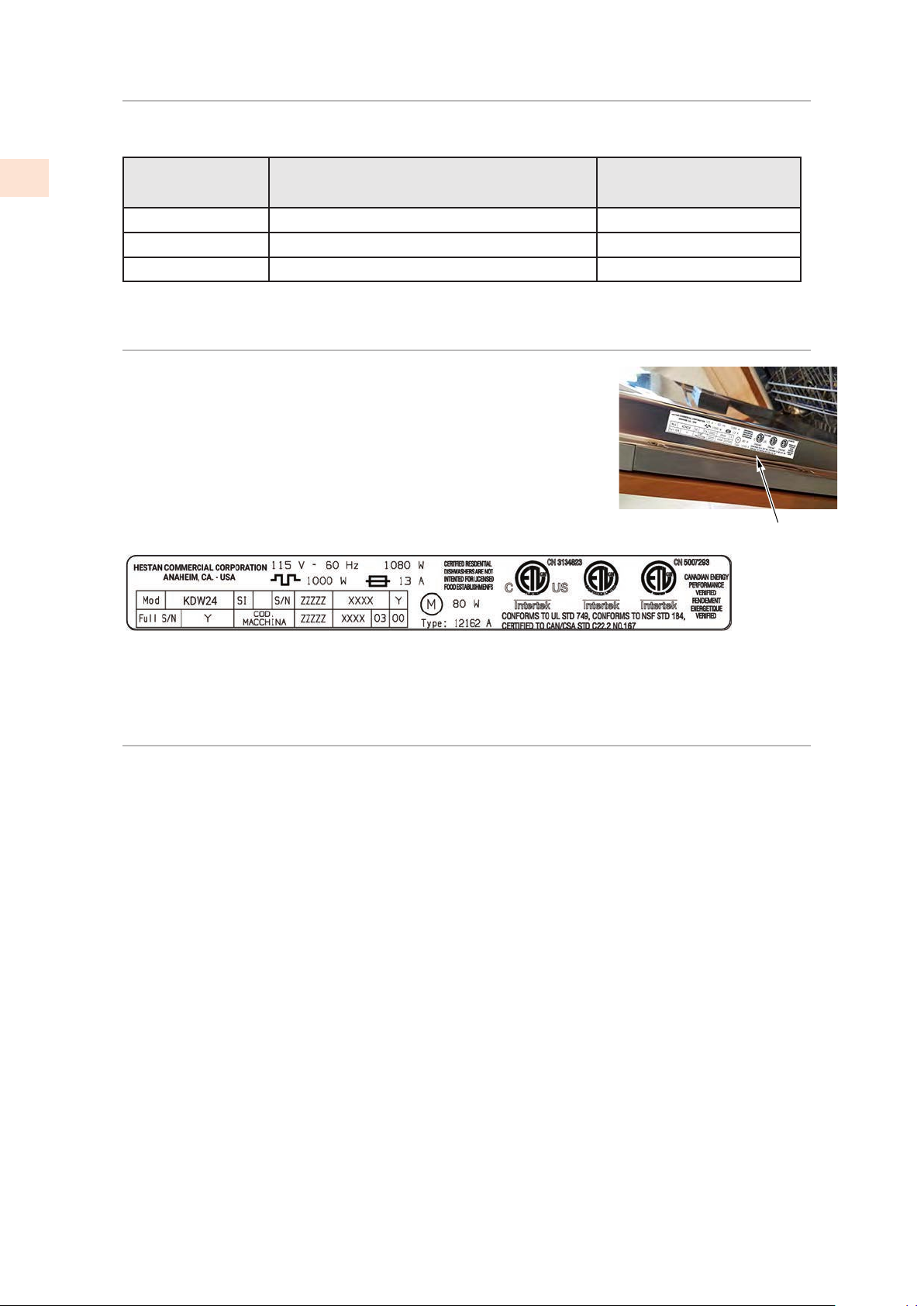

MODEL NUMBERS
DISHWASHER MODELSDISHWASHER MODELS
MODEL NO. DESCRIPTION CIRCUIT BREAKER
REQ'D
KDW24 24" Dishwasher, Stainless Steel Door 15 Amp
KDW24-OV 24" Dishwasher, Overlay Door 15 Amp
KDW24-XX 24" Dishwasher, Color Door 15 Amp
RATING LABEL
The rating label contains important information about your Hestan
appliance such as the model, serial number, and electrical rating.
The rating label is located on the right side of the door edge.
If service is necessary, contact Hestan Customer Care with the
model and serial number information shown on the label.
Rating Label Location
Typical Rating Label
©2021 Hestan Commercial Corporation
2
EN

PRODUCT WARNINGS / SAFETY
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE:
IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN
THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN,
IN COMPLIANCE WITH LOCAL CODES. THIS APPLIANCE IS INTENDED FOR DOMESTIC
USE AND SIMILAR APPLICATIONS SUCH AS THE STAFF KITCHENS OF SHOPS, OFFICES
AND OTHER WORKPLACES, INSTITUTIONS, AND FOR THE USE OF GUESTS AT HOTELS,
HOSTELS, BED AND BREAKFAST ESTABLISHMENTS AND OTHER RESIDENTIAL FACILITIES.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING AND DRYING
DISHES. ANY OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER
DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE DESCRIBED ABOVE.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS, RECREATIONAL VEHICLES OR
THE LIKE. DISHWASHERS CERTIFIED FOR DOMESTIC USE ARE NOT SUITABLE FOR
COMMERCIAL APPLICATIONS.
THE RATING LABEL FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS
IS VISIBLY POSITIONED ON THE RIGHT EDGE OF THE DOOR. THE RATING LABEL MUST
NEVER BE REMOVED.
CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION
OF THE DOMESTIC MAINS POWER SUPPLY MATCH THE
RATINGS ON THE RATING PLATE OF THE APPLIANCE.
DO NOT LEAVE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE
HOME. SEPARATE THE VARIOUS PACKAGING MATERIALS AND TAKE THEM TO THE
NEAREST SORTED WASTE COLLECTION CENTER. KEEP CHILDREN, PHYSICALLY AND/
OR MENTALLY IMPAIRED ADULTS, AND ANIMALS AWAY FROM PACKAGING WASTE;
DANGER OF SUFFOCATION.
BEFORE PROCEEDING WITH INSTALLATION, TURN OFF THE CIRCUIT BREAKER SERVING
THE WORK AREA.
THE APPLIANCE MUST BE PROVIDED WITH A GROUND CONNECTION IN ACCORDANCE
WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE. IF IN DOUBT, HAVE THE
SYSTEM CHECKED BY A QUALIFIED ELECTRICIAN. THE MANUFACTURER DECLINES
ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE
FAILURE TO GROUND THE APPLIANCE OR FROM A DEFECTIVE GROUND CONNECTION.
DURING INSTALLATION, TAKE CARE NOT TO INJURE
YOURSELF ON THE SHARP EDGES OF THE APPLIANCE; WEAR
SAFETY GLOVES.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF
IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE MUST BE INSTALLED AND
CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY HESTAN OR BY
A QUALIFIED TECHNICIAN.
DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER PANELS HAVE BEEN
POSITIONED CORRECTLY. IMMEDIATELY AFTER INSTALLATION, BRIEFLY TEST THE
APPLIANCE FOLLOWING THE INSTRUCTIONS INDICATED ON PAGE 19. IF THE
DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL
POWER SUPPLY AND CALL HESTAN CUSTOMER SERVICE. DO NOT ATTEMPT TO REPAIR
THE APPLIANCE.
2021 Hestan Commercial Corporation
3
EN

DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT
CONNECTIONS IN ORDER TO AVOID THE POSSIBILITY OF
OVERHEATING OR BURNING, WITH CONSEQUENT FIRE
HAZARD.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE
TO PERSONS, ANIMALS OR PROPERTY RESULTING FROM FAILURE
TO OBSERVE THE ABOVE PRECAUTIONS, FROM TAMPERING WITH
EVEN A SINGLE COMPONENT OF THE APPLIANCE, OR FROM THE
USE OF NON-ORIGINAL SPARE PARTS.
IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL, CONTACT HESTAN CUSTOMER
CARE.
LOCATION AND PREPARATION
UNPACKING AND PLACEMENTUNPACKING AND PLACEMENT
Remove the outer carton and packing materials, but do not remove the plastic film covering
the stainless-steel surfaces. This film protects the finish from scratches until the appliance is
installed in its final position.
Materials packaged with the dishwasher include this manual, the Use and Care Manual, and the
installation kit.
• The kit may include supplemental instructions for assembly.
OVERLAY MODELSOVERLAY MODELS
Dishwashers configured for overlay doors (rather than color or stainless steel finish) will include
a full-size template for the door overlay panel, as well as hardware and fasteners for the overlay.
The template includes pictoral instructions for preparing and installing the overlay panel.
HANDLINGHANDLING
The unit is heavy and should be handled with care. Use proper safety equipment, such as gloves
and 2 persons to move the appliance into position to avoid injury and to avoid damage to the
fioor or the appliance itself.
DO NOT USE A HAND TRUCK OR DOLLY ON THE FRONT OR REAR
OF THE DISHWASHER. HANDLE AND MOVE FROM THE SIDES ONLY.
Do not lift or carry the appliance by the door or handle. This could damage
the door hinges.
PRODUCT WARNINGS / SAFETY (CONT.)
©2021 Hestan Commercial Corporation
4
EN

LOCATION AND PREPARATION (CONT.)
PREPARATIONPREPARATION
Before moving the dishwasher, protect any finished flooring and secure the door closed to
prevent damage. DO NOT lift the dishwasher by the door handle.
Make sure that power can be provided to the location selected.
TOOLSTOOLS
The following tools are needed for the installation of the dishwasher:
• Tape measure and straight edge or ruler
• Pencil
• Philips screwdriver
• T20 Torx driver
• Level
• Plumbing pliers
• Drill and drill bits
• Safety gloves and goggles
STEPS FOR INSTALLATIONSTEPS FOR INSTALLATION
The following pages provide the necessary information for proper installation of the dishwasher
and are arranged as follows:
• Contents of installation kit
• Installation cutout dimensions and required clearances

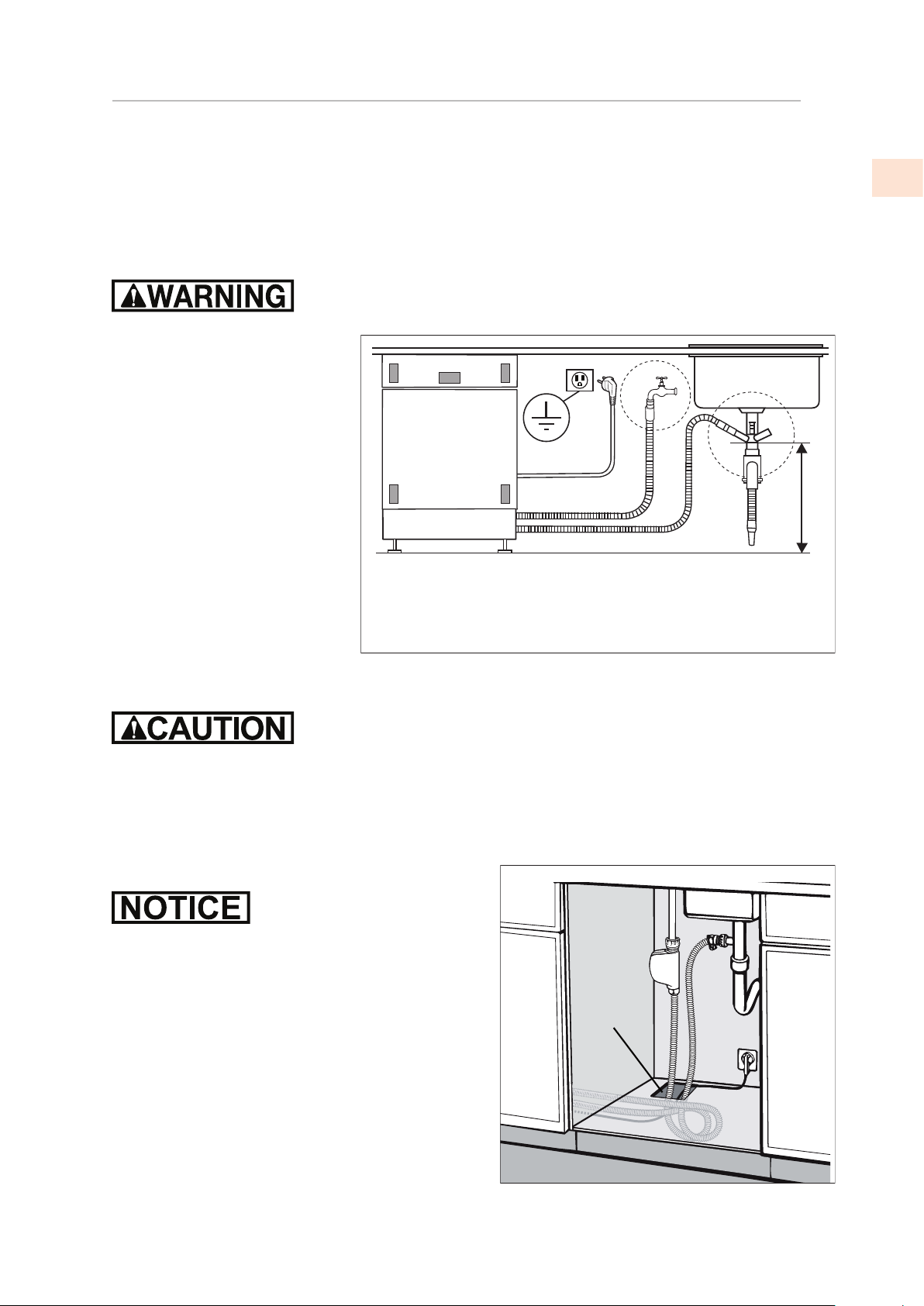

• Electrical, water, and drain connections.
• Preparation and installation of overlay panels (-OV units only)
• Final installation
• Leak inspection and testing.
2021 Hestan Commercial Corporation
5
EN

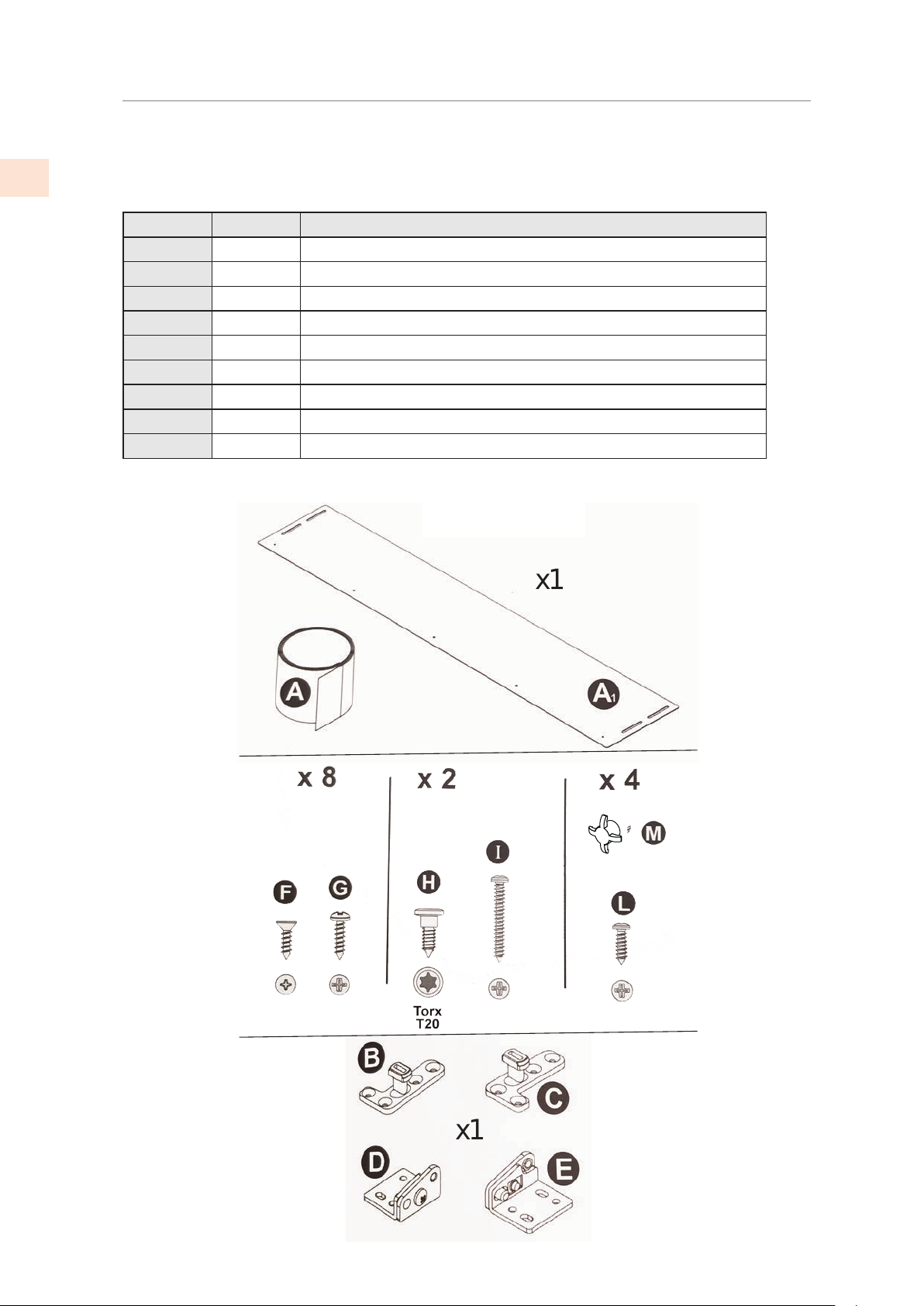

INSTALLATION KIT SUPPLIED WITH DISHWASHERINSTALLATION KIT SUPPLIED WITH DISHWASHER
The kit supplied with the dishwasher comprises:
(KDW24-OV model includes items B - H)
Key Used On Item
A, A1 All steam guard and adhesive
B, C -OV only hooks for door panel
D, E -OV only brackets for door panel
F -OV only 8 screws for securing the door panel hooks
G -OV only 8 screws for securing the door panel brackets
H -OV only 2 torx screws for securing the door to the brackets
I All upper screws
L All screws for securing the dishwasher to the adjacent cabinets
M All screw caps
Not pictured: template for overlay panel, -OV models only.
x1
x1
LOCATION AND PREPARATION (CONT.)
©2021 Hestan Commercial Corporation
6
EN

LOCATION AND PREPARATION (CONT.)

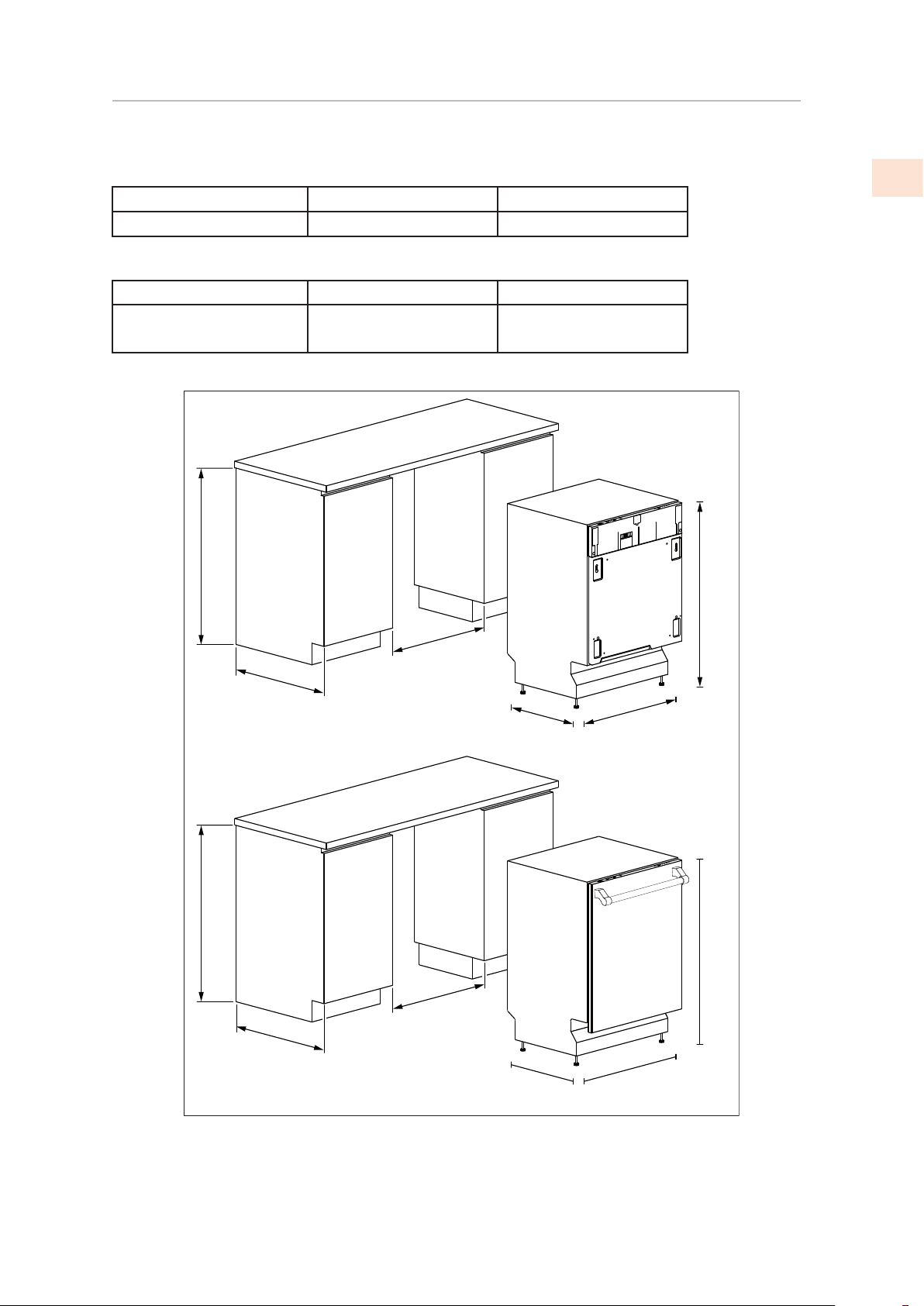

PRODUCT / CUT-OUT DIMENSIONSPRODUCT / CUT-OUT DIMENSIONS
PRODUCT DIMENSIONS:PRODUCT DIMENSIONS:
A(minimum Height) B(Width) C(Depth)
33-7/8" [86 cm] 23-9/16" [59.8 cm] 21-11/16" [55.1 cm]
CUT-OUT DIMENSIONS:CUT-OUT DIMENSIONS:
D(Height) E(Width) F(Depth)
34” (min) [86.4 cm] MIN. 23-9/16" - 23-5/8"
[59.8 - 60.0 cm]
22-5/8” [57.5 cm] MIN.
F
E
D
F
E
D
A
B
C
A
B
C
2021 Hestan Commercial Corporation
7
EN

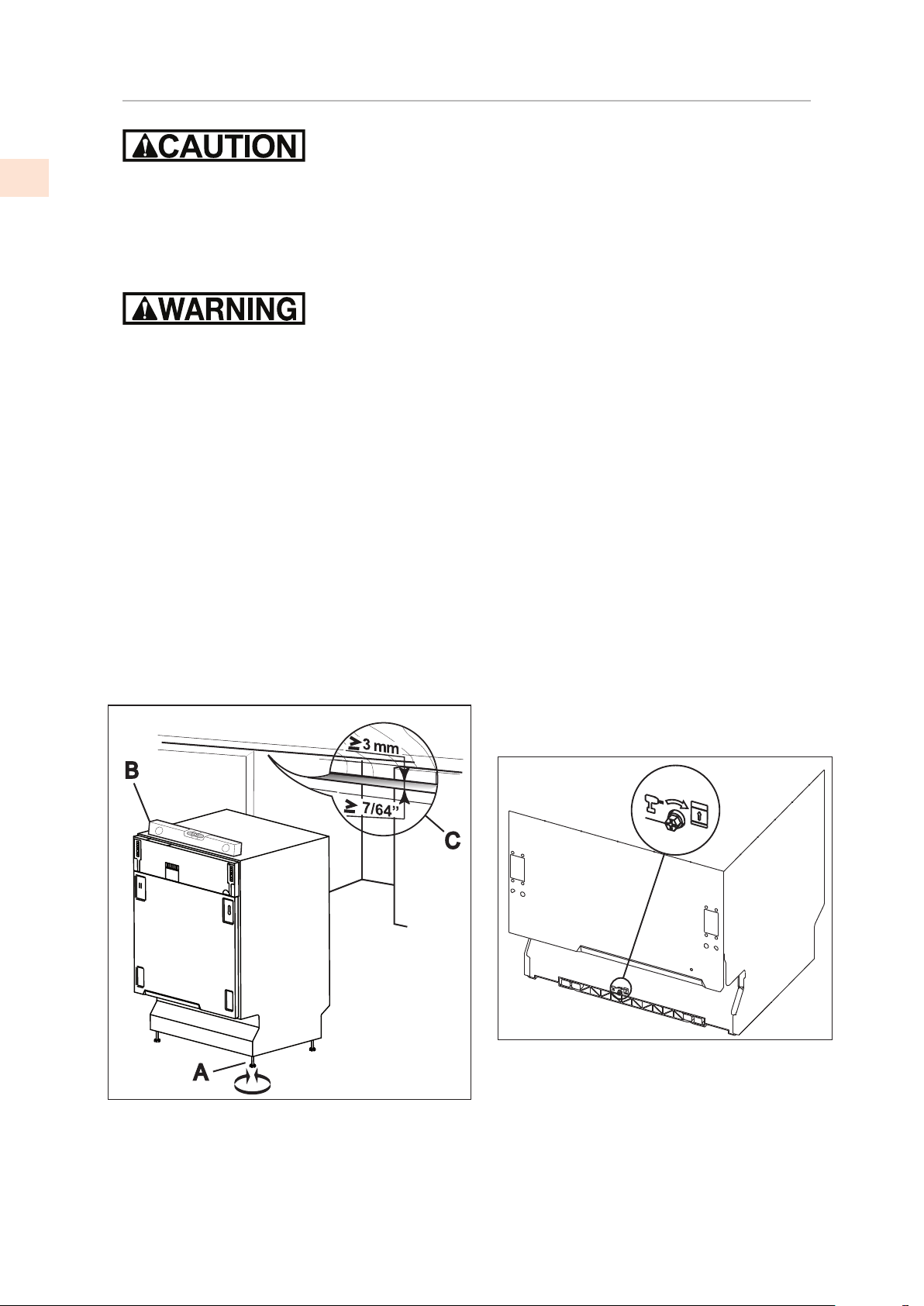

INSTALLATION
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE.
Remove the polystyrene rack blocks. Position the appliance in the chosen installation position.
The sides and rear of the appliance can lie against kitchen units or walls. If the dishwasher
is installed next to a heat source, separate it with a heat insulating panel in order to prevent
overheating and malfunctions.
BUILDING-IN A DISHWASHER BELOW A COOKTOP IS
ABSOLUTELY FORBIDDEN.
MAKE SURE THE DISHWASHER HAS BEEN CORRECTLY INSTALLED AND GROUNDED
BY A QUALIFIED ELECTRICIAN. THIS SAFETY REQUIREMENT MUST BE MET. IN CASE
OF DOUBT, CALL IN A QUALIFIED ELECTRICIAN. THE MANUFACTURER DECLINES ALL
RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE
FAILURE TO GROUND THE APPLIANCE OR FROM A DEFECTIVE GROUND CONNECTION.
BEFORE PROCEEDING WITH INSTALLATION, TURN OFF THE CIRCUIT BREAKER THAT
WILL SUPPLY THE APPLIANCE.
LEVELINGLEVELING
Level the appliance using the adjustable feet on the bottom.
Use a level and adjust the feet until the dishwasher is perfectly level. Leveling is vital for ensuring
correct dishwasher operation.
Make sure to leave a gap of at least 7/64” [3mm] between the top of the dishwasher door and the
bottom surface of the countertop.
©2021 Hestan Commercial Corporation
8
EN

INSTALLATION (CONT.)
ELECTRICAL AND WATER CONNECTIONSELECTRICAL AND WATER CONNECTIONS
Install the dishwasher to allow ease of access to the electrical and water connections through the
adjacent cabinetry. These connections must never be behind the dishwasher. The inlet and drain
hoses can be pointed in any direction but make sure that they are not bent, crushed or too tight.
Tighten the ring nut after pointing the hose in the required direction.
The illustration below indicates the lengths of hoses and power cord for connection purposes.
FIRE HAZARD!
DO NOT COVER OR CRUSH THE CORD PLUG.
A through hole with a diameter
of at least 2-1/4” [5.7 cm] is
required to pass the hoses and
power cord.
• Make sure there are no rough
edges that could damage the
power cord or hoses.
• If the dishwasher is installed
in a metal cabinet or
enclosure, protect the edge
of the through hole for the
hoses and power cord with a
grommet.
• Do not use extension cords
when making the electrical
connection as these do not
guarantee safety.
INSTALLING THE DISHWASHER IN A NARROW SPACE MAY BEND OR CRUSH THE POWER
CORD. TAKE GREAT CARE IN ORDER TO REDUCE THE POSSIBILITY OF DAMAGING THE
POWER CORD WHEN INSTALLING OR REMOVING THE APPLIANCE.
CONNECTING THE WATER SUPPLYCONNECTING THE WATER SUPPLY
PREVENTING THE RISK OF CLOGGING OR
DAMAGE:
IF THE PLUMBING IS NEW OR HAS NOT
BEEN USED FOR A LONG TIME, BEFORE
CONNECTING TO THE WATER SUPPLY,
CHECK THAT THE WATER IS CLEAR AND FREE
OF DEBRIS TO PREVENT DAMAGE TO THE
APPLIANCE. THE DISHWASHER MUST ALWAYS
BE CONNECTED TO THE WATER SYSTEM WITH
NEW HOSES. OLD OR USED HOSES MUST
NEVER BE RE-USED.
A
BD
C
A = 47” [120 cm]
B = 59” [150 cm]
C = 63” [160 cm]
D = min. 16” [40 cm]
A
2021 Hestan Commercial Corporation
9
EN

INSTALLATION (CONT.)

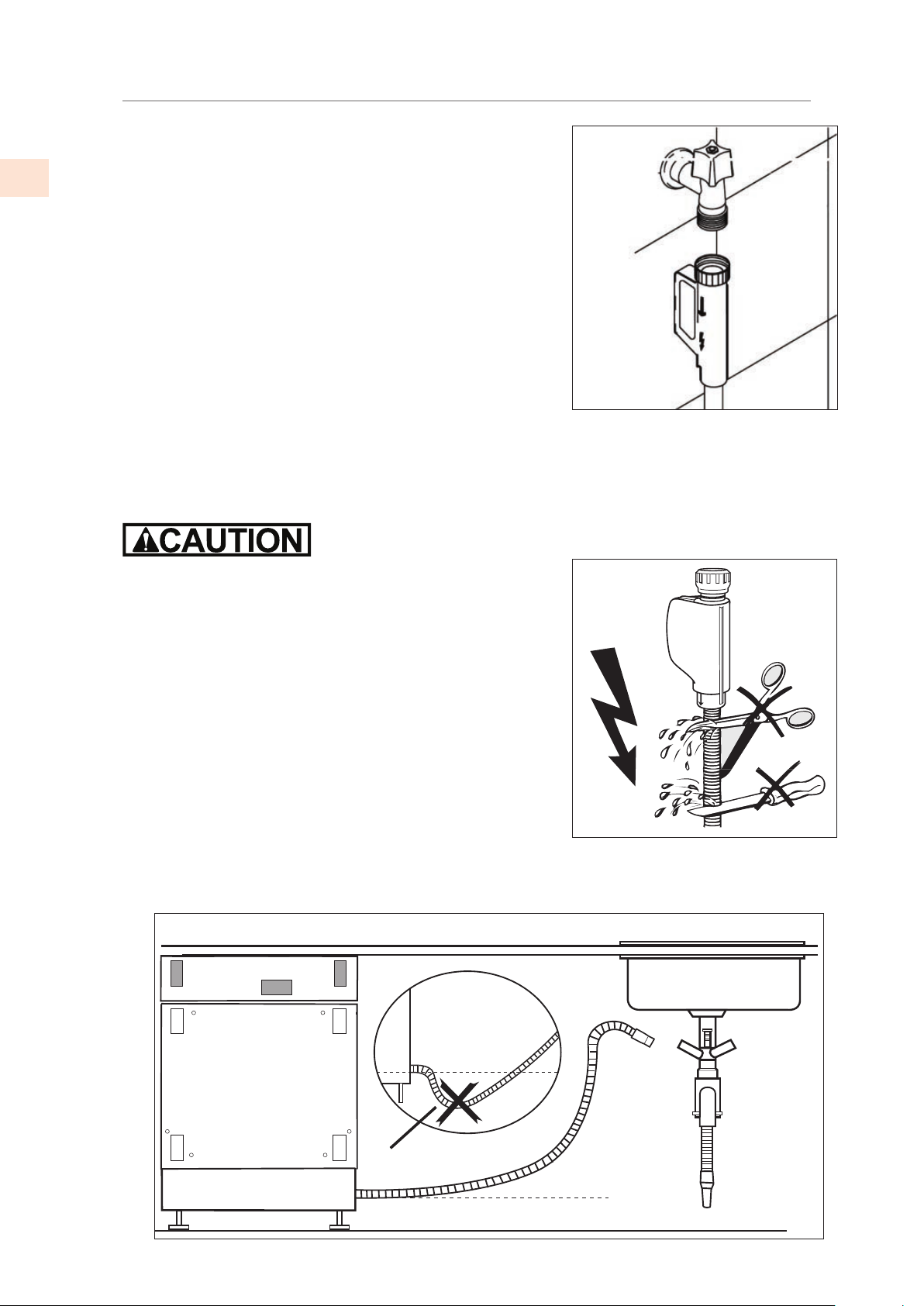

CONNECTING TO A WATER VALVECONNECTING TO A WATER VALVE
Connect the inlet hose to a threaded 3/4” water valve using
the supplied filter. Firmly secure the hose by tightening its
ring nut with your hands; finish by tightening another 1/4
turn using a pair of plumbing pliers.
Note: A 3/8" x 3/4" brass adapter is also supplied to connect
to a 3/8" water line if needed.
The dishwasher can be filled with water at a temperature
of less than 140°F [60°C]. If the appliance is filled with hot
water, washing times will be reduced by about 20 minutes,
but efficiency will be slightly impaired.
• Recommended temperature: 120°F [49°C], max 140°F
[60°C].
• Recommended water pressure: 7-130 PSI [0.5 - 9 bar]. If
the pressure is too high, use a pressure reducer.
A rubber hose connected to a sink spray may burst if installed on the same pipes feeding the
dishwasher. If your sink is fitted with this accessory, remove the hose and plug the hole.
DO NOT CUT THE INLET HOSE
If the hose is cut, the dishwasher will not work, water will
leak and you may be injured. If the hose is too long, wind it
up neatly and place it behind the appliance. The cable
harness and electrical components must not come into
contact with the hydraulic system and the water inlet and
drain hoses.
When connecting the dishwasher drain hose to the sink make sure that the hose is not bent in
order to prevent cracks or breakages that could damage it.
A
©2021 Hestan Commercial Corporation
10
EN

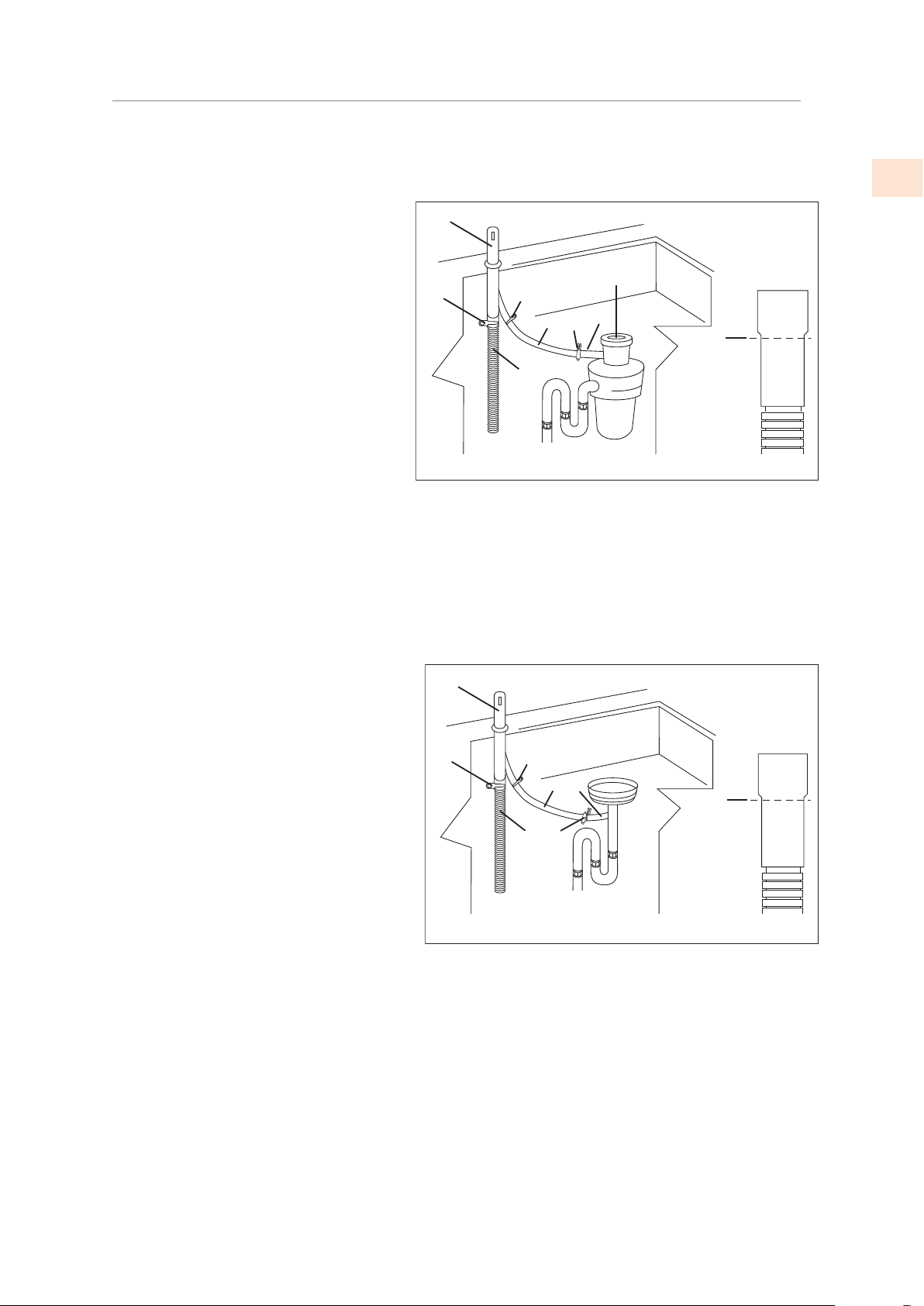

CONNECTING TO A WASTE DISPOSAL UNIT WITH AN AIR GAPCONNECTING TO A WASTE DISPOSAL UNIT WITH AN AIR GAP
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL BE
INSTALLED.
1. Remove the cover of the waste
disposal unit (A).
2. Connect the dishwasher drain hose
(B) to the air gap (C) using the wide
spring clamp (D)*
3. If necessary, cut the end of the
dishwasher drain hose (E) (DO NOT
cut the corrugated section).
- If the drain hose has been cut, use
a 1-1/2 to 2” [3.8 to 5 cm] screw
clamp*.
4. To connect the air gap (C) to the
waste disposal unit inlet (F) use a
rubber hose* (G) with spring or screw clamps (H)*
* Available from a plumbing store or home center.
CONNECTING TO THE AIR GAP WITHOUT A WASTE DISPOSAL UNITCONNECTING TO THE AIR GAP WITHOUT A WASTE DISPOSAL UNIT
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL BE
INSTALLED
1. Connect the dishwasher drain hose
(B) to the air gap (C) using the wide
spring clamp (D)*
2. If necessary, cut the end of the
dishwasher drain hose (E) (DO NOT
cut the corrugated section).
- If the drain hose has been cut, use
a 1-1/2 to 2” [3.8 to 5 cm] screw
clamp*.
3. To connect the air gap (C) to the
waste disposal unit inlet (F) use a
rubber hose* (G) with spring or screw
clamps (H)*
Available from a plumbing store or home center.
C
D
B
G
H
HF
A
E
B
C
F
G
H
H
D
E
INSTALLATION (CONT.)
2021 Hestan Commercial Corporation
11
EN

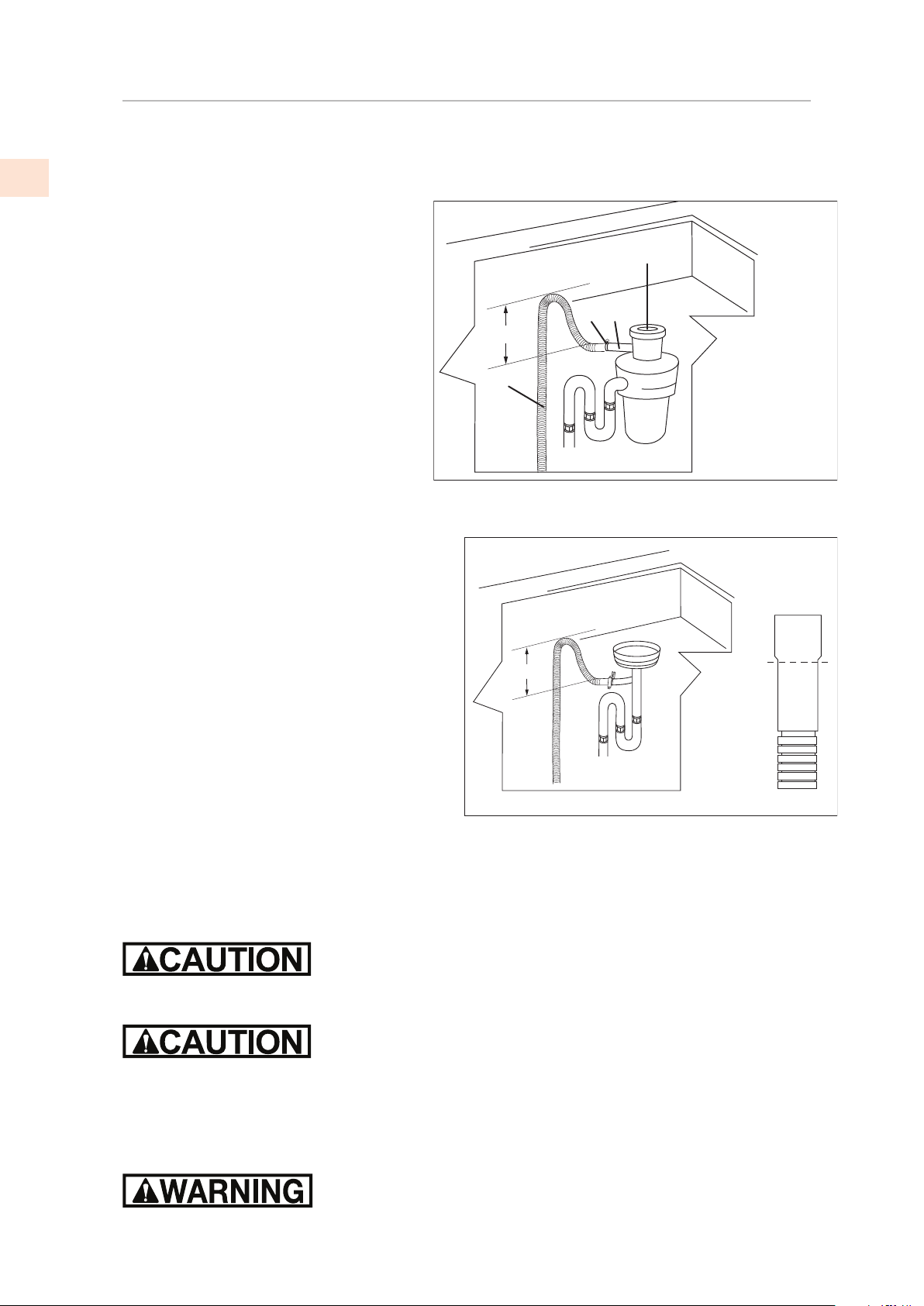

CONNECTING TO A WASTE DISPOSAL WITHOUT AN AIR GAPCONNECTING TO A WASTE DISPOSAL WITHOUT AN AIR GAP
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL BE
INSTALLED
1. Remove the cover of the waste
disposal unit (A).
2. Connect the dishwasher drain hose
(B) to the waste disposal unit inlet (C),
using the wide spring clamp (D)*.
3. Arrange the hose to form a high
loop (E) as shown in the illustration.
This is required to prevent backflow
of contaminated water into the
dishwasher.
* Available from a plumbing store or home
center.
CONNECTING TO A “T” UNIONCONNECTING TO A “T” UNION
MAKE THE CONNECTION UPLINE FROM
THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE
INSTALLED.
1. Connect the dishwasher drain hose to the
“T” union of the drain using a 1-1/2 to 2”
[3.8 to 5 cm] screw clamp.*
2. Arrange the hose to form a high loop
(A) as shown in the illustration. This
is required to prevent backflow of
contaminated water into the dishwasher.
3. If necessary, cut the end of the dishwasher
drain hose (E) (DO NOT cut the
corrugated section).
* Available from a plumbing store or home center.
CONNECTING TO THE POWER OUTLETCONNECTING TO THE POWER OUTLET
CHECK THAT VOLTAGE AND FREQUENCY OF THE OUTLET
MATCHES THE RATINGS ON THE RATING PLATE OF THE
APPLIANCE, WHICH IS POSITIONED ON THE INNER EDGE OF
THE DOOR.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT
REPLACED BY THE MANUFACTURER OR AN AUTHORIZED
TECHNICIAN. THIS APPLIANCE MUST BE GROUNDED. IN CASE
OF A MALFUNCTION, THE GROUND REDUCES THE RISK OF
ELECTROCUTION BY PROVIDING THE ELECTRICAL CURRENT WITH AN ALTERNATIVE,
LESS RESISTANT PATH. THIS APPLIANCE IS FITTED WITH A POWER CORD CONTAINING
A GROUND WIRE AND PLUG. FIT THE PLUG INTO A SUITABLE OUTLET, INSTALLED AND
GROUNDED IN COMPLIANCE WITH LOCAL CODES.
BEFORE MAKING ELECTRICAL CONNECTIONS, TURN OFF THE
CIRCUIT BREAKER THAT WILL SERVE THE APPLIANCE.
B
A
DC
E
E: High loop 6-9”
[15-23 cm]
E
A
A: High loop 6-9”
[15-23 cm]
INSTALLATION (CONT.)
©2021 Hestan Commercial Corporation
12
EN

AN INCORRECTLY CONNECTED GROUND WIRE MAY
GENERATE THE RISK OF ELECTROCUTION. IF IN DOUBT AS TO
THE CORRECT GROUNDING OF THE APPLIANCE, CALL IN A
QUALIFIED ELECTRICIAN OR THE TECHNICAL ASSISTANCE
SERVICE. DO NOT CHANGE THE PLUG ATTACHED TO THE
APPLIANCE.
THE PLUG AT THE END OF THE POWER CORD AND THE
CORRESPONDING OUTLET MUST BE OF THE SAME TYPE AND
MUST CONFORM TO LOCAL REGULATIONS GOVERNING
ELECTRICAL APPLIANCES. NEVER REMOVE THE PLUG BY
PULLING ON THE CORD.
CONDENSATION PROTECTIONCONDENSATION PROTECTION
The steam guard protects the countertop from steam and
condensation when the door of the dishwasher is opened
at the end of the washing cycle.
Adhesive and screws are provided, to be used according
to installation requirements. See "INSTALLATION KIT
SUPPLIED WITH DISHWASHER" on page6.
Mount the steam guard as follows:
MOUNTING THE STEAM GUARD WITH SCREWSMOUNTING THE STEAM GUARD WITH SCREWS
If the countertop can be drilled for screws, use screws to mount the steam guard.
1. Mark and drill pilot holes if needed.
2. Position the guard and install mounting screws.
MOUNTING THE STEAM GUARDMOUNTING THE STEAM GUARD WITH ADHESIVEWITH ADHESIVE
If the countertop can't be drilled for mounting screws, use
adhesive to mount the steam guard.
1. Clean the front 6” of the underside of the countertop
directly above the door.
2. Peel the protective layer from the adhesive surface.
3. Apply the steam guard, pressing the guard firmly in place
to get full contact of the adhesive onto the mounting
surface.
NEXT STEPSNEXT STEPS
If your dishwasher is an overlay model, continue with the
instructions in the OVERLAY PANEL section.
If you have a model with stainless-steel or colored door,
proceed to "FINAL STEPS" on page16.
INSTALLATION (CONT.)
2021 Hestan Commercial Corporation
13
EN

OVERLAY PANEL (MODEL KDW24-OV)
OVERLAY PANEL PREPARATIONOVERLAY PANEL PREPARATION
MOUNTING SUPPORT HOOKS AND BRACKETSMOUNTING SUPPORT HOOKS AND BRACKETS
1. Place the provided template on the inner surface of the overlay panel.
2. Center the template on the panel and align it with the top edge, matching up the reference
locators (A).
3. Mark the position of the door hooks and brackets
with a pencil.
4. Remove the template and use a drill with a suitable
bit to make pilot holes at the points marked on the
panel.
• To avoid drilling too deep, use of a drill stop is
recommended.
5. Using a Phillips screwdriver, secure the door hooks (B, C) with the 8 supplied flat head screws
(items F) at the marked reference points.
6. Use the screwdriver to secure the lower
brackets (D, E) with the 8 supplied round
head screws (item G) at the marked
reference points.
OVERLAY PANEL DIMENSIONS:
WIDTH: 23-7/16" [596 mm]
HEIGHT: 31-7/8" [810 mm] MAX
THICK: 3/4" - 1-3/16" [19 - 28 mm]
WEIGHT: 5-22 lbs. [2.5 - 10 kg]
A
A
©2021 Hestan Commercial Corporation
14
EN

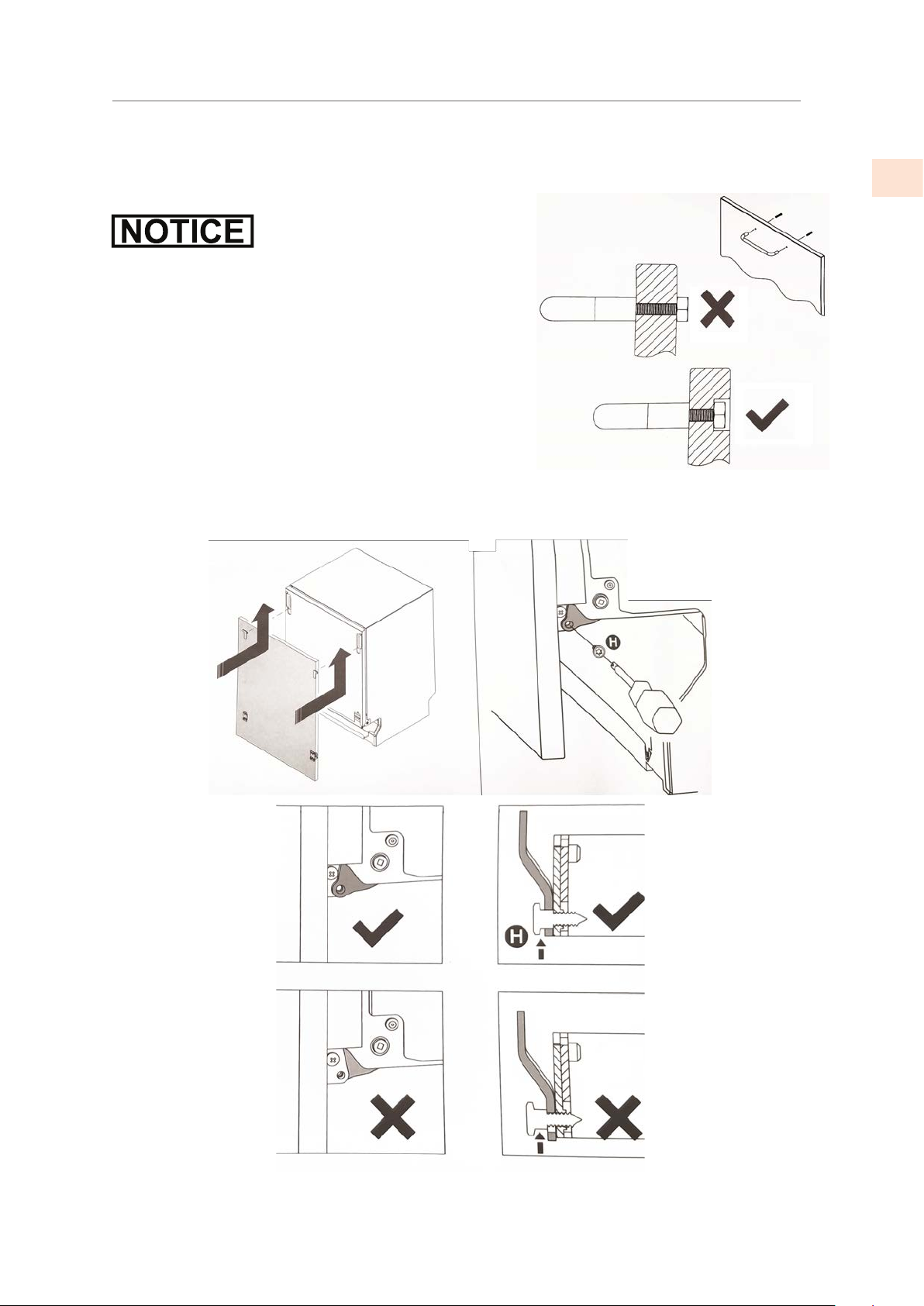

MOUNTING HANDLEMOUNTING HANDLE
The KDW24-OV model is not supplied with a door handle. Installation of customer's preferred
handle should be done according to instructions provided with the handle and according to good
practices.
The handle mounting screws must be countersunk or
recessed so they do not protrude above the overlay panel
surface.
ATTACH THE DOOR PANELATTACH THE DOOR PANEL
Fit the hooks into their slots on the dishwasher, slide the panel upward, and install the bracket
screws (items H).
• Make sure that the screw shank (H) fits through the hole in the bracket as shown above.
• Make sure the dishwasher door, complete with panel, opens fully.
OVERLAY PANEL (CONT.)
2021 Hestan Commercial Corporation
15
EN

FINAL STEPS

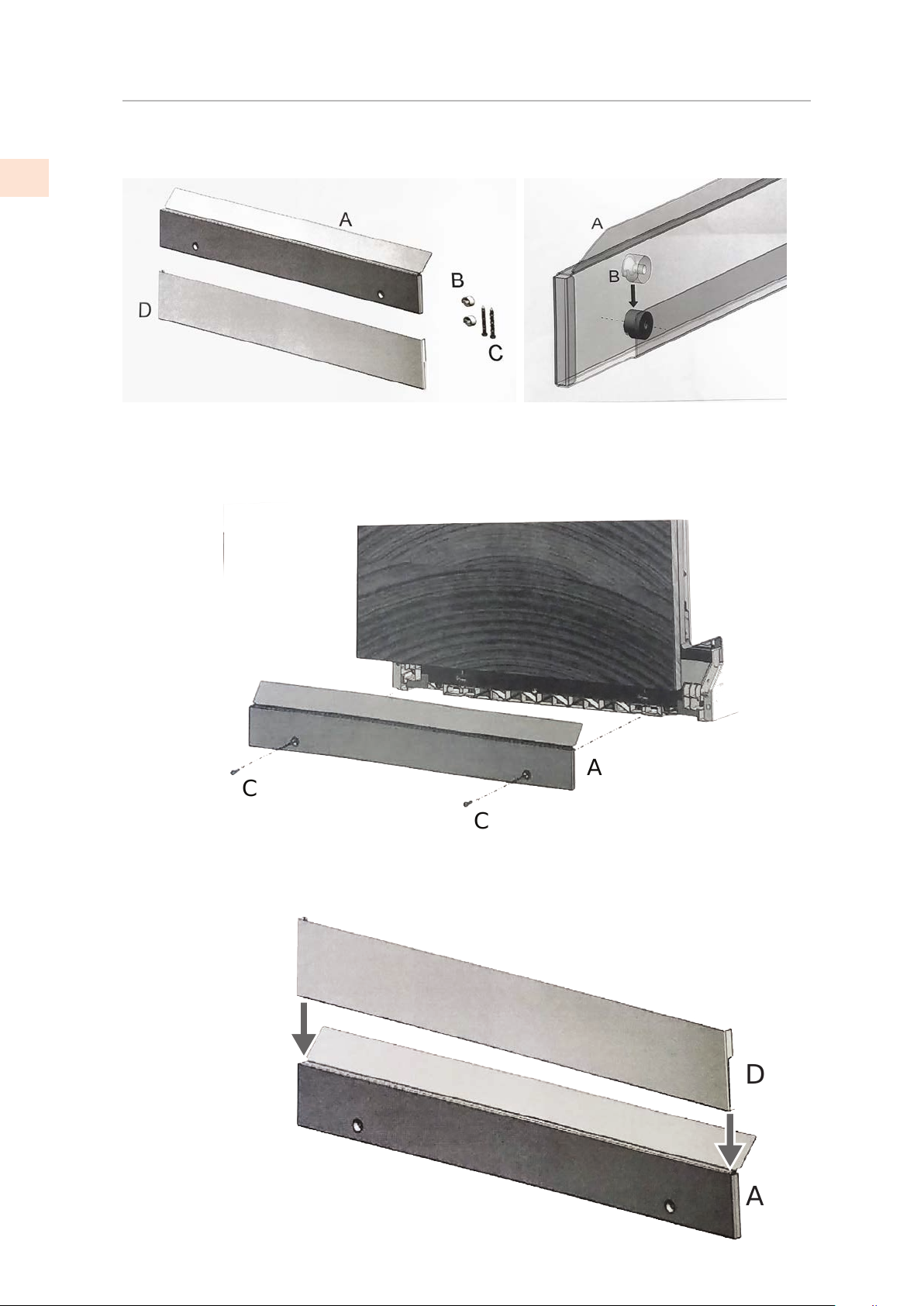

ADJUSTABLE BASE PLATEADJUSTABLE BASE PLATE
An adjustable base plate is provided to protect the front of the dishwasher.
1. Install the spacers in the main plate (A, B above)
2. Position the plate (A) and install the screws (C)
3. Position the slider plate (D) so it is captured by the main plate (A) and can slide to the floor.
CC
A
A
D
©2021 Hestan Commercial Corporation
16
EN

FINAL STEPS (CONT.)

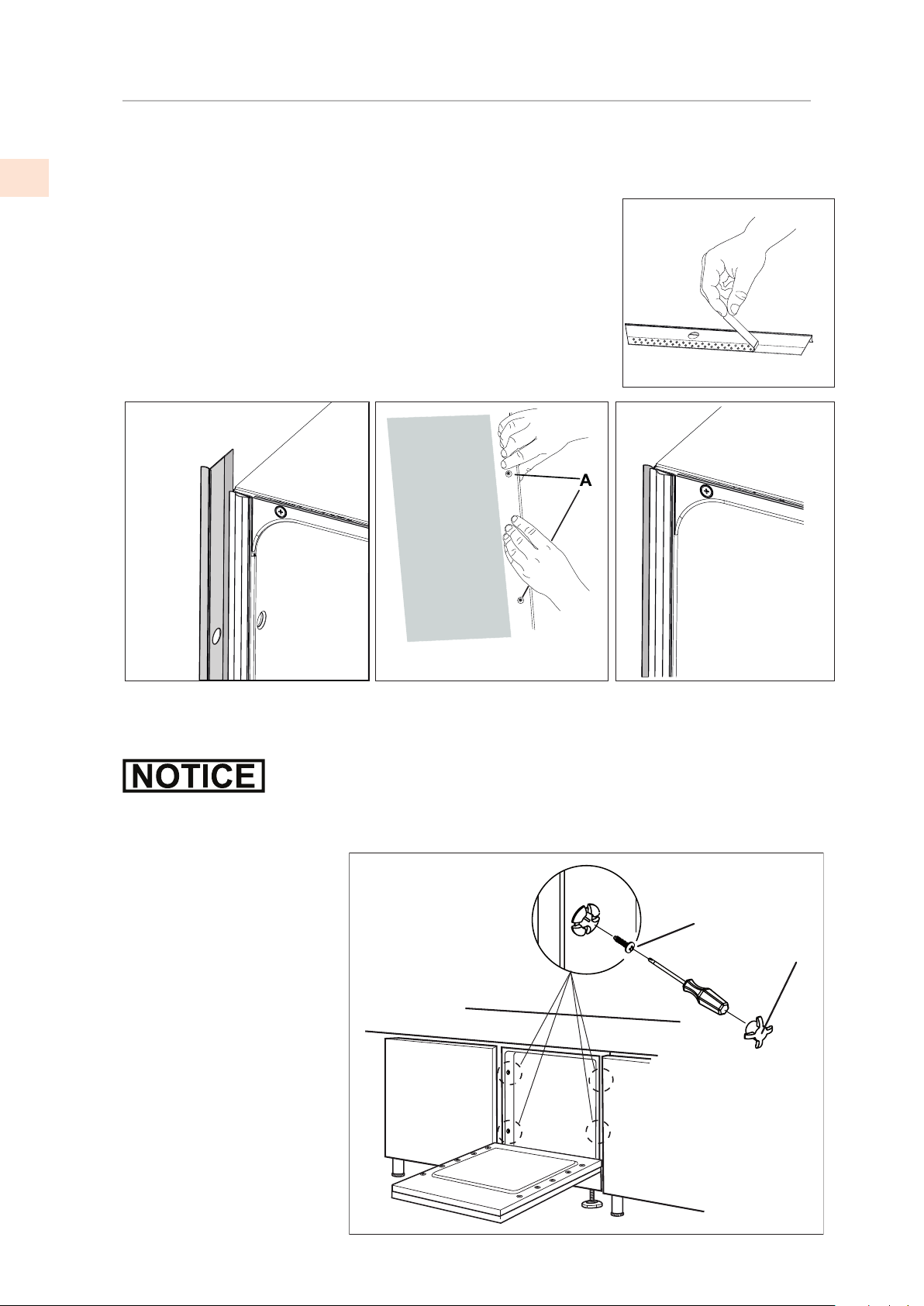

GASKETSGASKETS
Before securing the dishwasher to the cabinets, attach the gaskets to the sides.
1. Remove the adhesive band from the gasket (see Figure 1).
2. Fix the gasket to the dishwasher, inserting it in the seat on the
sides towards the front (see Figure 2).
- Make sure that the long side of the gasket, the one with the
holes for inserting the screws, is attached to the outside of
the dishwasher.
- The hole in the long side must match the holes in the
dishwasher. (see A in Figure 3)
3. Make sure the gasket adheres perfectly to the dishwasher. Figure 4 shows the state of the
dishwasher after operations 1-3 are done.
MAKE SURE THERE IS AT LEAST 1/8" [3 mm] CLEARANCE BETWEEN
THE TOP OF THE DOOR AND THE SURFACE ABOVE IT.
4. Secure the dishwasher to the adjacent cabinetry or to the countertop above using the
supplied screws (item A). This operation secures the dishwasher to the adjacent cabinets or
to the countertop.
5. Cover the side holes
using the supplied plugs
(item B).
Figure 1
Figure 2 Figure 3 Figure 4
AB
2021 Hestan Commercial Corporation
17
EN

FINAL STEPS (CONT.)
GASKETSGASKETS
Before securing the dishwasher to the cabinets, attach the gaskets to the sides.
1. Remove the adhesive band from the gasket (see Figure 1).
2. Fix the gasket to the dishwasher, inserting it in the seat on the
sides towards the front (see Figure 2).
- Make sure that the long side of the gasket, the one with the
holes for inserting the screws, is attached to the outside of
the dishwasher.
- The hole in the long side must match the holes in the
dishwasher. (see A in Figure 3)
3. Make sure the gasket adheres perfectly to the dishwasher. Figure 4 shows the state of the
dishwasher after operations 1-3 are done.
MAKE SURE THERE IS AT LEAST 1/8" [3 mm] CLEARANCE BETWEEN
THE TOP OF THE DOOR AND THE SURFACE ABOVE IT.
4. Secure the dishwasher to the adjacent cabinetry or to the countertop above using the
supplied screws (item A). This operation secures the dishwasher to the adjacent cabinets or
to the countertop.
5. Cover the side holes
using the supplied plugs
(item B).
Figure 1
Figure 2


Figure 3 Figure 4
AB
©2021 Hestan Commercial Corporation
18
EN
