HiFiMAN EF-5 User manual

HiFiMAN

HiFiMAN EF-5
Thank you for purchasing the HiFiMAN EF-5 high performance hybrid
headphone amplifier.
This Owner's Guide
is intended to provide a useful overview of your new
EF-5 and how to best install and operate it for many years of enjoyment,
safety and satisfaction. Please take the time to familiarize yourself with
its features. If you have any questions or need additional information,
contact your authorized HiFiMAN dealer.
Product Overview
The HiFiMAN EF-5 is a powerful hybrid headphone amplifier. The term
hybrid refers to its integration
of the clear top 12 AU? vacuum tube and
the OPA275 as
op-amp. The EF-5 is compatible with a wide range of
headphones of different impedances and efficiencies.

www.hifiman.com
Key Features and Specifications
• Hand-built headphone amplifier
• Separate DY
-1 power supply with toroidal transformer
• Vacuum tube:RCA Clear top 12AU7
e OP-amp: JRC5532 OPA275
e Input: RCA*1
• Output: 1/4" (6.35mm) headphone
jack
• Detachable IEC power cord
Specifications
• Frequency response: 20Hz-30kHz
• Distortion: less than 0.2°/o
• S/N: more than 95dB
• Input impedance: 50k Ohms
• Output impedance: 2
-2k Ohms
at 32 Ohms: 15v
• 110v/220v
• 10mm)Wide X 1
X1
• Weight: 81.1 Oz
• Accessories: 12AU7 tube,
DY-1 power supply(110v-240v)

HiFiMAN
EF-5
Front panel layout
1) Power switch: pull up to turn the amplifier on, pull down to turn off
2) Headphone jack: connect with headphones
3)Volume control: turn clockwise to increase volume, counter-clockwise
to reduce volume
Rear
panel layout
4) L track: connect to the L channel
of
the audio cable
5) R track: connect to the R channel
of
the audio cable
6) Power connection: connect to
DY-1
power supply
•

www.hifiman.com
DY-1 Power Supply Rear panel layout
7) AC power out: connect to@ on the rear panel of the EF-5
8) Fuse jack: fuse set for over-current protection
9)
11 Ov and 220v-240v switching: select for your local power source
10) AC power connection: connect first before turning on power
•

HiFiMAN
EF-5

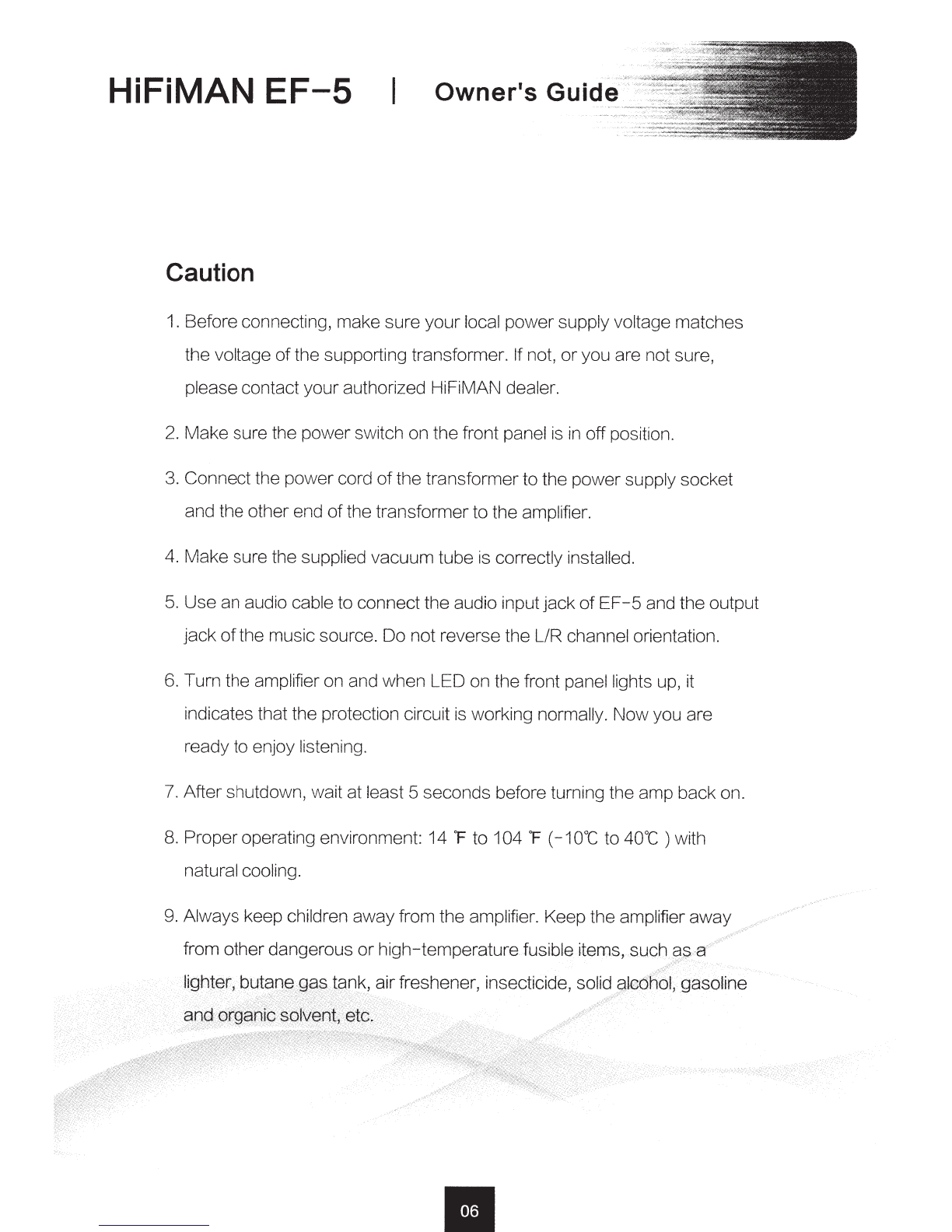

Caution
1.
Before connecting, make sure your local power supply voltage matches
the voltage
of
the supporting transformer. If not, oryou are not sure,
please contact your authorized HiFiMAN dealer.
2.
Make sure the power switch on the front panel
is
in
off position.
3.
Connect the power cord
of
the transformer to the power supply socket
and the other end
of
the transformer to the amplifier.
4.
Make sure the supplied vacuum tube
is
correctly installed.
5.
Use an audio cable to connect the audio input jack
of
EF-5
and the output
jack
of
the music source. Do not reverse the L/R channel orientation.
6.
Turn the amplifier on and when LED on the front panel lights up,
it
indicates that the protection circuit
is
working normally. Now you are
ready to enjoy listening.
7.
After shutdown, wait at least 5 seconds before turning the amp back on.
8.
Proper operating environment:
14
·F
to
104 F (
-1
OOC
to
40°C
)
with
natural cooling.
9.
Always keep children away from the amplifier. Keep the amplifier away
from other dangerous or high-temperature.fusible items,
lighter, air freshener, insecticide, solid
•

www.hifiman.com
Warranty
•
One-year
free repair when installed, set up and used
according to our recommended instructions. Contact us first
to troubleshoot before returning and if needed an RA will be
issued. Return shipping to HiFiMAN
or
authorized service
facility
is
owner's responsibility.
• For residential use only.
For any further information or questions, please contact
your authorized
HifiMAN
dealer. Or email
us
directly
at
[email protected].
www.hifiman.com
