Introduction
Installation ...............................................3
Safety ........................................................ 3
Warning/Caution ......................................... 4
Main unit description .................................. 7
Remote Control .......................................... 8
Quick Setup ................................................... 9
Language .................................................9
Country..................................................... 9
DTV Type .............................................. 10
Subtitle and Audio Language ........ 10
Auto tuning ......................................... 11
Tuning Mode........................................ 12
Scan Type.............................................. 12
Network ID .......................................... 12
Frequency............................................. 12
Modulation ........................................... 12
Symbol Rate ......................................... 12
Source ......................................................... 13
Main menu ................................................. 14
Picture menu .............................................. 15
Sound menu .............................................. 17
Channel menu ........................................... 20
Channel edit ........................................ 21
Country ................................................. 21
DTV Type .............................................. 22
Auto Tuning ......................................... 22
ATV Manual Tuning ........................... 23
DTV Manual Tuning ........................... 23
DTV Settings ........................................ 24
Operation menu ....................................... 25
Menu Language ................................. 26
Teletext Language ............................. 26
System Lock ......................................... 26
Parental Control ................................. 27
Key Lock ............................................... 27
Change Password .............................. 27
Auto Power Down .............................. 27
Record Menu ...................................... 28
Personal Video Recorder (PVR) ............. 29
Setup menu ............................................... 30
Electronic Program Guide (EPG) .......... 32
Direct record .............................................. 23
Time shift .................................................... 34
Media operation ....................................... 36
Photo ..................................................... 37
Music ..................................................... 38
Movie .................................................... 39
Specications ............................................. 40
Troubleshooting ........................................ 41
Useful Information and Licences........... 43
Index

3
Introduction
Thank you very much for purchasing your LED TV. It serves as a normal colour
TV and a PC monitor. To enjoy your set fully from the very beginning, read this
manual carefully and keep it handy for future reference.
INSTALLATION
1. Locate the TV in the room where direct light does not strike the screen. Total darkness
or a reection on the picture screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
2. Allow enough space between the TV and the wall to permit ventilation.
3. Avoid excessively warm locations to prevent possible damage to the TV or premature
component failure.
4. This TV can be connected to AC 100-240V~ 50/60Hz.
5. Do not install the TV in a location near heat sources such as radiators, air ducts, direct
sunlight, or in closed compartments and closed areas. Do not cover the ventilation
openings when using the TV.
6. The indicator light will last for about 30 seconds after the power has been tumed off.
Wait until the indicator light goes out before repowering the TV.
SAFETY
1. DO NOT expose the television to extremely high temperatures (below 5° C and above
35° C) or extreme humidity (less than 10% and more than 75%).
2. DO NOT expose the television to direct sunlight.
3. Prevent the television from coming into contact with liquids.
4. Make sure that no objects get into the television and do not place vases of water on
the television.
5. Unplug the power cord and remove the antenna cable during a lightning storm
(especially during lightning).
6. Do not walk on the cable and ensure that the cable is fully unrolled.
7. Do not overload outlets or extension cords, as this may result in the risk of re or
electric shock.
8. Use a soft, dry cloth (without volatile substances) to clean the television.
9. Do not attempt to repair the television yourself if it is defective. Contact us by sending
an email to [email protected].

4
Warning
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to avoid the risk
of electric shock, do not disassemble this equipment by anyone
except a qualied service personnel.
This symbol is intended to alert the user to the presence of
important operating and maintenance instructions in
the literature accompanying the equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

5
Caution
Caution
High voltages are used in the operation of this
product.
Do not open the product’s casing. Refer
servicing to qualied service personnel.
Caution
To prevent re or electrical shock hazard, do
not expose the main unit to moisture. Do not
place objects lled with liquids, such as vases,
on the TV.
Caution
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Caution
Avoid exposing the main unit to direct sunlight
and other sources of heat. Do not stand the
television receiver directly on other products
which give off heat: e. g. video cassette
players and audio ampliers. Do not block the
ventilation holes in the back cover. Ventilation
is essential to prevent failure of electrical
components. Do not squash power supply
cord under the main unit or other heavy
objects.
-
-
-
-

6

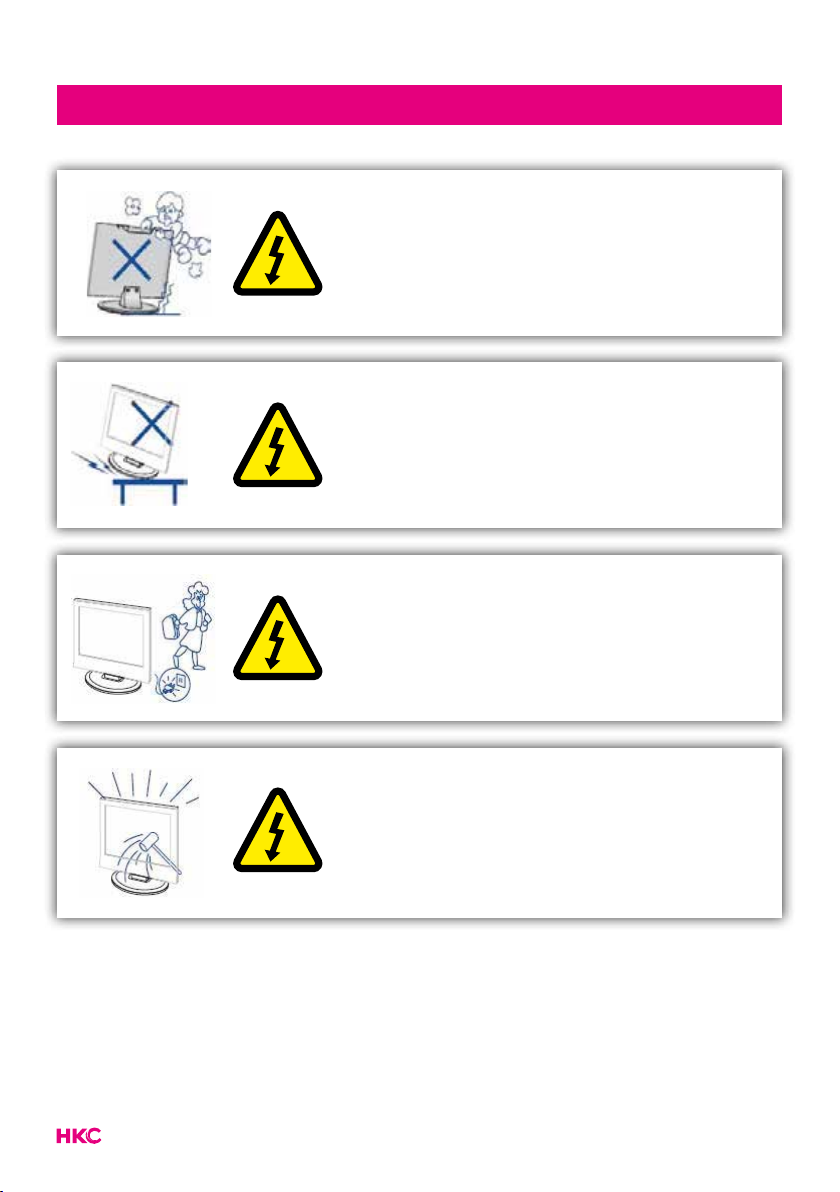

Caution
Caution
Never stand on, lean on or suddenly push the
product or its stand. You should pay special
attention to children.
Caution
Do not place the main unit on an unstable
cart stand, shelf or table. Serious injury to an
individual, and damage to the television, may
result if it should fall.
Caution
When the product is not used for an extended
period of time, it is advisable to disconnect the
AC power cord from the AC outlet.
Caution
The LED panel used in this product is made of
glass and is therefore breakable. This product
must not be dropped or banged. If the LED
Panel breaks be careful ofbeing injured by
broken glass.

7
tekst
Control Panel Button Function
TV Connections
Connect the USB to the USB jack on the set
Main unit description
: Volume up.
: Volume down
: TV channel up.
: TV channel down.
: Press to select the main menu.
: Select the input signal.
: Switch on when in standby mode or to enter the standby mode.
NOTE
• It is only 500 mA MAX of DC current output when you connect
with USB jack.
• To ensure the mobile HD works well, you should use other
power supply for the mobile HD and don’t use the USB jack in
the same time.
• It supports mobile HD by connecting with USB jack (must be
more than 2 Gb). The partitions of the mobile HD can’t be
more than 4 partitions. The max partition is 2 Tb. It supports
FAT/FAT32 les. The max FAT le is 4Gb and the max FAT32
le is 2Tb.

8

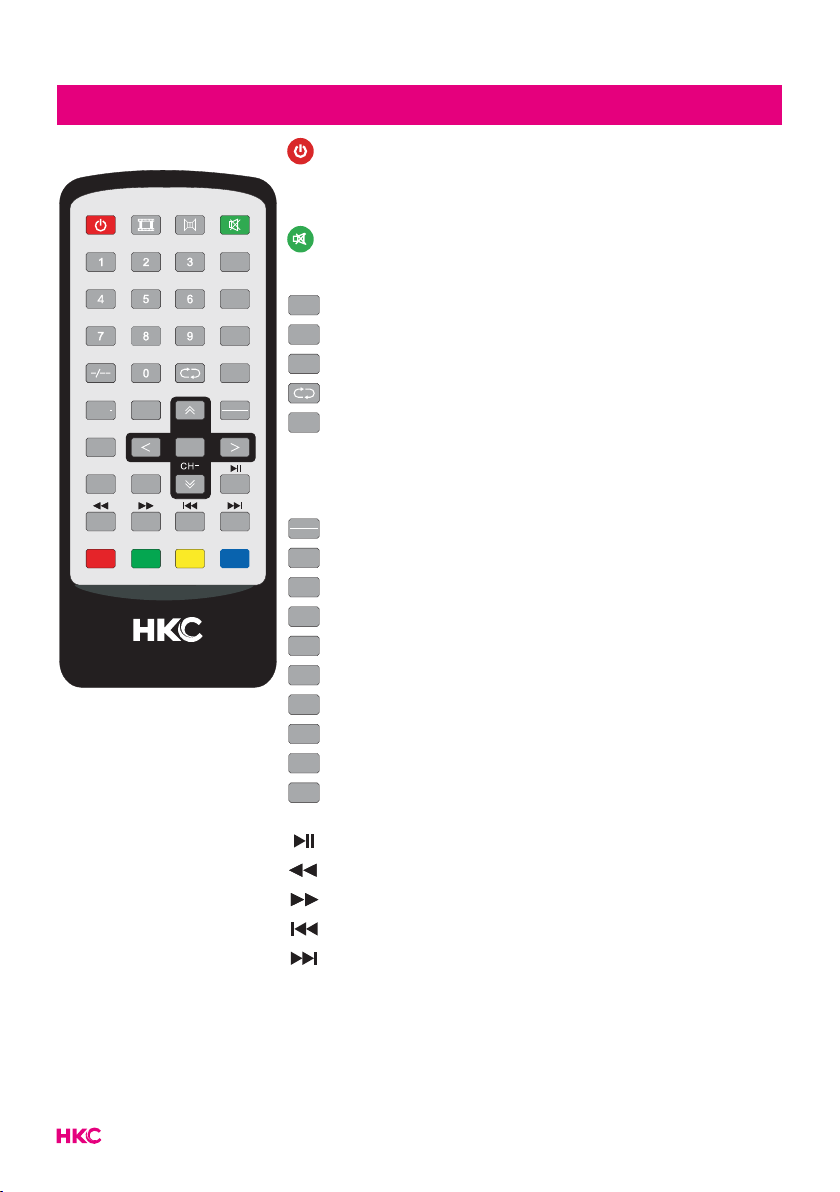

tekstRemote Control
Switch the TV between on and standby mode.
P.MODE Select the picture mode.
S.MODE Select the sound mode.
Mute and restore your TV sound.
0-9 0-9 numbers. Press to select a programme.
EPG Displays the EPG (Electronic Programme Guide).
S.TITLE
Start or close subtitles (DTV and MEDIA mode).
TEXT Access the Teletext items, if available (TV mode).
Return to the previous viewing channel
AUDIO
In TV mode, selectable for the audio language (DTV mode).
To put the sound in stereo (ATV mode).
VOL-/VOL+ Adjust the volume (+ higher, - lower).
CH-/CH+ Select a channel (up/down).
TV
RADIO
Switch between TV and radio channels (if available).
SOURCE
Switch between different sources (antenna-USB-HDMI).
ENTER
Run or conrm the selected option.
MENU
MENU
Displays the OSD menu (On Screen Display).
EXIT
Leave the OSD menu (On Screen Display).
HOLD
Fix a passage of several pages on the screen with teletext.
REVEAL
Show any hidden info in teletext.
SIZE
Enlarge the image with teletext.
INDEX
Selecting page numbers from the teletext index.
S.PAGE
Show any hidden pages with teletext.
Go to next le (USB-mode).
Start or pause (USB-mode).
Fast rewind (USB-mode).
Fast forward (USB-mode).
Go to previous image/chapter (USB-mode).
Go to next image/chapter (USB-mode).
Red, green, yellow and blue button: to select the relevant
choices in the various menus
P.MODE MUTE POWER
VOL VOL+
S.MODE
EPG
TV
RADIO
S.TITLE
TEXT
AUDIO
SOURCE
HOLD
REVEAL SIZE
EXIT
INDEX S.PAGE
ENTER
CH+
MENU

9
TV operation and system set up
When you power on the TV rst,you can nd the follow menu,it will guide you
to do some simple settings.

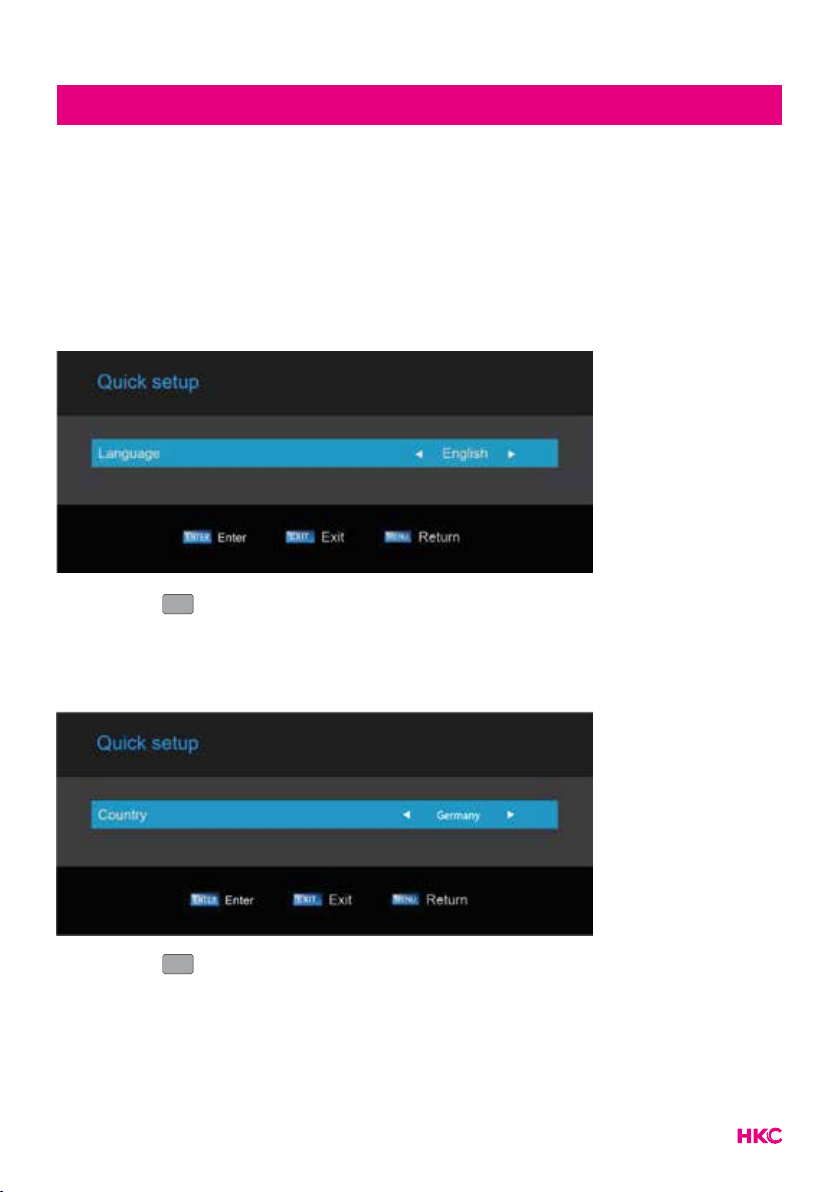

Language
Press the buttons to select the OSD language.
Then press
ENTER
to enter the next step/page.
Country
Press the buttons to select the country.
Then press
ENTER
to enter the next step/page.
Quick Setup

10
Quick Setup
DTV Type
Press the buttons to select the DTV Type DVB-C (Cable) or DVB-T
(Terrestrial).
Then press
ENTER
to enter the next step/page.
Subtitle and Audio Language settings
Press the  buttons to select the item and then press to select the
options.
You can set the primary and secondary subtitle language, primary and
secondary audio language on this options. Then press
ENTER
to enter the next
step/page.

11
tekst
Auto tuning

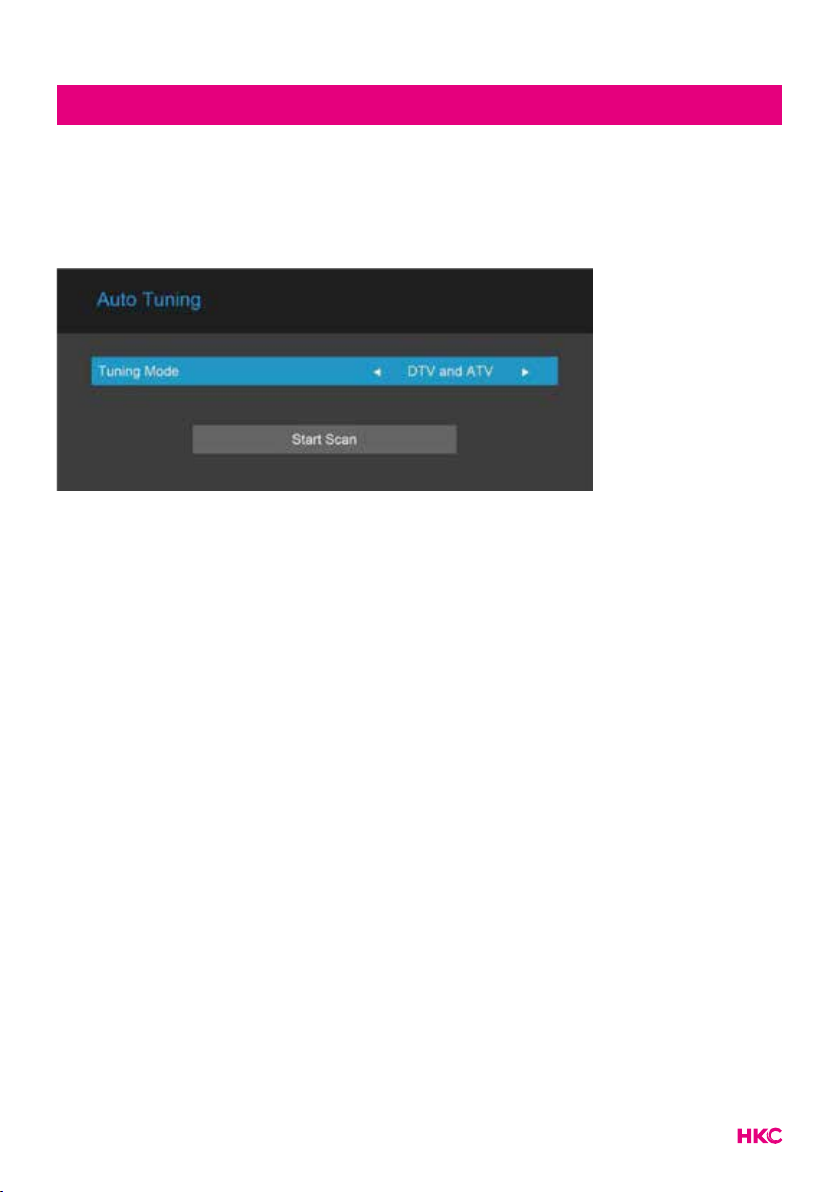

If you set the DTV type to Terrestrial,you will nd the follow menu for search the
channel.
Press the  buttons to select the item and then press to select the
Tuning Mode: DTV or ATV or DTV and ATV.
Quick Setup

12
tekst

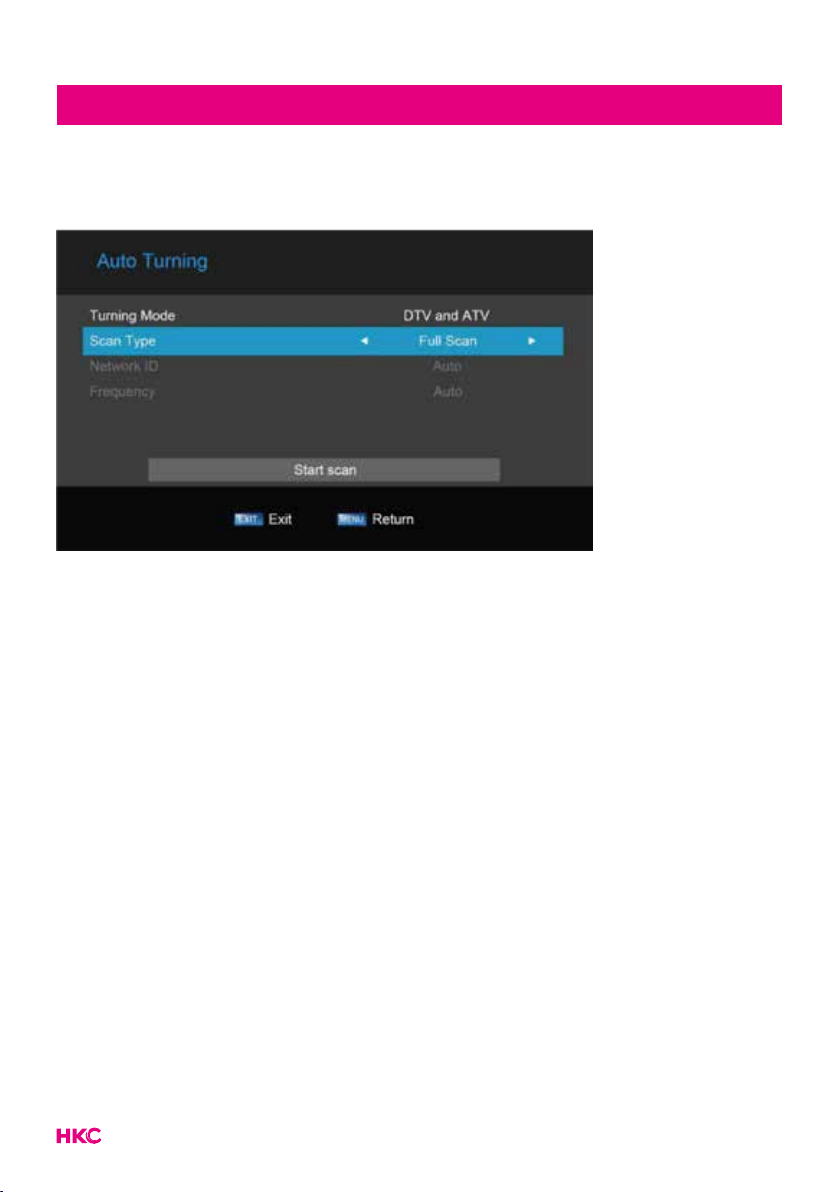

If you set the DTV type to Cable,you will nd the follow menu for search the
channel.
Tuning Mode
Press to select the Tuning Mode: DTV or ATV or DTV and ATV.
Scan Type
Press to select the Scan Type: Full Scan or Network Search.
Network ID
This option is only available in the network Search is activated. Press number
keys (0-9) to set the Network ID or automatically search for ID address.
Frequency
This option is only available in the network Search is activated. Press number
keys (0-9) to set the frequency or automatically search frequency.
Modulation
Press to select the Modulation: 16QAM/32QAM/64QAM/128QAM/256QAM.
Symbol Rate
Press number keys (0-9) to set the symbol rate or automatically search symbol
rate.
Completion of the above settings, user can start channel search.
Quick Setup

13
tekstSource
Select Input Source
Press
SOURCE
to display the input source list.
Press  to select the input source you want to watch.
Press
ENTER
to enter the input source.

14
tekstMain Menu (OSD)
Main Menu (OSD)
Press
MENU
MENU
to open the MAIN OSD MENU.
Press to select the menu item you want to adjust.
Press
ENTER
or to enter the sub menu.
Press  to select the option and then press
ENTER
to enter the sub menu. Then
press to adjust or press to select the sub menu.
Conrm selection with
ENTER
. Press
MENU
MENU
to skip or
EXIT
to stop.

15

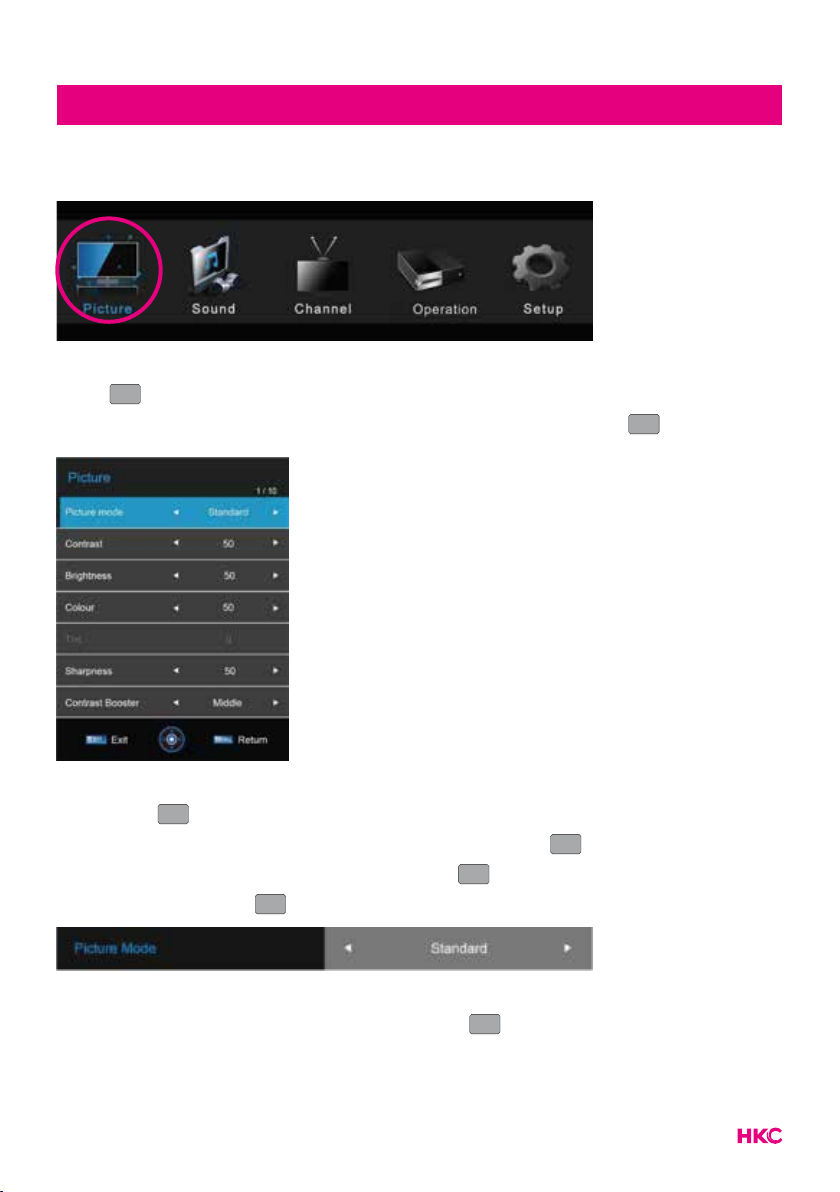

tekstPicture menu
Picture menu
The picture is for a reference only, the actual item is the standard.
Press
MENU
MENU
to open the MAIN OSD MENU.
Press to select PICTURE in the main menu and then press
ENTER
to enter.
Press  to select the option that you want to adjust in the Picture menu and
then press
ENTER
or to enter the sub menu.
Press to adjust or press  to select. And press
ENTER
to select the sub
menu. After nishing your adjustment press
MENU
MENU
to save and return back to the
previous menu. Press
EXIT
to exit the entire menu.
Picture Mode
Press  to select Picture Mode, then press
ENTER
to enter and press to
select. (Available in Picture Mode: User, Dynamic, Standard, Mild).

16
tekstPicture menu
You only can change the value of brightness, contrast, sharpness, color, when
the picture is in User mode. TIP: You can press P-MODE button on the remote
control again and again to change the picture mode directly.
Contrast: Press to select Contrast, then press
ENTER
to enter and press 
to adjust. Then press
MENU
MENU
to return back the previous menu directly.
Brightness: Press  to select Brightness, then press
ENTER
to enter and press
to adjust. Then press
MENU
MENU
to return back the previous menu directly.
Colour: Press  to select Colour, then press
ENTER
to enter and press to
adjust. Then press
MENU
MENU
to return back the previous menu directly.
Tint: Press  to select Tint, then press
ENTER
to enter and press to adjust.
Then press
MENU
MENU
to return back the previous menu directly.
Sharpness: Press  button to select Sharpness, then press
ENTER
to enter and
press to adjust. Then press
MENU
MENU
to return back the previous menu directly.
Contrast Booster: Press  button to select Contrast Booster, then press
ENTER
to enter and press to adjust. Then press
MENU
MENU
to return back the previous
menu directly.
Colour Temperature: Press  button to select Colour Temperature, then
press
ENTER
to enter and to select Standard, Cool, Warm.
DNR: Press  button to select DNR and then press
ENTER
to enter and to
select Off, Low, Middle or High.
Aspect: Press  button to select Aspect Modeand then press
ENTER
to enter
and to select Auto, 4x3, Wide or Super Live).

17
tekstSound menu

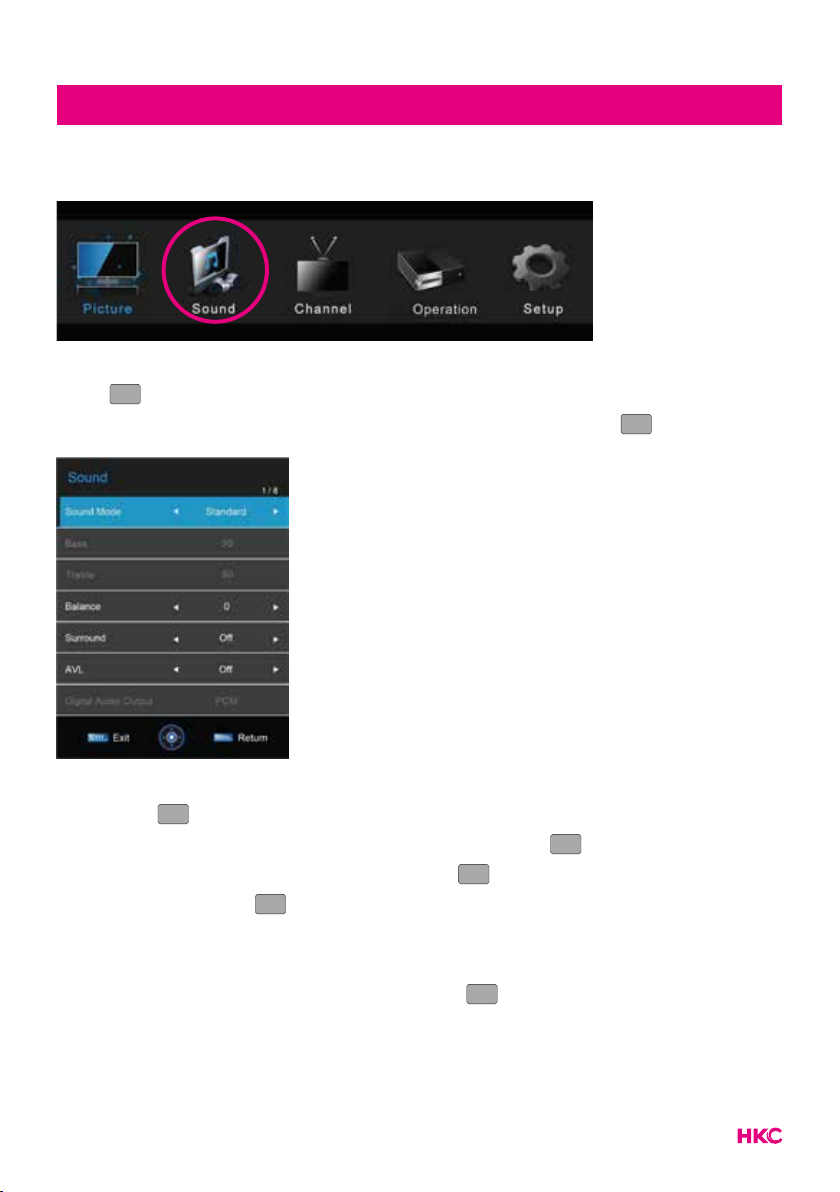

Sound menu
The picture is for a reference only, the actual item is the standard.
Press
MENU
MENU
to open the MAIN OSD MENU.
Press to select SOUND in the main menu and then press
ENTER
to enter.
Press  to select the option that you want to adjust in the Sound menu and
then press
ENTER
or to enter the sub menu.
Press to adjust or press  to select. And press
ENTER
to select the sub
menu. After nishing your adjustment press
MENU
MENU
to save and return back to the
previous menu. Press
EXIT
to exit the entire menu.
Sound Mode
Press  to select Sound Mode, then press
ENTER
to enter and press to
select. (Available Sound mode: User, Standard, Music, Movie).

18
tekstSound menu
You can change the value of bass and treble, Balance and EQ, when the sound
is in User mode.
TIP: You can press S-MODE button on the remote control to change the Sound
Mode directly.
Bass: Press to select Bass, then press
ENTER
or to enter and press to
adjust. It can only be adjusted under user mode. Then press
MENU
MENU
to return back
the previous menu directly.
Treble: Press  to select Treble, then press
ENTER
to enter and press
to adjust. It can only be adjusted under user mode. Then press
MENU
MENU
to
return back the previous menu directly.
Balance: Press  to select Balance, then press
ENTER
to enter and press to
adjust. Then press
MENU
MENU
to return back the previous menu directly.
Surround: Press  to select Surround, then press
ENTER
to enter and press 
to select ON or OFF. Then press
MENU
MENU
to return back the previous menu directly.
AVL: Press  to select AVL, then press
ENTER
to enter and press to select
ON or OFF. Then press
MENU
MENU
to return back the previous menu directly.

19
tekstSound menu
Digital Audio Output: Press  to select Digital Audio Output, then press
ENTER
to enter and press to select. Available in S/PDIF mode: OFF, PCM, AUTO).
Audio Description
Press
ENTER
or to enter the menu in the DTV source. You can open
the audio description and adjust the Mixing Level.
Press
ENTER
or to enter and press to adjust. Then press
MENU
MENU
to return back
the previous menu directly.

20
tekstChannel menu
Channel menu
The picture is for a reference only, the actual item is the standard.
Press
MENU
MENU
to open the MAIN OSD MENU.
Press to select CHANNEL in the main menu and then press
ENTER
to enter.
Press  to select the option that you want to adjust in the Channel menu and
then press
ENTER
or to enter the sub menu.
Press to adjust or press  to select. And press
ENTER
to select the sub
menu. After nishing your adjustment press
MENU
MENU
to save and return back to the
previous menu. Press
EXIT
to exit the entire menu.
