Holme HWM51000H User manual

Washing Machine
Instruction Manual
Please read these instructions carefully and keep
them for future reference
Model Number: HWM51000H
For Customer Services, Spare Parts & Manufacturers
Guarantee Information, please call 01204 664 084
Opening times: Monday –Friday 9am –5pm

Contents
Before using your machine.....................................................................................4
Components...........................................................................................................4
Accessories............................................................................................................4
Unpacking your machine........................................................................................5
Your machine .........................................................................................................5
Before Use..............................................................................................................6
During Use..............................................................................................................6
Installation ................................................................................................................7
Adjusting the bottom cover .....................................................................................8
Dismantle the transportation bolts ..........................................................................8
Adjusting the height of the washing machine..........................................................8
Connecting the Inlet Hose ......................................................................................9
Drain Hose..............................................................................................................9
Connecting to the power supply .............................................................................9

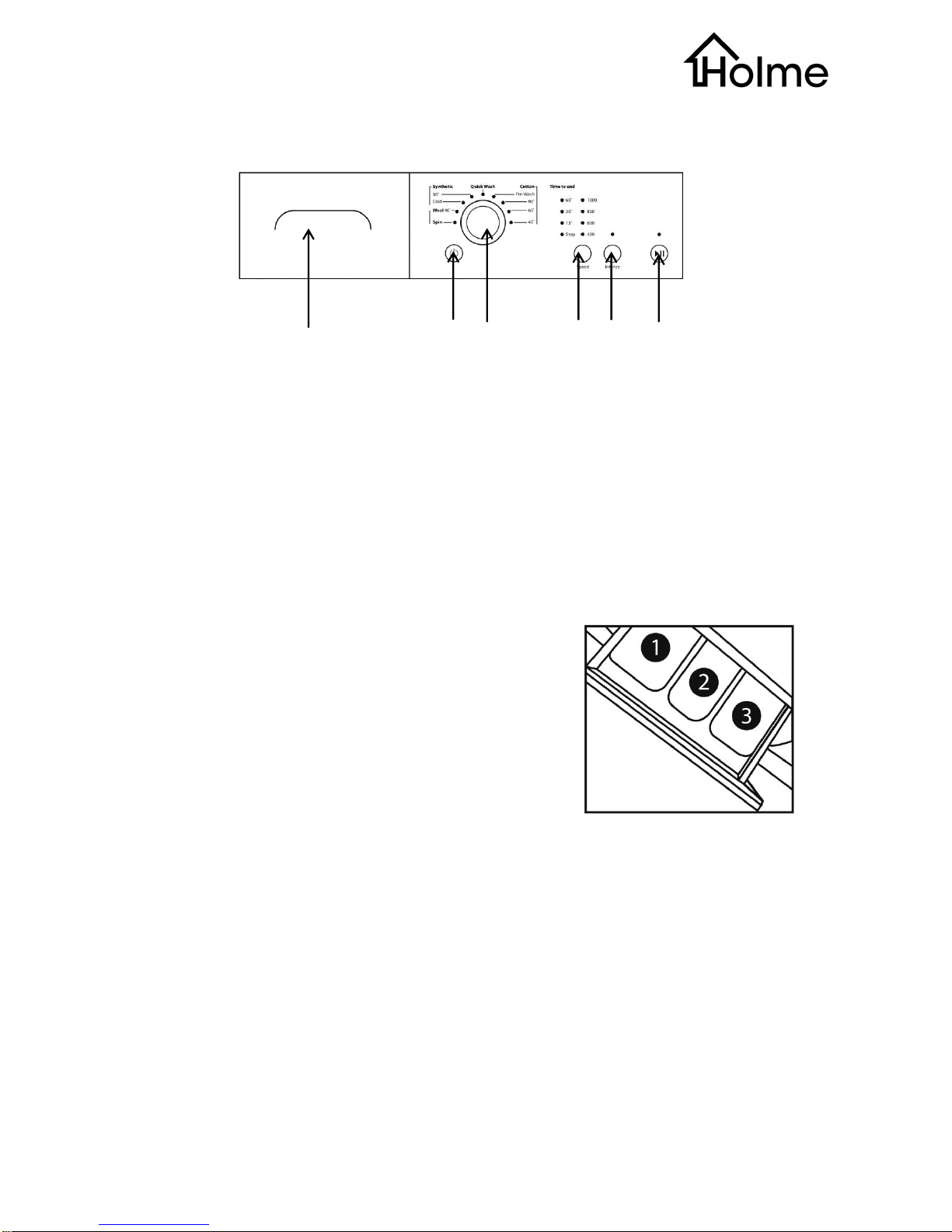

A - Detergent Drawer............................................................................................10
B –Power Button..................................................................................................10
C - Program Knob.................................................................................................10
D -Spin Speed Button.........................................................................................11
E –Intense Button................................................................................................11
F –Start/Pause button..........................................................................................11
Program Selection..................................................................................................12
Consumption and Technical Information.............................................................13
Consumption Table...............................................................................................13
Technical data ......................................................................................................13
Washing Methods...................................................................................................14
Power Supply .......................................................................................................14
Water Connection.................................................................................................14
Preparing your laundry .........................................................................................14
Using the machine .................................................................................................15
Loading the machine ............................................................................................15
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-2-

Selecting detergent...............................................................................................15
Adding detergent ..................................................................................................15
Selecting a program..............................................................................................15

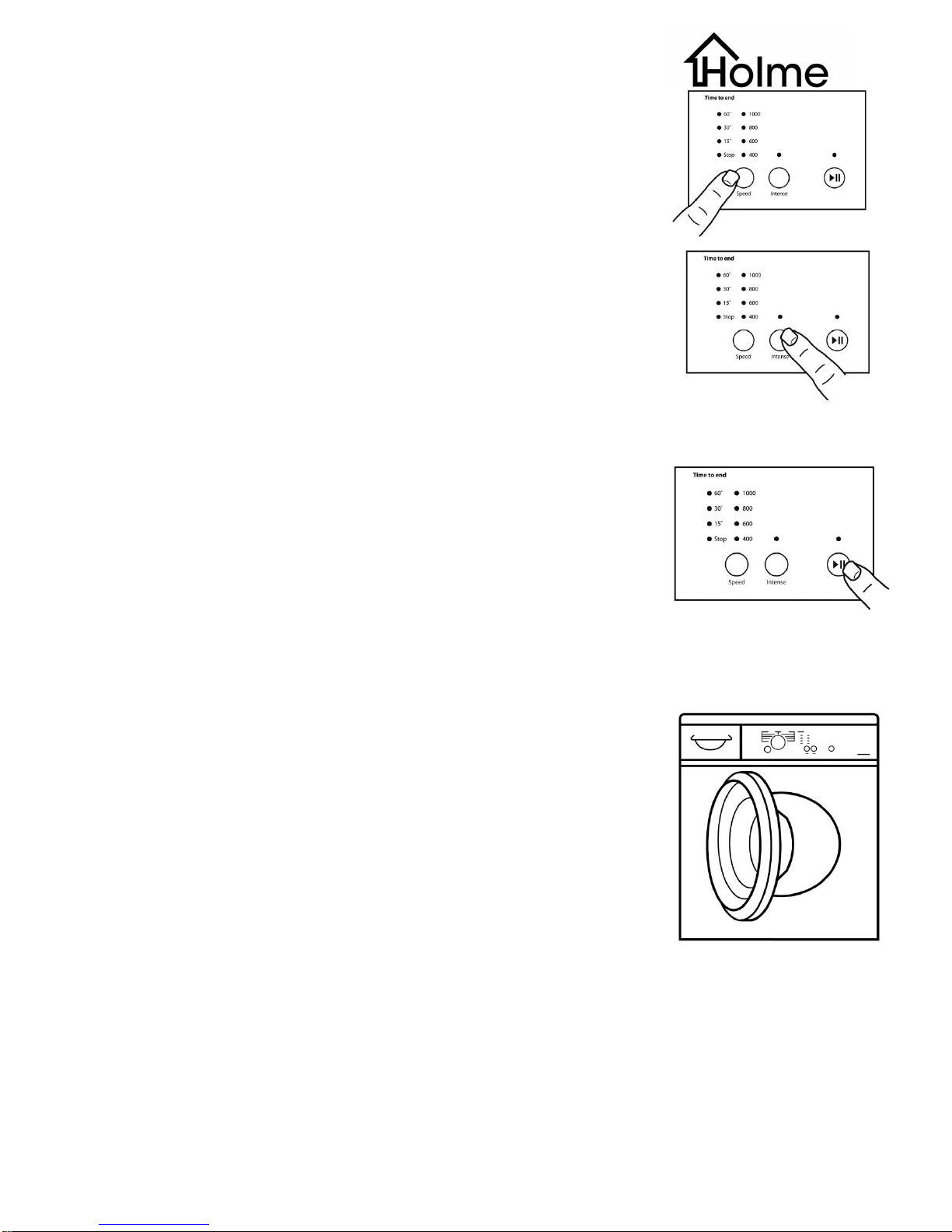

Selecting Spin Speed ...........................................................................................15
Intensity setting.....................................................................................................16
Start a washing cycle............................................................................................16
After washing........................................................................................................16
Energy saving.......................................................................................................16
Care Chart............................................................................................................17
Load guide............................................................................................................17
Cleaning and Care..................................................................................................17
Before cleaning.....................................................................................................18
Cleaning the detergent drawer .............................................................................18
Cleaning the machine...........................................................................................18
Cleaning the filter..................................................................................................18
Cleaning the water inlet valve...............................................................................19
Moving the machine..............................................................................................19
Long periods of disuse..........................................................................................19
Problem solving .....................................................................................................20
Maintenance ...........................................................................................................21
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-3-

Before using your machine
Components
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the most out of your appliance
and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so that you can refer to it and ensure safe
and proper use of the appliance.
If you decide to sell the appliance, give it away or leave it behind when moving
house, make sure you also pass this manual to the new owner so that they can
become familiar with the appliance and its safety warnings.

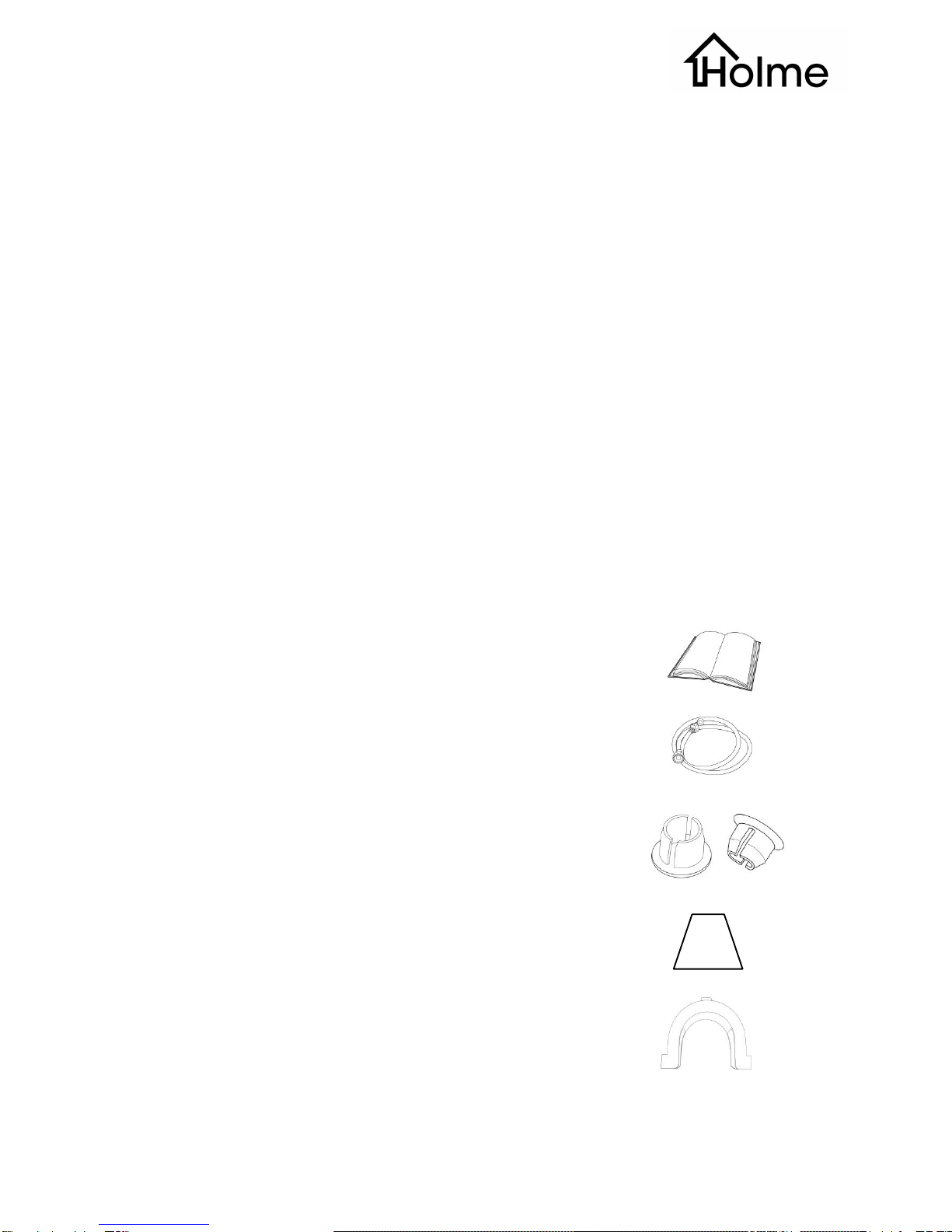

Accessories
Before installation, ensure that all of the accessories below are present. If there are
any missing accessories, please contact the customer service number at the bottom
of the page.
1 X Instruction booklet
1 X Inlet hose
3X Blanking plugs (Russ processing)
1 X Bottom cover
1 X drainage hose bracket
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-4-

Unpacking your machine
Remove all the packing materials including the polystyrene base to ensure the
machine is level and stable. When opening the packaging you may notice droplets of
water have gathered on the plastic bag and porthole. This is normal and is the result
of water tests in the factory.

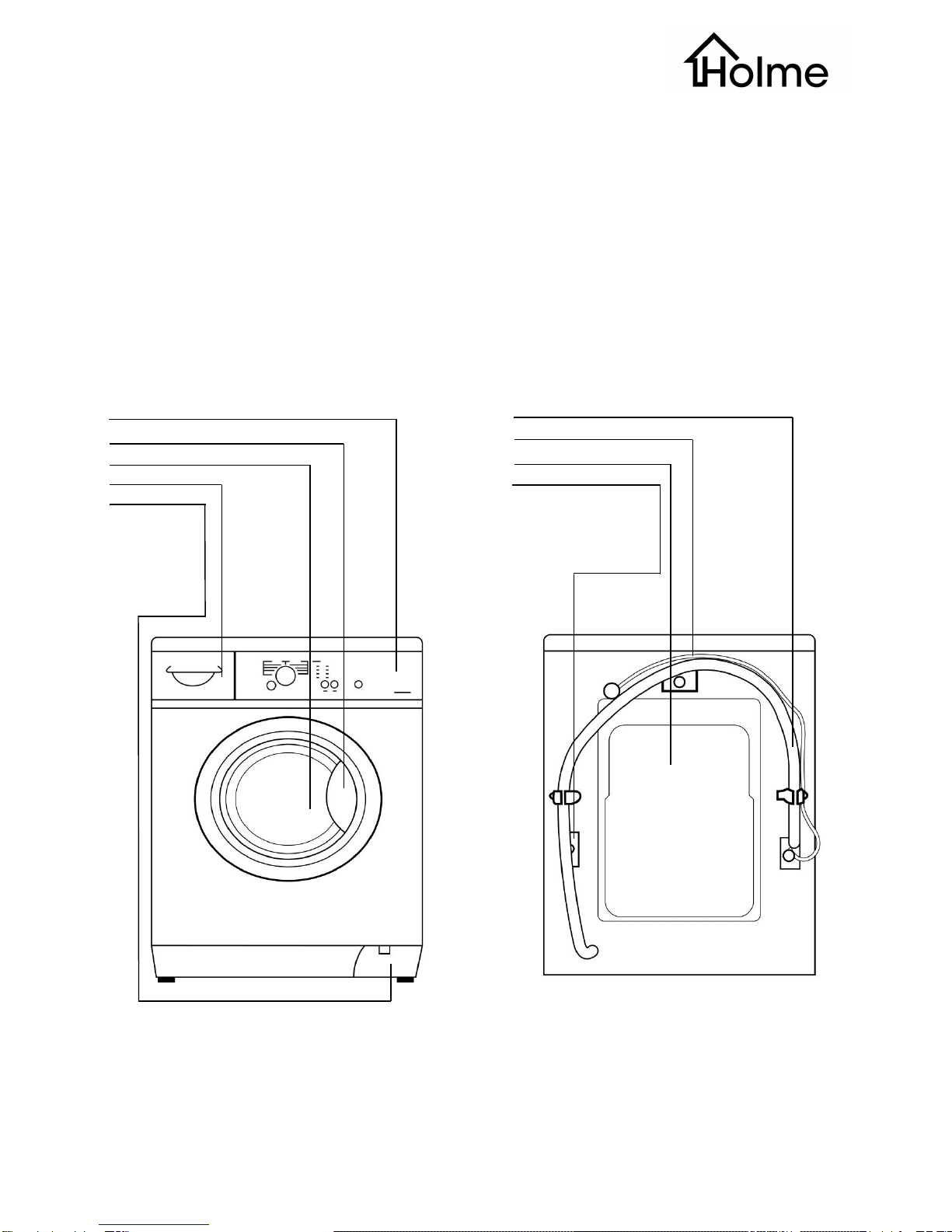

Your machine
This diagram may be slightly different from the machine that you have
purchased. This is due to technical improvements.
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-5-
Control Panel
Door Handle
Washer Door
Detergent Draw
Filter Cover
Drain Hose
Power Cord
Back Cover
Transportation Bolts

Safety Instructions
Before Use
- Do not use any type of mains extension cable.
- Do not plug in damaged or torn plugs.
- Make sure that the transport bolts are removed.
- Use a separate earthed socket for the power supply.
- Make sure that the plug is accessible and not obstructed by the washing
machine or any other appliance.
- After user, unplug the machine by gripping the plug –do not pull the cable in an
attempt to unplug the machine.
- Make sure the fuses in the power circuit are rated at 15a.
- Keep away from heat sources and direct sunlight to prevent plastic and rubber
components from aging.
- Make sure that the power cord is not caught under or in the appliance. If the
power cord is damaged, do not use the appliance.
- Check that the hose joints and connections are firm and no water can leak out of
the appliance. If joints are loose or leaking, turn off the water supply and tighten.
If this is not possible, do not use the machine while water is leaking and contact
the number at the bottom of the page to speak to a qualified service engineer.
- When using the appliance, ensure garments bearing zips are zipped up and
loose threads on garments are fixed down or removed to prevent items
becoming tangled. If necessary, place garments into a net bag or pillow case.
- Turn off the machine after each wash program and switch it off at the mains for
your safety. Wipe clean the lower part of the porthole.
- After use, keep the door slightly open to prevent undesirable odours forming.
- The power cord should only be replaced by a G2S engineer to prevent damage
to the machine.
- Ensure the appliance is only used by persons with sufficient capabilities,
experience and knowledge. The instructions in this manual should be followed at
all times.
- Children should not use this appliance.
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-6-
Before switching the appliance on for the first time, ensure the following precautions
are taken:

During Use
When using your appliance, ensure that you do not:
- Touch or use the appliance with wet or damp hands or when barefooted. This
can lead to electric shock.
- Use flammable detergent or dry cleaning agent.
- Use any flammable sprays in close vicinity to the appliance.
- Remove or insert the plug in the presence of inflammable gas.
- Allow children or inform persons to play with the appliance or packing materials.
- Install the appliance outdoors in a damp place, or in an area which may be
prone to water leaks such as under or near a sink unit. In the event of a water
leak allow the machine to dry naturally.
- Place the appliance directly on to a carpet or directly next to a wall or furniture.
- Cover the appliance with any type of cover as this will restrict airflow into the
machine.
- Touch the washer door during the washer process as this can get hot and result
in injury.
- Place heavy objects on top of the appliance.
- Hot wash rubber materials as this will cause the garment to become damaged.
- Open the detergent distribution drawer during the wash cycle.
- Attempt to force the washer door open when the washer is in use. The door is
fitted with a self-lock device and can take up to 2 minutes to be released after
the washing cycle has ended.
- Open the door if the water level is visibly over the porthole. This can will cause
water damage to the surrounding area.
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-7-

Installation
Adjusting the bottom cover
When unwrapping the appliance from its packaging, you will find a plastic board laid
on top of the machine. Do no throw this board away. This is used to reduce the
noise emitted from the machine and should be attached to the underside of the
appliance.
Dismantle the transportation bolts
Adjusting the height of the washing machine
There are 4 adjustable feet attached to the bottom of the appliance. These are
adjusted by turning clockwise to decrease the height and anti-clockwise to increase
the height. These should be adjusted until the machine is level.
It is recommended that a spirit level is used to ensure the appliance is level.
The transportation bolts are designed for clamping
anti –vibration components inside the washing
machine during the transportation process. This is to
ensure the unit is protected during transportation.
1. Remove the back cover by removing the 3
screws holding it place –see fig 1.0.
2. Remove the three bolts on the rear side and
take out the synthetic stabilisers from within
the machine –see fig 1.1.
3. Replace the back cover and replace the
screws. It may be necessary to hold the back
cover in place by gripping the vents. The back
cover should be replaced back into its original
position –see fig 1.2.
4. Fill the holes left by the bolts with the blanking
plugs –see fig 1.3.
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-8-
Fig 1.0
Fig 1.1
Fig 1.2
Fig 1.3

Connecting the Inlet Hose
Drain Hose
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-9-

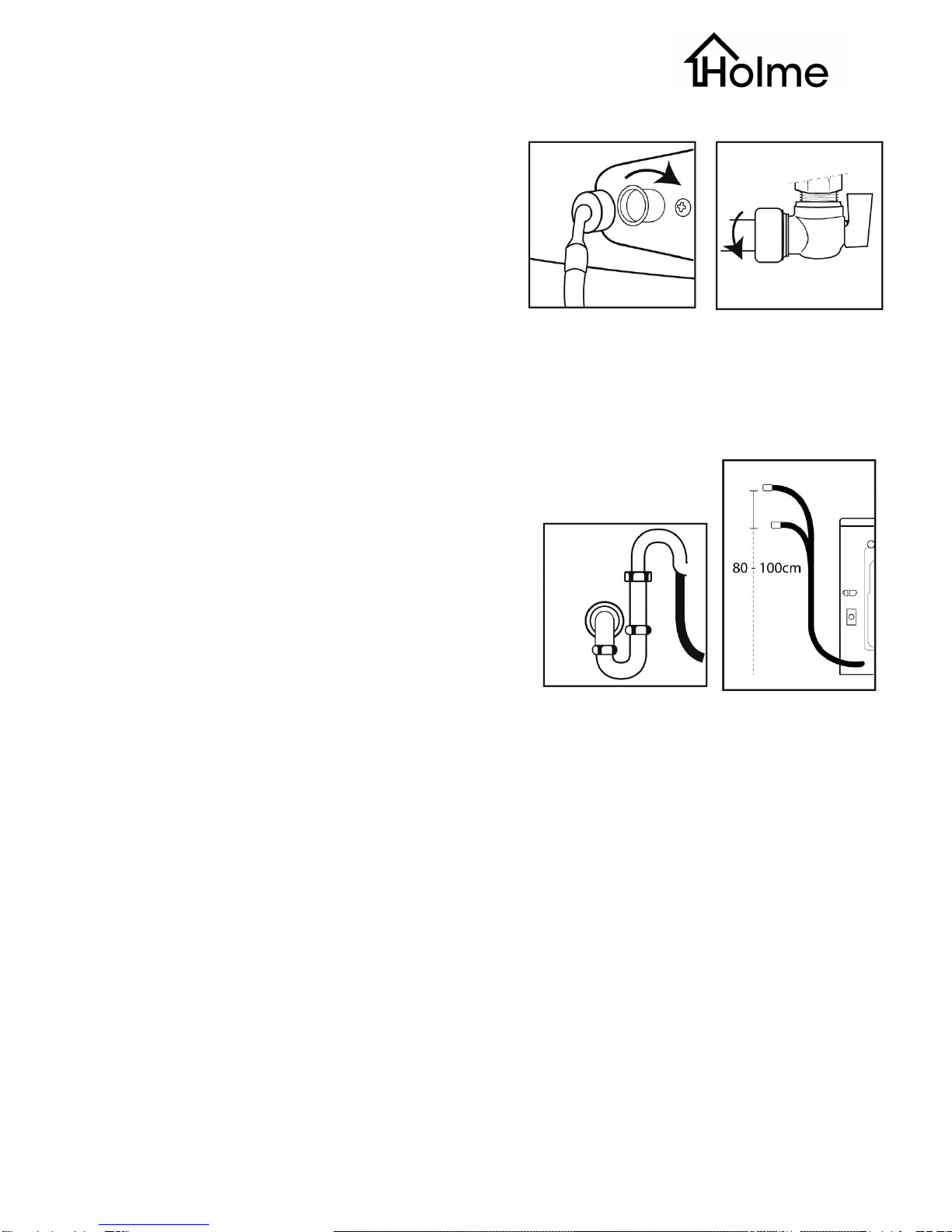

1. Connect the inlet hose to the connector on the
water inlet valve on the back of the appliance –
see fig 2.0
2. Apply the other end of the inlet hose to a tap
runs cold, fresh water –see fig 2.1.
Note: The hose supplied this this appliance
should be used. Do not reuse an old inlet hose.
1. Use the drain hose bracket supplied, to keep
the end of the drain hose secured in the
outflow pipe –see fig 3.0. Do not extend the
length of the drain hose –if a longer hose is
required contact the customer service number
below.
2. The height of the drainage outlet must be 80-
100cm –see fig 3.1. Fix the drain hose to the
clip at the back of the washing machine to
prevent it from dropping off.
Note: The drain hose should not be submerged in
water and should be securely fixed and leak free.
If the drain hose is placed on the ground or if the
pipe is at a height of less than 80cm, the washing
machine will continuously drain while being filled
(self-siphoning).
Connecting to the power supply
Before connecting to the power supply, check the following:
- The socket it adequate for the maximum power of the washing machine.
- Fuses in the circuit should be rated for no less than 15a.
- The voltage should meet the requirement.
- The power outlet should be correct for the washing machine plug.
- Connect the machine to an earthed socket outlet.
Fig 2.0
Fig 2.1
Fig 3.0
Fig 3.1

Control Panel
A - Detergent Drawer
The drawer contains three compartments:
B –Power Button
Press this button to switch on the washing machine. Press and hold for 2 seconds to
switch the machine off.
C - Program Knob
By turning the knob either clockwise or anti-clockwise, the required program can be
selected.
For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084
-10-
A. Detergent drawer
B. Power Button
C. Program Knob
D. Spin Speed Button
E. Intense Button
F. Start/Pause Button
1. Main wash detergent
2. Fabric softener
3. Prewash detergent
A
B
C
D
E
F
