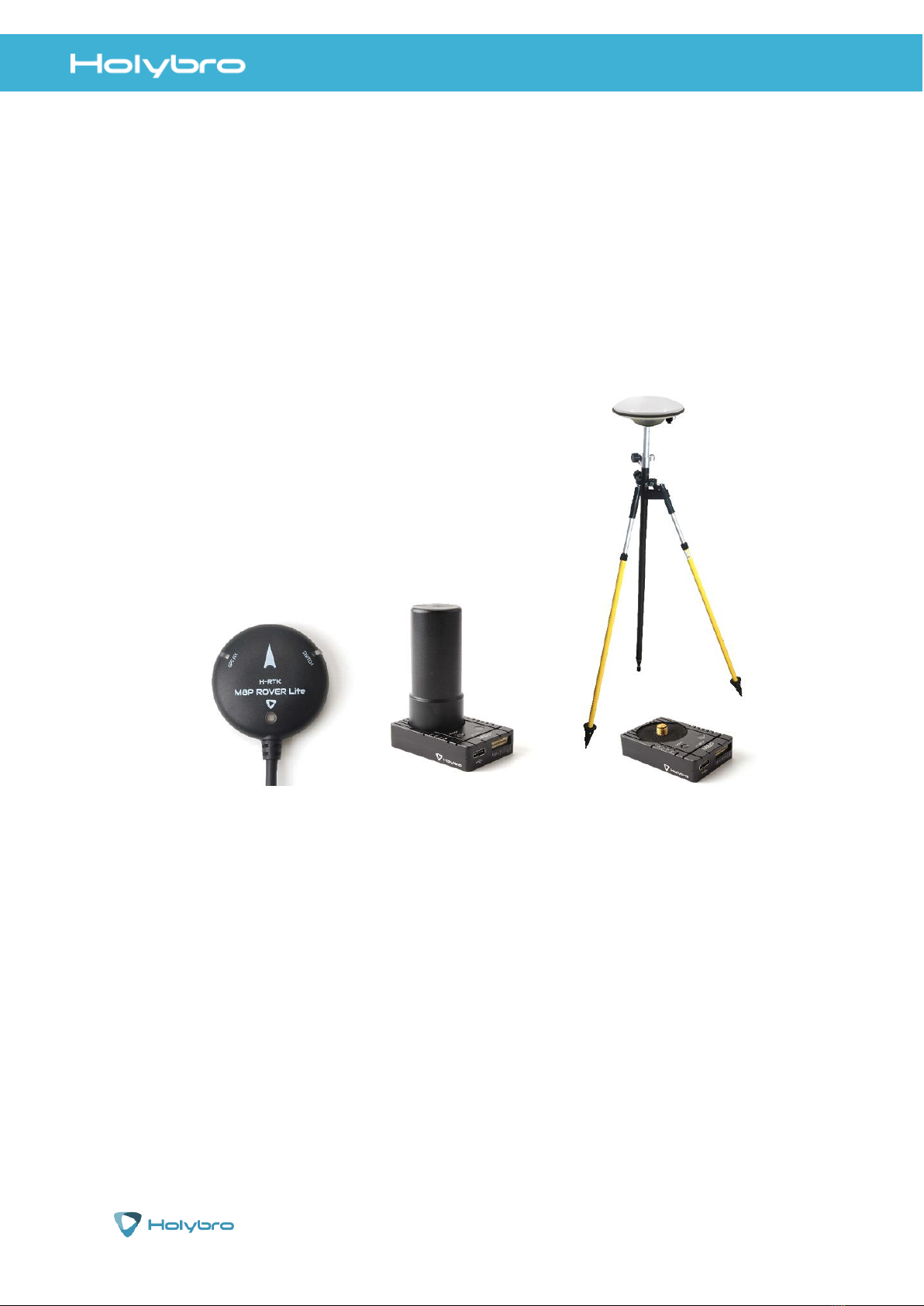

Holybro H-RTK M8P GNSS User manual

Page | 1 H-RTK
H-RTK M8P & F9P GNSS
Full Manual & Installation Guide
V1.2

Page | 2 H-RTK
Contents
Introduction ………………………………………………………. 3
Warranty and Return Policy
Plug and Play Installation …………………………………… 4
Connecting, configuring and getting your first GPS lock
Copying the settings to the GPS unit on your model
Updating your GPS unit……………………….……………… 10
Downloading the software and firmware
Uploading the new firmware to the GPS units
Confirming the version of the newly loaded firmware
Using U-Center for Real Time Recording and
Playback…………………………………………………………….14
Using U-Center for diagnostics………………………….…15
Common problems and how to fix them

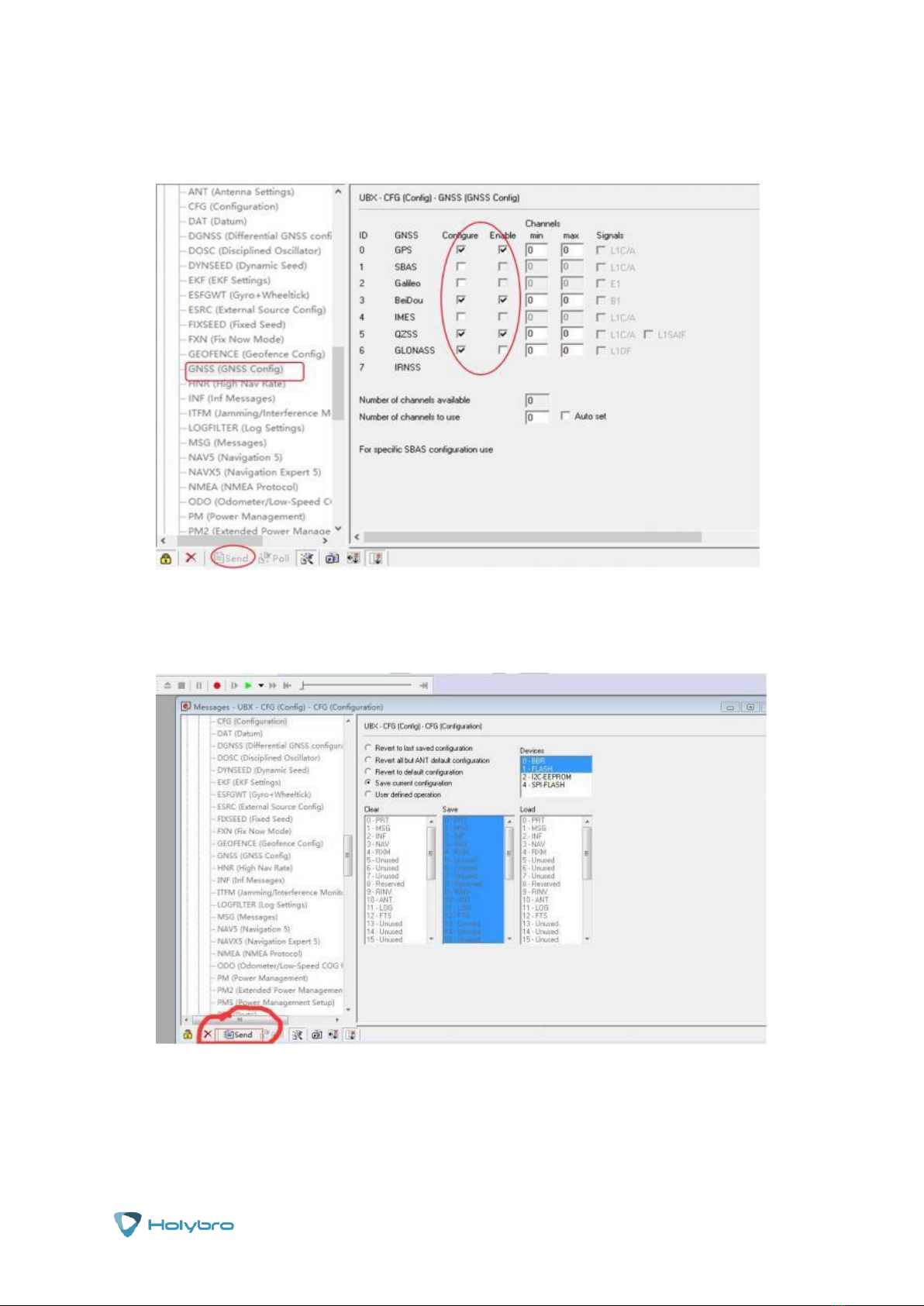

Using u-Center to change the settings

Page | 3 H-RTK
Thank You
Thank you for purchasing the one of the HolyBro RTK GPS products. When used together these GPS
units can provide a far greater degree of accuracy than traditional GPS units.
This manual is split into two parts; the first is an overview of the basic setup of the GPS units. In the
following examples the Here M8P is used but the setup and operation of M8P and F9P GPS units are
the same.
The second part of this manual (page 10 onwards) explains how to update and change the settings
on your GPS unit. Although this section is optional is recommended that you run update your GPS
units for the best possible performance.
Warranty and Return Policy
If you believe that your HolyBro product is defective, please contact us. If we determine that the
product is defective, it will be repaired or replaced at no charge to you. We may ask you to send your
product to our service centre for examination or repair. Shipping costs are your responsibility.
Returned items should include the original packaging and all accessories.
If product is damaged or defective, we will repair or replace it. Refunds are only given when product
is lost by the shipping company. The refund amount is limited to the price of the product. Shipping
costs are never refundable.
Contact us at:
Email: [e-mail]
Facebook Page: Holybro
Facebook Group: Holybro Hobby Official Group

Page | 4 H-RTK
Plug and Play Installation
In this section of the manual we will cover the basic setup of the units. To setup the GPS units you
will need ArduPilot V4.03 or later installed on your computer.
If you are using PX4 firmware and QGroundControl ground station software, please refer to the link
for more information: https://docs.px4.io/en/advanced_features/rtk-gps.html
Before you start
Make sure you have the following pieces handy before you start this process:
H-RTK M8P Rover Lite one and H-RTK M8P Helical or H-RTK M8P Base one
A compatible Pixhawk flight controller (HolyBro PixHawk 4 or Holybro Durandal is
recommended)
A configured telemetry radio set so the GPS data can be continually sent to and from the
flight controller while flying
A laptop computer

Page | 5 H-RTK

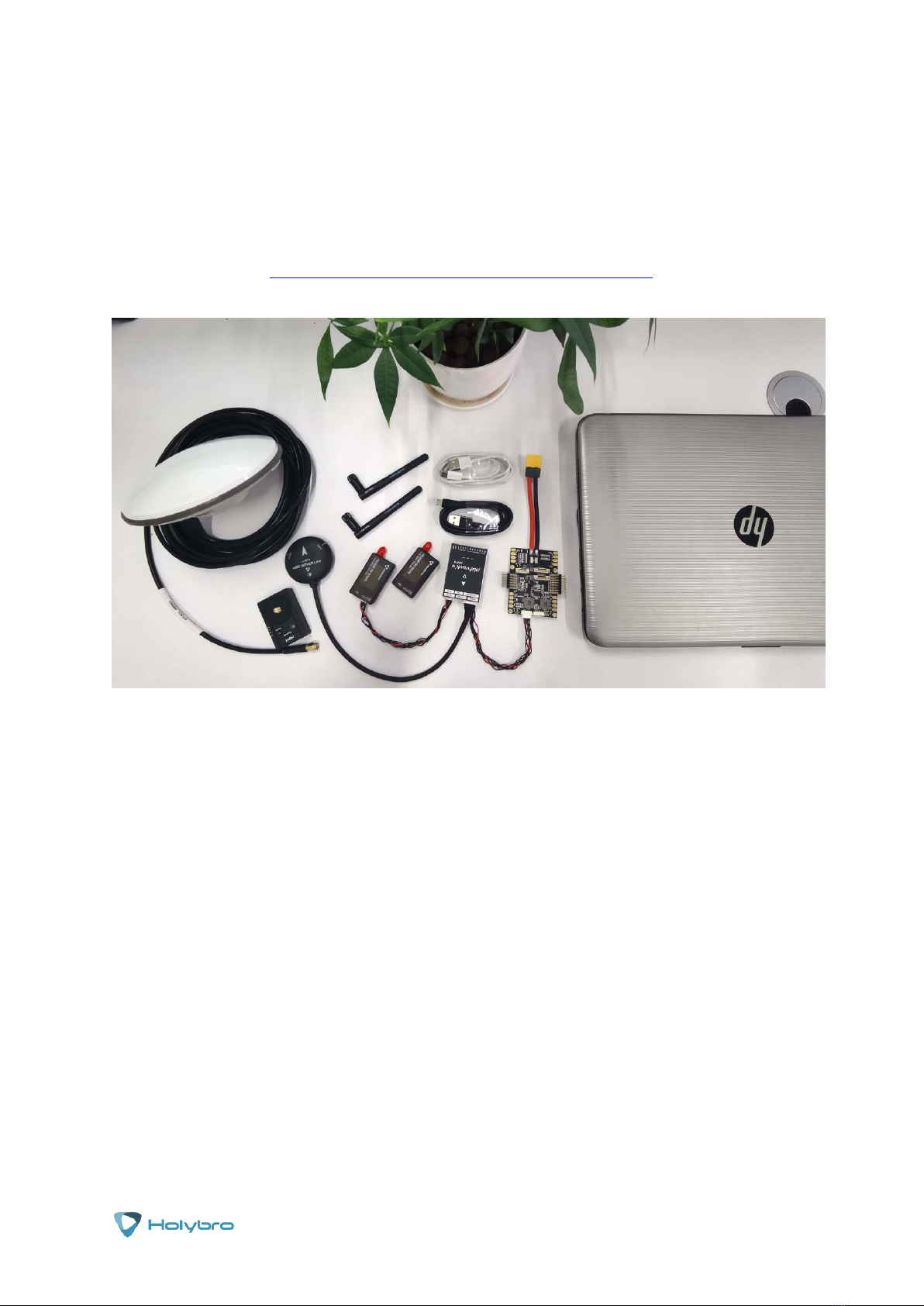

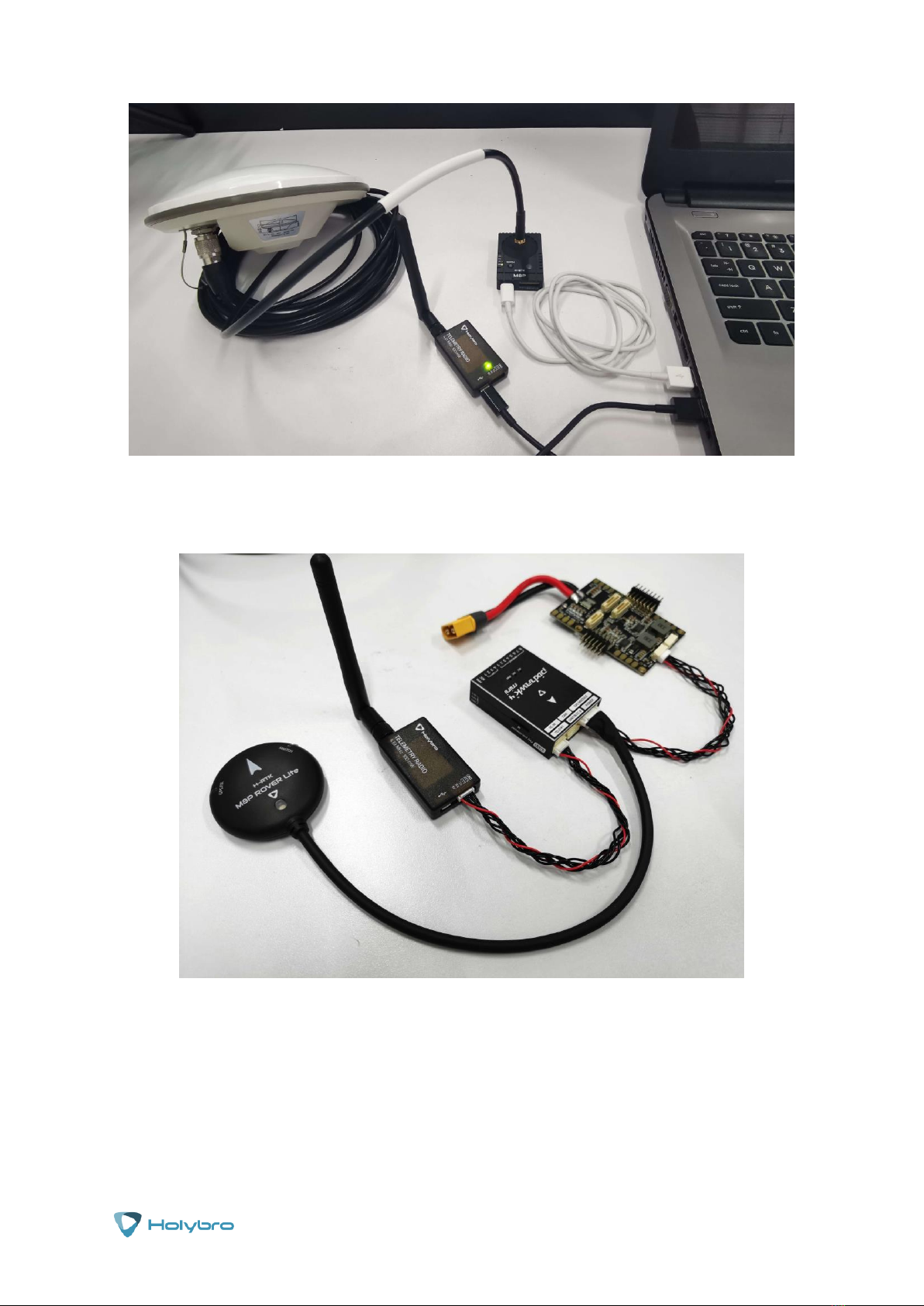

Connect the both the ground station GPS unit (H-RTK M8P Helical or H-RTK M8P Base) and the
telemetry radio to your laptop using the supplied USB cables.
On the UAV side connect the H-RTK M8P Rover Lite to the GPS port on your flight controller using
the 10 pin connector cable. Connect another telemetry radio to the TELEM1 interface of the flight
controller. Be aware that older Pixhawk flight controllers may not have the right connector.
Before you start the setup, make sure both units have a good view of the sky so they can receive the
best signal from the GPS satellites.

Page | 6 H-RTK
Basic configuration
For this step Mission Planner needs to be installed and running on your Laptop
(https://ardupilot.org/planner/). Note that the PixHawk/Durandal flight controller and attached H-
RTK M8P Rover Lite GPS unit do not need to be powered when the base unit is being configured.

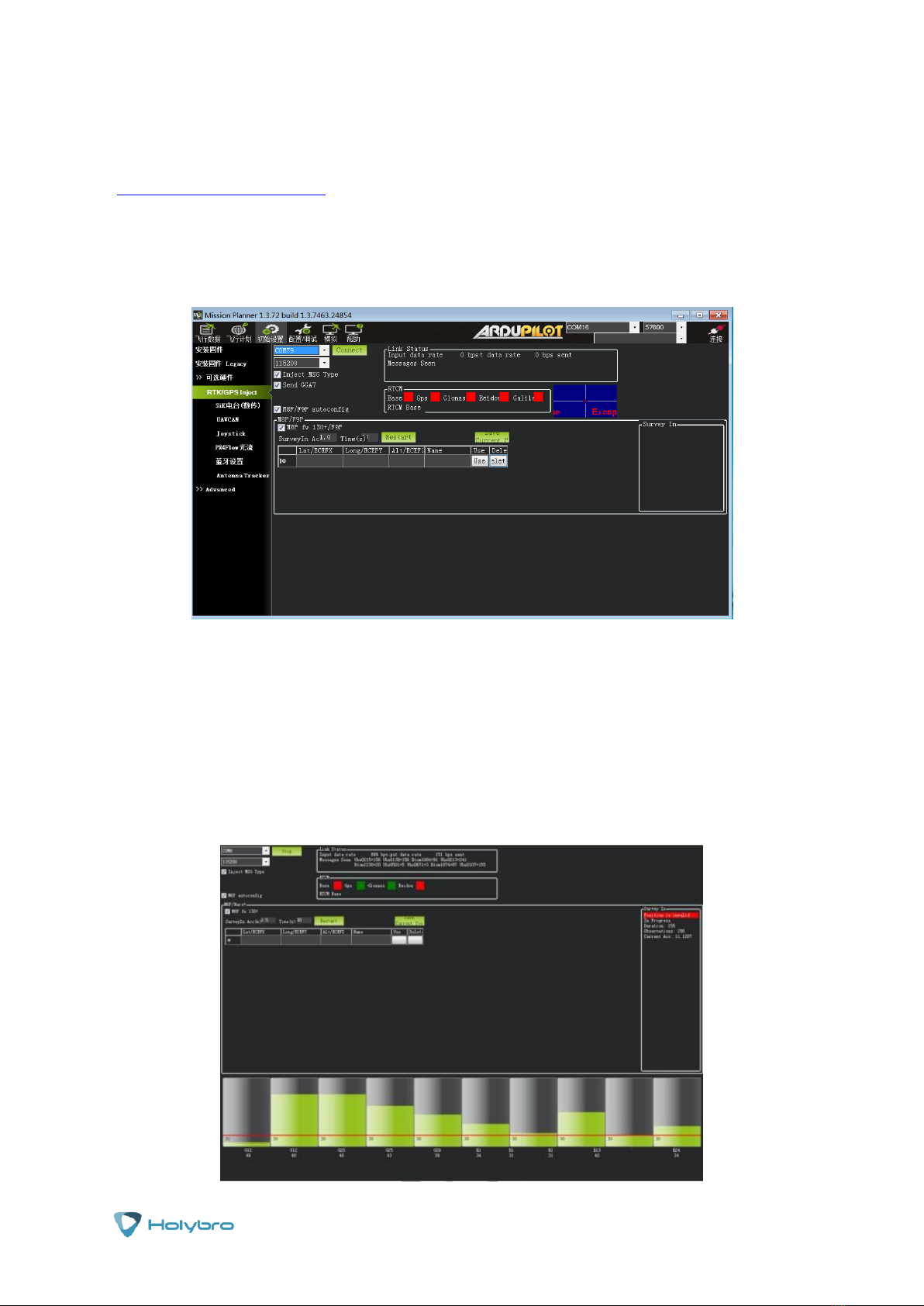

Open Mission Planner and go to Optional Hardware and select the RTK/GPS Inject tab.
Check the Inject MSG Type, Send GCA, M8P/F9P Autoconfig and M8P FW 130+/F9P.
Select the correct base module com port in the top left corner and click connect. In the SurveyIn Acc
section, enter the absolute geographic accuracy that you expect your H-RTK M8P base station to
achieve. In the Time column, enter the minimum survey time you expect. Click on Restart, the
ground station will transfer the data you have entered to the H-RTK M8P base module and the base
module will start a new round of surveying for GPS satellites.

Page | 7 H-RTK
As part of the search, the box on the right side of the Mission Planner displays the current star
search position. Below are some of the status messages you may see:
Position is invalid: the base station has not been effectively positioned yet
Duration: the number of seconds in which a star search has been performed
Observation: Number of observations obtained
Current Acc: Absolute geographic accuracy that the base station is able to achieve
The green bar below the Mission Planner shows the current satellite search and satellite signal
strength.
The GPS base station will need some time to find enough GPS satellites to achieve the level of accuracy
you selected, less accuracy requires less GPS satellites. With a good view of the sky it can take several
minutes to achieve the absolute accuracy of 2m, about an hour to achieve the absolute accuracy of
30cm, and several hours to achieve the accuracy of 10cm.
It should be noted that the absolute geographic accuracy of the base station here will affect the
absolute geographic accuracy of the mobile station (as they act as a pair), but will not affect the
relative accuracy of the base station and Rover module. If you don’t need the higher accuracy then
do not set it as this will dramatically increase the time taken for the system to establish a GPS lock of
sufficient quality. Note that even if the accuracy of the base station is 1.5m to 2m, the position
accuracy of Rover module relative to the base station can still reach centimetre level.

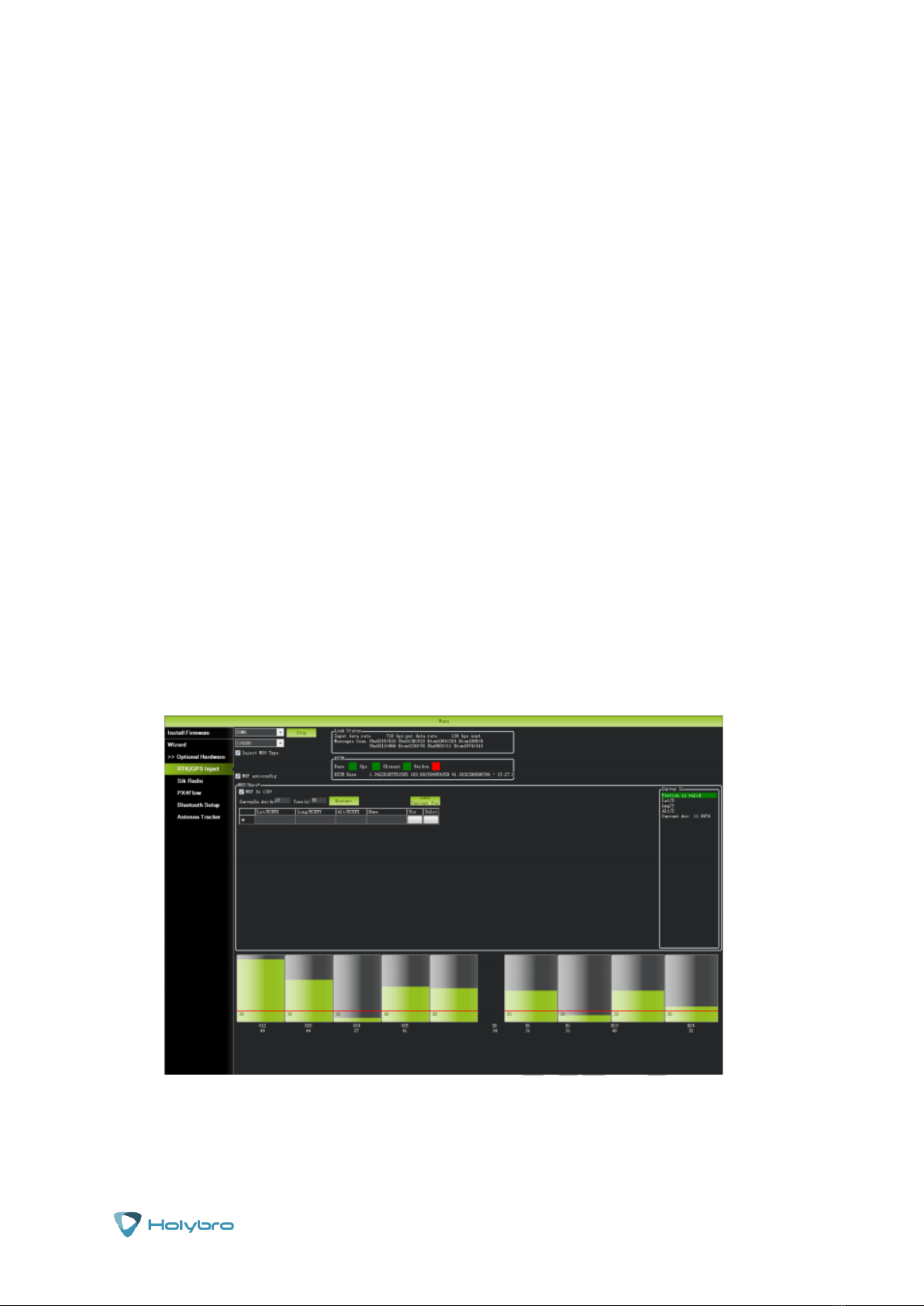

After the star search for h-RTK M8P Base station is completed, the Mission Planner will display the
following page:
The indicator statuses should look like this. All green. This shows status of base station (BASE) is
ready, along with GPS and GLONASS satellite systems.

Page | 8 H-RTK

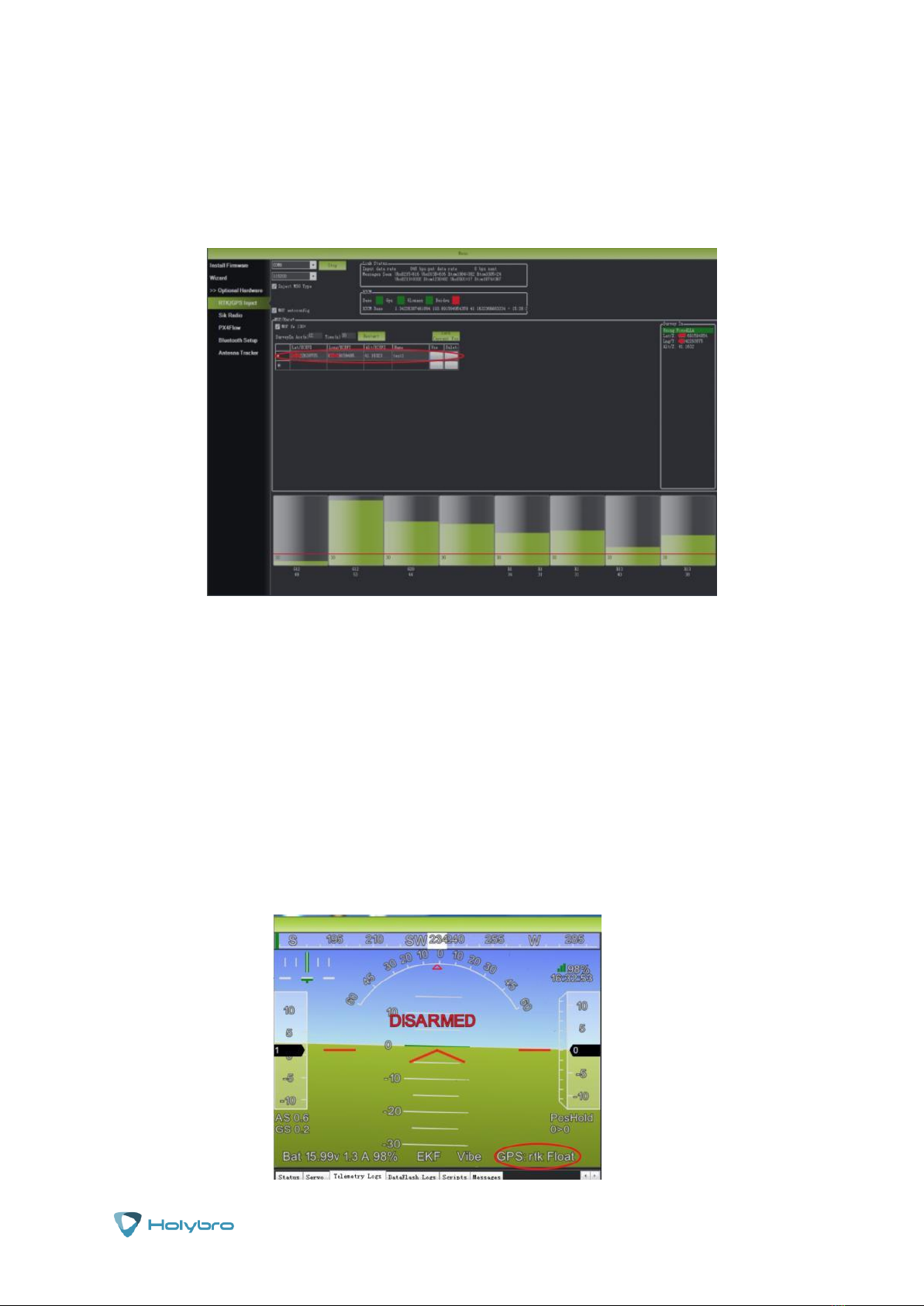

When your screen looks like this, store the Current location on Mission Planner: Click Save Current
Pos, before opening the plan.
Enter a name in the box for the save and click OK. In the following figure, you can see where you
stored in the list. You can now select this location using this saved file.
With the Use button corresponding to the stored location, the base station will enter the fixed-point
mode and display the status in the box on the right. When you set the base station at the same
location in the future, you don't need to search again; just click on your Saved location the Use
button corresponding to the location to load the location data.
After the base station is set up, you can turn on the UAV.
Using Mission Planner to connect to the UAV via telemetry radios
The RTCM GPS data of the base station will be transferred to the H-RTK M8P Rover Lite module on
the UAV through the telemetry radios.

Page | 9 H-RTK
On the Mission Planner's main page, you can see that the current GPS status of the UAV is shown as
RTK Float/RTK Fixed/3D RTK (as shown above), showing that the positioning of the UAV has entered
the RTK status.
RTK Float is a floating point solution, and RTK Fixed is a fixed solution. RTK Fixed has a higher
accuracy and only available then the signal is good enough. 3D RTK is the uniform display mode of
RTK Float/RTK Fixed for the Chinese version of Mission Planner. Refer to the latest Mission Planner
documentation for the latest updates.
TIP: If you use F9P Base and Rover, the orange RTK FIX led on F9P Rover Lite module will blink when
receiving RTCM data. And the RTK FIX led will stay on lighting when the Rover module has entered the
RTK status.
Congratulations, you have successfully setup the HolyBro RTK GPS system!

Page | 10 H-RTK
Updating your GPS units
This step is optional but highly recommend for the optimum performance of your new HolyBro
GPS products. To update your GPS units you will need to download and use the free u-Center
software. Use at least version is V19.03.

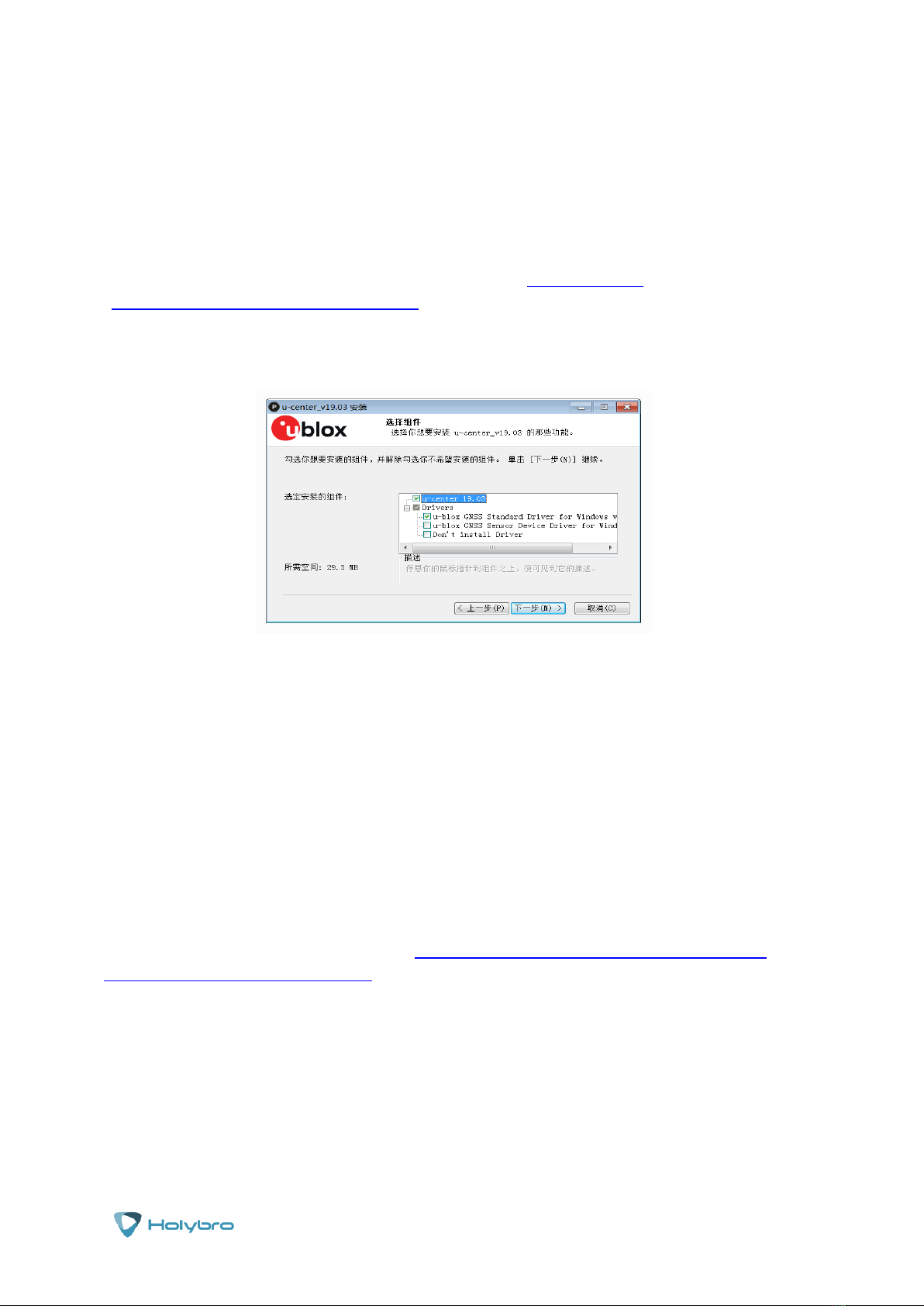

To download u-Center, please go to the official website at https://www.u-
blox.com/en/product/u-center-Windows then follow the prompts to install the U-Center
software onto your computer. During installation, you will be prompted to install a windows
driver. Make sure that only ‘Standard Driver For Windows’is checked, as shown below.
Downloading the firmware for the GPS Units
The default firmware version of the H-M8P module is the firmware version of Ublox-1.40. This
version of firmware supports other satellite systems (Glonass/ Beidou) and GPS fusion for RTK
computing that increases the performance of RTK positioning. Version 1.40 also supports the
function of mobile base stations, that is, base stations do not need to be fixed in one place, but
can be moved whenever they are in use. If a new firmware version of Ublox is available, it is
recommended that all users upgrade to the latest version of the firmware before using the H-
M8P module.
Before the firmware update, download NEO - M8P - FW301 - HPG140_RNwithFW. Zip from
Ublox website to download firmware 1.40: https://www.u-blox.com/en/product/neo-m8p-
series#tab-documentation-resources
When downloaded unzip the NEO - M8P - FW301 - HPG140_RNwithFW. Zip file and save the
DO_EXT_301_HPG_140_REFERENCE. Ab799cc302b64f28ba73b55dfa945a04. Bin file.

Page | 11 H-RTK
Uploading the new Firmware
To upgrade the base station module, connect the base station module to the COMPUTER using
a USB cable. To update the H-RTK M8P Rover Lite module, you need to connect the module to
the USB-UART small board, and the small board is then connected to the computer. As shown
in the figure below:
Open u-Center software, click the connect button (in the red circle as shown below), and select
the corresponding COM port for your GPS unit

Page | 12 H-RTK

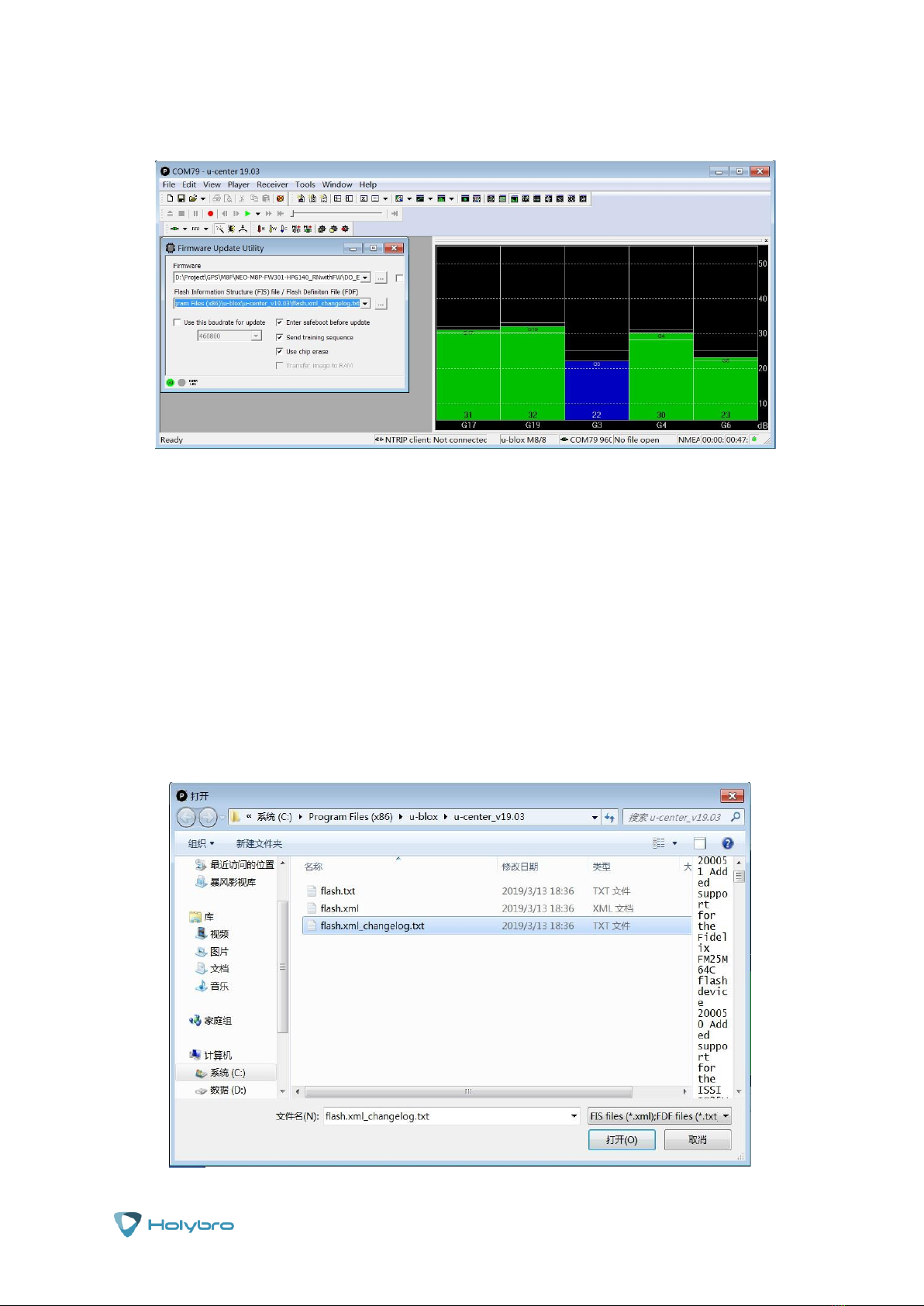

Select tools-> Firmware Update, and check the corresponding options in the diagram.
Uninstall and select the Firmware you downloaded in the above step.
For the base station use:
DO_EXT_301_HPG_140_REFERENCE.ab799cc302b64f28ba73b55dfa945a04.bin
For the H-RTK M8P Rover use:
DO_EXT_301_HPG_140_ROVER.91bbd17d889e0fe40c2d823991595224.bin
In the Flash Information Structure (FIS) File, select Flash.xml, which is located in the u-Center
installation directory
Under, u-center_v19.03 select flash.xml.

Page | 13 H-RTK
Click OK and wait for the firmware to upload to the GPS. It usually takes less than a minute to
burn. If the writing of the file is successful then the upgrade interface status is displayed in
green.
Confirming the version of the newly loaded firmware
Once the upload is complete you can confirm the updated version of the firmware on the
module.
With the base station/mobile station connected to u-center, click the View option to enter
Message view-> UBX-> mon-> VER, the interface is as shown below:

Page | 14 H-RTK
As shown in the figure, the current firmware version is FWVER=HPG 1.40 REF, indicating that
the current firmware version is 1.40 base station version.
Success!
Using U-Center for Real Time Recording and Playback
U-Center can record the data of the currently connected GNSS module for later analysis and use.
To do this make sure that the GNSS module is connected to U-Center (the connection mode is
the same as the upgrade process above), click the bug icon below to open the Debug Message:
Then, click enter view-> message view-> ubx-> rxm-> RTCM input status, and right-click to
enable message.
Click the red record icon in the upper left corner of the
interface (as shown), select an address to save the recorded
content and click on OK to start the recording. Select STOP
when you no longer want to record the data.
To play the recorded data, click the green play icon, select
play speed, and select save in the specified file, you can start
playing.

Page | 15 H-RTK
Using U-Center for diagnostics
You can also use the more advanced features of the U-Center software to see how the GPS units
are performing and working. This can be especially useful for troubleshooting.
To do this, connect the base station to the U-Center software, and check whether the Fix Mode
column is displayed as TIME in the box in the upper right corner of the software interface.

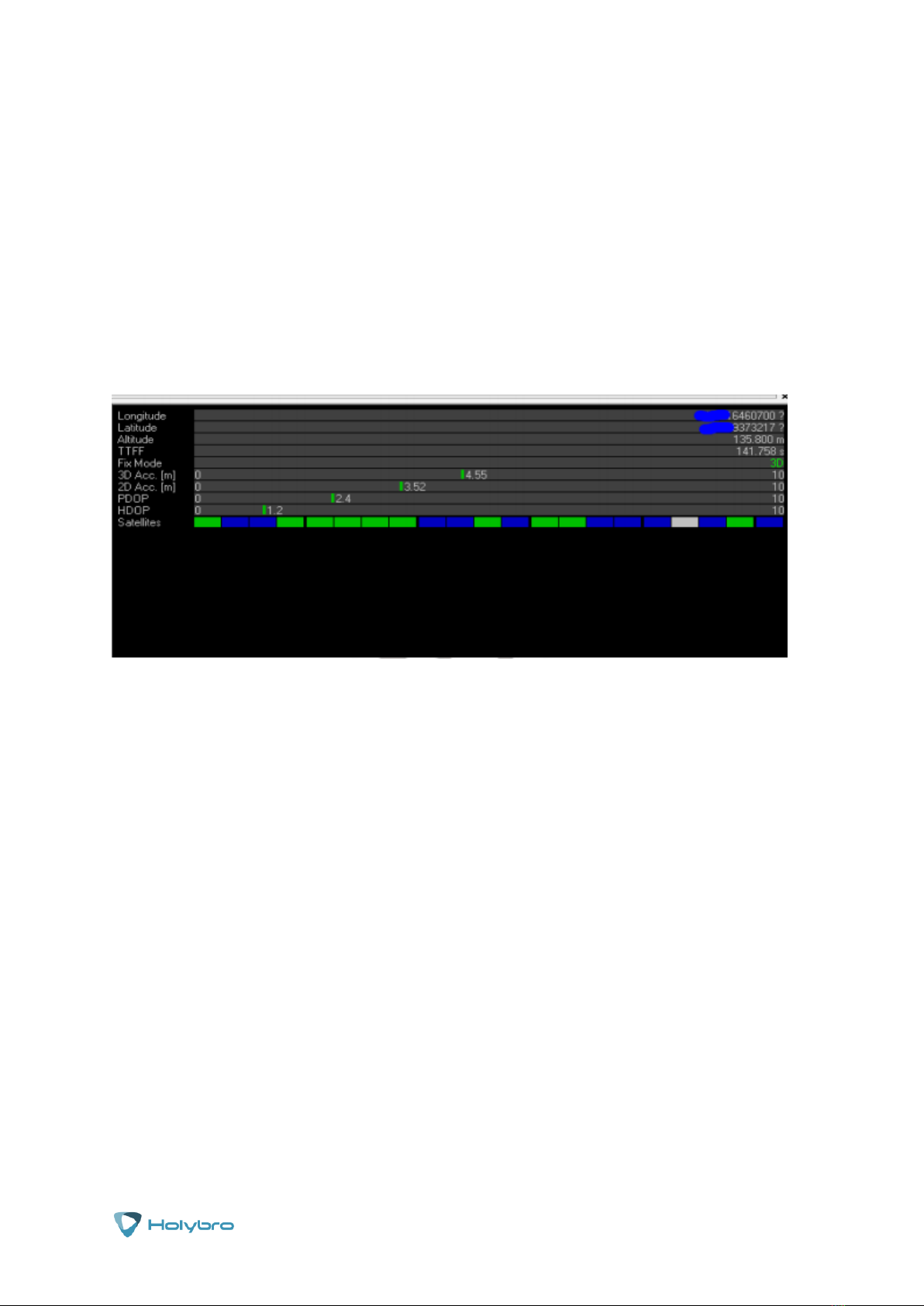

In Fix mode the screen will display all of the statuses of your GPS unit including the position,
accuracy and HDOP details. In the figure below, Fix Mode is displayed as 3D Mode, so it has not
yet reached the RTK standard needed for more accuracy.
There are a number of common reasons for the base station not entering TIME Mode:
The signal received by the base station is not strong enough.

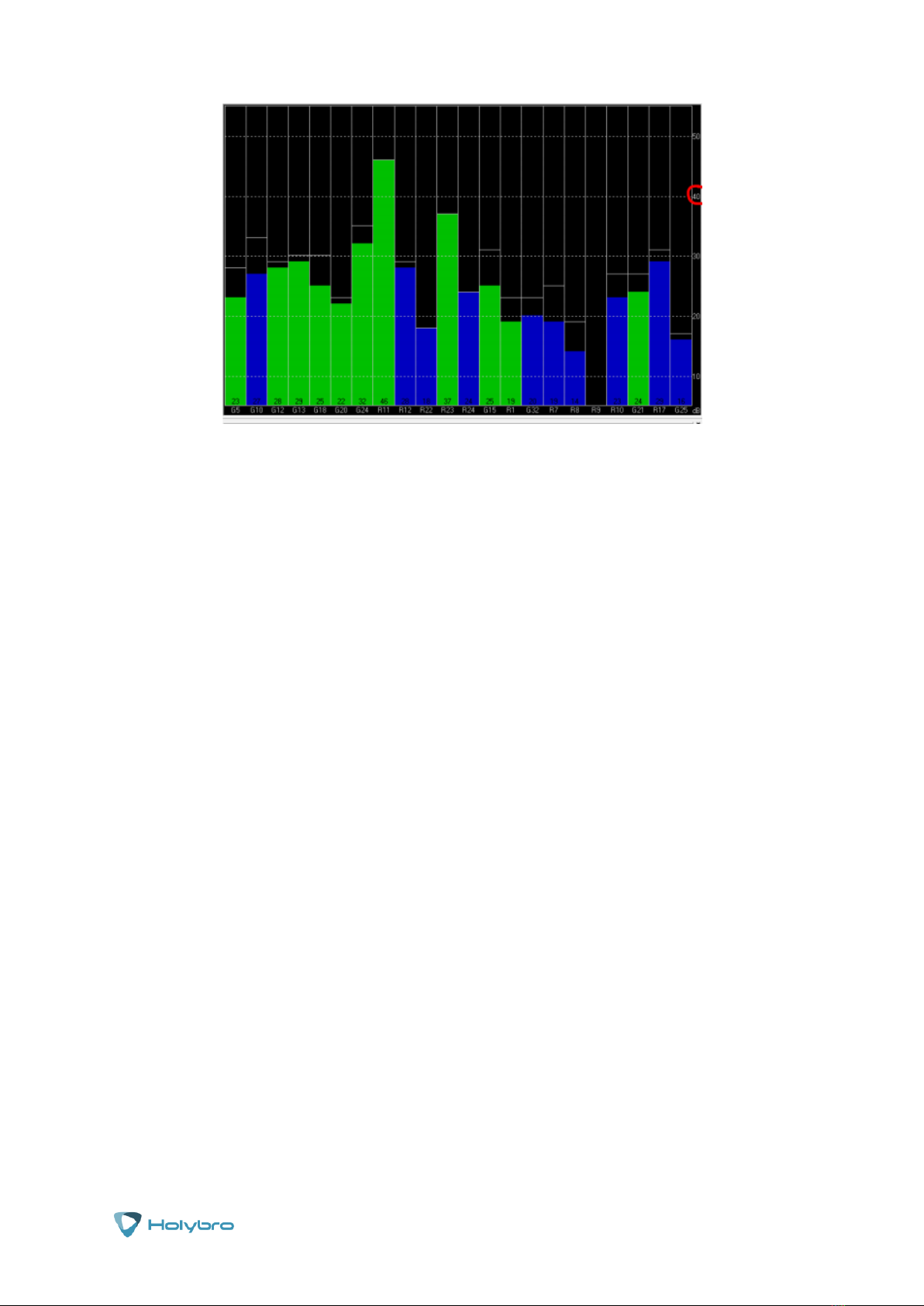

Check the current star search signal of the base station, and view the dialog box at the bottom
right corner of the software interface. The bar in the dialog box represents the current satellite
received by the base station, and one bar represents a satellite (GPS or Beidou /GLONASS,
depending on the navigation system you choose to receive). The requirements for the base
station to enter TIME Mode are as follows: 5 GPS satellite signals +2 GLONASS satellite signals
with a strength above 40; Or 5 GPS satellite signals +3 Beidou satellite signals above 40. In the
figure below, if only one satellite has a strength higher than 40, the signal condition fails to meet
the RTK standard.
Try repositioning the GPS unit to get a clearer view of the sky.

Page | 16 H-RTK
The star searching precision of survey-IN set in advance is too strict, or the base station has
not completed the star searching process.
Use U-Center to set up the specific survey-in. See the following section for more detail on common
errors, issues and tips for operation.
Check whether Rover module receives base station data (Timeout)
After the base station enters TIME Mode, RTCM data needs to be transmitted to the Rover module
before the Rover module can enter RTK Mode. Therefore, the real-time and efficient data
transmission of Rover module and base station is an important part to ensure the system is ready.
Check whether there is delay in data transmission between the Rover module and the base
station, and connect the Rover module to U-Centre (or read the previously stored log of the Rover
module). Enter the Messages view-> nmea-> GxGGA directory and observe the Age of DGNSS
Corr parameter parameters. This parameter represents the time when the Rover module has not
received the base station data. In the case of the default base station extinction transmission
frequency of 1HZ, if this parameter exceeds 1s, it means that the data transmission has a certain
delay. Check your telemetry radio setup as a first step.
Set the base station as star search mode/fixed mode
Similar to the page used by RTK in The Mission Planner, the time and accuracy of star searching
by base station can also be set in u-Centre. Enter the Messages View option, UBX CGF menu, and
enter the TMODE3 TAB for setting. Select Survey-in in the Mode dropdown option, and then set
the time of star search (and the minimum time required by base station for star search), as well
as the absolute precision to be achieved when star search is completed. The higher the

Page | 17 H-RTK
absolute accuracy of the base station, the longer the star search time will take. The data of star
search and location of base station can be viewed in the nav-> SVIN page in Message View.
The base station can also be set to fixed-point mode. When the current precise geographic
coordinates of the base station are known you can manually input those into the base station.
This can be used instead of waiting for the base station GPS to establish a lock of sufficient
accuracy. You only need to change the Mode to Fixed Mode on the TMODE3 tab, and then enter
the known base station location as shown below.
After setting the star search and fixed point mode, please click the Send button at the bottom left
of the page to transfer the modified data to the base station.
Changing the GPS satellite systems (GPS+GLONASS)
By default, the uBlox 1.30 firmware uses the GPS+GLONASS navigation system for location
services. If you want to change to GPS+ beidou navigation system, then you need to enter
Messages view-> Cancel the Enable option, and then check beidou's Enable option. After
selecting, click Send to store the changes.

Page | 18 H-RTK
To make sure the current settings are saved, go to the Messages view -> ubx -> CFG
(Configuration) page and click Save Current Configuration option, then click Send (as shown
below).
Note: The base station and Rover module must have the same Settings and use the same
navigation system configuration; otherwise the system will not be able to use RTK.

Page | 19 H-RTK
Base station input/output ports and protocol Settings problems
The uBlox M8P chip supports a variety of input and output protocols, including USB, UART, I2C, and
more. HERE+ base station module USES USB protocol for data communication by default, and gets and
outputs RTK data.
If the current setting needs to be confirmed, enter the Messages view-> ubx-> cgf-> PRT directory to
set it and select USB in the target column. The correct input and output protocols are shown in the
figure below:
You can select the type of output you want and the protocol you want on this page.
In addition to these settings you can also set a specific string of messages to be output under multiple
protocols. To set this up, enter Messages view-> ubx-> cgf-> MSG directory, select a specific message,
and then check the type of protocol you want to use.
To ensure that the current Settings have been saved, go to the Messages view - > ubx-> CFG
(Configuration) page, click Save Current Configuration option, and then click Send.

Page | 20 H-RTK
Change the output frequency of mobile station
In the default frequency of position information output by Rover module is 1HZ. If you need to speed
up the position output frequency, you can enter the Messages view -> ubx -> cgf-> RATE setting and
change the Measurement Period. For example, change the Measurement Period to 200ms and the
Measurement output Frequency will rise to 5HZ.
To make sure the current Settings are saved, go to the Messages view -- > ubx-> CFG (Configuration)
page and click Save Current Configuration option, and then click Send.
