Homemaker HMC150 User manual

CHEST FREEZER
INSTRUCTION MANUAL
(INSTALLATION MANUAL)
CHEST REFRIGERATOR-FREEZER
CHEST FREEZER/REFRIGERATOR
FREEZER SHOWCASE
REFRIGERATOR SHOWCASE
REFRIGERATOR-FREEZER SHOWCASE
Thank you for purchasing this HOMEMAKER product.
To ensure proper use, we recommend that you read this
instruction manual before operating the unit.
CLEVER USE SAVE ELECTRICITY
CONTENTS
13
4
5
6
SAFETY PRECAUTIONS
HOW TO USE
CLEANING
IN CASE OF THE FOLLOWING
BEFORE REQUESTING SERVICE
5

SAFETY PRECAUTIONS 1
INSTRUCTION MANUAL
All repairs, disassembly and modifications
should be performed only by qualified
technicians. Attempting to perform
these yourself could result in a fire,
malfunction, and injury.
DON'T TAMPER ELECTRICAL
SHOCK HAZARDS
PRECAUTIONS FOR USE
PROHIBITED
Never splash water directly onto the
product or wash with water as short-
circuit and electrical leakage could result.
Do not damage, modify, excessively bend,
strain, twist or bundle up the power cord.
Also, placing heavy objects the power
cord or squeezing it in a tight place could
damage it, possible resulting in electrical
shock or fire.
Never put flammable or volatile
substances into the unit as explosion and
fire could result.
DANGER OF
EXPLOSION
WARNING
CAUTION
Improper handling of the unit could lead to death or serious injury.
Improper handling of the unit could lead to serious results depending on the circumstances.
To ensure proper use, please thoroughly study these SAFETY PRECAUTIONS before operating the
Unit.
The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit
to
minimize risks that could cause serious damage and injury to you or other persons. The safety
precautions are divided into WARNINGS and CAUTIONS. Cases where improper handling of the unit
could lead to death or serious injury are listed under the " WARNING" heading. However, the cases
listed under the " CAUTION" heading could also lead to serious results. To ensure the safety,
adhere strictly to both types of safety precautions.
Text set off by the exclamation mark contains information that should be strictly adhered to.
After reading the instruction manual, store it an easily accessible place where the user(s) of this
product can easily find it.
Use a dedicated wall outlet. Do not use
extension cords or convenience
receptacles as this could result in
electrical shock, overheating and a fire.
PROHIBITED
FLAMMABLE
Never use flammable spray cans or leave
flammable substances near the unit.
Sparks from electrical switches could
result in explosion and fire.
1
PRECAUTIONS FOR INSTALLATION
Installation should be performed only by the dealer or a qualified expert. Attempting to
install the unit yourself could result in water leakage, refrigerant leakage, electrical shock,
or fire.
WARNING
WARNING

SAFETY PRECAUTIONS 2
INSTRUCTION MANUAL
The unit is intended for storage of ice-cream
and frozen foods .
Storage of other items than the intended
could have an adverse affect on the items
stored in the unit.
Ice cream, frozen foods
Never place heavy objects or items containing
water on top of the unit. Objects could fall
down and cause injury and spilled water could
deteriorate the insulation of electrical
components and result in electrical leakage.
PROHIBITED
For indoor use only. Using the unit in a
location exposed to rain could result in
electrical leakage and electrical shock.
Do not store bottles and cans in the unit.
The contents could freeze and the
containers break and cause injury.
PROHIBITED
PROHIBITED
If you find gas leakage,please don't touch
the chest freezer,and close gas and open
the door for ventilation.Gas leakage
cause explosion, fire, and fire injury.
CAUSION AGAINST
EXPLOSION
Install the unit in a location where the
floor is sturdy enough to support the
load of the unit. If the floor is not sturdy
enough or installation is incorrectly
performed, the unit could tip over and
falling shelves and products could cause
personal injury.
Store the unit in a location where it is not
exposed to rain. Using a unit that has
been exposed to rain could result in
electrical leakage and electrical shock.
Cooling performance is reduced if the unit is
placed near heat sources such as hot plates and
stoves and if it is exposed to direct sunlight.
Away from hot air sources
Leave disassembly and disposal of the
unit to qualified experts.
Should the unit need temporary storage,
make sure not to store the unit in a
location where children play and take
precautions so that the door cannot be
completely closed. This will
minimize the
risk that a child becomes trapped inside
the compartment.
2
WARNING

SAFETY PRECAUTIONS 3
INSTRUCTION MANUAL
If installation in a damp location is
unavoidable, also install an electrical
leakage circuit breaker. If no electrical
leakage circuit breaker is installed,
electrical shock could result.
DANGER OF
ELECTRICAL
SHOCK
Electrical
leakage circuit
breaker
more than10cm
WELL VENTILATED PLACE
Please make more than10cm space between
Chest freezer and wall. If there are no space, cooling
capacity can drop down.
PROHIBITED
Never hang from the door or climb onto
the unit. The unit could tip over or fall
and cause material damage or injury.
Disconnect the power cord plug from the
wall outlet before moving the unit and make
sure that the power cord is not damaged
during transport. A damaged power cord
could result in electrical shock and/or fire.
DISCONNECT
POWER CORD
PLUG FROM
WALL OUTLET
When disconnecting the power cord plug
from the wall outlet, hold at the plug main
body close to the outlet. Pulling the cord
could cause wire breakage, possible
resulting in overheating and fire.
Make sure that the unit does not tip over
or fall when it is moved. A falling unit
could cause serious injury.
PROHIBITED
Never use if the power cord or plug is
damaged or the plug cannot be firmly seated
in the receptacle sockets as electrical shock,
short-circuit and fire could result.
Never touch the power cord plug, other
electrical components, or operate the switch
with wet hands. Electrical shock could result.
PROHIBITED
3
CAUTION
If the supply cord is damaged,it must be
replaced by the manufacturer or its ser-
vice agent or a similarly qualified person
in order to avoid a hazard.

BEFORE USE

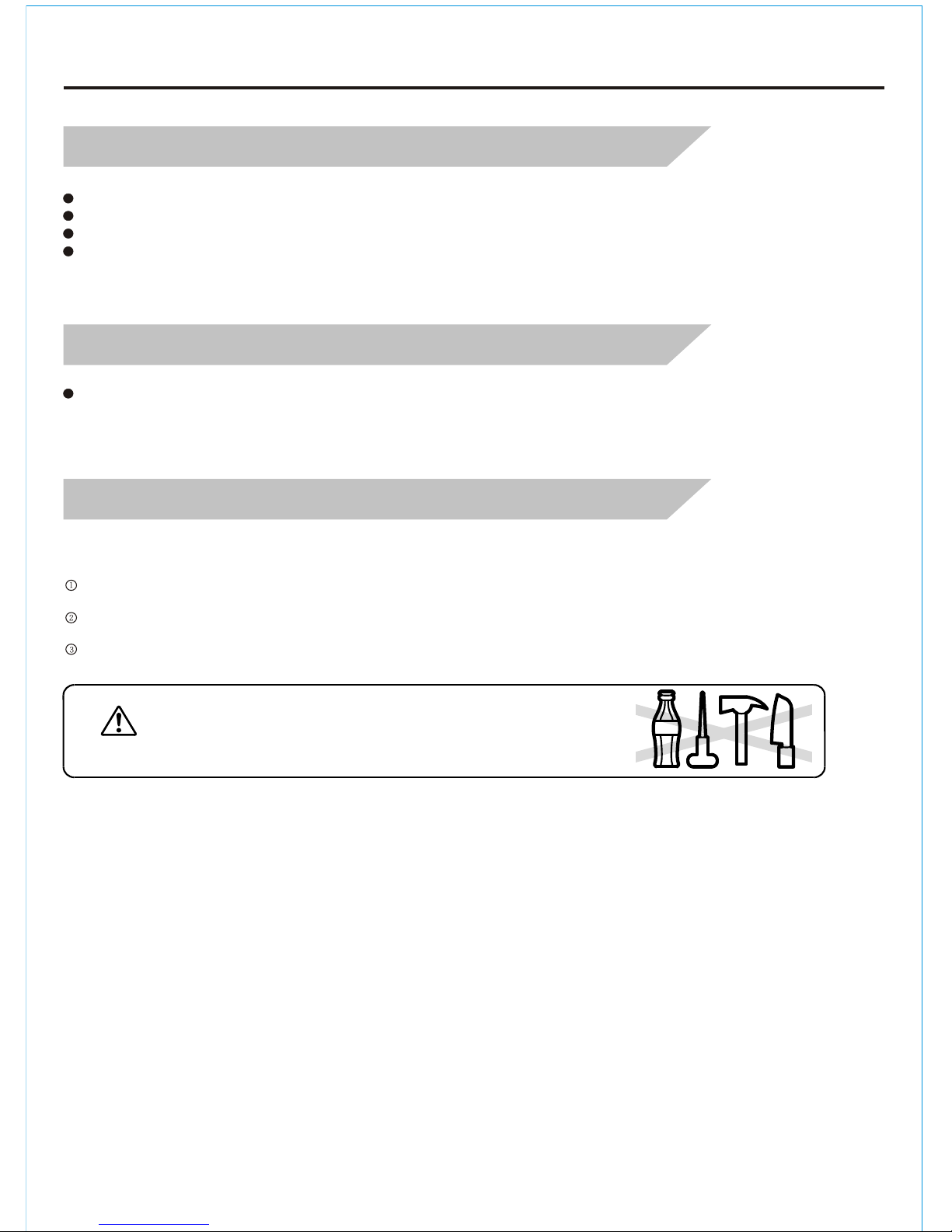

HOW TO USE
INSTRUCTION MANUAL
WAIT 5 MINUTES OR MORE BEFORE RE-STARTING
DEFROSTING
For defrosting chest freezer, don't use a hammer, knife,
or bottle. If you use it, it give damage to inside evaporator,
and chest freezer cannot cool, and inside goods can thaw.
WARNING
Remove shipping packaging, tape, etc. and leave lids open for ventilation for a while.
The unit is cleaned before shipment. However, clean the compartment interior once after delivery.
Following installation, refrigeration will start about 10 minutes after operation is started.
Operate for about 2 hours to cool the refrigerator compartment before placing items in the freezer.
Restarting the unit immediately after it has been turned off may cause fuses to blow and activate
the circuit-breaker, the compressor may be overloaded, and/or other damage may occur.
When 5mm frost forms in the freezer, please shave it and throw it away.
If you defrost completely, please do it as follows.
Please make inside empty, and disconnect the power
cord plug.
When frost start thawing, please shave it
and you will be able to defrost in the short time.
After draining, please wipe the inside, and put a rubber
cap on the drain bolt and the inside drain.
4

door
chest freezer
5

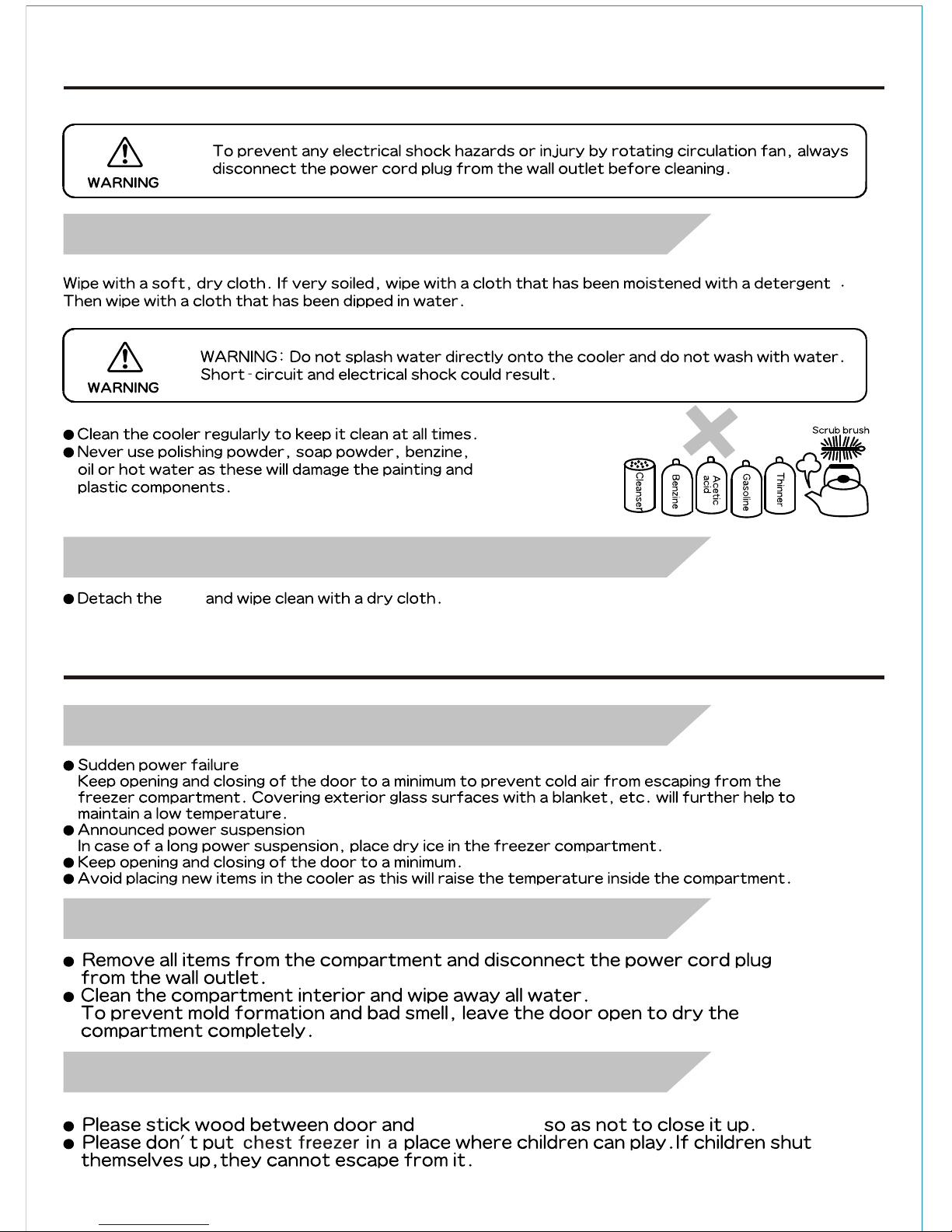

CLEANING
INSTRUCTION MANUAL
IN CASE OF THE FOLLOWING
1 POWER FAILURE
2 WHEN NOT USED FOR A LONG PERIOD
3 WHEN NOT USED TEMPORARILY
1 EXTERIOR AND COOLER COMPARTMENT
2 DOOR

Excessive noise
Is the power supply interrupted?
Is the power cord plug disconnected from the wall outlet?
Are the shop's power fuses blown and/or the circuit breaker activated?
The temperature control dial in the direction of MAX.If too cold,turn dial in
direction of OFF?
Is the floor underneath the freezer sturdy enough?
Is the unit shaking and rattling?
Is the rear panel of the unit contacting a wall, etc.?
A container or something is behind the chest freezer?
The compressor will generate a rather loud sound for a while after operation is
started. The noise will cease together with refrigeration.
Is the place of installation badly ventilated?
Is the freezer exposed to direct sunlight, placed near a heater or stove?
Are the lids opened and closed frequently?
Are items stocked beyond the load line?
The temperature control dial in the direction of MAX.If too cold,turn dial in
direction of MIN?
Much frost forms in the chest freezer?
To prevent any electrical shock hazards, do not disconnect the power cord plug from
the wall outlet with wet hands.
CAUTION
Please check the following items if you encounter problems with the unit. If the problem continues after
taking the proper remedial actions, disconnect the power cord plug from the wall outlet.
Transfer the items stored in the cooler to a box or other container. Then contact the dealer from whom
you purchased this unit and be ready to provide information as listed in "REQUIRED INFORMATION"
below.
Condensation
on cooler
exterior
Condensation may condense on the exterior and door during hot and humid
days or depending on the place of installation. This occurs when the humidity
is high and water particles in the air contact cold surfaces. This is normal.
wipe away condensation with a dry cloth.
of chest freezer
feels hot
Especially in summer or in starting running, the circumference of chest freezer
feels hot. Because chest freezer inside has a pipe for radiating and preventing
condensation.
The heat do not affect inside goods.
REQUIRED INFORMATION
Nature of malfunction
(as accurately as possible)
Product number
Serial number
(inscribed on badge)
Year and date of purchase
Customer's name, address,
phone number
Desired date for service visit
No refrigeration
at all
Inadequate
refrigeration
Appliance sometimes stop running when thermostat turns off.
BEFORE REQUESTING SERVICE
INSTRUCTION MANUAL
Pipe
The circumference
6

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet
hands as this could result in frostbite.

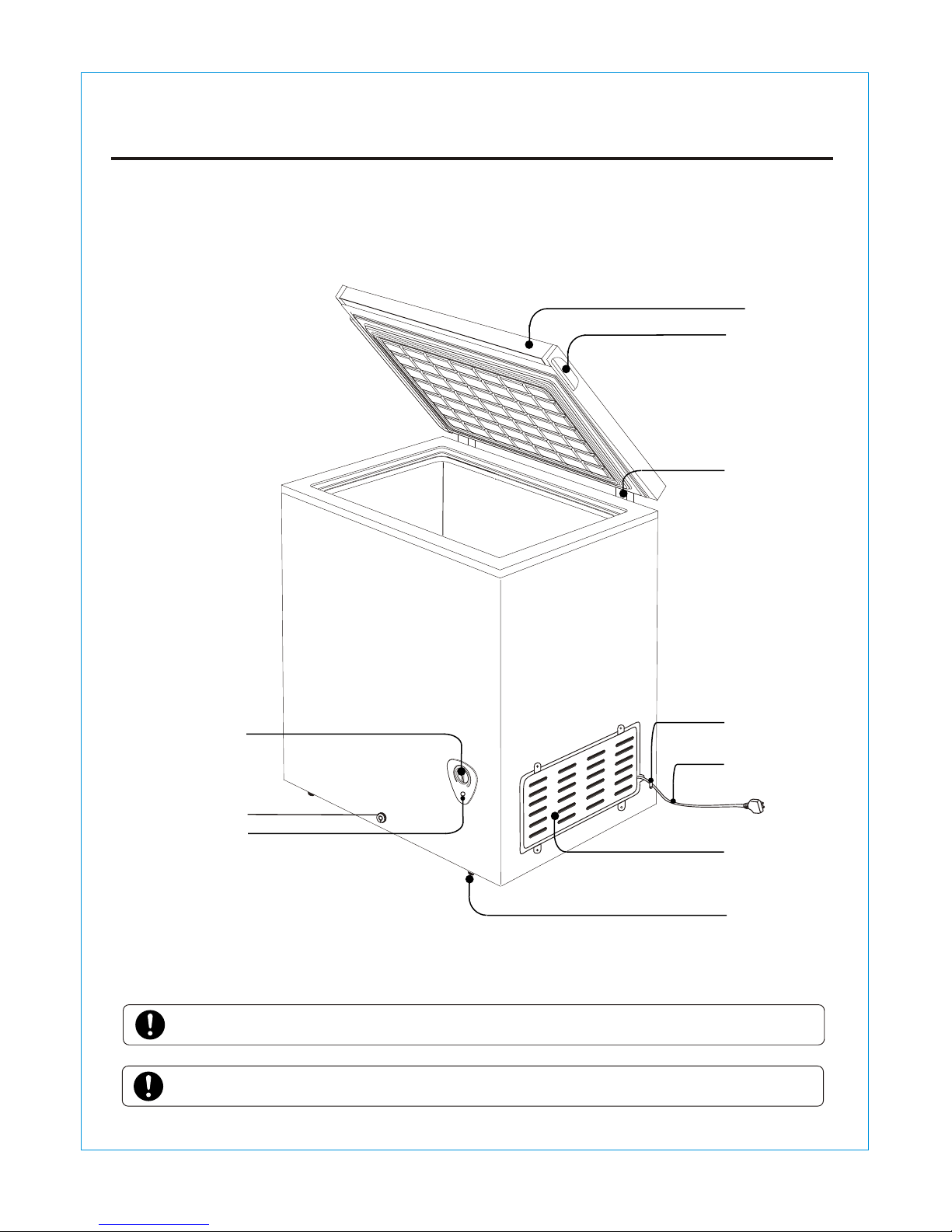

PART NAMES AND FUNCTIONS
INSTRUCTION MANUAL
Model NO: HMC150
The above image is for reference only, configaration is subject to actual product.
Foot
Door
Door knob
Side Cover
Temperature
Control Volume
Hinge
Power Supply
Cord with Plug
Supply Cable
Clamp
Power lamp
Drain cap

TEMPERATURE ADJUSTMENT
INSTRUCTION MANUAL
SPECIFICATIONS
INSTRUCTION MANUAL
Capacity
Outer Dimensions
(mm)
Chest Freezer
Product Name
Performance
Product No.
Net Weight
Width Depth
34kg
HMC150
145L
727 560
Height
823
Freezer compartment temperature: - 18 ;
Conditions: Ambient temperature 43 , unloaded state,
not exposed to direct sunlight.
BD145N/H (AUS.KM)-SM1
If the cooling performance is inadequate,turn the
temperature control dial in the direction of MAX. If too
cold, turn dial in direction of MIN.
To adjust the temperature inside the freezer compartment,
adjust the temperature control dial on front-bottom side of
the chest freezer. Normally use chest freezer with
temperature MID.
When you stop running temporally, please turn the
temperature control dial in the direction of OFF.
The specifications may change, please refer to the circuit name plate on the back of your
chest freezer.
