Voyager™ 1200g
Single-Line Laser Scanner
Quick Start Guide
VG1200-QS Rev A
10/10
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Gehe zu www.honeywellaidc.com für Deutsch.
Ir a www.honeywellaidc.com para español.
Para Português, acesse www.honeywellaidc.com.br.
Перейти на русскоязычный сайт www.honeywellaidc.com.
日本語 : www.honeywellaidc.com をご覧ください。
如要到中国 www.honeywellaidc.com（简体）。
한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your user’s guide for information about cleaning your
device.
Getting Started
Turn off the computer’s power before connecting the scanner, then
power up the computer once the scanner is fully connected.

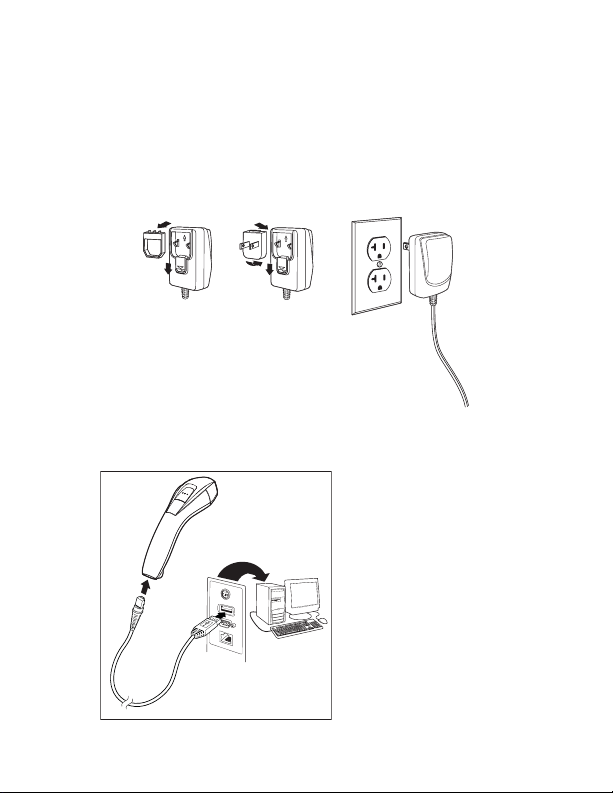

Power Supply Assembly (if included)
Connecting the Scanner
USB:

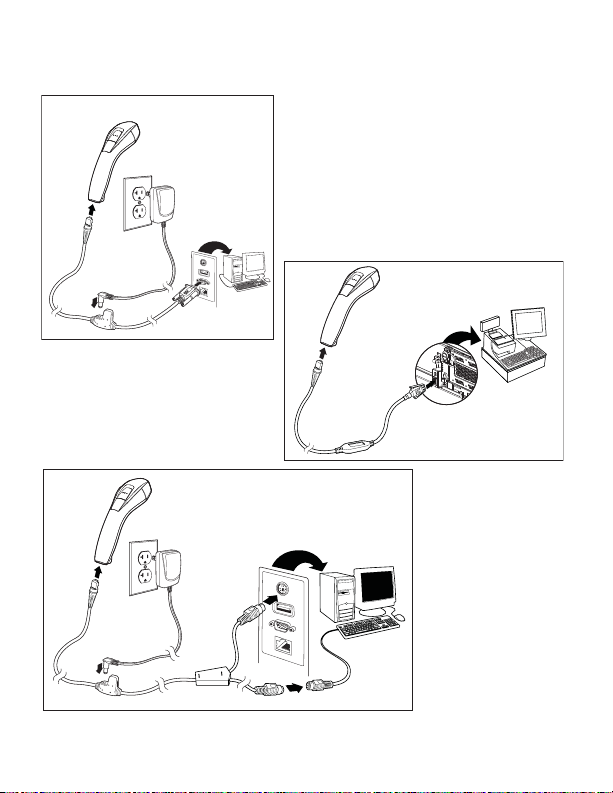

Serial (RS232):
RS485:
Keyboard Wedge:

Reading Techniques
Standard Product Defaults
The following bar code resets all standard product default settings.
RS485 Interface
The RS485 interface defaults to port 5B. If you have an IBM POS
terminal using port 9B, scan the appropriate code below to program
the terminal, then power cycle the cash register.
Note: For additional RS485 interface selections, see the User’s
Guide for your product at our website,
www.honeywellaidc.com.
Standard Product Defaults
IBM Port 9B HHBCR-1
Interface
IBM Port 9B HHBCR-2
Interface

Keyboard Country
Scan the Program Keyboard Country bar code below, then scan
the numeric bar code(s) from the end of this document, then the Save
bar code to program the keyboard for your country. As a general
rule, the following characters are not supported by the scanner for
countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~.
Country
Code Scan
Country
Code Scan
Country
Code Scan
Arabia 91 Hungary 19 Spain 10
Belgium 1IBM Financial 90 Switzerland 6
China 92 Italy 5Thai 94
Finland 2Japan 28 Turkey 24
France 3Korea 93 USA (Default) 0
Germany/
Austria 4Russia 26 Vietnam 95
Great Britain 7Slovenia 31
Program Keyboard Country
Save

Out-of-Stand Modes/Code Gate®Activation
When the scanner is in the stand, bar codes are automatically read
when they are in the scanner’s field of view. When the scanner is out
of the stand, by default you must push the button on top of the
scanner to read a bar code. Use the following commands to adjust
how the scanner behaves when it is out of the stand.
Presentation Mode Out-of-Stand: When the scanner is not in the
stand, it automatically detects bar codes, then scans and transmits
the data. The laser turns off afterward. (If you are accustomed to a
Voyager 9520, this setting is the same as the 9520’s default.)
Presentation Mode with CodeGate Out-of-Stand: When the
scanner is not in the stand, it automatically detects bar codes and
decodes them. However, the data is not transmitted until you press
the button. The laser remains on briefly after the transmission. (If
you are accustomed to a Voyager 9540, this setting is the same as
the 9540’s default.)
Reread Delay
This sets the time period before the scanner can read the same bar
code a second time. Setting a reread delay protects against
accidental rereads of the same bar code.
Presentation Mode
Out-of-Stand
Presentation Mode
with CodeGate
Out-of-Stand
Medium Reread Delay

Suffix
If you want a carriage return after the bar code, scan the Add CR
Suffix bar code. To add a tab after the bar code, scan the Add Tab
Suffix bar code. Otherwise, scan the Remove Suffix bar code to
remove the suffixes.
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to all
symbologies at once.
Note: For a complete list of Code IDs, see the User’s Guide for your
product at our website, www.honeywellaidc.com.
Add CR Suffix
Add Tab Suffix
Remove Suffix
Add Code ID Prefix To All Symbologies
(Temporary)

Data Format Editor Instructions
The following are abbreviated instructions for entering a data format.
For complete instructions refer to your User’s Guide, available at our
website, www.honeywellaidc.com.
1. Scan the Enter Data Format symbol.
2. Primary/Alternate Format: scan 0for Primary Format
3. Terminal Type: scan 099 for any terminal type
4. Code I.D.: scan 99 for any bar code type
5. Length: scan 9999 for any length bar code.
6. Editor commands: use the Programming Chart that follows.
7. Scan Save to save your entries.
Enter Data Format
Clear All Data Formats
Save

Programming Chart
0
2
1
4
3
5
6
7

A
B
C
D
E
F
9
8
Save

EZConfig
To access additional features for the scanner use EZConfig, an
online configuration software tool, available from our website at
www.honeywellaidc.com.
Technical Assistance
Contact information for technical support, product service, and repair
can be found at www.honeywellaidc.com.
Limited Warranty
Refer to www.honeywellaidc.com/warranty_information for your
product’s warranty information.
User Documentation
For localized versions of this document, and to download the User’s
Guide, go to www.honeywellaidc.com.
