Hoover 38900089 User manual

HMC440PX
GB
MICROWAVE OVENS
IT
FORNI A MICROONDE
MANUALE DI ISTRUZIONI
ES
HORNOS MICROONDAS
MANUAL DE INSTRUCCIONES
USERINSTRUCTIONS
RU
МИКРОВОЛНОВАЯ ПЕЧЬ
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
GB
MODEL:HMC440PX

GB
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Specifications
Rated Input Power(Grill):
Rated Input Power(Convection):
230V~50Hz
900W
44L
360mm
Approx. kg
59
1650W
1750W
1750W
Rated Input Power(Double grill):
Rated Input Power(Double grill+Microwave):
2300W
3350W
HMC440PX
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
5 568 454 mm
36
GB-2

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including he following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.Children shall not
play with the appliance.Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of ignition.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
GB
GB-3

9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.

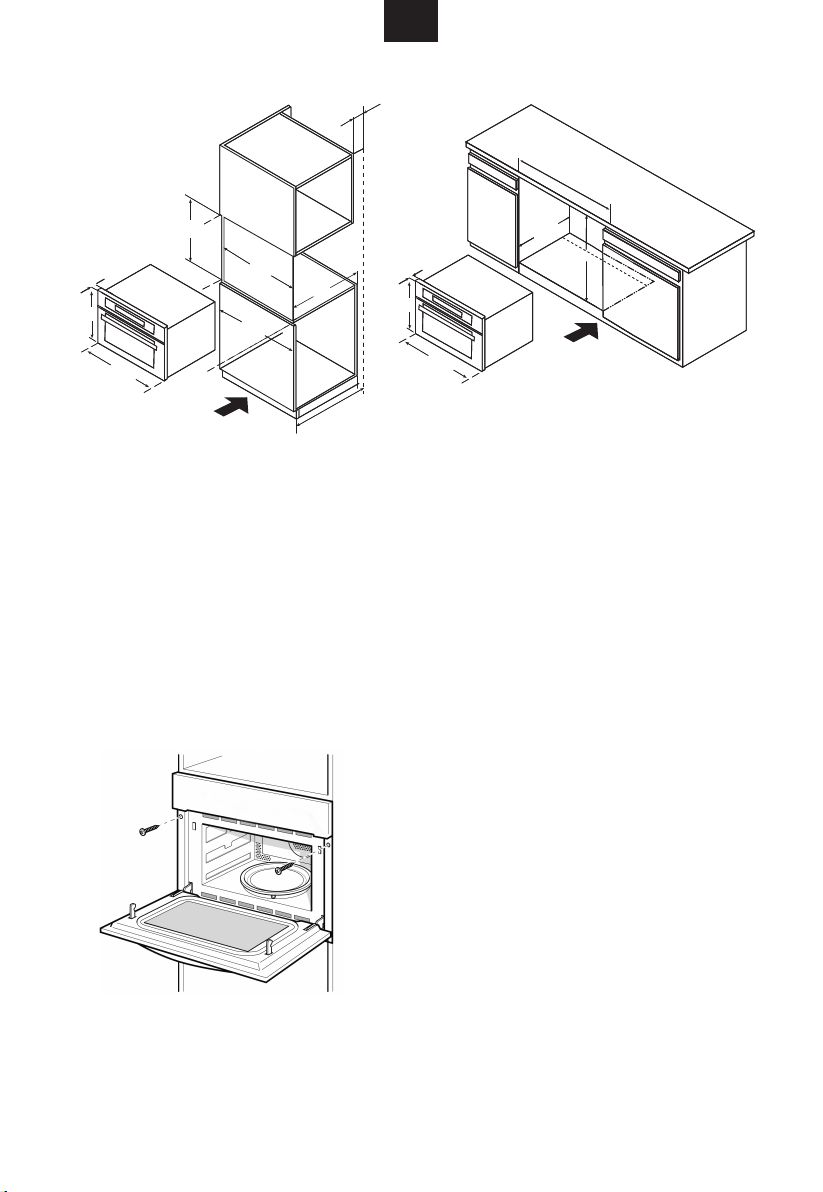

13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use.Keep cord away from heated
surface, and do not cover any vents on the oven.
GB
GB-4

20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical , sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27. Accessible parts may become hot during use.
Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
temperature-sensing probe.)
this oven.(for ovens provided with a facility to use a
GB
GB-5

31.WARNING: The appliance and its accessible parts
become hot during use.Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the
decorative door open.(for ovens with a decorative door.)
33.Surface of a storage cabinet can get hot.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
GB
GB-6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal componentscan
cause serious personal
injury or death.Do not
disassemble this appliance.
WARNING
Electric Shock Hazard Improper
use of the grounding can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubtexists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord , use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.2. If a long cord set
or extension cord isused:
1)The marked electrical rating
of the cordset or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
GB
GB-7

CLEANING
Be sure to unplug the
appliance from the power
supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
GB
GB-8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
GB
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyoneother than a
compentent personto
carry out any service or
repairoperation that involves
the removalof a cover which
gives protectionagainst
exposure to microwave
energy.
GB-9

Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity
Your oven comes with the following accessories:
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge
7. Turntable shaft
1
2
3
4
5
6
7
Enamel Tray 1
9
8
10
8. Short Grill Rack
10.Grill Pan
9
9
GB
9. Long Grill Rack
GB-10

Hub (underside)
tray should never be restricted.
always be used during cooking.
c. All food and containers of food are always placed
breaks, contact your
nearest authorized service
center.
Turntable Installation
Turntable shaft
a. Never place the enamel tray upside down. The enamal
must
on the
enamel tray for cooking.
d. If enamel tray cracks or
Enamel tray
GB
b. The enamal tray
Placement
appliance can cause serious personal injury or death.
•
cient ventilation around the microwave oven. At the rear•
and sides keep at least 10 cm free.
Do not cover the air vents.•
The adjustable feet should not be removed.•
Do not place the microwave oven near a heat source.•
Transmitting and receiving equipment such as radios and televisions can affect the•
operation of the micr owave oven.
• Danger! Do not disassemble this appliance. Touching internal components of this
Place the microwave oven on a firm,flat surface.
Make sure that there is surfi
Important information about installing
• This appliance is NOT intended for use in a commercial
environment.
• Please observe the installation instructions provided and
note that this appliance should only be installed by a qualied
technician.
• The appliance is tted with a plug and must only be
connected to a properlyinstalled earthed socket.
• In case a new socket is needed, installation and cable
connection must only be done by a quali° ed electrician.
If the plug is no longer accessible following installation,
a pole disconnecting device must be present on the
installation site with a contact gap of at least 3 mm.
• Adapters, multiway strips and extension cords must not be
used. Overloading can result in fire.
The accessible surfacemay
be hot duringoperation.
GB-11

Installation dimensions
Building in
• Do not hold or carry the appliance by the door handle. The door handle cannot hold
the weight of the appliance and may br eak off.
1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the micr owave with the sc ws that were supplied.
100
455
595
600
min 580
560-568
22
455
22
595
558-568
min 460
542
542
540
min. beluchtingsopp. 250 cm2
min. beluchtingsopp.
250 cm2
450
600
min
550
min 580
560
20 20
560
min
min.
550
min. aeration surface 250 cm2
min. aeration surface
250 cm2
458+2
Note: There should be gap above the oven.
595
595
454 45
GB
re
GB-12
4
45

3. Put the tray on the shaft and adjust slightly .
the shaft arm.
2. Adjust the angle of the tray, the tray roller should point to one of
INSTALL THE TRAY
1. Check the position of the shaft.
５：１
GB
GB-13

Control Panel and Features
OPERATION
1) Function knob
2) Power/Weight button
3) Quickly preheating button
4) On/Off Button
5) Temperature/automenu button
6) Clock button
7) Start/Pause button
8) Selection knob
GB
1 8
5
6
4
3
27
GB-14

Power level Food
900 W - Boiling water, reheating
700 W - Reheating
- Cooking mushrooms, shell
- Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W - Defrosting
- Melting chocolate and butter
100 W - Defrosting sensitive/delicate foods
- Defrosting irregularly-shaped foods
- Softening ice cream
- Allowing dough to rise
Function Mode
Microwave Microwave Microwave
Use the microwave
function to cook and
reheat vegetables,
meat.
Hot air Hot air
With hot air you can
prepare meals in the
same way as you do
with a conventinal oven.
The microwave is not
activated. You are advised
to preheat the oven
befo putting the meal in
the oven.
Grill with fan Grill with fan
Use this function to roast
meals evenly and at the
same time give the meal a
brown crust.
Grill Grill
The grill is very suitable
to prepare thin pieces of
meat and sh.
Functions
Heating
potatoes, rice, fish and
GB
- Cooking chicken,fish, vegetables
fish
fi
You can see from the table below from which
which foods the power levels are suitable.
power levels you can choose and for
re
GB-15

Function Mode
Hot air Microwave + Hot air
Use this function to roast
meals quickly.
Grill with fan Microwave + Grill with
fan
Grill Microwave + Grill
Use this function to cook
meals quickly and at the
same time give the meal
a brown crust (also au
gratin). The microwave
and the grill are activated
at the same time. The
microwave is cooking and
the grill is roasting.
Auto-
programs Automatic cooking programs
Defrost d01 + d02 Defrost
Combination
Hot air+
Bottom heat
Use this function to roast
big pieces of meat, pizza,
etc.
Use this function to roast
big pieces of meat, pizza,
etc.
P01 - P13
Heating
GB
Use this function to roast
big pieces of meat, pizza,
etc.
Hot air+
Bottom heat
Use this function to roast
big pieces of meat, pizza,
etc.
Double grill
Double grill
GB-16

This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified, "00:00" will blink, buzzer will ring once.
2) After you have set the right time, press " ". The clock has been set.
Note: 1) If you want to change the time, you have to press and hold the " "
to confirm the setting.
2) If you do not want to see the clock in the display, press " " button
in the display again.
OPERATION INSTRUCTION
1.Clock Setting
blink in the display.
button
1) Turn knob to set the right time(between 00:00 and 23:59.)
Turn knob to set the new time and press the " "
briefly. The time disappears. Press " " again, and the clock appears
GB
button for 3 seconds. The actual time disappears and then the time will
2. Microwave Cooking
1) Press the " " button to activate the microwave function. "01:00" is blinking in
The max. cooking time depends on the power that has been set. When the power
is 900W, the MAX. time is 30 minutes and other powers are 90 minutes.
3) Press " " button to adjust the power microwave power.
5) Press " " button to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 1 second
1---5 min : 10 seconds
5---15 min : 30 seconds
15---60 min : 1 minute
60---90 min : 5 minutes
Microwave Power Chart
2) Turn knob to set the cooking time.
4) Turn knob to set the microwave power (between 100W to 900W)
current power will be confirmed automatically.
the display and the microwave icon appears. If no operation in 10 seconds, the
s
pres
s
top the cooki
n
s aga
ng before the
in. To stop d
e
end of time
p
e
finitely the co
o
press .
o
king before
t
To restart ag
a
he end of tim
e
a
in the cooki
n
e
press
n
g,
6)To
Display 900W 700W 450W 300W 100W
.
.
GB-17

1) Press " " button to activate the microwave function.
4) Press "
7) Press " " button to start cooking.
Press " " to select the time setting mode. The default time is 10 minutes.
4. Convection Cooking
2) Turn " " to select the cooking mode.
3) Turn " " to select convection mode. " " lights.
The default temperature is 180 degrees..
5) Turn " " to select temerpature. The temperature is from 50 to 230 degrees.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
GB
" to enter the temerpature mode.
The temperature are 50, 100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230.
1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
3. Grill Cooking
4) Press " " to select the time setting mode. The default time is 10 minutes.
3) Turn " " to
adjust grill power level 3 ( 7mins to 160 ), level 2 (10 mins
to 160 ) or level 1 (20 mins to 160 ). The default grill power is the third oevel.
℃
℃℃
5) Turn " " to select the cooking time of grill. The MAX.time is 90 minutes.
6) Press " " button to start cooking. " " indicator will light when
grill function.
z If grill
p
level adjust mode
z
mode,a
power level h
e, and then t
v
ndthen turn " "
have been se
turn " "t
e been set
to adju
et, press”
to adjust gril
, press "
ust cooking ti
” to
l power level
me
oenter grill p
l .
ooking time
power
adjust
" to enter c
If cooking time ha
s
pres
s
top the cooki
n
s aga
ng before the
in. To stop d
e
end of time
p
e
finitely the co
o
press .
o
king before
t
To restart ag
a
he end of tim
e
a
in the cooki
n
e
press
n
g,
)To
.
7
.
GB-18

1) Press " " button to activate the microwave function.
2) Turn " " to select the cooking mode.
4) Press " " to enter to the temperature selection.
7) Press " " button to start cooking.
The temperature are 100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230.
5. Grill Fan Cooking
3) Turn " " to select grill fan mode. The default temperature is 180 degrees.
" " indicator will light when grill fan function is selected.
5) Turn " " to select the temperature between 100 to 230 degrees.
4) Press "
7) Press " " button to start cooking.
The temperature are 100,105,110,115,120,125,130,135,140,145,150,155,160,
165,170,175,180,185,190,195,200,205,210,215,220,225,230.
5) Turn " " to select the temperature between 100 to 230 degrees.
6. Convection+ Bottom heat Cooking
1) Press " " button to activate the microwave function.
"
2) Turn " " to select
bottom+ convection
cooking mode.
3) Turn " " to select mode.
The default temperature is 180 degrees.
" indicator will light when convection + bottom function is selected.
press" " to select the time setting mode. The default time is 10 minutes.
Press " " to select the time setting mode. The default time is 10 minutes.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
6) Turn " " to select the cooking time. The MAX.time is 5 hours.
GB
" to enter the temperature selection.
GB-19
