Husqvarna Viking H Class E10 User manual

E10
USER’S GUIDE

This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the
following: Read all instructions before using this household sewing machine.
DANGER - To reduce the risk of electric shock:
• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine
from the electric outlet immediately after using and before cleaning.
WARNING - 7RUHGXFHWKHULVNRIEXUQV¿UHHOHFWULF
shock, or injury to persons:
• This sewing machine is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the sewing machine by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the sewing machine.
• Use this sewing machine only for its intended use as described in this manual. Use only attachments
recommended by the manufacturer as contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorized
dealer or service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the
sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
 .HHS¿QJHUVDZD\IURPDOOPRYLQJSDUWV6SHFLDOFDUHLVUHTXLUHGDURXQGWKHVHZLQJPDFKLQHQHHGOH
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
 'RQRWSXOORUSXVKIDEULFZKLOHVWLWFKLQJ,WPD\GHÀHFWWKHQHHGOHFDXVLQJLWWREUHDN
 6ZLWFKWKHVHZLQJPDFKLQHRII³´ZKHQPDNLQJDQ\DGMXVWPHQWLQWKHQHHGOHDUHDVXFKDVWKUHDGLQJ
needle, changing needle, threading bobbin, or changing presser foot, etc.
• Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when
making any other user servicing adjustments mentioned in the instruction manual.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
 7RGLVFRQQHFWWXUQDOOFRQWUROVWRWKHRII³´SRVLWLRQWKHQUHPRYHSOXJIURPRXWOHW
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Hold plug when rewinding into cord reel. Do not allow plug to whip when rewinding.
 7KLVVHZLQJPDFKLQHLVSURYLGHGZLWKGRXEOHLQVXODWLRQ8VHRQO\LGHQWLFDOUHSODFHPHQWSDUWV6HH
LQVWUXFWLRQVIRU6HUYLFLQJRI'RXEOH,QVXODWHG$SSOLDQFHV
SAVE THESE INSTRUCTIONS
Please note that on disposal, this product must be safely
recycled in accordance with relevant National legislation
relating to electrical/electronic products. If in doubt please
contact your retailer for guidance

Congratulations!
$VWKHRZQHURIDQHZVHZLQJPDFKLQH\RXZLOOHQMR\SUHFLVLRQTXDOLW\VWLWFKLQJ
on all types of fabrics, from multiple layers of denim to delicate silks.
Your sewing machine offers the ultimate in simplicity and ease of operation. For
your safety and to fully enjoy the many advantages and ease of operation of
your sewing machine, we recommend that you read all the important safeguards
and use and care instructions in this instruction book.
May we suggest that before you start to use your sewing machine, you discover
the many features and advantages by going through this instruction book, step
by step, while seated at your sewing machine.
To ensure that you are always provided with the most modern sewing
capabilities, the manufacturer reserves the right to change appearance, design
or accessories of this sewing machine when considered necessary.

4
LIST OF CONTENTS
35,1&,3$/3$5762)7+(0$&+,1(..............................................................................5
$&&(6625,(6....................................................................................................................7
),77,1*7+(61$3,1$&&(6625<%2;........................................................................8
&211(&7,1*7+(0$&+,1(7232:(56285&(.......................................................9
Foot control...........................................................................................................................9
6HZLQJOLJKW ..........................................................................................................................9
&+$1*,1*7+(%8/%......................................................................................................10
7:267(335(66(5)227/(9(5$'-86735(66(5)22735(6685(..............11
$77$&+,1*7+(35(66(5)2276+$1.$1./(........................................................12
:,1',1*7+(%2%%,1.....................................................................................................13
,16(57,1*7+(%2%%,1 .................................................................................................14
,16(57,1*7+(1(('/( ................................................................................................15
THREADING THE UPPER THREAD .................................................................................16
%8,/7,11(('/(7+5($'(5.........................................................................................17
7+5($'7(16,21%5,1*,1*837+(%2%%,17+5($'...........................................18
5(9(56(6(:,1*5(029,1*7+()$%5,&&877,1*7+(7+5($' .......................19
0$7&+,1*1(('/()$%5,&7+5($' .......................................................................20
675$,*+767,7&+,1* .....................................................................................................21
=,*=$*67,7&+,1*..........................................................................................................22
+2:726(:%87721+2/(6........................................................................................23
%/,1'+(0........................................................................................................................25
=,33(56$1'3,3,1*.......................................................................................................26
67(3=,*=$* ...............................................................................................................27
67,7&+6(/(&7,21 .........................................................................................................28
MAINTENANCE .................................................................................................................29
7528%/(6+227,1**8,'(..........................................................................................30

5
PRINCIPAL PARTS OF THE MACHINE
1. Thread tension dial
2. Presser foot pressure
3. Thread take-up lever
4. Thread cutting
 %XLOWLQQHHGOHWKUHDGHU
6. Presser foot
7. Needle plate
8. Accessories box
 %REELQVWRS
 6WLWFKOHQJWKGLDO
 6WLWFKGLVSOD\
12. Reverse sewing lever

6
13
14
15
16
17
18
19
20
21
22
23
13. Spool pin
14. Bobbin winder
15. Hole for second spool pin
16. Hand wheel
17. Stitch selector dial
18. Power switch
19. Main plug socket
20. Bobbin thread guide
21. Upper thread guide
22. Handle
23. Presser foot lever

7
123 4
567
89 10
11
12 14
13
ACCESSORIES
1. All purpose foot
2. Zipper foot
 6DWLQVWLWFKIRRW
 %OLQGKHPIRRW
 %XWWRQKROHIRRW
6. L-screwdriver
 6HDPULSSHUEUXVK
 6HFRQGVSRROSLQ
 6SRROKROGHUV[
10. Pack of needles
 6HDPJXLGH
 %REELQV[
13. Darning plate
14. Felt pad

8
FITTING THE SNAP-IN ACCESSORY BOX
Keep the snap-in accessory box horizontal,
and push it in the direction of the arrow. (1)
To open, lift up at the point of the arrow. (2)
Note: Your H|CLASS™ E10 sewing machine is adjusted to provide the best stitch
result at normal room temperature. Extreme hot and cold temperatures can affect
the sewn result.

9
1
3
CONNECTING THE MACHINE TO POWER SOURCE
Connect the machine to a
power source as illustrated.
(1)
A polarized plug must be
used with the appropriate
polarized outlet. (2)
Attention:
Unplug power cord when
machine is not in use.
Foot control
Foot control regulates the
sewing speed. (3)
Attention:
&RQVXOWDTXDOL¿HGHOHFWULFLDQLILQGRXEWDVWRKRZWRFRQQHFWPDFKLQHWR
power source. Unplug power cord when machine is not in use.The appliance
must be used with the foot controller:
For USA and Canada, 110-120V: KD-1902
For Australia and Europe, 220-240V: KD-2902
Sewing light
3UHVVPDLQVZLWFK$IRUSRZHUDQGOLJKWRQ³O³
For USA and Canada
For appliance with a polarized plug (one blade is wider than the other).
7RUHGXFHWKHULVNRIHOHFWULFVKRFNWKLVSOXJLVLQWHQGHGWR¿WLQDSRODUL]HGRXWOHWRQO\
RQHZD\,ILWGRHVQRW¿WIXOO\LQWKHRXWOHWUHYHUVHWKHSOXJ,ILWVWLOOGRHVQRW¿WFRQWDFW
DTXDOL¿HGHOHFWULFLDQWRLQVWDOOWKHSURSHURXWOHW'RQRWPRGLI\WKHSOXJLQDQ\ZD\
2

10
1
2
CHANGING THE BULB
Attention:Disconnect the
machine from the power supply
by removing the plug from the
main socket!
Replace bulb with same type rated 10 watts
9RUZDWWV9
- Loosen screw (A) as illustrated. (1)
 5HPRYHWKHFRYHU%
 8QVFUHZWKHEXOEDQG¿WQHZRQH&
(2)
- Replace the cover and tighten screw.
6KRXOGWKHUHEHDQ\SUREOHPDVN\RXUORFDO
dealer for advice.

11
+
-
TWO-STEP PRESSER FOOT LEVER
When sewing several layers or thick fabrics,
the presser foot can be raised to extra high
for easy positioning of the work. (A)
The presser foot pressure of the machine
KDVEHHQSUHVHWDQGXVXDOO\UHTXLUHVQR
readjustment for most fabrics (light-or-heavy
weight).
However, if you need to adjust the presser
foot pressure, turn the presser adjusting
screw with a coin.
For sewing very thin fabric, loosen the
pressure by turning the screw counter
clockwise for less pressure on the fabric,
and for heavy fabric, tighten by turning it
clockwise for more pressure on the fabric.
ADJUST PRESSER FOOT PRESSURE
Tighten presser
adjusting screw
Loosen

12

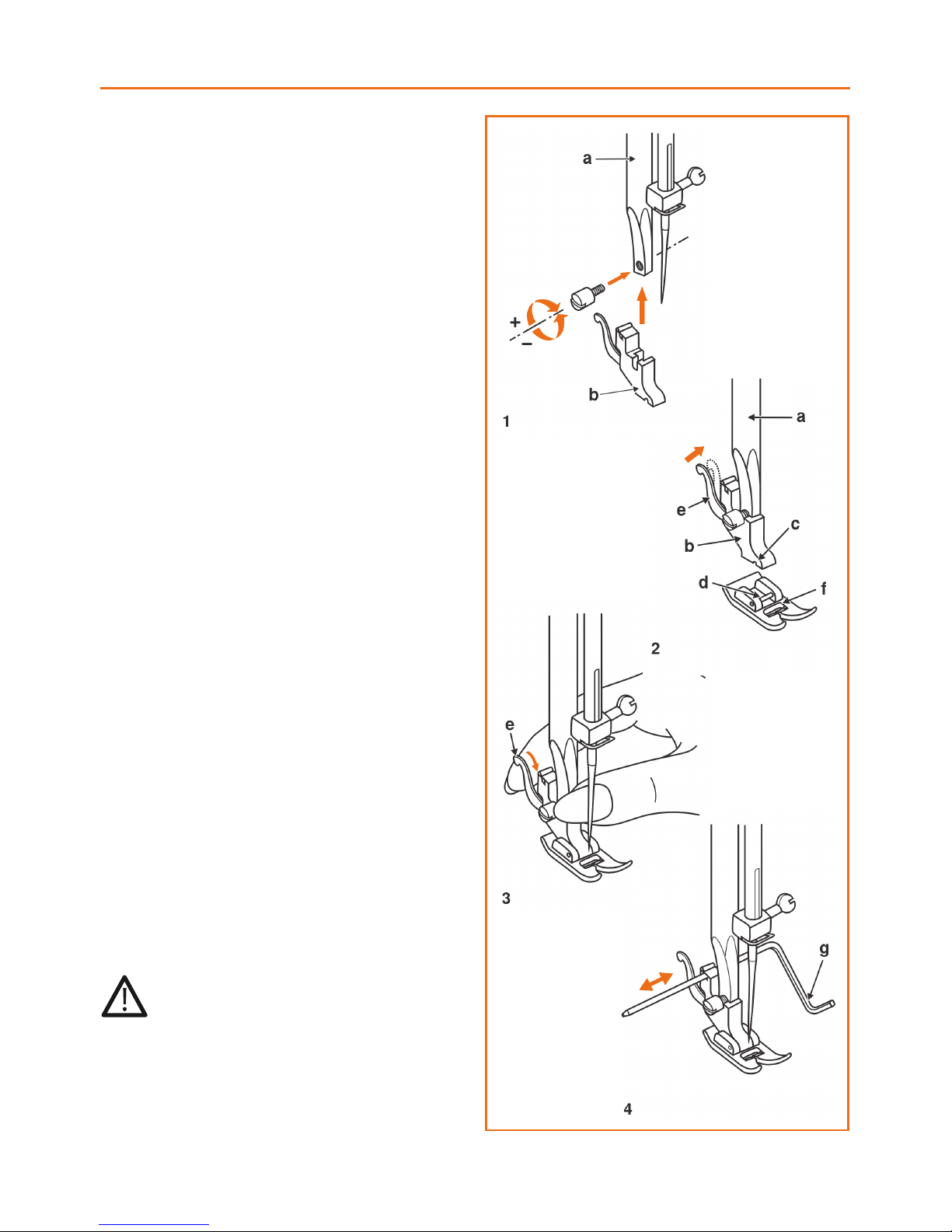

ATTACHING THE PRESSER FOOT SHANK/ ANKLE
Attaching the presser foot holder
Raise the presser foot bar (a). (1)
Attach the presser foot shank/ankle (b) as
illustrated.
Attaching the presser foot
Lower the presser foot shank/ankle (b) until
the cut-out (c) is directly above the pin on
the foot (d). (2)
Raise the lever (e).
Lower the presser foot shank/ankle
(b) and the presser foot (f) will engage
automatically.
Removing the presser foot
Raise the presser foot. (3)
Raise the lever (e) and the foot disengages.
Attaching the seam guide
Attach the seam guide (g) in the slot on the
shank/ankle as illustrated.
Adjust according to need for hems, pleats,
TXLOWLQJHWF
Attention:
Turn power switch to off (“O”)
when carrying out any of the above
operations!

13

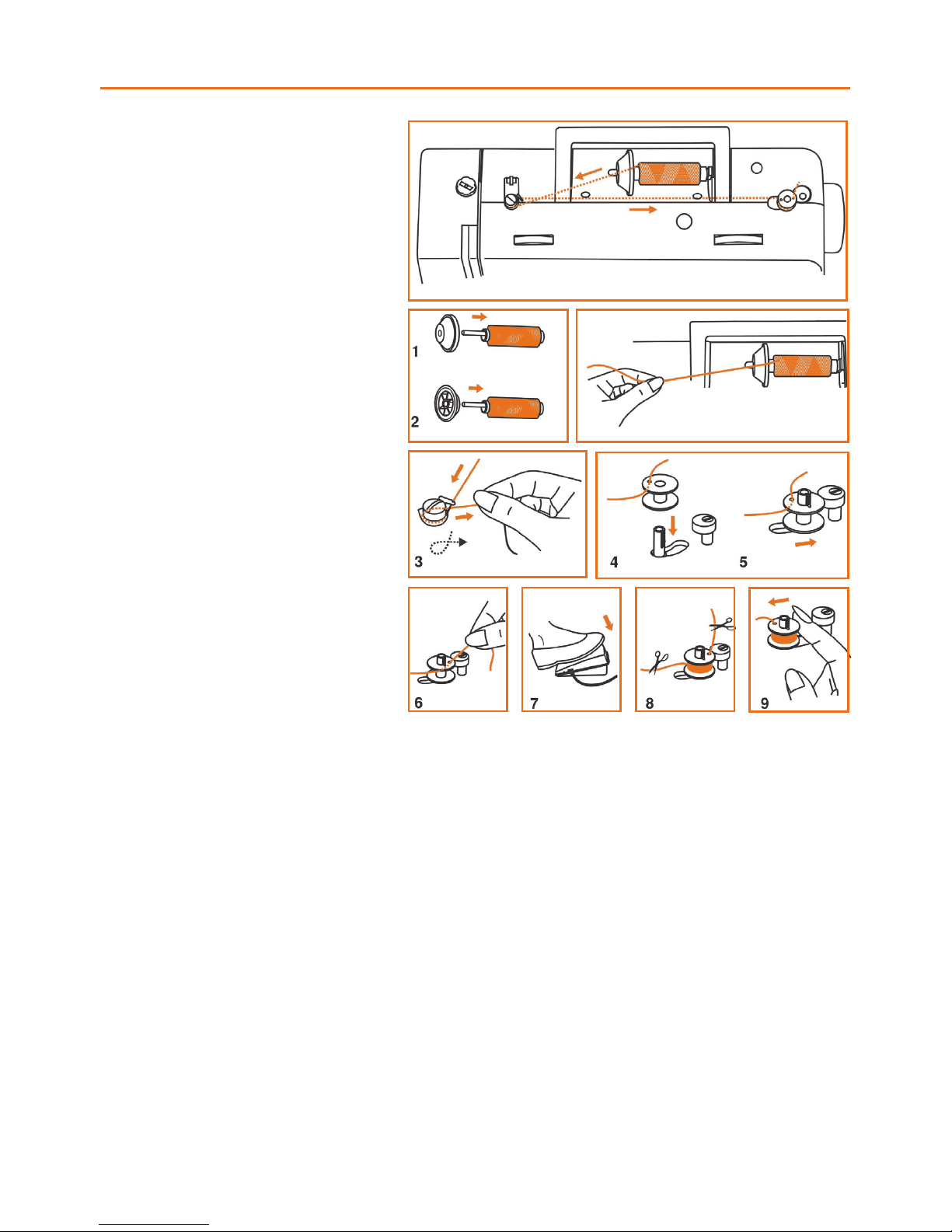

WINDING THE BOBBIN
Place thread and spool holder
onto spool pin (1).
- For smaller spools of thread
place spool holder with small
side next to spool (2).
- Wind thread clockwise around
bobbin winder tension discs
(3).
- Thread bobbin as illustrated
and place on spindle (4).
- Push bobbin to right (5).
- Hold thread end (6).
 6WHSRQIRRWFRQWUROSHGDO
to wind the bobbin.
- Cut thread (8).
- Press bobbin to left (9) and
remove.
Please Note:
When the bobbin winder spindle is in “bobbin winding” position, the machine will
not sew and the hand wheel will not turn.
To start sewing, push the bobbin winder spindle to the left (sewing position).

14
INSERTING THE BOBBIN
When inserting or removing the bobbin,
the foot and needle must be fully raised.
 2SHQWKHKLQJHGFRYHU
2. Hold the bobbin case with one hand.
Insert the bobbin so that the thread
runs in a clockwise direction (arrow).
3. Put the thread under the tension
spring.
4. Hold the bobbin case by the hinged
latch.
5. Insert it into the shuttle.
Attention:
Turn power switch to off (“O”).

15
1
2
INSERTING THE NEEDLE
Change the needle regularly, especially
if it is showing signs of wear and causing
problems.
Insert the needle following the illustrated
instructions.
A. Loosen the needle clamp screw and
tighten again after inserting the new
needle. (1)
% 7KHÀDWVLGHRIWKHQHHGOHVKDIW
should be towards the back.
C/D.Insert the needle as far up as it will
go.
Attention:
Turn power switch to off (“O”).
Needles must be in perfect condition. (2)
Problems can occur with:
$ %HQWQHHGOHV
% 'DPDJHGSRLQWV
& %OXQWQHHGOHV

16

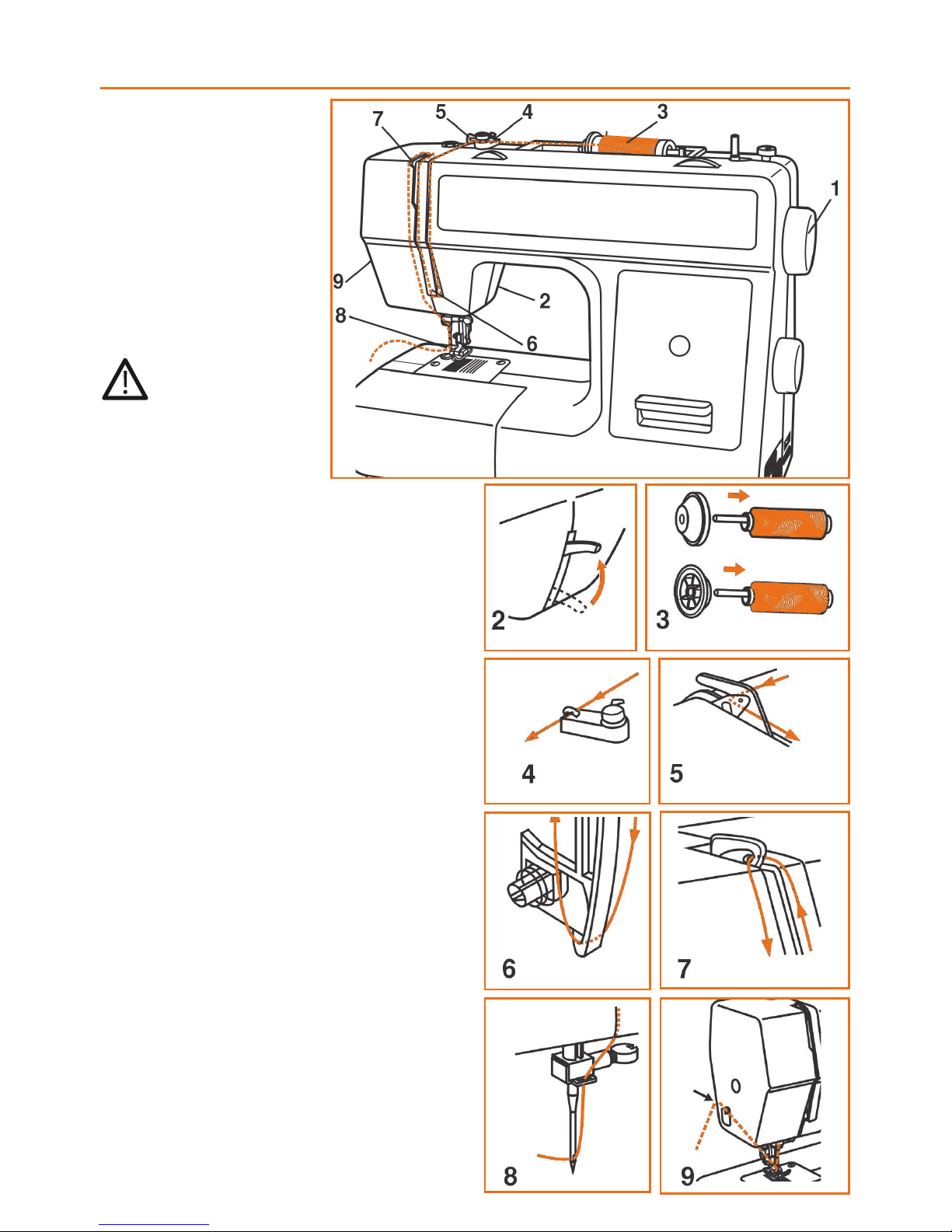

THREADING THE UPPER THREAD
Threading is simple but
it is important to thread
correctly to prevent
sewing problems could
result.
 6WDUWE\UDLVLQJWKH
needle to its highest
point (1), and also
raise the presser foot
to release the tension
discs. (2)
Attention:
For safety, it is strongly
suggested you turn
off the power before
threading.
- Lift up the spool pin. Place the spool
of thread on the holder with the thread
coming off the spool as shown. For
small thread spools, place small side of
spool holder next to spool. (3)
- Draw thread from spool through the
upper thread guide. (4)
- Guide thread around thread guide
(5) pulling thread through pre-tension
spring as illustrated.
- Thread tension disks by leading thread
down in right channel and up in left
channel (6). During this process it is
helpful to hold the thread between the
spool and thread guide (4).
- At the top pull thread from right to left
through the slotted eye of the take-up
lever and then down again. (7)
- Place thread behind the thin wire
needle clamp guide (8) and then down
to the needle eye and thread from front
to back.
- Pull about 6-8 inches of thread under
the presser foot to the back. Trim
thread to length with built in thread
cutter. (9)

17
A
B
A
A
B
C
C
B
B
BUILT-IN NEEDLE THREADER
The needle must be in the up position to
use the built-in needle threader. We also
recommend lowering the presser foot.
1a. Use the handle to pull the needle
threader down, catching the thread
under the guide.
1b. Push the needle threader all the way
GRZQXQWLOWKHPHWDOÀDQJHVFRYHU
the needle. A small hook will pass
through the needle eye.
F 3ODFHWKHWKUHDGXQGHUWKHÀDQJHV
in front of the needle, so the thread
catches into the small hook.
2a. Let the needle threader gently swing
back.
2b. The hook pulls the thread through
the needle eye and forms a loop
behind the needle. Pull the thread
loop out behind the needle.
3. Place the thread under the presser
foot and cut the thread.
Note: The needle threader is
designed to be used for size 70-120
needles. You cannot use the needle
threader for size 60 needles or
smaller, the wing needle, twin needle
or triple needle. There are also some
optional accessories that require
manual threading of the needle.

18
2
THREAD TENSION / BRINGING UP THE BOBBIN THREAD
Hold the upper thread with the left hand.
Turn the handwheel towards you until the
needle is raised. (1)
Pull on the upper thread to bring the bobbin
thread up through the stitch plate hole.
Place both threads to the back under the
presser foot. (2)
%DVLFWKUHDGWHQVLRQVHWWLQJ³´
To increase the tension, turn the dial to the
next number up.
To reduce the tension, turn the dial to the
next number down.
A. Normal thread tension - upper and
bobbin thread join in fabric
%8SSHUWKUHDGWHQVLRQWRRORRVHXSSHU
WKUHDG³ORRSV´RQWKHXQGHUVLGHRI
fabric
C. Upper thread tension too tight - bobbin
WKUHDG³ORRSV´RQWKHWRSVLGHRIWKH
fabric
Note:
The bobbin thread tension does not
normally have to be adjusted.

19
REVERSE SEWING
At the end of a seam, press down the
UHYHUVHVHZLQJOHYHU6HZDIHZUHYHUVH
VWLWFKHVWR³WKHWLHRII´WKHWKUHDGHQGV
Release the lever and the machine will sew
forwards again. (1/A)
REMOVING THE FABRIC
Turn the handwheel toward you to bring the
thread take up lever to its highest position,
raise the presser foot and remove fabric to
the back. (2)
CUTTING THE THREAD
Hold the threads behind the presser foot
with both hands, pull them into the thread
FXWWHU%DQGGRZQWRFXW

20
MATCHING NEEDLE / FABRIC / THREAD
NEEDLE, FABRIC SELECTION
1(('/(6,=( )$%5,&6 THREAD
9-11(65-75) Lightweight fabrics-thin cottons, voile,
silk , muslin, interlocks, cotton knits,
tricots, jerseys, crepes, woven polyester,
shirt & blouse fabrics.
Light-duty thread in cotton, nylon or
polyester.
12(80) Medium weight fabrics-cotton, satin,
kettlecloth, sailcloth, double knits,
lightweight wool.
Most threads sold are medium size and
suitable for these fabrics and needle
sizes.
Use polyester threads on synthetic
materials and cotton on natural woven
fabrics for best results.
Always use the same thread on top and
bottom.
14(90) Medium weight fabrics-cotton duck,
wool, heavier knits, terrycloth, denims.
16(100) Heavyweight fabrics-canvas, wool,
RXWGRRUWHQWDQGTXLOWHGIDEULFVGHQLPV
upholstery material (light to medium).
18(110) Heavy wool, overcoat fabrics, upholstery
fabrics, some leathers and vinyls.
Heavy duty thread, carpet thread.
(Increase presser foot pressure and top
tension.)
1(('/(6 (;3/$1$7,21 7<3(2))$%5,&
HA×1
15×1
6WDQGDUGVKDUSQHHGOHV
6L]HVUDQJHWKLQWRODUJHWR
18(110)
Natural woven fabrics-wool, cotton, silk,
etc.
Qiana. Not recommended for double
knits.
î+6,1 6HPLEDOOSRLQWQHHGOHVFDUIHGWR
18(110)
Natural and synthetic woven fabrics,
polyester blends.Knits-polyesters,
interlocks, tricot, single and double knits.
Can be used instead of 15×1 for sewing
all fabrics.
î+68. Full ball point needle 9(65) to 18(110) 6ZHDWHUNQLWV/\FUDVZLPVXLWIDEULF
elastic.
130 PCL Leather needles. 12(80) to 18(110) Leather, vinyl, upholstery.
(Leaves smaller hole than standard large
needle.)
IMPORTANT: Match needle size to thread size and weight of fabric
NEEDLE, FABRIC, THREAD SELECTION GUIDE
