ICMedical HD 450 User manual

User Manual
Washer-Disinfector
HD 450 / HD 450 Injection
Dear User,
We thank you for the trust you have placed in us in choosing to purchase this cleaning and
disinfection unit.
Like our other products, this cleaning and disinfection unit was manufactured and certified
according to the strictest quality standards. However, please read this user manual thoroughly
before operating this unit.
Careful handling and care of the cleaning and disinfection unit helps increase its useful lifespan
as well as preserve its value.
IC Medical GmbH

General information
Please read this user manual before operating the HD 450 / HD 450 Injection. The user manual contains
important operating and safety instructions.
In order to ensure that your device continues to function properly, it is essential that you observe the following
points:
•Clean the HD 450 / HD 450 Injection regularly using a Service Tab using the service program
provided. (see Chapter 6 - Service program, P.39)
•For the safety of the operating personnel and to avoid damage which may occur due to a
possible short circuit or voltage peaks at components of the washer-disinfector, the device must be
connected to a separate circuit with appropriate overload protection (see safety instructions).
•When using filters and cleaning accessories, the specified period of use must always be
observed. Only use cleaning media approved by IC Medical to operate the washer-disinfector.
•To ensure consistently good water quality, we as the manufacturer recommend the use of a
demineralisation system (VE).
Store the user manual carefully near your washer-disinfector. The user manual is part of the product.
You can download the latest version of the user manual or information on accessories free of charge directly
from the download area of our website.
Go to https://www.icmedical.de/en/downloads-en for this. Select the appropriate product group and follow the
on-screen instructions.
User Manual
valid for
HD 450 Basic / HD 450 Injection
IC Medical GmbH, Rudersberg-Steinenberg
Version 7.0
Responsible for the content are:
IC Medical GmbH
Schorndorfer Str. 67
73635 Rudersberg-Steinenberg / Germany
E-Mail: [e-mail]
www.icmedical.de
© 2019 IC Medical GmbH
Subject to technical changes
Please note that translation errors do
not affect the validity of the user
manual.
0297

Preface
Thank you for purchasing this washer-disinfector from IC Medical GmbH.
Device designation
In this user manual, the washer-disinfector is referred to as HD 450 / HD 450
Injection.
User Manual
This user manual contains important safety instructions and information you need
to operate the HD 450 / HD 450 Injection. Read the user manual before using the
washer-disinfector for the first time. It gives you important information on the
safety, use, care and maintenance of the unit.
This will protect you and prevent damage to the device.
Risk prevention
Please read all safety instructions carefully before you use the
HD 450 / HD 450 Injection in operation.
Symbols in the user manual
Symbol
Meaning
Explanation
CAUTION
Warnings contain safety-relevant information. They warn of possible
personal injury and damage to property. Read the warnings carefully
and observe the instructions and rules of conduct given therein.
NOTE
Notes contain information that requires special attention.
INFORMATION
Indicates additional information and comments.
▪
Step in the procedure
Each action step is preceded by a black square.
Example:
Use the Arrow-Key to select the number of cycles and confirm with
OK.

Safety instructions
When operating the HD 450 / HD 450 Injection, observe the safety instructions listed below and those
contained in the individual chapters.
Determination
▪Use the HD 450 / HD 450 Injection only for the purpose specified in the user
manual.
Power cable and plug
▪The statutory regulations and connection conditions of the local electrical supply
company must be complied with in full.
▪Never damage or alter the power cord or plug.
▪Never operate the HD 450 / HD 450 Injection if the power cord or plug is damaged.
▪Never pull the power cord to remove the power plug from the outlet. Always touch
the power plug directly.
▪Do not run the power cable along a heat source.
▪Be careful not to pinch the power cord.
Installation, commissioning,
Start-up
▪After unpacking the device, check it for possible transport damage.
▪The HD 450 / HD 450 Injection is not suitable for operation in hazardous areas
according to the current valid VDE regulations.
▪Only have the electrical connection and the connections for supply and waste
water carried out by a specialist.
▪Operate the HD 450 / HD 450 Injection, especially when installed, only with the
protective tub recommended by us.
▪A separate circuit with its own overload protection (nominal value: 16 A) is required
to operate the HD 450 series washer-disinfectors. An additional 30 mA rated
residual current circuit breaker (RCD) is recommended.
▪No adapters or multiple sockets may be connected in between.
▪Deviations from these specifications lead to the loss of any warranty. IC Medical
will not be liable for any damage or repair costs incurred as a result.
▪Before putting the device into operation for the first time, observe all the
instructions described in this user manual.
Daily operation
▪Only use instruments intended by the manufacturer for mechanical reprocessing in
a washer-disinfector. It is imperative that you follow the instructions of the
instrument manufacturer.
▪Particularly when purchasing new instruments, the manufacturer's instructions for
initial cleaning must be observed.
▪When using additional components for holding instruments, e.g. hollow
instruments, the instructions in their operating instructions provided by the
manufacturer of the instruments must be observed.
▪Observe the relevant standards and guidelines for the reprocessing of
instruments, e.g. those of RKI, BfArM, DGSV, DGKH etc. as well as the
reprocessing instructions of the instrument manufacturers and AKI.

▪The personnel responsible for instrument reprocessing must have the necessary
knowledge and be instructed.
▪Operate the device only with the basic basket provided for this purpose.
▪In autumn, winter and spring, condensation may form on the HD 450 Series units.
This is due to the different ambient temperatures and no device error.
▪Never operate the device without supervision. Unauthorized operation may result
in damage to the unit or its equipment and is at your own risk. IC Medical accepts
no liability in this case.
Process media
▪Be careful when handling all process media. The cleaning and neutralizing agents
as well as the rinse aid may contain irritating or even corrosive substances.
▪Use only process media approved for use in a washer-disinfector and specifically
for use in the HD 450 Series.
▪Observe the instructions for use and safety of the manufacturer of the process
media.
▪If process media that have not been released are used, IC Medical accepts no
liability for any damage to the device or the instruments.
▪If you have any questions about the compatibility of the process media with the
instruments, please contact the instrument manufacturer concerned. IC Medcial
provides information on the use of the process media in the HD 450 / HD 450
Injection devices, but is not responsible for their effect on the instruments.
▪Any liquid in the drawer and the bottom tray underneath may also contain process
media in the event of damage. It is imperative that you observe the safety
instructions of the process media manufacturer.
Maintenance
▪Have maintenance carried out by authorized persons only.
▪Observe the specified maintenance intervals.
Storage and transport
▪Install and operate the device in a frost-free environment. Store and transport the
unit in a frost-free environment.
▪Avoid strong vibrations of the device.
Breakdowns
▪If repeated fault messages should occur during operation of the HD 450 / HD 450
Injection, shut down the device and contact customer service.
▪Only have the device repaired by authorized persons.

Table of contents
Chapter 1 - Performance description .................7
Intended use...................................................................7
Chapter 2 –Device description...........................8
Scope of delivery ............................................................8
Device overview of the HD 450 / HD 450 Injection .........9
The HD 450 / HD 450 Injection has the following features
......................................................................................10
Decalcifying system......................................................10
Automatic door lock ......................................................11
Emergency release.......................................................11
Chapter 3 –Installation and Start-up................12
Conditions for setting up, installing and ........................12
put into operation..........................................................12
Anforderungen an den Aufstellort.................................12
Device connections.......................................................13
Set-up options...............................................................13

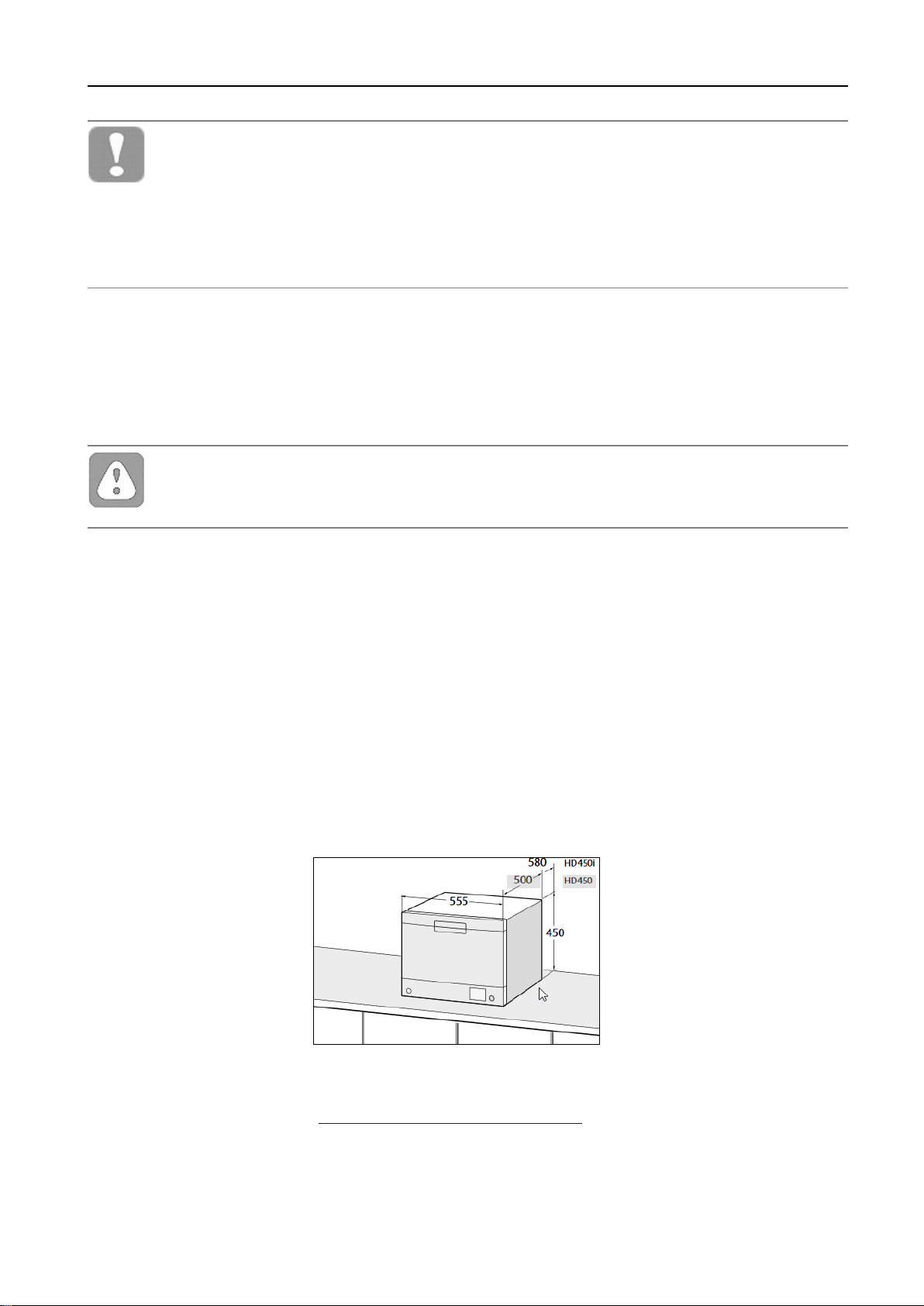

Space requirement .......................................................13
Switch device on / off....................................................14

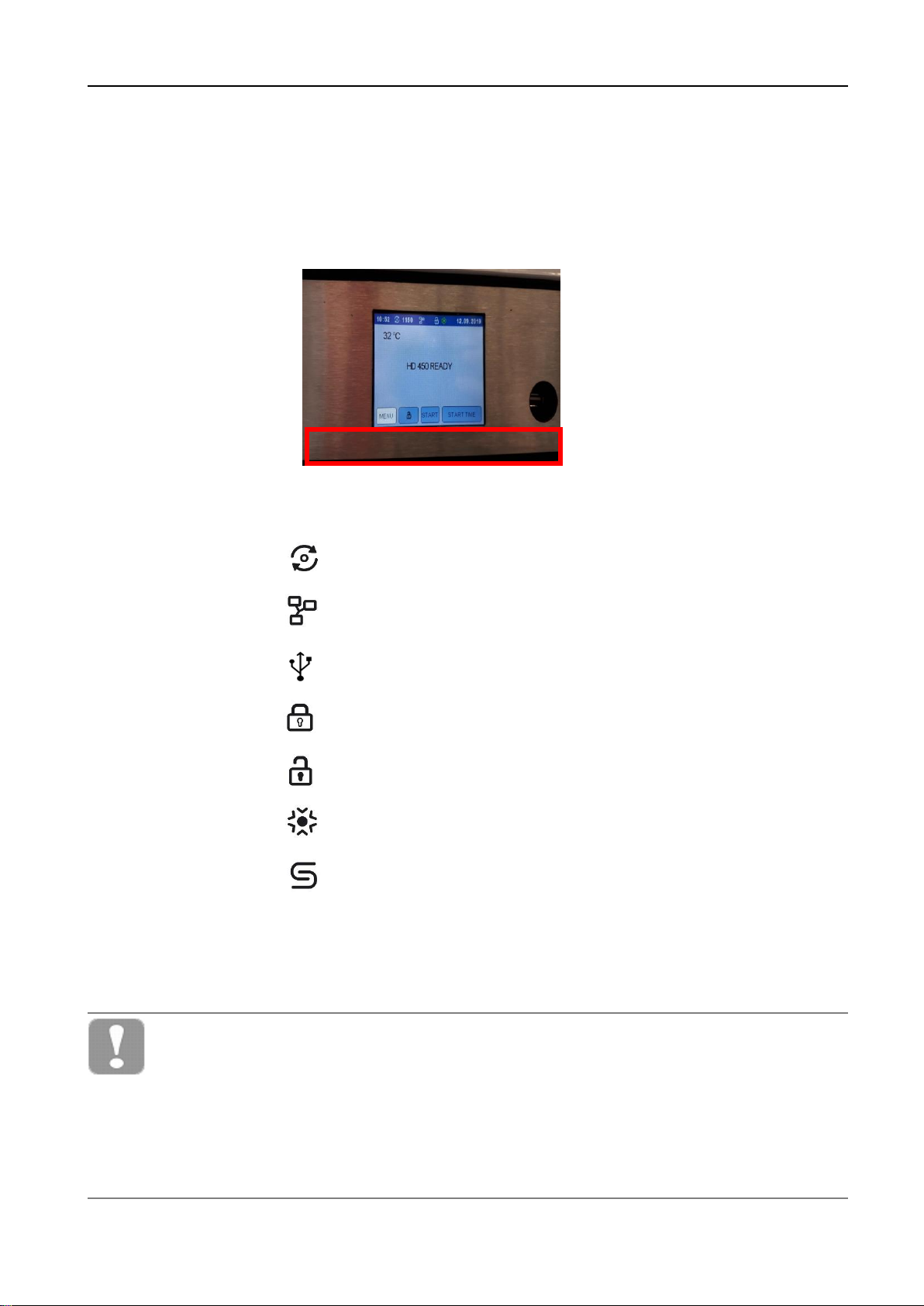

Symbols Touch display.................................................15
Fill in regenerating salt (operation without VE system).15
Fill in rinse aid / refill (operation without VE system).....18
Inserting / dosing process medium ...............................18
Requirements for initial commissioning.........................19
Chapter 4 –Cleaning and disinfection .............20
Classify medical instruments ........................................21
Sample loading.............................................................22
Before starting the program, note the following ............23
Start Program ...............................................................23
Start time preselection..................................................24
Program is running .......................................................25
Remove instruments after end of program....................26
Chapter 5 –SETUP MENU .................................29
Menu levels...................................................................29
User Menu....................................................................30
Admin Menu..................................................................31
Create user...................................................................32
Delete user ...................................................................32
Edit Administrator .........................................................33
Read memory...............................................................34
Format memory ............................................................34
Network settings ...........................................................35
Setting the time and date..............................................35
Signal tones and key click.............................................35
Manual filter cleaning....................................................36
Reminder Service Tab..................................................36
Deliming........................................................................37
DI monitoring.................................................................37
Set language.................................................................37
Read transfer data........................................................38
Read transfer data........................................................38
Firmware update...........................................................39
Service program............................................................39
Chapter 6 - Maintenance ....................................40
Regular inspection and cleaning...................................40
Avoid staining................................................................43
Service program............................................................43
Clean longLife filter (only for HD 450 Injection).............44
DI water ........................................................................47
Maintenance .................................................................48
(Process) Validation......................................................48
Chapter 7 - Recording ........................................49
Batch record..................................................................49
Use USB flash drive as output medium ........................49
Computer as output medium.........................................50
HD450Printer................................................................50
Chapter 8 –Operating breaks............................54
Operating breaks ..........................................................54
Decommissioning..........................................................54
Transport ......................................................................54
Recommissioning after change of location ...................55
Chapter 9 –Functional testing ..........................56
Automatic function test..................................................56
Manual function test......................................................56
Inspections in daily operation........................................56
Chapter 10 –Malfunctions.................................57
Notifications ..................................................................57
Warnings.......................................................................57
Malfunction report.........................................................57
Before you contact us...................................................57
Malfunction messages..................................................59
Operating data.....................................................62
Technical data.....................................................63
Components and accessories...........................64

Chapter 1 –Performance description
Chapter 1 - Performance description
In this chapter you learn
▪for which purpose you use this HD 450 / HD 450 Injection
▪what benefits you will achieve by using this HD 450 / HD 450 Injection
Intended use
Purpose of use
The HD 450 / HD 450 Injection is a washer-disinfector intended for use in the
medical field, e.g. in clinics and medical officies.
Universal Use
In this washer-disinfector, also called washer-disinfector, reprocessable medical
devices can be cleaned and thermally disinfected. This means that instruments that
are heat-resistant up to a temperature of 95 °C can be reprocessed by machine,
provided they are suitable and approved by the instrument manufacturer.
In the remainder of this manual, the washer-disinfector is referred to as the
appliance. In this user manual, reprocessable medical devices are generally
referred to as instruments if the medical devices to be reprocessed are not defined
in more detail.
Cleaning and disinfection
The preparation of the instruments and other wash ware is achieved by the use of
water in combination with a chemical cleaner.
The final disinfection is carried out by thermal disinfection.
According to the A0-concept of EN ISO 15883-1, thermal disinfection is carried out
with the parameters 90°C (+ 5°C, - 0°C) and 5 min exposure time (A0 3000). This
kills vegetative bacteria and fungi or fungal spores and inactivates viruses (incl.
HBV, HCV), i.e. the effective range AB according to the RKI guideline is achieved. If
necessary, legal or official regional instructions must be observed for disinfection.
Important for adequate cleaning of the instruments is the use of appropriate load
carriers (baskets, modules, inserts, etc.).
According to DIN EN ISO 15883 the device can be qualified for the validation of the
processes
NOTE
The devices of the HD 450 series are expressly NOT suitable for
following applications:
▪Preparation of thermolabile instruments (e.g. flexible endoscopes)
▪Processing of waste for disposal and in the laboratory area
▪Cleaning of household utensils

Chapter 2 –Device description
Chapter 2 –Device description
In this chapter you learn
▪what is included in the standard scope of delivery
▪what the HD 450 / HD 450 Injection has to offer
▪which components and safety devices the device has
Scope of delivery
Standard-Scope of delivery
1. HD 450 / HD 450 Injection
2. Inlet water hose
3. Waste water hose
4. Main connection cable
5. Hose clamp
6. User manual
7. USB-Stick with printer software etc.
Components
▪Accessories according to requirements and order
NOTE
Every washer-disinfector is thoroughly checked for perfect functioning before
leaving our factory.
It is possible that water stains may remain from the test runs.

Chapter 2 –Device description
Device overview of the HD 450 / HD 450 Injection
Front side
Figure 1 - Front side HD 450 / HD 450 Injection
Back side
Figure 2 –Back side HD 450 / HD 450 Injection
Interior view
Figure 3 –Interior view HD 450 / HD 450 Injection
1Door handle
2Push buttons (On/Off)
3Control and display panel
(touch display)
4USB interface
1Mains connection cable
2External connection control
element (optional)
3Ethernet network connection
(RJ45)
4Connection for cold water ¾
5Connection for waste water
1Connection piece for injection bar
(only HD 450 Injection)
2Water inlet
3Salt container
4Flushing arm
5Coarse and fine sieve
6Cleaning chamber for process medium
and chamber for rinse aid

Chapter 2 –Device description
The HD 450 / HD 450 Injection has the following
features
Internal water softening /
decalcification system
The HD 450 / HD 450 Injection is equipped with an internal decalcifying system.
The degree of hardness of the local drinking water network is set in the unit, which
sets the decalcification system to the optimum performance. This ensures
optimum flushing of chlorides.
Speed monitoring of the
flushing arm
During a program run, the speed of the flushing arm is monitored regularly. This
ensures that the cleaning process runs smoothly and that the rinsing arm is not
blocked in the washing chamber by, for example, instruments pointing
downwards.
Cleaning process-
monitoring
During a program run, the rinsing process is monitored by a sensor. The function
of the rinsing arm and the concentration of the process chemistry are checked.
Automatic conductivity
measurement
The device constantly monitors the flushing process by means of conductivity
measurement. If the conductance value in the last final rinse is too high, a warning
is issued and the cleaning and disinfection process is terminated as unsuccessful.
USB, Ethernet
For safe, efficient and convenient documentation of the cleaning and disinfection
process, a USB and an Ethernet interface are integrated in the device. The data
can be easily transferred from the HD 450 / HD 450 Injection to the practice
computer for documentation.
Door lock
The HD 450 / HD 450 Injection has an automatic door lock with servo lock.
Emergency release
With the aid of the emergency release, the door can be opened manually in the
event of a power failure or malfunction.
3-stage acoustic signals
The device emits acoustic signals to inform the operator. These are intended to
attract attention and serve as information. The volume of the signals can be
adjusted to the requirements of the practical environment in the admin menu
(Chap.5 - SETUP MENU P.Fehler! Textmarke nicht definiert.).
Signal
Significance
Button click
Correct pressing of a key
20 x 0,5 Sekunden
Program successfully completed
(Repeat after 5 and 10 minutes)
10 x 5 Sekunden
Malfunction (error)
Decalcifying system
The HD 450 / HD 450 Injection requires soft water to function properly. The Thermo Tabs
(Art. No. 100 921) process chemistry used guarantees this basic water quality up to a
hardness of 15°dH. If the water hardness exceeds 15°dH, the built-in decalcifying system
must be activated and IRA salt used. Always ensure that the injection rail is not loaded on
the open outer door. To do this, place the basic basket on a firm surface (worktop).
For further information please see Chap. 6 - DI water, S.47.
Classification water hardness
°dH
Ca2+ mmol
Soft
less than 8,4 °dH
less than 1,5 mmol
Remedy
8,4 to 14 °dH
medium 1,5 to 2,5 mmol
Hard
more than 14 °dH
more than 2,5 mmol

Chapter 2 –Device description
NOTE
IC Medical strongly recommends the use of demineralized water, regardless of the
hardness of the tap water in the medical office.
The conductivity of the water must not exceed 300 µS to avoid damage to
components of the device.
If a VE cartridge is used, IRA salt and rinse aid are NOT required in addition (for
further information, see Chap. 6 - DI water, S.47).
Automatic door lock
The automatic door lock guarantees a secure locking and tightness of the device
during the program run. The door is locked by means of a servo lock. For this
reason, the device must be connected to a mains supply to open and close the
door and the mains switch must be switched on.
Opening and closing the door
Pay attention to the locking symbol in the upper display line.
Door –locked (red)
Door –open (white)
NOTE
During the program run, the door can only be opened by the user by aborting the
program.
Never open the door by force!
After acknowledging a program abort or a program end, the door can be opened
using the personal 3-digit user code.
Emergency release
In the event of a power failure, the door of the HD 450 / HD 450 Injection cannot
be opened for instrument removal. In this case, you can activate the emergency
door release. It is located on the right-hand side in the lower part of the device.

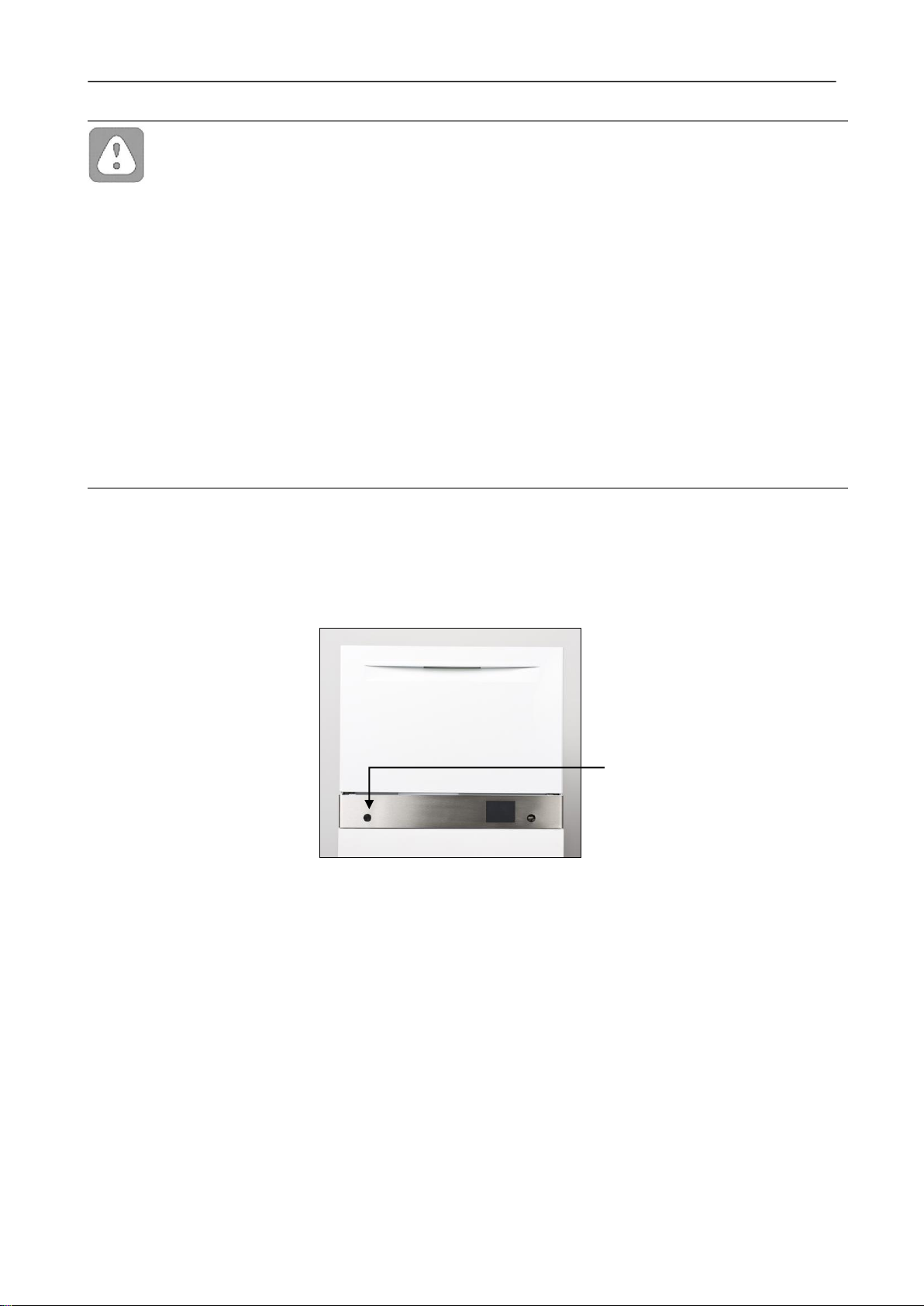

Figure 4 - Operate emergency unlocking device
CAUTION
Never operate the emergency release while a program is running!
▪Hot vapors may escape from the unit.
▪The metal surface of the HD 450/ HD 450 Injection can become very hot.
Non-observance may result in scalding and burns.

Chapter 3- Installation and Start-up
Chapter 3 –Installation and Start-up
In this chapter you learn
▪who is allowed to set up, install and commission the HD 450 / HD 450 Injection
▪which prerequisites must be fulfilled for setting up and installing the system
▪which installation variants are available
▪how the device is switched on / off
▪which symbols are shown on the display
▪such as regenerating salt, rinse aid and process medium are filled in
▪the requirements for initial commissioning
Conditions for setting up, installing and
put into operation
▪Only allow the HD 450 / HD 450 Injection to be set up, installed and put into
operation by persons who have a professional qualification or are operators in
the field. The installation requirements of the HD 450 / HD 450 Injection must be
observed. The latest version can be found on our website in the download area
at https://www.icmedical.de/en/downloads-en. Non-observance will result in the
loss of any warranty claims.
▪For initial commissioning, observe all the instructions described in this chapter.
NOTE
The devices of the HD 450 series are expressly NOT suitable for the following
locations:
▪The HD 450 / HD 450 Injection is NOT suitable for use in potentially explosive
atmospheres according to current VDE regulations.
▪The HD 450 / HD 450 Injection is intended for use outside the patient
environment. The minimum distance to the treatment area must be at least 1.5
meters in the radius.
Failure to do so may result in damage to the HD 450 / HD 450 Injection
and / or injuries to persons.
Requirements for the place of installation
Place of installation
▪Install the HD 450 / HD 450 Injection in a dry and dust-protected place. The
humidity should be in the range of 30-60 RH% and the ambient temperature
must be between 15-35°C. Otherwise fault messages may occur.
▪Ensure that the unit is level.
▪For initial commissioning, observe all the instructions described in this chapter.
▪We recommend the use of a protective tub, especially if the device is used in its
installed state.

Chapter 3 –Installation and Start-up
NOTE
▪With all variants of the HD 450 series, no installations may be located in the
area of the rear wall.
▪When setting up or installing the unit, ensure that adjacent base cabinets or
other furniture are resistant to condensation.
Failure to do so may result in water vapor escaping and damage to the
furniture.
Device connections
▪Have the electrical connection and the connections for the supply and waste
water set up in your practice by authorised persons only.
▪For installation and initial commissioning, please refer to the technical data on
page 63 and their observance as a prerequisite for installation.
CAUTION
Failure to do so may result in a short circuit and/or fire. and / or water
damage and / or electric shock. Serious injuries may result.
Set-up options
You can set up the HD 450 Series in the following manner:
▪Free standing on a worktop.
▪If the device is to be operated as a substructure unit, please ensure that the unit
has space of 2.5 cm on the side walls and at the top and that a ventilation opening
is required on the wall side of the work surface for the circulating air (min. 5 cm x
35 cm).
▪Only use the HD 450 / HD 450 Injection with the protective tub recommended by
us (Art. No. 105 082), especially when installed.
Space requirement
Substructure
▪The unit fits into a 60 cm wide recess next to other base cabinets in your medical
office.
Dimensions HD 450-series
Installation instructions
▪Please observe the assembly instructions HD 450 / HD 450 Injection. You can
download the latest version of these instructions from the download area
(https://www.icmedical.de/en/downloads-en) on our website.

Chapter 3- Installation and Start-up
CAUTION
▪Never splice or modify the power cord.
▪The power cord has a maximum length of 3 m.
▪Never pull the power cord to remove the plug from the outlet. Always touch the
plug directly.
▪Do not place heavy objects on the power cord.
▪Never run the power cord over areas where it may be pinched (e.g. doors or
windows).
▪Do not run the power cable along a heat source.
▪Do not use nails, staples or similar objects to fix a cable.
▪If the power cable or plug is damaged, turn off the equipment. Only authorized
persons may replace the power cord or plug.
Failure to do so may result in damage to the cable or plug and/or fire or
electric shock. Serious injury may result.
Switch device on / off
Switch on the device
▪Switch on the HD 450 / HD 450 Injection by briefly pressing the push button.
Switch off the device
▪You can switch off the HD 450 / HD 450 Injection by pressing and holding the
button for 3 seconds.
Push button switch (on/off)

Chapter 3 –Installation and Start-up
Symbols Touch display
Touch display
You can start the program and make all relevant settings via the touch display.
The upper toolbar of the touch display provides users a quick overview of the
status and configuration of the device.
Figure 5 - Start-up screen HD 450 / HD 450 Injection - toolbar marked red
Meaning Display icons
Cleaning cycle (batch) - number of cycles to date
Network - device is connected to the medical office network
USB stick - stick is plugged in
Door - locked (red)
Door - open (white)
Rinse aid icon
Decalcifying system (green = active and filled, red = inactive and empty)
Fill in regenerating salt (operation without VE system)
Determine the water hardness of your tap water.
Alternatively, you can measure your own water hardness or ask your local
municipal utility for the current water hardness at your location.
NOTE
▪If the water hardness is above 15°dH, we recommend the use of regenerating
salt as the manufacturer.
▪Only use special IRA salt (Art. No. 103 006) in the device.
▪Never pour cleaners or other process media into the salt container.
Non-observance can lead to malfunctions of the deliming system.

Chapter 3- Installation and Start-up
Fill with regenerating salt
▪Open the screw cap pf tje salt container.
Figure 6 - Screw cap of the salt container inside the washing chamber
▪Prior tot he first commissioning of the decalcifying system, fill the following
containers with 0.5 litres of water to the salt container so that the salt can
dissolve in it.
▪Add a maximum of 400 g IRA salt to the salt container.
▪Clean the edge of the filling opening of salt residues and overflowed brine to
ensure that the cap is screwed on securely. Any IRA salt residues must not
remain in the device, as this can lead to program interruptions and damage to
the instruments and the device.
▪Screw the cap back on tightly.
NOTE
▪After filling the salt container for the first time, no more water needs to be added.
▪Please remove the cap every 10 cycles and clean it thoroughly.
▪If a VE cartridge is used, the use of IRA salt and rinse aid is NOTrequired.
Activation / deactivation of the deliming system
After you have filled the IRA salt into the salt container, decalcification must be activated
manually in the admin menu.
Activation
descaling system
▪Start the device with the push button (On/Off) and operate the menu on the touch
display.
Figure 7 - Home screen HD 450 / HD 450 Injection

Chapter 3 –Installation and Start-up
▪Enter your 6-digit administrator code and confirm with OK.
Figure 8 –Enter administrator code
▪In the admin menu, go to the item „Deliming“
Figure 9 - Activating / deactivating descaling
▪Select descaling „ON“ when you have filled the device with IRA salt.
If you have NOT added IRA salt, do not activate deliming
▪When decalcification is activated and enough IRA salt has been added to the salt
container, this green icon appears at the top of the display toolbar.
If decalcification is activated and there is not enough IRA salt in the salt chamber,
this red icon appears in the toolbar.
Figure 10 - Example display Salt stock sufficient = green symbol
NOTE
▪When the salt supply is exhausted, fill the salt container again with max. 400 g
IRA Salt.
▪Salt residues in the washing chamber after filling must be rinsed thoroughly with
tap water before the next cleaning cycle.

Chapter 3- Installation and Start-up
Fill in rinse aid / refill (operation without VE system)
Only fill in rinse aid if you notice stains on the instruments. If this is not the case, do not
use rinse aid.
NOTE
▪Check the suitability of the instruments to be cleaned with regard to the use of
rinse aid!
▪If you notice visible streaks on the instruments, the cause could be an
overdose of the rinse aid.
▪If a VE cartridge is used, the use of IRA salt and rinse aid is NOT necessary
anymore.
Fill in rinse aid
▪Fill the rinse aid into the right chamber of the process media flap. A mark
indicates the maximum permitted level.
Figure 11 –Fill the rinse aid into the right chamber of the process media flap.
Rinse aid control
Figure 12 - Sufficient rinse aid in the device = green symbol
Refill rinse aid
If the rinse aid is missing or too little, the touch display will show a message to refill
the rinse aid.
Inserting / dosing process medium
NOTE
▪Use only Thermo Tabs (Art. No. 100 921) as process medium.
Failure to do so may result in damage to the instruments and the wash
chamber.
Open process media flap
Figure 13 –Open the left flap of the process media flap.
Filling compartment rinse aid

Chapter 3 –Installation and Start-up
Insert Thermo Tab
Figure 14 - Place the Thermo Tab in the dry left chamber
Close process media flap
(Watch the clicking sound)
Figure 15 - Close process media flap
Requirements for initial commissioning
▪The water treatment plant / demineralisation plant is connected, if installed or
present.
▪The cold water inlet tap is open.
▪The mains switch on the device is switched on.
▪A process medium (Thermo Tabs, Art. No. 100 921) is inserted.
▪IRA salt and IRA rinse aid are filled (only for operation without VE system).
▪The longLife filter, if present, is correctly installed in the injection rail (see
Chapter 6 - Maintenance, Page 44).
▪The device must be equipped with a basic basket and a grid for operation.
▪For correct loading of the basic basket with instruments see
Chap. 4 –Reinigung und Desinfizieren.
▪The basic basket incl. insert is correctly inserted into the device.

Chapter 4 –Cleaning and disinfection
Chapter 4 –Cleaning and disinfection
In this chapter you learn
▪what should be in mind when preparing the medical instruments
▪how to load the washer-disinfector correctly / how to classify the medical instrument
▪how to start a program and which phases a program runs through
▪how to cancel a program
▪how to recognize that a program has ended successfully
▪what you have to take into account when removing the disinfected instruments
Type of loading
You can clean and disinfect the following items in the HD 450 / HD 450 Injection:
▪solid instruments up to a total of max. 6 kg
▪Glass goods, e.g. measuring cups, test tubes, etc.
▪Bowls, dishes and receptacles
▪Hollow bodies, e.g. suction cannulae which are fixed to the hollow body
nozzles or transfer instruments, e.g. handpieces and contra-angle
handpieces using adapters.
NOTE
▪ONLY use turbines, handpieces and contra-angle handpieces provided by the
manufacturer for machine reprocessing in a washer-disinfector. It is imperative
that you observe the instructions of the instrument manufacturer.
▪Drying of dirt on and in the handpieces and contra-angles should be avoided.
▪Manual pre-cleaning of handpieces and contra-angle handpieces before
loading into the washer-disinfector is required.
▪The use of a longLife filter is recommended if turbine, handpieces and contra-
angle handpieces are to be reprocessed in a washer-disinfector. It is
imperative that you follow the instructions of the instrument manufacturer.
▪In case of negative influence on the handpieces and contra-angle handpieces
despite observance of the manufacturer's instructions, the manufacturer of the
instruments bears the responsibility.
Before mechanical
preparation
The following should be observed before machine processing:
▪The medical instruments must be pre-treated and rinsed under clear water.
▪The outer surfaces of the handpieces and contra-angle handpieces must be
free of residues, e.g. dental cement.
▪Air and spray channels must be freely continuous.
Suitable process media
▪A Thermo Tab must be used for cleaning.
Care of instruments
Leading manufacturers of transmission instruments recommend drying the spray
immediately after the cleaning and disinfection process, Air and water ducts by
means of medical compressed air and care with suitable care products / oils (Art.
No. 105 250, Medical white oil). Please also observe the national regulations of
your country.
