IKA GL 674 User manual

BUILT-IN
MICROWAVE
GL 674
U S E R ' S G U I D E

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
AC925BVJ
230V~50Hz
1450W
900W
1100W
25L
315mm
594x470x388mm
Approx. kg21.5
25
Rated Input Power(Convection):
00W
2

IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
4. Keep the appliance and its cord out of
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heatinghas ended.
15.This appliance is intended to be used in
household and similar applications such
as:
-staff kitchen areas in shops, offices and
other working environments;
-by clients in hotels, motels and other
residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use. Keep cord away from
heated surface, and do not cover any
vents on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children unless they are
older than 8 and supervised.
reach of children less than 8 years.
3

READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced
physical , sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28.Steam cleaner is not to be used.
29 During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
30. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
31. WARNING: The appliance and its accessible parts become hot during use.Care should
be taken to avoid touching heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open.(for ovens with a
decorative door.)
33. Surface of a storage cabinet can get hot.
4

DANGER
Electric Shock Hazard
Touching some of the interna components
can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to unplug the appliance from the
power supply.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the
cavity walls that the food cooked can
touch:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
5

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
6

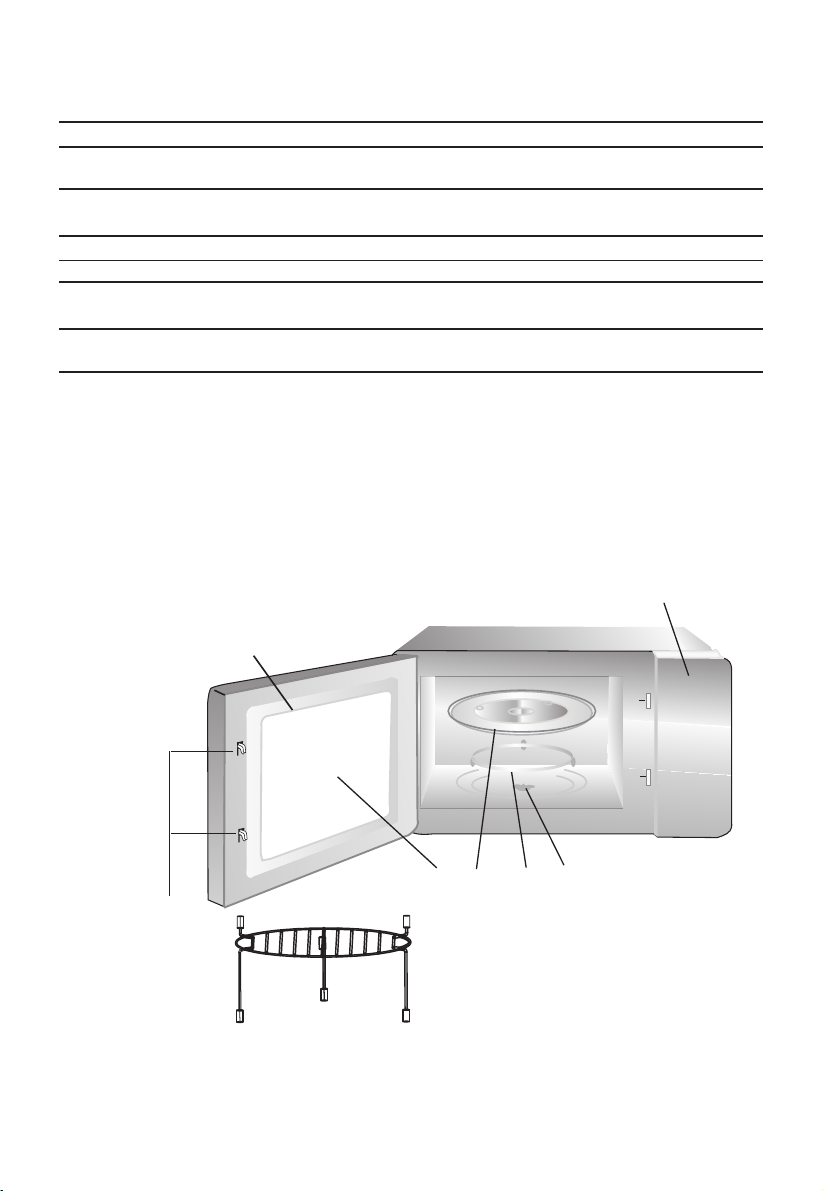

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Grill Rack( Only be used in grill function
and be placed on the glass tray )
7

Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
The accessible surface
may be hot during
operation.
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only.It is not intended for counter-top use or for
use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm
deep and 85cm off the floor).
5.The appliance is fitted with a plug and must only be connected to a properly installed
earthed socket.
6.The mains voltage must correspond to the voltage specified on the rating plate.
7.The socket must be installed and connecting cable must only be replaced by a
qualified electrician.If the plug is no longer to accessible following installation,an
all-pole disconnecting device must be present on the installation side with a contact
gap of at lease 3mm.
8.Adapters,multi-way strips and extension leads must not be used. Overloading can
result in a risk of fire.
8

380+2
") $%*
"*(" %$$*%$
                
             
            
              
             
           
    
       
%*
( '(- -+) (+ ' -! )(0+ %
Installation Instructions
Please Read the Manual Carefully Before Installation

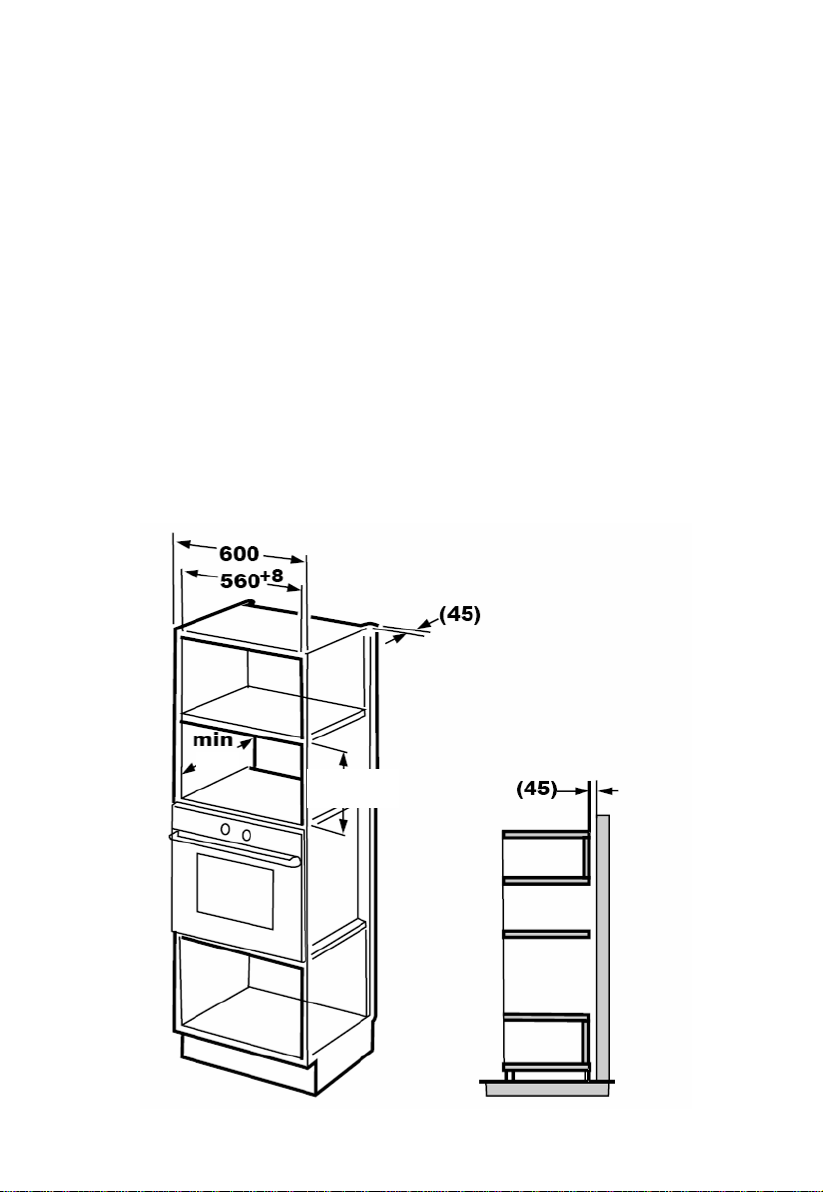

A. Built-in furniture
550
9

B.Prep are the cabi inet
put the template on the bottom plane of cabinet.
1. Read the instruction on the BOTTOM CANINET TEMPLATE ,
2. Make the marks on the bottom plane of cabinet according to marks"a" of
of the template
aa
CENTER LINE
FRONT EDGE
LEFT EDGE
TEDGERIGH
3. Remove the bottom cabinet template and fix the bracket with screw A.
aa
Screw A
Bracket
Bracket
Screw A
Centre line
10

C .Install the oven

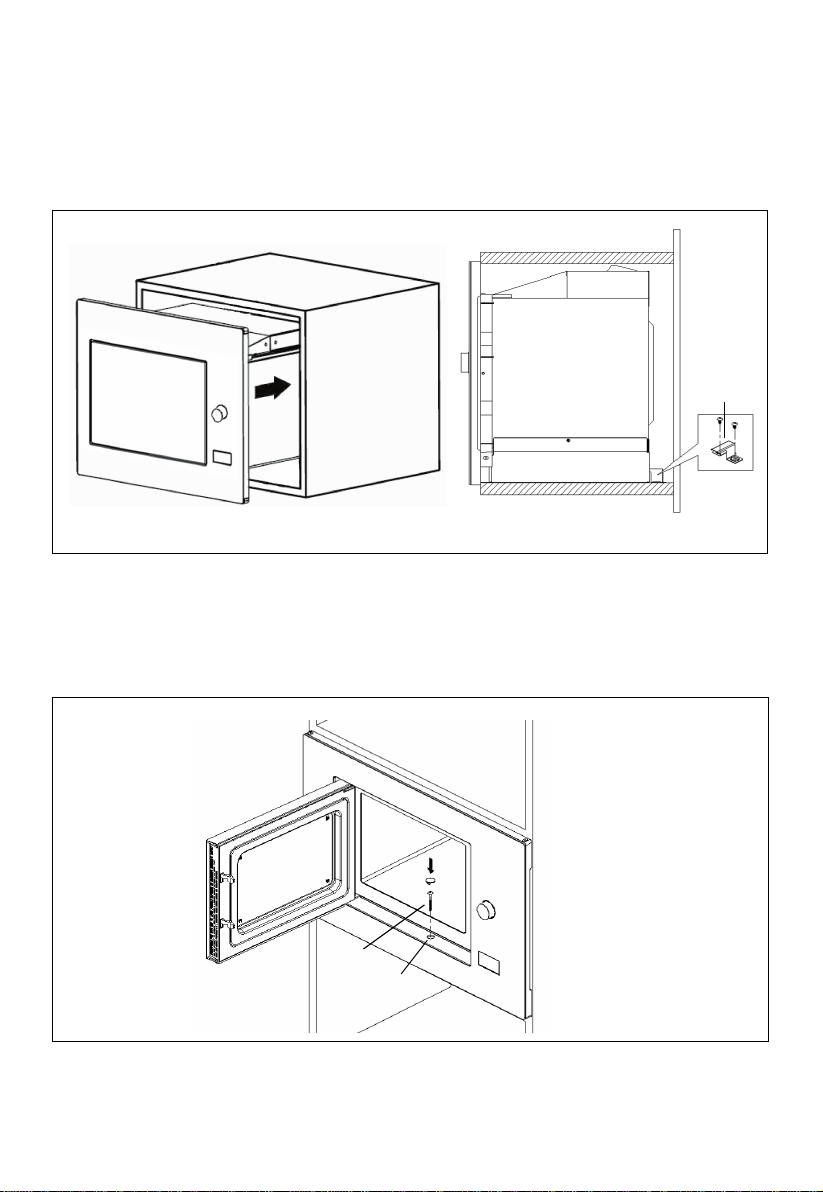

4. Install the oven to the cabinet
- Make sure the back of the oven is locked by bracket.
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.
bracket
Then fix the Trim-kit plastic cover to the installation hole.
Installation Hole
Screw B
11

Operation Instructions
1) Press " " once, the screen displays "P100".
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash.
3) Press " " to confirm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " " to start cooking .
1. Clock Setting
When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.
1) Press " " once to select clock function, the hour figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " " to finish clock setting. ":" will flash, and the time will light.
Note: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
2) Press " " once again or turn " " to choose 80%
mircrowave power.
Note: 1) The clock function will not work if the clock is not set.
2) During the process of clock setting, if you press " ", the oven
will go back to the previous status automatically.
2. Microwave Cooking
Press " " the LED will display "P100".
you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press.
Then press " " to confirm, and turn " " to set cooking time
from 0:05 to 95:00. Press " " again to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven as the following steps.
Start/+30Sec./Confirm
Clock/ Kitchen Timer
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Stop/Clear
Start/+30Sec./Confirm
Clock/ Kitchen Timer
Clock/ Kitchen Timer
,
Microwave/Grill/Combi./Conve.
Press " " for times or turn " " to choose the power
Microwave/Grill/Combi./Conve.
Microwave/Grill/Combi./Conve.
Microwave/Grill/Combi./Conve.
12

Order Microwave
Power
Display
1
2
3
4
5
100%
80%
50%
30%
10%
1) Press " " once, the screen displays "P100".
3) Press " " to confirm, and the screen displays "C-1".
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press " " to start cooking .
2) Press " " for times or turn " " to choose
"Microwave/Grill/Combi./Conve." Pad instructions
P100
P80
P50
P30
P10
Note:If half the grill time passes, the oven sounds twice, and this is normal. In order
to have a better effect of grilling food, you should turn the food over,
close the door, and then press " " to continue cooking.
If no operation, the oven will continue working.
3. Grill or Combi. Cooking
Press " " the LED will display "P100", and
power you want, and "G-1", "C-1", "C-2", "C-3" or "C-4" will display for each added press.
Then press " "to confirm, and turn " " to set cooking time
from 0:05 to 95:00.
Press " " again to start cooking.
Example: If you want to use cook for
10 minutes, you can operate the oven as the following steps.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
press " " for times or turn the " " to choose the
Microwave/Grill/Combi./Conve.
Microwave/Grill/Combi./Conve.
Combination / (C-1) to
combi. 1 mode.
Microwave/Grill/Combi./Conve.
Microwave/Grill/Combi./Conve.
Start/+30Sec./Confirm
13
1

Display Microwave Grill Convection
C-1
C-2
C-3
C-4
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
3) Press " " to confirm the temperature.
4) Press " " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press " " key to start cooking.
1) Press " " key once, and "P100" displays.
2) Press " " for times or turn " " to select the
convection function. When convection temperature displays, it indicates convection function.
The temperature can be chosen from 140 degrees to 230 degrees.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound
five times and turn back to waiting states.
Microwave/Grill/Combi./Conve.
Microwave/Grill/Combi./Conve.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
4. Convection Cooking(With preheating funtion)
14
1) Press " " key once, and "P100" display .
2) Press " " for times or turn " " to select the
convection function. When convection temperature displays, it indicates convection function.
The temperature can be chosen from 140 degrees to 230 degrees.
s
Microwave/Grill/Combi./Conve.
Microwave/Grill/Combi./Conve.
5. Convection Cooking( Without pre-heating function)
3) Press the " " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
Start/+30Sec./Confirm
5) Press the " " key to start cooking.
Start/+30Sec./Confirm

1) Press " " twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
1) Press " " once, and the oven will display "dEF1".
2) Turn " " to select the weight of food from 100 to 2000 g.
3) Press " " to start defrosting.
Start/+30Sec./Confirm
3) Press " " to start defrosting.The defrost power is P30 , and
it connot be changed.
Start/+30Sec./Confirm
Weigh/Time Defrost
Weight/Time Defrost
1) In waiting state, press " " to start cooking with 100% power,
each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combination, convection cooking or time defrost state, each
press of " " can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100%
microwave power, then press " " to start cooking.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
6. Quick Start
7. Defrost By Weight
8. Defrost By Time
15
(1) Press " "twice, LED will display 00:00.
(2) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.)
(3) Press " " to confirm setting.
(4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.
If the clock has been set(24-hour system), LED will display the current time.
Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.
Start/+30Sec./Confirm
Clock/ Kitchen Timer
9. Kitchen Timer
At most 2 sections can be set for cooking. In multi-section cooking, if one section is
defrosting, then defrosting shall be placed in the first section.
Example: If you want to defrost food for 5 minutes and then cook with 80% microwave
power for 7 minutes, operate it as the following:
10. Multi-section cooking

1) Turn " " clockwise till "A-
Example: If you want to use "Auto Menu" to cook fish for 350g.
2) Press " " to confirm.
1) Turn " " right to choose the menu, and "A1" to "A10" will display, which means
2) Press " " to confirm.
3) Turn " " to choose the default weight as the menu chart.
4) Press " " to start cooking.
3) Turn " " to select the weight of fish till "350" displays.
4) Press " " to start cooking.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
pasta, soup, cake, pizza and chicken.auto reheat, potato, meat, vegetable, fish,
5" displays.
11. Auto Menu
16
1) Press " " twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time till "5:00" displays.
3) Press " " once, the screen displays "P100".
Weigh/Time Defrost
Microwave/Grill/Combi./Conve.
7) Press " " to start cooking, and buzzer will sound once for the
first section, defrosting time counts down; buzzer will sound once again entering
the second cooking. When cooking finished, buzzer sounds five times.
5) Press " " to confirm, and the screen displays "P 80".
6) Turn " " to adjust the cooking time till the oven displays "7:00".
Start/+30Sec./Confirm
Start/+30Sec./Confirm
4) Press " " once again or turn " " to
choose 80% microwave power.
Microwave/Grill/Combi./Conve.

The automatic menu procedure:
Menu
Weight
Display
Power
A1
AUTO REHEAT
150g
150
100%
250g
250
350g
350
450g
450
600g
600
A2 POTATO
1 (about 230g)
1
100%
2 (about 460g)
2
3 (about 690g)
3
A3
MEAT
150g
150
100%
300g
300
450g
450
600g
600
A4 VEGETABLE
150g
150
100%
350g
350
500g
500
A5
FISH
150g
150
80%
250g
250
350g
350
450g
450
650g
650
A6
PASTA
50g(with 450g cold water)
50
80%
100g(with 800g coldwater)
100
150g(with 1200g cold water)
150
A7
SOUP
200ml
200
100%
400ml
400
600ml
600
A8
CAKE
475g
475
Preheat to
180℃
A9
PIZZA
200g
200
C-4
300g
300
400g
400
A10
CHICKEN
500g
500
C-4
750g
750
1000g
1000
1200g
1200
17

12. Inquiring Function
(1) In states of microwave, grill, combination and convection cooking, press
, the current power will be displayed for 3 seconds.
After 3 seconds, the oven will turn back to the former state;
(2) In cooking state, press " " to inquire the time and the time will
display for 3 seconds.
1
Lock: In waiting state, press " " for 3 seconds, there will be a long beep
denoting entering the children-lock state and the current time will display if the time
has been set, otherwise, the LED will display " ".
Lock quitting: In locked state, press " " for 3 seconds, there will be a long
"beep" denoting that the lock is released.
Stop/Clear
Stop/Clear
Clock/ Kitchen Timer
Microwave/Grill/Combi./Conve.
0:00
3. Lock-out Function for Children
1
(1) The buzzer will sound once when turning the knob at the beginning;
(2) " " must be pressed to continue cooking if the door is opened
during cooking;
(3) Once the cooking programme has been set , " " is not pressed
in 5 minutes. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no responce.
(5) The buzzer will sound five times to remind you when cooking is finished.
. Specification
Start/+30Sec./Confirm
Start/+30Sec./Confirm
18
4

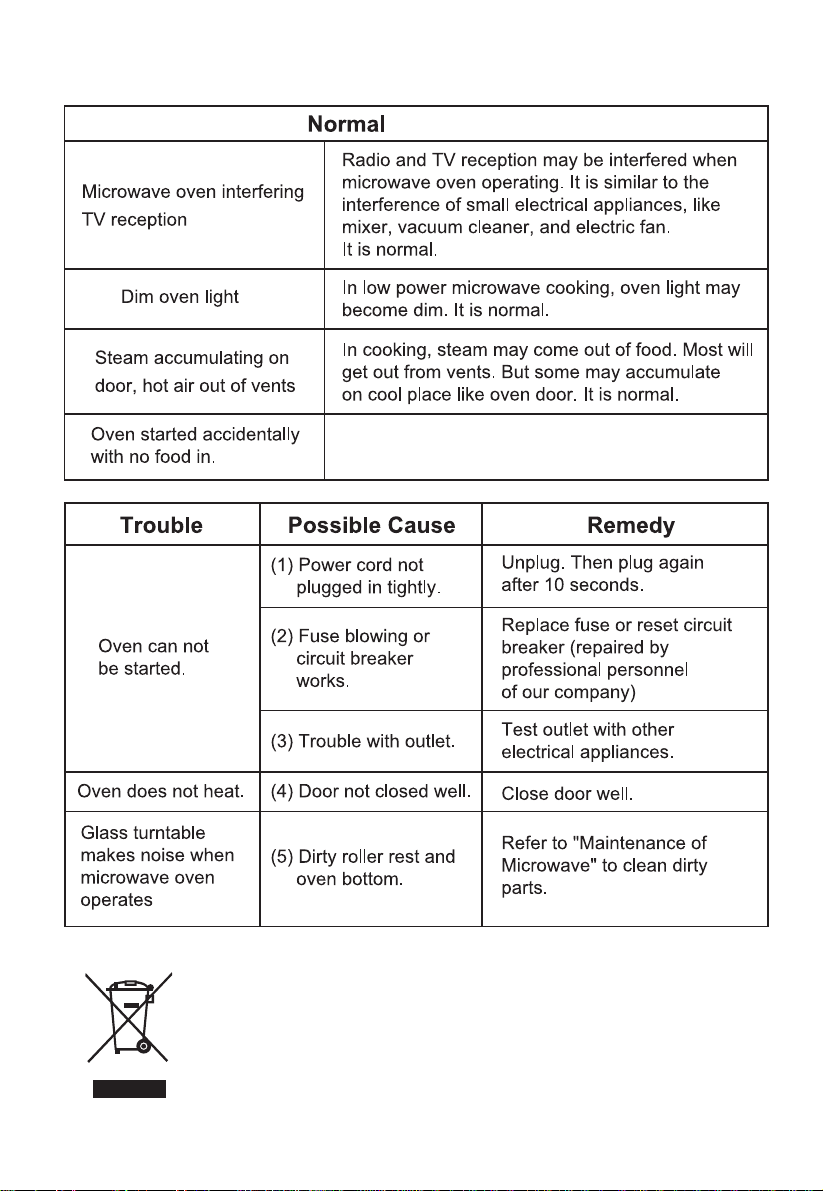

Trouble shooting
It is forbidden to run the unit without any food inside.
It is very dangerous.
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
19

WARRANTY
This Built-in Microwave is fully warranted against any defect arising out of defective
materials or faulty workmanship for a period of one year from the date of purchase. Should
any defect develop in this product, the customer should bring the product to the nearest
authorised service centre, where the company undertakes to get the product repaired free of
charge.
This warranty is not valid if :
• The use and care instructions have not been followed.
• Defects are caused by accident, misuse, abuse or commercial use.
• The repair work is carried out by persons not authorised by the company.
• Any modification or alteration of any nature is made in the product.
• Normal wear & tear of the product is not covered under warranty
• The Bill/Cash memo and copy of warranty card is not presented.
Under no circumstances, whether based on limited warranty or otherwise shall the
company be liable for incidental, special or consequential damages. Use of product
indicates acceptance by you of the aforesaid terms and conditions.
PRODUCT NAME : BUILT-IN MICROWAVE
MODEL NO.:
SERIAL NO.:
BILL NO. & DATE:
NAME OF OWNER:
ADDRESS:
Imported & Marketed by/In case of customer complaints Contact Manager - Customer Support
Glen Appliances Pvt. Ltd.
I-34, DLF Ind. Area, Phase-I, Faridabad, India. Phone [phone]
E-mail : [email protected], [email protected] Website : www.glenindia.com
GL 674
