Ikan OTTICA User manual

- 1 -
OTTICA
Manual
OTTICA 20x Zoom NDI 1080/60P PTZ Video Camera
2
0
X
Z
o
o
m
F
1
.
6
-
F
3
.
5
f
5
.
5
m
m
-
f
1
1
0
m
m
2
0
X
Z
o
o
m
F
1
.
6
-
F
3
.
5
f
5
.
5
m
m
-
f
1
1
0
m
m
®
www.ikancorp.com [email protected]

- 2 -
1. Getting Started 3
1.1 Camera Interface 3
1.2 Power-On Initial Configuration 4
1.3 Video Output 4
1.4 Bracket Mount 5
2. Product Overview 7
2.1 Product Introduction 7
2.1.1 Dimension 7
2.1.2 Accessory 7
2.2 Main Features 8
2.2.1 Camera Performance 8
2.2.2 Network Performance 8
2.3 Technical Specifications 9
2.4 Interface Instructions 11
2.4.1 External Interface 11
2.4.2 Bottom Dial Switch 12
2.4.3 RS-232 Interface 12
3. Application Instructions 14
3.1 Remote Control 14
3.1.1 Keys Introduction 14
3.1.2 Applications 15
3.2 Menu Settings 17
3.2.1 Main Menu 17
3.2.2 System Settings 17
3.2.3 Camera Settings 18
3.2.4 P/T/Z 20
3.2.5 Video Format 20
3.2.6 Version 21
3.2.7 Restore Default 21
4. Network Connection 22
4.1 Connecting Mode 22
4.2 IE Log In 23
4.2.1 Web Client 23
4.2.2 Preview 24
4.2.3 Configuration 24
4.2.4 Video Configuration 25
4.2.5 Network Configuration 28
4.2.6 System Configuration 29
4.2.7 Logout 31
4.2.8 Wireless Network 31
Table of Contents

- 3 -
5. Serial Communication Control 32
5.1 VISCA Protocol List 32
5.1.1 Camera Return Command 32
5.1.2 Camera Control Command 33
5.1.3 Inquiry Command 38
5.2 Pelco-D Protocol Command List 41
5.3 Pelco-P Protocol Command List 42
6. Camera Maintenance and Troubleshooting 43
6.1 Camera Maintenance 43
6.2 Troubleshooting 43
Table of Contents (cont.)
1. Getting Started
1.1 Camera Interface
1. Camera Lens
2. Camera Base
3. Remote Controller Receiver Light
4. Bottom Dial Switch
5. Tripod Screw Hole
6. RS232 Control Interface (input )
7. RS232 Control Interface (output )
8. RS485 Input (left +,right-)
9. Audio Input Interface
10. 3G-SDI interface
11. HDMI Interface
12. NDI | HX Interface
13. DC12V Input Power Supply Socket
Figure 1.1 Interface of ST (standard) Series

- 4 -
1.2 Power-On Initial Configuration
1.3 Video Output
1. Power-On: Connect the DC12V power supply adapter into the power supply socket.
2. Initial Configuration: Upon powering on, the remote control receiver light will turn on and start
blinking red. The camera head will move and adjust into the HOME position (intermediate
position of both horizontal and vertical). When the remote control receiver light stops
blinking red, it will stay on and turn green; this means the self-checking is finished.
- Note: After the Power-On self-test is completed If you press “set preset” then “0”, the
camera head automatically moves to the preset HOME position any time you press “0”.
The OTTICA has a variety of video outputs including LAN, HDMI and 3G-SDI.
1. Video Output from LAN
2. HDMI Video Output
3. 3G-SDI Video Output
A. Network Cable Connection Port: No.12 in Figure1.1;
B. Webpage Login:
A. HDMI Video Cable Connection: Refer to No.11 in Figure1.1.
B. Connect the camera and monitor via HDMI video cable.
A. 3G-SDI video cable connection: Refer to No.10 in Figure1.1
B. Connect the camera and the monitor via 3G-SDI video cable
- The OTTICA is set to auto DHCP so you’ll need to connect the camera to devices that
can automatically assign an IP address, such as routers and switches.
- Next, you’ll have to use an IP scanning software to find the camera’s IP address (visit
the OTTICA product page at www.ikancorp.com to find a link to our recommended
software for IP scanning).
- Copy and paste the camera’s IP address and paste it into your web browser’s address
bar and press “Enter” to proceed into the login page.
- Enter the user name “admin” and password “admin” (factory default) and press ”Enter”
to proceed into the preview page.
- If you do not have the latest version of Flash installed, click on the button that says “Get
ADOBE Flash Player.
- After you’ve installed the latest version of flash, the camera feed should be visible and
you can now perform PTZ control, video recording, playback, configuration, and other
operation.
- NOTE: See chapter 4.1 for more details.

- 5 -
1.4 Bracket Mount
Note: The bracket can only be mounted on a wall or ceiling on either template or concrete wall,
but cannot be installed on plasterboard.
Wall Mount Steps

- 6 -
Upside-down Mount Steps

- 7 -
2.1 Product Introduction
2.1.1 Dimensions
2.1.2 Accessories
When unboxing, check that all the supplied accessories are included:
1 x Power Adapter
1 x RS232 Cable
1 x IR Remote Controller
1 x Wall Mounting Bracket
1 x RS485 Connector
1 x Cascade Cable
2. Product Overview

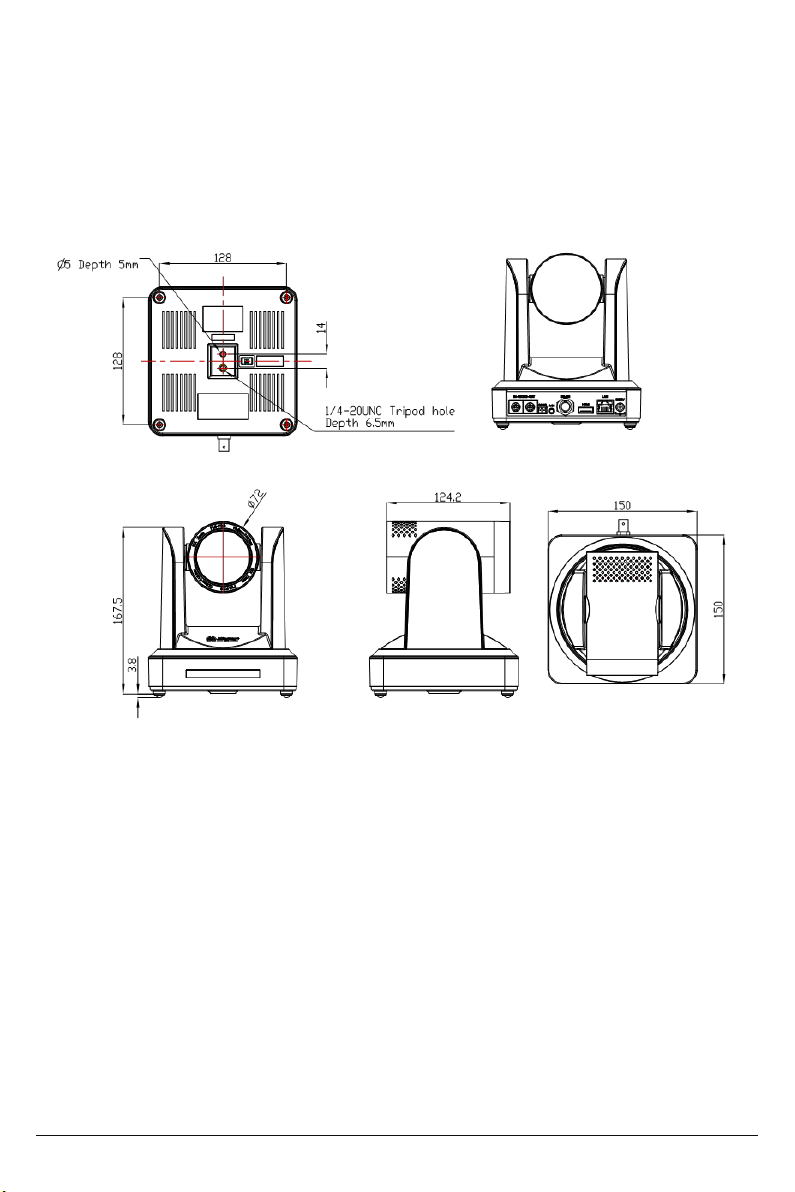

Figure 2.2 Camera Dimensions

- 8 -
2.2 Main Features
2.2.1 Camera Performance
The OTTICA’s features include advanced ISP processing algorithms to provide vivid images with
a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264
encoding which makes motion video fluent and clear even with less than ideal bandwidth
conditions.
2.2.2 Network Performance
1. Superb High-definition Image: The OTTICA employs 1/2.8 inch high-quality CMOS sensor
and supports resolutions up to 1920x1080 with frame rates up to 60 fps.
2. Various Optical Zoom Lens: 5.5-110mm varifocal lens offers 20x optical zoom and viewing
angle range from 3.3° to 54.7°
3. Auto Focus Technology: OTTICA’s auto focus algorithm makes the lens fast, accurate, and
stable.
4. Low Noise and High SNR: The Low Noise CMOS effectively ensures high SNR of the camera
video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise,
while ensuring image sharpness.
5. Quiet PTZ: By adopting a high accuracy step-driving motor mechanism, the OTTICA performs
smoothly and quietly even when moving quickly to any position.
6. Multi-Format Video Outputs: The OTTICA support HDMI,3G-SDI, wired LAN and wireless LAN
interfaces. The 3G-SDI will work up 100m distance with transmission at 1080p60 format.
7.Low-power Sleep Function: The OTTICA supports a low-power sleep/wake up function. The
consumption is lower than 500mW while in sleep mode.
8. Support Multiple Control Protocol: The OTTICA supports VISCA, PELCO-D, PELCO-P protocols
which can also be automatically recognized.
9. RS-232 Cascade Function: The OTTICA supports RS-232 cascade function which is
convenient for installing.
11. 255 Presets Positions: Up to 255 presets (10 presets by IR remote).
1. Audio Input Interface: 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3,
PCM audio coding are supported.
2. Multiple Audio/Video Compression: The OTTICA supports H.264/H.265 video compression
of resolutions up to 1920x1080p with frame rates up to 60 fps and 2 channel 1920x1080p
with 30 fps. AAC, MP3, and PCM audio compression is supported.
3. Multiple Network Protocol: Support NDI|HX; ONVIF, RTSP, RTMP protocols and RTMP push
mode, easy to link streaming media server (Wowza, FMS).

- 9 -
2.3 Technical Specifications
Camera Parameters
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9 2.07 megapixel
Video Format
HDMI/SDI Video Format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;72
0P60/50/30/25/59.94/29.97
Optical Zoom 20X
Focal range: 5.5-110mm
View Angle 3.3° (tele)
54.7° (wide)
AV F1.6 – F3.5
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W
mode, Gamma curve
SNR >55dB

- 10 -
Input / Output Interface
Video Interfaces LAN (NDI | HX 4.0), HDMI, 3G-SDI, Audio-in,
RS232 (In&Out), RS485
Image Code Stream Double streams outputs simultaneously
Video Compression format H.264, H.265
Control Signal Interface RS-232 Ring through RS232 output, RS-485
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate:
115200/9600/4800/2400bps
Audio input Interface Double track 3.5mm linear input;
Audio Compression Format AAC/MP3/PMC Audio compression
HD IP Interface 100M IP Port(100BASE-TX); 5G WiFi (optional), support
NDI, IP Visca control protocol
Network Protocol NDI,RTSP/RTMP,ONVIF
Power Interface HEC3800 Outlet (DC12V)
PTZ Parameters
Pan Rotation ±170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1 -180°/sec
Tilt Control Speed 0.1-80°/sec
Preset Speed Pan: 60°/sec, Tilt: 30°/sec
Preset Number 255 presets (10 presets by remote controller)
Other Parameters
Supply Adapter AC110V-AC220V to DC12V/2A
Input Voltage DC12V±10%
Input Current 1A(Max)
Consumption 12W (Max)

- 11 -
2.4 Interface Instruction
2.4.1 External Interface
1. External Interface: RS232 Input /Output, RS485 Input, Audio Input, 3G-SDI Output, HDMI
Output, LAN, DC12V Power Interface.
Figure 2.3 External Interface Diagram
Other Parameters
Store Temperature 14°F to +140°F
Store Humidity 20% - 95%
Working Temperature 14°F to +122°F
Working Humidity 20%--80%
Dimension 150mmX150mmX167.5mm
Weight 3.08 LBS
Working Environment Indoor
Remote Operation (IP) Remote Upgrade, Reboot and Reset

- 12 -
2.4.2 Bottom Dial Switch
2.4.3 RS-232 Interface
Two DIP switches are set to ON or OFF to select different modes of operation.
Note: Working mode can be applicable for web upgrade.
1. RS-232C Interface Specifications
Figure 2.6 Bottom Dial Switch Diagram
Table 2.2 Dial Switch Setting
No. SW1 SW2 Explanation
1 OFF ON Working Mode
2 ON OFF Updating Mode
Computer / Keyboard & Camera Connection Method
Camera Windows DB-9
1. DTR 1. DCD
2. DSR 2. RXD
3. TXD 3. TXD
4. GND 4. DTR
5. RXD 5. GND
6. GND 6. DSR
7. IR OUT 7. RTS
8. NC 8. CTS
9. RI

- 13 -
No. Port Definition
1 DTR Data Terminal Ready
2 DSR Data Set Ready
3 TXD Transmit Data
4 GND System Ground
5 RXD Receive Data
6 GND System Ground
7 IR OUT IR Commander Signal
8 NC No Connection
No. Port Definition
1 DCD Data Carrier Detect
2 RXD Receive Data
3 TXD Transmit Data
4 DTR Data Terminal Ready
5 GND System Ground
6 DSR Data Set Ready
7RTS Request to Send
8 CTS Clear to Send
9 RI Ring Indicator
2. RS-232 Mini-DIN 8-pin Port Definition
3. RS232 (DB9) Port Definition
4. VISCA networking as shown below:
Camera Cascade Connection Method
Camera 1 Camera 2
1. DTR 1. DTR
2. DSR 2. DSR
3. TXD 3. TXD
4. GND 4. GND
5. RXD 5. RXD
6. GND 6. GND
7. IR OUT 7. OPEN
8. NC 8. OPEN
Note: OTTICA has RS232 input and output interface, so you can cascade as shown above.

- 14 -
3. Application Instructions
3.1 Remote Control
3.1.1 Keys Instruction
1. Standby Key
After a 3-second long press, the camera will step into
standby mode. After pressing the standby key for 3
seconds again, the camera will self-test again and go
back to the HOME position.
2. Camera Address Selection
Select the camera address which wants to be controlled.
3. Number Keys
Set or run 0-9 presets.
3. # + * Keys
Use for key combinations.
5. Focus Control Key
Auto Focus: Enter into auto focus mode.
Manual Focus: The camera focus mode is manual
Switch the camera focus mode to manual focus by
pressing [focus +] or [focus -] to adjust.
6. Zoom Control Key
Zoom +: Zoom In.
Zoom - :Zoom Out.
7. Set or Clear Preset key:
Set Preset: Sets preset key + 0-9 number key.
Clear Preset: Clears preset key + 0-9 number key.
8. Pan/Tilt Control Key
Press Key: Tilts camera upwards.
Press Key: Tilts camera downwards.
Press Key: Pans camera left.
Press Key: Pans camera right.
“HOME” Key: Returns camera to the middle position. Also
used to enter into the next level menu.
9. BLC Control Key
Back Light ON / OFF: Turn on or off the back light.
10. Menu Setting
Open or close the on-screen-display menu.
Enter / exit the on-screen-display menu or return to the
previous menu.

- 15 -
3.1.2 Applications
Camera Selection
- Select the camera address to control.
11. Camera IR Remote Control Address Setting
[ * ]+ [ # ]+[ F1 ] : Camera Address No. 1
[ * ]+ [ # ]+[ F2 ] : Camera Address No. 2
[ * ]+ [ # ]+[ F3 ] : Camera Address No. 3
[ * ]+ [ # ]+[ F4 ] : Camera Address No. 4
12. Key Combination Functions
Users can control the pan/tilt/zoom, settings and execute preset positions via the IR remote
controller.
Key Instructions:
- In these instructions, “press the key” means a click rather than a long-press. A special note
will be given if a long-press for more than one second is required.
- When a key-combination is required, do it in sequence. For example, “[ * ] + [ # ] + [ F1 ]”
means press [ * ] first, then press [ # ], lastly press { F1 ]
[ # ] + [ # ] + [ # ]: Clear all presets [ * ] + [ # ] + [ 6 ]: Restore factory defaults
[ * ] + [ # ] + [ 9 ]: Flip switch [ * ] + [ # ] + Auto: Enter into the aging mode
[ * ] + [ # ] + [ 3 ]: Menu set to Chinese [ * ] + [ # ] + [ 4 ]: Menu set to English
[ * ] + [ # ] + Manual: Restore the default
user name, password, and IP address
[ # ] + [ # ] + [ 0 ]:
Switch video format to 1080p60
[ # ] + [ # ] + [ 1 ]:
Switch video format to 1080p50
[ # ] + [ # ] + [ 2 ]:
Switch video format to 1080i60
[ # ] + [ # ] + [ 3 ]:
Switch video format to 1080i50
[ # ] + [ # ] + [ 4 ]:
Switch video format to 720p60
[ # ] + [ # ] + [ 5 ]:
Switch video format to 720p50
[ # ] + [ # ] + [ 6 ]:
Switch video format to 1080p30
[ # ] + [ # ] + [ 7 ]:
Switch video format to 1080p25
[ # ] + [ # ] + [ 8 ]:
Switch video format to 720p30
[ # ] + [ # ] + [ 9 ]:
Switch video format to 720p25

- 16 -
Preset Setting
- To set a preset position, press the [ SET PRESET ]
key first and then press the number key 0-9 to set a
relative preset.
- Note: 10 preset positions in total are available by
remote controller.
Preset Running
- Press a number key 0-9 directly to run a relative preset.
- Note: Action will not be completed if a relative preset
position doesn’t exist.
Preset Clearing
- To clear a preset position, press the [CLEAR PRESET]
key first and then press the number key 0-9 to clear
the relative preset.
- Note: press the [ # ] key three times to clear all presets.
BLC ON / OFF
- Enables and/or disables backlight compensation
Focus Control
- Focus (near):Press FOCUS + Key
(Valid only in manual focus mode)
- Focus (far): Press FOCUS - Key
(Valid only in manual focus mode)
- Pressing and holding the “+” or “–“ keys will result in
the action of focus to continue. Release the key to stop
the action of focus.
- Auto Focus: Enables auto focus function.
- Manual Focus: Enables manual focus function.
Zoom Control
- ZOOM IN: Press Zoom + Key
- ZOOM OUT: Press Zoom - Key
- By pressing and holding the key, the camera lens will
keep zooming in or zooming out and stops as soon as
the key is released.
Pan/Tilt Control
Up: Press Down: Press
Left: Press Right: Press
- Back to middle position: Press HOME
- Press and hold the up/down/left/right key to pan or
tilt the camera. The camera movement will ease from
slow to fast until it reaches the endpoint. The pan/tilt
movement stops as soon as the key is released.

- 17 -
Remote Controller Address Setting
[ * ]+ [ # ]+[ F1 ] : Camera Address No. 1
[ * ]+ [ # ]+[ F2 ] : Camera Address No. 2
[ * ]+ [ # ]+[ F3 ] : Camera Address No. 3
[ * ]+ [ # ]+[ F4 ] : Camera Address No. 4
3.2 Menu Setting
3.2.1 Main Menu
3.2.2 System Settings
Protocol: VISCA / PELCO-P / PELCO-D/ AUTO
Visca ADDR: VISCA = 1~7
PELCO-P = 1~255
PELCO-D = 1~255
Visca Address Fix: ON / OFF
Baud Rate: 2400 / 4800 / 9600 / 115200
In normal working mode, press the MENU key to display the menu. Use the scroll arrow to point
at or highlight the selected items.
Move the arrow to the SETUP option in the Main Menu and click the HOME key to enter into the
SETUP Settings Menu.
MENU
========================
Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
[ ] Select [ ] Change Value
SETUP
========================
Protocol Auto
Visca Address 1
Visca Address Fix OFF
PELCO-P Address 1
PELCO-D Address 0
Baud Rate 9600
[ ] Select [ ] Change Value
[ MENU ] Back: Press MENU to Return
[ HOME } OK: Press HOME to Confirm
Language Setting: English / Chinese
Setup: System Settings
Camera: Camera Settings
PTZ: Pan / Tilt / Zoom Settings
Version: Camera Version Settings
Restore Default: Reset Settings
[ ] Select: Menu Selection
[ ] Change Value: Modify Parameters

- 18 -
3.2.3 Camera Settings
CAMERA
========================
(Exposure)
(Color)
(Image)
(Focus)
(Noise Reduction)
[ ] Select [ ] Change Value
EXPOSURE
========================
Mode Auto
EV OFF
BLC OFF
Anti-Flicker 50Hz
Gain Limit 3
WDR 5
[ ] Select [ ] Change Value
Move the arrow to desired setting (Exposure,
Color, etc.) option in the CAMERA menu and
click the HOME key to enter.
1. EXPOSURE
- Mode: Auto / Manual / Shutter Priority / Iris
Priority / Brightness Priotity
- EV: ON / OFF (Only available in Auto mode)
- Compensation Level: -7~7 (only available in
auto mode when EV is ON)
- BLC: ON/OFF for options (only available in
auto mode)
- Anti-Flicker: OFF/50Hz/60Hz for options
(only available in Auto/Iris priority/
Brightness priority modes)
Move the arrow to the CAMERA option in the Main Menu and click the HOME key to enter into
the CAMERA Settings Menu.
- Gain Limit: 0~15(only available in Auto/ Iris Priority /Brightness Priority mode)
- WDR: Off, 1~8
- Shutter Priority: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500,
1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (only available in Manual and Shutter
priority mode)
- IRIS Priority: OFF, F11.0, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8 (only
available in Manual and Iris priority mode)
- Brightness: 0~23 (only available in Brightness Priority mode)

- 19 -
COLOR
========================
WB Mode Auto
Saturation 80%
Hue 7
AWB Sensitivity High
Color Style Default
Color Temp Low
[ ] Select [ ] Change Value
FOCUS
========================
Focus Mode Auto
AF-Zone Center
AF-Sensitivity Low
[ ] Select [ ] Change Value
========================
Brightness 6
Contrast 8
Sharpness 7
Flip-H OFF
Flip-V OFF
B&W-Mode Color
Gamma Default
DZoom OFF
DCI Close
[ ] Select [ ] Change Value
2. COLOR
- WB Mode: Auto, 3000K, 3500K, 4000K,
4500K, 5000K, 5500K, 6000K, 500K,
7000K, Manual, One Push
- Red Gain: 0~255(only available in Manual
mode)
- Blue Gain: 0~255(only available in Manual
mode)
- Saturation: 60%, 70%, 80%, 90%, 100%,
110%, 120%, 130%
- Hue: 0~14
- AWB Sensitivity: High/Middle/Low
- Color Style: Default, style1~4
- Color Temp: High/Middle/Low
4. FOCUS
- Focus Mode: Auto, Manual
- AF-Zone: Up, Middle, Down
- AF-Sensitivity: High, M=Middle, Low
3. IMAGE
- Brightness: 0~14
- Contrast: 0~14
- Sharpness: 0~15
- Flip Horizontal: On/Off
- Flip Vertical: On/Off
- B&W Mode: Color, Black/White
- Gamma: default, 0.47, 0.50, 0.52, 0.55
- Digital zoom options: On/Off
- Dynamic Contrast: Off, 1~8

- 20 -
NOISE REDUCTION
========================
NR-2D Auto
NR-3D 3
Dynamic Hot Pixel OFF
[ ] Select [ ] Change Value
P/T/Z
========================
Depth of Field ON
Zoom Speed 8
Image Freezing OFF
Acc Curve Slow
[ ] Select [ ] Change Value
4. NOISE REDUCTION
- 2D Noise Reduction: Auto, Close, 1~7
- 3D Noise Reduction: Close, 1~8
- Dynamic Hot Pixel: Close, 1~5
- Depth of Field: Only effective for remote
controller, On/Off;
- When zoom in, the PT control speed by
remoter will become slow),
- Zoom Speed: Set the zoom speed for
remote controller, 1~8
- Image Freezing: On/Off
- Accelerating Curve: Fast/slow
- S Version: 1080P60, 1080P50, 1080P30,
1080P25, 1080I60, 1080I50, 720P60,
720P50, 720P30, 720P25, 1080P59.94,
1080I59.94, 1080P29.97, 720P59.94,
720P29.97 Optional
- M Version: 1080P30, 1080P25, 1080I60,
1080I50, 720P60, 720P50 Optional
Notes:
- S: 1080P60 Downward Compatibility
- M: 1080P30 Downward Compatibility
- Exiting the menu will save the modification
of the parameter. Restart device for
parameter modification to be enabled.
VIDEO FORMAT
========================
1080P60 1080P50
1080I60 1080I50
1080P30 1080P25
720P60 720P50
720P30 720P25
1080P59.94 1080I59.94
1080P29.97 720P59.94
720P29.97
[ ] Select [ Menu ] Back
3.2.4 P/T/Z
3.2.5 Video Format
Move the arrow to the P/T/Z option in the Main Menu and click the HOME key to enter into the
P/T/Z Settings Menu.
Move the arrow to the VIDEO FORMAT option in the Main Menu and click the HOME key to enter
into the VIDEO FORMAT Settings Menu.
