ILVE ILFRZ217I/2 User manual

INTEGRATED
FREEZER -
ILFRZ217 /2
I
USER MANUAL

Although we encourage you to dive right in, as the owner of a brand new ILVE oven we’d also
like to invite you to attend a complimentary 2 hour masterclass. As part of the class you’ll
learn how to prepare and cook a number of delicious signature ILVE dishes, not to mention
our top tips for getting the most out of your ILVE oven. From improving cooking results to
general maintenance information, we know you’ll enjoy this comprehensive, fun masterclass.
Simply go to ilve.com.au/bookings or Phone 1300 MY ILVE (694 583)
YOUR FREE MASTERCLASS
Congratulations, you are now the proud owner of an ILVE cooking appliance. Thank you for
purchasing ILVE and welcome to the exciting world of cooking the ILVE way.
This instruction manual has been specially created to inform you of the full range of features
your ILVE appliance has to offer and serves as an introduction to the wonderful benefits of
ILVE’s dynamic cooking systems.
We present detailed information on each of the advanced cooking systems built into ILVE
appliances. Once you have read this section you will be able to choose the most appropriate
settings for your appliance when cooking different types of food.
We ask you to read the instructions in this booklet very carefully as this will allow you to get
the best results from using your appliance.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
FOR EXCLUSIVE ILVE RECIPES SCAN THE
QR CODE OR VISIT www.ilve.com.au

OPEN 24/7
ILVE ACCESSORIES ONLINE SHOP
For a wide range of Genuine ILVE accessories at the
click of a button go to ilve.com.au

2
Contents:
3 Important information
5 Important notes
5 Before first use
6 Important notes on use of the freezer
8 Storage
9 Control panel
10 Care and cleaning
11 Defrosting the freezer
11 Changing the light
12 Troubleshooting
14 Installation preparation
14 Ventilation requirements
16 Installation into the cabinet
17 Mounting the fascia door
19 Reversing the appliance door
20 Electrical information

3
Important
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that we reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the
appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by
someone who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist Customer Care in the event of a fault with your
appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU
(Low voltage) and requirements of EU Directive 2014/30/EU (EMC).

4
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety
(LVD) and Electromagnetic interference compatibility (EMC). Parts
intended to come into contact with food conform to 1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At
the end of its working life, the product must not be disposed of as
urban waste. The refrigeration system contains insulating gases and
refrigerants, which require specialised waste disposal. The valuable
materials contained in this appliance can be recycle. It must be taken
to a special local authority differentiated waste collection centre or
to a dealer providing this service.
Before disposing of an old appliance, remove the door seals etc. to
reduce the risk of child entrapment.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving
from inappropriate disposal and enables the constituent materials to
be recovered to obtain significant savings in energy and resources.
As a reminder of the need to dispose of household appliances
separately, the product is marked with a crossed-out wheeled
dustbin.

5
Important
•Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
•This is a household appliance, which is produced in accordance
with the national standard. It is intended for food storage only, not
for storage of blood, medicine and biological products.
•To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
•To prevent risk of electromagnetic interference or other
accidents, do not place a microwave oven on top of the
refrigerator or use any electric appliance inside the freezer.
•Do not allow children to play with or near the appliance.
•The internal surface of freezer compartment is very cold when
the appliance is running. Do not touch the surface especially
when hands are wet.
•Do not splash water onto the appliance. Keep it away from places
of high humidity that may have adverse effect on the electric
insulation performance.
•This appliance is designed to be used in ambient temperatures
between 18˚C and 43˚C. Use outside of this range may cause the
appliance to fail.
Before first use
You must allow the freezer to settle for at least twenty four hours
prior to switching the power on.
It is recommended that you clean the interior of the appliance prior
to first use, using a solution of bicarbonate of soda and warm water
and then thoroughly drying the interior.

6
The freezer may have an odour to it at first use. This will disappear
as the appliance cools.
Please note:
The appliance will start on temperature setting 3 and work
continuously until it comes down to the correct temperature.
If the appliance is switched off, you should allow five minutes
before switching it on again to prevent unnecessary damage to the
compressor.
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This freezer cools your food by making the inside back of the cavity
cold. It is normal for frost to build up on this surface; it then
dissipates and drains through a small drain at the bottom, where it
evaporates harmlessly. The presence of some frosting is not a
malfunction of the freezer.
Freezer use
•The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully
before putting them into the freezer.
• Follow the instructions on the food packaging for storage of
frozen food. If no information is provided, foods should not be
stored for more than three months after the purchase date.
• Store food in small packages (ideally less than 2.5kg). This
reduces the freezing time and improves the quality of the food
after thawing.
• Wrap food before putting into the freezer. To stop the wrapping
sticking together, ensure it is dry.

7
• Label the food before freezing with information including type of
food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen unless it has been
completely cooked. Only defrost as much food as is required
to prevent wastage.
• Bottled or canned drinks should not be stored in the freezer
compartment as they could explode.
• Check the rating plate to confirm the maximum amount of fresh
food that can be frozen within a 24 hour period.
Do not attempt to freeze more than the maximum amount.

8

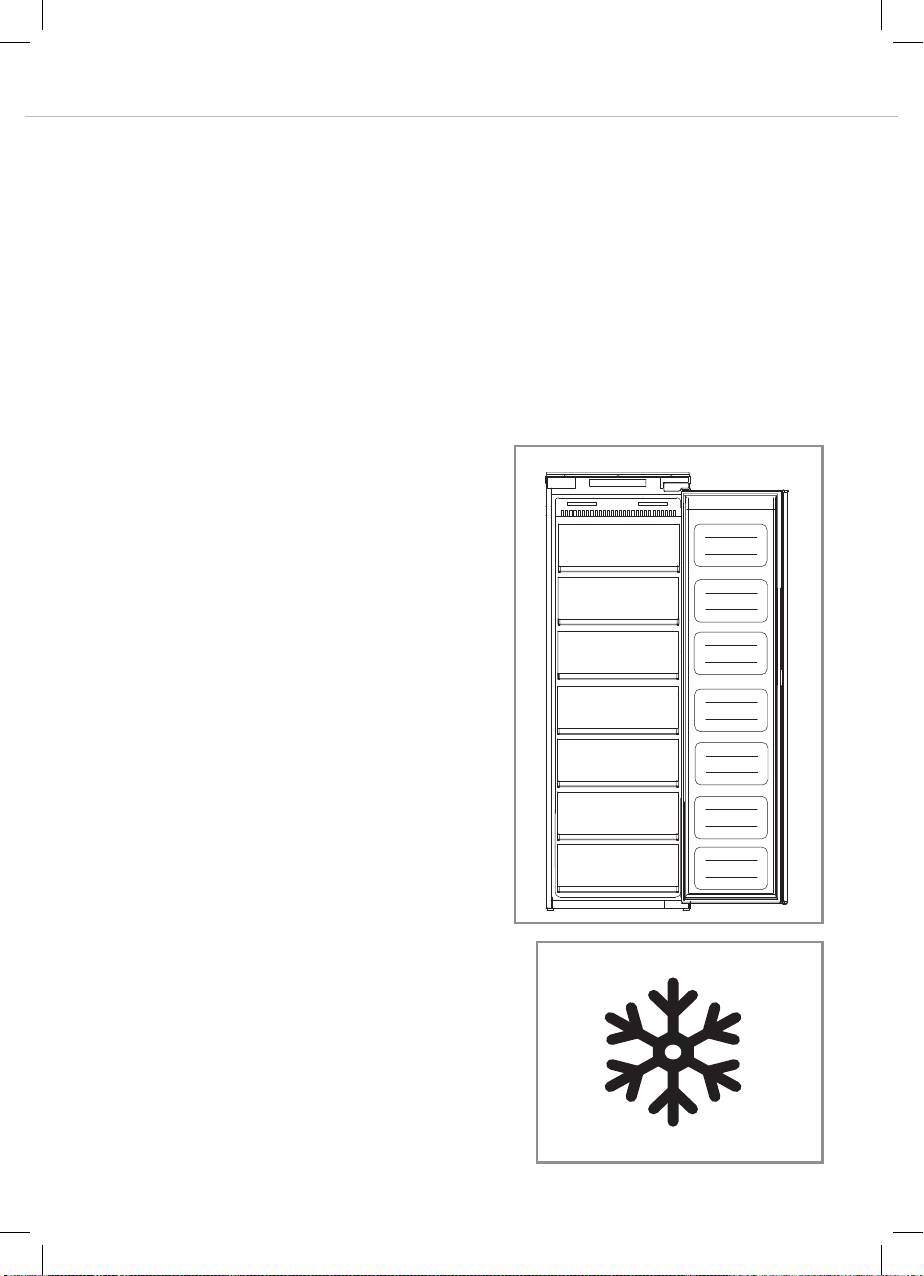

The 6th setting on the control panel,
represented by the snowflake (Fig. 2),
is a super freeze function. This should
be used when freezing large quantities
of food all at once. Activate this
function 2 or 3 hours before
introducing the food and do not leave
it to run for more than necessary.
Leaving it to run for longer will place
unnecessary strain on the cooling
system. The function will automatically
deactivate after approximately 24
hours.
Fig. 1
Fig. 2
Storage
The freezer is for short-mid term food storage. Although low
temperatures can be maintained, extended periods of food storage
is not recommended.
As the cold air circulates within the freezer, the temperature can
vary between the different sections. As such, foods should be
stored in different sections according to type and storage term.
The bottom sections are the coldest parts of the
freezer.
The top two sections have raisable
flaps that stay open for ease of loading
and unloading. The remaining 5
sections are drawers.

9
Control panel
A. Freezer temperature adjustment sensor
This button is used to adjust the temperature within the freezer.
Press this sensor once to activate adjustment, and then as many
times as necessary until the desired level is selected. The settings
range from 1 to super freeze (snowflake) with 1 being the warmest
and super freeze being the coldest.
Please note: Where possible, avoid having the temperature setting
on 5 or super freeze (snowflake) all of the time. This well help to
alleviate strain on the compressor and system.
B. Freezer temperature setting display
This display will illuminate the current temperature setting. Adjusting
the temperature will cycle through this display.
Please note: You do not use numbers 1 to 5 or the snowflake to
change the temperature. Instead, use the freezer temperature
adjustment sensor (A).
C. Power button
Use this sensor to switch the appliance on and off (standby mode).
Fig. 3
A B C

10
Care and cleaning
Always disconnect the appliance from the power supply before any
cleaning or maintenance.
The drawer sections should be cleaned using a solution of
bicarbonate of soda and lukewarm water. Do not use abrasive
products or detergents. After washing, rinse and dry thoroughly.
Clean the compartments separately by hand with a mild solution
of washing up liquid and water. Do not use abrasive cleaners or
detergents.
If the appliance is not to be used for prolonged periods of time,
unplug and clean the appliance. The doors should be left slightly
ajar to prevent the formation of mildew and unpleasant odours.

11
Defrosting the freezer
The freezer is self-defrosting. Any water created will run out
through the channel at the back of the freezer, unless the drain hole
is blocked. The defrosted water is collected in the evaporating tray
at the back of the appliance and dissipated by evaporation (when
the compressor gets hot).
Please note: If you are regularly finding pools of water in the freezer,
frost build-ups, or you notice that the compressor is always
running, then it is likely that the door is not sealing properly. This
could be due to a defective door seal or an incorrectly fitted, or
overly heavy, decor door. For more information see the
troubleshooting section on ice on page 12.

12
Troubleshooting
If you have any problems with your appliance, you should check the
troubleshooting prior to calling Montpellier Customer Care.
If the appliance is not working, check:
•That there is power to the appliance.
•The house fuses are intact and the fuse in the plug has not
blown.
•The freezer has not been turned off (page 9).
• The plug socket is functioning fine. To check this, plug another
electrical appliance in to see if the socket is faulty.
If the appliance is working, but not very well, check:
•The appliance is not overloaded.
•The thermostat is set to an appropriate temperature.
•The doors are closing properly.
• The cooling system at the rear of the appliance is clean and free
of dust, and not touching the rear wall.
•There is enough ventilation at the side and rear walls.
• This can be due to the decor door(s) not being properly fitted,
causing the freezer door to not close properly thus letting warm
air in. If you are at all unsure, ask your fitter to check the decor
doors.
If the appliance is noisy, check:
•The appliance is level and stable.
• The side and rear walls are clear, and there is nothing resting on
the appliance.
• Note: The cooling gas in the system may make a slight bubbling or
gurgling noise, even when the compressor is not running.

13
If the appliance is beeping, check:
•That the door is closed. An alarm will sound after approximately
60 seconds of a door being open.
If there’s water in the base of the freezer, check:
• Check that there is some resistance when opening the door of the
appliance. If it opens at the slightest touch it may mean that the
door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice
any, and are unable to resolve the issue yourself, contact
Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If
you are at all unsure, ask your fitter to check the decor doors.
If excessive ice has formed in the freezer:
• It is normal for some ice to form in the freezer. This does not
constitute a fault with the appliance.
• Check that there is some resistance when opening the door of the
appliance. If it opens at the slightest touch it may mean that the
door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice
any, and are unable to resolve the issue yourself, contact
Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If
you are at all unsure, ask your fitter to check the decor doors.

14
Installation preparation
This appliance must never be installed
close to heat sources, e.g. heating
elements or cookers, nor in damp
places.
Seek the help of another individual, or
two, when installing this appliance. This
appliance may have sharp edges. Wear
adequate PPE for the task and
environment.
Ventilation
The main consideration when installing any refrigeration unit into
a fitted kitchen is ventilation. The heat removed from the cooling
compartment needs to be dissipated into the atmosphere. Incorrect
ventilation can lead to premature compressor failure, excessive
power
= airflow

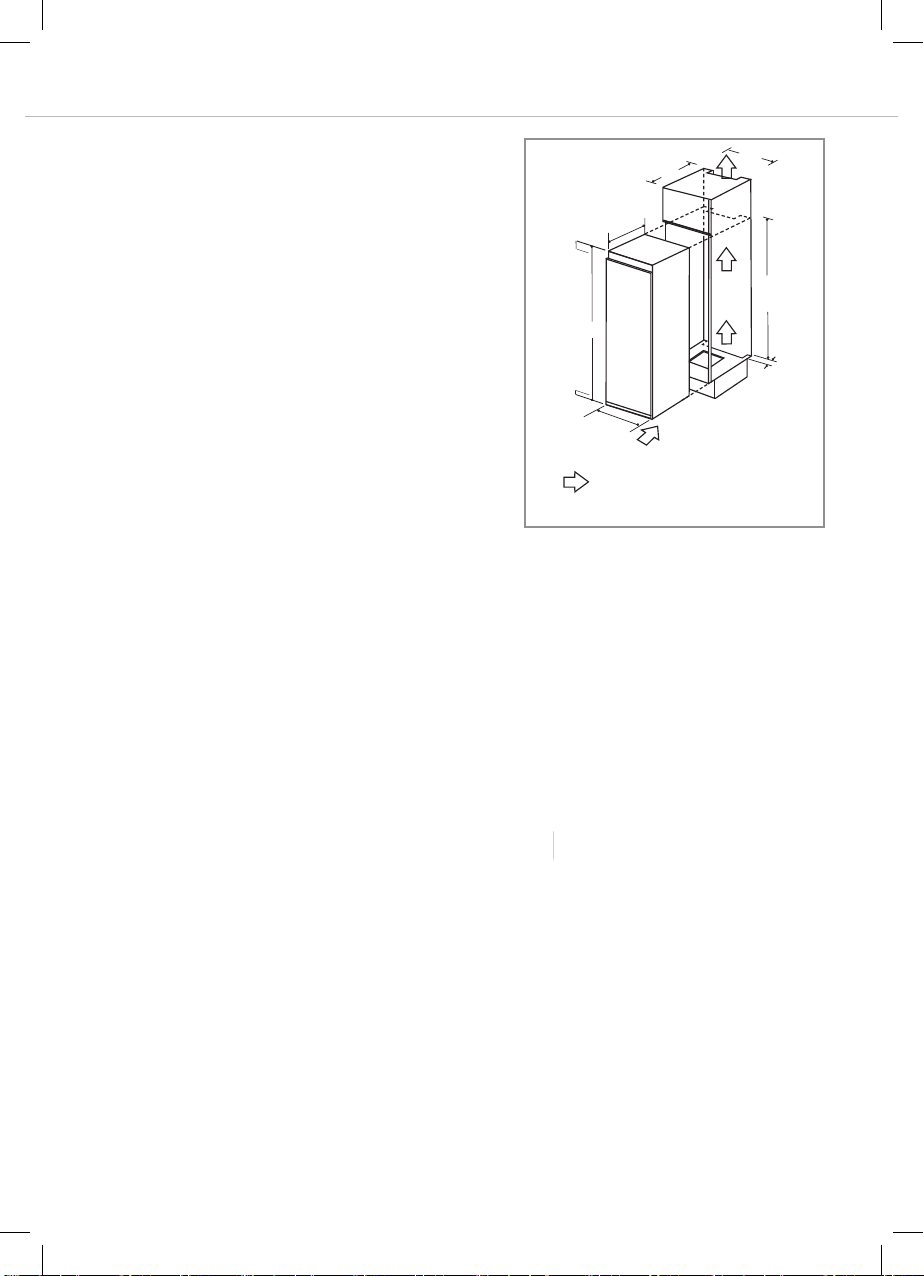

Fig. 5 (Freezer dimensions are approximate)
• To ensure the appliance is level, you
should use the height adjustable feet
at the front of the appliance.
• The cooling system at the rear of the
appliance must not touch the rear wall.
The greater the gap, the better.
• The appliance must be installed with
adequate ventilation. Ensure that there
is clearance above the appliance to allow air to escape and
that there is space between the rear of the appliance and the
wall.
1770
45
57
540
540
1780
min. 30
560-570
550 min.

15
consumption, total system failure and may invalidate the warranty
provided with the appliance. For products intended to be installed
into a tall housing unit, the following requirements need to be met:
The open channel at the rear is clearly shown. For the correct
operation of the appliance it is important that the top of the
housing unit is not blocked off. A channel depth of 40-50mm is
normal with most units.
A ventilation hole is required in the plinth of the unit; this allows air
to

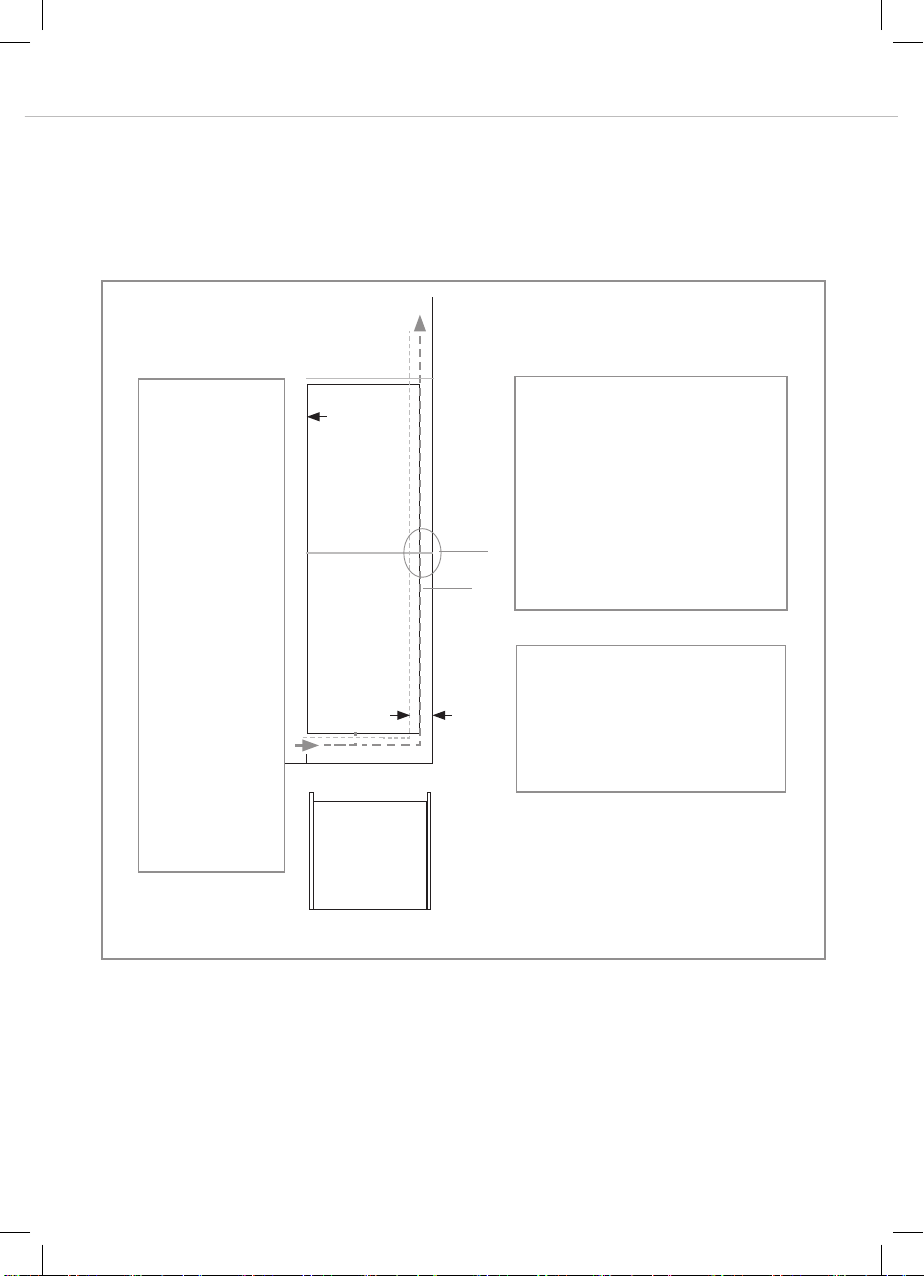

plan view of rear ventilation gap
The top of the cabinet needs to be
vented into the room
Recommended size of vent opening:
500 x 30mm
If the furniture does not allow free air
into the room then a plinth vent, or
other means of ventilation needs to be
provided to ensure a natural flow of air
There should be space at the rear of the
cabinet to allow cool air to be drawn
over the condenser.
Recommended:
500 x 35mm
An air intake should
be provided
somewhere in the
cabinet run to allow
free air in. In this
example, a * plinth
vent is shown
underneath the
refrigerator .
A cutout should be
made in the * plinth
below the fridge/
freezer and this
finished neatly
using the air vent
grille.
Alternatively, a thin
section of the * plinth
can be removed to
allow air into the unit
(recommended
600mm x 10mm).
Refrigerator
outline
Min 30mm
Fig. 7
* Please note a plinth vent / grill is not
included with the appliance. This is given as a
guide to aid installation. Your installer will be
able to determine if you would be required to
buy a plinth vent / grill for your type of
installation or not.

16
be drawn over the compressor & heat exchange.The required
air flow can be achieved by removal of a thin section of plinth
(recommended 600mm x 10mm minimum).
As a rule, the more air that can get in and out, the better and
more efficient the operation of the product.
Installation into the cabinet
With the help of another individual, or two,
manoeuvre the appliance into the cabinet.

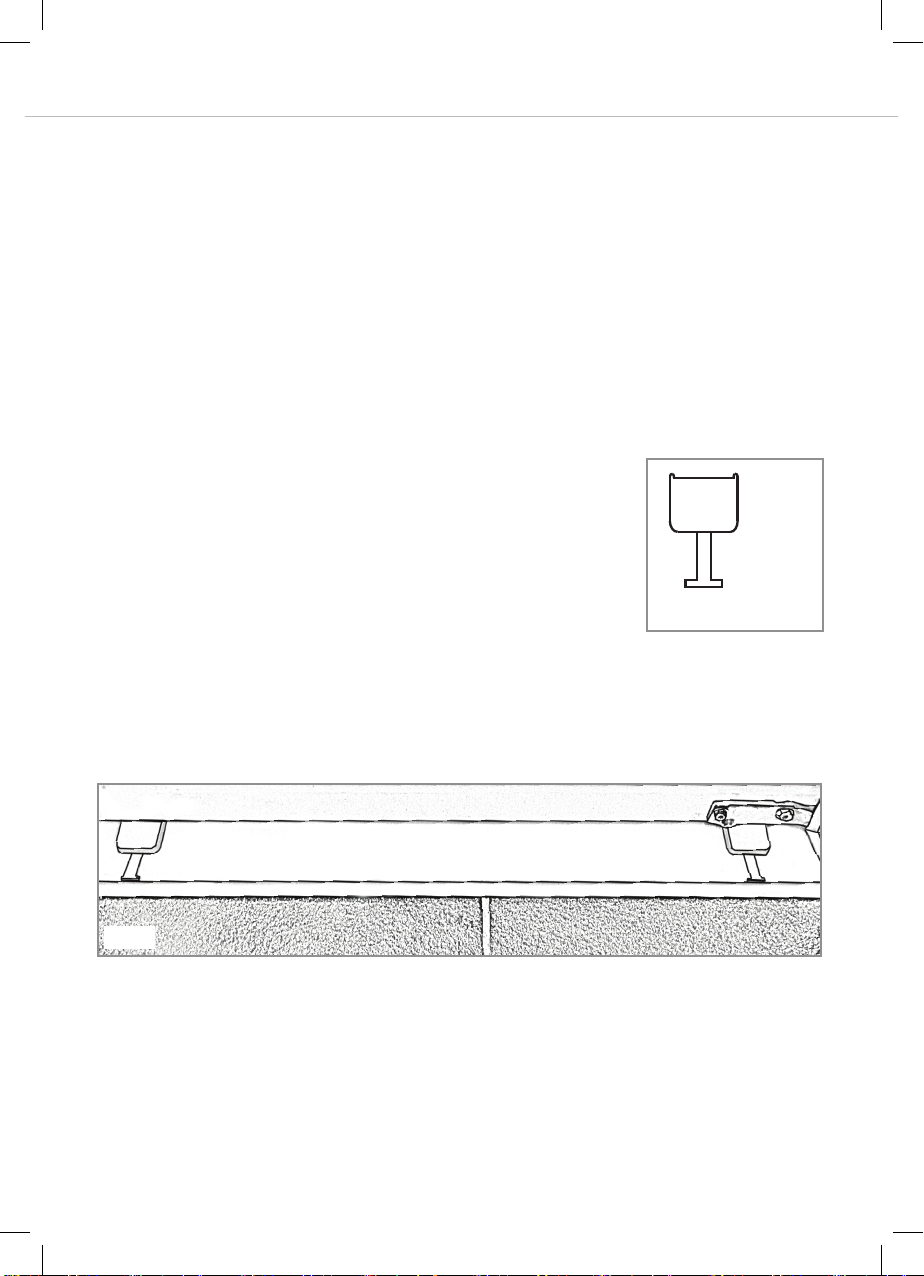

There are two metal plates at the base of the
appliance. Fit the supplied white spacers (Fig. 8)
to these plates, as per Fig. 9.
Ensure that the lips of the spacers are level with the lip of the
cabinet base.
With the base of the appliance aligned correctly with the edge of the
cabinet base, the metal trim at the top of the appliance should sit
flush against the cabinet edge (if it does not, ensure the base is
aligned as per Fig. 9 and that the metal trim in Fig. 10 is not
damaged).
Fig. 9
Freezer base
Cabinet base
Floor
x2
Fig. 8
