Table of Contents
4
5
6
7
9
10
11
12
14
15
16
19
Table of Contents
Welcome / Polychromatic Light Therapy
Pad Systems
Parts Checklist / Product Care
Indications for Use / Considerations
The Micro 2/PORT Controller
Choosing a Setting / Application Guidelines
Caring for your System
Important Notice / Warranty Information
A History with Light
Every step...One Location
Technical Description
Device Description

®
In Light Wellness Systems
4®
© 2015 ILWS . All rights reserved.
Welcome!
Polychromatic Light Therapy
®
Thank you for choosing this In Light Wellness Systems
®
LED light therapy device. ILWS products are engineered
for safe, non-invasive, and effective use in clinical and
home environments. Thousands of families are currently
enjoying the benefits of light therapy.
Medical health providers use light therapy in clinical
settings to increase circulation, reduce pain and, as
research evidence demonstrates, to promote wound
®
healing. In Light Wellness Systems devices produce a
gentle heat and do not require constant monitoring making
it safe for patient home use.
®

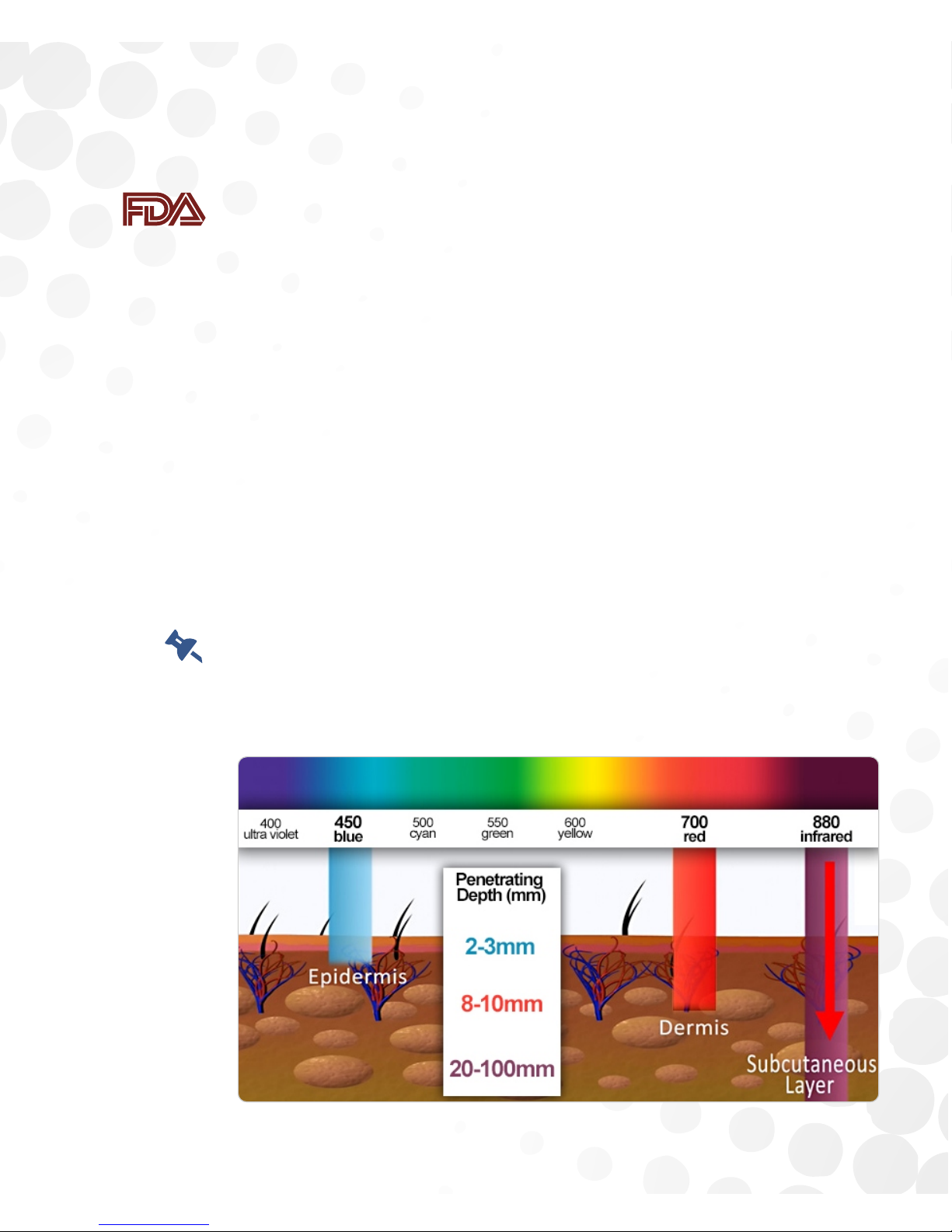

In Light Wellness Systems devices contain visible 440nm
blue diodes, 660nm red diodes, and infrared light diodes
that range from 830nm to 930nm, averaging 880nm,
thereby penetrating at various depths and stimulating
increased circulation through a broad range of tissue types.
ILWS devices are
FDA cleared to:
Increase Circulation
Reduce Pain
Relieve Stiffness
& Muscle Spasms
CLEARED
Polychromatic
Light Therapy
(PLT)
The use of two or
more LED light
wavelengths
(colors) to affect
biologic changes.
Def. Def.

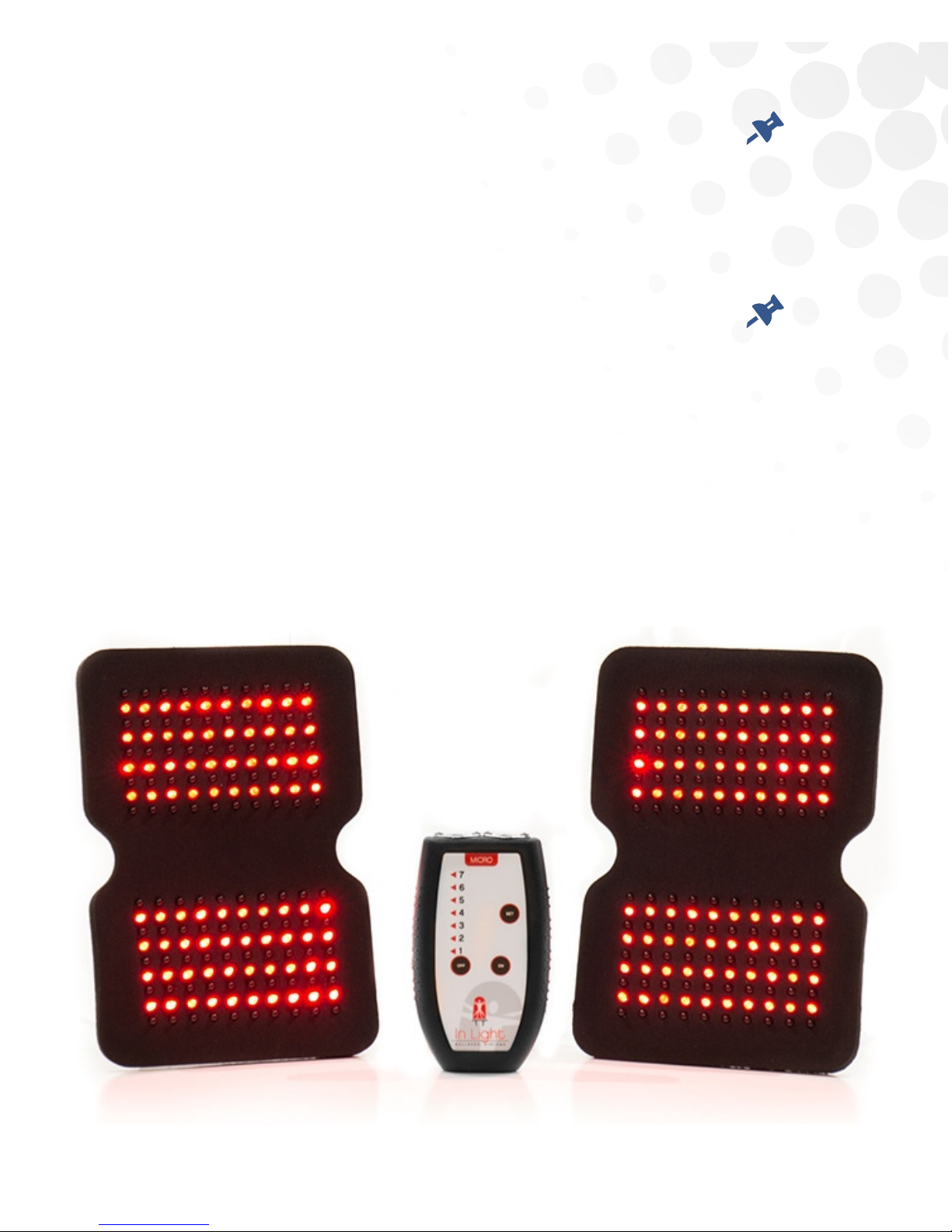

Pad Systems
®
In Light Wellness Systems
pads are impregnated with Irvisium
superflux diodes designed
specifically and exclusively for our
products. The circuitry architecture
embedded in the neoprene allows for
pliability and comfortable application
of the pads to any body part. This
contoured application increases the
skin absorption of the therapeutic
light and enhances the benefits of
each treatment session. The entire
®
range of In Light Wellness Systems
neoprene pads can be used
interchangeably with any
of our controller devices.
neoprene
LOCAL/132LOCAL/132
FACEMASK/104FACEMASK/104
SPORT/180SPORT/180
PAINBUSTER/180PAINBUSTER/180
SMALL/50SMALL/50
BOOT/122
(configuration 2)
BOOT/122
(configuration 2)
BOOT/122
(configuration 1)
BOOT/122
(configuration 1)
NOTE:
Controllers like
the 2/PORT
shown to the left
feature multiple
input ports for
up to 2 pads
working
simultaneously.
5
Micro 2/PORT System Manual

This Micro
2/PORT
controller
includes 1
automatic and
7 manual
settings.
Parts Checklist
Caring For Your Accessories
1 Control unit
1 or 2 Therapy pads (system dependent)
1 or 2 Securing straps (system dependent)
1 A/C power supply
1 Carrying case
1 Operator’s Manual, no special skills or training are required
for operation.
• DO NOT operate under water.
• DO NOT expose to moisture for a long period of time.
• DO NOT expose to heat and sub freezing temperatures.
• DO NOT crease or excessively bend cords.
• DO NOT wrap cords around therapy pads.
• When cleaning therapy pads and/or control unit, apply
cleaning solution such as a hospital grade disinfectant (1:10
bleach ratio) to a damp cloth and clean.
Adenosine
Triphosphate
(ATP)
A chemical
molecule produced
by the mitochondria
that supplies the
energy currency
of all life.
Low-level laser
therapy (LLLT)
Light delivered by
both lasers and
light emitting diodes
(LEDs) at low
densities.
Also known as
“cold laser”.
Durable Medical
Equipment (DME)
Medical devices
that act by physical,
mechanical or
thermal means.
6®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.
Def. Def.
Def. Def.
Def. Def.
OFF ON
SET
2/PORT
In Light In Light
WE L LNESS S YSTE M S
7
6
5
4
3
2
1
2/PORT
OWNERS INSTRUCTION MANUAL
Please read before using device
In Light In Light In Light
W E L L N E S S S Y S T E M S
Brilliant Light TherapyBrilliant Light Therapy
OR OR

Indications For Use
Contraindications
Precautions
Electrical
Considerations
1) To provide LED (light-emitting diode) light-associated
gentle warmth (limited temperature elevation) therapy to
temporarily relieve minor pain, stiffness and muscle
spasms; and
2) To temporarily increase the local blood circulation of
body parts.
• Do not use this device directly over the abdominal area
while pregnant.
• Do not use this device directly over an area of known
cancer.
• Avoid use over topical creams/gels.
• Consult medical professional should skin irritation occur.
• Use only with a
building code
approved grounded
outlet.
7
Frequency
The rate at which
photon energy
(information) is
delivered. (e.g.
duty cycle, pulsed
rate). Cellular
and DNA
communication can
be measured in
frequencies.
Joules (j)
A measurement of
energy transfer
Laser Therapy
High-density light
devices used for
ablation, cutting
and thermal
coagulation of
tissue
Def. Def.
Def. Def.
Def. Def.
Micro 2/PORT System Manual

• Do not use with an electric generator. Only use power
supply and cord sent by ILWS with any In Light Wellness
®
System product.
• Do not use pins or metallic materials to hold pads in
place.
• Do not use in water or while wet.
• When powering unit down, depress the “off” push button
so that power is no longer being applied to the LEDs. If
disconnecting the power cables, ensure the previous
steps have been followed. When disconnecting the
power connections, always pull plug from the connection.
• Do not apply therapy pads to skin with excessive
pressure. Light arrays should be in light contact with
clean skin surface.
• Do not apply treatment to an area for more than 20
minutes in a 5-hour period. Do not exceed 60 minutes of
treatment to an area in a 24-hour period.
Other Considerations
NOTE:
Please note every
other row of LEDs
are infrared and
cannot be seen
with the human
eye. If the red
LEDs are
illuminated, the
infrared LEDs will
also be powered
but you will not be
able to see them.
8®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.

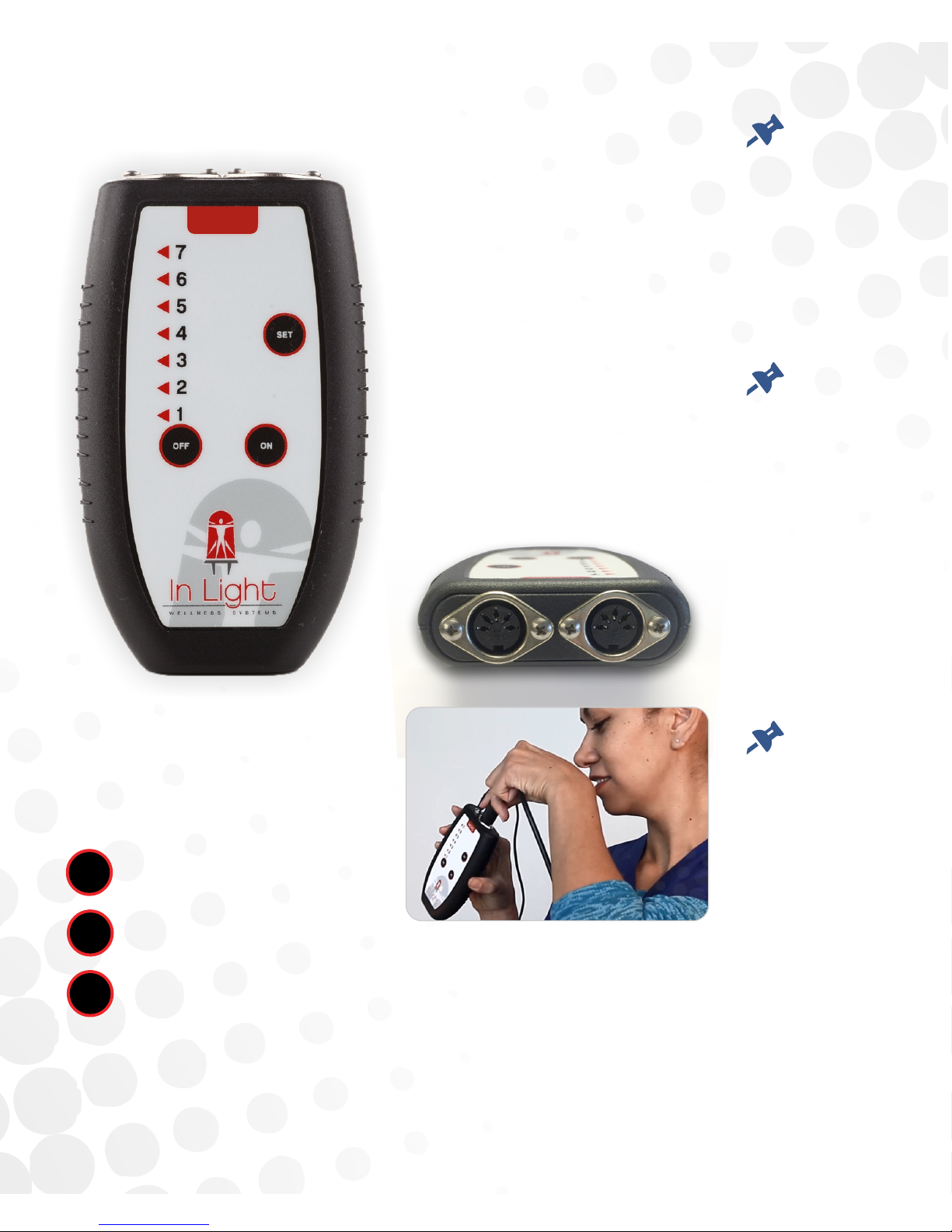

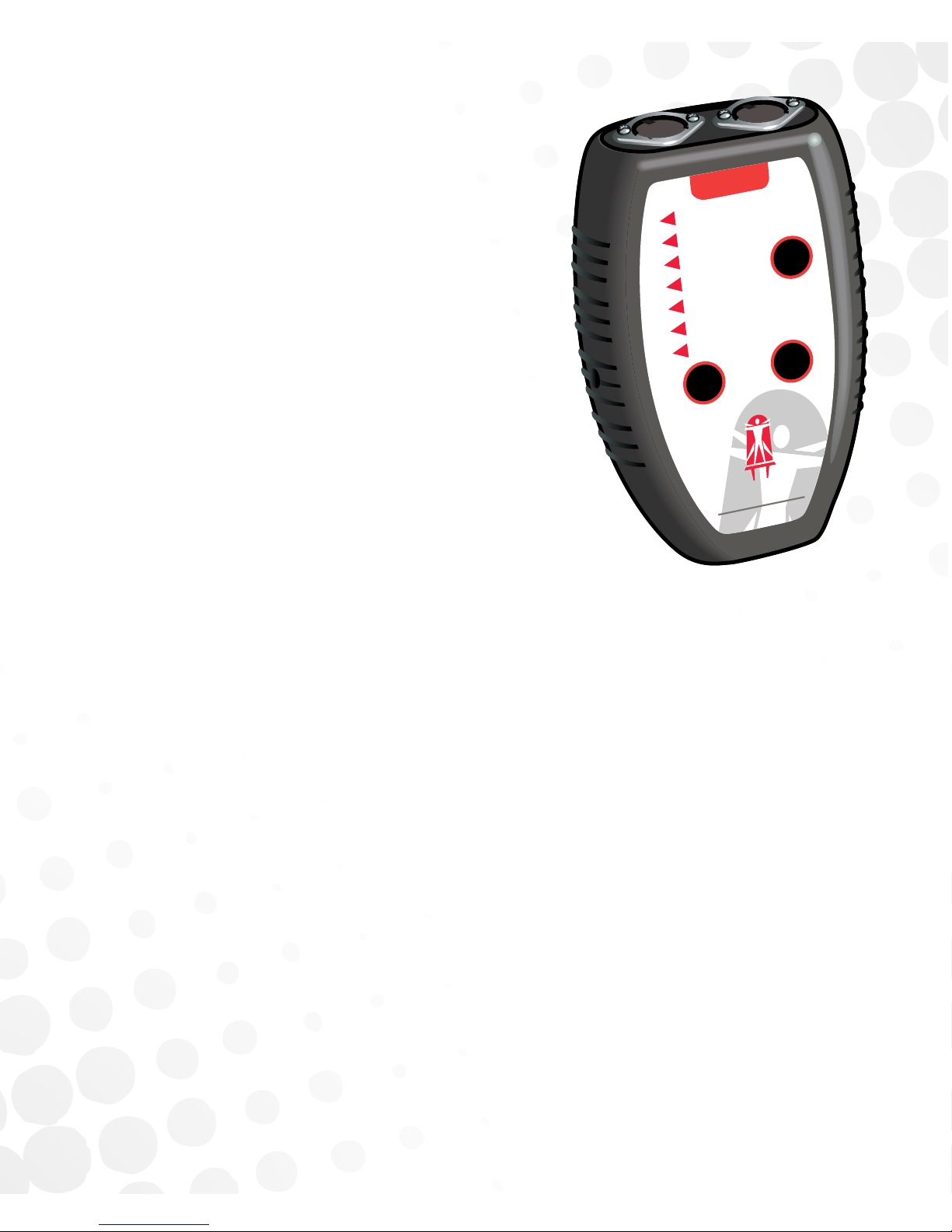

The MICRO 2/PORT Controller
Operation Modes
®
The ILWS MICRO
2/PORT Controller has
3 user buttons:
SET - changes
program settings
ON - turns unit on
OFF - turns unit off
OFFOFF
ONON
SETSET
9
Near infrared
light (NIR)
Refers to the use
of infrared light
applied directly to
living tissue
Nitric Oxide (NO)
A chemical
molecule released
from smooth
muscle when
triggered by
the body’s
parasympathetic
response and/or
polychromatic
light therapy
Wavelength
The length in
nanometers of
each color on the
visible and
invisible light
spectrum
Def. Def.
Def. Def.
Def. Def.
2/PORT

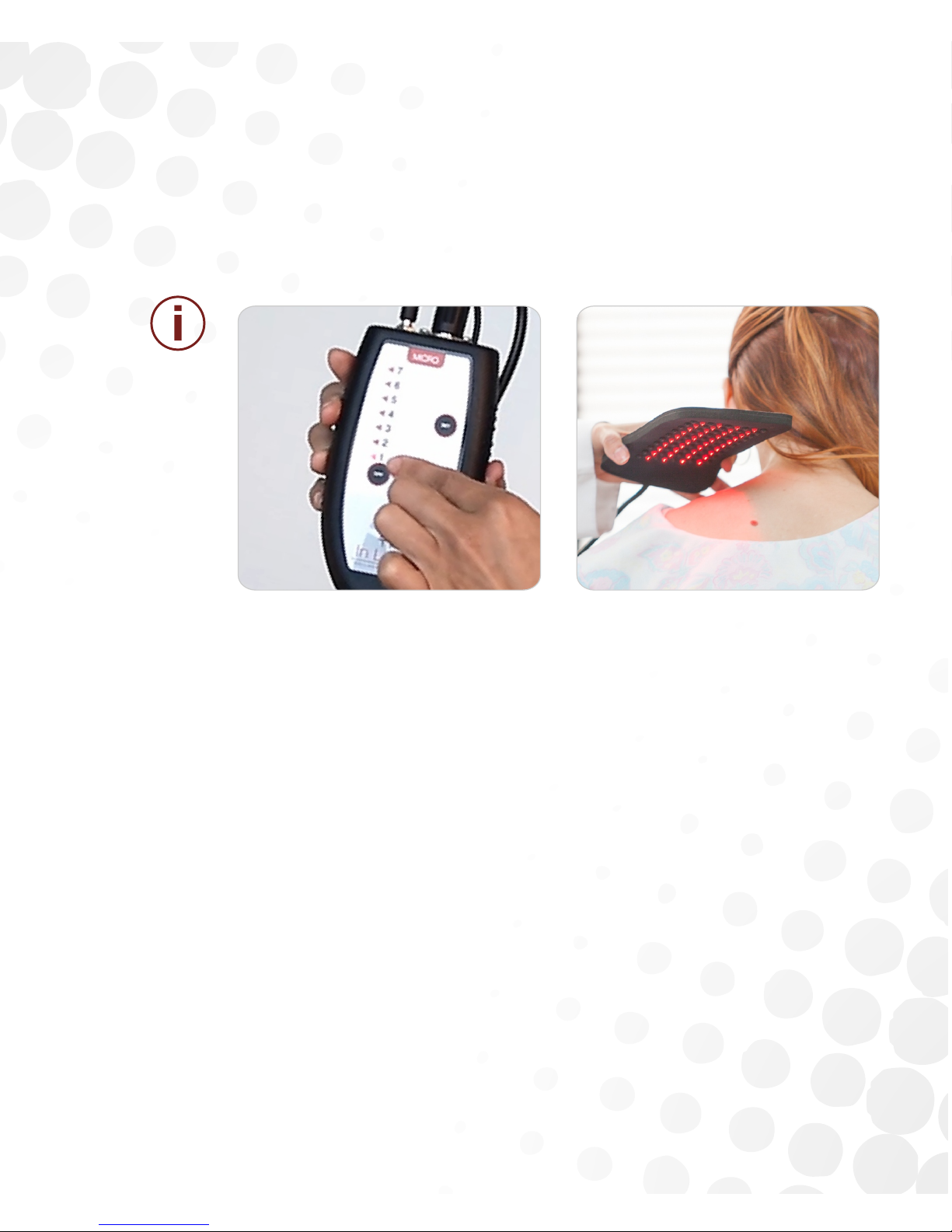

Device Set-Up
& Operation
• Insert the power cable into
110-volt power outlet.
• Insert power supply jack
into the In Light Wellness
®
Systems controller power
jack (see picture below).
• Connect the pad(s) to the
controller at the top of the
unit using any or all DIN
sockets as pictured below.
• Place the pad(s) with the
LED side of light array on
the treatment area.
• Press the ON button to
initiate treatment.
Micro 2/PORT System Manual

Choose a Setting
Suggested Application Guidelines
(see ‘Caring For Your Accessories’)
To use a different automatic or manual mode, press the
SET button until the desired LED indicator is illuminated.
The unit will operate on that setting until it powers off. The
unit will switch off automatically after 20 minutes in any
mode.
The standard treatment protocol for In Light Wellness
®
System treatment is twice a day for 20 minutes per
session as follows:

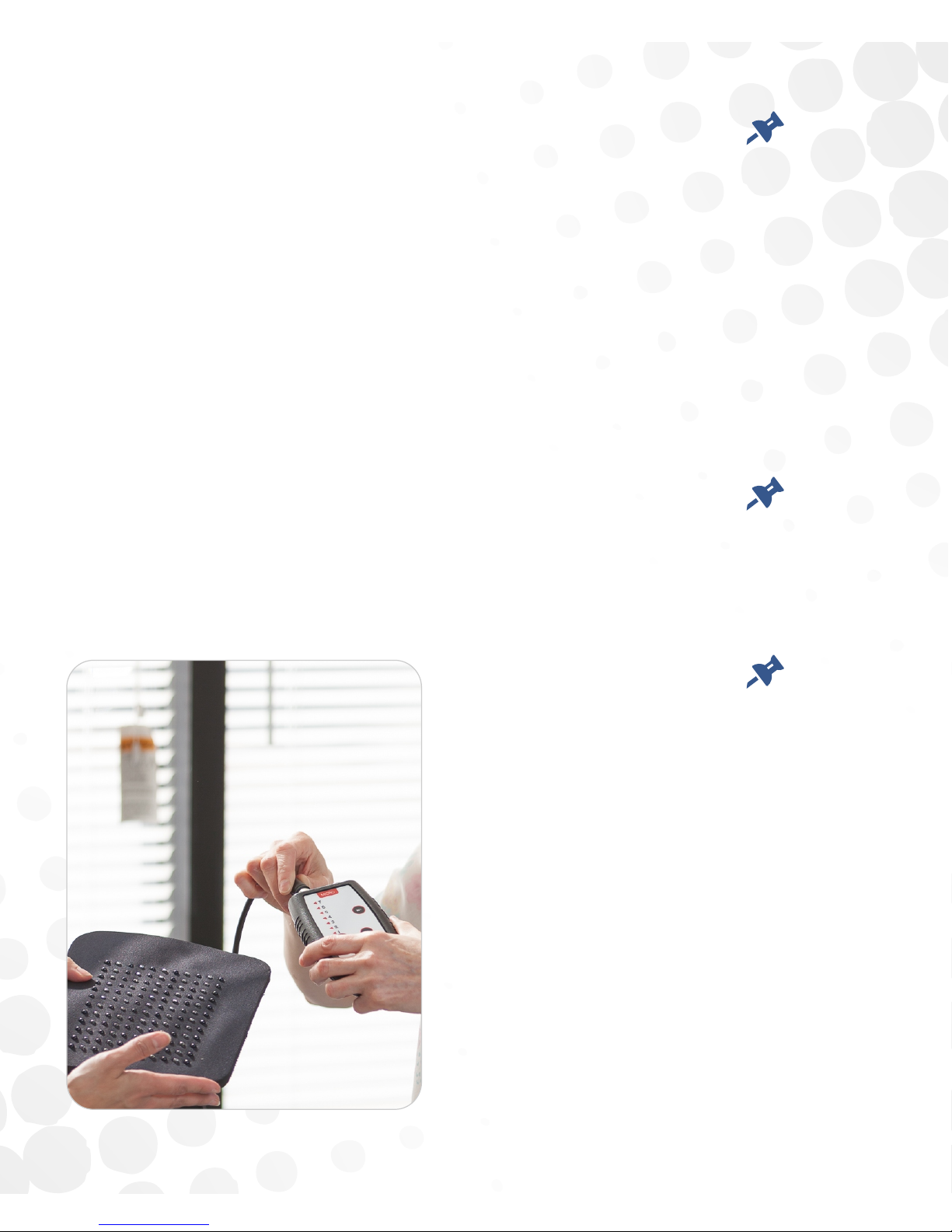

Apply the neoprene pad directly to the skin near or on
the affected area.
Place the pad in a clear plastic bag if bodily fluids are
present.
Turn the device “ON” and allow the unit to commence in
the automated mode for 20 minutes.
Do not apply treatment to an area for more than 20-
minutes in a 5-hour period.
Do not exceed 60 minutes of treatment to an area in a
24-hour period.
NOTE:
Be aware lying
directly on the
pad(s) results in
the lack of airflow
and may result in
elevated warmth
in the area.
10 ®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.

11
Remember, increasing circulation triggers physiologic
responses that can last for hours or days. As such, some
conditions may be adequately treated with 10-minute
sessions three (3) times per week. In all cases, follow the
direction of your healthcare provider.
None required to operate this device.
Disinfect the non-porous pads regularly with hospital grade
disinfectant solution (1:10 bleach solution). Spray onto a
cloth and lightly wipe clean with cloth. Do not soak or
saturate. Do not autoclave.
Keep pads clean by always covering treatment area or
pads with a clear plastic barrier such as plastic wrap or
clear bags for the foot and/or open wounds. In Light
®
Wellness System suggests using 10 x 30" 1 Mil Poly Bags
available through www.uline.com - model# S-10890.
Store in a cool, dry place, within the temperature ranges of
32-110°F
Recommendations for Training
Caring For Your System
Storage Instructions
Coherent Light
Emitted by laser
devices in a single,
columnar form
Non-coherent
light
Delivered by light
emitting diodes
(LED) via hands
off devices safe for
home use.
Lumen
A measure of the
total amount of
visible light emitted
by a source
Mitochondria
Specialized
structures in each
cell responsible for
creating ATP, the
energy molecule
that fuels all
cellular activity,
and much more.
[Source: UMDF.org]
Def. Def.
Def. Def.
Def. Def.
Def. Def.
Micro 2/PORT System Manual

12 ®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.
Warranty Information
®
In Light Wellness Systems
defects in materials and workmanship for a period of one (1) year. The
®
obligation of In Light Wellness Systems under this warranty is expressly,
solely and exclusively limited to the repair or replacement for the unit(s)
or any parts thereof, which to the satisfaction of In Light Wellness
®
Systems , shall have become defective during the warranty period. This
warranty does not extend to any liability to medical expenses or for any
other direct, indirect or consequential damages caused by failure, defect
®
or malfunction of any In Light Wellness Systems product, except as
herein provided.
®
This warranty shall not apply to any In Light Wellness Systems product
that has been repaired, tampered with or altered by someone other than
®
a duly authorized In Light Wellness Systems representative, or that has
not been used in accordance with the enclosed instructions or stated
®
purpose. All accessories used with a In Light Wellness Systems system
®
must be provided by In Light Wellness Systems or authorized
representative including, but not limited to, the power supply and
securing straps. If items of this nature not provided by In Light Wellness
®
Systems or an authorized representative, are used with an In Light
®
Wellness Systems system, this warranty will be voided. Additionally, In
®
Light Wellness Systems will not be held liable for any mishaps relating to
®
the In Light Wellness Systems product. This warranty is warranted by In
®
Light Wellness Systems and is deemed to be the only warranty honored
warrants each new device to be free from
Important Notice
®
If any part of the in In Light Wellness Systems system fails or unit is
not working you should visit www.ilwsystems.com/rra to fill out a
Warranty - Return & Repair Authorization.
Do not attempt to fix the unit, in case of any failure as this will
void your warranty.
Opening the control unit may cause an electrical shock if certain
components are touched.
Opening the control unit or pads will void the warranty.
®
Only use ILWS approved and provided accessories with all
®
In Light Wellness Systems equipment. Failure to do so may result in
damage to equipment, and cause health, fire, and/or safety problems.
Expected Service Life:
1 Year Under Warranty,
Repairs Available for the
Lifetime of the Device.
Manufacturing Date
Documented On Each
Pad And Controller.

13
by in lieu of any and all warranties expressed
or provided by any and all other merchants, distributors, companies or
persons. No person or entity has any authority to bind any In Light
®
Wellness System product to any warranty or guarantee except as
specifically set forth herein.
®
Defective In Light Wellness System equipment must be returned to In
®
Light Wellness System .
®
In Light Wellness System disclaims all other warranties, either express or
implied, including but not limited to implied warranties relating to the use
of the product and/or result from the use of the product and any
warranties which may be implied as a result of the purpose for which the
product was manufactured. Not every person may obtain desired results
®
from the use of any In Light Wellness System system. In no event will In
®
Light Wellness System be held responsible or liable for any failure to
produce claimed results arising out of the use or non- use of any In Light
®
Wellness System product.
®
In Light Wellness System
Photobiomodulation
Light changes biology
Photon
A wave or a particle
representing light
having no mass.
Photons transmit
information measured
in frequencies within
and between cells.
Def. Def.
Def. Def.
Micro 2/PORT System Manual

14 ®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.
A 30 Year History with Light
Recognizing need is a catalyst for inspiration. Following
inspiration through to invention requires commitment, focus
and passion. Each advance implemented is a result of
identifying one solution born of a multitude of ideas. This is
the process of innovation; And innovation takes time.
At In Light Wellness Systems, innovation has taken us on a
30-year journey. We have committed our careers, our
family and our lives to creating the finest LED light therapy
technology in any marketplace. We’ve committed
ourselves to innovation.
Our
Mission
To Design,
manufacture,
and deliver
the finest LED
Light Energy
systems in any
marketplace while
supporting our
distribution
network and
serving our
customers with
consistency,
integrity, and
respect.

15
Every step…one location.
We design, develop, manufacture, ship and
service our devices…all in our US facility.
Micro 2/PORT System Manual

16 ®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.
Technical Description
Model Type:
Micro 2/Port Controller System
Device/System Parts Include:
ILWS Micro 2/Port Controller and ILWS Power Supply, (OUTPUT: 12.0V-
5.0A), The power supply can be considered as the disconnection from the
MAINS.
Applied Parts Include:
Flexible Light Therapy Pads
The following pads are interchangeable for use - BODY/264, LOCAL/132,
FACEMASK/104, SPINAL/112, BOOT/122, SMALL/50, PAINBUSTER/90,
PAINBUSTER II/180, SPORTS/180.
Accessories Include:
Sanitary Pad Sleeves
Protective Eyewear
This device does not require professional installation by service personnel.
Manufacturer will provide circuit diagrams, component part lists, descriptions
and instructions to assist Service Personnel in all requested parts repairs.
This system, subject to mechanical wear, electrical, environmental
degradation or aging is accessible for inspection, replacement and
maintenance.
WARNING: Use of accessories, transducers and cables other than those
specified or provided by the manufacturer of this equipment could result in
increased electromagnetic emissions or decreased electromagnetic immunity
of this equipment and result in improper operation.
WARNING: Use of this equipment adjacent to or stacked with other
equipment should be avoided because it could result in improper operation. If
such use is necessary, this equipment should be observed to verify that they
are operating normally.

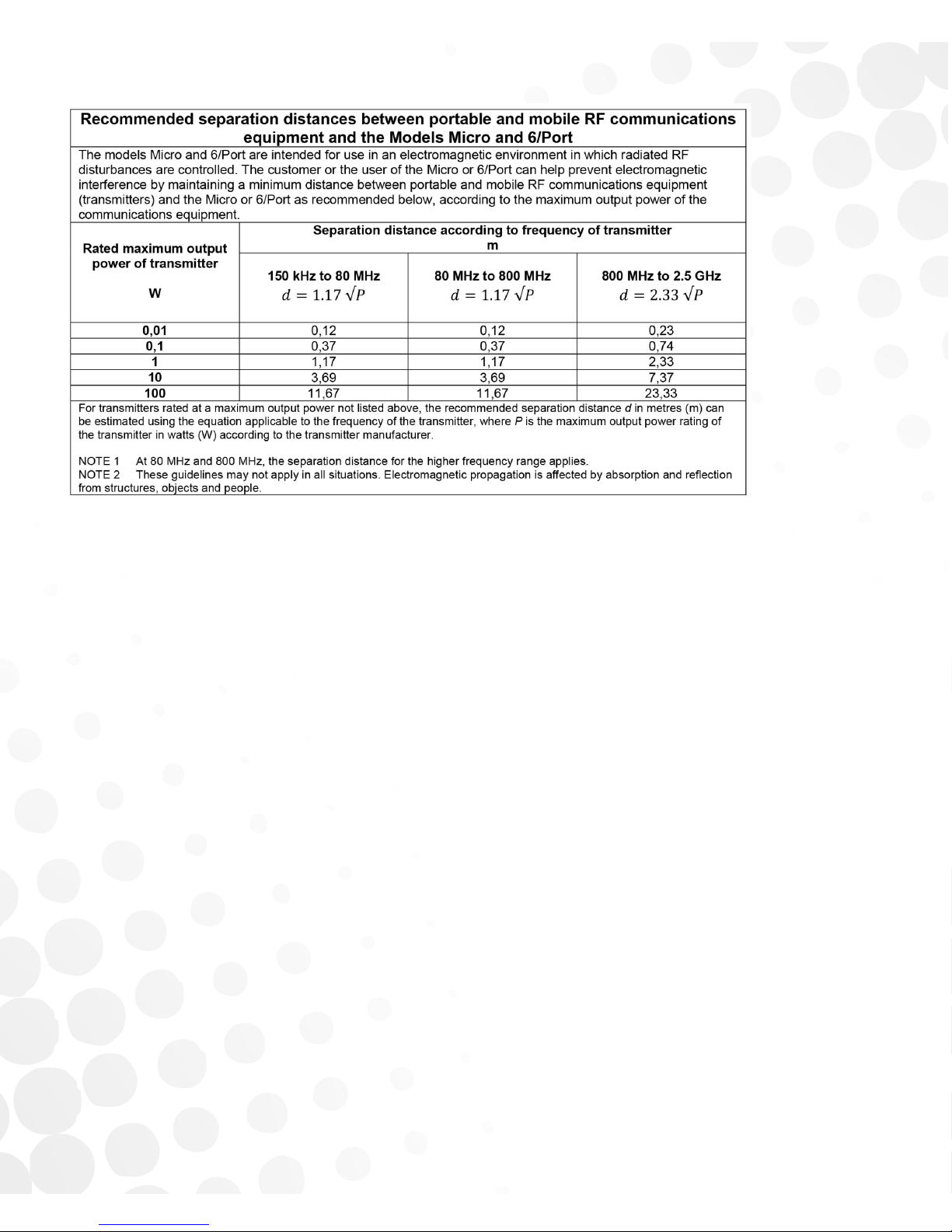

WARNING: Portable RF communications equipment (including peripherals
such as antenna cables and external antennas) should be used no closer
than 30cm (12 inches) to any part of the In Light Wellness System, including
cables specified by the manufacturer. Otherwise, degradation of the
performance of this equipment could result.

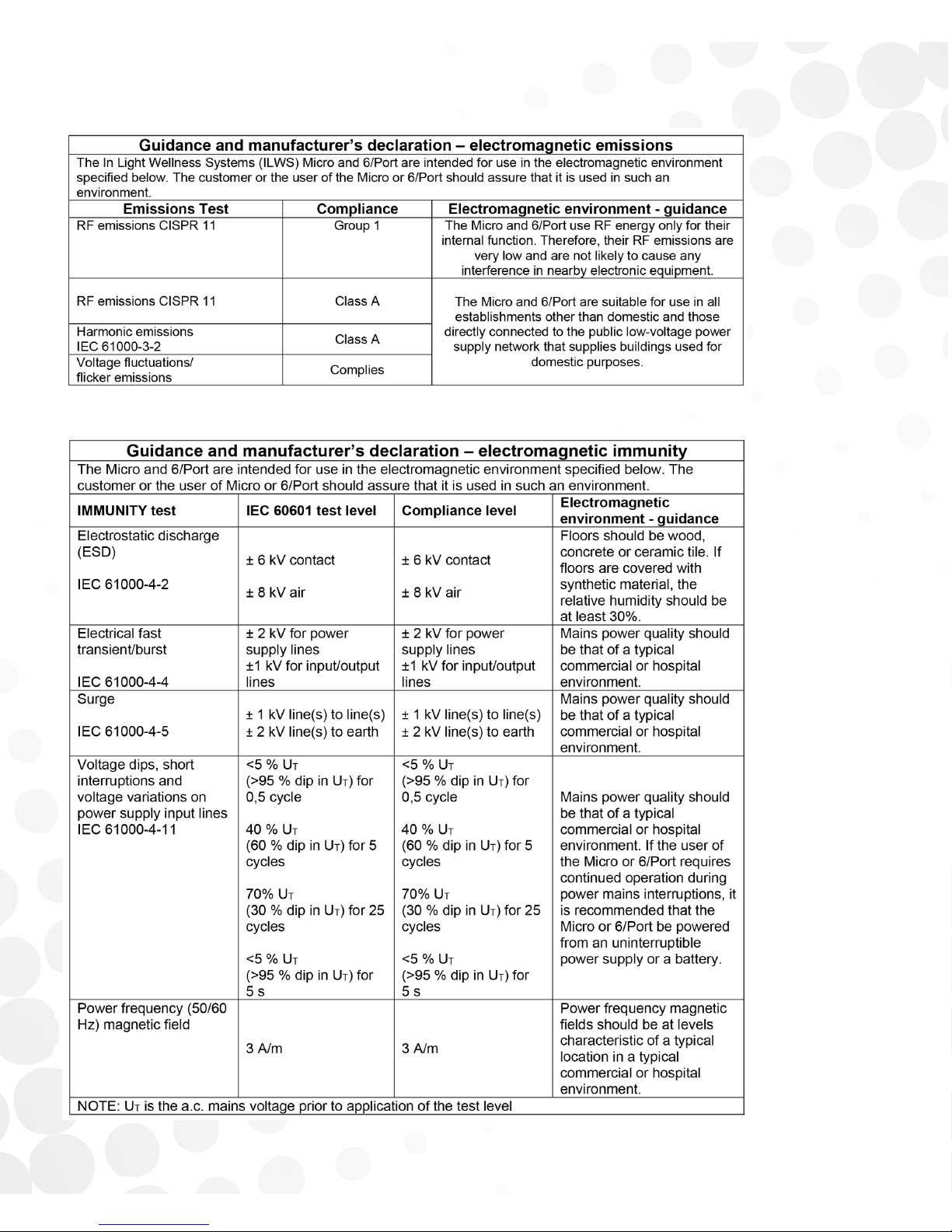

Medical Electrical Equipment needs special precautions regarding EMC and
needs to be installed and put in service according to the EMC information in
the Electromagnetic Capability of this manual.
Type B Applied Part
Protection from rain
Temperature limitation
On
Off
On/Off (push-push)
Manufacturing date
Manufacturer
Serial number
Caution, consult documents
Read usage instructions

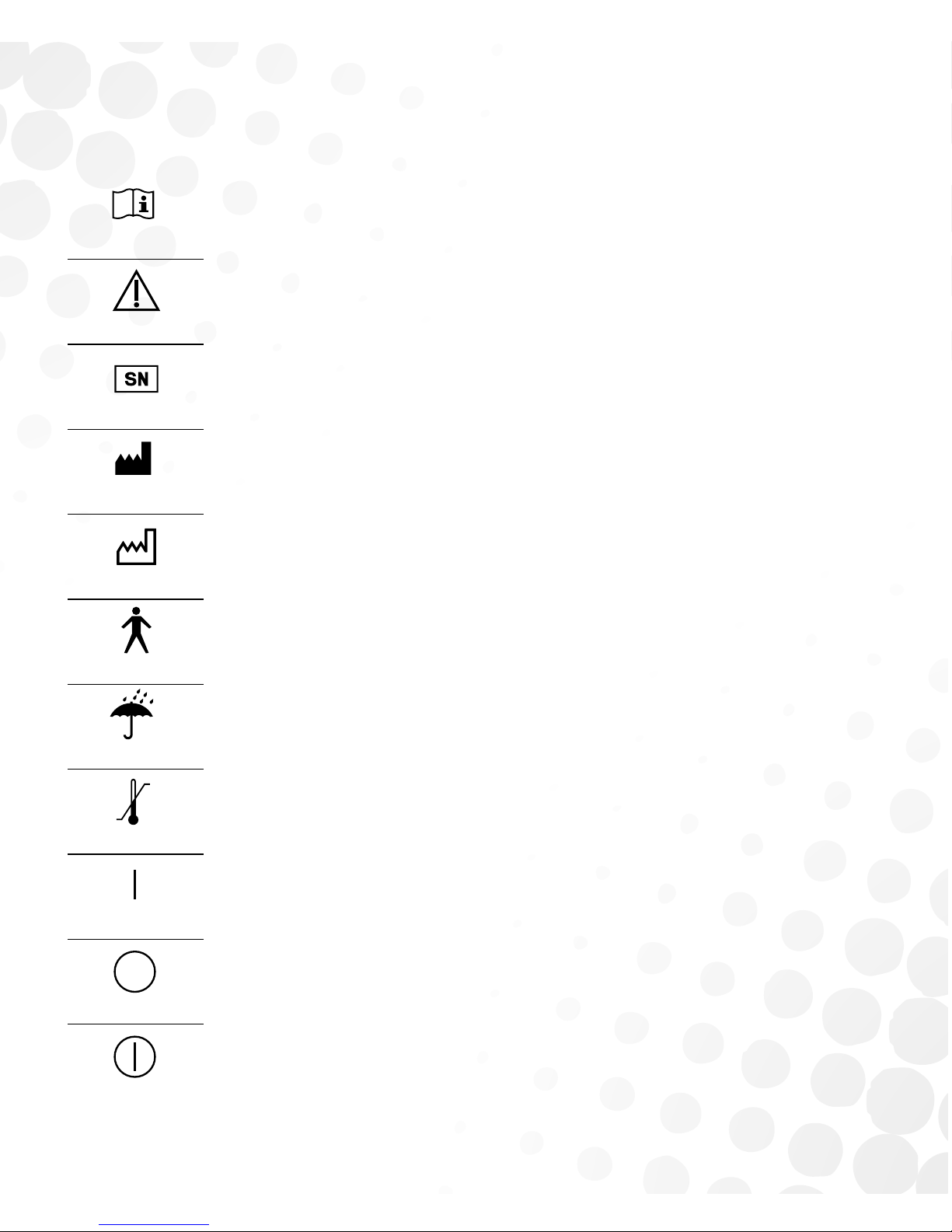

Symbol Key

17
Micro 2/PORT System Manual

18 ®
In Light Wellness Systems ®
© 2015 ILWS . All rights reserved.

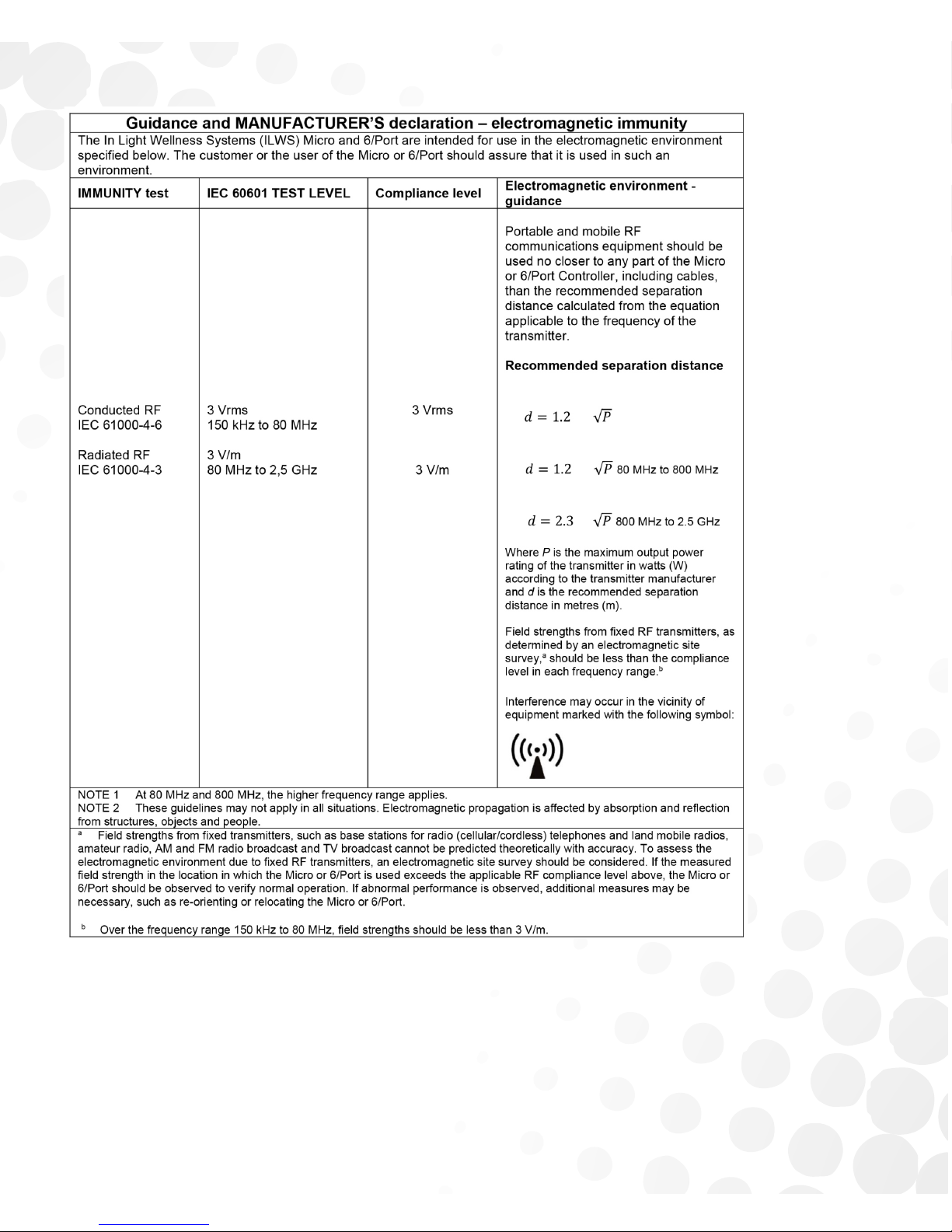

19
Micro 2/PORT System Manual
Device Description
Power: Output Power Increments - 12v DC, Output Port 5 Pin Din Jack,
Power/Energy Range 100-240 VAC
Increments of Power: 10.4-12VDC
Energy of Power: .5-5Amps
Beam Diameter/Spot Size: 5mm
Delivery System: Light Emitting Diodes
Wave Length: 430nm – 880nm
Controls: Push button
Patient Contacting Materials: Neoprene, plastic diode casing
Temperature at user skin surface: 100-124°F
Storage Temperature: 32-110°F
Recommended distance from patient: Contact skin
Timer Modes: 20 minutes
Weight: Varies per pad and controller
Dimensions: Varies per pad and controller
Intended Operator Language:
English (US), Spanish available on request.
Manual Version Identifier:
ILWS2/PORTRXv0116

In Light In Light In Light
W E L L N E S S S Y S T E M S
Brilliant Light TherapyBrilliant Light Therapy
2/PORT
