InCarTec 50-640 User manual

INSTALLATION INSTRUCTIONS
50-640
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT COMPONENTS
• A) Radio trim panel • B) Radio housing • C) Sub dash brackets • D) Radio brackets • E) Panel clips (3) • F) #8 x 1/2” Phillips screws (4)
• Panel removal tool • 9/32” socket
• Phillips screwdriver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DDIN radio provision .....................................4
–Pioneer Modular radio provision .......................5
TOOLS REQUIRED
A C D E
F
B
Ford Transit 2020
KIT FEATURES
• ISO DDIN radio provision*
• Painted scratch resistant matte black
* This kit is designed for an ISO DDIN radio which have an “L” shaped chassis
design, with the radio chassis at the bottom of the screen,
or Pioneer modular 6.8” radios.
Refer to the radio manufacturer for current models

2
DASH DISASSEMBLY
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C)
1. Unclip the trim behind the radio display,
then remove (3) 9/32” screws exposed.
(Figure A)
2. Slide the radio display up and out, then
unplug and remove. (Figure B)
3. Remove (2) screws securing the center
dash panel, then unclip, unplug, and
remove. (Figure C)
4. Remove (4) 9/32” screws securing the
radio display mount, then remove.
(Figure D)
5. Unplug the connectors from the radio
chassis. Remove (2) 9/32” screws
securing the chassis, slide out, then
remove. (Figure E)
Continue to Kit Preparation

3
(Figure B)(Figure A)
KIT PREPARATION
1. Attach the (3) included panel clips to the
radio trim panel. (Figure A)
2. Cut and remove the two lower mounting
tabs from the inside of the factory dash
panel radio opening. (Figure B)
Continue to Kit Assembly
Remove shaded areas

4
KIT ASSEMBLY
Bottom chassis radio provision
1. Secure the sub-dash brackets to the
dash using the factory screws. (Figure A)
2. Snap off the front of the radio brackets
and secure them to the radio using
screws supplied with the radio.
(Figure B, C)
3. Snap the radio housing into the factory
dash panel. (Figure D)
4. Snap the factory dash panel back
in place.
5. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Test the radio for proper
operation.
6. Slide the radio assembly into to the dash
and secure to the radio housing using
the (4) included Phillips screws.
(Figure E)
7. Snap the radio trim panel into the radio
housing. (Figure F)
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
Remove shaded areas

5
Pioneer Modular DDIN radio provision
Note: For steps 2 and 3, reference the
installation manual provided with the radio
for which hardware to use. The display
screen and radio chassis use two different
types of screws.
1. Secure the sub-dash brackets to the
dash using the factory screws. (Figure A)
2. Secure the radio brackets to the radio
display using (4) screws supplied with
the radio. (Figure B)
3. Secure the radio brackets to the radio
chassis using (4) screws supplied with
the radio. (Figure C)
4. Snap the radio housing into the factory
dash panel. (Figure D)
5. Snap the factory dash panel back in
place.
6. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
7. Slide the radio assembly into to the dash
and secure to the radio housing using
the (4) included Phillips screws.
(Figure E)
8. Snap the radio trim panel into the
radio housing. (Figure F)

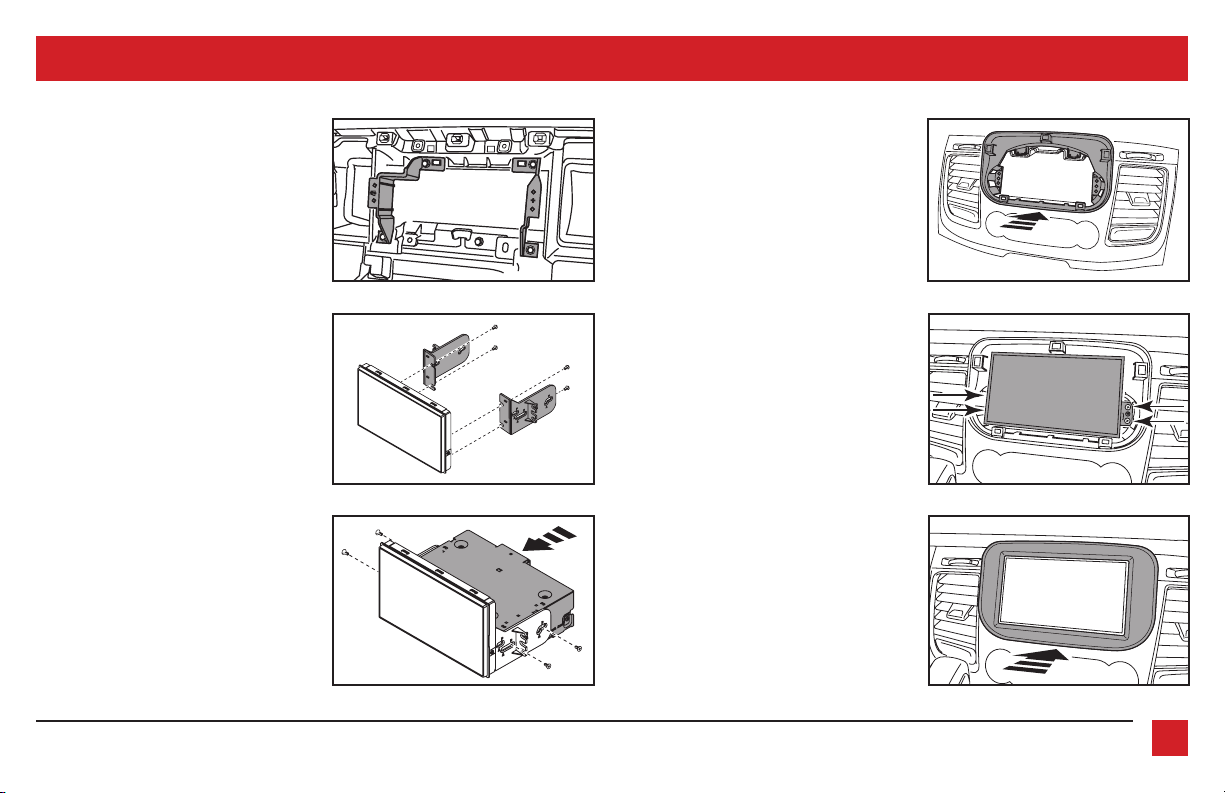

KIT ASSEMBLY
(Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
(Figure A)
