Introduction
Congratulations on purchasing the Indy PresenterTM, the world’s first
1024 x 768 full-color, flat-panel monitor with stereo speakers and overhead
projection capability.
This guide explains how to install the necessary hardware for the Indy
Presenter in the IndyTM workstation, how to set up the Indy Presenter as a
monitor for your workstation, and how to use the Indy Presenter on the
Silicon Graphics®customized Dukane®overhead projector.
You will also learn how to use the Indy Presenter software, how to transport
the Indy Presenter, how to take care of it, and how to troubleshoot if you
have problems.
Read this guide once all the way through before you start to work. Then
you’ll be familiar with the Indy system and the parts you’ll be working with.
If you find a term you haven’t seen before, refer to your system owner’s
guide. The glossary in the owner’s guide contains definitions of many of the
terms used in this manual.

xii
Introduction

1
Chapter 1
1. Installing the Indy Presenter Hardware
and Software
Before using the Indy Presenter, you need to prepare your Indy workstation
by installing some hardware and software.
To install the hardware, you will complete these steps:
•Identify which graphics board is installed in your Indy workstation.
•Shut down the system and check the version of your PROM chip from
the Command Monitor. (If your Indy has XZ graphics, you do not have
to do this step.)
•Remove the cover.
•Remove and replace the PROM chip on the system board (if necessary).
•Install either the Indy Presenter adapter or the Indy Presenter XZ
adapter, depending on your system’s graphics configuration.
•Replace the cover.
•Connect the cables and restart your system.
The Indy Presenter Package
Your Indy Presenter package includes all of the following items. If anything
is missing, contact your sales representative.
•Indy Presenter flat-panel monitor
•Power cable and interface cable
•Indy Presenter adapter board or the Indy Presenter XZ adapter board in
an antistatic bag
•Bag of hardware for installing the adapter board

2
Chapter 1: Installing the Indy Presenter Hardware and Software
•PROM chip in an antistatic bag
•Chip removal tool to remove the PROM chip
•Open-ended wrench to remove standoffs and hexnuts
•Phillips screwdriver
•Antistatic wrist strap
•Cleaning kit
•Indy Presenter Owner’s Guide (this manual)
•Compact disc (CD-ROM)
Identifying Your Indy’s Graphics Board
Before starting the installation process, you need to know whether your Indy
has the Indy graphics board or the Indy XZ graphics boardset. Follow these
steps:
1. From the Desktop toolchest, select “Unix Shell.”
2. At the shell prompt, type:
hinv
•If you see “Graphics board: GR3-XZ,”your system has the Indy XZ
graphics. Type exit to exit the shell, and go to “Installing the Indy
Presenter XZ Adapter Board”on page 30.
•If you see either “Graphics board: Indy 24-bit”or “Graphics board:
Indy 8-bit,”check the version of your graphics board by typing:
/usr/gfx/gfxinfo
If you see “NG1 revision 3”or greater, your system has the Indy
graphics. Type exit to exit the shell, and go to “Checking the
PROM Chip Version”on page 3.
If you see either “NG1 revision 1”or “NG1 revision 2,”you were
one of the first purchasers of an Indy system. You need to upgrade
your graphics board, free of charge. Contact your local Silicon
Graphics support office for a free graphics board upgrade. When

Checking the PROM Chip Version
3
you have the new graphics board, start with “Checking the PROM
Chip Version”on page 3. When you reach the section “Replacing
the Graphics Board”on page 19, install the new graphics board.
Checking the PROM Chip Version
You may or may not need to replace your system’s PROM chip, depending
what PROM version you have. You check the version of the PROM chip from
the Command Monitor while shutting down your system.
Follow these steps to check your system’s PROM version:
1. Shut down the system.
■Place the cursor over the word “System”in the Toolchest in the
upper left corner of your screen.
■Press and release the left or right mouse button so that you see the
menu.
■Click on “System Shutdown.”
After a few seconds you see the notifier shown in Figure 1-1.

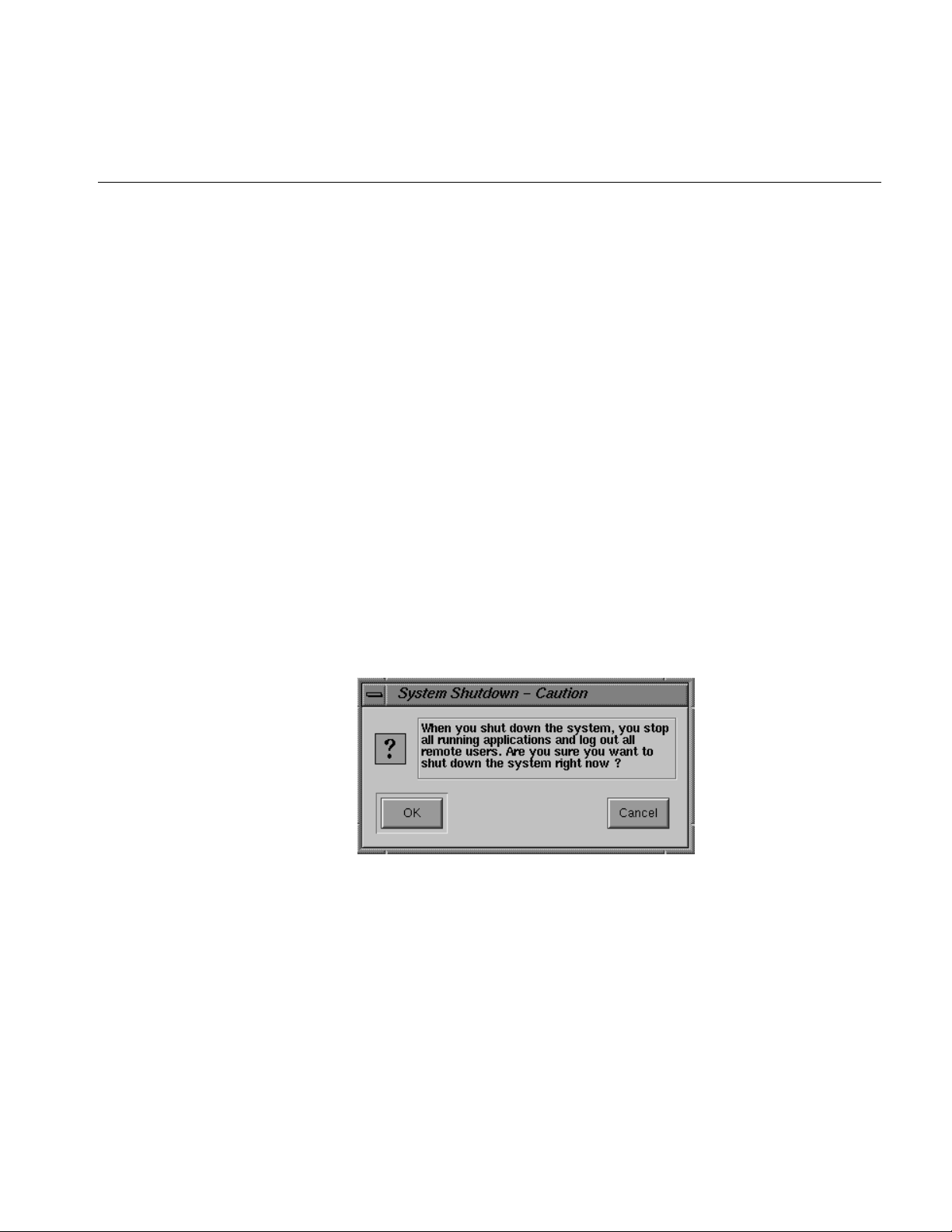

Figure 1-1 System Shutdown Notifier
■Click OK to shut down without powering off the system.

4
Chapter 1: Installing the Indy Presenter Hardware and Software
You see the message shown in Figure 1-2.

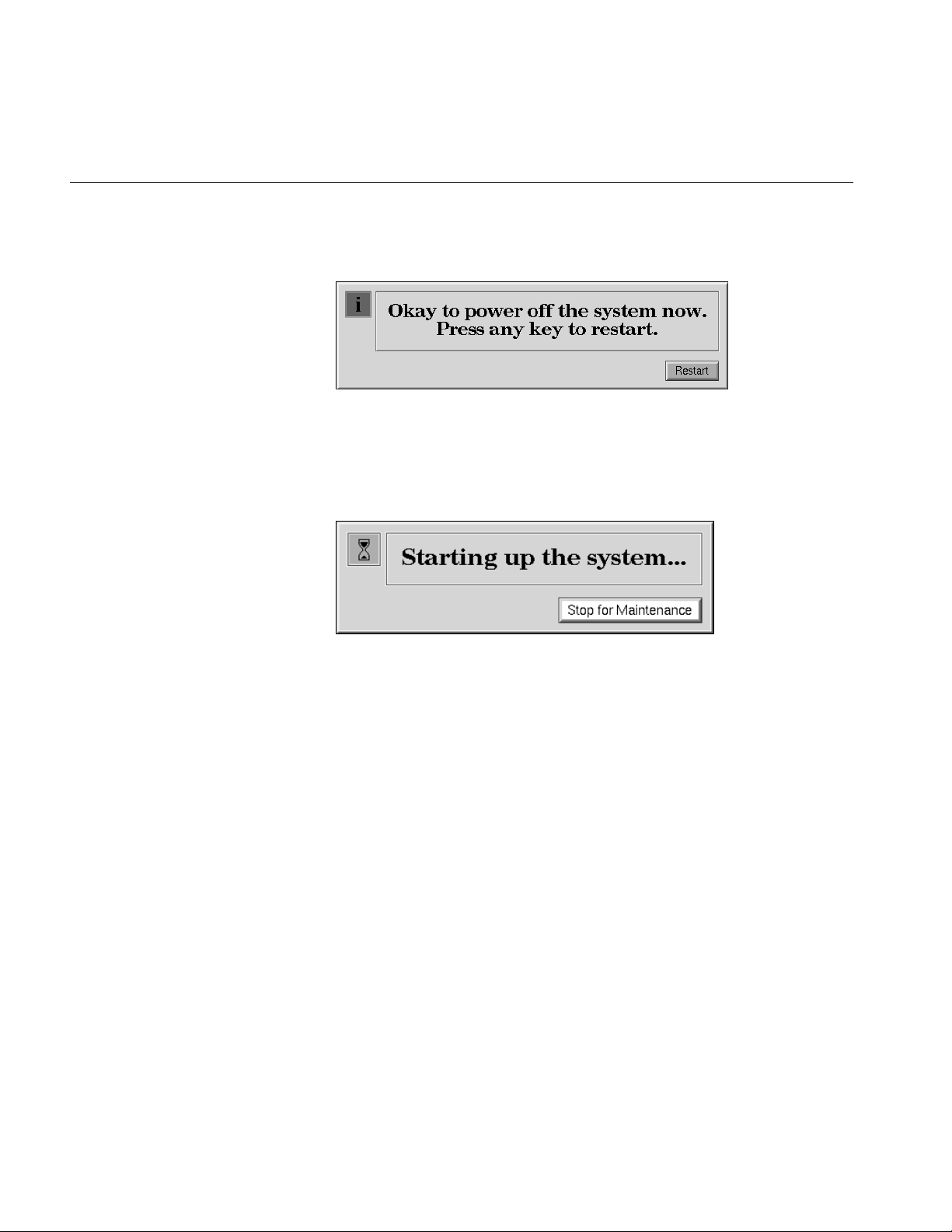

Figure 1-2 Okay to Power Off Notifier
■Click the Restart button.
You then see the message shown in Figure 1-3.
Figure 1-3 Starting Up the System Notifier
■Click on the Stop for Maintenance button. The System Maintenance
menu appears.
2. Press 5on the keyboard, or click on the Enter Command Monitor icon on
the System Maintenance menu.
3. See what version of the PROM you have. At the >> prompt, type:
version
Then press <Enter>.
You see a line similar to this:
PROM Monitor SGI Version 5.0 Rev B5 IP24 Jul 15, 1994 (BE)
The date, “Jul 15, 1994”tells you the version of the PROM.

Checking the PROM Chip Version
5
•If your PROM is dated July 15, 1994 or later, you do not need to
replace the PROM chip. When installing the upgrade, skip
“Replacing the PROM in an Indy Workstation”on page 12, but
complete all the other installation steps.
•If your PROM is dated before July 15, 1994, you must replace the
PROM chip. Complete all the hardware installation steps.
4. After you have checked your PROM version, type exit to exit the
PROM monitor.
5. You see the System Maintenance menu again. It is safe to turn off your
Indy.
6. Turn off the power by pressing and releasing the power button on the
front of the Indy, as shown in Figure 1-4. The system powers off
automatically.
Figure 1-4 Turning Off the Indy Workstation
Power button

6
Chapter 1: Installing the Indy Presenter Hardware and Software
Removing the Top Cover
Follow these steps to remove the top cover of your Indy workstation.
Before removing any exterior cables, familiarize yourself with their location
so that you’ll find it easier when reconnecting them later.
Caution: Your monitor is very heavy. Have someone help you move it.
1. If the monitor is on top of the workstation, move it to one side.
2. Disconnect the black power cable and the monitor cable from the back
of the Indy workstation.
There are several other cables connected to the rear of the Indy chassis.
Disconnecting them is optional, however, if you do, you’ll have more
room to work with when removing the screws from the back panel.
3. Facing the front of the Indy workstation, place your right thumb
against the lip at the back of the cover, and your second and third
fingers under the finger ledge, as shown in Figure 1-5.
4. Snap the cover loose by bracing your thumb against the lip and
pushing up the finger ledge with the second and third fingers, followed
by a firm push toward the front.
5. Slide the cover forward about one inch, tilt it up, and remove it.

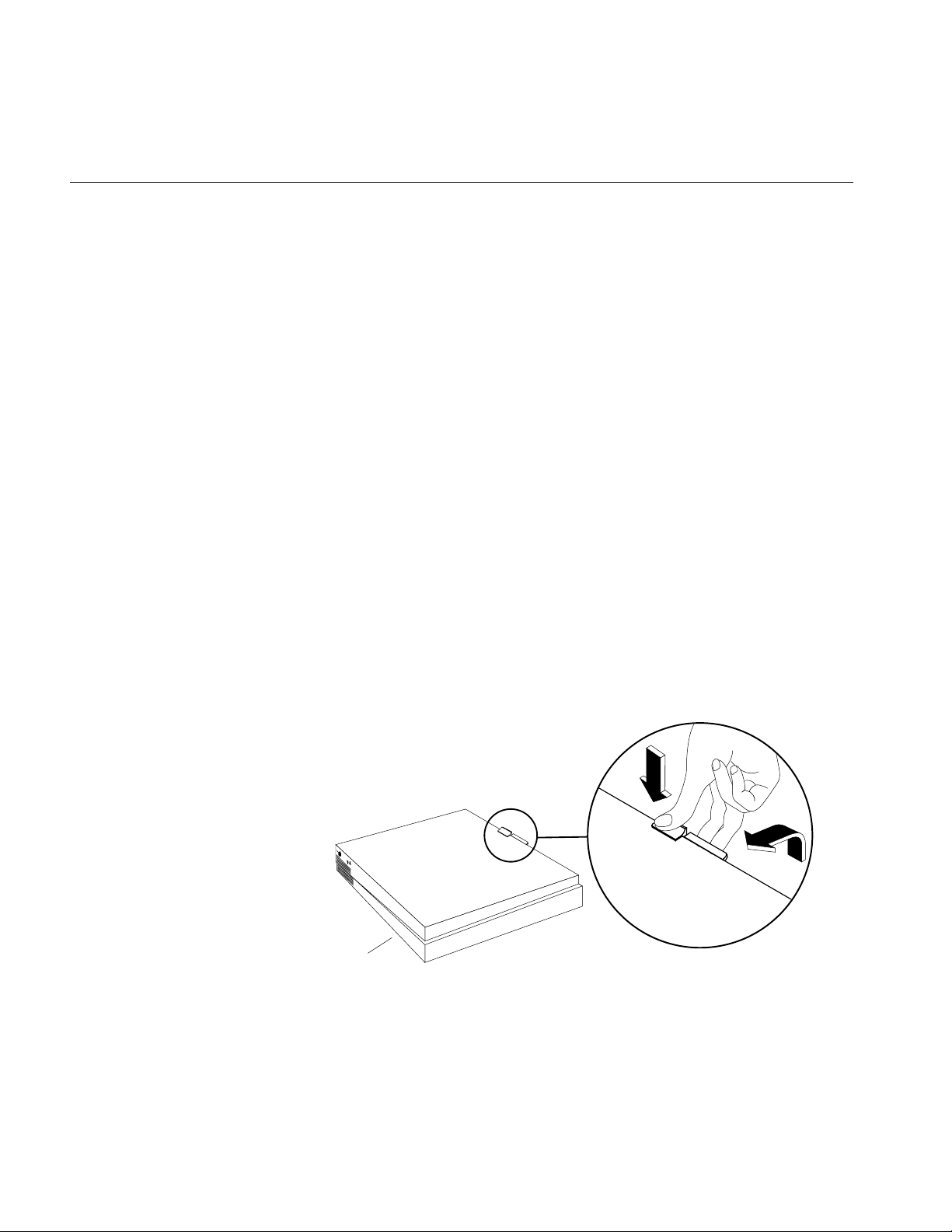

Figure 1-5 Removing the Top Cover From the Indy Workstation
Front

Attaching the Wrist Strap
7
Attaching the Wrist Strap
Wear the wrist strap to prevent the flow of static electricity, which can
damage the components in the Indy workstation.
Caution: The components inside the Indy are extremely sensitive to static
electricity. Handle all chips and modules carefully, and wear the wrist strap
shipped with the upgrade package while replacing parts inside the system.
To attach the wrist strap, follow these steps:
1. Put the wrist strap over your wrist, making sure it is tight against your
arm.
2. Attach the alligator clip to a metal part of the Indy chassis.

8
Chapter 1: Installing the Indy Presenter Hardware and Software
Removing the GIO Option Board
To replace the PROM chip or to install either of the Indy Presenter adapter
boards, you must first remove any GIO option boards, if installed.
GIO option boards are located on top of the graphics board and can be
single-width, covering half of the graphics board, or double-width, covering
the entire graphics board. Figure 1-6 shows a single-width board. If there’s a
GIO board installed, your system will have three levels of boards: the system
board on the bottom, the graphics board in the middle, and the GIO board
on top.
To determine if you have a GIO option board installed, compare your system
to the one shown in Figure 1-6. Then follow the instructions below.
Figure 1-6 Indy Workstation With Single-Width GIO Option Board
If your Indy workstation has: Then:
One or more GIO option boards
installed
Go to step 1 on page 9.
No GIO option boards installed Go to “Replacing the PROM in an
Indy Workstation”on page 12.
Single-width
GIO board
Graphics board
System board
