Ink Bird IVC-001W User manual

尺寸：130x160mm
类型：骑马钉

Smart Fan Controller
Inline Duct Fan
IVC-001W
w
A
R
R
A
N
T
Y
VOID
IF SEAL
BROKEN

01 Overview
02 Features & Specifications
03 Product Contents
04 INKBIRD App
05 Smart Controller Instructions
06 Automatic Control Mode Instructions
CONTENTS
01
01
02
03
03
04
07 Manual Control Mode Instructions
09 Shutdown Mode
10 Lock Mode
11 ECO Mode
12 Parameter Factory Setting
13 Inline Duct Fan Installation Instructions
09
13
13
13
13
14
08 Timer Control Mode Instructions 10
14 FCC Requirement 22

01 Overview

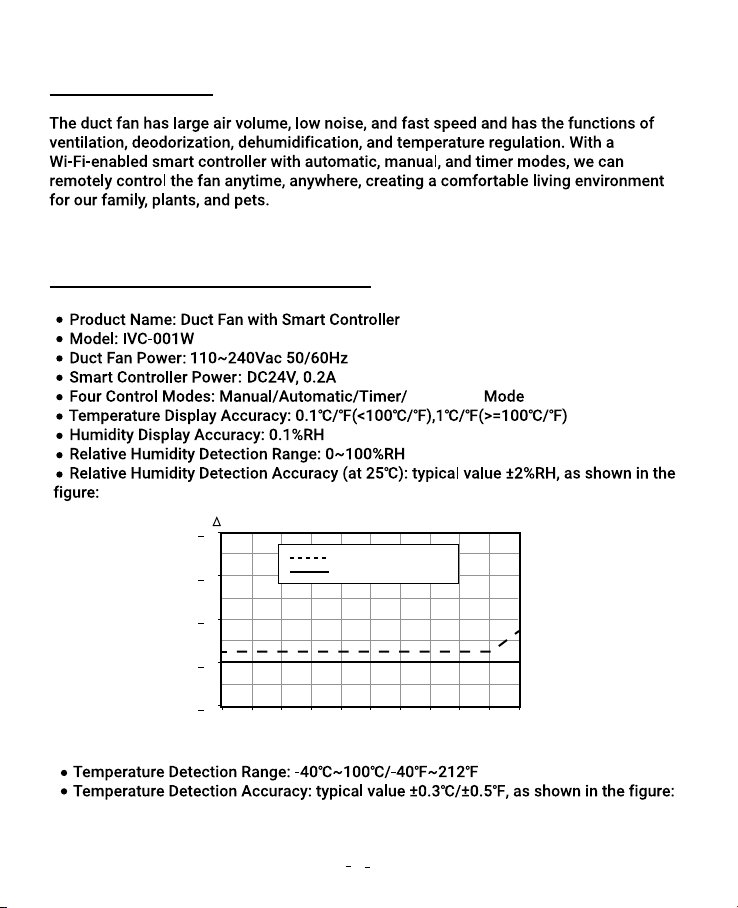

02 Features & Specifications
Shutdown
maximal tolerance
Relative Humidity(%RH)
typical tolerance
+8 RH(%RH)
+6
+4
+2
+0 0 10 20 30 40 50 60 70 80 90 100
1

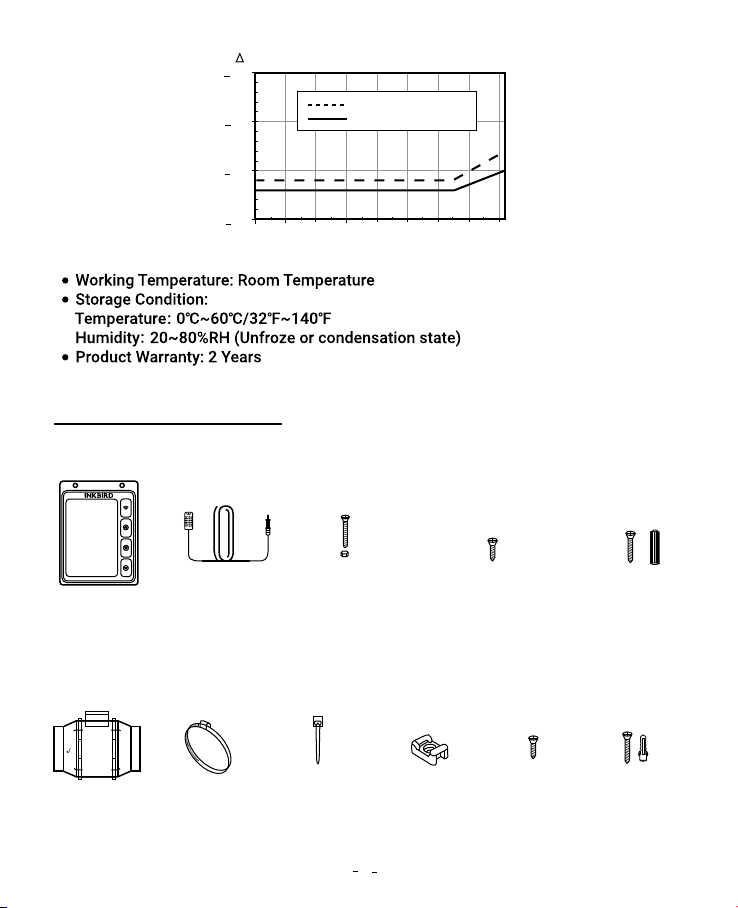

03 Product Contents
150
ALRFLOW
Temperature(℃)
Smart Controller Unit
Inline Duct Fan Unit
SMART
CONTROLLER
(X1)
SENSOR
PROBE
(X1)
MACHINE SCREWS
(WALL MOUNT)
(X2)
WOOD SCREWS
(WALL MOUNT)
(X2)
WOOD SCREWS
(WALL HANG)
(X2)
+1.5
+1.0
+0.5
+0.0
-40 -20 0 20 40 60 80 100 120
maximal tolerance
typical tolerance
T(℃)
INLINE DUCT
FAN SYSTEM
(X1)
DUCT
CLAMP
(X2)
WIRE
TIE
(X6)
CABLE TIE
MOUNT
(X6)
WOOD
SCREWS
(X6)
2
DUCT FAN
SCREW SET
(X6)

04 INKBIRD App

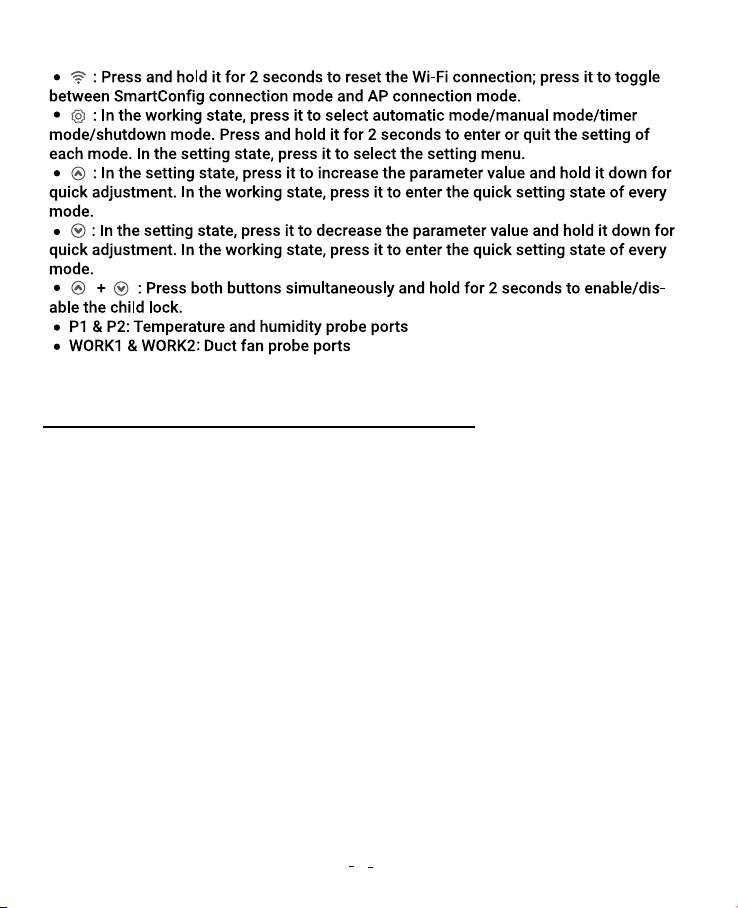

05 Smart Controller Instructions
P1 P2 WORK1 WORK2
3

The fan will run at the set fan speed according to the relationship between the current
temperature and humidity and the trigger target temperature and humidity.
How to set the fan to run at a fan speed of 10 to keep the temperature at 81.0℉ to
82.0℉ and the humidity at 70.0%RH to 80.0% RH?
06 Automatic Control Mode Instructions
4

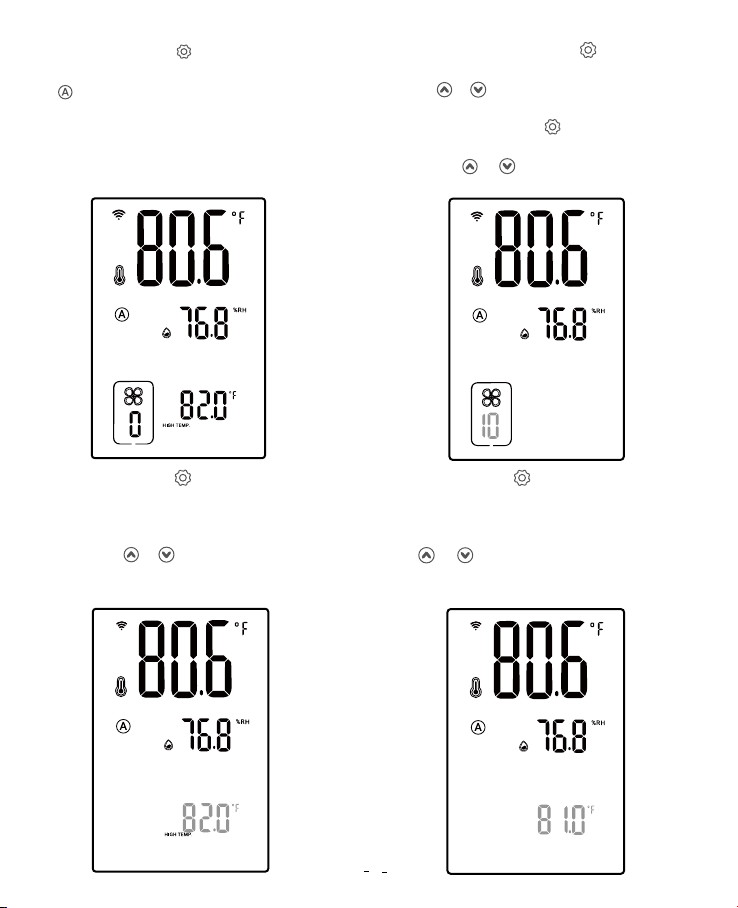

Step3: Press the button to select
the high-temperature trigger value.
“HIGH TEMP.” is displayed and the
corresponding parameter flashes.
Press the or button to adjust the
high-temperature trigger value to
82.0℉.
Step4: Press the button to select the
low-temperature trigger value. “LOW
TEMP.” is displayed and the
corresponding parameter flashes. Press
the or button to adjust the
low-temperature trigger value to 81.0℉.
Step2: Press and hold the button for
2 seconds to enter the setting mode, or
press or button to enter the quick
setting mode, in which “SETTING” is
displayed. Press the button until the
fan speed parameter flashes, then
press the or button to adjust the
fan speed to 10.
SETTING
SETTING SETTING
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
Step1: Press the button to select
automatic control mode, in which the
symbol is displayed.
5

Step5: Press the button to select the
high-humidity trigger value. “HIGH
HUMD.” is displayed and the
corresponding parameter flashes. Press
the or button to adjust the
high-humidity trigger value to 80.0%RH.
Step6: Press the button to select the
low-humidity trigger value. “LOW HUMD.”
is displayed and the corresponding
parameter flashes. Press the or
button to adjust the low-humidity trigger
value to 70.0%RH.
ON
OFF
SETTING
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
SETTING
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
Step7: Step7: Press and hold button for 2 seconds or no operation for 60 seconds
(or 10 seconds in the quick setting mode) to quit the setting state and save the set
parameters.
Following the above steps, the fan will run at the fan speed of 10, the temperature will
be controlled at 81.0℉~82.0℉, and the humidity will be controlled at
70.0%RH~80.0%RH, as shown below:

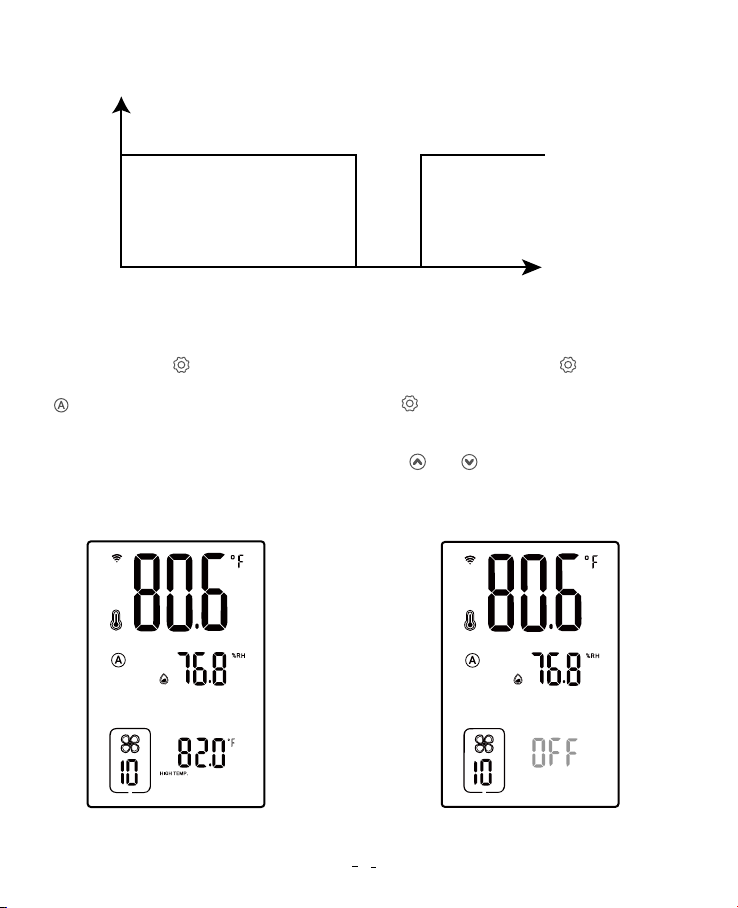

81.0℉ 82.0℉
Temperature trigger value
Fan status
6

How to disable the high-temperature trigger function?
Step1: Press the button to select
automatic control mode, in which the
symbol is displayed.
Step2: Press and hold the button for 2
seconds to enter the setting mode. Press
the button to select the high-temperature
trigger value. “HIGHTEMP.” is displayed and
the corresponding parameter flashes. Press
both and buttons simultaneously and
hold for 2 seconds to display OFF and turn
off the high-temperature trigger function.
SETTING
HIGH TEMP.
ON
OFF 70.0%RH 80.0%RH Humidity trigger value
Fan status
7

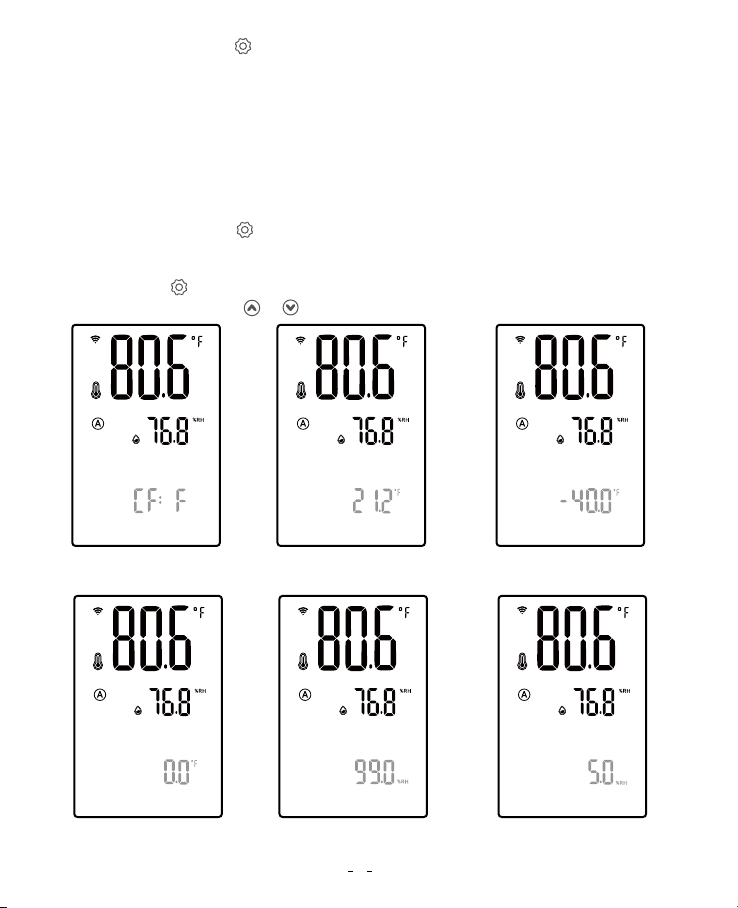

Temperature Unit High Temperature
Alarm Value Low Temperature Alarm Value
Temperature
Calibration Value High Humidity Alarm Value Low Humidity Alarm Value
Step1: Press and hold the seconds for 2 seconds to enter the setting mode, in which
“SETTING” is displayed.
Step2: Press the button to select the parameter to set and the corresponding
characters flash. Press the or button to adjust the parameter.
Step3: Press and hold the button for 2 seconds or no operation for 60 seconds to quit
the setting state and save the set parameters.
Low-temperature trigger, high-humidity trigger, and low-humidity trigger functions can be
turned off by referring to the above steps. Note that at least one trigger function should
remain on.
How to set temperature unit/temperature alarm value/humidity alarm value/calibration
value?
SETTING SETTING SETTING
SETTING SETTING SETTING
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
8

Step3: Press and hold the button for 2 seconds or no
operation for 60 seconds to quit the setting state and
save the set parameters.
Note: When setting the high-temperature alarm
value/low-temperature alarm value/high-humidity alarm
value/low-humidity alarm value, press and hold the
and buttons simultaneously for 2 seconds to display
OFF and disable the corresponding alarm function.
Humidity
Calibration Value
07 Manual Control Mode Instructions

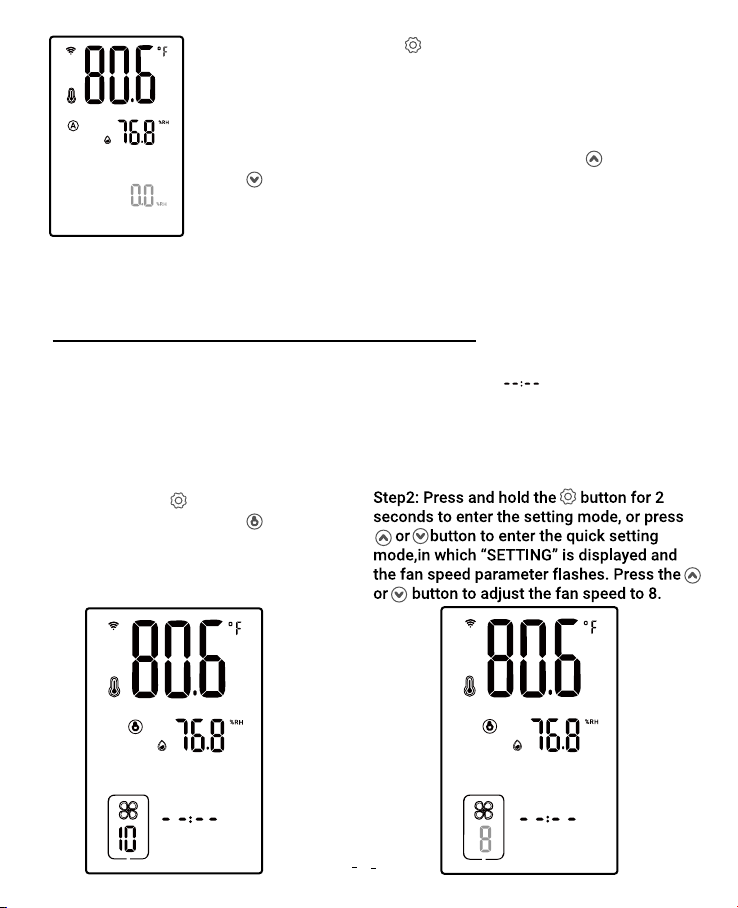

Step1: Press the button to select the
manual mode, in which the symbol
is displayed.
The fan will continuously run at the set fan speed (from 0~10) and the running
time, regardless of the current temperature and humidity. When is displayed,
it means that the fan is not limited by time.
How to set the fan to run at the set fan speed without a time limit? For example,
the fan runs continuously at a fan speed of 8 until manually turned off.
SETTING
HIGH TEMP.ALARM DIFF.TEMP.VALUE
LOW TEMP.ALARM TEMP.CALIBRATION
HIGH HUMID.ALARMDIFF.HUMID.VALUE
LOW HUMID.ALARM HUMID.CALIBRATION
TIME
SETTING
9

Step3: Press the button to select the
fan run time. Press the or button
to adjust the time display .
SETTING
Step4: Step4: Press and hold button for
2 seconds or no operation for 60 seconds
(or 5 seconds in the quick setting mode) to
quit the setting state and save the set
parameters.
Following the above steps, the fun will run
continuously at a fan speed of 8 until
manually turned off.
08 Timer Control Mode Instructions
Mon. Tues. Wed. Thurs. Fri. Sat.
Seg.1
Seg.2
Seg.3
Seg.4
Seg.5
Start at: 7:00
Speed: 8
Duration: 2hrs
Start at: 6:00
Speed: 8
Duration: 2hrs
Start at: 8:00
Speed:7
Duration: 1hrs
Start at: 12:00
Speed: 10
Duration: 3hrs
Start at: 17:00
Speed: 9
Duration: 3hrs
Start at: 5:00
Speed: 7
Duration: 2hrs
Start at: 8:00
Speed: 10
Duration: 3hrs
Start at: 12:00
Speed: 10
Duration: 3hrs
Start at: 16:00
Speed: 10
Duration: 2hrs
Start at: 20:00
Speed: 6
Duration: 1hrs
Start at: 10:00
Speed: 10
Duration: 3hrs
Start at: 16:00
Speed: 9
Duration: 3hrs
Start at: 20:00
Speed: 7
Duration: 3hrs
Start at: 11:00
Speed: 10
Duration: 3hrs
Start at: 18:00
Speed: 9
Duration: 2hrs
The fan will run at the set fan speed according to the start time and running time of the
day you choose.
How to set the fan to run at different speeds within different run times and at multiple
start times on different days? For example, how can we set the fan to run on the
following schedule?
10

Step1: Press the button to select
the timer mode, in which the
symbol is displayed.
Step2: Press and hold the button for 2
seconds, or press the or button to enter
the setting mode.
Step3: Press the or button to
select the day to be set. Here we
choose Monday as an example.
Step4: Press the button to enter the setting
of active time segments, in which “START
TIME ” is displayed. Press the or button
to adjust the start time of segment 1 to 07:00.
SUN. MON. TUES. WED. THURS. FRI. SAT.
AM
SUN. MON. TUES. WED. THURS. FRI. SAT.
STARTTIME SETTING
SUN. MON. TUES. WED. THURS. FRI. SAT.
STARTTIME
SUN. MON. TUES. WED. THURS. FRI. SAT.
STARTTIME
AM
11

Step5: Press the button to set the run
time of segment 1, and “TIME SETTING” is
displayed. Press the or button to
adjust the run time to 02:00.
Step7: Repeat steps 4 to 6, and set the start time of segment 2 to 12:00, the run time to
03:00, and the fan speed to 10; set the start time of segment 3 to 18:00, the run time to
02:00, and the fan speed to 9.
Step8: When the start time is displayed as , press the button to return to Step 3 and
set the running state for other days.
Step9: Repeat steps 3 to 8 to set the running state parameters for Wednesday, Friday, and
Saturday.
Step10: Press and hold the button for 2 seconds or no operation for 60 seconds to quit
the setting state and save the set parameters.
The above steps can realize the daily running state of the fan in timer mode.
Step6: Press the button to set the fan
speed of segment 1, and the fan symbol
is displayed. Press the or button to
adjust the fan speed to 8.
SUN. MON. TUES. WED. THURS. FRI. SAT.
STARTTIME SETTING
SUN. MON. TUES. WED. THURS. FRI. SAT.
STARTTIME SETTING
12

09 Shutdown Mode
All control functions are disabled.
Press the button to select the shutdown mode, in which all functional controls are
turned off.
10 Lock Mode
In the non-setting state, press and hold the and button for 2 seconds simultaneously
to turn on/off the lock function. When the lock function is on, the symbol is displayed.
11 ECO Mode
In the power-off state, press and hold the button for 2 seconds to enter the setting of
backlight brightness. Press the or button to adjust the brightness percentage. After
30 seconds of no operation, the device enters ECO mode.
12 Parameter Factory Setting
After powering off, press the button, then power on the device again. All parameters in
all modes will be restored to default data.
Note that the buzzer will beep once to remind us that all parameters have been restored to
default data.
13

13 Duct Fan Instructions
DC Connect Wire
(2.4m length 26AWG)
AC Power Cord
(1.8m length 18AWG)
14
Bottom
cover
Screw Power
cover
Butt plate
Frame Hoops Duct-A
Duct
Duct-B
Impelle
150
ALRFLOW

Installation Instructions
Step1: Unscrew the annular threaded nail
of the duct fan. Step2: Remove the power supply chassis from the rack.
Step3: Use the mounting holes of the
flange bracket to mark the position to be
mounted. (Pay attention to the direction of
intake/exhaust during installation,
referring to the instructions for intake/
exhaust.)
Step4: Drill four holes at the marked
locations. Make sure the installation area
is well constructed and free of
obstructions.
15
Intake and Exhaust
Mounting Flanges
150
ALRFLOW
150
ALRFLOW

Step5: If you need plastic expansion tubes,
insert the included 4 expansion tubes into
the drilled holes and fix them in the holes
with a hammer.
Step6: Align the hole of the flange bracket
with the wall anchor, and use a screwdriver
or drill to insert the four screws to fix the
flange bracket. Make sure the airflow
arrow points in the desired direction.
Step7: Put the wind circle back on the
intake flange and reposition the flange on
the appropriate metal clips.
Step8: Move the power supply chassis
back onto the flange bracket, making sure
that the bulging part of the power supply
chassis is installed in the direction of the
flange bracket arrow. Use a Phillips
screwdriver and pliers to tighten the metal
clips and secure the power supply chassis.
Metal Clamps Wind Circle
150
ALRFLOW
150
ALRFLOW
150
ALRFLOW
16
