Insinger CA-3 User manual

TECHNICAL MANUAL
Installation, Operation and Maintenance Instructions
POT AND PAN WASHERS
Insinger Machine Company
6245 State Road
Philadelphia, PA 19135-2996
800-344-4802
Fax [phone]
www.insingermachine.com
CA-3
DA-3

Thank you for purchasing a quality Insinger product.
In the space provided below please record the model,
serial number and start-up date of this unit:
Model:__________________________________
Serial Number:___________________________
Start-Up Date:____________________________
When referring to this equipment please have this
information available.
Each piece of equipment at Insinger is carefully tested
before shipment for proper operation. If the need
for service should arise please contact your local
Authorized Insinger Service Company.
To nd your local authorized Service Company please
visit our web site, www.insingermachine.com or call
Insinger at 800-344-4802.
For proper activation of the Insinger Limited Warranty,
a SureFireTM Start-up should be completed on your
machine. Refer to the Introduction section in this
manual for an explanation of Insinger’s SureFireTM
Start-up and Check-out Program.
Please read the Insinger Limited Warranty and all
installation and operation instructions carefully before
attempting to install or operate your new Insinger
product.
To register your machine for warranty, or for answers to
question concerning installation, operation, or service
contact our Technical Service Department.
TECHNICAL SERVICE CONTACTS
Toll-Free 800-344-4802
Fax [phone]
e-mail [email protected]
Web site www.insingermachine.com
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
TABLE OF CONTENTS
Part 1
Technical Information
• Specication Sheets
• Introduction
• Denitions
• Safety Summary
• Warranty
1-6
Part 2
Installation Instructions
• General Installation Instructions

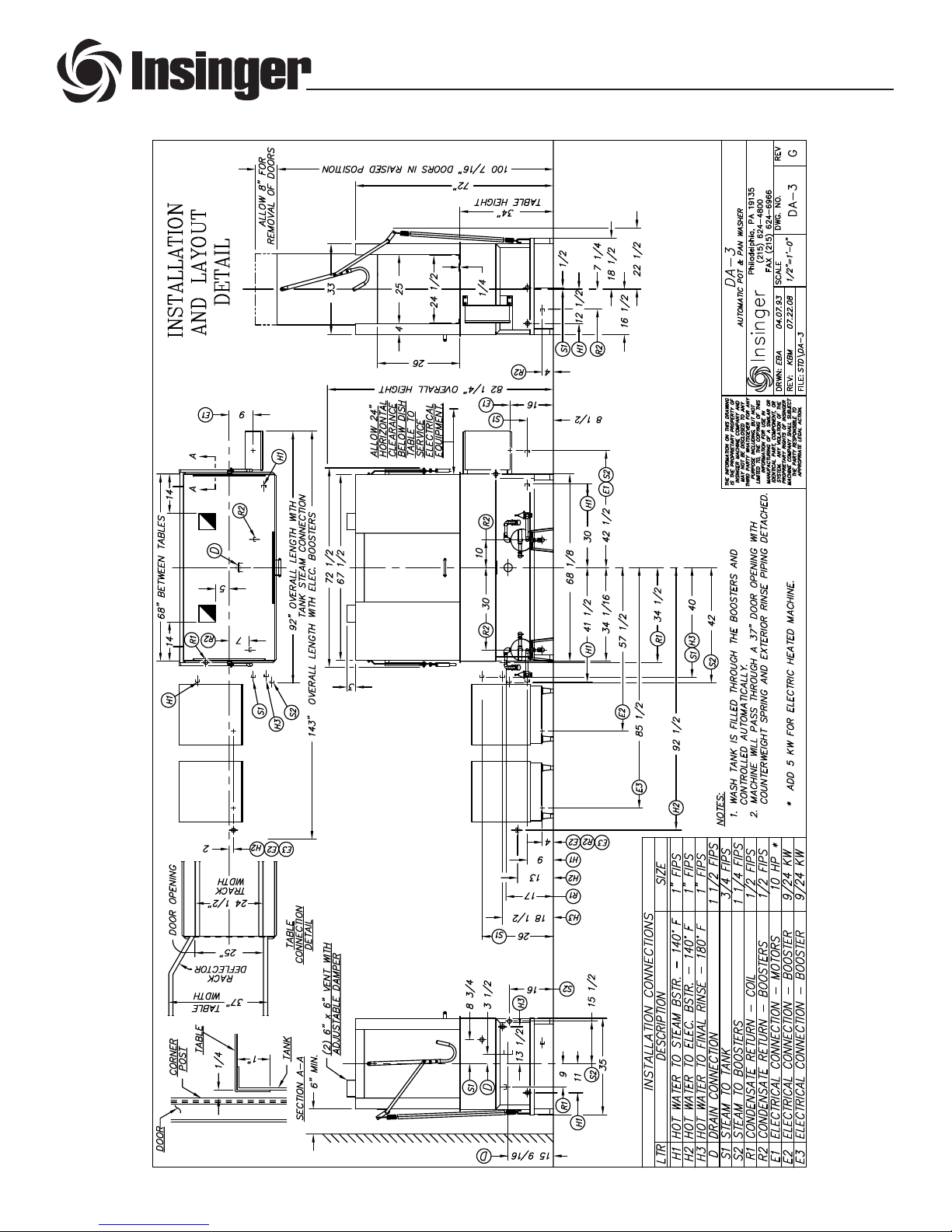

• Installation Drawings
7-10
Part 3
Operation Instructions
11
Part 4
Cleaning Instructions
• Daily Cleaning Instructions
• Weekly Cleaning Instructions
Part 5
Maintenance and Repair Procedures
• Maintenance Requirements
• Maintenance Procedures
• Troubleshooting
Part 6
Replacement Parts & Assemblies
• Assembly Drawings with Parts Lists
12
13-20
21-45
Part 7
Electrical Schematics and Parts
• Electrical Schematics
• Control Panel Layouts
46-49
®

PART 1 TECHNICAL INFORMATION
CA-3
Pot and Pan Washer
Automatic door type utensil washer with timed wash and rinse cycle
Capacity- 25 24" x 28" racks per hour or 150 bun/pans per hour or 100 steam table
(2" thick) pans per hour
Fully automatic operation with power on/off button
Cycle starts when doors are closed
Rinse pressure regulator
Hold-Down Rack System for secure washing
Rollers make getting large racks in and out easier
CA-3 is available for corner operation
STANDARD FEATURES
Wash tank heat: electric, steam injection
Pressure regulator
Single point electrical connection
Low water protection
Door safety switches
1 vent opening with adjustable damper
Inspection door
Vacuum breaker on all incoming water lines
Capillary thermometer for wash and final rinse
304 stainless steel construction
Stainless steel front panel
Automatic fill
Detergent connection provision
Hold-down rack system
Manual bypass selector switch
Side-mounted control panel (NEMA 12)
Simplified scrap screen design
Interchangeable upper and lower spray arms
Standard frame drip proof motor
Rack assortment- 1 general utility, 1 bake sheet, 1 basket
Manifold clean-out brush
SureFire®Start-Up & Check-Out Service
OPTIONS
Stainless steel steam coil tank heat
Steam booster
Electric booster
Security package
Totally enclosed motor

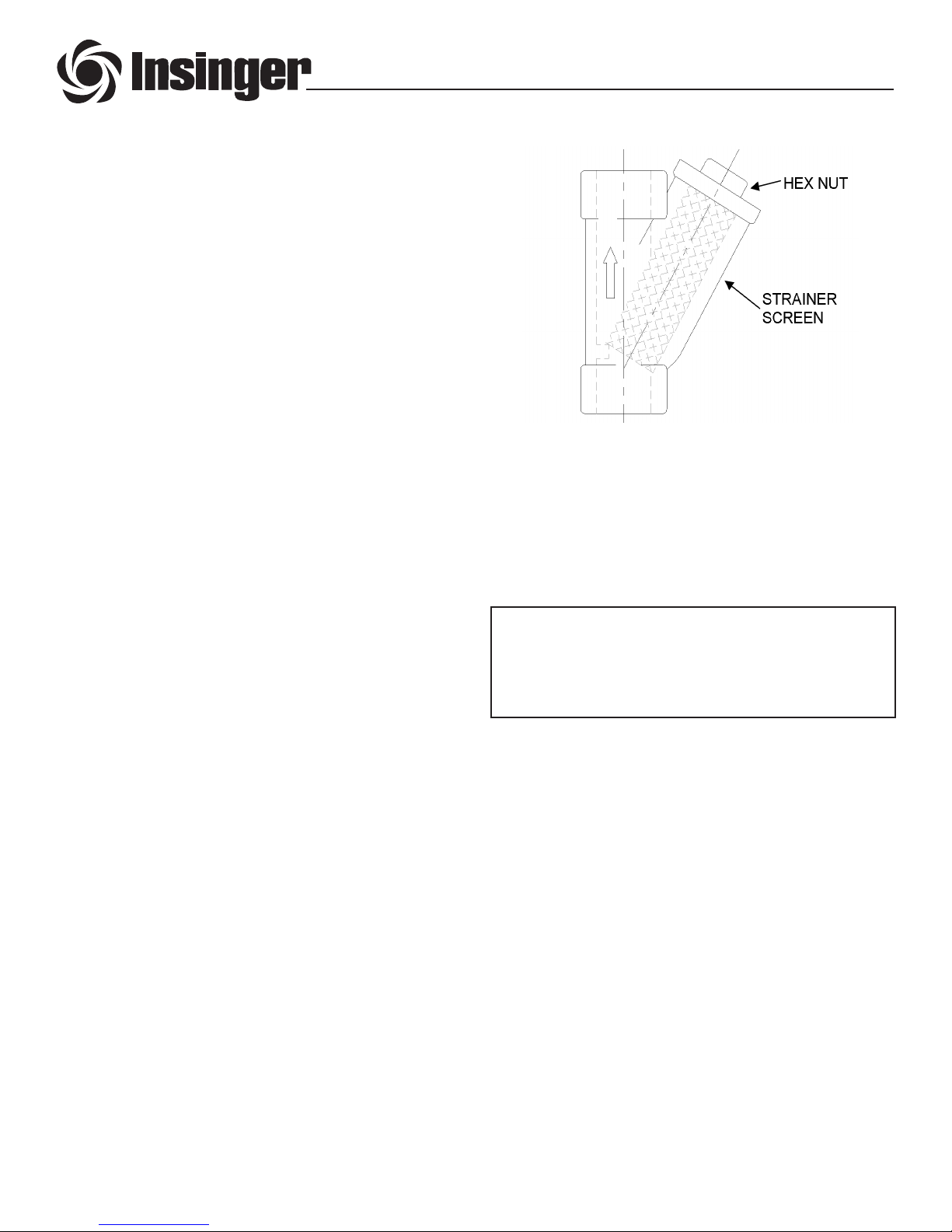

Pressure reduction valve and line strainer
CSI - 11400 _____________
Approval _______________
Date ___________________
Project ________________
Item __________________
Quantity _______________
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
The Hold-Down Rack System keeps pots and pans
secure during washing, eliminating damage to ware
and equipment.
Rollers make getting large racks in and out of the pot
washer easier.
CA-3
1
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802

PART 1 TECHNICAL INFORMATION
2
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
CA-3
Pot and Pan Washer
SPECIFICATIONS
Capacity Per Hour 25 racks/150 sheet pans
Tank Capacity 31 gallons
Motor Size 5 hp
Electric Usage
(Electric booster must have 16
gallon holding tank)
5 kW wash tank
9 kW booster 40º rise
24 kW booster 70º rise
Steam Consumption
at 20 psi
40º rise
20 lbs./hr. tank
25 lbs./hr. booster average
238 lbs./hr. booster peak
70º rise
20 lbs./hr. tank
44 lbs./hr. booster average
417 lbs./hr. booster peak
Final Rinse Peak Flow
at 20 psi min.
11.2 gallons/minute
Final Rinse Consumption
at 20 psi min.
2.8 gallons/cycle
70 gallons/hour
Exhaust Requirements 300 CFM
Peak Rate Drain Flow 9 gallons/minute
Shipping Weight 800 lbs.
Note: Due to product improvement we reserve the right to change information
and specications without notice.
Current Draw Amps
230/1/60
208/3/60
240/3/60
480/3/60
380/3/50
Steam
N/A
17.4
15.9
7.9
9.6
Electric w/o booster
N/A
31.3
27.9
13.9
17.2
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
3/2012
CONSTRUCTION-Hood and tank constructed of 14 gauge 18-8
type 304 S/S. Hood unit of all welded seamless construction. S/S
frame, legs and feet. All internal castings are non-corrosive lead
free nickel alloy or bronze.
DOORS-A front inspection/clean-out door and two
simultaneously opening operating doors. Operating doors
balanced by externally mounted springs. Extra large die formed
18-8 type 304 S/S doors ride in all S/S channels. A triple ply
leading edge on the door channels made of S/S.

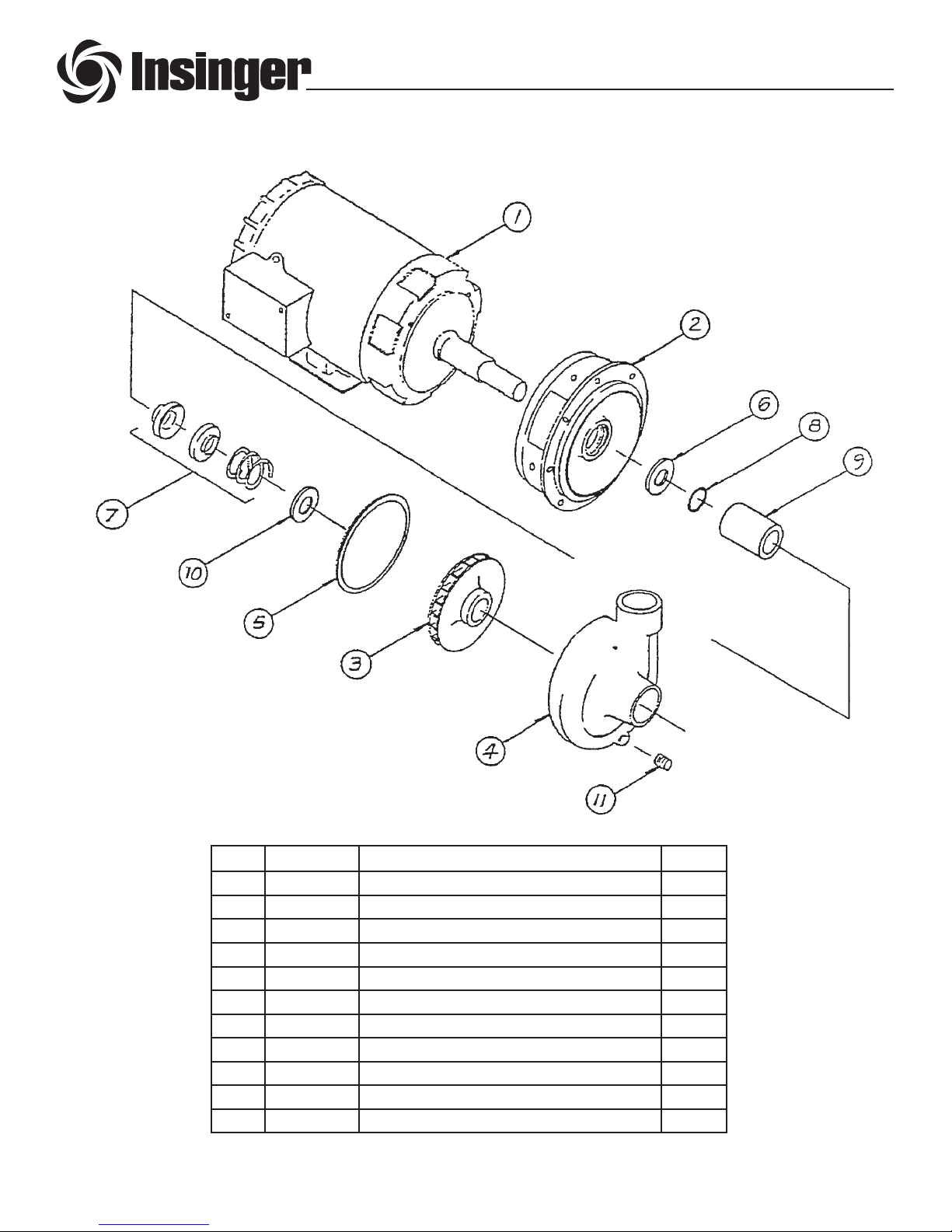

PUMP-Centrifugal type “packless” pump with a brass petcock
drain. Construction includes ceramic seal and a balanced cast
impeller on a precision ground stainless steel shaft, extension or
sleeve. All working parts mounted as an assembly and removable
as a unit without disturbing pump housing. One 5 hp motor,
standard horizontal C-face frame, drip proof, internally cooled
with ball-bearing construction.
CONTROLS-Side-mounted control cabinet, NEMA 12 rated,
housing motor controls and overload protection, transformer,
contactors and all dishwasher integral controls. All controls safe
low voltage 24 VAC.
SPRAY SYSTEM-Wash and rinse spray systems made of 18-8
type 304 S/S pipe threaded into cast hub assemblies. Upper and
lower spray assemblies are interchangeable and are removable
without the use of tools.
WASH-2 power spinning wash arms above and 2 power spinning
wash arms below, each designed with 8 high pressure action
cleansing holes.
FINAL RINSE-2 power spinning wash arms above and 2 power
spinning rinse arms below, each designed with 3 nozzles.
DRAIN- Drain valve externally controlled. Overow assembly with
skimmer cap is removable with the use of simple tools for drain
line inspection. Heater is protected by low water level control.
*Note: Exhaust requirements are for duct connections only.

PART 1 TECHNICAL INFORMATION
3
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
DA-3
Pot and Pan Washer
Automatic door type utensil washer with timed wash and rinse cycle
Capacity- 50 24” x 28” racks per hour or 276 bun/pans per hour or
184 steam table (2” thick) pans per hour
Fully automatic operation with power on/off button
Cycle starts when doors are closed
Rinse pressure regulator
Hold-Down Rack System for secure washing
Rollers make getting large racks in and out easier
STANDARD FEATURES
Wash tank heat: electric or steam injection
Pressure regulator
Single point electrical connection
Low water protection
Door safety switches
2 vent openings with adjustable damper
Inspection door
Vacuum breaker on all incoming water lines
Capillary thermometer for wash and final rinse
304 stainless steel construction
Stainless steel front panel
Automatic fill
Detergent connection provision
Hold-down rack system
Rollers for track
Manual bypass selector switch
Side-mounted control panel (NEMA 12)
Simplified scrap screen design
Interchangeable upper and lower spray arms
Standard frame drip proof motor
Rack assortment- 2 general utility, 2 bake sheets, 1 basket, 1 counter pan
Manifold clean-out brush
SureFire®Start-Up & Check-Out Service
OPTIONS
Stainless steel steam coil tank heat
Steam booster
Electric booster
Security package
Totally enclosed motor
Pressure reduction valve and line strainer
CSI - 11400 _____________
Approval _______________
Date ___________________
Project ________________
Item __________________
Quantity _______________
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
The Hold-Down Rack System keeps pots and pans
secure during washing, eliminating damage to ware
and equipment.
Rollers make getting large racks in and out of the pot
washer easier.
DA-3

PART 1 TECHNICAL INFORMATION
4
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
DA-3
Pot and Pan Washer
SPECIFICATIONS
Note: Due to product improvement we reserve the right to change information and specications without notice.
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
3_2012
CONSTRUCTION-Hood and tank constructed of 14 gauge 18-8
type 304 S/S. Hood unit of all welded seamless construction. S/S
frame, legs and feet. All internal castings are non-corrosive lead
free nickel alloy or bronze.
DOORS-A front inspection/clean-out door and two
simultaneously opening operating doors. Operating doors
balanced by externally mounted springs. Extra large die formed
18-8 type 304 S/S doors ride in all S/S channels. A triple ply
leading edge on the door channels made of S/S.
PUMP-Centrifugal type “packless” pump with a brass petcock
drain. Construction includes ceramic seal and a balanced cast
impeller on a precision ground stainless steel shaft, extension or
sleeve. All working parts mounted as an assembly and removable
as a unit without disturbing pump housing. Two 5 hp motors,
standard horizontal C-face frame, drip proof, internally cooled
with ball-bearing construction.
CONTROLS-Side-mounted control cabinet, NEMA 12 rated,
housing motor controls and overload protection, transformer,
contactors and all dishwasher integral controls. All controls safe
low voltage 24 VAC.
SPRAY SYSTEM-Wash and rinse spray systems made of 18-8
type 304 S/S pipe threaded into cast hub assemblies. Upper and
lower spray assemblies are interchangeable and are removable
without the use of tools.
WASH-4 power spinning wash arms above and 4 power spinning
wash arms below, each designed with 8 high pressure action
cleansing holes.
FINAL RINSE-4 power spinning wash arms above and 4 power
spinning rinse arms below, each designed with 3 nozzles.
DRAIN- Drain valve externally controlled. Overow assembly with
skimmer cap is removable with the use of simple tools for drain
line inspection. Heater is protected by low water level control.
*Note: Exhaust requirements are for duct connections only.
Capacity Per Hour 50 racks/276 sheet pans
Tank Capacity 62 gallons
Motor Size (2) 5 hp
Electric Usage
(Electric booster must have 16
gallon holding tank)
5 kW wash tank
(2) 9 kW booster 40º rise
(2) 24 kW booster 70º rise
Steam Consumption
at 20 psi
40º rise
20 lbs./hr. tank
50 lbs./hr. booster average
476 lbs./hr. booster peak
70º rise
20 lbs./hr. tank
88 lbs./hr. booster average
834 lbs./hr. booster peak
Final Rinse Peak Flow
at 20 psi min.
22.4 gallons/minute
Final Rinse Consumption
at 20 psi min.
5.6 gallons/cycle
140 gallons/hour
Exhaust Requirements 600 CFM
Peak Rate Drain Flow 16 gallons/minute
Shipping Weight 1500 lbs.
Current Draw Amps
208/3/60
230/1/60
240/3/60
480/3/60
380/3/50
Steam
34.1
N/A
31.1
15.5
18.8
Electric w/o booster
48.0
N/A
43.1
21.5
26.4

CA-3 & DA-3 POT AND PAN WASHERS
INTRODUCTION
This manual contains all pertinent information to
assist in the proper installation, operation, cleaning,
maintenance, and parts ordering for the CA-3 and
DA-3 pot and pan washers.
The installation instructions are intended for qualied
equipment installers.
The operation and cleaning instructions are intended
for the daily users of the equipment.
The maintenance and drawing sections are intended
for qualied service and/or maintenance technicians.
Replacement parts may be ordered directly from our
factory or from your local Authorized Insinger Service
Company.
SurereTM Start-Up Program
Insinger is proud to o󰀨er our exclusive SurereTM
Start-up & Check-out Program to our commercial
customers. This service is included in the purchase
price of your new Insinger dishwasher. We will provide
an authorized factory service technician for the initial
start-up of your new Insinger dishwasher to ensure it is
running correctly. Please call the factory or your local
Insinger Sales or Service Representative to schedule
this service.
NSF 3 requirements for detergent and
chemical sanitizer dispensers
This machine must be operated with an automatic
detergent feeder and, if applicable, an automatic
chemical sanitizer feeder, including a visual means
to verify that detergents and sanitizers are delivered
or a visual or audible alarm to signal if detergents
and sanitizers are not available for delivery to the
respective washing system. Please see instructions
for electrical and plumbing connections located in this
manual and in the feeder equipment manual.
Intended Use
Insinger dishmachines may only be used for cleaning
plates, cups, dishes, cutlery and similar restaurant
ware and commercial catering.
Any change in design or use of the dishwasher carried
out without the written permission of Insinger, will lead
to warranty nullication.
If damage is caused to the dishwasher due to failure
to observe the instructions given in this manual, no
claims under the warranty agreement can be submitted
to lnsinger Machine Company.
PART 1 TECHNICAL INFORMATION
CAUTION:
Indicates potential equipment damage.
WARNING:
Indicates potential physical danger.
▲
!
NOTE:
Indicates helpful operating hints or tips.

DEFINITIONS
Throughout this guide you will nd the following terms:
WARNING, CAUTION, & NOTE.
WARNING indicates potential physical danger.
CAUTION indicates potential equipment damage.
NOTE indicates helpful operating hints or tips.
You will visually be able to identify each as shown
below:
5
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
SAFETY SUMMARY
The following are general safety precautions that
are not related to any specic procedures. These
are recommended precautions that personnel must
understand and apply during many phases of operation
and maintenance.
Keep Away From Live Circuits
Operating personnel must at all times observe all
safety regulations. Do not replace components or
make adjustments inside the equipment with the power
supply turned on. Under certain conditions, dangerous
potentials may exist when the power control is in the
o󰀨 position. To avoid casualties and injuries, always
remove power, red tag and lockout machine, and
ground a circuit before touching it.
Do Not Service or Adjust Alone
Under no circumstances should any person reach into
or enter the enclosure for the purpose of servicing or
adjusting the equipment except in the presence of
someone who is capable of rendering aid.
Resuscitation
Personnel working with or near high voltages should
be familiar with modern methods of resuscitation.
Such information may be obtained from the Bureau of
Medicine and Surgery.

INSINGER MACHINE COMPANY LIMITED WARRANTY
PART 1 TECHNICAL INFORMATION
to perform normal and routine maintenance
as set out in the instruction booklet (operating
instructions) or for improper operation or failure to
follow normal operating instructions (as set out in
the instruction booklet). Insinger is not responsible
nor liable for any conditions of erosion or corrosion
caused by corrosive detergents, acids, lye or other
chemicals used in the washing and or cleaning
process.
Service must be done by either Insinger Appointed
Service Agencies or agencies receiving prior
authorization from Insinger.
All warranty work must be done during normal
working hours, unless purchaser receives prior
authorization from Insinger.
There are no other express warrants except
as set forth herein and any applicable implied
warranties of merchantability and tness are
limited in duration to the period of coverage of
this express written limited warranty. This limited
warranty supersedes all other express warranties,
implied warranties of merchant-ability and tness
or limited warranties as of this date, January 1,
1998. Some states do not allow limitation on how
long an implied warranty lasts so this limitation
may not apply to you.
Insinger is not liable for any special, indirect or
consequential damages. Some states do not
allow the exclusion or limitation of incidental or
consequential damages, so this limitation nor
exclusion may not apply to you.
Insinger does not authorize any person or company
to assume for it any other obligation or liability in
connection with the sale, installation, use, removal,
return or replacement of its equipment: and no
such representations are binding on Insinger.
Insinger Machine Company, Inc. (Insinger) hereby
warrants to the original retail purchaser of this
Insinger Machine Company, Inc. product, that if
it is assembled and operated in accordance with
the printed instructions accompanying it, then
for a period of either 15 months from the date
of shipment from Insinger or 1 year (12 months)
from the date of installation or start-up that said
Insinger product shall be free from defects in
material and workmanship. Whichever one of the
two aforestated limited warranty time periods is the
shortest shall be the applicable limited warranty
coverage time period.
Insinger may require reasonable proof of your
date of purchase; therefore, you should retain
your copy of invoice or shipping document.
This limited warranty shall be limited to the repair or
replacement of parts which prove defective under
normal use and service and which on examination
shall indicate, to Insinger’s satisfaction, they
are defective. Any part that is claimed to be
defective and covered by this limited warranty
must be returned to Insinger. An RMA# must be
obtained from the Insinger Warranty Department
before returning any material. Return may be
done through an Authorized Service Agency.
Furnish serial number of machine and RMA # with
shipment and send to:
Insinger Machine Company
6245 State Road
Philadelphia, PA 19135-2996
If Insinger’s inspection conrms the defect and
the claim, Insinger will repair or replace such
part without charge and return it to you freight or
postage prepaid.
This limited warranty does not cover any failure or
accident,abuse,misuse,alteration,misapplication,
improper installation, re, ood, acts of God
or improper maintenance or service, or failure
6
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802

FUSE SIZING CHART
MODEL TYPE 208VAC / 3PH 230VAC / 3PH 380VAC / 3PH 460VAC / 3PH
CA-3(C)
Steam Heat 25A 20A 15A 10A
Electric Heat 35A 35A 20A 20A
Gas Heat 25A 20A 15A 10A
DA-3
Steam Heat 40A 35A 25A 20A
Electric Heat 60A 50A 30A 25A
PART 2 INSTALLATION INSTRUCTIONS
CA-3 & DA-3 POT AND PAN WASHERS
INSTALLATION INSTRUCTIONS
These installation instructions are intended for qualied
equipment installers.
PLACEMENT
Carefully uncrate the machine. Take caution not to
damage components which may be mounted on the
top or sides of the machine.
Set unit in place and adjust the feet to level the
machine.
TABLING
Load and unload tables should be pitched towards the
machine to return excess water into the machine.
Fasten the tables to the load and unload side of the
machine. Most installations require fastening the turn-
down lip of the dish tables to the side of the machine
with athead counter-sunk screws.
The table design should provide horizontal clearance
of 30” for servicing.
ELECTRICAL CONNECTIONS
Connect electrical lines sized for the correct voltage,
current and phase of the machine. These should
agree with the machine requirements indicated on
the nameplate and labels on the control panel. The
below Fuse Sizing Chart should be used as a guide for
proper line protection.
CAUTION:
Connections must be made to a circuit breaker or
fused disconnect as provided by the end-user and
required by local codes. A laminated wiring diagram
is inside the control panel.
7
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
Machines not provided with a single-point connection
require two separate electrical connections for:
1. pumps and control circuit
2. wash tank heater(s)
If an electrical booster is provided connect the power
directly to the booster.
CAUTION:
As with any 3 phase system, an electrician must
check all motors for proper phasing, i.e., Pump
motors must be running in direction indicated by
arrow on housing.

PART 2 INSTALLATION INSTRUCTIONS
8
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
MECHANICAL CONNECTIONS
Flush all lines to remove debris.
Connect 140°F water lines for tank lls/booster as
tagged and noted on the installation drawings.
If machine is provided with steam heat, connect the
steam lines and steam condensate lines as tagged
and noted on installation drawings.
Connect the drain lines.
CAUTION:
Drain lines must be as specied on installation
drawings. Drain line should be properly vented and
should have fall of not less than 1/4” to the foot of
proper ow.
CAUTION:
Some area plumbing codes require drains to ow
into an open gap with an opening twice the diameter
of the pipe. Check with your local plumbing codes for
the type of drain connection required.
CAUTION:
Do not reduce the size of lines as specied in
installation drawings. All lines are sized to facilitate
necessary ows, pressures, etc.
CAUTION:
When connecting on the 24VAC control voltage
side of the transformer, total KVA must not exceed
50VA.
The detergent density probe should be placed in the
hole provided.
HVAC
Ventilation system should be sized to provide adequate
ventilation per machine specs. Refer to spec sheet.
CHEMICALS
Upon completed installation of the dishmachine,
contact a local detergent/chemical supplier for the
correct chemicals for your machine.
Electrical connection points for the detergent dispenser
and rinse injector are located inside the control panel.
Refer to the machine wiring diagram for the proper
connection points.
Dispensers may be connected on either the primary
voltage side of the machine or the 24VAC control
voltage side.

PART 2 INSTALLATION INSTRUCTIONS
9
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
Installation Drawing : CA-3

PART 2 INSTALLATION INSTRUCTIONS
10
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
Installation Drawing : DA-3

NOTE:
Overloading racks will minimize the
proper cleaning of ware.

PART 3 OPERATION INSTRUCTIONS
11
CA-3 & DA-3 POT AND PAN WASHERS
OPERATION INSTRUCTIONS
These instructions are intended for the daily users of
this machine.
PREPARING MACHINE
1. Ensure drain overow tube is in place. Close the
tank drain valve.
2. Check for proper installation and cleanliness of all
internal, removable components such as suction
strainers, scrap screens, and rotating spray pipes.
3. Ensure all water and steam lines are open.
4. Ensure electrical circuits are on.
5. Close machine doors.
STARTING MACHINE
1. Move the power toggle switch to the ON position.
The machine will ll the tank, run through a
complete wash/rinse cycle and shut-o󰀨.
2. When the tank is full the tank heat will operate
automatically. Proper tank heat is 150°F.
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
WASHING WARE
1. Open doors.
2. Insert a rack of soiled dishware in machine (two
racks for the DA-3) and lower doors.
3. Machine will wash and rinse automatically.
4. When the rinse indicator light goes o󰀨 the cycle is
complete.
5. Raise doors and remove rack of clean ware.
6. For continuous operation repeat steps 2-5.
CAUTION:
To ensure proper operation of the auto tank ll
feature and the tank heaters, the level oat located
in each tank MUST be cleaned daily.
SHUTDOWN
1. Upon completion of ware cleaning, move the
power toggle switch to the OFF position.
2. Drain the machine.
4. Refer to the CLEANING INSTRUCTIONS for
proper clean-up of the dishmachine.
5. Report any unusual occurrences to qualied
service personnel.

12
PART 4 CLEANING INSTRUCTIONS
®
CA-3 & DA-3 POT AND PAN WASHERS
CLEANING INSTRUCTIONS
DAILY CLEANING
The following cleaning procedures should be done
daily, at the end of the shift:
1. Remove all internal removable parts including
rotating spray pipes, scrap screens, drain overow
tubes, suction strainers and curtains.
2. Remove the end caps from the spray manifolds
and clean with the brush provided. Flush the
manifolds.
!
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
CAUTION:
V-cup seal on the drain overow tube may become
gummed which will not allow the overow tube to
seat properly. This will cause the drain to leak water.
Remove any build-up on the V-cup seal. When the
seal becomes worn, replace.
3. Flush scrap screens of matter.
4. Clean drain overow tube.
5. Clean suction strainers of build-up.
CAUTION:
Improper cleaning of suction strainers will cause
the pumps to cavitate. This will cause poor washing
results.
7. Rinse nozzles should be cleaned of matter.
8. Doors should be left open to allow drying of interior
surfaces.
WEEKLY CLEANING
1. The entire machine should be wiped down using
an industrial grade stainless steel cleaner.
2. Under the supervision of your detergent supplier
the machine interior must be properly de-limed.
3. The switch on the control panel labelled MANUAL
and the switch labelled WASH should be used
when de-liming the machine. When activated,
these switches keep the machine in an indenite
wash cycle. This feature can also be used to wash
heavily soiled ware.
NOTE:
The water quality in some areas
requires de-liming to be done more
frequently. Contact your detergent
supplier for recommended de-liming
frequency.

CAUTION:
Do not remove wash and rinse spray arms from the
hubs as these are factory set. Cleaning should be
done by removing the endcap on each arm.
6. Clean tank level oats (1 per tank) with a plastic
abrasive pad. DO NOT use steel wool.
DE5-60: Liquid Level Float
CAUTION:
Level oats must be cleaned daily. Build-up of
grease and scum will cause faulty operation of tank
ll and heating system.

13
CA-3 & DA-3 POT AND PAN WASHERS
MAINTENANCE REQUIREMENTS
This section is intended for qualied service and/or
maintenance technicians.
The following maintenance should be conducted
quarterly:
1. Remove and clean the strainer screens on water
and steam lines. If the screens cannot be cleaned,
replace.
2. Inspect the condition of the ll solenoid valve seats
and diaphragms. Replace as necessary.
3. Inspect drain 0-Rings for leakage. Replace where
necessary.
4. Check door spring tension and adjust where
necessary.
5. Check wash and rinse hub bushing/bearing and
replace where necessary.
MAINTENANCE PROCEDURES
Solenoid Valve Disassembly (SK-5825)
1. Disconnect the power supply to the machine.
2. Turn o󰀨 the water supply.
3. Remove cap on top of the coil. Remove the coil.
4. Remove the 4 hex bolts and lift bonnet from valve
body. Note positioning of spring and plunger.
5. Remove main piston.
6. Inspect for dirt, wear or lime build-up. Clean or
replace as required.
7. Reassemble in reverse of disassembly.
Line Strainer Disassembly
1. Shut o󰀨 water supply.
2. Remove large hex nut on bottom of strainer body.
3. Remove strainer screen. Inspect and clean or
replace as necessary.
4. Reassemble in reverse of disassembly. Water ow
must be same direction as arrow on line strainer
body. Use new gaskets to insure a tight seal.
Pump Disassembly
1. Before disassembling pump ensure there are no
obstructions in the pump intake by removing and
cleaning the suction strainer (inside tank).
PART 5 MAINTENANCE & REPAIR PROCEDURES
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
2. Remove the pump motor and impeller adaptor by
removing the 4 hex bolts attaching them to the
pump housing.
3. Repair or replace the pump parts as required.
4. Reassemble in reverse of disassembly.
Wash and Rinse Cycle
1. The timing sequence consists of two timers.
2. The CA-3, CA-3C, and DA-3 use a ve minute
timer adjusted to 120 seconds for the wash cycle
(P/N DE7-28)
3. They also use a one minute timer adjusted to 15
seconds for the rinse (P/N DE7-27).
4. Should either of these become defective, replace.
NOTE:
It is not necessary to remove the
pump housing from the machine to
disassemble the pump.

Line Strainer Assembly

14
PART 5 MAINTENANCE & REPAIR PROCEDURES
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
Tank Heat Temperature Adjustment
A temperature control board is provided in the control
panel for easy adjustment of tank temperature.
Though tank temperature is set during factory testing
it is sometimes necessary to re-adjust the temperature
at start-up.
1. Locate the temperature control board (P/N DE9-
251). Use the control panel layout drawing located
in PART 7, Electrical Schematics and Parts.
2. Adjust the tank temperature to the correct
temperature by turning the potentiometer located
on the temperature control board. An arrow on the
potentiometer indicates increase.
Troubleshooting Tank Temperatures
If the temperature does not change follow the below
procedures.
Electric Heat:
1. Check the temperature control board (P/N DE9-
251) for proper operation. If the temperature
control board is faulty, replace.
2. Verify tank heat contactor is working correctly. If
not, replace.
3. Verify all immersion heaters are working properly
and are not limed. If not, replace.
Steam Heat:
1. Check the temperature control board (P/N DE9-
251) for proper operation. If the temperature
control board is faulty, replace.
2. Verify steam pressure per machine specications.
3. Verify steam trap is not clogged. If so, clean and/or
replace.

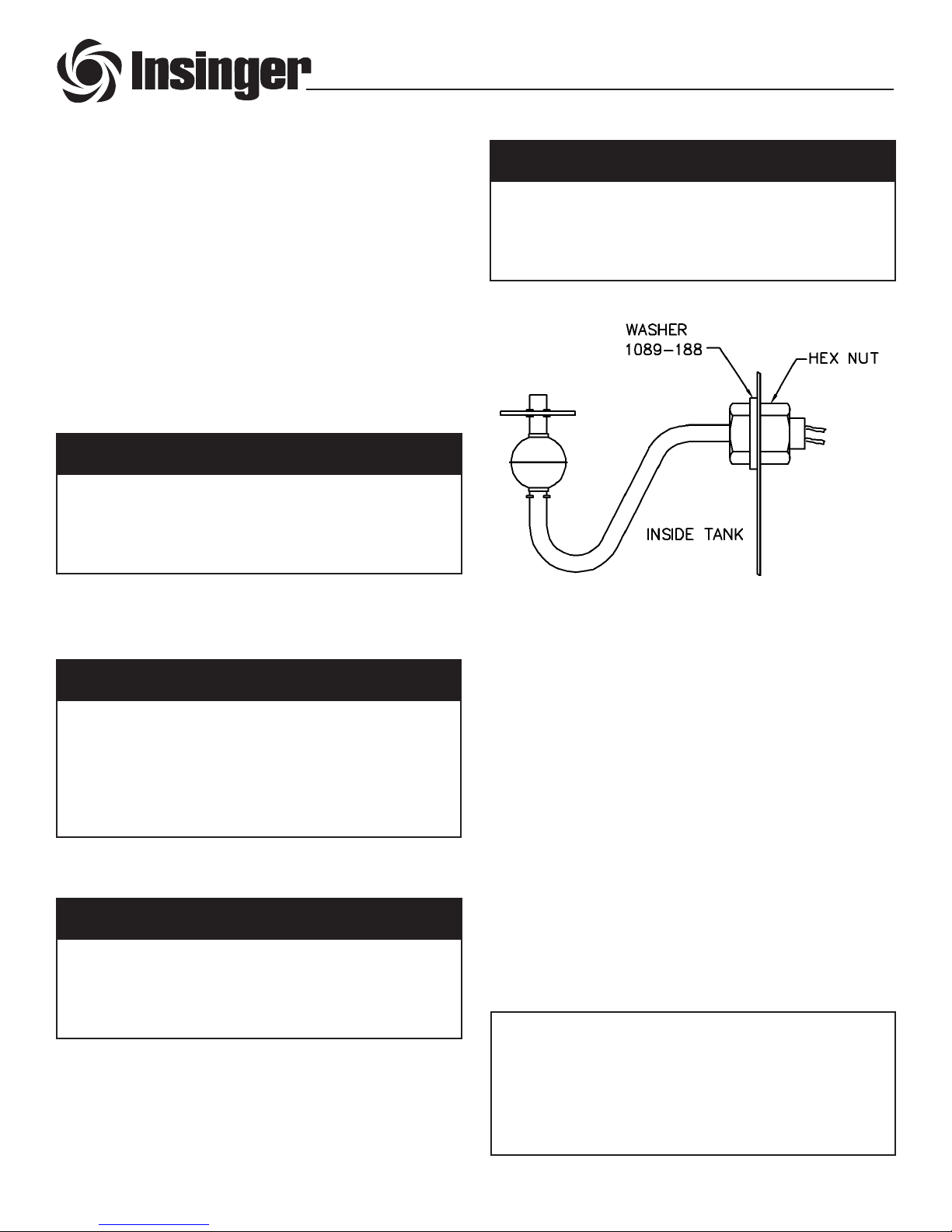

Immersion Heater Replacement (SK-4703)
1. The immersion heater MUST be completely
submerged at all times. If this is not the case
contact a qualied service technician. The heated
surface should never be in contact with sludge.
2. Remove the housing covering the wiring
terminations. Disconnect the immersion heater
wires.
3. Remove the immersion heater by loosening and
removing the large hex nut.
4. Install in reverse of removal.

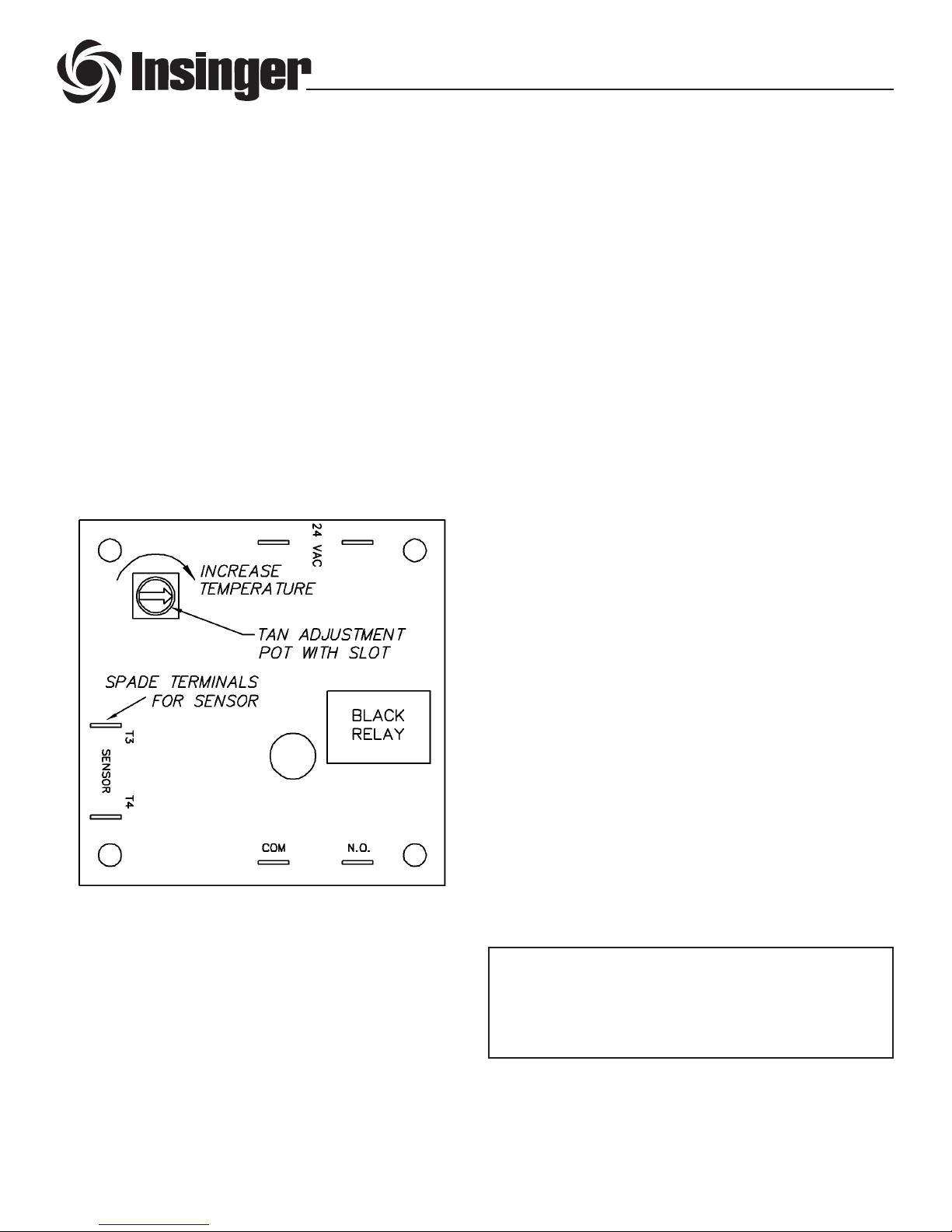

DE9-251: Tank Temperature Control Board
NOTE:
Use plumbers putty as gasketing
around the immersion heater
installation nut.


15
PART 5 MAINTENANCE & REPAIR PROCEDURES
®
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
Level System
The level control system consists of one level timer
(P/N DE7-35) and one level oat (DE5-60) per tank.
When the system is powered-up, the tank(s) will
begin to ll (assuming no water is in the tanks).
Once the level oat is actuated, the timer begins to
time-out and continues the lling process until the
tank(s) is full.
Should the tank heat energize without water in the
tank troubleshoot the system to nd the problem
CAUTION:
Dirty level oats will cause the tank heat to energize
with no water in the tanks. Level oats MUST be
cleaned daily.
Motor Overloads
All motors used on Insinger Machines are provided
with motor overloads. Motor overloads are adjusted
when the machines are factory tested. Should it be
necessary to adjust the motor overloads in the eld
rst verify the motor current draw for the voltage the
machine is using.
Refer to the Control Panel Layout drawing located in
PART 7 to identify the overload, adjust by turning the
dial to the appropriate AMP draw.
Motor Overload Relay
DE7-35: Liquid Level Timer

16
®
PART 5 MAINTENANCE & REPAIR PROCEDURES
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
SK-5825 : Final Rinse Solenoid Valve

17
®
PART 5 MAINTENANCE & REPAIR PROCEDURES
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
SK-4703 : Electric Heater Installation

18
®
PART 5 MAINTENANCE & REPAIR PROCEDURES
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802
SK-2525 : 5 HP Pump Motor Assembly
ITEM PART NO. DESCRIPTION QTY
1 Motor 5 HP 1
2 D-439 Adapter 1
3 D-440 Impeller 1
4 D-441 Casing 1
5 D2-566 Gasket, Casing 1
6 D2-568 Flinger, Shaft 1
7 D-2494 Seal Assembly 1
8 D2-567 O-Ring, Shaft 1
9 D3-818 Sleeve, Shaft 1
10 D3-819 Retainer, Seal Spring 1
11 Drain Plug - 1/4 IPS 1
REV A - 07/21/82
