Intelbras MVD 1404 User manual
MVD 1404 / MVD 3404 G / MVD 3404 W / MVD 3404 GW
Vehicle tracking and management system
Congratulations, you have just purchased a product with Intelbras quality and safety.
This guide serves as a reference for your installation and provides information on the characteristics
and functions of the products: MVD 1404, MVD 3404 G, MVD 3404 W and MVD 3404 GW.
Note: information in this guide is subject to change without notice.
ATTENTION: This product comes with a factory default password. For your safety, it is
imperative that you change it as soon as you install the product and ask your technician about
the congured passwords, which users have access and the recovery methods.
English
Care and safety
»Read User’s Guide: all safety and operating instructions must be read before starting operations
with the instrument and must be retained for future reference.
»Electrical Safety: the entire installation and operation process mentioned here must comply with
technical standards for automotive repair. We assume no commitment or liability for re or electri-
cal shock caused by improper handling or installation. Do not power the equipment in a way that
exceeds the specied voltage. The equipment frame must be connected directly or indirectly to the
vehicle chassis.
»Repairs: all analysis and repair work must be carried out by qualied professionals. We are not
responsible for any problems caused by unauthorized modications or repairs.
»Power Sources: this product should only be operated from the power supply indicated in the spe-
cications in this manual.
»Installation: do not install MVD over unstable places. Do not install in locations where the tem-
perature exceeds levels above permitted in the technical specications. Although the device is
equipped with an anti-vibration system and uses a specic HD for this type of function, the need to
use a rubber pad and cushioning system must be evaluated in each case.
»Connections: do not make connections not recommended by the manufacturer, as there is a risk of
burning the electronic devices inside the vehicle.
»Environment: the MVD must be installed in a clean, dry environment, away from any heat sources
such as radiators, heaters or the vehicle’s engine. Avoid direct sunlight and contact with ammable
and explosive substances.
»Cleaning: just clean your device with a dry cloth and always with it turned off. Do not use liquid or
aerosol detergents.
»Technical assistance: do not attempt to repair this product, in addition to voiding the warranty, it
could be dangerous. Send the product to an authorized technical assistance.
»Care with the accessories: always use the accessories recommended by the manufacturer. Before
installation, open the package and check that all components are included. Contact your local dea-
ler immediately if you cannot nd any components in the package.
»LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, captu-
re, or carry out any other type of processing of personal data from this product. This product does
not contain encryption for personal data in transit and/or at rest.
Attention: the equipment must be turned off in order to connect the cables to any of the connectors
on the rear panel, or the input may be burned, causing the loss of warranty.
22
1. Product
MVD 3404 GW rear panel
12 3 4 5
6 7 8 9 10 11 12
Item Input Description
1WIFI Wi-Fi antenna connector.
Note:
this function is only available for the MVD 3404 W and MVD 3404 GW models.
23G/4G Connector for cellular antenna.
Note:
this function is only available for the MVD 3404 G and MVD 3404 GW models.
3GPS Connector for GPS antenna.
4A/V OUT
Analog video output (CVBS).
Note:
audio transmission on this port will depend on the monitor used. For more
information, consult the user’s manual.
5CH1, CH2, CH3, CH4 Input for vehicular cameras with HDCVI, AHD, HD-TVI and Analog (CVBS)
technologies.
6SIM Interface for inserting the SIM card (cell phone chip).
Note:
this function is only available for the MVD 3404 G and MVD 3404 GW models.
7ETH RJ45 network port with 10/100 speed (fast).
8ALARM Input and output port for alarms (sensors) with a 12 Vdc port. For details, check the
user’s manual.
9EXTEND Port to connect peripherals to the products. For details, check the user's manual.
10 485 RS485 serial port.
11 MIC Microphone connection port for vehicle environment.
12 DC 6 V − 36 V
Product power port, supporting continuous voltage range from 6 V to 36 V.
»The red cable is fused and should maintain continuous power to the vehicle.
»The black cable corresponds to negative (GND).
»The orange cable corresponds to the post-key and must be connected to the vehicle’s
corresponding circuit.
Note: for the MVD 1404 models. MVD 3404 G and MVD 3404 W, the connector distribution is
practically the same as that shown on the MVD 3404 GW, with only a few changes.
23
MVD 3404 GW front panel
1 2 3 4 5 6
Item Input Description
1USB USB interface
2Interruptor Key lock switch
3SDCARD SD-card interface – Maximum 2 SD-cards
4PWR Red light indicates when it is on and off
5REC Indicates registration status. Blue indicating
Recording started
6EInfrared signal
2. Installation
The installation location will directly depend on the type of vehicle in which the device will be instal-
led and on the customer’s interest. Some vehicles have appropriate compartments to accommoda-
te devices of this nature. The device must not be screwed directly onto the vehicle body. Preferably
install it on a rubberized surface, thus preventing all the vibration generated inside the vehicle from
being absorbed by the MVD. When using models with an SD card, care must be taken during ins-
tallation. Although the recorder protects the storage unit by an anti-vibration system, we recommend
using an SD card due to the recorders’ operating scenario.
2.1. Package content
Item Amount Description
Mobile DVR 1Vehicle digital image recorder
Protection fuse 11 fuse 7.5 A for when connecting MVD in 12 V / 24 V
Protection key 1Protection switch to open and close front panel
protection
9 pin power cable 1MVD power harness
Antennas 1, 2 or 3
MVD 1404 - GPS
MVD 3404G - GPS + 3G/4G
MVD 3404 W - GPS + WiFi
MVD 3404 GW - GPS + 3G/4G + Wi-Fi
2.2. Installation in vehicle
Note: all operations in the vehicle installation process of the MVD must comply with the vehicle
manufacturer’s automotive repair technical standards.
To install the equipment, choose a clean and easily accessible environment. In order to prevent
vibrations and displacement of the MVD, we recommend that four set screws are used.
24
2.3. Vehicle battery care and attention
As already informed, by default the equipment will use the vehicle’s own battery as a power source.
Therefore, some care is needed to avoid its discharge, which could prevent the vehicle from starting
or damage the electrical system.
Battery status before installation of Car DVR
If the vehicle’s battery is very old and has been showing indications of the end of its useful life, such
as constant starting failures or the need for recharging, it is highly recommended that it be replaced
in order to avoid failures in the operation of the vehicle DVR.
2.4. Accessories
»Analog monitor: accessory used to congure the MVD in loco, without the need to use a computer
or network access. The purchase of this accessory is highly recommended due to its ease of
device conguration, backup on pen drive and operating exibility. This accessory is purchased
separately.
3. Access to the MVD
Below is the default user and password information for the rst login as an administrator:
»User: admin
»Password: the password will be congured on the rst access to the equipment.
3.1. Access from the Ethernet port
Access to the MVD is via the Ethernet network port available on each device. Access must be made
from Internet Explorer® 11 or higher. The default IP of the Ethernet interface is 192.168.1.108. An IP
within the same network range must be congured in the network properties of the computer that
will access the device, for example: 192.168.1.5.
Computer network conguration interface
25

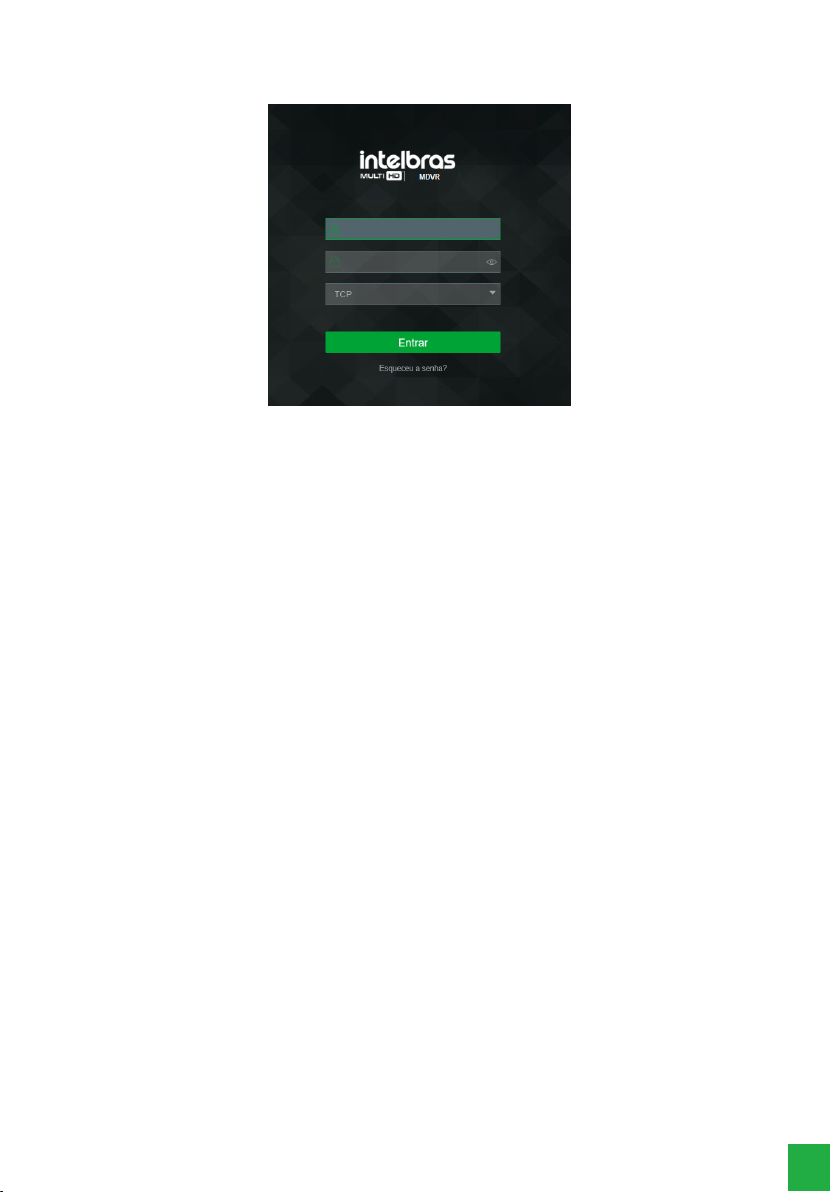

When accessing the device for the rst time, you will be asked to install a proprietary plug-in (We-
bActivex). This should be installed normally.
26
Warranty term
It is established that this warranty is granted upon the following conditions:
Client’s name:
Client’s signature:
Invoice number:
Date of purchase:
Model: Serial number:
Retailer:
1. All the parts, pieces and components of the product are guaranteed against possible manufactu-
ring defects, which may arise, for the term of 1 (one) year, with a term of 3 (three) months’ legal
warranty plus 9 (nine) months’ contractual warranty –, counting from the date of purchase of the
product by the Consumer, as appears in the product purchase bill of sale, which is an integral part
of this Term throughout the domestic territory. This contractual warranty includes the free exchan-
ge of parts, pieces and components which have a manufacturing defect, including the expenses
with labor used in this repair. If there is no manufacturing defect, but defect(s) arising from misuse,
the Consumer shall bear these expenses.
2. The installation of the product shall be executed in accordance with the Product Manual and/or
Installation Guide. If your product requires the installation and conguration by a qualied techni-
cian, seek a suitable specialized professional, the costs of these services not being included in the
product amount.
3. Having perceived the defect, the Consumer shall immediately contact the nearest Authorized Service
which appears in the report offered by the manufacturer – they are the only ones authorized to exa-
mine and remedy the defect during the warranty term foreseen herein. If this is not respected, this
warranty shall lose its validity, as it shall be characterized as product infringement.
4. If the Consumer requests home service, it shall contact the nearest Authorized Service to inquire
about the technical visit rate. If it is necessary to remove the product, the ensuing expenses, such as
those of transportation and insurance of the taking and return of the product, shall be the Consumer’s
responsibility.
5. The warranty shall lose its validity totally in the occurrence of any of the following cases: a) if the
defect is not one of manufacture, but is caused by the Consumer or by third parties foreign to the
manufacturer; b) if the damage to the product arises from accidents, disasters, agents of nature (li-
ghtning, oods, landslides, etc.), humidity, voltage in the electrical network (excess voltage caused by
accidents or excessive uctuations in the network), installation/use in disagreement with the user’s
manual or arising from natural wear of the parts, pieces and components; c) if the product has under-
gone effects of a chemical, electromagnetic, electrical or animal (insects, etc.) nature; d) if the serial
number of the product has been falsied or erased; e) if the appliance has been infringed.
6. This warranty does not cover loss of data; therefore, it is advisable that if it is the case of the product,
the Consumer makes a backup regularly of the data which appears in the product.
7. Intelbras is not responsible for the installation of this product, or for possible attempts at fraud and/
or sabotage in its products. Maintain the updates of the software and applications used up-to-date, if
it is the case, as well as the network protection required for defense against hackers. The equipment
is guaranteed against defects in its usual conditions of use, it being important to bear in mind that,
as it is electronic equipment, it Is not free of fraud and scams which may interfere with its correct
functioning.
27
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly
disposed of in an environmentally appropriate manner to avoid environmental and health impacts.
If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at
any Green Eletron collection point (waste management facility to which we are associated). If you
have any questions about the reverse logistics process, please contact us at (48) 2106-0006 or 0800
704 2767 (Monday to Friday 8am to 8pm and Saturdays 8am to 6pm) or via -mail support@intelbras.
com.br.
These being the conditions of this complementary Warranty Term, Intelbras S/A reserves the right to
alter the general, technical and esthetic features of its products without prior notice.
All the images of this manual are illustrative.
