International comfort products *9MPT050F12C1 Installation instructions

1
440 04 2024 01 Feb. 2009
Models
Dual Certified
*9MPT050F12C1
*9MPT075F14C1
*9MPT100J16C1
*9MPT125L20C1
*9MPV050F12D1
*9MPV075F12D1
*9MPV100J20D1
*9MPV125L20D1
*9MVX040F12A1
*9MVX060F12A1
*9MVX080J20A1
*9MVX100L20A1
* Denotes Brand (C, H, T)
Save This Manual For Future Reference
Four Position Furnace
International Comfort Products, LLC
Lewisburg, TN 37091 U.S.A.
Technical Support (*9MPT) 2................
Circulation Air Blower Data (*9MPT) 3.........
Wiring Diagram (*9MPT) 4..................
Parts (*9MPT) 5..........................
Technical Support (*9MPV) 8...............
Circulation Air Blower Data (*9MPV) 9.........
Exploded Parts View (*9MPV & *9MVX) 17......
Parts (*9MPV) 19..........................
Technical Support (*9MVX) 20...............
Circulation Air Blower Data (*9MVX) 21.........
Parts (*9MVX) 30..........................
Wiring Diagram (*9MPV & *9MVX) 32...........

2440 04 2024 01
Specifications are subject to change without notice.
TECHNICAL SUPPORT
Manufacturers Number (Mfr No --SeeRatingPlate) ALL Models
Specifications
*9MPT050F12 *9MPT075F14 *9MPT100J16 *9MPT125L20
General
Gas Type Nat Propane Nat Propane Nat Propane Nat Propane
Transformer Size (VA)
T’stat Heat Anticipator
40
.50
Input (Btuh) Std/Alt. HI Heat
LO Heat
Output (Btuh) Std/Alt. HI Heat
LO Heat
Temp. Ris e (oF/oC) HI Heat
LO Heat
50,000
35,000
46,000
32,000
35--65/19--46
25--55/14--30
75,000
53,000
70,000
49,000
40--70/22--38
30--60/17--33
100,000
70,000
93,000
65,000
40--70/22--38
30--60/17--33
125,000
87,500
117,000
82,000
40--70/22--38
30--60/17--33
Electrical (Volts/Hz) 115/60 115/60 115/60 115/60
Rating Plate Amps 11.8 11.8 11.8 14.0
Gas & Ignition
Gas Type
Std. Main Orifices (No/Size)
Gas Valve (Honeywell)
Regulation Type
Manifold Press. HI Heat (in wc/Pa)
LO Heat (in wc/Pa)
Nat.
2/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
2/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Nat.
3/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
3/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Nat.
4/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
4/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Nat.
5/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
5/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Ignition Type/Series Hot Surface
Combustion
Flue Outlet Size (Inches)
Std. Outlet Temp (oF/oC)
2
<140/60
2
<140/60
3
<140/60
3
<140/60
@Blower/@ Transition Box (HI Heat)
Std. Pressures (in wc/Pa)
5′No Elbows
40′+5--90°DWV Elbows
@Blower/@ Transition Box (LO Heat)
Std. Pressures (in wc/Pa)
5′No Elbows
40′+5--90°DWV Elbows
--1.80/--2.60(--448/--647)
--1.30/--2.30(--324/--573)
--1.20/--1.90(--299/--473)
--1.00/--1.80(--249/--448)
--1.80/--2.60(--448/--647)
--1.30/--2.30(--324/--573)
--1.20/--1.90(--299/--473)
--1.00/--1.80(--249/--448)
--1.80/--2.60(--448/--647)
--1.70/--2.50(--423/--623)
--1.20/--1.90(--299/--473)
--1.00/--1.80(--249/--448)
--1.80/--2.60(--448/--647)
--1.70/--2.50(--423/--623)
--1.30/--2.30(--324/--573)
--1.20/--2.20(--299/--548)
Furnace Controls
Furnace Control (Type)
Furnace Control On
(Timed--secs) Off
Integrated
30 HI /45 LO
60,100,140,180
Limits & Controls
Rollout Switch (oF/oC)
Limit Control Setting (oF/oC)
300/149
260/127
300/149
210/99
300/149
240/116
300/149
180/82
Std. Pressure Sw. (in wc/Pa) Part No
Blower Switch Pressure (Close)
Blower Switch Pressure (Open)
Transition Switch Pressure (Close)
Transition Switch Pressure (Open)
1013515
0.95(237)
0.80(199)
1.70(423)
1.50(374)
1013515
0.95(237)
0.80(199)
1.70(423)
1.50(374)
1013515
0.95(237)
0.80(199)
1.70(423)
1.50(374)
1013166
1.30(324)
1.10(274)
1.80(448)
1.60(398)
High Alt. Pressure Sw. (in wc/Pa)
Part No
Blower Switch Pressure (Close)
Blower Switch Pressure (Open)
Transition Switch Pressure (Close)
Transition Switch Pressure (Open)
1013165
0.70(174)
0.55(137)
1.40(349)
1.20(299)
1013165
0.70(174)
0.55(137)
1.40(349)
1.20(299)
1013165
0.70(174)
0.55(137)
1.40(349)
1.20(299)
1013157
0.85(212)
0.70(174)
1.70(423)
1.50(374)
Blower Data
Blower Size -- D x W inches(mm)
Motor Amps/RPM
Motor Type/H.P.
Cap. Mfd/Volts
Filter Type & Size (qty.) in(mm)
Cool Cap. (Tons) @ .5 in wc (125 Pa)
L, ML, MHi & HI
11 x 8(279 x 203)
10/1050
PSC/1/2
10/370
16x25x1
1.5 thru 3
11 x 10(279 x 254)
10/1050
PSC/1/2
10/370
16x25x1
1.5 thru 3.5
11 x 10(279 x 254)
10/1050
PSC/1/2
10/370
16x25x1
2.5 thru 4
11 x 10(279 x 254)
13/900
PSC/3/4
40/370
16x25x1 (2)
3.5 thru 5
Gas Conversion Kits All Models
Nat to Propane NAHA002LP (1172959*)
Propane to Nat NAHA002NG (1172961*)
*Order from Service Parts

3
440 04 2024 01 Specifications are subject to change without notice.

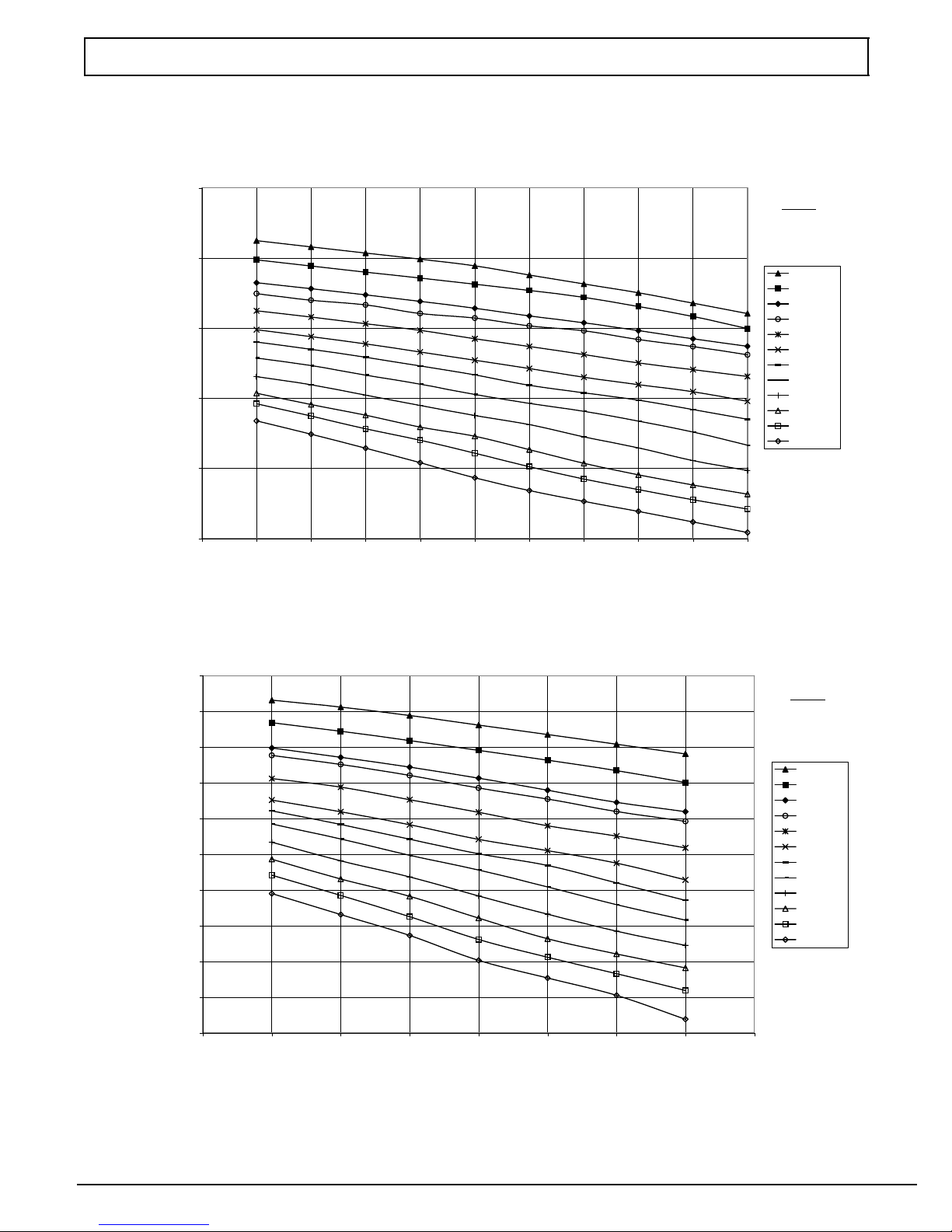

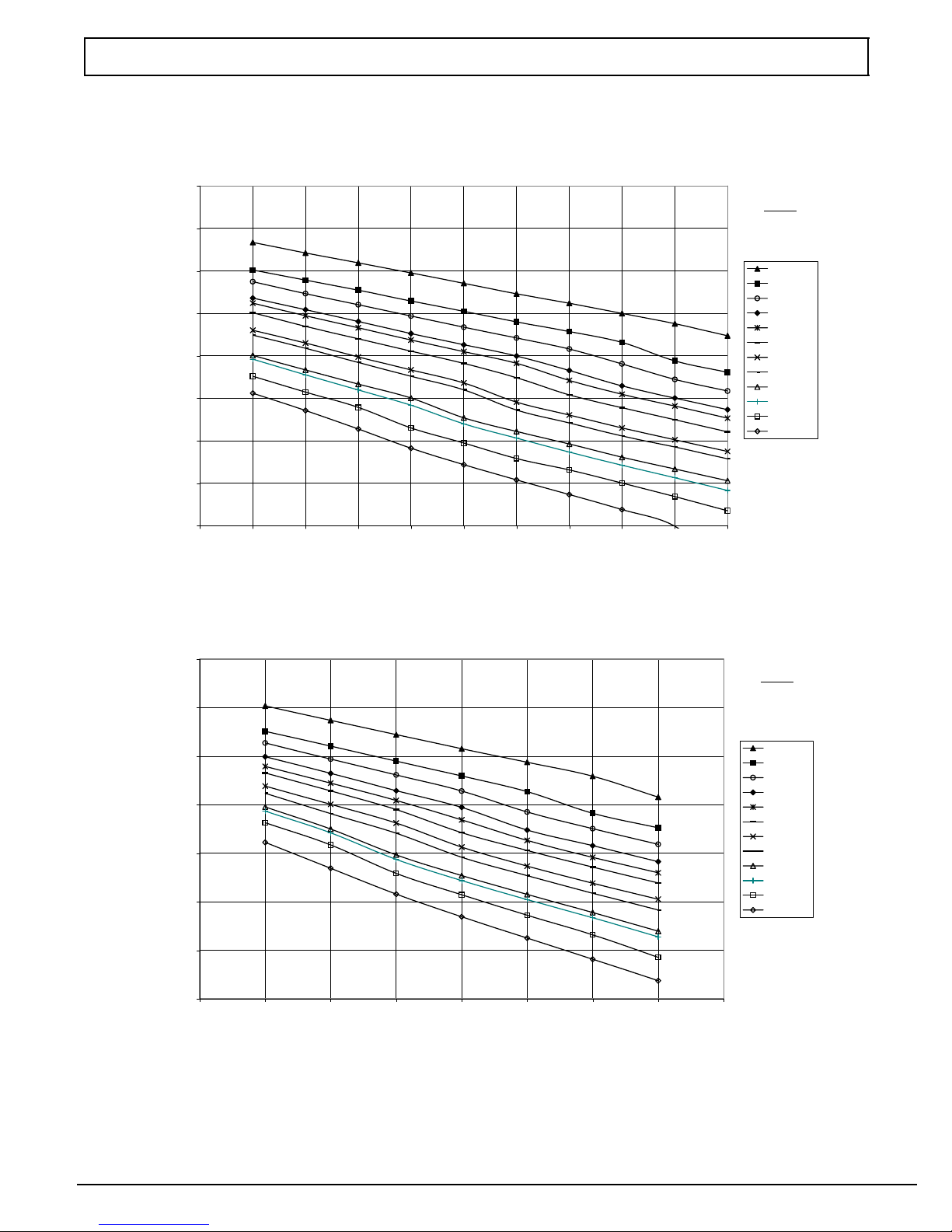

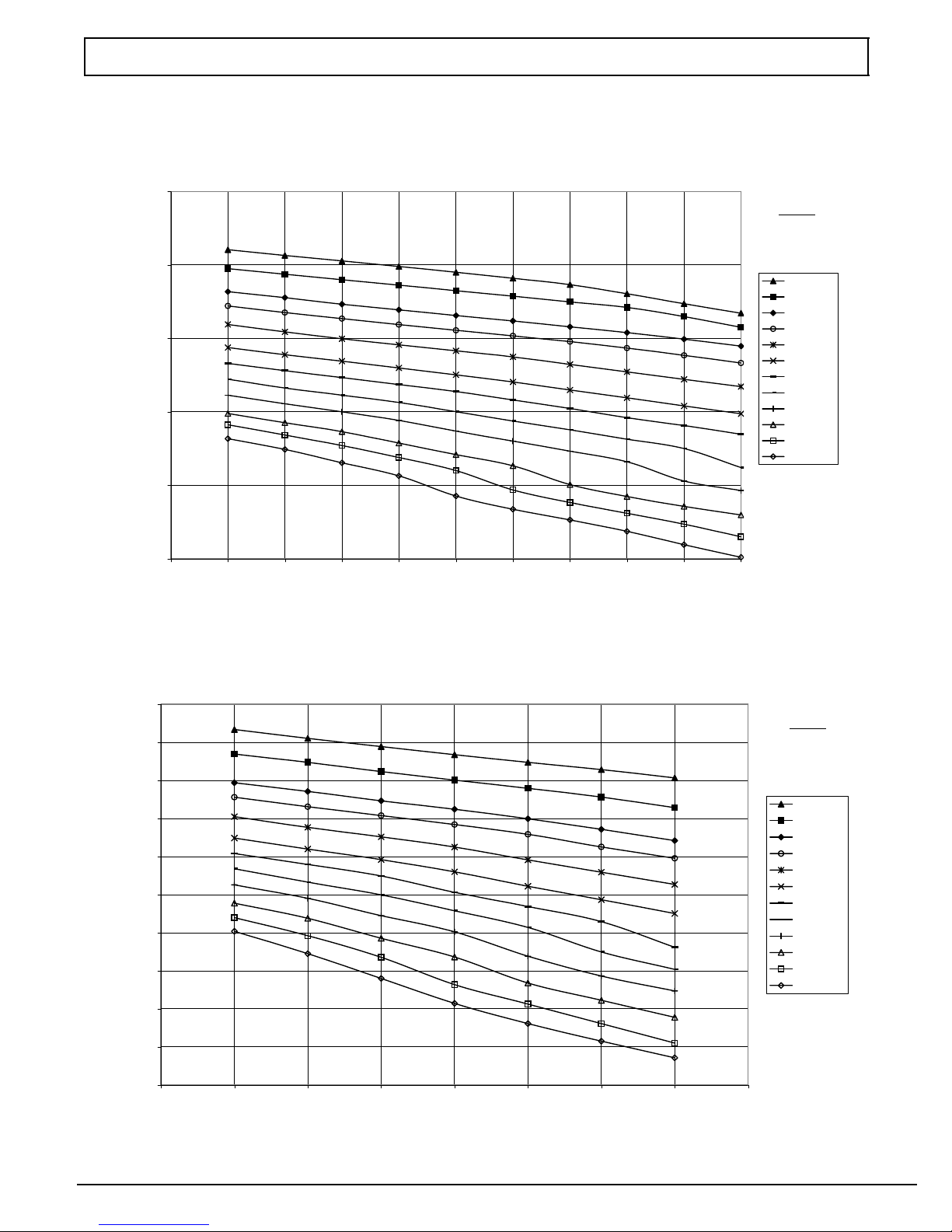

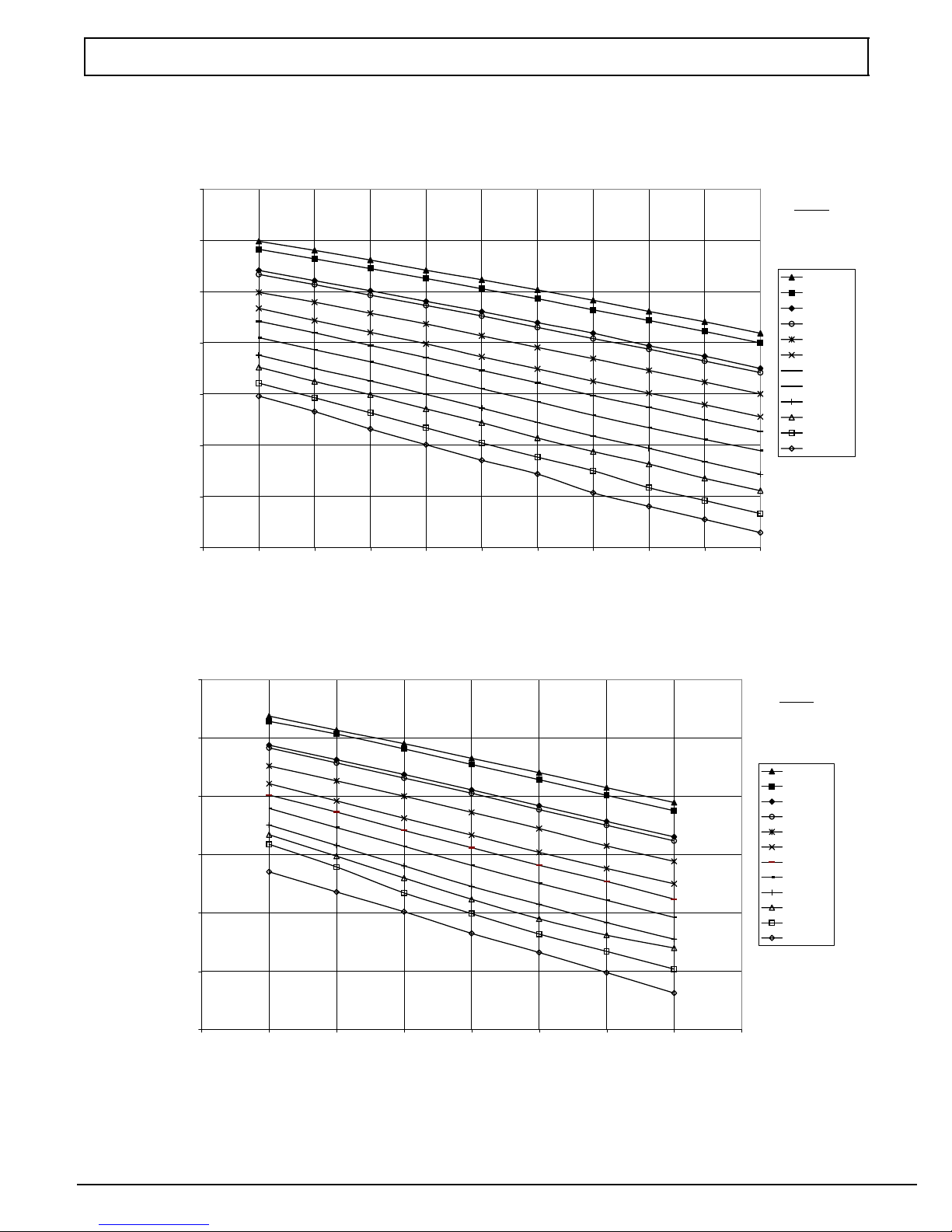

Circulation Air Blower Data - *9MPT
*9MPT050F12 (1) * Denotes Brand
Speed Tap Low Med L Med H Hi
in wc Pa CFM L/s CFM L/s CFM L/s CFM L/s
0.1 25 826 389 1083 511 1301 614 1408 667
0.2 50 804 379 1050 495 1242 586 1347 638
0.3 75 770 363 1028 485 1195 564 1295 611
0.4 100 735 346 985 465 1153 544 1237 583
0.5 125 698 329 952 499 1093 516 1183 558
0.6 150 657 310 909 429 1040 491 1118 528
0.7 175 -- -- -- -- -- -- 863 407 935 441 1053 497
0.8 200 -- -- -- -- -- -- 812 383 865 408 976 461
0.9 225 -- -- -- -- -- -- -- -- -- -- -- -- 802 378 887 419
1.0 250 -- -- -- -- -- -- -- -- -- -- -- -- 720 340 787 371
*9MPT100J16 (1) * Denotes Brand
Speed Tap Low Med L Med H Hi
in wc Pa CFM L/s CFM L/s CFM L/s CFM L/s
0.1 25 823 388 1109 523 1527 721 1850 873
0.2 50 795 375 1087 513 1482 699 1791 845
0.3 75 747 353 1056 498 1426 673 1720 812
0.4 100 677 319 1016 479 1382 652 1648 778
0.5 125 617 591 970 458 1317 622 1575 743
0.6 150 544 257 857 403 1245 588 1485 701
0.7 175 -- -- -- -- -- -- 763 360 1154 545 1401 661
0.8 200 -- -- -- -- -- -- 652 308 1043 492 1284 606
0.9 225 -- -- -- -- -- -- -- -- -- -- -- -- 905 427 1161 548
1.0 250 -- -- -- -- -- -- -- -- -- -- -- -- 737 348 1028 485
*9MPT075F14 (1) * Denotes Brand *9MPT125L20 (2) * Denotes Brand
Speed Tap Low Med L Med H Hi
in wc Pa CFM L/s CFM L/s CFM L/s CFM L/s
0.1 25 395 328 1025 484 1455 687 1724 814
0.2 50 374 318 1001 472 1410 655 1662 784
0.3 75 653 308 951 449 1365 644 1601 756
0.4 100 631 298 921 435 1309 3118 1530 722
0.5 125 609 287 891 420 1252 591 1460 689
0.6 150 569 268 845 399 1187 560 1380 651
0.7 175 529 250 799 377 1122 529 1300 613
0.8 200 490 231 730 345 1030 486 1190 562
0.9 225 -- -- -- -- -- -- 680 321 950 448 1080 510
1.0 250 -- -- -- -- -- -- -- -- -- -- -- -- 831 392 969 457
NOTE: (1) Data based on Bottom Only or One Side return.
(2) Data based on Both Sides or Bottom plus One Side
MAX CFM (L/s) for Factory Washable Filters
Filter Size (in/mm) CFM L/s
14″X25″(356 x 635) 1400 661
16″X25″(406 x 635) 1600 755
20″X25″(508 x 635) 2000 944
24″X25″(610 x 635) 2500 1180
Max CFM (L/s) based on 600 FPM (3.0 m/s)
Speed Tap Low Med L Med H Hi
in wc Pa CFM L/s CFM L/s CFM L/s CFM L/s
0.1 25 1720 812 1910 901 2127 1004 2315 1092
0.2 50 1686 796 1881 888 2087 985 2268 1070
0.3 75 1644 776 1833 912 2024 955 2201 1039
0.4 100 1600 755 1777 839 1961 925 2131 1006
0.5 125 1533 723 1720 812 1891 892 2029 958
0.6 150 1494 705 1647 777 1804 851 1948 919
0.7 175 1413 667 1571 741 1708 806 1820 859
0.8 200 1306 616 1470 694 1604 757 1730 816
0.9 225 -- -- -- -- -- -- 1349 637 1484 700 1614 762
1.0 250 -- -- -- -- -- -- -- -- -- -- -- -- 1328 627 1430 675
NOTE: Disposable filters are typically rated at 300 FPM (1.5 m/s). These filters
only allow half the airflow when compared to 600 FPM (3.0 m/s) filters.
# CFM -- Cubic feet per minute airflow (L/s -- Liters per second) Filter
required for each return--air inlet. Airflow performance includes 1″(25.4mm)
washable 600 FPM (283 m/s) max filter media.

4440 04 2024 01
Specifications are subject to change without notice.
Wiring Diagram *9MPT (Two Stage Heating with PSC Motor)

5440 04 2024 01 Specifications are subject to change without notice.

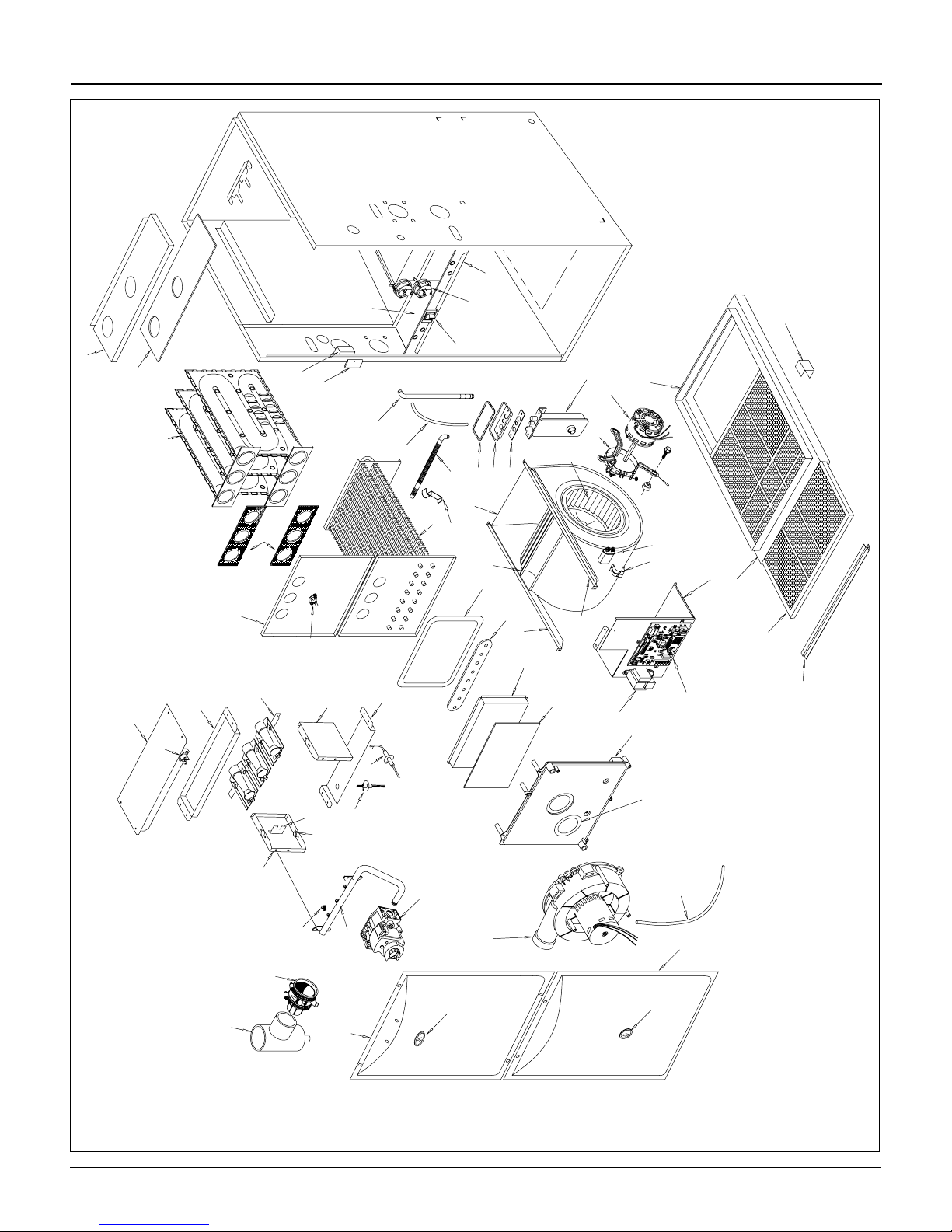

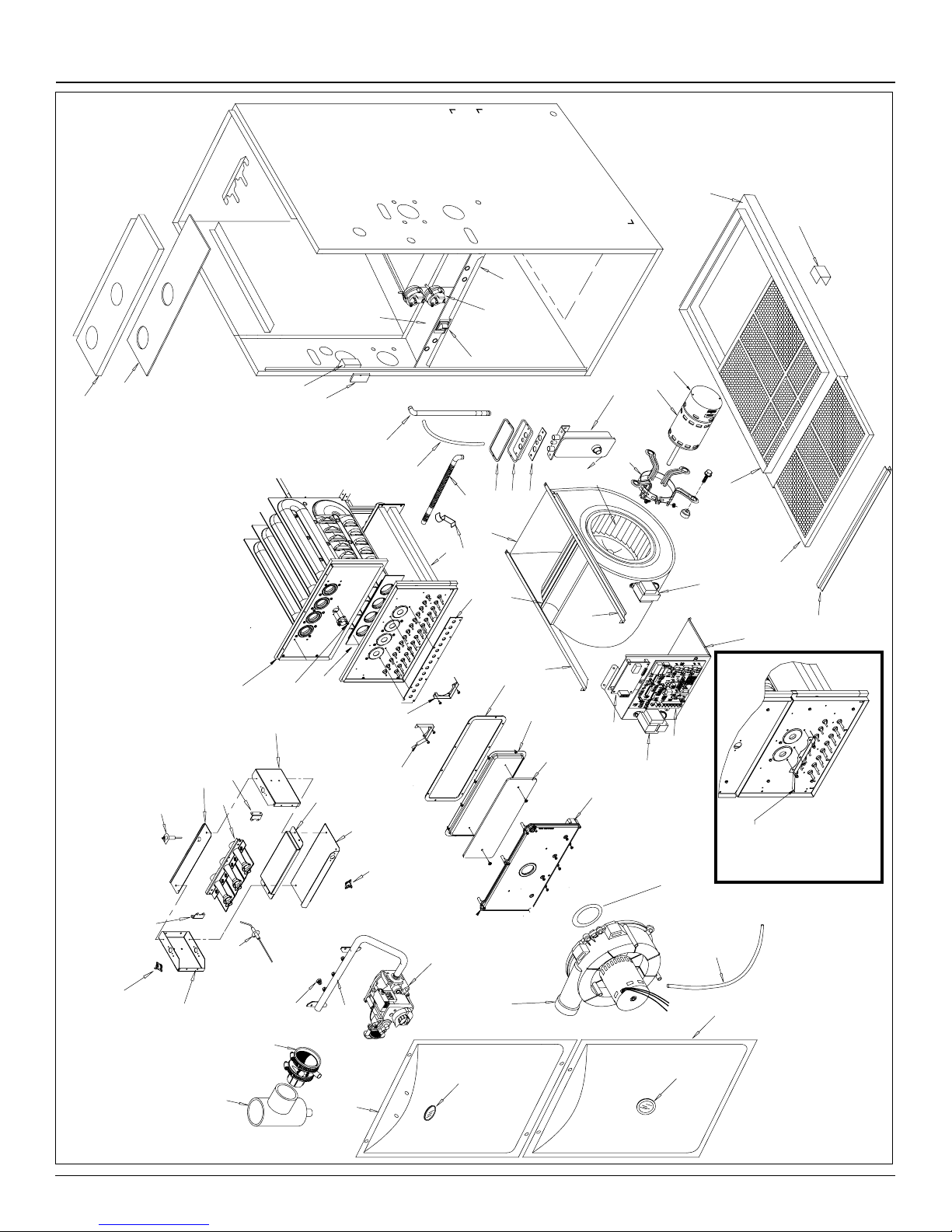

*9MPT Parts
25--24--75a--4
YY
WW
N
LL
11
18
V
W
R
S
T
UJ
LJJ
Q
P
Y
X
F
UU
VV
TT
SS
H
RR
QQ
KK
5
4
3
9
10
M
K
2
1
B
A
7
D
K
6
HH
8
ZZ
13
15
FF
EE
16
BB
12
16 GG
17
DD
CC
FF
14
O
N
O
F
F
OO
20
NN
PP
MM
Representative drawing only, some models may vary in appearance.
XX

A
6440 04 2024 01
Specifications are subject to change without notice.
Replacement Parts - *9MPT
Models -- *9MPT050F12C1, *9MPT075F14C1, *9MPT100J16C1 & *9MPT125L20C1 (Natural Gas)
Replacement part supplied will be current active part. For parts not listed, consult place of purchase.
Key
No.
Description
Functional
Part
Number
*9MPT
050
F12
075
F14
100
J16
125
L20
1Heat Exchanger, Primary 1012850
1012854
1012858
1012862
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
2Heat Exchanger, Secondary 1013762
1013763
1013765
1013767
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
3Motor, Blower 1/115 1/2CCW
1/115 3/4CCW
1172488
1172489
1
--
1
--
1
--
--
1
4Mount, Motor kit*1014824
1014823
1
--
--
1
--
1
--
1
5Wheel, Blower 1013011
1011420
1
--
--
1
--
1
--
1
6Transformer 1172810 1 1 1 1
7Capacitor, 10Mfd., 370V
40Mfd., 370V
1171929
1171982
1
--
1
--
1
--
--
1
8Control 1175594 1 1 1 1
9Switch, Interlock 1171981 1 1 1 1
10 Switch, Pressure 1013166
1013515
--
1
--
1
--
1
1
--
11 Blower, Exhaust 1172826
1172825
1
--
1
--
1
--
--
1
12 Valve, Gas Nat. 2 Stage 1172822 1 1 1 1
13 Flame Sensor 1172827 1 1 1 1
14 Igniter 1172533 1 1 1 1
15 Orifice, Burner #42 Nat. 1011351 2 3 4 5
16 Switch, Limit (Rollout) 1013102 2 2 2 2
17 Burner Assembly 1172884
1172965
1172966
1172967
1
--
--
--
--
1
-- --
-- --
--
--
1
--
--
--
--
1
18 Switch, Limit (Main) 1320366
34335002
1008445
34335001
1
--
--
--
--
--
--
1
--
1
--
--
--
--
1
--
20 Filter,HH 16X25X1/2”1010365 1 1 2 2
*See Table below for bellyband location on motor
Bellyband Location
on Motor -- A Dimensions
Model *9MPT inches mm
050F12 2.09 53.1
075F14 1.81 46
100J16 1.81 46
125L20 1.65 41.9
Key
No.
Description
Non- Functional
Part
Number
*9MPT
050
F12
075
F14
100
J16
125
L20
APanel, Top 1012866
1012867
1012868
1
--
--
1
--
--
--
1
--
--
--
1
BGasket, Top Panel 1012603
1012604
1012605
1
--
--
1
--
--
--
1
--
--
--
1
FPartition, Blower 1172008
1172005
1172006
1172007
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
HHousing, Blower 1172885
1172969
1
--
--
1
--
1
--
1
JPanel, Blower Cutoff 721020013
721020008
1
--
--
1
--
1
--
1
KHanger, Blower 1012328 2 2 2 2
LDoor, Blower (Comfortmaker only)
(Comfortmaker only)
(Comfortmaker only)
(Heil only)
(Heil only)
(Heil only)
(Tempstar only)
(Tempstar only)
(Tempstar only)
1173035
1173036
1173073
1173038
1173039
1173076
1173078
1173079
1173080
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
MBracket Asy., Door Filler 1172232
1172233
1172234
1
--
--
1
--
--
--
1
--
--
--
1
NDoor, Front (Comfortmaker only)
(Comfortmaker only)
(Comfortmaker only)
(Heil only)
(Heil only)
(Heil only)
(Tempstar only)
(Tempstar only)
(Tempstar only)
1013148
1013149
1013150
1013145
1013146
1013147
1173086
1173087
1173088
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
OClamp, Capacitor 1170643
1014315
1
--
1
--
1
--
--
1
PTransition Assembly 1172228
1172229
1172230
1
--
--
1
--
--
--
1
--
--
--
1
QGasket, Blower 1014425 1 1 1 1
RBoard, Insulating 1012418
1012419
1012420
1
--
--
1
--
--
--
1
--
--
--
1
SBox, Collector 1012244
1012245
1012246
1
--
--
1
--
--
--
1
--
--
--
1
TGasket, Transition 1013263
1013080
1013083
1013084
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
UGasket, Collector Box 1012594
1012595
1012596
1
--
--
1
--
--
--
1
--
--
--
1
VPartition, Front Heat Exchanger 1012650
1012648
1012651
1012653
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1

7
440 04 2024 01 Specifications are subject to change without notice.
Replacement Parts - *9MPT
Models -- *9MPT050F12C1, *9MPT075F14C1, *9MPT100J16C1 & *9MPT125L20C1 (Natural Gas)
Replacement part supplied will be current active part. For parts not listed, consult place of purchase.
Key
No.
Description
Functional
Part
Number
*9MPT
050
F12
075
F14
100
J16
125
L20
WGasket, Attachment Plate 1012542
1012543
1012544
1012545
2
--
--
--
--
2
--
--
--
--
2
--
--
--
--
2
XCover, Junction Box 1012350 1 1 1 1
YBox, Junction 1172860 1 1 1 1
BB Manifold 1012970
1012971
1012278
1012279
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
CC Bottom, Burner Box 1172847
1172849
1172850
1
--
--
1
--
--
--
1
--
--
--
1
DD Baffle, Burner Box 1012338
1012339
1012340
1
--
--
1
--
--
--
1
--
--
--
1
EE Top, Burner Box 1013702
1013703
1013704
1
--
--
1
--
--
--
1
--
--
--
1
FF Bracket, Manifold Support 1012377 2 2 2 2
GG Bracket, Burner Box Side 1012532 2 2 2 2
HH Bracket, Control Mounting 1172845 1 1 1 1
JJ Tube, Sensor 1172238
1172241
1
1
1
1
1
1
1
1
KK Trap, Drain Assembly 1171917 1 1 1 1
LL Sightglass
(Tempstar only)
1013235
1013236
1
1
1
1
1
1
1
1
MM Wrapper, Filter Rack 741010039 1 1 2 2
NN Front, Filter Rack 741020001 1 1 2 2
OO Cover, Filter 2791043 1 1 2 2
PP Clip, Filter 1008482 3 3 3 3
QQ Gasket, Trap 1013701 1 1 1 1
RR Bracket, Trap 1171986 1 1 1 1
SS Gasket, Trap Bracket 1171987 1 1 1 1
TT Tube, Drain Coll. Box 5/8″ID 1172245 1 1 1 1
UU Tube, Drain Tee 1/2″ID 1171989 1 1 1 1
VV Tube, Relief 1172012 1 1 1 1
WW Drain Vent 1014003 1 1 1 1
XX Clip, Retainer 1175788 1 1 1 1
YY Tee, Drain 1171915 1 1 1 1
ZZ Sightglass 1172768 1 1 1 1
)( PART NOT ILLUSTRATED
)( Door Screws 1014488 4 4 4 4
)( Door Screw Grommets 1171990 4 4 4 4
)( Coupling, Air Intake 1012284 1 1 1 1
)( Gasket, Air Intake 1012583 1 1 1 1
)( Clamp, Hose 5/8”1012975 4 4 4 4
)( Clamp, Hose 3/4”1012976 2 2 2 2
)( Coupling, Discharge 1002522 1 1 1 1
)( Clamp Hose 1013830 4 4 4 4
)( Grommet, Vent 1012697 1 1 1 1
)( Bushing, Strain Relief 1945287 1 1 1 1
)( Grommet, Vinyl (Gas Inlet) 1009535 1 1 1 1
)( Harness, Wire 1172818 1 1 1 1
)( Grommet,Casing 1171997 1 1 1 1
Key
No.
Description
Functional
Part
Number
*9MPT
050
F12
075
F14
100
J16
125
L20
)( Trap, Drain Tee 1171916 1 1 1 1
)( Tube, Drain 1/2”IDDrain 1171991 1 1 1 1
)( Tube, 1/2” Elbow 1171992 2 2 2 2
)( Coupling, 1/2” Barbed 1171993 1 1 1 1
)( Tubing, 5/8”IDDrain 1171994 1 1 1 1
)( Connector, 3/4”X1/2”1171995 1 1 1 1
)( Elbow, 1/2” CPVC street 1171996 1 1 1 1
)( Tube, Relief Ext. 1172239 1 1 1 1
)( Connector, Relief Tube 1171998 1 1 1 1
)( Plate, Cover 1171999 1 1 1 1
)( Gasket, Cover Plate 1172000 1 1 1 1
)( Cap, Drain Tee 1172255 1 1 1 1
)( Clamp, Tee Cap 1172256 1 1 1 1
)( Manual, Users 44102201200 1 1 1 1
)( Manual, Installation 44001202401 1 1 1 1
)( Manual, Technical 44004202401 1 1 1 1
Gas Conversion Kits -- All models
Nat to Propane NAHA002LP (1172959*)
Propane to Nat NAHA002NG (1172961*)
* Must be ordered from Service Parts

8440 04 2024 01
Specifications are subject to change without notice.
TECHNICAL SUPPORT
Manufacturers Number (Mfr No --SeeRatingPlate) ALL Models
Specifications
*9MPV050F12 *9MPV075F12 *9MPV100J20 *9MPV125L20
General
Gas Type Nat Propane Nat Propane Nat Propane Nat Propane
Transformer Size (VA)
T’stat Heat Anticipator
40
.50
Input (Btuh) Std/Alt. HI Heat
LO Heat
Output (Btuh) Std/Alt. HI Heat
LO Heat
Temp. Ris e (oF/oC) HI Heat
LO Heat
50,000
35,000
46,000
32,000
35--65/19--46
35--65/19--46
75,000
52,500
70,000
48,000
40--70/22--38
40--70/22--38
100,000
70,000
93,000
65,000
40--70/22--38
40--70/22--38
125,000
87,500
118,000
82,000
40--70/22--38
40--70/22--38
Electrical (Volts/Hz) 115/60 115/60 115/60 115/60
Rating Plate Amps 9.5 11.4 14.6 15.4
Gas & Ignition
Gas Type
Std. Main Orifices (No/Size)
Gas Valve Honeywell
Regulation Type
Manifold Press. HI Heat (in wc/Pa)
LO Heat (in wc/Pa)
Nat.
2/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
2/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Nat.
3/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
3/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Nat.
4/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
4/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Nat.
5/42
VR8205Q
SNAP
3.5/872
1.7/423
Propane
5/54
VR8205Q
SNAP
10.0/2490
4.9/1221
Ignition Type Hot Surface
Combustion
Flue Outlet Size (Inches)
Std. Outlet Temp (less than)
Comb. Blower (MFD/Volts)
2
140 oF/60 oC
4/370
2
140 oF/60 oC
4/370
3
140 oF/60 oC
4/370
3
140 oF/60 oC
4/370
@Blower/@ Transition Box (HI Heat)
Std. Pressures in wc(Pa)
5′No Elbows
40′+5--90°DWV Elbows
@Blower/@ Transition Box (LO Heat)
Std. Pressures in wc(Pa)
5′No Elbows
40′+5--90°DWV Elbows
--1.80/--2.60(--448/--647)
--1.30/--2.30(--324/--573)
--1.20/--1.90(--299/--473)
--1.00/--1.80(--249/--448
--1.80/--2.60(--448/--647)
--1.30/--2.30(--324/--573)
--1.20/--1.90(--299/--473)
--1.00/--1.80(--249/--448
--1.80/--2.60(--448/--647)
--1.70/--2.50(--423/--623)
--1.20/--1.90(--299/--473)
--1.00/--1.80(--249/--448
--1.80/--2.60(--448/--647)
--1.70/--2.50(--423/--623)
--1.30/--2.30(--324/--573)
--1.20/--2.20(--299/--548)
Limits & Controls
Rollout Switch (oF/oC)
Limit Control Setting (oF/oC)
300/149
260/127
300/149
210/99
300/149
240/116
300/149
190/88
Furnace Control (Type)
Furnace Control On
(Timed--secs) Off
Integrated
30 HI /45 LO
60,100,140,180
Std. Pressure Sw. in wc(Pa) Part No
(HI Heat)Blwer Switch Press (Close)
Blower Switch Pressure (Open)
(LO Heat)Trans Switch Press (Close)
Transition Switch Pressure (Open)
1013515
0.95(237)
0.80(199)
1.70(423)
1.50(374)
1013515
0.95(237)
0.80(199)
1.70(423)
1.50(374)
1013515
0.95(237)
0.80(199)
1.70(423)
1.50(374)
1013166
1.30(324)
1.10(274)
1.80(448)
1.60(398)
High Alt. Pressure Sw. in wc(Pa)
Part No
(HI Heat)Blwer Switch Press (Close)
Blower Switch Pressure (Open)
(LO Heat)Trans Switch Press (Close)
Transition Switch Pressure (Open)
1013165
0.70(174)
0.55(137)
1.40(349)
1.20(299)
1013165
0.70(174)
0.55(137)
1.40(349)
1.20(299)
1013165
0.70(174)
0.55(137)
1.40(349)
1.20(299)
1013157
0.85(212)
0.70(174)
1.70(423)
1.50(374)
Blower Data
Wheel Size D x W in(mm)
FLA Motor Amps/Max RPM
Motor Type/H.P.
Filter Type & Size in(mm) (qty)
Min. Cool Cap. (Tons)
Max. Cool Cap. (Tons)
11 x 8(279 x 203)
7.7/1240
ECM/1/2
16x25x1(406x635x25)
1.5
3
11 x 10(279 x 254)
9.6/1240
ECM/3/4
16x25x1(406x635x25)
1.5
3
11 x 10(279 x 254)
12.8/1240
ECM/1
16x25x1(406x635x25) (2)
2
5
11 x 10(279 x 254)
12.8/1240
ECM/1
16x25x1(406x635x25) (2)
2
5
Gas Conversion Kits All Models
Nat to Propane NAHA002LP (1172959*)
Propane to Nat NAHA002NG (1172961*)
*Order from Service Parts

9
440 04 2024 01 Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV050
Cooling Adjustment Heating Rise Adjustment
DIP Switch
(OFF = 0 and
ON = 1)
High Cool @ .50
in wc(125 Pa)
Low Cool (80%
of High Cool) ** Adjust
Jumper
Setting
DIP Switch
(OFF = 0 and
ON = 1)
High Heat
Rise
Change @
0.20 in wc
(50 Pa)
Low Heat
Rise
Change at
Resultant
Static
5&6 CFM L/s CFM L/s 3&4
00 1246 588 997 471 +00 -- 4 -- 3
*00 1211 571 969 457 *NOM *00 00
00 1122 529 898 424 -- 00 5 5
01 1105 521 884 417 +01 3 4
01 1027 485 822 388 NOM 01 7 7
01 945 446 756 357 -- 01 13 14
10 892 421 714 337 +10 -- 1 0
10 820 387 656 310 NOM 10 4 5
10 745 352 596 281 -- 10 9 9
11 688 325 550 260 +11 -- 1 5 -- 1 5
11 609 287 487 230 NOM 11 -- 1 3 -- 1 2
11 541 255 433 204 -- 11 -- 9 -- 9
Airflow performance includes 1” washable filter media.
*Factory Setting
**Adjust Jumper Setting (+, NOM, --) is applied to both Cooling and Heating
Note 1: HP Mode Jumper provides a 10% reduction in airflow when in Comfort position and a call for low or high cooling is
present with the ”O” line off. This feature is to provide lower airflow for running in HP Heating Mode if desirable.
Note 2: DEHUM mode (24VAC on DEHUM terminal) provides a 20% airflow reduction during cooling calls.
Note 3: Low Heat ESP is a result of High Heat ESP (-- is decrease in rise).
Note 4: High and low heat rise values are approximate air temperature change from return air temperature when at factory
default settings.
Table 2 Airflow
DIP Switch
(OFF=0andON=1)
Continuous Fan @
0.10 in wc (25 Pa) ESP
1&2 CFM L/s
*00 592 279
01 1021 482
10 1346 635
11 1346 635
* Factory Setting
Table 3 SW2 DIP Assignments
DIP Switch Blower Parameter
1&2 Cont Fan Adj
3&4 Heat Speed Adj
5&6 Cool Speed Adj
7&8 Cool On/Off Delay
Table 4 Cooling Delay Options (SW2 -- 7, 8)
ON DELAY OFF DELAY
DIP SW2 -- 7/8
(OFF=0andON=1) Timed ON (sec) Airflow during on
delay Timer OFF (sec) Airflow during off delay
*00 5OFF 90 100%
01 5OFF 0OFF
10 30 50% 30 100%
11 30 50% 180 50%
Airflow % is of High Cool airflow demand determined from SW2--5/6 Table 1
Airflow resumes to 100% after on delay time is completed
Airflow stops (or switches to continuous fan speed) after off delay time is completed
* Factory Setting
MAX CFM (L/s) for Factory Washable Filters
Filter Size (in/mm) CFM L/s
14″X25″(356 x 635) 1400 661
16″X25″(406 x 635) 1600 755
20″X25″(508 x 635) 2000 944
24″X25″(610 x 635) 2500 1180
Max CFM (L/s) based on 600 FPM (3.0 m/s)
NOTE: Disposable filters are typically rated at 300 FPM (1.5 m/s).
These filters only allow half the airflow when compared to 600 FPM
(3.0 m/s) filters.

10 440 04 2024 01
Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV050
Cooling Airflow Settings
High Cooling Airflows
*9MPV050F12
200
400
600
800
1000
1200
1400
1600
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
00 (-)
01 (+)
01 (NOM)
01 (-)
10 (+)
10 (NOM)
10 (-)
11 (+)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
Low Cooling Airflows
*9MPV050F12
0
200
400
600
800
1000
1200
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
00 (-)
01 (+)
01 (NOM)
01 (-)
10 (+)
10 (NOM)
10 (-)
11 (+)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
NOTE: OFF = 0 and ON = 1

11
440 04 2024 01 Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV075
Cooling Adjustment Heating Rise Adjustment
DIP Switch
(OFF = 0 and
ON = 1)
High Cool @ .50
in wc(125 Pa)
Low Cool (80%
of High Cool) ** Adjust
Jumper
Setting
DIP Switch
(OFF = 0 and
ON = 1)
High Heat
Rise
Change @
0.20 in wc
(50 Pa)
Low Heat
Rise
Change at
Resultant
Static
5&6 CFM L/s CFM L/s 3&4
00 1342 633 1074 507 +00 -- 4 -- 4
*00 1210 571 968 457 *NOM *00 0 0
00 1053 497 842 397 -- 00 5 4
01 1135 536 908 429 +01 1 1
01 1020 481 816 385 NOM 01 6 5
01 872 412 698 329 -- 01 12 10
10 965 455 772 364 +10 -- 1 -- 1
10 840 396 672 317 NOM 10 3 3
10 680 321 544 256 -- 10 9 8
11 708 334 566 267 +11 -- 6 -- 6
11 590 278 472 223 NOM 11 -- 2 -- 3
11 488 230 390 184 -- 11 3 2
Airflow performance includes 1” washable filter media.
*Factory Setting
**Adjust Jumper Setting (+, NOM, --) is applied to both Cooling and Heating
Note 1: HP Mode Jumper provides a 10% reduction in airflow when in Comfort position and a call for low or high cooling is
present with the ”O” line off. This feature is to provide lower airflow for running in HP Heating Mode if desirable.
Note 2: DEHUM mode (24VAC on DEHUM terminal) provides a 20% airflow reduction during cooling calls.
Note 3: Low Heat ESP is a result of High Heat ESP (-- is decrease in rise).
Note 4: High and low heat rise values are approximate air temperature change from return air temperature when at factory
default settings.
Table 2 Airflow
DIP Switch
(OFF=0andON=1)
Continuous Fan @
0.10 in wc (25 Pa) ESP
1&2 CFM L/s
*00 612 289
01 1096 517
10 1403 662
11 1403 662
* Factory Setting
Table 3 SW2 DIP Assignments
DIP Switch Blower Parameter
1&2 Cont Fan Adj
3&4 Heat Speed Adj
5&6 Cool Speed Adj
7&8 Cool On/Off Delay
Table 4 Cooling Delay Options (SW2 -- 7, 8)
ON DELAY OFF DELAY
DIP SW2 -- 7/8
(OFF=0andON=1) Timed ON (sec) Airflow during on
delay Timer OFF (sec) Airflow during off delay
*00 5OFF 90 100%
01 5OFF 0OFF
10 30 50% 30 100%
11 30 50% 180 50%
Airflow % is of High Cool airflow demand determined from SW2--5/6 Table 1
Airflow resumes to 100% after on delay time is completed
Airflow stops (or switches to continuous fan speed) after off delay time is completed
* Factory Setting
MAX CFM (L/s) for Factory Washable Filters
Filter Size (in/mm) CFM L/s
14″X25″(356 x 635) 1400 661
16″X25″(406 x 635) 1600 755
20″X25″(508 x 635) 2000 944
24″X25″(610 x 635) 2500 1180
Max CFM (L/s) based on 600 FPM (3.0 m/s)
NOTE: Disposable filters are typically rated at 300 FPM (1.5 m/s).
These filters only allow half the airflow when compared to 600 FPM
(3.0 m/s) filters.

12 440 04 2024 01
Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV075
Cooling Airflow Settings
High Cooling Airflows
*9MPV075F12
200
400
600
800
1000
1200
1400
1600
1800
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
01 (+)
00 (-)
01 (NOM)
10 (+)
01 (-)
10 (NOM)
11 (+)
10 (-)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
Low Cooling Airflows
*9MPV075F12
0
200
400
600
800
1000
1200
1400
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
01 (+)
00 (-)
01 (NOM)
10 (+)
01 (-)
10 (NOM)
11 (+)
10 (-)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
NOTE: OFF = 0 and ON = 1

13
440 04 2024 01 Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV100
Cooling Adjustment Heating Rise Adjustment
DIP Switch
(OFF = 0 and
ON = 1)
High Cool @ .50
in wc(125 Pa)
Low Cool (80%
of High Cool) ** Adjust
Jumper
Setting
DIP Switch
(OFF = 0 and
ON = 1)
High Heat
Rise
Change @
0.20 in wc
(50 Pa)
Low Heat
Rise
Change at
Resultant
Static
5&6 CFM L/s CFM L/s 3&4
00 2144 1012 1715 809 +00 -- 4 -- 4
*00 2013 950 1610 760 *NOM *00 0 0
00 1842 869 1474 696 -- 00 5 5
01 1772 836 1418 669 +01 2 1
01 1624 766 1299 613 NOM 01 8 7
01 1471 694 1177 555 -- 01 14 14
10 1367 645 1094 516 +10 0-- 1
10 1227 579 982 463 NOM 10 6 5
10 1077 508 862 407 -- 10 13 11
11 930 439 744 351 +11 -- 6 -- 7
11 808 380 646 305 NOM 11 -- 2 -- 2
11 634 299 507 239 -- 11 3 3
Airflow performance includes 1” washable filter media.
*Factory Setting
**Adjust Jumper Setting (+, NOM, --) is applied to both Cooling and Heating
Note 1: HP Mode Jumper provides a 10% reduction in airflow when in Comfort position and a call for low or high cooling is
present with the ”O” line off. This feature is to provide lower airflow for running in HP Heating Mode if desirable.
Note 2: DEHUM mode (24VAC on DEHUM terminal) provides a 20% airflow reduction during cooling calls.
Note 3: Low Heat ESP is a result of High Heat ESP (-- is decrease in rise).
Note 4: High and low heat rise values are approximate air temperature change from return air temperature when at factory
default settings.
Table 2 Airflow
DIP Switch
(OFF=0andON=1)
Continuous Fan @
0.10 in wc (25 Pa) ESP
1&2 CFM L/s
*00 1007 475
01 1742 822
10 2204 1040
11 2204 1040
* Factory Setting
Table 3 SW2 DIP Assignments
DIP Switch Blower Parameter
1&2 Cont Fan Adj
3&4 Heat Speed Adj
5&6 Cool Speed Adj
7&8 Cool On/Off Delay
Table 4 Cooling Delay Options (SW2 -- 7, 8)
ON DELAY OFF DELAY
DIP SW2 -- 7/8
(OFF=0andON=1) Timed ON (sec) Airflow during on
delay Timer OFF (sec) Airflow during off delay
*00 5OFF 90 100%
01 5OFF 0OFF
10 30 50% 30 100%
11 30 50% 180 50%
Airflow % is of High Cool airflow demand determined from SW2--5/6 Table 1
Airflow resumes to 100% after on delay time is completed
Airflow stops (or switches to continuous fan speed) after off delay time is completed
* Factory Setting
MAX CFM (L/s) for Factory Washable Filters
Filter Size (in/mm) CFM L/s
14″X25″(356 x 635) 1400 661
16″X25″(406 x 635) 1600 755
20″X25″(508 x 635) 2000 944
24″X25″(610 x 635) 2500 1180
Max CFM (L/s) based on 600 FPM (3.0 m/s)
NOTE: Disposable filters are typically rated at 300 FPM (1.5 m/s).
These filters only allow half the airflow when compared to 600 FPM
(3.0 m/s) filters.

14 440 04 2024 01
Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV100
Cooling Airflow Settings
High Cooling Airflows
*9MPV100J20
200
700
1200
1700
2200
2700
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
00 (-)
01 (+)
01 (NOM)
01 (-)
10 (+)
10 (NOM)
10 (-)
11 (+)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
Low Cooling Airflows
*9MPV100J20
0
200
400
600
800
1000
1200
1400
1600
1800
2000
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
00 (-)
01 (+)
01 (NOM)
01 (-)
10 (+)
10 (NOM)
10 (-)
11 (+)
11 (NOM)
11 (-)
Legend
A
irflow Selection
is from Highest
to Lowest
NOTE: OFF = 0 and ON = 1

15
440 04 2024 01 Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV125
Cooling Adjustment Heating Rise Adjustment
DIP Switch
(OFF = 0 and
ON = 1)
High Cool @ .50
in wc(125 Pa)
Low Cool (80%
of High Cool) ** Adjust
Jumper
Setting
DIP Switch
(OFF = 0 and
ON = 1)
High Heat
Rise
Change @
0.20 in wc
(50 Pa)
Low Heat
Rise
Change at
Resultant
Static
5&6 CFM L/s CFM L/s 3&4
00 2150 1015 1720 812 +00 -- 4 -- 4
*00 2025 956 1620 764 *NOM *00 0 0
00 1856 876 1485 700 -- 00 4 5
01 1755 828 1404 663 +01 1 2
01 1615 762 1292 610 NOM 01 6 7
01 1452 685 1162 548 -- 01 12 13
10 1338 631 1070 505 +10 -- 1 0
10 1201 567 961 454 NOM 10 3 4
10 1069 504 855 403 -- 10 910
11 909 429 727 343 +11 -- 6 -- 6
11 800 377 640 302 NOM 11 -- 3 -- 3
11 627 296 502 237 -- 11 3 3
Airflow performance includes 1” washable filter media.
*Factory Setting
**Adjust Jumper Setting (+, NOM, --) is applied to both Cooling and Heating
Note 1: HP Mode Jumper provides a 10% reduction in airflow when in Comfort position and a call for low or high cooling is
present with the ”O” line off. This feature is to provide lower airflow for running in HP Heating Mode if desirable.
Note 2: DEHUM mode (24VAC on DEHUM terminal) provides a 20% airflow reduction during cooling calls.
Note 3: Low Heat ESP is a result of High Heat ESP (-- is decrease in rise).
Note 4: High and low heat rise values are approximate air temperature change from return air temperature when at factory
default settings.
Table 2 Airflow
DIP Switch
(OFF=0andON=1)
Continuous Fan @
0.10 in wc (25 Pa) ESP
1&2 CFM L/s
*00 1032 487
01 1778 839
10 2178 1028
11 2178 1028
* Factory Setting
Table 3 SW2 DIP Assignments
DIP Switch Blower Parameter
1&2 Cont Fan Adj
3&4 Heat Speed Adj
5&6 Cool Speed Adj
7&8 Cool On/Off Delay
Table 4 Cooling Delay Options (SW2 -- 7, 8)
ON DELAY OFF DELAY
DIP SW2 -- 7/8
(OFF=0andON=1) Timed ON (sec) Airflow during on
delay Timer OFF (sec) Airflow during off delay
*00 5OFF 90 100%
01 5OFF 0OFF
10 30 50% 30 100%
11 30 50% 180 50%
Airflow % is of High Cool airflow demand determined from SW2--5/6 Table 1
Airflow resumes to 100% after on delay time is completed
Airflow stops (or switches to continuous fan speed) after off delay time is completed
* Factory Setting
MAX CFM (L/s) for Factory Washable Fil-
ters
Filter Size (in/mm) CFM L/s
14″X25″(356 x 635) 1400 661
16″X25″(406 x 635) 1600 755
20″X25″(508 x 635) 2000 944
24″X25″(610 x 635) 2500 1180
Max CFM (L/s) based on 600 FPM (3.0 m/s)
NOTE: Disposable filters are typically rated at 300 FPM (1.5 m/s).
These filters only allow half the airflow when compared to 600 FPM
(3.0 m/s) filters.

16 440 04 2024 01
Specifications are subject to change without notice.
Circulation Air Blower Data - *9MPV125
Cooling Airflow Setting
High Cooling Airflows
*9MPV125L20
200
700
1200
1700
2200
2700
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
00 (-)
01 (+)
01 (NOM)
01 (-)
10 (+)
10 (NOM)
10 (-)
11 (+)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
Low Cooling Airflows
*9MPV125L20
0
200
400
600
800
1000
1200
1400
1600
1800
2000
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
ESP (in. w.c.)
CFM
00 (+)
00 (NOM)
00 (-)
01 (+)
01 (NOM)
01 (-)
10 (+)
10 (NOM)
10 (-)
11 (+)
11 (NOM)
11 (-)
Legend
Airflow
Selection is
from Highest to
Lowest
NOTE: OFF = 0 and ON = 1

17
440 04 2024 01 Specifications are subject to change without notice.
*9MPV & *9MVX Parts
YY
WW
N
LL
11
18
R
S
T
UJ
LJJ
Q
P
Y
X
F
UU
VV
TT
SS
H
RR
QQ
KK
5
9
10
M
K
2
B
A
8
6
HH
K
23
OO
20
MM
PP
NN
ZZ
22
4
3
15
BB
12
21
Representative drawing only, some models may vary in appearance.
(2) CELL MODEL ONLY
*9MVX040 UNIT ONLY
24
2
V
24
25
W
XX
FF
CC
17
GG
DD
16
16
EE
FF
GG
13
14

A
18 440 04 2024 01
Specifications are subject to change without notice

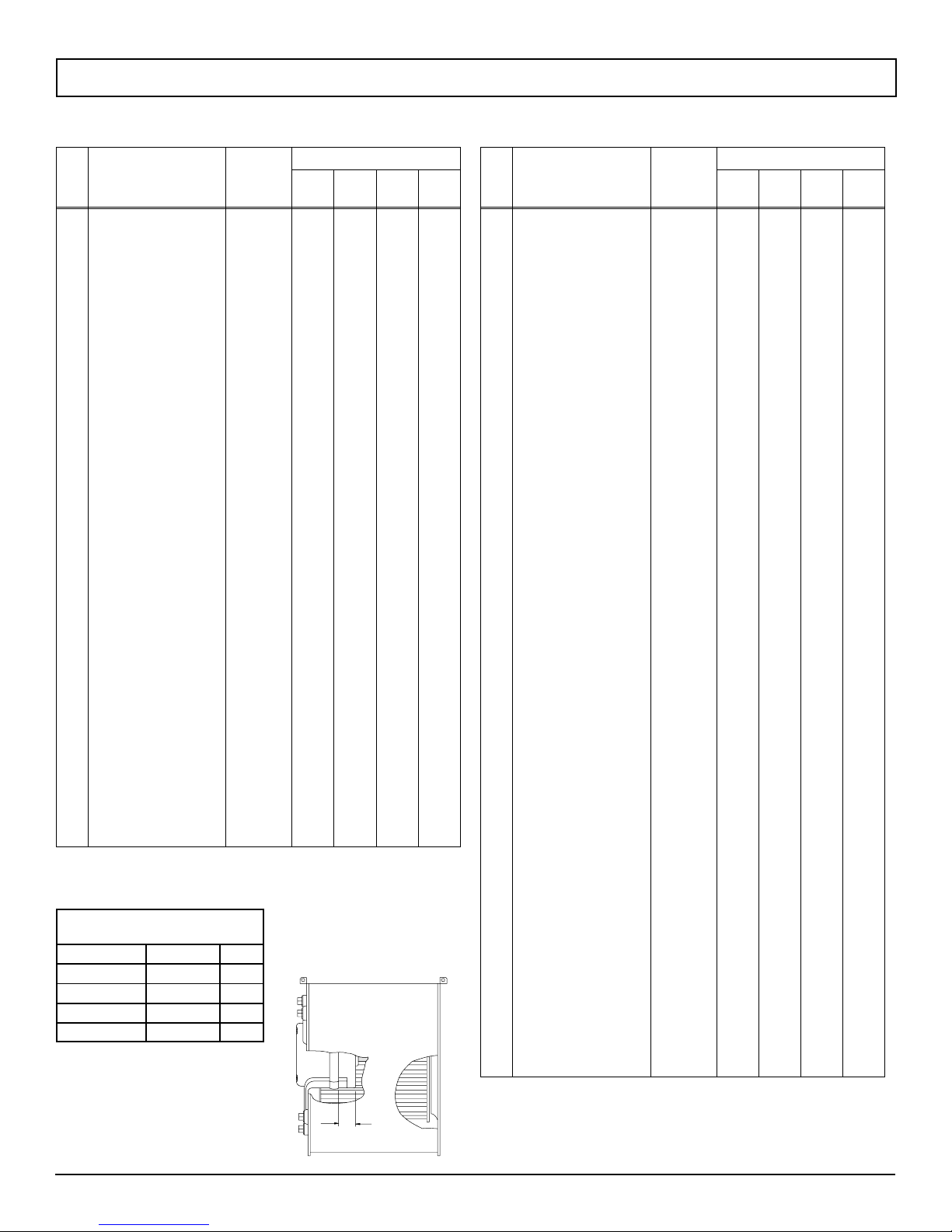

Replacement Parts - *9MPV
Models -- *9MPV050F12D1, *9MPV075F12D1, *9MPV100J20D1 & *9MPV125L20D1 (Natural Gas)
Replacement part supplied will be current active part. For parts not listed, consult place of purchase.
Key
No.
Description
Functional
Part
Number
*9MPV
050
F12
075
F12
100
J20
125
L20
1Heat Exchanger, Primary 1012850
1012854
1012858
1012862
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
2Ht Exchanger, Secondary 1013762
1013763
1013765
1013767
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
3Motor, Blower 1172828
1172829
1
--
--
1
--
1
--
1
4Mount, Motor kit*1014822 1111
5Wheel, Blower 1013011
1172129
1
--
--
1
--
1
--
1
6Transformer 1172810 1111
8Control 1175594 1111
9Switch, Interlock 1171981 1111
10 Switch, Pressure 1013166
1013515
--
1
--
1
--
1
1
--
11 Blower, Exhaust 1172826
1172825
1
--
1
--
1
--
--
1
12 Valve, Gas Nat. 2 Stg 1172822 1111
13 Flame Sensor 1172827 1111
14 Igniter 1172533 1111
15 Orifice, Burner #42 Nat. 1011351 2345
16 Switch, Limit (Rollout) 1013102 2222
17 Burner Assembly 1172884
1172965
1172966
1172967
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
18 Switch, Limit (Main) 1320366
34335001
1320367
1008445
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
20 Filter,HH 16X25X1/2” 1010365 1122
22 Board, Tap Select Interface 1174894 1111
21 Control, Motor Variable Spd 1174887
1174888
1174889
1174895
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
23 Choke, Power 1172838 -- -- 1 1
*See Table below for bellyband
location on motor
Bellyband Location
on Motor -- A Dimensions
Model *9MPV inches mm
040F12 13/834.9
060F12 27/873
080J20 27/873
100L20 27/873
Key
No. Description Part Number
*9MPV
050
F12
075
F12
100
J20
125
L20
APanel, Top 1012866
1012867
1012868
1
--
--
1
--
--
--
1
--
--
--
1
BGasket, Top Panel 1012603
1012604
1012605
1
--
--
1
--
--
--
1
--
--
--
1
FPartition, Blower 1172008
1172005
1172006
1172007
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
HHousing, Blower 1172885
1172969
1
--
--
1
--
1
--
1
JPanel, Blower Cutoff 721020013
721020008
1
--
--
1
--
1
--
1
KHanger, Blower 1012328 2 2 2 2
LDoor, Blwer (Cmaker only)
(Cmaker only)
(Cmaker only)
(Heil only)
(Heil only)
(Heil only)
(Tstar only)
(Tstar only)
(Tstar only)
1175025
1175026
1175042
1175028
1175029
1175043
1175031
1175032
1175044
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
MBracket Asy., Door Filler 1172232
1172233
1172234
1
--
--
1
--
--
--
1
--
--
--
1
NDoor, Front (Cmaker only)
(Cmaker only)
Cmaker only)
(Heil only)
(Heil only)
(Heil only)
(Tstar only)
(Tstar only)
(Tstar only)
1013148
1013149
1013150
1013145
1013146
1013147
1173086
1173087
1173088
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
--
--
--
1
--
--
1
--
--
1
PTransition Assembly 1172228
1172229
1172230
1
--
--
1
--
--
--
1
--
--
--
1
QGasket, Exhaust Blower 1014425 1 1 1 1
RBoard, Insulating 1012418
1012419
1012420
1
--
--
1
--
--
--
1
--
--
--
1
SBox, Collector 1012244
1012245
1012246
1
--
--
1
--
--
--
1
--
--
--
1
TGasket, Transition 1013263
1013080
1013083
1013084
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
UGasket, Collector Box 1012594
1012595
1012596
1
--
--
1
--
--
--
1
--
--
--
1

19
440 04 2024 01 Specifications are subject to change without notice.
Replacement Parts - *9MPV
Models -- *9MPV050F12D1, *9MPV075F12D1, *9MPV100J20D1 & *9MPV125L20D1 (Natural Gas)
Replacement part supplied will be current active part. For parts not listed, consult place of purchase.
Key
No. Description Part Number
*9MPV
050
F12
075
F12
100
J20
125
L20
VPartition, Front Ht Exchger 1012650
1012648
1012651
1012653
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
WGasket, Attachment Plate 1012542
1012543
1012544
1012545
2
--
--
--
--
2
--
--
--
--
2
--
--
--
--
2
XCover, Junction Box 1012350 1 1 1 1
YBox, Junction 1172860 1 1 1 1
BB Manifold 1012970
1012971
1012278
1012279
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
CC Bottom, Burner Box 1172847
1172848
1172849
1172850
1
--
--
--
--
1
--
--
--
--
1
--
--
--
--
1
DD Baffle, Burner Box 1012338
1012339
1012340
1
--
--
1
--
--
--
1
--
--
--
1
EE Top, Burner Box 1013702
1013703
1013704
1
--
--
1
--
--
--
1
--
--
--
1
FF Bracket, Manifold Support 1012377 2 2 2 2
GG Bracket, Burner Box Side 1012532 2 2 2 2
HH Bracket, Control Mounting 1172845 1 1 1 1
JJ Tube, Sensor 1172238
1172241
1
1
1
1
1
1
1
1
KK Trap, Drain Assembly 1171917 1 1 1 1
LL Sightglass
(Tstar only)
1013235
1013236
1
1
1
1
1
1
1
1
MM Wrapper, Filter Rack 741010039 1 1 2 2
NN Front, Filter Rack 741020001 1 1 2 2
OO Cover, Filter 2791043 1 1 2 2
PP Clip, Filter 1008482 3 3 3 3
QQ Gasket, Trap 1013701 1 1 1 1
RR Bracket, Trap 1171986 1 1 1 1
SS Gasket, Trap Bracket 1171987 1 1 1 1
TT Tube, Drain Coll. Box 5/8″ID 1172245 1 1 1 1
UU Tube, Drain Tee 1/2″ID 1171989 1 1 1 1
VV Tube, Relief 1172012 1 1 1 1
WW Drain Vent 1014003 1 1 1 1
XX Clip, Retainer 1175788 1 1 1 1
YY Tee, Drain 1171915 1 1 1 1
ZZ Sightglass 1172768 1 1 1 1
Key
No. Description Part
Number
*9MPV
050
F12
075
F12
100
J20
125
L20
)( PART NOT ILLUSTRATED
)( Door Screws 1014488 4 4 4 4
)( Door Screw Grommets 1171990 4 4 4 4
)( Coupling, Air Intake 1012284 1 1 1 1
)( Gasket, Air Intake 1012583 1 1 1 1
)( Clamp, Hose 5/8”1012975 4 4 4 4
)( Clamp, Hose 3/4”1012976 2 2 2 2
)( Coupling, Discharge 1002522 1 1 1 1
)( Clamp Hose 1013830 2 2 2 2
)( Grommet, Vent 1012697 1 1 1 1
)( Bushing, Strain Relief 1945287 1 1 1 1
)( Grommet, Vinyl (Gas Inlet) 1009535 1 1 1 1
)( Harness, Wire 1172818 1 1 1 1
)( Harness, Wire Blower V.S. 1174758 1 1 1 1
)( Trap, Drain Tee 1171916 1 1 1 1
)( Tube, Drain 1/2”IDDrain 1171991 1 1 1 1
)( Tube, 1/2” Elbow 1171992 2 2 2 2
)( Coupling, 1/2” Barbed 1171993 1 1 1 1
)( Tubing, 5/8”IDDrain 1171994 1 1 1 1
)( Connector, 3/4”X1/2”1171995 1 1 1 1
)( Elbow, 1/2” CPVC street 1171996 1 1 1 1
)( Grommet, Casing 1171997 1 1 1 1
)( Tube, Relief Ext. 1172239 1 1 1 1
)( Connector, Relief Tube 1171998 1 1 1 1
)( Plate, Cover 1171999 1 1 1 1
)( Gasket, Cover Plate 1172000 1 1 1 1
)( Cap, Drain Tee 1172255 1 1 1 1
)( Clamp, Tee Cap 1172256 1 1 1 1
)( Manual, Users 44102201200 1 1 1 1
)( Manual, Installation 44001202401 1 1 1 1
)( Manual, Technical 44004202401 1 1 1 1
Gas Conversion Kits -- All models
Nat to Propane NAHA002LP (1172959*)
Propane to Nat NAHA002NG (1172961*)
* Must be ordered from Service Parts

20 440 04 2024 01
Specifications are subject to change without notice.
TECHNICAL SUPPORT
Manufacturers Number (Mfr No --SeeRatingPlate)
ALL Models
Specifications
*9MVX040F12 *9MVX060F12 *9MVX080J20 *9MVX100L20
General
Gas Type Nat Propane Nat Propane Nat Propane Nat Propane
Transformer Size (VA)
T’stat Heat Anticipator
40
.50
Input (Btuh) Std/Alt. HI Heat
LO Heat
Output (Btuh) Std/Alt. HI Heat
LO Heat
Temp. Ris e (oF/oC) HI Heat
LO Heat
40000
28000
38000
27000
25--55/14--31
25--55/14--31
60000
42000
58000
41000
30--60/17--33
30--60/17--33
80000
56000
77000
54000
30--60/17--33
30--60/17--33
100000
70000
96000
67000
30--60/17--33
30--60/17--33
Electrical (Volts/Hz) 115/60 115/60 115/60 115/60
Rating Plate Amps 9.5 11.4 14.6 14.6
Gas & Ignition
Gas Type
Std. Main Orifices (qty/size)
Gas Valve Honeywell
Regulation Type
Manifold Press. HI Heat (in wc/Pa)
LO Heat (in wc/Pa)
Nat.
2/44
VR8205Q
SNAP
3.5/872
1.7/423
Propane
2/55
VR8205Q
SNAP
10/2490
4.9/1221
Nat.
3/44
VR8205Q
SNAP
3.5/872
1.7/423
Propane
3/55
VR8205Q
SNAP
10/2490
4.9/1221
Nat.
4/44
VR8205Q
SNAP
3.5/872
1.7/423
Propane
4/55
VR8205Q
SNAP
10/2490
4.9/1221
Nat.
5/44
VR8205Q
SNAP
3.5/872
1.7/423
Propane
5/55
VR8205Q
SNAP
10/2490
4.9/1221
Ignition Type Hot Surface
Combustion
Flue Outlet Size inches(mm)
Std. Outlet Temp (less than) (oF/oC)
Comb. Blower (MFD/Volts)
2(50.8)
140/60
4/370
2(50.8)
140/60
4/370
3(76.2)
140/60
4/370
3(76.2)
140/60
4/370
@Blower/@ Transition Box (HI Heat)
Std. Pressures -- in wc(Pa)
54 No Elbows
404 +5--905 DWV Elbows
@Blower/@ Transition Box (LO Heat)
Std. Pressures -- in wc(Pa)
54 No Elbows
404 +5--905 DWV Elbows
2.10/3.47(523/864)
--3.38/--1.90(--842/--473)
1.38/2.29(344/570)
--2.21/--1.22(--550/--304)
2.26/3.52(563/877)
--2.77/--1.52(--690/--378)
1.50/2.35(374/585)
--2.06/--1.16(--513/--289)
2.05/3.34(510/832)
--3.28/--1.93(--817/--481)
1.55/2.45(386/610)
--2.34/--1.33(--583/--331)
2.34/3.45(583/859)
--3.29/--2.16(--819/--538)
1.84/2.70(458/672)
--2.61/--1.72(--650/--428)
Limits & Controls
Rollout Switch (oF/oC)
Limit Control Setting (oF/oC)
300/149
210/99
300/149
230/110
300/149
240/116
300/149
180/82
Furnace Control (Type)
Furnace Control On
(Timed--secs) Off
Integrated
30 HI /45 LO
60,100,140,180
Std. Pressure Sw. -- in wc(Pa) Part No
(HI Heat)Blwer Switch Press (Close)
Blower Switch Pressure (Open)
(LO Heat)Trans Switch Press (Close)
Transition Switch Pressure (Open)
1177762
0.65(162)
0.50(125)
1.85(461)
2.11(525)
1177767
0.58(144)
0.43(107)
1.73(431)
1.70(423)
1177764
0.95(237)
0.80(199)
1.89(471)
1.55(386)
1177765
1.56(396)
1.38(344)
2.32(578)
1.66(413)
High Alt Pressure Sw.--in wc(Pa) Part No
(HI Heat)Blwer Switch Press (Close)
Blower Switch Pressure (Open)
(LO Heat)Trans Switch Press (Close)
Transition Switch Pressure (Open)
1177766
0.65(162)
0.50(125)
1.58(393)
1.40(349)
1177767
0.58(144)
0.43(107)
1.48(369)
1.31(326)
1177768
0.95(237)
0.80(199)
1.61(401)
1.43(356)
1177769
1.30(324)
1.14(384)
1.97(491)
1.78(443)
Blower Data
Wheel Size D x W in(mm)
FLA Motor Amps/Max RPM
Motor Type/H.P.
Filter Type & Size (qty.) Permanent -- in(mm)
Min. Cool Cap. (Tons)
Max. Cool Cap. (Tons)
11 x 8(279 x 203)
ECM/1/2
16x25x1(406x635x25)
1.5
3
11 x 10(279 x 254)
ECM/3/4
16x25x1(406x635x25)
1.5
3
11 x 10(279 x 254)
ECM/1
16x25x1(406x635x25) (2)
2
5
11 x 10(279 x 254)
ECM/1
16x25x1(406x635x25) (2)
2
5
Gas Conversion Kits All Models
Nat to Propane NAHA00601LP
Propane to Nat NAHA00601NG
