FIRE OR EXPLOSION HAZARD.

Failure to follow safety warnings

exactly could result in death, serious

injury and/or property damage.

-- -- Do not store or use gasoline or

other flammable vapors and liquids

in the vicinity of this or any other

appliance.

-- -- WHAT TO DO IF YOU SMELL GAS

·Do NOT try to light any appliance.

·Do NOT touch any electrical

switch; do NOT use any phone in

your building.

·Leave the building immediately

·Immediately call your gas supplier

from a neighbor’s phone. Follow

the gas supplier’s instructions.

·If you cannot reach your gas

supplier, call the fire department.

-- -- Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Printed in U.S.A. (06/03/2005) 441 02 2011 00

International Comfort Products, LLC

Lewisburg, TN 37091

User: Please read all instructions

in the manual and retain these

instructions for future reference.

Installer: Affix these instructions

on or adjacent to the furnace.

Condensing Gas Furnaces

90+ Four Position Furnaces

N9MP1, N9MP2, *9MPD, *9MPT & *9MPV

Non--Condensing Gas Furnaces

80+ Four Position Furnaces

N8MPN/L, *8MPN/L, *8MPT & *8MPV

*8DNL (Downflow only)

User’s Information Manual

2441 02 2011 00

Contents

Danger, Warning and Caution 2................

Safety Rules 3.............................

Combustion Air (Your Safety) 4................

Indoor Humidity (Your Comfort) 5..............

About Your Furnace 5.......................

Operating Your Furnace 7....................

Furnace Maintenance 8......................

Warranty 11...............................

Danger, Warning and Caution

Recognize safety information.

Thisisthesafety--alertsymbol !. Whenyouseethissymbol on

the furnace and in instruction manuals be alert to the potential for

personal injury.

Understand the signal words DANGER, WARNING and CAU-

TION. These words are used to identify levels of hazard serious-

ness. The signal word DANGER is only used on product labels to

signify an immediate hazard. The signal words WARNING and

CAUTIONwillbeusedonproductlabelsandthroughoutthismanu-

al and other manuals that may apply to the product.

Signal Words

DANGER -- Immediate hazards which WILL result in severe per-

sonal injury or death.

WARNING -- Hazards or unsafe practices which COULD result in

severe personal injury or death.

CAUTION --HazardsorunsafepracticeswhichMAYresultinminor

personal injury or product or property damage.

“NOTE” is used to highlight suggestions which will result in en-

hanced installation, reliability or operation.

Signal Words in Manuals

The signal word WARNING is used throughout this manual in the

following manner:

!WARNING

ThesignalwordCAUTIONisusedthroughoutthismanualinthefol-

lowing manner:

!CAUTION

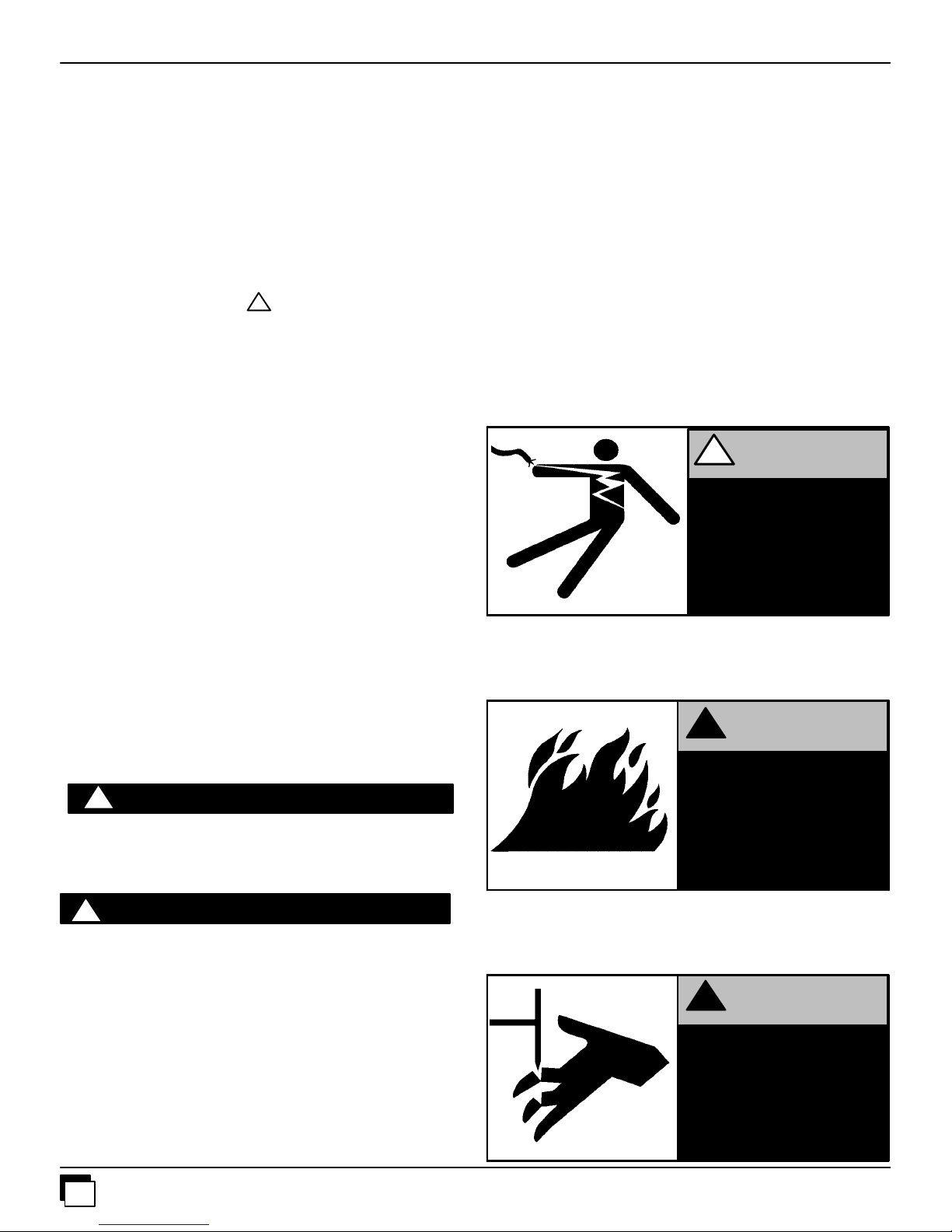

Product Labeling

Signalwordsareusedincombinationwithcolorsand/orpictureson

product labels. Following are examples of product labels with ex-

planations of the colors used.

Danger Label

White lettering on a black background except the word DANGER

which is white with a red background.

Electric Shock Hazard

Failure to observe could

result in death, bodily injury

and/or property damage.

Turn off all power

before servicing.

DANGER

Warning Label

White lettering on a black background except the word

WARNING which is black with an orange background.

WARNING

FIRE HAZARD

Failure to observe could

result in death, bodily injury

and/or property damage.

Usecopperwireonly.

Caution Label

White lettering on a black background except the word CAUTION

which is black with a yellow background.

DANGER

CAUTION

CUTS HAZARD

Failure to observe may result

in bodily injury.

Wear gloves and handle with

care.

User’s Information Manual

441 02 2011 00

DEATH, PERSONAL INJURY AND/OR PROPERTY

DAMAGE HAZARD

Failure to observe and follow Cautions, Warnings

and instructions could result in death, personal

injury or property damage.

Read this manual and follow its instructions and

adhere to all Cautions and Warnings in the manual

and on the furnace.

Consult a qualified service agency for

installation, adjustment and maintenance.

!WARNING

Safety Rules

Yourfurnace is builttoprovidemanyyearsofsafe anddependable

service providing it is properly installed and maintained. Howev-

er,abuseand/orimproperusecanshortenthelifeofthefurnaceand

create hazards for you, the owner.

A. The U.S. Consumer Product Safety Commissionrecom-

mends that users of gas--burning appliances installcar-

bon monoxide detectors. There can be various sources

of carbon monoxide in a building or dwelling. The

sources could be gas--fired clothes dryers, gas cooking

stoves, water heaters, furnaces, gas--fired fireplaces,

wood fireplaces, and several other items. Carbon mon-

oxidecancauseseriousbodilyinjuryand/ordeath. Car-

bon monoxide or “CO” is a colorless and odorless gas

produced when fuel is not burned completely or when

the flame does not receive sufficient oxygen.

Therefore, to help alert people of potentially dangerous

carbon monoxide levels, you should have carbon mon-

oxide detectors that are listed as complying with a stan-

dard by a nationally recognized agency (e.g. ANSI/UL

2034--2002, CSA 6.19--01, or International Approval Ser-

vices 6--96) installed and maintained in the building or

dwelling (see Note below).

B. Therecanbenumeroussourcesoffireorsmokeinabuilding

or dwelling. Fire or smoke can cause serious bodily injury,

death, and/or property damage. Therefore, in order to alert

people of potentially dangerous fire or smoke, you should

havefireandsmokedetectorsthatarelistedbyUnderwriters

Laboratories installed and maintained in the building or

dwelling (see Note below).

Note: The manufacturerof your furnace does nottest any detec-

tors and makes no representations regarding any brand or

type of detector.

C. To ensure safe and efficient operation of your furnace, you

should do the following:

1. Thoroughly read this manual and labels on the furnace.

Thiswillhelpyouunderstandhowyourfurnaceoperatesand

the hazards involved with gas and electricity.

2. Thefurnacearea mustbekeptclearandfree ofcombus-

tible materials, gasoline, and other flammable vapors

and liquids.

3. Do not use thisfurnace if any part has been underwater.

A flood--damaged furnace is extremely dangerous. At-

tempts to use the furnace can result in fire or explosion.

Immediately call a qualified service agency to inspect

thefurnace andtoreplaceallcontrolsystem parts,elec-

tricalparts,and gascontrols whichhave beenwetorthe

furnace, if deemed necessary.

4. Never block or obstruct the openings on the furnace,or

any ducts that provide airto the furnace. Air must be pro-

vided for proper and safe operation of the furnace for com-

bustionandventilationoffluegases. Seethe“Combustion

Air (Your Safety) section of this manual.

5. Familiarize yourself with the possible air starvation sig-

nals.Checkthecombustionairsupply.Somemodelsuse

air drawn from outdoors, See Figure 3. Other models and

other appliances use combustion air from inside the struc-

ture. Air starvation signals are given in the following “Com-

bustionAir(YourSafety)”.sectionofthismanual. Ifanyofthe

signals are noticed, perform a combustion air check as

showninthefollowingCombustionAirCheckssectionofthis

manualorcall aqualifiedserviceagency.Ifyou addweather

stripping,stormwindows,insulation, anadditional fuelburn-

ing appliance, or remodel the structure, a combustion air

check MUST be accomplished after the addition

6. Maintainsafetyandserviceclearancesfromthefurnace.

Theseclearancesarelistedonthefurnaceratingplate.Keep

the furnace area clean and free of combustible materials at

all times. Never store gasoline, paint, aerosol cans, waxes,

bleaches, dry cleaning fluid or items such as paper or rags

near the furnace.

7. Examinethefurnaceareawhenthefurnaceoradditional

insulationisaddedsincesomeinsulationmaterialsmay

be combustible. Furnacemustbekeptfreeandclear ofex-

posedorlooseinsulationmaterialsintheareaofinstallation.

8.Shouldthegas supplyfailtoshutofforif overheatingoc-

curs, shut off the gas valve to the furnace before shut-

ting off the electricalsupply. Readthelabel on the frontof

the furnace and the Operating Your Furnace section of this

manual for steps to turn off the furnace.

9.Familiarize yourself with all controls. Makesure youknow

how to shut off the gas and the electrical power to the fur-

nace.Readthelabelonthefrontofthefurnaceand theOper-

ating Your Furnace section of this manual for steps to start

and turn off the furnace. If the furnace is to be shut down for

an extended length of time (example; remodeling project),

turn off both the gas and the electrical power. For safety, al-

waysturnthemoffbeforeperformingserviceormaintenance

on the furnace.

10.Establish a regular service and maintenance schedule.

Thiswillensure efficientand safeoperationofthe furnace.It

is recommended that you have a qualified service agency

perform a complete check on the furnace before each heat-

ingseason.SeefurnaceQualifiedAgencyChecksandCom-

bustion Air Checks section of this manual.

11. Monthly Inspection. A properly adjusted gas furnace

shouldnotrequirecleaningatfrequentintervals,butitshould

beinspectedregularlytoensuresafeandefficientoperation.

Abriefmonthlyinspectionisrecommendedthatdoesnotre-

quiredisassembly. Examinethefurnaceinstallationtodeter-

mine that:

a. Checkthereturnairductconnection.Theductconnection

must be physically sound, sealed to the furnace casing

and must terminate outside the space containing the fur-

nace.

b. All flue gas carrying areas external to the furnace (i.e.

chimney, vent connector) are clear and free of obstruc-

tions.

c.The vent connector is in place, slopes upward and is

physically sound without holes or excessive corrosion.

User’s Information Manual

4441 02 2011 00

d.(Upflow or downflow installations with duct connection at

bottomonly.)Thephysicalsupportof thefurnaceissound

withoutsagging,cracks,gaps,etc.,aroundthebasesoas

to provide an air seal between the support and the base.

e.There should be no obvious signs of deterioration of the

furnace.

f. Check that the burner flames are in good adjustment. To

inspect the Main Burner flames it will be necessary to re-

movethelouvereddooronthefrontofthefurnace,except

for furnaces not having any louvers in the doors. The

doors(nolouvers)ofthesefurnacesmustremaininstalled

(to prevent changes in flame appearance) while inspect-

ing the Main Burner flames through the view port in the

door. Contact a qualified service agency at once if an

abnormal flame appearance is identified.

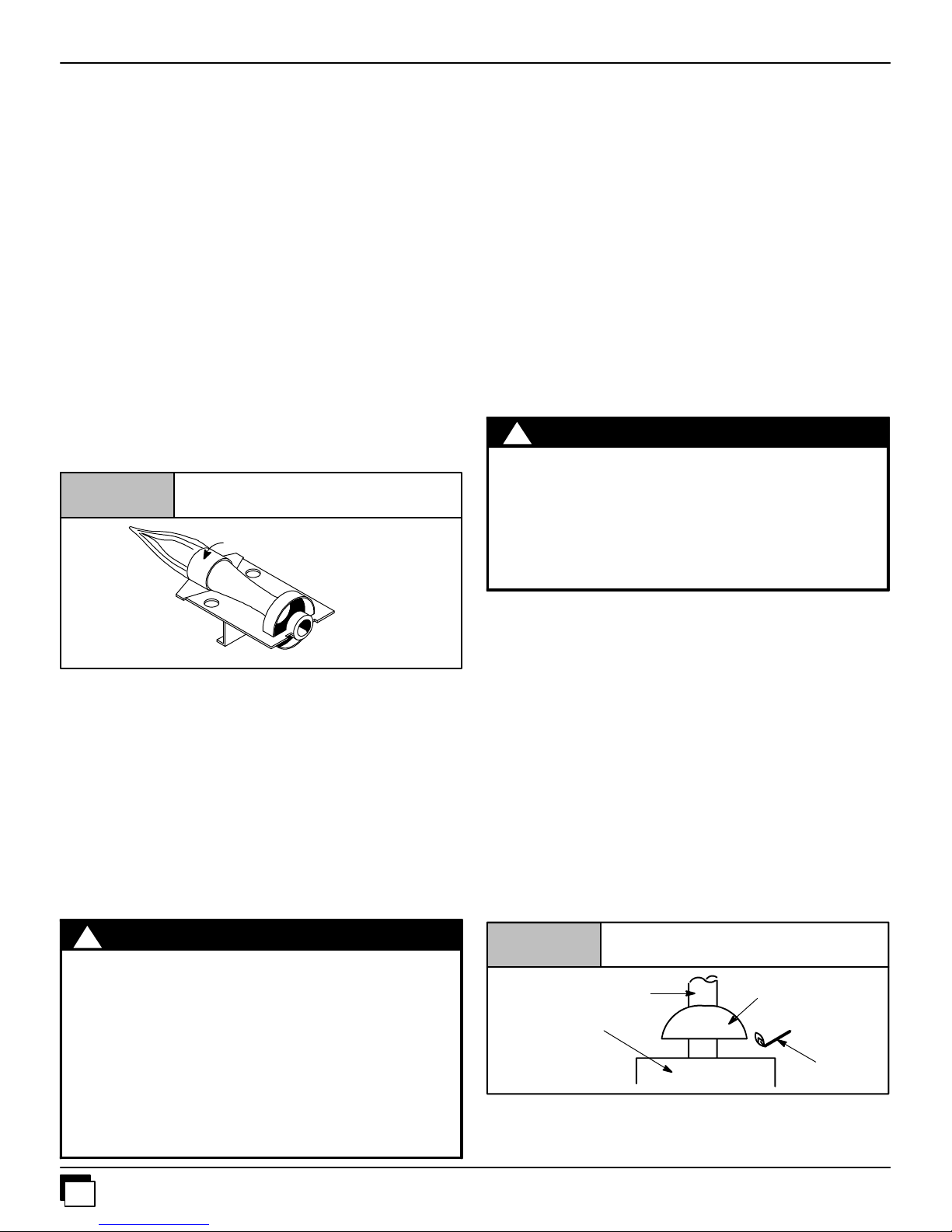

Main Burner Flame: Check for the following:

·Stable and blue flames. See Figure 1.

·Flames extending directly from burner into heat

exchanger.

·Flames do NOT touch sides of heat exchanger.

NOTE: Dust may cause orange tips orwisps of yellow, but flames

MUST NOT have solid, yellow tips.

Main Burner

Burner Face

10--10--78

Figure 1

·Check main burner flames monthly.

g.Withtheequipmentshutoffvalve turned OFF,removethe

burnercompartmentdoorofthefurnacetouseaflashlight

to inspect the visible parts of the burners and igniter.

Check for loose soot and give particular attention to ob-

viousdeteriorationfromcorrosionorothersources. Ifsoot

or deterioration is found inside the furnace, DO NOT OP-

ERATE FURNACE; call a qualified service agency.

h.Inspectthedrainlineandoverflowlinemonthly(condens-

ingfurnaceand/orairconditioningcoolingcoilattachedto

furnace).

Combustion Air (Your Safety)

CARBON MONOXIDE POISONING HAZARD

Lack of combustion air could result in carbon

monoxide gas which could cause death or serious

personal injury.

All fuel--burning appliances must be provided with

enough fresh air for proper combustion and

ventilation of flue gases.

Some models use air from the space in which they

arelocated,andotherappliancesinthesamespace

may also be using indoor air for ventilation and/or

combustion.

!WARNING

Newmaterialsandmethodsare beingusedin construction andre-

modelingwhichresultinlowerenergycostsforheatingandcooling.

Itmayalsomeanyourappliancesmaynotbegettingenough airfor

combustion and ventilation of flue gases. The use of exhaustfans,

fireplaces,clothesdryers,andotherappliancesconsumeairorvent

it to the outdoors.

If the gas appliances or heating furnace can’t get enough air, two

conditions may result:

1. The appliances or furnace may produce carbon monoxide

gas.

2. The appliance may not vent flue gasesproperly. The follow-

ingaresignsthatyourappliancesmaynotbegettingenough

air for proper combustion.

Be aware of these signals;

1. Headaches--Nausea--Dizziness

2. Excessive humidity--heavily frosted windows ora moist

“clammy” feeling in the structure.

3. Smoke from the fireplace won’t draw up the

chimney.

CARBON MONOXIDE POISONING HAZARD.

Carbon monoxide poisoning could result in death

from asphyxiation or serious personal injury.

If you experience headaches, nausea, or

dizziness, carbon monoxide may be present.

Leave the house immediately and call your gas

supplier.

RNING

Combustion Air Checks

If any of the above signals are noticed, perform a combustion air

check or call a qualified service agency. If you add weather strip-

ping, storm windows, insulation, an additional fuel burning ap-

pliance,orremodelthestructure,acombustionaircheckMUSTbe

accomplished after the addition.

Make the inspection as follows:

1. Close all doors and windows. If you have a fireplace, start a

fire and wait until flames are burning vigorously.

2. Turn on all exhausting devices, such as: kitchen and bath-

room exhaust fans and dryers (gas or electric).

3. Turn on all vented gas appliances, such as: heating equip-

ment (includes any room heaters) and water heaters.

4. Wait ten (10) minutes for drafts to stabilize.

5. Onapplianceswithadrafthood,checkforspillagebyholding

a lighted match 2²from the draft hood opening. Reference

Figure 2, which shows a water heater draft hood.

Typical Gas

Water Heater

Draft Hood

Vent Pipe

Match

Water Heater Draft Hood

Figure 2

A. Match flame pulls toward draft hood.

This indicates no spillage and that appliance is getting

enough air for combustion. Return exhausting devices and

appliances to the condition in which you found them .

User’s Information Manual

441 02 2011 00

B. Match goes out or flame wavers away from draft hood. This

indicatesspillageandthatapplianceisnotgettingenoughair

for combustion.

CARBON MONOXIDE POISONING HAZARD.

Carbon monoxide poisoning could result in death

from asphyxiation or serious personal injury.

Draft hood spillage means there is not enough air

for proper combustion and carbon monoxide may

be present.

Keep a window open (a minimum of 2²

²²

²) near the

appliance until a permanent combustion air duct is

installed. Contact a qualified service agency.

!WARNING

If draft hood spillage is indicated:

1. Check for plugged vent connectors and chimneys. Repair

stoppage and test again.

2. If you have a fireplace, open a windowor door near thefire-

place and then check for spillage.

Ifspillagestops,donotusethefireplaceuntilyoucansupply

fresh air by a permanent duct.

3. If you have kitchen and bathroom exhaust fans, turn them

OFF and check for spillage.

Ifspillagestops,donotuseexhaustfansuntilyoucansupply

fresh air by a permanent duct. Circuit breakers for fans

should be turned off and marked as to why they are off.

4. Spillage means air starvation and that an outdoor air duct or

air intake must be installed to provide air directly to the area

aroundthefurnace.ThisductorintakeMUSTcomplywithlo-

cal and state building codes or in their absence with theNa-

tional Fuel Gas Code NFPA 54/ANSI Z223.1--2002 in the

U.S., or the National Standard of Canada, Natural Gas and

Propane Installation Code CSA B--149.1--00 in Canada.

Indoor Humidity (Your Comfort)

Relativehumidityis importantto yourhealth. Properhumidification

helps cut down incidences of respiratory illness. Air that is too wet

may damage thebuilding structure. Air that is toodry is uncomfort-

able. A quick way to test for proper humidity is as follows:

1. Look for frequent fogging or excessive condensation on the

insideofwindows.This indicates theindoorhumidity levelis

too high for outdoor weather conditions.

2. Drop three ice cubes into a glass of water and stir. If, within

threeminutes,moisturedoesnotformontheglass,the airis

toodryanda humidifierwouldbebeneficial.(Donotperform

this test in the kitchen, cooking vapors may produce inaccu-

rate results.)

Agoodrelativehumidityisonejusthighenoughtobarelystartcon-

densation along the lower edges or lower corners of the windows,

when it is cold outside. More than that can be damaging.

Ifthehumidityistoohigh,trythesesuggestionstolowerthehumid-

ity:

1. Reduce setting or discontinue use of humidifier.

2. Use range and bathroom exhaust fans while cooking and

bathing. Open a door or window fora few minutes to bringin

cool drier air.

3. Cook with pans covered.

4. Take shorter baths or showers with cooler water.

5. Installafreshairintakeduct.Cold,dryairbroughtinfromout-

side to the furnace area lowers the indoor humidity level.

6. Have appliances checked. A malfunctioning appliance can

contribute water vapor to the structure.

7. If the problem continues, consult a heating contractor about

addingaheatrecoveryventilatororair--to--airheatexchang-

er.

About Your Furnace

Figure 3 or Figure 4 shows the location of the components in the

furnace.

Circulating Air Blower

The blower circulates room air through the furnace, air ducts, and

intotheroomsofthestructure.Theblowercanbesetatthethermo-

stat forautomatic or manualoperation. In manual mode the blower

operates continuously. In automatic, the blower doesnot come on

untilapreset timeafter thegasvalveis energized.When thestruc-

turereachesthetemperaturesetonthethermostat,thefurnacewill

shutoff.Theblowerwillcontinuetorununtilthefurnacecoolsdown.

Thermostat

There aremany types and styles ofthermostats. Most thermostats

control both heating and cooling functions and have a Fan Switch

with AUTO and ON settings. On AUTO, the Circulating Air Blower

will cycle on/off with the furnace on the heating speed unless acall

forcoolingis initiated.Blowerspeedwillcorrespondtothemodeof

operation of the furnace. If the Fan Switch is positioned to ON the

blower will run continuously.

In addition some thermostats are programmable with multiple set

backs.Thesetbackscanbepre--programmedtolowerorraisethe

temperature automatically.

Be sure to become familiar with your thermostat.

Rating Plate

Theratingplatecontainsimportantinformationfortheservicetech-

nicianandliststhecompletemodel,manufacturingandserialnum-

bers. You should always provide all these numbers when

requestingparts or ifyouneed service. SeeFigure 3, Figure 4 or

Figure 5 for rating plate location.

Door Interlock Switch

All the electrical power for the furnace goes through the door inter-

lock switch. The interlock switch interrupts electrical power to the

furnacewhentheblowerdoorisremoved.Thefurnacewillnotoper-

ate until the blower door is reinstalled.

Furnace Control

The furnace control provides power to the circulating air blower to

keep it on until the furnace cools down.

Thefan off--delaysettingcanbeadjusted ifthefanremainsonlong

enough that cool drafts are felt in the room after the furnace shuts

off.

Theoff--delayissetbymovingasetofswitches (2--stage)orjumper

(1--stage) onthecontrol.TheWiringDiagramlocatedontheinside

of the blower door shows thevarious delay combinations. Referto

Figure 3 or Figure 4 for location of the control.

Ifyouare unsurehowto set theOff--delay Control,contactaQuali-

fied Service Agency.

User’s Information Manual

6441 02 2011 00

Manual Equipment Shutoff Valve

Component Locations for Four Position 90+ Furnaces

Primary Heat Exchanger

Circulating Air Blower

Figure 3

Furnace Control

Pressure Switches

(some models have one)

Representative drawing only, some models may vary in appearance.

Air Intake Pipe

(Required only for Direct--Vent Furnaces)

Rating Plate

Secondary

Heat Exchanger

Furnace Main Gas Control Valve

Plastic Transition Box

Door Interlock Switch

Condensate Trap

5/8²

²²

²I.D. Transition Box Drain Hose

1/2²

²²

²I.D. Vent Pipe Drain Hose

Combustion Blower

Vent Drain

Fitting

Vent Pipe Grommet

Furnace Vent Pipe (Vent Pipe Connections

through Side Panel on Some Models)

Diagnostic Light

Ignitor & Flame Sensor

(not shown)

25--24--78--1

Pressure

Switch

(Some

models

have one)

Component Locations for

80+ Furnaces (4--Position)

Figure 4

25--24--79--1

Heat

Exchanger

Venter

Representative drawing only, some models may vary in appearance.

Gas

Valve

Ignitor &

Flame

Sensor

(not shown)

Main

Burners

Furnace

Control Rating

Plate

Diagnostic

Light

Circulating

Blower

Motor

Circulating

Blower

Manual

Equipment

Shutoff

Valve

Drip

Leg

Component Locations for

80+ Furnaces (Downflow)

Figure 5

OFF

25--24--20a--1D

Diagnostic

Light

Furnace

Control

Circulating

Blower

Motor

Circulating

Blower

Pressure

Switch

Rating Plate on

inside of casing

Heat

Exchanger

Manual

Equipment

Shutoff Valve

Drip

Leg

Venter

Furnace

Main Gas

Control Valve

Ignitor &

Flame

Sensor

(not shown)

Representative drawing only, some models may vary in appearance.

Main Burners

User’s Information Manual

441 02 2011 00

Settheroomthermostatslightlyaboveroomtemperature. Thiswill

automatically signal the furnace to start. The inducer motor will

start, and the hot surface igniter will have an orange glow. After

about 32 seconds(from the call forheat at the thermostat), the gas

valve permits gas to flow to the main burners where it is ignited.

When the flame is firmly established, the igniter shuts off. Hot

flames begin to warm the furnace’s heat exchanger. After a time

delay of 30 seconds (45 seconds for low--stage on two--stage fur-

naces) the furnace blower is switched on.

NOTE: If the main burners fail to ignite, thefurnace control system

willgothrough3moreignitioncycles. Then,if burnersfailtoignite,

the system will lockout. If lockout occurs, or the blower doesn’t

come on -- shut down your furnace and call a Qualified Service

Agency for service.

Pressure Switch

Thefurnaceisequippedwithoneormorepressureswitchestoshut

down the furnace under various flue conditions. The switches are

connected to the furnace by factory supplied tubing.

Operating Your Furnace

Keepthe bloweraccessdoorandallaccess panelsinplaceexcept

for inspection or maintenance.

Beforestartingyourfurnacebesureyouread andunderstandallof

theproceduresinthismanual.Checktomakesurethefurnacefilter

is clean and correctly installed.

CARBON MONOXIDE POISONING HAZARD

Failure to provide adequate combustion and

ventilation air could result in death or

personal injury.

Provisions for combustion and ventilation air

must be provided for in accordance with

installation instructions supplied with furnace.

!WARNING

Starting The Furnace

See Figure 6 for an illustration of the gas control valve.

1. Turn the thermostat to its lowest temperature setting or to

OFF if equipped with a System Select Switch.

2. Turn OFF all electric power to the furnace at the disconnect

switch or circuit breaker.

3. Remove the burner compartment door by removing the

two(2)screwssecuringthedoorinfrontandliftingthedoorup

andoutwards.Removingthedoorwillexposethegascontrol

valve knob.

4. Rotate the gas control valve knob colckwise >to OFF.

See Figure 6.

5. Wait five (5) minutes to clear out any gas. If you then smell

gas,STOP!Followthesafetyinformationonthecoverofthis

manual. If you do not smell gas, go to the next step.

6. Rotate the gas control valve knob counterclockwise <to

ON.

7. Reinstall all doors.

8. Turn ON all electrical power to the furnace.

9. Set the thermostat to the desired temperature and the Sys-

tem Select Switch to HEAT.

The furnace will activate an igniter which lights the main burners.

Turning Off The Furnace

Set the thermostat to the lowest temperature setting or set System

Select Switch to OFF, if so equipped.

Should overheating occur or the gas control valve fail to shut

off,shutoff themanualequipmentshutoff valveto the furnace

before shutting off the electrical supply.

Extended Shutdown

1. Set thermostat to lowest temperature setting or set thermo-

stat System Select Switch to OFF, if so equipped.

2. Turn Manual Equipment Shutoff Valve for furnace to OFF

position (at right angle or 90°to gas line).

3. Remove the burner compartment door by removing the two

(2) screws securing the door in front and lifting the door up

andoutwards. Removingthedoorwillexposethegascontrol

valve knob.

4. Turn OFF electric power to the furnace at the disconnect

switch or circuit breaker. (May be left ON for set--back type

thermostat with batteries, provided thermostat has system

select switch placed in the OFF position.)

5. Rotate the gas control valve knob clockwise >to OFF.

See Figure 6

6. Reinstall all doors.

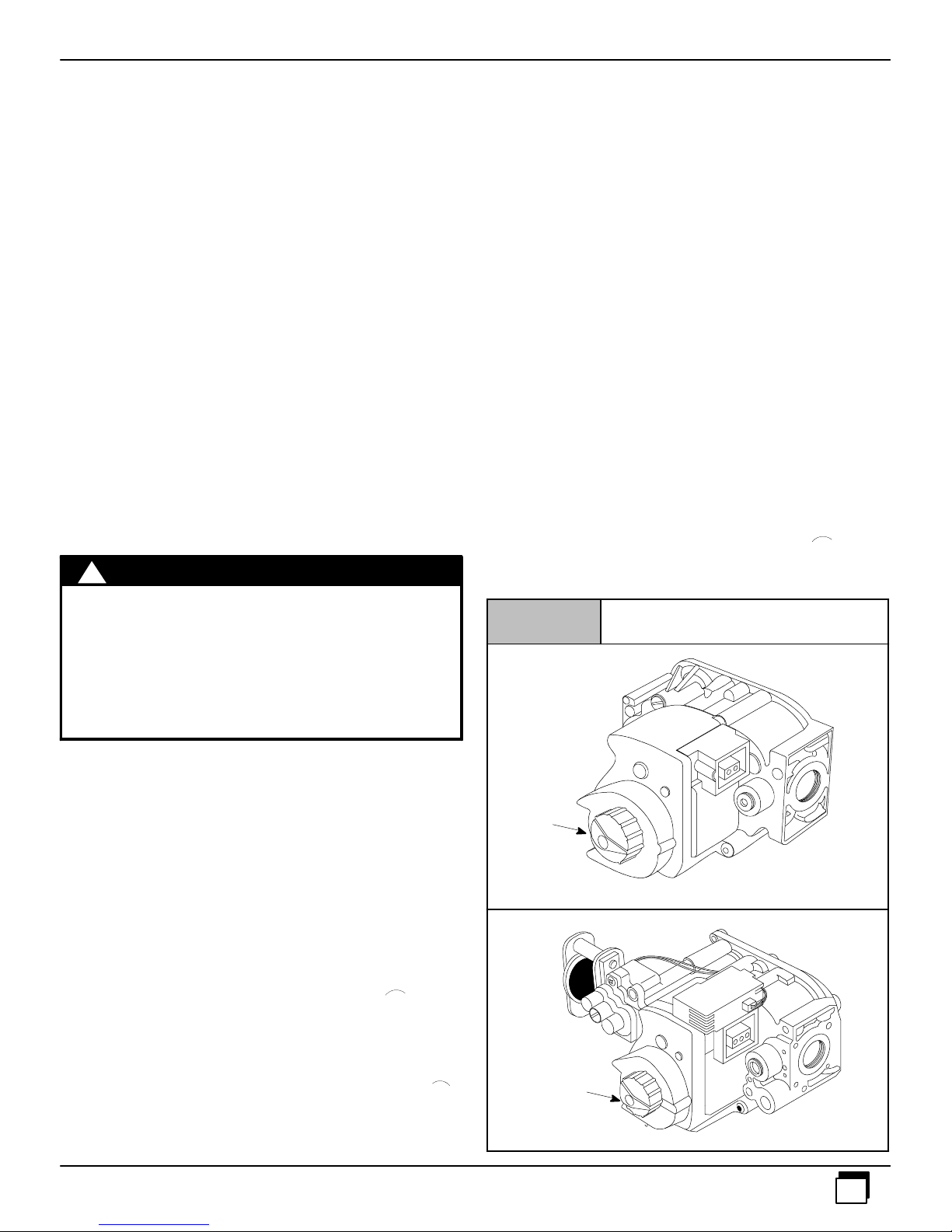

Honeywell Gas Control Valve

Figure 6

Single Stage

25--24--94--1

INLET

OUTLET

Two Stage

On\Off

Knob

INLET

OUTLET

On\Off

Knob

User’s Information Manual

8441 02 2011 00

L P Model Furnaces

FIRE OR EXPLOSION HAZARD

Failure to detect and stop gas leak could result in

death, personal injury and/or property damage.

Propane gas is heavier than air. Leaking gas can

settle in low areas such as crawl space. If you

suspect the presence of gas, follow the

instructions on the cover of this manual.

!WARNING

IfyourL.P.(liquefiedpetroleum)gasfurnaceis installedinanexca-

vated or low lying area, we recommend that you contact your L.P.

gassupplieraboutinstallingawarningdevicethatwouldalertyouof

a gas leak.

Frozen Water Pipe Hazard

FROZEN AND BURST WATER PIPE HAZARD.

FaiIure to protect against frozen pipes may result in

burst water pipes, and/or serious property damage.

Furnace may shut down. Do not leave your home

unattendedforlongperiodsduringfreezingweather

without turning off water supply and draining water

pipes or otherwise protecting against the risk of

frozen pipes.

!CAUTION

Your furnace is designed solely to provide a safe and comfortable

livingenvironment.ThefurnaceisNOTdesignedtoensurethatwa-

ter pipes will not freeze. It is equipped with several safety devices

that aredesigned to turn the furnace off and prevent itfrom restart-

ing in the event of various potentially unsafe conditions.

If your furnace remains off for an extended time, the pipes in your

home could freeze and burst, resulting in serious water damage.

If the structure will be unattended during cold weather, you should

take these precautions.

1. Turn off thewater supply to thestructure and drain the water

lines if possible and add an antifreeze for potable water to

drain traps and toilet tanks. Open faucets in appropriate

areas. -- or --

2. Have someone check the structure frequently during cold

weathertomakesureitiswarmenoughtopreventpipesfrom

freezing. Instruct them to call a qualified service agency to

call to provide service, if required.

-- or --

3. Installareliable remotesensing devicethatwill notify some-

body of freezing conditions within the home.

Winter Shutdown (90+ Furnaces)

If you go away during the wintermonths and do not leave theheat

oninyour home,the plastictransition box andthe condensate trap

on the furnace must be protected from freeze damage. (See

Figure 3)

1. Disconnectthe1/2²I.D.rubberhosefromtheventdrainfitting

(ortee) thatislocateddownstreamofthecombustionblower.

Insertafunnelintothehoseandpourfour(4)ouncesofsani-

tary type (RV) antifreeze into the condensate trap. Recon-

nect the 1/2²I.D. rubber hose to the stub on the vent drain

fitting. Secure with the hose clamp.

2. Disconnect the 5/8²I.D. rubber hose from the condensate

trap.Insertafunnelintothehoseandpourfour(4) ouncesof

sanitary type (RV) antifreeze into the plastic transition box.

Squeeze the hose together near the end and quickly recon-

nect the 5/8²I.D. rubber hose to the stub on the condensate

trap. Secure with the hose clamp.

Whenyoureturnhome,yourfurnacewillbereadytostart,asitisnot

necessary to drain the antifreeze from the furnace.

Furnace Maintenance

Have yourfurnace inspected and servicedon an annual basis (be-

fore the heating season) by a qualified service agency.

Labeling

FIRE OR EXPLOSION HAZARD

Wiring errors can cause improper and dangerous

operation that could result in death, personal injury

and/or property damage.

Label all wires prior to disconnection when

servicing controls. Verify proper operation after ser-

vicing. Only qualified service agencies should

attempt electrical service.

RNING

Pressure Switches

During regular yearly maintenance, check for cracks in any

tubes on the pressure switches.

ELECTRIC SHOCK HAZARD

Failure to disconnect electricity could result in death

or personal injury.

Turn off electrical power to furnace before

performing any maintenance or removing panels or

doors.

RNING

Air Filters/Monthly

The air filter(s) should be inspected at least monthly and

cleaned orreplaced asrequired.There aremany types offilters

thatarecommonlyused.Washablefilters(constructedofalumi-

nummesh,foam, orreinforcedfibers) may becleanedby soak-

ing in mild detergent and rinsing with water. The fiberglass

disposable type should be REPLACED before it becomes

clogged. Other filter types should be serviced in accordance

with the manufacturer’s recommendations.

Rememberthatdirtyfiltersarethemostcommoncauseofinad-

equate heating or cooling performance.

Replacement Filters

Ifthefilterisnotlocatedatorwithinthefurnace,itshouldbelocated

somewhere in the return--air duct system.

The recommended sizes and types of filters that may be used with

yourfurnacearebasedonthefurnace’sheatinggasinputrate(and

cooling system capacity, if so equipped).

User’s Information Manual

441 02 2011 00

Replacementfiltersshouldbeofthesametypeandsizeastheorigi-

nalfilters,toensureadequateairflowandfiltering.Adisposablelow

velocityfiltercanbereplacedwithawashablehighvelocitytype.Do

notreplacea highvelocityfilter with adisposablelow velocityfilter,

except as permitted below.

Ifacleanable(high--velocity)filter(s)istobereplacedwithadispos-

able (low--velocity) filter(s), the airflow area of the filter(s) must be

doubled (i.e., a second filter of the same size must be installed so

thatonlyhalfoftheairgoesthrougheachfilter). Asecondreturn--air

duct to the furnace may be required in which to install the second

filter. Modification ofa furnace installation shall comply with the lo-

cal installation code and the furnace installation instructions, and

shall be made only by a Qualified Service Agency.

NOTE: Some filters are marked with an arrow to indicate the

properdirectionofairflowthroughthefilter. Theairflowdirec-

tion will be towards the blower motor. Make sure filter is

installed correctly.

Filter Replacement -- Upflow

The filter may be installed inside the bottom of the furnace blower

compartment,orthefilter(s)rackmaybeinstalledunderthefurnace

or on either or both sides of the furnace. A plastic end cap(s) is in-

serted in the filter rack(s) after the filter(s) is installed. The end cap

keepsairfromescaping aroundtheopen end of the filterrack. See

Figure 7andFigure 8forsideandbottomlocations.Rackendcap

is similar for bottom mounted filter rack.

Filter rack(s) attached to the outside of the furnace is made sothe

filter simply slides out one end for removal.

RISK OF REDUCED FURNACE LIFE

Use of excessively dirty and/or restrictive air

filters may increase furnace operating

temperatures and shorten the life of the furnace.

Filters specified for the furnace are rated at a

maximum of 600 FPM air velocity and sized for the

furnace’s airflow rate. Replacement filters must be of

equivalent type, size, and rating except as described

below.

Disposable, low--velocity filters may be used to replace

washable, high--velocity filters, providing they are sized

for 300 FPM or less.

Ifyouareuncertainofthe type ofreplacement filtertouse,

consult the furnace installer or a qualified service agency

for assistance.

!CAUTION

Filter Replacement -- Bottom or Side

Mounted Filter Rack Outside Furnace

1. Turn OFF electric power to furnace.

2. Remove the end cap from the filter rack.

3. Slide the filter out of the filter rack. See Figure 7.

4. Inspect the filter(s) and replace or clean washable types. If

filter is aluminum mesh it should be recoated with filter coat-

ing spray.

5. Reinstall the end cap in the filter rack.

6. Turn on electric power to furnace.

Filter Rack Outside Furnace

Figure 7

25--24--62--1

Filter Rack End cap

Filter Replacement -- Bottom Mounted Filter

Inside Furnace,

1. Turn off electric power to furnace.

2. Remove blower door.

3. Slide filter straight out toward you. See Figure 8.

4. Inspect the filter(s) and replace or clean washable types. If

filter is aluminum mesh it should be recoated with filter coat-

ing spray.

5. Replace blower door.

6. Turn on electric power to furnace.

Figure 8 Bottom Mounted Filter

Inside Furnace

25--24--18--1

9²

Center Clip

sid e --to -- side

Filter Replacement -- Horizontal and

Downflow *8MPN/L (Not *8DNL)

The filter may be installed at the inlet end of the blower compart-

ment, eitherinside or outsidethe furnace. Sideinlet filter locations

are not permitted for horizontal or downflow applications.

Filter Replacement ---- Downflow *8DNL

Two filters are supplied with all *8DNL downflow models. (See to

Figure 9) Refer to note for proper size. The filters are installed

through the top of the downflow furnace from the right side. To re-

move filter, refer to Figure 9 for the following steps.

NOTE: Two (2)16²x18²cleanablehigh--velocityfilters are recom-

mended.A*8DNLdownflow furnacewithairflow upto1200cfmis

permitted to replace the 16²x18²cleanable high--velocity filters

with two 16²x18²disposable filters.

User’s Information Manual

10 441 02 2011 00

1. Turn OFF power to furnace.

2. Remove compartment door.

3. Reachupaboverightsideofblower,andlift dirtyfiltersoutof

rack at top of furnace.

4. Straighten up filters and pull straight down at side of blower.

Pull out through right side of door opening.

5. Inspect the filter(s) and replace or clean washable types. If

filteris aluminummesh,itshouldberecoatedwithfiltercoat-

ing spray.

6. Reinstall the filters in the filter rack.

7. Reinstall blower compartment door.

8. Turn ON electric power to the furnace.

Downflow Filter Replacement

*8DNL

Right Side

Left Side

Figure 9

25--21--16a

External Filter Rack

A plastic end cap is inserted in the filter rack after the filter is

installed. Theendcap keepsairfromescaping aroundtheopen

end of the filter rack. See Figure 7 for removal of filter.

Filter racks attached to the furnace are made so the filter simply

slides out one end for removal.

1. Turn OFF electric power to furnace.

2. Remove the end cap from the filter rack.

3. Slide the filter out of the filter rack.

4. Inspect the filter(s) and replace or clean washable types. If

filterisaluminummeshitshouldberecoatedwithfiltercoating

spray.

5. Reinstall the end cap in the filter rack.

6. Turn furnace on.

Internally Mounted Filter

1. Turn OFF power to furnace.

2. Remove blower door.

3. Slide filter straight out toward you. (See Figure 8.)

4. Inspect the filter(s) and replace or clean washable types. If

filterisaluminummeshitshouldberecoatedwithfiltercoating

spray.

5. Replace blower door

6. Turn on electric power to furnace.

Lubrication

The blower motor and the combustion air blower areprelubricated

by the manufacturer and DO NOT require oiling.

Table 1 Recommended Filter Sizes

furnace Size

Heatin

ut Nominal Air Flow

Cubic Feet Recommended Filter Sizes

Sq. In. Surface Area/Nominal Size (inches)

1000 x Btuh

per Minute (CFM) Disposable Filters Cleanable Filters

50 800--900 500 or 20 x 25 350 or 14 x 25

50, 75, and 100 1100--1300 350 or 14 x 25 (2Req.) 350 or 14 x 25

50, 75, 100, and 125 1300--1500 400 or 16 x 18 (2Req.) 400 or 16 x 18

80, 100, and 125 1500--1700 500 or 20 x 25 (2 Req.) 500 or 20 x 25

125 1900--2100 600 or 20 x 30 (2 Req.) 500 or 20 x 25

150 2300--2500 600 or 20 x 30 (2 Req.) 720 or 24 x 30

Qualified Service Agency Checks

Whenthefurnaceisbeinginspectedforconditionandoperation

have the Qualified Service Agency check the following items.

1. Checkallfluegaspassagesincludingmainandpilotburners,

heat exchanger, and vent.

2. Check electrical wiring and connections.

3. Checksupply andreturnairductsforleakage, blockageand

connections to furnace.

4. Check circulating air blower wheeland motor.Clean them if

required.

5. Perform an operational checkout on the furnace to be sure

safety controls function and that furnace operates properly.

For additional information, the Qualified Service Agency can

consult the installation instructions for the furnace.

INTERNATIONAL COMFORT PRODUCTS

LIMITED WARRANTY CERTIFICATE

For Cooling & Heating Products

SAVE THIS CERTIFICATE. It gives you specific legal rights, and you may also have other rights which may vary from state to state and

province to province.

If your unit needs servicing, contact a qualified dealer or qualified service agency of your choice. When requesting service, please have the model

andserialnumberfromeachunitinyourheatingand/orcoolingsystemreadilyavailable. Ifyourdealerneeds assistance,thedistributorisavailableto

provide support and we, in turn, support its efforts.

Fill in the installation date and model and serial numbers of the unit in the space provided below and retain this Limited Warranty for your files.

GENERAL TERMS

Subject to the conditions and limitations stated herein, during the term of this Limited Warranty, we will provide a replacement for any functional

componentpart(asdefinedbelow)ofyourunitthatfailsduetodefectinmaterialsorworkmanship. Thetermofthis LimitedWarrantyisfiveyearsfrom

installation on Residential Products and one year from installation on Commercial Products or applications. Except as otherwise stated in the

‘‘Additional Terms’’ section, this Limited Warranty covers only the original purchaser and subsequent transferees, and only while the unit remains at

the site of the original installation (except for mobile home installations), and only if the unit is installed inside the continental United States, Puerto

Rico, Alaska, Hawaii or Canada. In addition, the Limited Warranty applies only if the unit is installed and operated in accordance with the printed

instructions accompanying the unit, and in compliance with all applicable installation and building codes and good trade practices. As used in this

Limited Warranty, ‘‘installation” means the original installation of the unit.

THERE ARE EXCEPTIONS to this Limited Warranty as described on the reverse side of this page. Allreplacement parts will be warranted for the

unused portion ofthewarranty coverage period on theunit. The part to bereplaced must be returned by the dealer toa distributor that sells products

for International Comfort Products, inexchange forthereplacementpart. In lieuofprovidingareplacement part,we may,atoursole option, refund to

you an amount equal to the distributor’s component purchase price from us, or provide to you a credit equal to that amount to be applied toward the

purchase ofany newunit that wedistribute. If acredit for a newunit is given inlieu ofa replacementpart, the rating plate from theunit beingreplaced

mustbesubmittedonawarrantyclaim, andyourdealermustmaketheunitbeingreplacedavailabletoourdistributorfordisposition. Asaconditionto

warrantycoverage,theunitmustreceiveyearlymaintenance,asdescribedintheowner’smanual,byadealer. Satisfactoryproofofyearlyserviceby

a dealer may be required.

‘‘Functionalcomponentparts”includeonly thefollowing:blowermotor,unit--mountedsensors& timers,condensermotor,evaporatorcoil,condenser

coil, condenser fan, capacitor, transformer, single--phase strip heat elements, expansion device, reversing valve, solenoid valve, service valve,

electronic and electro--mechanical control board, ignitor, ignition module, draft inducer assembly, burner pilot, gas valve, gas orifices, limit control,

pressure switch, relays/sequencer and contactors, wiring harness, restrictor, muffler, transition boxes, blower wheel, interlock switch, crosslighter,

pilot shield, gas & oil burners, oil pump assembly, drain pans, accumulators and factory installed driers, strainers and condensate drain tubes and

traps.

This Limited Warranty DOES NOT COVER any labor, material or non--functional components such as, exterior panels, refractory/combustion

chambers, oil nozzles, refrigerant, refrigerant inspection and refrigerant reclaiming, freight and/or handling charges associated with any repair or

replacement and such charges will be your responsibility.

To establish the installation date for any purpose under this Limited Warranty,you must retain the original records that can establish the installation

date of your unit. If you do not provide such documents the start date of the term of this Limited Warranty will be based upon the date of unit

manufacture,plusthirty(30)days. Inestablishingthat therequiredyearlyservicehasoccurred,youmustfurnishproofofyearly servicebyaqualified

service agency.

This Limited Warranty does not cover: (a) failure or damages caused by accident, abuse, negligence, misuse, riot, fire, flood, or Acts of God (b)

damages caused by operating the unit where there is a corrosive atmosphere containing chlorine, fluorine, or any other damaging chemicals (other

than those found in a normal residential environment) (c) damages caused by an unauthorized alteration or repair of the unit affecting its stability or

performance(d) failureordamages caused byimpropermatchingor applicationoftheunitor theunit’s components (e)damagescausedby failingto

provide proper maintenance and service to the unit in accordance with this Limited Warranty Certificate and the printed instructions originally

provided with the unit (f) any expenses incurred for erecting, disconnecting, or dismantling the unit (g) parts or supplies used in connection with

serviceormaintenance,suchasrefrigerant,refractorychambers,oilnozzles,filters,orbelts(h)damage, repairs,inoperationorinefficiencyresulting

fromfaulty installationorapplication(i)electricityor fuelcostsorany increaseinelectricityorfuelcost whatsoeverincludingadditionalorunusualuse

of supplemental electric heat (j) units which have not had the required yearly maintenance described elsewhere in this limited warranty.

In no event shall we be liable for any incidental, consequential, or special damages or expenses in connection with any use or failure of this unit.

WEHAVE NOTMADE,DONOTMAKE,ANDHEREBYDISCLAIM ANYIMPLIED CONDITION OR IMPLIEDWARRANTY OFFITNESS FOR A

PARTICULAR USE OR PURPOSE, AND ANY IMPLIED CONDITION OR IMPLIED WARRANTY OF MERCHANTABILITY, TO THE FULLEST

EXTENT ALLOWED BY LAW. WE MAKE NO EXPRESS OR IMPLIED WARRANTIES EXCEPT AS STATED IN THIS LIMITED WARRANTY

CERTIFICATE.

No one is authorized to change this Limited Warranty or to create for us any other obligation or liability in connection with this unit. Any implied

warranties that arenotdisclaimable shalllast only forthe termoftheexpress warranty containedherein. Some states andprovinces donot allow the

exclusion or limitation of incidental or consequential damages or do not allow limitations on how long an implied warranty or condition lasts, so the

abovelimitationsor exclusions maynot applyto you. Theprovisions ofthisLimitedWarrantyareinadditiontoandnotamodificationoforsubtraction

from any statutory warranties and other rights and remedies provided by law.

Please refer to reverse side of this page for additional terms.

Model No. _________________________________

Serial No. __________________________________ DateInstalled_______________________________

USA: International Comfort Products , LLC ·650 Heil--Quaker Avenue ·P.O. Box 128 ·Lewisburg, Tennessee 37091 ·(931--270--4100)

CANADA: International Comfort Products division of UTC Canada Corporation ·6060 Burnside Court, Unit 1, Mississauga, Ontario L5T 2T5

(905--795--8113).

Manufacturers of Airquest, Arcoaire, Clare, Comfortmaker, Dettson, Heil, Keeprite, Lincoln, Tempstar, ICP Commercial and other quality brand name

private label products. Part No. 401 06 1010 25 (Orig. 1/1/2005)

Effective for units installed on or after 1/1/2005

ADDITIONAL TERMS FOR RESIDENTIAL APPLICATIONS ONLY

The Additional Terms for the components listed below are in addition to, and subject to, the General Terms on the reverse side of this page.

Warranty coverage is limited to parts that fail due to defect in materials or workmanship during the specified term.

PREMIUM OUTDOOR AIR CONDITIONERS, HEAT PUMPS & PACKAGED GAS ELECTRIC UNITS

Model Series: TCA4, TXA4, TCH4, HAC4, HXA4, HHP4, CAC4, CXA4, CHP4, TCA2, TXA2, TCH2, TXH2, HAC2, HXA2, HHP2, HXH2, CAC2,

CXA2, CHP2, CXH2, PA95, PAPC, PHAD, PYMC, PGAD, PGME:If the heat exchanger or the compressor fails within 5 years from the date of

installation a comparable ICP replacement unit will be provided. The outdoor unit must be installed with a matching ICP indoor coil or air handler. This

additionallimitedwarranty runs only totheoriginalpurchaser,andlasts onlyaslongastheoriginalpurchaserlives inthehomewheretheoutdoor unitis

installed. It is not transferable to any subsequent owner.Proof of installation date will berequired. The remaining balance of theoriginal unit’swarranty

will be transferred to the replacement unit.

CENTRAL GAS & OIL FURNACE HEAT EXCHANGERS*

Gas Model Series: C9MPV,H9MPV,T9MPV,C9MPT, H9MPT,T9MPT, C9MPD, H9MPD,T9MP:LimitedLifetimeWarranty onheat exchangers. Ifa

heatexchanger ononeofthesefurnaces failsduetodefect inthepart,wewillprovideareplacementpartor,atouroption,credit towardthepurchaseof

a new furnace manufactured by us. This additional Limited Warranty runs only to the original purchaser, and lasts only for as long as the original

purchaserlivesinthehomewherethefurnaceisinitiallyinstalled.** Itisnottransferabletoanysubsequentowner. Ifthefurnacewasnotinstalledinthe

home owned by the original purchaser, if the original purchaser sells the home to a subsequent owner, or if proof of original purchase cannot be

provided, then the limited warranty is only for 20 years from the date of original installation.

Gas Model Series: T8MPV, H8MPV, C8MPV, T8MPT, H8MPT, C8MPT: A replacement heat exchanger will be provided for any heat exchanger that

fails in one of these furnaces due to defect for 25 years from the original date of installation.

Gas Model Series: T8MPN, H8MPN, C8MPN, T8MPL, H8MPL, C8MPL, T8DNL, H8DNL, C8DNL, N8MPN, N8MPL, N9MP1, N9MP2: A

replacement heat exchanger will be provided for any heat exchanger that fails in one of these furnaces due to defect for 20 years from original date of

installation.

Oil Model Series: OLR(105, 160, 182), OCF, OLF, OUF, NOLF, NOUF, OLB, OHB, ODH, FLO, MBO, LBO, NOMF: Limited Lifetime Warranty on

heat exchangers. If aheat exchanger on oneof these furnaces fails due todefect in the part, we will provide areplacement part or, at our option,credit

toward the purchase of a new furnace manufactured by us. This additional Limited Warranty runs only to the original purchaser, and lasts only for as

long as the original purchaser lives in the home where the furnace is initially installed.** It is not transferable to any subsequent owner. If the furnace

was not installed in the home of the original purchaser,if theoriginal purchaser sells the home to a subsequent owner, or if proof of original purchase

cannot be provided, then the limited warranty is only for 20 years from the date of original installation.

ADDITIONAL TERMS FOR OIL FURNACE APPLICATIONS ONLY

1) OIL BURNERS -- A replacement for 5 years from date of original installation for Oil Burner Parts.

2) OPTIONAL ACCESSORIES AND FUNCTIONAL PARTS: A replacement for 5 years from date of original installation. (Refractory and

oil nozzles not included)

PACKAGED GAS/ELECTRIC UNIT HEAT EXCHANGERS

Model series: PGF, GPFM, PGC, GPCM, PGAA, PGMD: A replacement heat exchanger for 10 years from original date of installation.

Model series: PGS, GPSM:A replacment heat exchanger for 15 years from original date of installation.

Model series: PGAD, PGME: A replacement heat exchanger for 25 years from original date of installation.

COMPRESSORS:*

1) Premium Model Units: HAC0, HAC2, HAC4, CAC0, CAC2, CAC4, KAC0, TCA0, TCA2, TCA4, HHP0, HHP2, HHP4, CHP0, CHP2, CHP4,

TCH0, TCH2, TCH4, HXA2, TXA2, CXA2, HXA4, TXA4, CXA4, CXH2,TXH2, HXH2,PGME, PYMC,PHAD, PGAD,PA95, PAPC, PAK, APK, and

standard models NAC2, NHP2: To the original purchaser a replacement compressor for 10 years from original date of installation, only if the unit is

installed with matched coils of the same nominal tonnage regardless of manufacturer and in accordance to factory recommendations. This limited

10--year warranty is not transferable to any subsequent owner.

2) All Other Models: Air Conditioners, Heat Pumps, & Combination Gas/Electric Units: NAC0, NHP0, AO, A2, HO, H2, PGF, PGC, GPFM,

GPCM, PAF, APFM, PHF, HPFM, PGAA, PGMD, PA55, PH55, PAPA, PYPA, PGS, GPSM: A replacement for 5 years from date of original

installation, only if: (a) air conditioner condensing units are matched with evaporator coils of the same nominal tonnage and in accordance to factory

recommendations, or (b) heat pump condensing units are used with matched coils, unless written approval to do otherwise is obtained from

manufacturer. ADDITIONAL TERMS FOR COMMERCIAL PRODUCT OR APPLICATIONS ONLY

Forpurposesofthiswarrantyacommercialproductor applicationisoneinwhich:theproduct hasover5tonsnominalcooling capacity,or

isdesignedforoperationwith3phaseelectricalpower,orisinstalledinacommercialestablishmentsuchasabeautyorhairsalon,hospital,

school, restaurant, church, hotel etc..

3--PhaseModels:PGF,GPFM,GPF,PGAD,PGME,PGB,PGMG,PGMF,PGS,GPSM,PGE,APE,PAE,PAB,PAMD,PAS,PAF,APFM,APF,

PHB, PHE, PYMD, HPB, PHS, CAC, ACC, CAE, ACE, CHC, HCC, CHE, HCE:

The additional Terms of the components listed below are in addition to and subject to the General Terms onthe reverse side of this page.

1) GASFIREDHEATEXCHANGERS(ALLMODELS,exceptPGS,GPSM3to5Ton):* Areplacementfor10yearsfromdateoforiginalinstallation.

a) NOTE: PGS, GPSM 3 to 5 Ton Models:* A replacement for 15 years from date of original installation.

2) COMPRESSORS (ALL MODELS):* A replacement for 5 years from date of original installation.

3) OPTIONAL ACCESSORIES AND FUNCTIONAL COMPONENT PARTS (ALL MODELS):*

A replacement for 1 year from date of original installation.

4) COMMERCIAL OIL MODELS: OLR210, OLR350, OTF210, AMT3, AMT4, AMP3: Ten(10) Year Limited Warranty on heat exchangers.

*To receive advantage of your limited warranty, you must provide proof of yearly service by a qualified service agency.

**To receive advantage of your warranty, you must retain the original records that can establish the installation date and proof of purchase

of the unit.

MINI SPLITS: HMC, HMH

Compressors are warranted for (5) years from date of original installation and all other functional components are warranted for (1) year.

Other manuals for N9MP1

This manual suits for next models

Table of contents

Other International comfort products Furnace manuals
