Ironton 61485 User manual

READ & SAVE THESE INSTRUCTIONS
1/2 Inch Impact Wrench
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #61485

Page 2 of 17
Thank you very much for choosing an Ironton™product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This impact wrench is designed for certain applications only. Northern
Tool and Equipment is not responsible for issues arising from
modification or improper use of this product such as an application for
which it was not designed. We strongly recommend that this product not
be modified and/or used for any application other than that for which it
was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 17
Table of Contents
Intended Use..........................................................................................................................................4
Packaging Contents..............................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................6
Grounding..............................................................................................................................................7
Extension Cords....................................................................................................................................8
Main Parts of Impact Wrench...............................................................................................................9
Assembly Instructions..........................................................................................................................9
Before Each Use..................................................................................................................................10

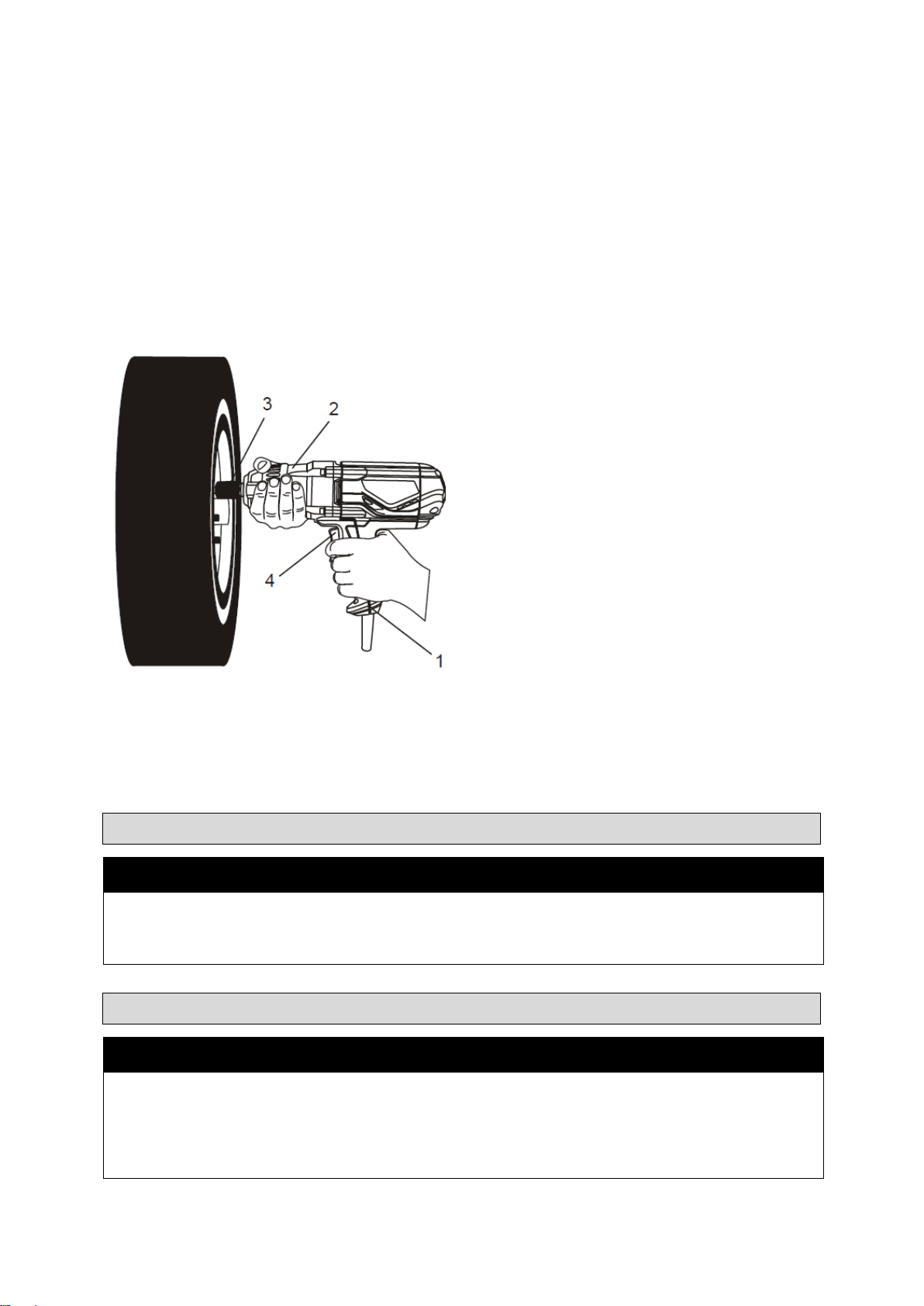

Operating Instructions........................................................................................................................10
After Each Use.....................................................................................................................................11
Maintenance ........................................................................................................................................11
Troubleshooting..................................................................................................................................12

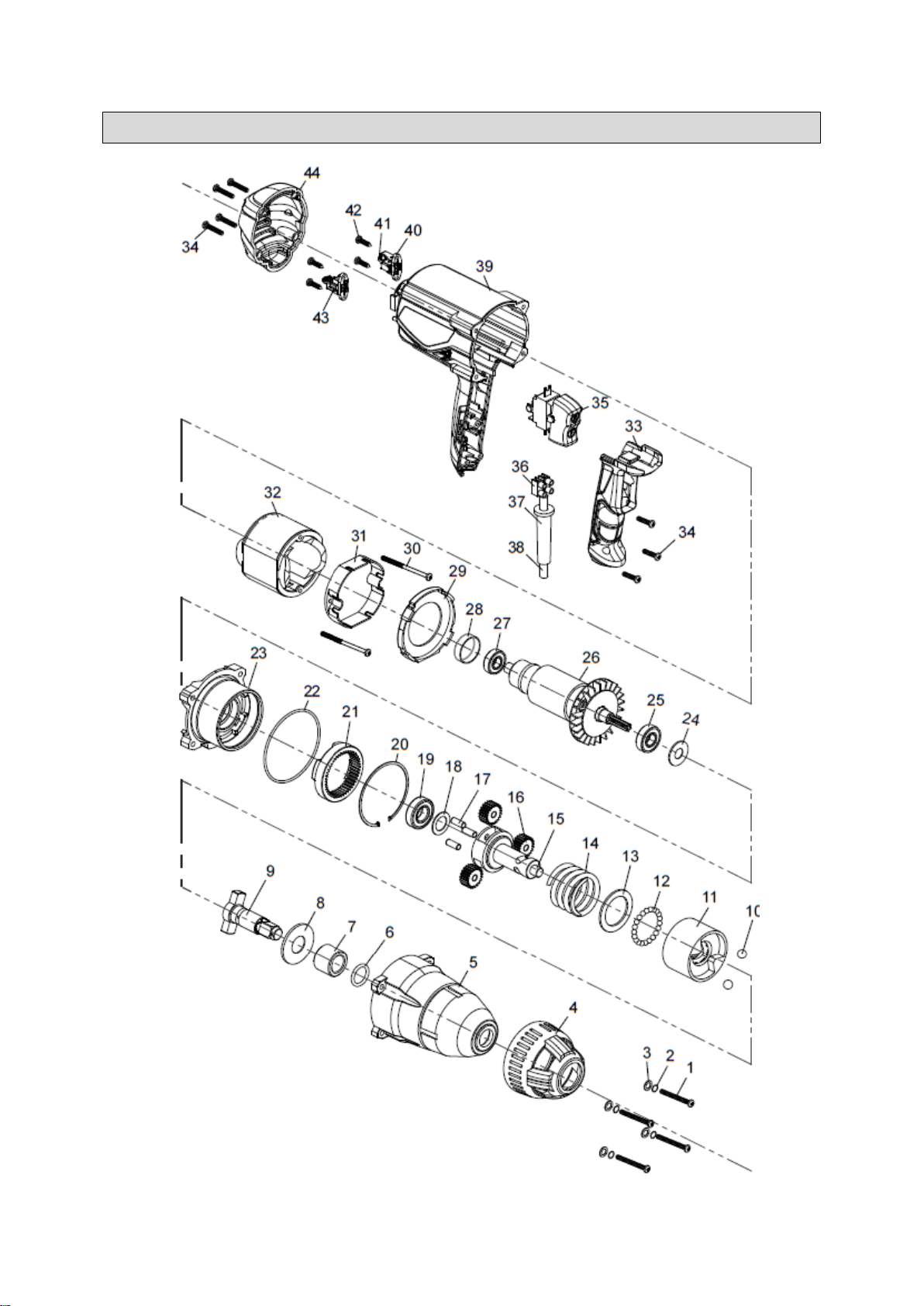

Parts Diagram......................................................................................................................................13
Parts List..............................................................................................................................................14
Replacement Parts..............................................................................................................................15
Limited Warranty.................................................................................................................................16

Page 4 of 17
Intended Use
The Ironton ½ Inch Impact Wrench has a variable impact delivery of 0-2,700 IPM allowing the user to
control the torque and adjust to the requirements of the job. The impact wrench comes equipped with
a 25-foot soft flexible cord to allow for increased maneuverability and flexibility.
Packaging Contents
Impact Wrench
Sockets (4)
Owner’s Manual
Technical Specifications
Property
Specification
Motor Rating
110V/ 8.5A
Speed
0-2600 RPM
Impact Speed
0-2700 IPM
Max Torque
400ft/lb.
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product
was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.

Page 5 of 17
Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence
of flammable liquids, gases, or dust. The product can create sparks, which may ignite the
flammable liquids, gases, or dust.
Do not allow the product to come into contact with an electrical source. The tool is not insulated
and contact will cause electrical shock.
Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the product.
Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
⚠WARNING
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use
the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating the tool may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts. Air vents on the tool often cover moving parts and should be avoided.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in
dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the work area.
Do not overreach. Keep proper footing and balance at all times.
Remove keys or wrenches before connecting the tool to an air supply, power supply, or turning on
the tool. A wrench or key that is left attached to a rotating part of the tool may cause personal
injury.
Secure the work with clamps or a vise instead of your hand when practical. This safety precaution
allows for proper tool operation using both hands.
⚠CAUTION
IMPACT WRENCH USE AND CARE
Do not force the impact wrench. Products are safer and do a better job when used in the manner
for which they are designed. Plan your work, and use the correct product for the job.
Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with
the power switch is dangerous and must be repaired by an authorized service representative
before using.

Page 6 of 17
Disconnect the power/air supply from the product and place the switch in the locked or off position
before making any adjustments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.
Store the product when it is not in use. Store it in a dry, secure place out of the reach of children.
Inspect the tool for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool. Never use an accessory that has a lower operating speed or operating pressure than
the tool itself.
Keep guards in place and in working order. Never operate the product without the guards in place.
Do not leave impact wrench running unattended.
Specific Operation Warnings
⚠WARNING
To reduce the risk of injury, always wear eye protection.
Wear ear protection with impact drills. Exposure to noise can cause hearing loss.
Use the auxiliary handles supplied with the tool. Loss of control can cause personal injury.
Hold power tools by insulated gripping surfaces, when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Before starting the operation, jog the drill switch to make sure the drill bit does not wobble or
vibrate.
Do not use fly cutters or multiple-part hole cutters. They can come apart or become unbalanced
during use.
Make sure the spindle has come to a complete stop before touching the chuck or attempting to
change the drill bit.
Secure the workpiece. Use clamps or a vise to hold the workpiece instead of using your hands.
Use only accessories that are recommended for this impact wrench. The use of improper
accessories may result in injury to the operator or damage to the impact wrench.
If any part is missing or damaged, do not plug the impact wrench into the power source until the
missing or damaged part is replaced.
Hold power tool by insulated gripping surfaces, when performing an operation where the fastener
may contact hidden wiring or its own cord.
Use only impact sockets and accessories that are designed for use with an impact wrench. Do not
uses chrome plated sockets and accessories. Chrome plated sockets and accessories are
designed for hand use only and MUST NOT be used with an impact wrench. They may shatter
and possibly cause serious injury.
Never use the impact wrench as a torque wrench. Always use a torque wrench to adjust the
fastener to the specified torque.

Page 7 of 17
Grounding
⚠WARNING
This machine must be grounded while in use to protect the operator from electrical shock. This
unit is equipped with an electrical cord that has an equipment grounding conductor and a
grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed
and grounded in accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PROVIDED PLUG. If it will not fit the receptacle, have the proper
receptacle installed by a qualified electrician.
CHECK with a qualified electrician or service person if you do not completely understand the
grounding instructions, or if you are not sure the tool is properly grounded.
Grounded Tools: Tools with 3-Prong Plugs
Tools marked with Grounding Required have a 3-wire cord and 3-prong grounding plug. The plug
must be connected to a properly grounded outlet. If the tool should electrically malfunction or break
down, grounding provides a low resistance path to carry electricity away from the user, reducing the
risk of electric shock. (See Figure A.)
The grounding prong in the plug is connected through the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must be the only wire connected to the tool’s grounding
system and must never be attached to an electrically live terminal.
Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet should look like those in the following illustration.
Double Insulated Tools: Tools with Two-Prong Plugs
Tools marked Double Insulated do not require grounding. They have a special double insulation
system which satisfies OSHA requirements and complies with the applicable standards of
Underwriters Laboratories, Inc., the Canadian Standard Association, and the National Electrical Code.
(See Figure B.)
Double insulated tools may be used in either of the 120 volt outlets shown in the following illustration.

Page 8 of 17
Extension Cords
⚠WARNING
USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause
overheating.
Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it. Protect your extension
cords from sharp objects, excessive heat and damp or wet areas.
Grounded tools require a 3-wire extension cord. Double Insulated tools can use either a 2- or 3-
wire extension cord.
As the distance from the supply outlet increases, you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in
loss of power and possible tool damage.
The smaller the wire’s gauge number, the greater the capacity of the cord. For example, a 14-
gauge cord can carry a higher current than a 16-gauge cord. Minimum extension cord wire size is
shown in the following table:
Minimum Wire Size Of Extension Cords
Nameplate AMPS
Cord Length
25'
50'
100'
150'
0-6
18 AWG
16 AWG
16 AWG
14 AWG
6-10
18 AWG
16 AWG
14 AWG
12 AWG
10-12
16 AWG
16 AWG
14 AWG
12 AWG
12-16
14 AWG
12 AWG
NOT RECOMMENDED
When using more than one extension cord to make up the total length, make sure each cord
contains at least the minimum wire size required.
If you are using one extension cord for more than one tool, add the nameplate amperes and use
the sum to determine the required minimum cord size.
If you are using an extension cord outdoors, make sure it is marked with the suffix W-A (Win
Canada) to indicate it is acceptable for outdoor use.
Make sure your extension cord is properly wired and in good electrical condition. Always replace
a damaged extension cord or have it repaired by a qualified electrician before using it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.

Page 9 of 17
Main Parts of Impact Wrench
Subassembly
1/2’’ Square Drive
Forward/Reverse Trigger Switch
Air Vents
Handle
Motor End Cap
Assembly Instructions
⚠WARNING
Always remove the plug from the power source before changing any sockets or accessories. You
may be injured if the tool starts accidentally.
Installing the Socket
To install the socket, press the square portion of the socket (1) onto the square drive (2) of the impact
wrench.

Page 10 of 17
Before Each Use
⚠WARNING
Check the impact sockets and accessories for excessive wear or cracks. Worn or damaged
sockets or accessories may shatter and possibly cause serious injury. Worn accessories may
allow the socket to come off during operation of the impact wrench.
Operating Instructions
⚠WARNING
To reduce the risk of injury, always wear eye protection.
Wear ear protection with impact drills. Exposure to noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
Hold power tools by insulated gripping surfaces, when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Before starting the operation, jog the drill switch to make sure the drill bit does not wobble or
vibrate.
Do not use fly cutters or multiple-part hole cutters. They can come apart or become unbalanced
during use.
Make sure the spindle has come to a complete stop before touching the chuck or attempting to
change the drill bit.
Secure the workpiece. Use clamps or a vise to hold the workpiece instead of using your hands.
Use only accessories that are recommended for this impact wrench. The use of improper
accessories may result in injury to the operator or damage to the impact wrench.
If any part is missing or damaged, do not plug the impact wrench into the power source until the
missing or damaged part is replaced.
Hold power tool by insulated gripping surfaces, when performing an operation where the fastener
may contact hidden wiring or its own cord.
Use only impact sockets and accessories that are designed for use with an impact wrench. Do not
uses chrome plated sockets and accessories. Chrome plated sockets and accessories are
designed for hand use only and MUST NOT be used with an impact wrench. They may shatter
and possibly cause serious injury.
Never use the impact wrench as a torque wrench. Always use a torque wrench to adjust the
fastener to the specified torque.
Always use two hands when operating the impact wrench. Use one hand on the handle and the
other on the front of the wrench body.
Never place your hand so it is touching the socket or accessory when the tool is turned ON. Your
hand could be seriously injured.
Always remove the plug from the power source before installing or removing any socket or
accessory.

Page 11 of 17
Forward/Reverse Trigger Switch
1. To operate the impact wrench in the forward direction, press and hold the bottom part of the
switch (2). The socket will rotate in a clockwise direction to tighten the fastener.
2. To operate the impact wrench in the reverse direction, press and hold the top part of the switch
(3). The socket will rotate in a counter-clockwise direction to loosen the fastener.
3. Place the impact socket (3) onto the wheel nut.
4. While holding the wrench level with the ground and with a firm grasp, squeeze the upper portion
of the trigger switch.
Note: When removing the fastener, do not operate the impact wrench for more than 15 seconds
unless the fastener begins to turn. If the fastener fails to turn within 15 seconds, reverse the direction
of rotation and operate the impact wrench in a forward direction on the fastener for a few seconds.
Then, switch back to the reverse direction and remove the fastener. This procedure will usually break
loose seized or “frozen” fasteners.
After Each Use
⚠WARNING
Store the tool in a dry and clean place.
Keep the wrench away from children.
Maintenance
⚠WARNING
When servicing, use only identical replacement parts. Use of any other part may create a hazard
or cause product damage.
Do not at any time allow brake fluids, gasoline, petroleum-based products, penetrating oils, etc., to
come into contact with plastic parts. They contain chemicals that can damage, weaken, or destroy

Page 12 of 17
plastic.
All of the bearings in this wrench are lubricated with a sufficient amount of high-grade lubricant for
the life of the unit under normal conditions; therefore, no further lubrication is required.
Maintain the wrench by adopting a program of conscientious repair and maintenance in accordance
with the following recommended procedures. It is recommended that the general condition of any tool
be examined before it is used. Keep your tool in good repair. Keep handles dry, clean, and free from
oil and grease. The following chart is based on a normal operation schedule.
Maintenance Interval
Maintenance Point
Daily before operating.
Check for damaged parts and replace as needed, such as the
motor brushes which are normal wear items.
Troubleshooting
Use the table below to troubleshoot problems before contacting service personnel or your local
dealer. If the problem continues after troubleshooting, call your local dealer for assistance.
Failure
Possible Cause
Corrective Action
Decreased
output.
Parts damaged.
Check for loose connections or
improper parts installed.
Obstructed trigger.
Clean around trigger to ensure free
movement.
Housing heats
during use.
Parts are worn.
Replace parts as needed.

Page 13 of 17
Parts Diagram

Page 14 of 17
Parts List
Reference
Part Description
Quantity
1
ST4.9×50 Screw
4
2
5mm Lock washer
4
3
5mm washer
4
4
Rubber sleeve
1
5
Aluminum shell
1
6
O-ring
1
7
Bushing
1
8
Washer
1
9
Drive shaft
1
10
ф6.35mm Ball
2
11
Impact block
1
12
ф5mm Ball bearing
24
13
Washer
1
14
Torque spring
1
15
Intermediate shaft
1
16
Planetary gear
3
17
Pins
3
18
Washer
1
19
Bearing 6002 2RS
1
20
Circlip
1
21
Ring gear
1
22
Oil seal ring
1
23
Gear box
1
24
Felt seal ring
1
25
Bearing 6001 2RS
1
26
Rotor
1
27
Bearing 608 RS
1
28
Bearing boot
1
29
Air deflector
1
30
ST3.9×70 Screw
2
31
Stator spacer
1
32
Stator
1
33
Handle
1
34
ST3.9×19 screw
7
35
Switch
1
36
Terminal block
1
37
Strain relief
1
38
Cable
1
39
Housing
1
40
Carbon brush holder
2
41
Brush flat coil tension
2
42
ST2.9×18 screw
4
43
Carbon brush
2
44
Motor end cap
1

Page 15 of 17
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 16 of 17
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only
(''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of one year from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 17 of 17
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
