JAYMAX INDUSTRIAL CO. M1029 User manual

1
USER MANUAL
Model : M1029
FCC ID:2AJEA-M1029

2
Content
1. Attention..............................................................................................................................................3
2 Main function.......................................................................................................................................3
3 Appearance and button...................................................................................................................5
4Firstuse
.................................................................................................................................................5
4.1 Battery management and Charge..............................................................................5
4.2 Connection with PC..........................................................................................................6
5.Equipment operation interface....................................................................................................6
5.1 Main interface describe ................................................................................................6
5.2 Status bar describe...........................................................................................................7
5.3 Use touch panel..................................................................................................................7
6.Equipment basic set setting..........................................................................................................7
6.1 Silent mode,Volume,Notifcation ringtone,Audible selection,Screen
lock sounds.............................................................................................................................................. 8
6.2 Aplication..............................................................................................................................8
6.3 Privacy....................................................................................................................................9
6.4 Storage................................................................................................................................10
6.5 Language & Keyboard...................................................................................................10
6.6 Data & time aetting........................................................................................................11
6.7 USB mode select..............................................................................................................11

3
6.8 About device......................................................................................................................11
7.Apps Install and manage...........................................................................................................12
8.Problem Solution...........................................................................................................................13
8.1 Device can’t open............................................................................................................13
8.2 Device shut down after start up............................................................................... 13
8.3 Headset can’t hear the voice ....................................................................................13
8.4 Can’t copy file or play music and so on ................................................................13
1. Attention:
Please don’t be in high temperature, moisture or very dust place

4
Avoid fall or Violent collision of the device, don’t make the TFT display screen were
violent tremor, This could cause TFT display screen abnormal or damage.
please charge In the following condition,
A、The battery power ICONS shows have no power
B、The system automatically shut off, startup after power off soon
C、Operation buttons no response
D、The machine that the top right corner show red icons
When the device in the format or ongoing upload and download file, please don't suddenly
disconnect, this could cause application error.
Don’t disassemble the product, don’t use alcohol、Thinner or benzene to scrubbing
products
USB just only be used for data transmission
2.Main function
Operation systems: Android 5.1
Processor: ALLWINNER A83T
CPU processor speed: Octa core, ARM Cortex A7 1.8--2.0GHz
Memory: 16G FLASH
RAM: 2G DDR3
WI-FI Function: AP6210，802.11b/g/n
BT4.0(BLE)
TF card: 128M-64GB
Display screen:10.1inch Capacitive multi-touch

5
Resolution: 1920*1200
Dual camera: Front:2.0M Pixels；Rear:5.0 M Pixels AF
Battery and capacity: rechargeable Built-in type polymer battery, 3.8/5500mAh
USB: 2.0
G-sensor 3D
Support Speaker
Record: built-in microphone
MIC phone：input
Video: AVI, MKV(XVID/px/H.263/H.264), MOV, TS, M2TS, RM/RMVB, FLV, 3GP,
MPEG1 UP TO MP, MPEG2 UP TO MP,MPEG4 UP TO ASP LEVEL 5.2,DAT, MP4 MVC
Music: MP3、WMA、APE、FLAC、OGG、WAV
Pictures: JPG, JPEG, BMP, and PNG
Recording function: Format supported:WAV Format
E-book Function: Format Supported:TXT、LRC、PDF、Html、Htm、EPUB
Working temperature: -5 ~ 40 ℃
Languages: Chinese、English,、Japanese、French、German、Spanish、Russian,etc.
The company reserves the right to improve product, products specification and
design have any change, and the information is subject to changes without prior
notice.
(This tablet without waterproof function)

6
3. Appearance and button:
I/O Connector
1.Power Switch; 2.Earphone Jack;3.DC Jack;4.micro USB port/USB Host port;5.mini HDMI
port;6.TF - Card (Micro SD);7.reset
4. First use
4.1 Battery management and charge
Before first use, please set the device's battery is fully charged
The first two times charging please keep about 6 hours, after that you just need 4 hours to
charge.
【Remark】: This tablet using Built-in type polymer battery, Charge must be to choose
standard adaptor（Adaptor: power supply: DC 5V 2A, adaptor technical data: input
AC110-240V,50/60Hz, Max: 500mA, DC5V 2A)
4.2 Connection with PC

7
Use USB cable to connect with tablet PC, first turn on, next step click on the left device will
pop up the USB connection window; last turn on USB storage to connect to PC
Into the load mode, you can copy; delete the file on the device and the file on the memory
card.
5. Equipment operation interface
5.1 Main interface describe
After startup will enter the main interface, In the main interface, you can:
Management main interface software ICONS: long press the icons 3 second, after th
e icons will bigger, then you can drag anywhere in the interface.
Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it
become red, Loosen your hand, after that you can delete icon

8
You touch the screen keep a time, appear the dialog box” Choose wallpaper from” as shown
below

9
5.2 status bar describe
Bottom right display the battery, battery charge icons, current time, Settings Menu
5.3 Use touch panel
No matter which interface you are on the screen, can go back to main screen through
pressing the soft key on the bottom middle corner of the main screen.
In different applications, by tapping the back soft key on the bottom middle
corner on the touch screen, you can return to its interface on the upfloor. By tapping the
soft key on the bottom middle corner on the touch screen, tablet pc will be to
display the current all running applications.
6. Equipment basic set Setting:

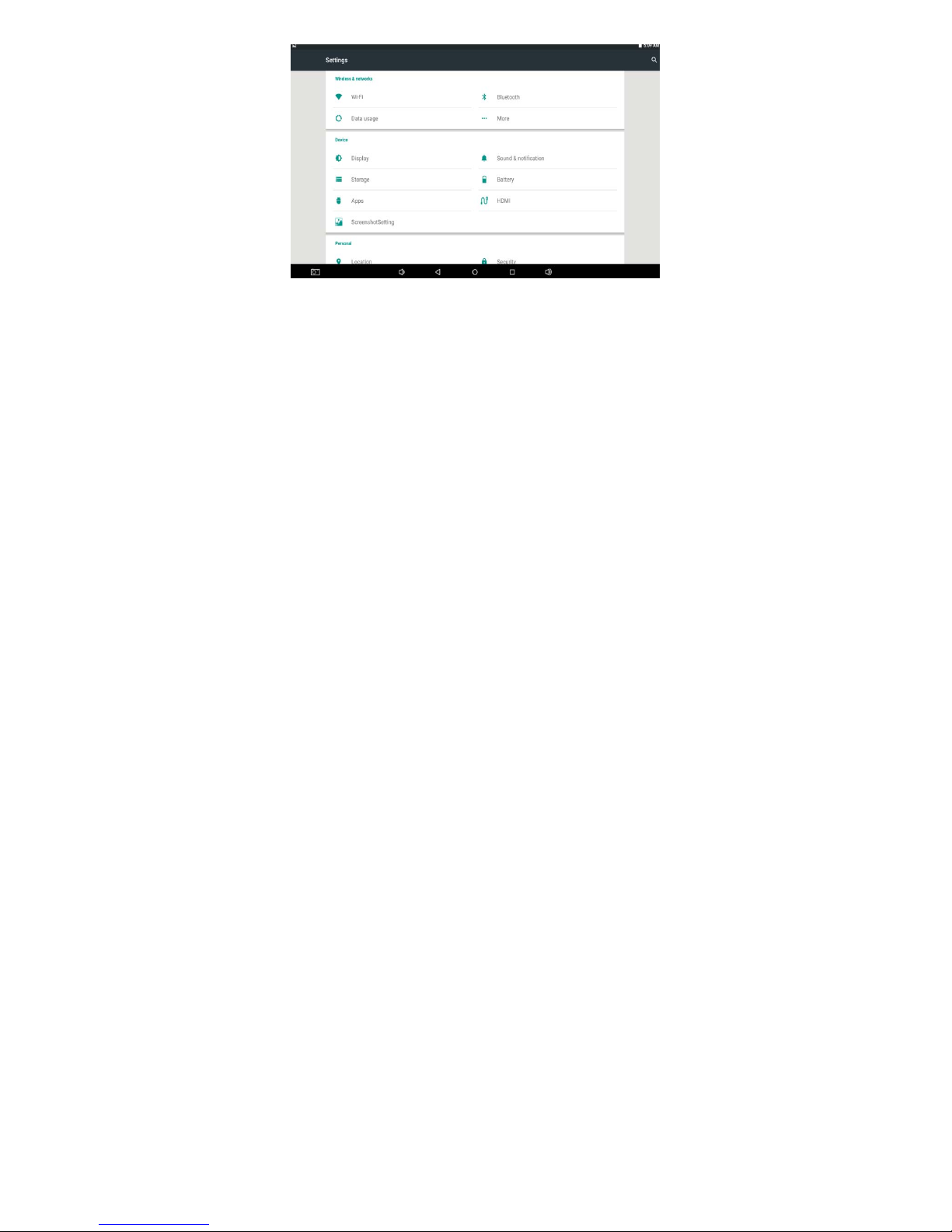

Click setting icons enter setting interface

10
6.1 Silent mode, Volume, Notifcation ringtone, Audible selection, Screen lock
sounds.

11
6.2 Application
Manage applications

12

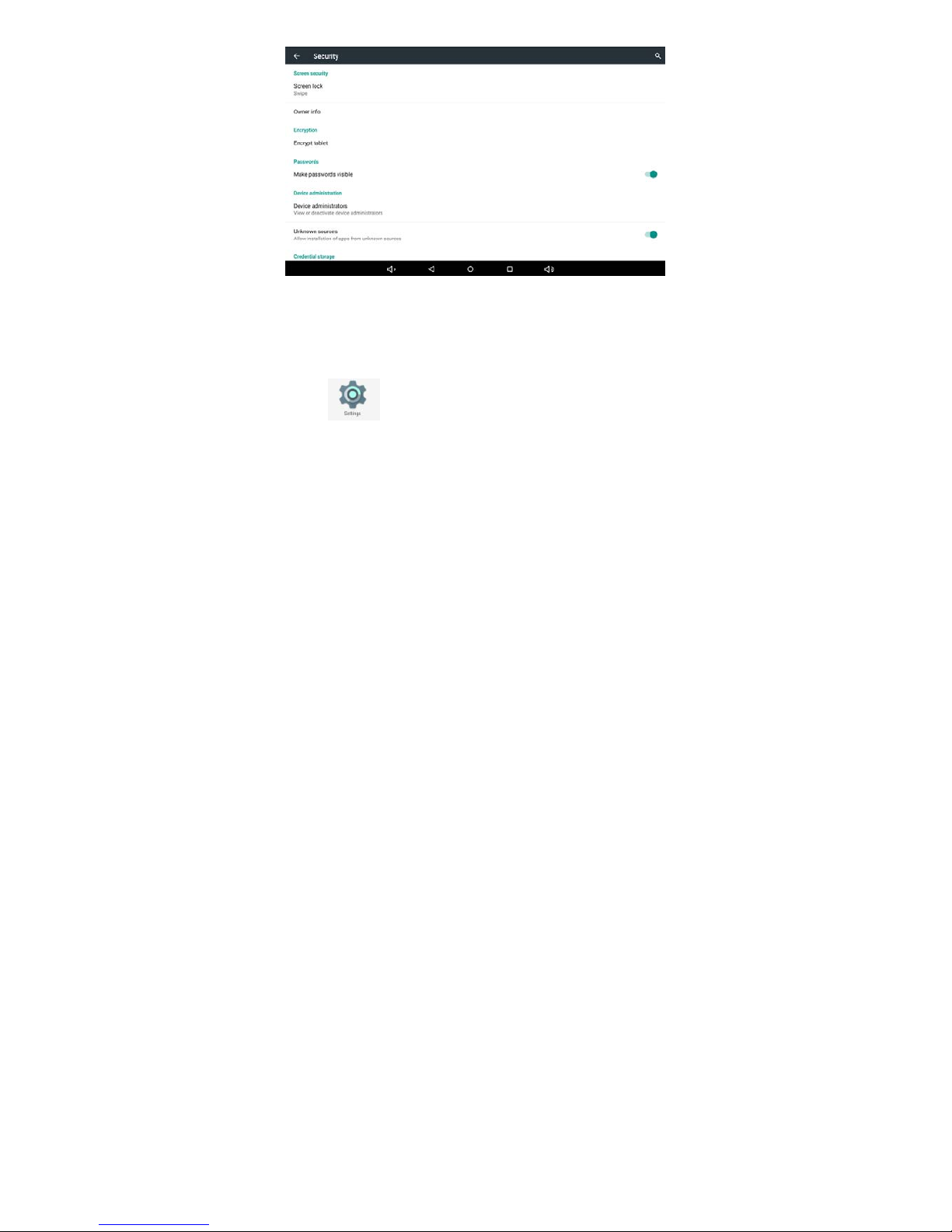

Unknown sources: Click “Unknown Sources”, then click “OK”
Manage application: manager and uninstall Application
【Remark】: when you Firmware Upgrade, please close the USB connect
How to uninstall?
A、enter “setting”>”Application”>”Manage application” And then there will be
installed the program list
B、Click you want to uninstall icons, will enter the following interface
C、Click Uninstall, then you can delete the application
6.3 Privacy

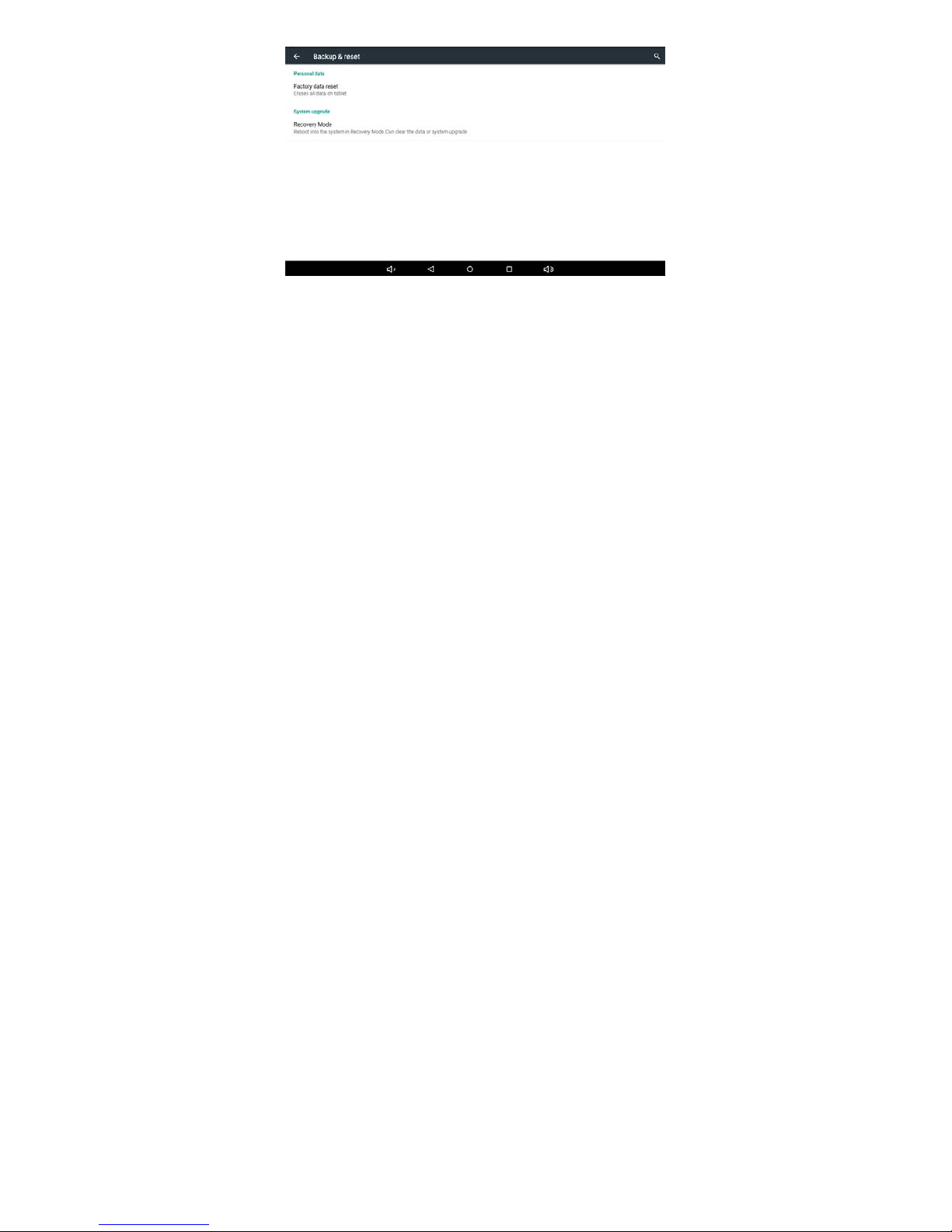

Factory data reset

13
6.4 Storage
Remove TF card ，view of the available storage space

14
【Remark】: please touch option” delete SD card”, so that can safety to remove SD card
6.5 Language & keyboard
Setting: (Language), text input and automatic error correction options;

15
Select Language: 54 kind of national languages are available
6.6 Date & time setting
Set date, set time, Select time zone and select date format

16
6.7 USB Mode Select
Choose USB work pattern: OTG/HOST……
6.8 About device

17
7. Apps Install and manage
App installer
This Tablet can support Android APP in market by third party, most Apps can install in the
network, can copy to NAND FLASH or SD card.
Click App installer icon, will appear Install, manage, Exit options.

18
Install: Click install, enter Apk install interface
Separately for Internal Memory disk and SD Card disk.
Select the APP you which you want to install, click it to install, go back to main menu, will
display the installed app you just selected.
Remark: some 3rd APK must install properly by memory card, downloaded 3rd party app may
not install properly on device.
Manage: click manage, enter third party interface, click install icon, will enter Action
interface.
8. Problem solution
8.1 Device can’t open
A、Check the battery power
B、Connect adaptor first, then check again

19
C、Press the “reset” key first, the press “power” key
D、After charging then can’t to open, pleas contact with the supplier
8.2 Device shut down after start up
After startup the screen or the opening picture has been appear, the device appear
shutdown: Power is not enough, please charge
8.3 Headset can't hear the voice
A、Please check the volume whether set to 0
B、Check the music file whether damaged. Try playing other music.
C、If the file has damaged may lead to serious noise or hop sounds.
8.4 Can’t copy file or play music and so on
A、Please check between computer and device is correct connection
B、check the memory storage space is already full
C、check the USB cable is good or not
D、USB connection is disconnected
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for

20
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
*Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
