JOBO HD 1080P User manual

1
Operation Guide
JOBO JIB 2 Outdoor Sports
HD 1080P Camera

2
WARNING:
Please power off the unit before inserting or removing a card or
USB device.
Failure to do so may cause damage to the card/USB and the unit.
To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
EC-Declaration of Conformity
We declare JOBO International GmbH,
Eintrachtstr. 14,
D-51645 Gummersbach
that the “JOBO HD Sports Camera JIB 2”
complies with the following directives:
EN 55022: 2006+A1: 2007
EN 61000-3-2: 2006+A1:2009+A2:2009 & EN 61000-3-3:2008
EN 55024:2010
(EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2004+A1:2010, EN 6100-4-5:2006,
EN61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004)
This declaration of EC conformity shall become null and void when the assembly is
subjected to any modification that has not met with our approval.
Gummersbach, 02.09.2011 Johannes Bockemühl
Geschäftsführer

3
Main Features
1080P HD video recording
1.5” TFT display screen, real-time display
Professional waterproof housing: IP68 under water 30 meters
Brackets for bicycle, motorcycle and helmet
Replaceable and rechargeable lithium battery
1/2.5 CMOS sensor, 5.0 Mega Pixels
Snapshot, self-timer
Auto white balance and automatic exposure
F/3.0 and night shots
Supports 3X Digital zoom
Auto stand-by for power saving
Review, delete, fast forward, reverse and skip
USB2.0
Built-in speaker and microphone
HDMI output, AV-OUT
Supports TF/Micro SD card up to 32G
Low battery alert
Memory capacity alert

4

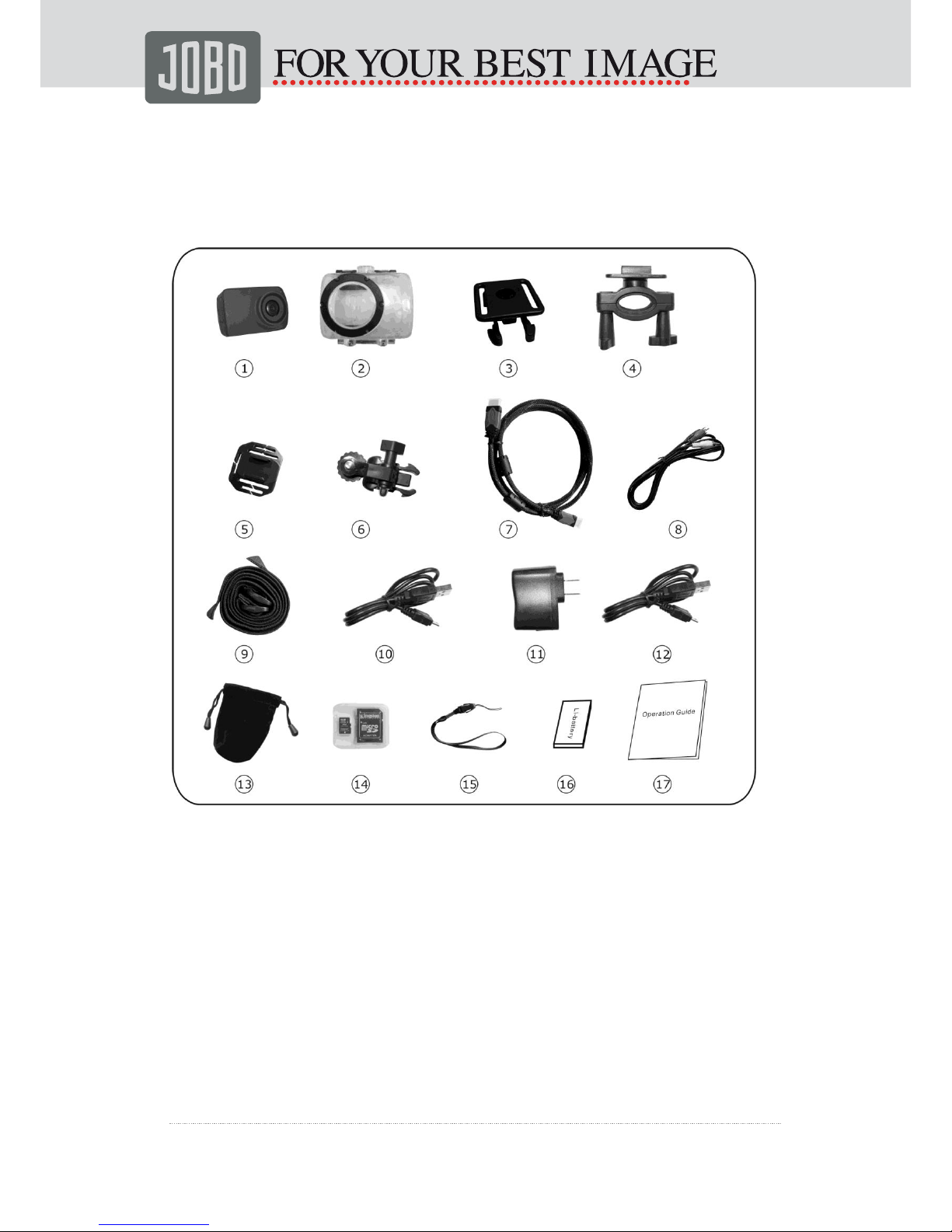

Packing Accessories
1) Camera x 1 2) Waterproof Housing x 1
3) Bracket for Waterproof housing x 1 4) Bicycle/Motor Bracket x 1
5) Helmet Bracket x 2 6) Camera Bracket x 1
7) HDMI Cable x 1(optional) 8) A/V Cable x 1
9) Bandage for Helmet 10) USB Cable x 1
11) Power Adapter x 1 12) Power Adapter Cable x 1
13) Hand Bag x 1 14) Micro SD Card x 1(optional)
15) Hand Strip x 1 16) Li-Battery x 2

5
17) User’s Manual x 1
Note: The photos may vary from the actual objects.
Quick Look
1. Record Button 2. Power on/off switch
3. LED Indicator for Power/Charge (red) 4. LED indicator for Record(Green)
5. DC button 6. USB Socket
7. MIC 8. Battery slot
9. HDMI interface 10. hand strap hole
11. Right Button 12. Speaker
13. Back Button 14. Down Button
15. OK Button 16. Left Button
17. Menu Button 18. TFT Screen
19. Lens 20. Self-timer/Auto REC indicator (red)
21. Micro SD card slot 22. AV OUT socket
23. Built-in Microphone 24. Screw thread interface
Quick Start
This Quick-start Guide introduces the basic operations and functions of HD
1080P Video Camera.
You can use H.264 format to make videos, which makes it easy for you to
share your videos with your family and friends via E-mail. You can also use this

6
video camera to take photos.
Preparations
1. Install the battery.
2. Charge the battery
Connect the camera to power with adapter. The LED will be flashing red.
When the battery is fully charged, the LED will be green.
3. Insert the memory card.
4. Slide the power switch to ON. The following symbols will be shown on
LCD:
1080P
5. Set the Date and Time
Under the preview mode, press Mto go to the main Menu.
Press >.
Then press the button －to select “date and time”
Press <or >to choose the date or time to set, then press OK.
Press +or －to set the digits of the date and time, press OK again to
confirm the set.
Finally, press －to select the icon [√] or [X]，and press OK to confirm that
date and time to be stamped or not.
Record
Battery Capacity
Status
Micro SD Card
Capacity Status
Audio
Without Micro SD
Card
00:00:00 Recording
Time
With Micro SD Card
1080P Video
Resolution
Playback

7
6. Set the Parameters
Power on the camera. Press M, then press <or >to turn left or right, press
+or －to go up and down, press OK to set the menu you select, then
press Magain to exit the setting.
REC modes: video mode or audio recording mode
1080P (1920 x 1080) @ 30fps
720P (1280 x 720) @ 60fps
WVGA (848 x 480) @ 60fps
QVGA (320 x 240) @ 30fps
Photo parameter: single shot mode, three-shot mode, self-timer mode
Photo resolution: optional :3M/5M/8M
System parameters:
Remind Sound: turn on [√] / off [X] the sound
Date and Time: please set the time before using. The time will be stamped
at the lower right corner of the video file while recording if you choose [√].
Loop Coverage: when it is in “Loop coverage” mode, the videos will be
saved separately every 15 minutes.
Auto Standby: you can set the video came in auto standby mode in 0
minute, 2 minutes, 5 minutes or 10 minutes. When video camera is in the
Auto Standby mode, press the REC or DC button to wake up it.
TV OUT format: NTSC、PAL. You can choose TV OUT format, if you
change the format, you need to re-plug the AV extension cable to make the
change efficient.
Format: Press OK button, then press <or > to choose [√] or [X].
Resume to default setting: this operation will resume to the default setting
Language: English
Frequencies: 50Hz, 60Hz; select it according to the local frequencies to
avoid the flicker caused by the mismatched frequency.
Time and Date: set the time and date.
LCD Power Save: Press OK button, then press <or > to set LCD Power
Save Time: 0, 2, 5 and 10 minutes later to activate the function. Press REC
or DC button to wake up it.
Note:
At Loop Recording mode, the video files will be saved separately automatically every 15
minutes. Otherwise, the video files will be saved separately automatically every 30 minutes.

8
If you use the digital zoom function while recording, the video file will be bigger. It will be saved
separately less than 15 or 30 minutes.
Video Recording
The Compression Technique —H.264 ensures high quality videos.
1. Make sure the memory card inserted has enough capacity, then slide the
power switch to ON. The LED will lights red. The video will be shown on
the LCD.
2. Under the preview mode, press the button REC, the video camera begins
recording, the recording time will appear on the screen, the recording LED
indicator flicks green slowly and the Self-timer/Auto REC indicator flicks
red slowly.
When the video camera is recording, press the button +or - to zoom in or
out (except in 1080P mode). Press REC again to stop the recording.
Note:
Mirror Function: at preview mode, Press OK button, then press <or > to activate the Mirror
function.
Reverse: at preview mode, Press OK button, then press <or > to reverse the video.
Photo Taking
Set the image resolution:
press the button M, then press the button >to select the icon PHOTO, click the
icon Image Resolution, and then press OK to set the image resolution.
Image resolution: 2048×1536 (3M); 2560×1920 (5M); 3200×2400 (8M)
1. Self-timer mode:
Press the button M, then press the button >to select the icon PHOTO,
choose Self-timer. Press the button OK to set the time interval: 0 sec
/5sec /10sec. In that time, press the button DC, the camera will take
pictures according to the time interval you have set.
2. Sequence mode:
Press the button M, then press the button >to select icon PHOTO, choose
Sequence Mode, press the button OK to set the time interval: 0 sec/2 sec
/3 sec /5 sec /10 sec/20 sec /30 sec /60 sec, then press the button Mto
exit from the setting. Then if you press the button DC, the camera will take
pictures according to the time interval you have set. Press the button DC
again will cancel or stop photo taking.

9
3. Manual Mode:
When the video camera is power on, press the DC button, the camera will
take one picture, the indicator light will flick one time.
4. Three-shot mode:
Press the button M, then press the button >to select the icon PHOTO,
choose Three-shot Mode. Then if you press the button DC, the camera
will take three pictures consecutively.
Audio Recording
1. Press the button M, then press OK, press the button <or >to select REC,
press OK to confirm it, and then press the button Mto exit.
2. Press the button REC, the green indicator light flicks slowly, the recording
time will be displayed on the screen.
Play videos or display photos on Camera
Under the preview mode, press the button PREVIEW to go to the interface of
playback.
● Video files: select the menu Video File, press OK to preview the
recorded video files or audio files, press the button - to go to the thumbnail
preview of files. When viewing the video files or audio files, press the
button M, you can delete or protect the files: <Delete> <delete all>
<protect>
The functions of the buttons when the camera is playing video files:
1. +：increase volume
2. -：reduce volume
3. <：Fast Backward
4. >：Fast Forward
5. Playback：pause/play
6. OK：start/stop
● Audio files: press the button <or >, select the audio file you want to play,
press the button OK to start/stop playing the file. In this situation, press
the button +or -to increase or reduce the volume, press the button
PLAYBACK to pause or stop playing the file.

10
● Photo files: press the button <or >, select the photo files you want to
display.
The functions of the buttons when the camera is displaying photo files:
1. +: zoom in
2. -: zoom out, thumbnail
3. <：select left pictures; in “ZOOM IN” mode, it can move up the pictures .
4. >：select right pictures; in “ZOOM IN” mode, it can move down the pictures.
5. Playback：exit/delete
<Delete One>：Press OK button twice, then choose YES or NO.
<Delete All>: If you choose YES, all of the unprotected photos /videos will
be deleted.
<Protect>：If the files are protected, the LOCK icon will be shown on the
files. You can choose the function once again to unprotect it.
The protected files cannot be deleted but can be formatted.
<AutoPlay>：The files will be played every 5 seconds.
<DPOF>: The icon DPOF will be shown on the files if you chose this
function.
DPOF: Digital Prints groups Format
6. OK：at “ZOOM IN” mode, press the button OK, press the buttons UP, DOWN,
LEFT and RIGHT to move the pictures vertically and horizontally.
Play videos or display photos on TV
You can enjoy HD videos on the ordinary TV or HD TV.
1. Connect TV Out: under the preview mode of turning on the video camera, use
the AV cable to connect the video camera, the pictures will display on the TV’s
screen.
2. Connect HDMI OUT: under the preview mode of turning on the video camera,
use HDMI cable to connect the video camera, the pictures will display on the
screen of HD TV.
View the videos and photos on the computer
A simple but interesting step, enjoy it!
1. Connect the video camera USB with the computer, you can copy the videos or
photos to the computer, edit them and share them with your family and friends.
2. Use a USB cable to connect the video camera with the computer, you can
copy the videos or photos in the micro SD card to the computer, and then you
can play them on the computer.
Tips:
Make sure the video camera is power off before you plug the USB cable.

11
When the power is OFF, inserting a USB can recharge the video camera.
When the power is ON, connecting the camera to the computer, you can
copy the content in the memory card.
Specification
image sensor
500 万CMOS SENSOR（2592*1944）
visual angle
150 degrees
3M(2048*1536)/5M(2560*1920)/8M(3200*2400) three formats
REC
1080P（1920*1080）720P（1280*720）WVGA（848*480）QVGA
（320*240）four modes
frame rate
1080P/30fps 720P/60fps WVGA/60fps QVGA/30fps
video file format
MOV（H.264 compression）
photo file format
JPEG
Storage medium
Micro SD/MMC（up to 32GB SDHC）
storage space
consumption
(2GB SD card)：taking photos 3M(1900 photos) 5M(1160 photos)
8M(770 photos)
shooting
1080p（30frames/second）:1 hour ;
WVGA(60frames/second),2hours ,QVGA, (30frames/second), 4hours
digital zoom
A2S30+MI5100+512Mb DDR2，3x digital zoom
AV OUT
support NTSC/PAL analog video output & HDMI output, support analog
audio output
PC port
USB2.0(USB’S FUCNTIONS)
Microphone
Built-in MIC、Speaker
power dissipation
[email protected](MAX)
lithium battery
1000mAh
Recording time
2.5 hours（one battery）
operation platform
(1080P)
Windows XP SP2/Vista or Above/Mac OS
CPU
≥Pentium 4 1.5GHZ
RAM
≥1GB
RTC
support
storage
temperature
-20℃–50℃
working
-10℃—50℃

12
temperature
working humidity
15~85%RH
Trouble Shooting
Trouble
Reason
Solution
LCD and LED does
not light when power
on
Check the
POWER Switch
Make sure the Power Switch was slide to
ON position.
Check the
battery
1. Make sure the battery is installed
correctly.
2. Make sure the battery is full recharged
before using. To charge it with the
power adapter.
LED light red, LCD
does not display when
power on
Check the TF
Card
1. If the TF Card is damaged, the camera
system will not work.
2. Format the TF Card with SD Card
Reader on computer. Then reinstall the
TF card to the camera. If still not work,
change the TF Card please.
Cannot record or take
photos
Check the TF
Card
Format the TF Card on the camera
System Error
Power off the camera, then power on again
The video and photo is
not clear enough
Hand Shake or
the light is not
enough
1. When the light is not enough, the
system will adjust the light
automatically. You should hold the
camera for longer time.
2. Hold the camera firmly while recording
for taking photos. You are suggested to
use Tripod.
LENS is dirty
Clean the lens with special paper.
The video or
photo mode is
not set properly
You are suggested to set the video at HD
1080P mode and 8M for photos.
Buttons no response
System Error
Take out the battery, then reinstall to power
on the camera

13
7Warranty conditions
This product is subject to the legal warranty periods relating to manufacturing
faults and defects.
Substance of the warranty:
1. In the event of malfunctioning caused by manufacturing defects JOBO will
repair or replace the defective product at its own discretion.
2. JOBO and its suppliers do not assume any liability for data losses
occurring during operation of the device or consequential damage resulting from
this. Under no circumstances will JOBO assume liability for any direct, concrete or
special damage or consequential damage like for example damage to or loss of
property or devices, loss of profits or sales, costs for spare parts, expenditure or
inconvenience caused by the interruption of service or any other damage. The
user will be exclusively responsible for the loss, damage or destruction of data
during the operation of a JOBO product. Under no circumstances will JOBO be
liable for the recreation of such data. Under no circumstances can claims be
lodged that exceed the purchase price of the product.
3. The following repairs are not covered by the warranty and must be paid for
separately:
- Malfunctions after the end of the legal warranty periods
- Change of battery after the end of the warranty period
- Change of hard disk after the end of the warranty period
- Malfunctions due to incorrect operation by the user (if device is not used as
described in the manual)
- Malfunctions caused by other devices
- Changes or damage to the device not caused by the manufacturer; especially,
warranty claims will lapse if the device has been opened by anyone other than by
a JOBO repair workshop
- Damage caused by natural disasters (acts of God)
- A hard disk change during the warranty period must only be performed by
JOBO. Such a change by any other party will entail the loss of all warranty claims.
If you want to make any claims under the warranty you are asked to contact the
Technical Service of JOBO. You will be expected to quote the serialnumber of the

14
JOBO product and may also have to submit proof of purchase to show that the
warranty period has not yet elapsed.
8 Contact/Service
If you have any questions on or need help with our products please do not
hesitate to get in touch with our Technical Service. You can reach our service
people by phone under the telephone number indicated below from Monday
through Thursday from 9:00 am to 4:00 pm and on Friday from 9:00 am to 1:00
pm. Independently of these service times you can also get in touch by e-mail, fax
or mail:
JOBO International GmbH
Kölner Straße 58 A
D-51645 Gummersbach
E-Mail: [email protected]
Fax: [phone] www.jobo.com
9 Waste Management
Packaging
To avoid damage and pollution of the product the Photoframe will be delivered
within a packaging. Zum Schutz vor Schäden wird das Gerät in einer
Transportverpackung ausgeliefert. These Packaging can be recycled.
Disposal of WEEE (Waste Electrical and Electronic
Equipment)
Devices marked with the WEEE logo are subject to the European Community
Directive 2002/96/EC.
Waste Electrical and Electronic Equipment must be separated from household
rubbish and disposed at sites that collect WEEE.
By orderly disposing WEEE you will avoid damage caused to the environment.
Service: To guarantee a product always at the best standard this manual
as well as the product itself are subject to alterations.

15
Subject to technical changes
