JVC AV-1414EE, AV-2134EE, AV-1434E User manual

COLOURTELEVISION
INSTRUCTIONS
Thank you for purchasing this JVC
colour television.
To ensure your complete
understanding, please read this
manual thoroughly before operation.
Locations ................................ 2
Preparation ............................. 4
Basic operation .................... 10
Remote control buttons
and functions........................ 11
Using the TV’s menus.......... 14
Using the button
on the TV............................... 17
Viewing a teletext
programme ........................... 19
Troubleshooting ................... 21
Specifications....................... 22
Contents
LCT1029-001A-H
0701-Ki-NV-JMT
2001 VICTOR COMPANY OF JAPAN, LIMITED
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
•TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES
REGARDING THE USE OF THIS TV.
•Operate only from the power source specified on the TV.
•Avoid damaging the power plug and power cord.
•Avoid improper installation and never position thisTV where good ventilation is
unattainable.When installing this TV
distance recommendations must be
maintained between the floor and
wall, as well as installment in a tightly
enclosed area or piece of furniture.
Adhere to the minimum distance
guidelines shown for safe operation.
•Do not allow objects or liquid into the cabinet openings.
•In the event of a fault, unplug this TV and call a service technician. Do not
attempt to repair it by yourself or remove the rear cover.
•When you don’t use thisTV for a long period of time, be sure to disconnect the
power plug from the AC outlet.
15 cm
10 cm 15 cm
10 cm
AV-1414EE AV-2134EE
AV-1434EE AV-1434TEE
AV-2104EE AV-2104TEE
AV-2114EE AV-2134TEE
AV-2124EE

2
Locations

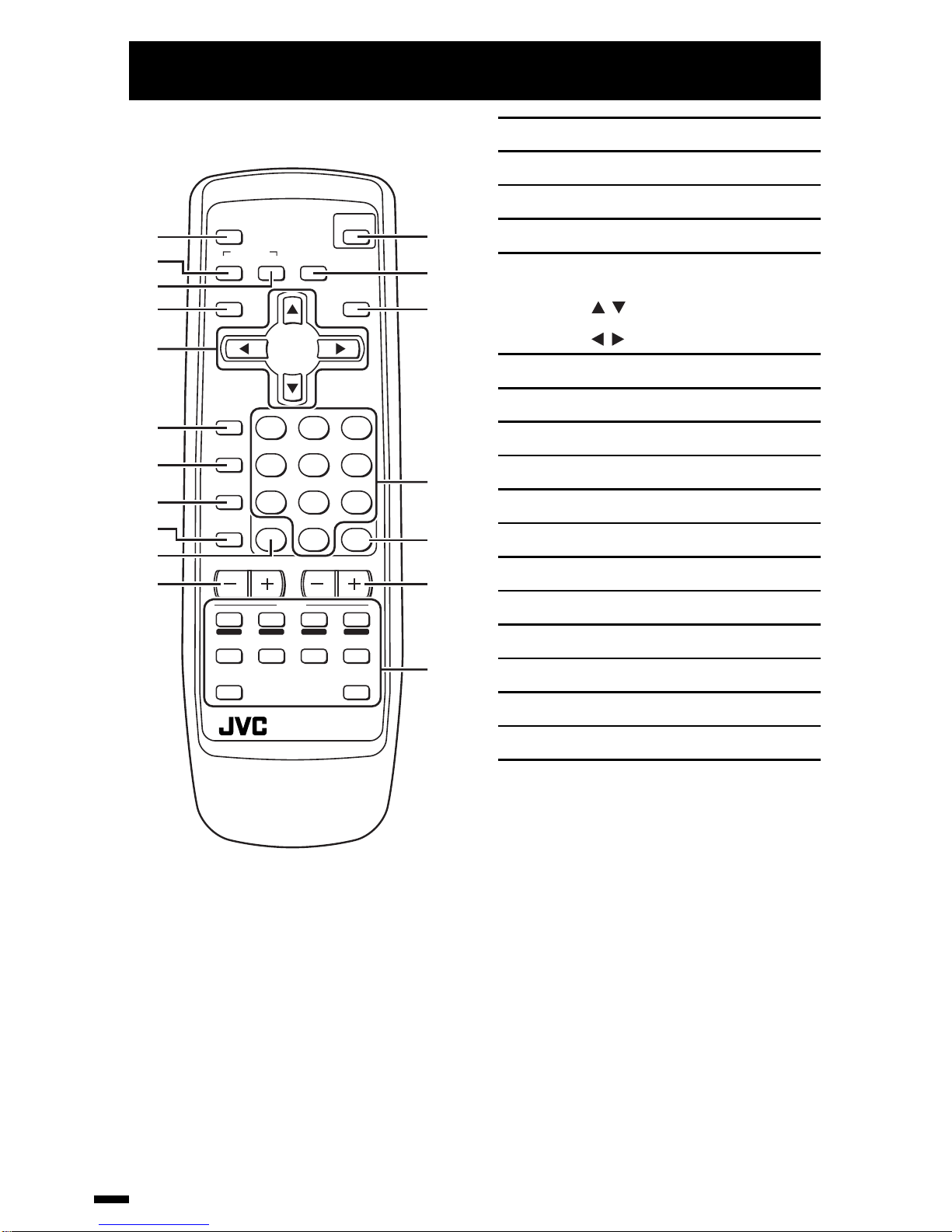

1ECO SENSOR button p.11
2COLOUR SYSTEM button p.11
3SOUND SYSTEM button p.11
4DISPLAY button p.12
5MENU buttons
• MENU
/
buttons
•MENU
/
buttons
6TV/VIDEO button p.10
7OFF TIMER button p.12
8PICTURE MODE button p.12
9CHANNEL SCAN button p.13
0RETURN + button p.13
-CHANNEL –/+ buttons p.10
=POWER button p.6,10
~MUTING button p.11
!% Teletext buttons p.19,20
@Number buttons p.10
#-/-- button p.10
$VOLUME –/+ buttons p.10
ECO
SENSOR
OFF
TIMER
MODE
CHANNEL
SCAN
REVEAL
SUBPAGE CANCEL
TV
TEXT
HOLD
RM-C90
INDEX SIZE
SYSTEM
COLOUR SOUND MUTING
MENU
CHANNEL
RETURN+
POWER
DISPLAY
TV/VIDEO
TV/TEXT
VOLUME
123
456
789
0-/--
1
4
6
7
8
-
9
0
5
2
3
=
!
$
@
%
#
~
RM-C90

3
1ECO SENSOR button p.11
2SOUND SYSTEM button p.11
3COLOUR SYSTEM button p.11
4TV/VIDEO button p.10
5OFF TIMER button p.12
6CHANNEL SCAN button p.13
7RETURN + button p.13
8DISPLAY button p.12
9CHANNEL –/+ buttons p.10
POWER
123
456
789
RETURN+0-/--
MODE
SYSTEM
COLOUR
TV/VIDEO
CHANNEL
SCAN
OFF
TIMER
ECO
SENSOR
DISPLAY
MENU
VOLUME
MUTING
SOUND
5
6
!
@
9
3
2
1
8
4
7
#
~
-
0
=
CHANNEL

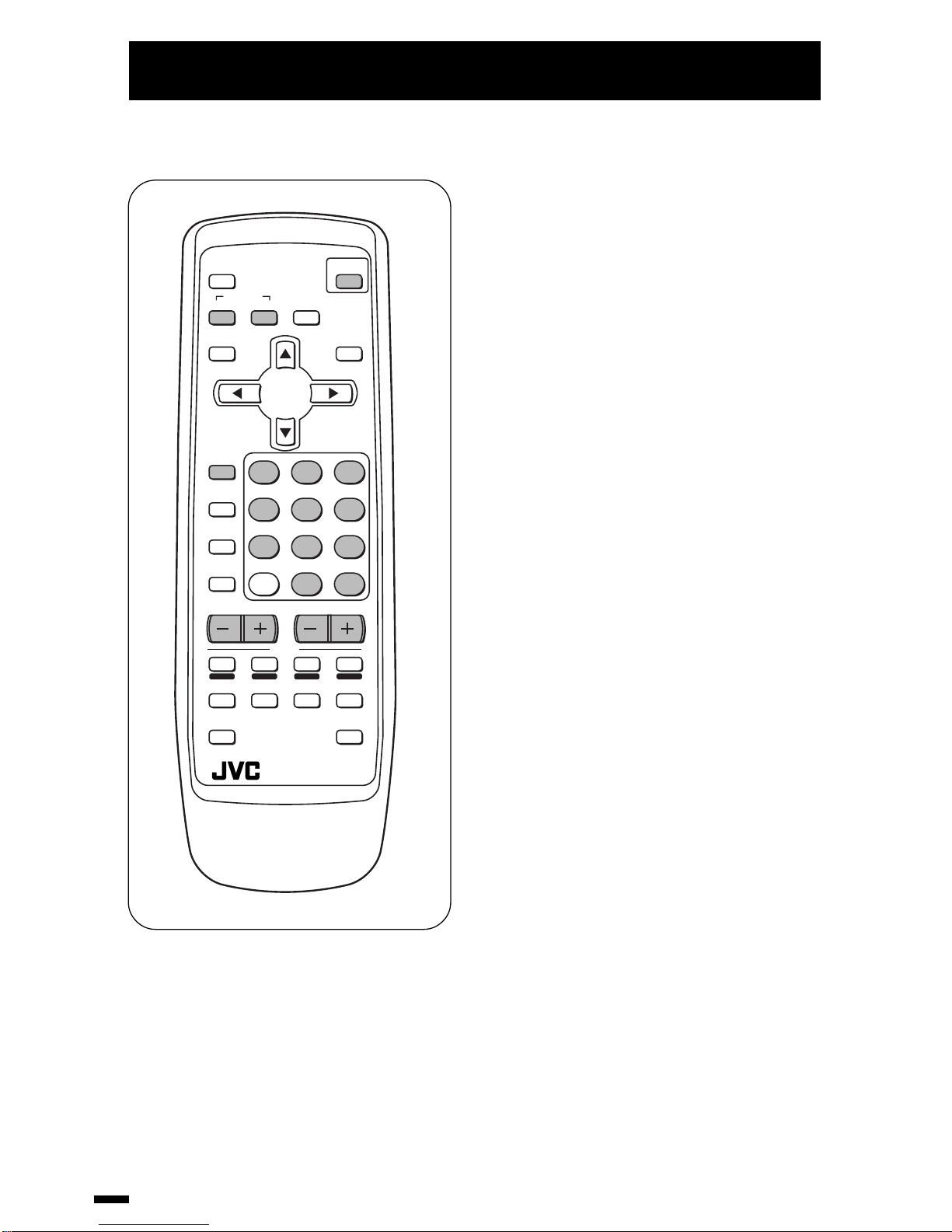

REMOTE CONTROL UNIT
RM-C364GY
0POWER button p.6,10
-PICTURE MODE button p.12
=Number buttons p.10
~-/-- button p.10
!MUTING button p.11
@MENU buttons
•MENU
/
buttons
•MENU –/+ buttons
#VOLUME –/+ buttons p.10
RM-C364GY RM-C360GY
POWER
123
456
789
RETURN +0-/--
MODE
SYSTEM
COLOUR
TV/VIDEO
CHANNEL
SCAN
OFF
TIMER
DISPLAY
MENU
VOLUME
MUTING
SOUND
5
6
!
@
9
3
2
8
4
7
#
~
-
0
=
CHANNEL
REMOTE CONTROL UNIT
RM-C360GY
Locations

4
Preparation

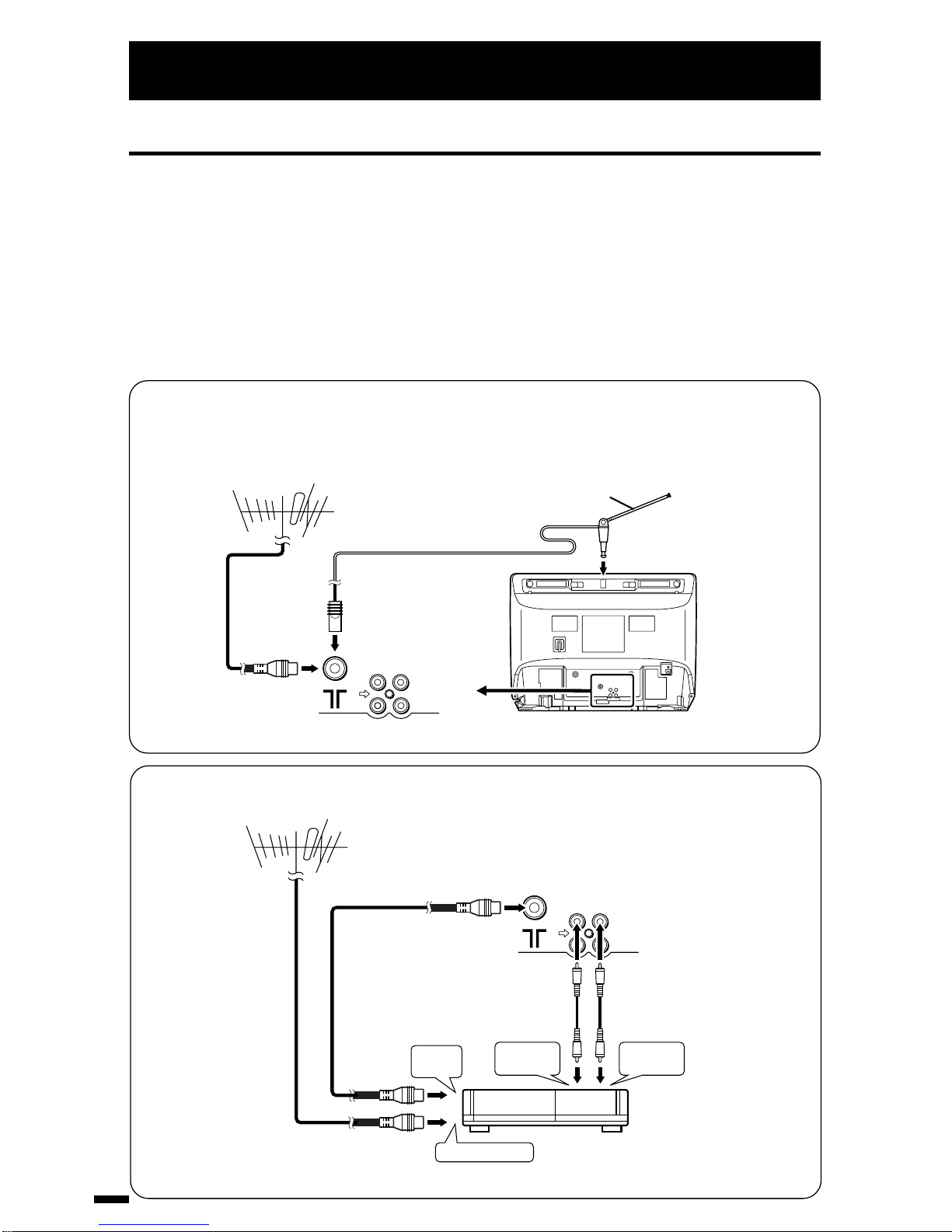

1. Connecting the aerial and external devices
Notes: .........................................................................................................................
•For further details, refer to the manuals provided with the devices you are connecting.
•Connecting cables are not supplied.
•The front and rear AUDIO/VIDEO input jacks are directly connected so that input to either
jack is output through both.You cannot provide input to both the front and rear jacks at the
same time.Disconnect one input, or use one of the jacks as an output jack only (for
monitoring or recording).
•The rod aerial is supplied with the AV-1434TEE/AV-1414EE/AV-1434EE.
....................................................................................................................................
■Connecting the aerial andVCR
Connecting the aerial
To install rod aerial:
Install into the top-rear aerial holder. Once installed, it cannot be removed.
•Illustration of AV-1434EE.
VHF/UHF outdoor aerial
VIDEO AUDIO
IN
OUT
Indoor aerial
Rod aerial
To RF
output To video
output
To aerial input
To audio
output
3
2
VCR
VHF/UHF outdoor aerial
1
VIDEO AUDIO
IN
OUT
•Illustration of AV-1434EE.
Connecting the aerial and VCR

5
Preparation

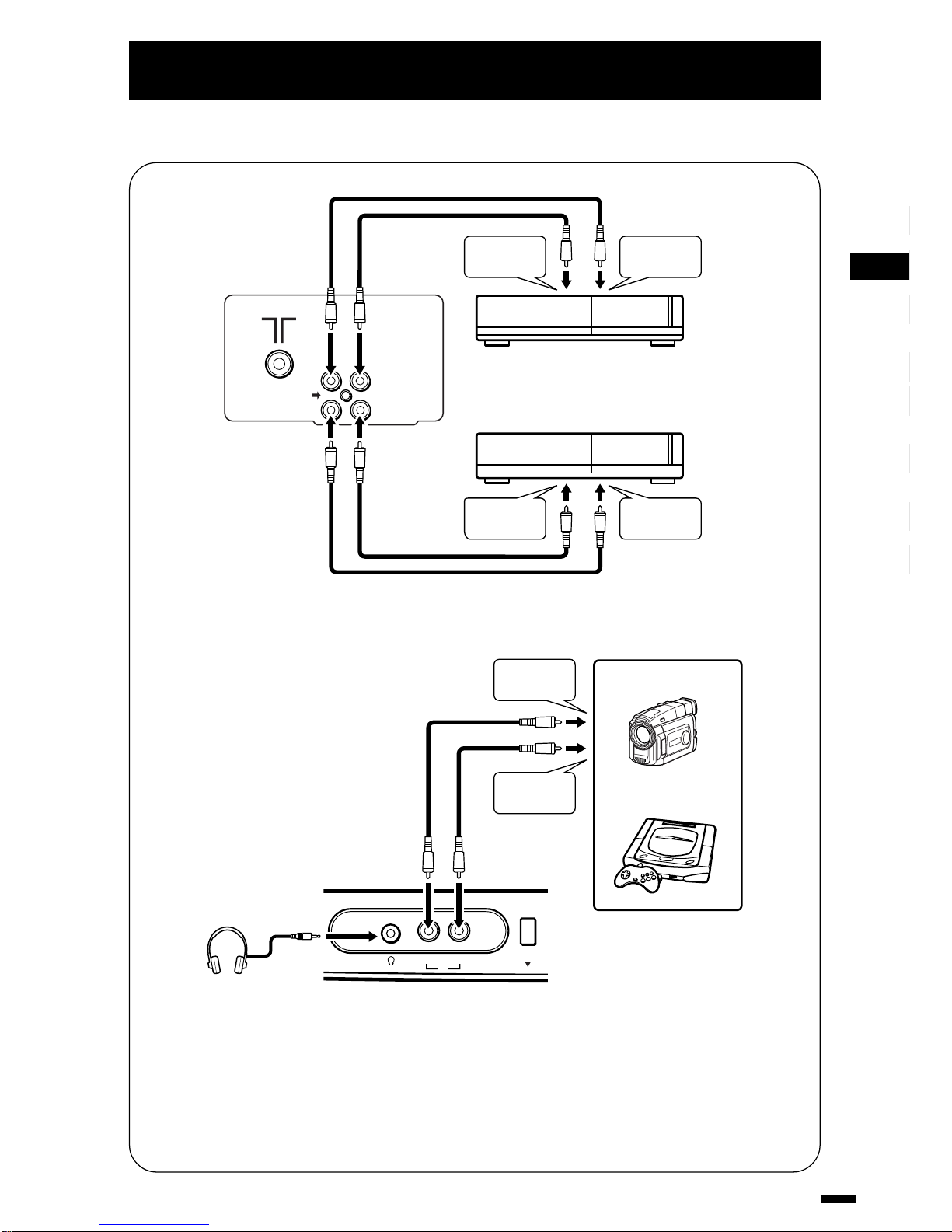

■Connecting other external devices
Note: ..................................................................................................................
•Use the headphones with a stereo mini jack (3.5 mm in diameter).When you connect
the headphones, theTV speakers go off.
...........................................................................................................................
•Illustration of AV-2104EE.
VIDEO
IN
OUT
AUDIO
VCR (for recording)
VCR (for playing)
To audio
output To video output
To audio
input To video input
•Illustration of AV-2104EE.
VIDEO AUDIO
IN
MENU
To audio
output
To video
output
Headphones
Camcorder
or
TV game

6
Preparation
CAUTION:...........................................
•Follow the cautions printed on the
batteries.
............................................................
Notes: .................................................
•Use AA/R6/UM-3 dry cell batteries.
•If the remote control does not work
properly, fit new batteries.
The supplied batteries are for testing, not
regular use.
............................................................
4.Turning yourTV on
1. Press the Main power button on the TV to turn theTV’s main power
on.
The POWER lamp or POWER/ON TIMER lamp lights.
If image does not appear:
Your TV is in the standby mode. Press the POWER button on the remote control
to turn your TV on.
•You can also turn on your TV by pressing the CHANNEL –/+ button on your TV.
To turn yourTV off:
Press the POWER button on the remote control.Your TV enters the standby
mode.
To turn theTV’s main power off:
Press the Main power button on the TV.
2. Connecting the power cord
Insert the Power plug into an AC outlet.
3. Inserting batteries into the remote control
Correctly insert two batteries, observing the and polarities and inserting the
end first.

7
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY

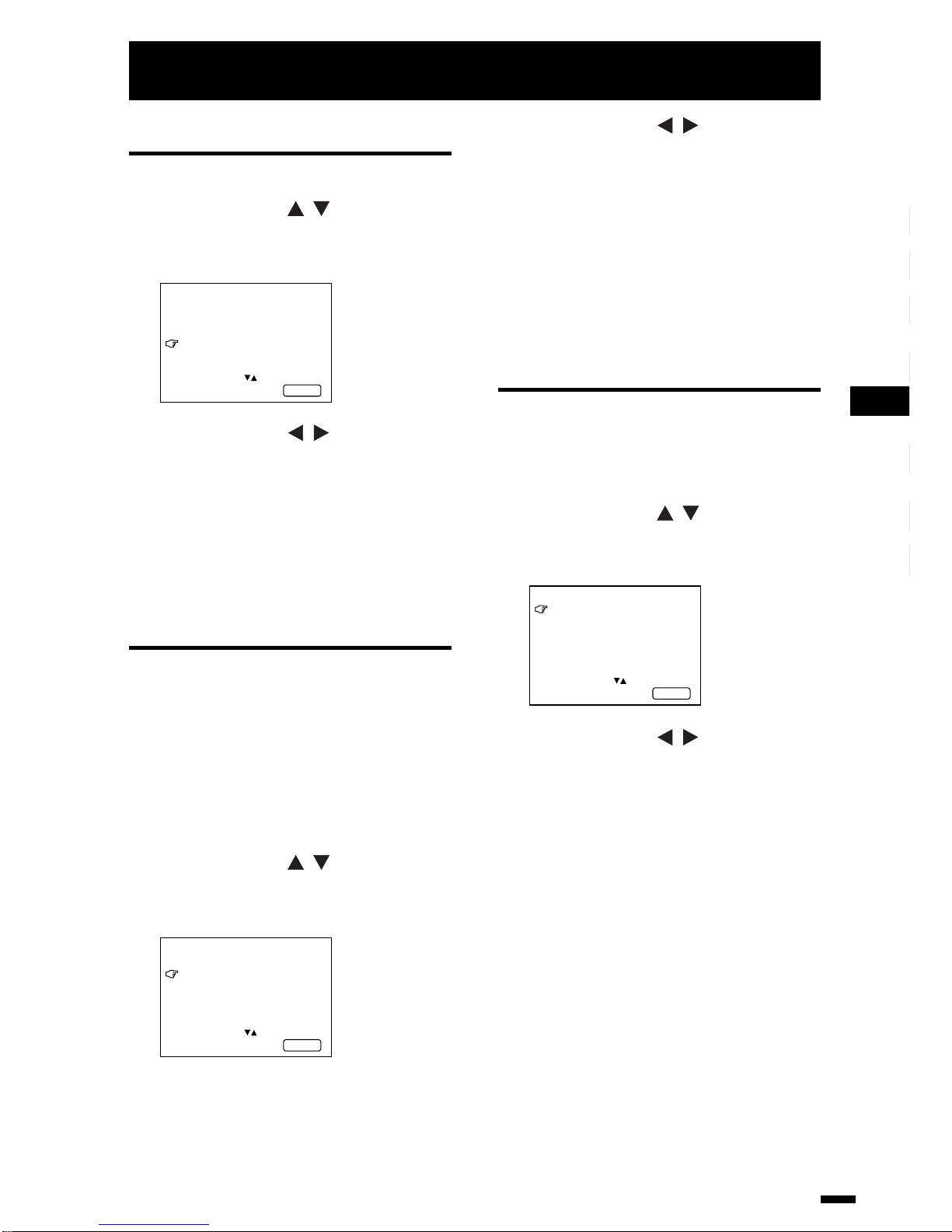

5. Selecting the on-screen language
You can select the language for the on-screen display.
1. Press MENU
/
to display the MENU 3 menu,
then select LANGUAGE .
2. Press MENU
/
or –/+ to select language.
The on-screen displays indications are in the selected
language.
6. PresettingTV stations
To view a TV programme, you must first presetTV channels to channels on the TV.
This TV has 100 channels (channel 1 to 99 and channel AV).
■Auto Channel Preset
You can automatically preset all TV channels that can be received by yourTV to
channels.
•The Auto Channel Preset function does not preset a TV channel to the AV channel
(channel number 0).
•If the TV cannot preset the TV channel you want to view, preset it manually. For details see
“Manual Channel Preset”on page 8.
1. Press MENU
/
to display the MENU 3 menu,
then select AUTO CH PRESET .
2. Press MENU
/
or –/+ to start the Auto
Channel Preset function.
ON SEARCH is displayed on the screen.
When you have finished presetting all TV channels that can be received on your
TV, the display will go out and the Auto Channel Preset function will end.
•To stop the Auto Channel Preset, press the MENU
/
or –/+ button.
Preparation
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY

8

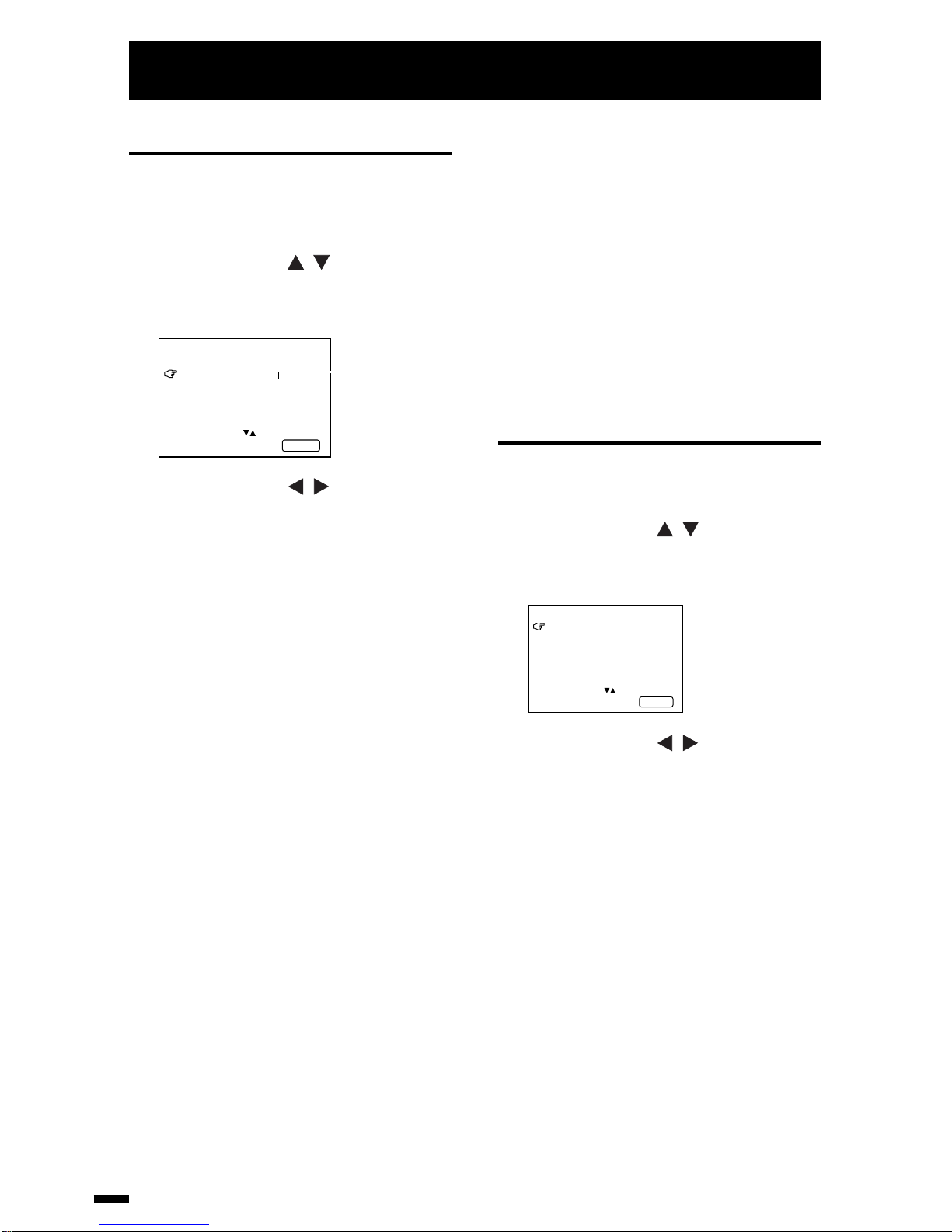

■Manual Channel Preset
You can manually preset the desiredTV channels to the desired channels.
1. Press MENU
/
to display the MENU 3 menu,
then select MANUAL CH PRESET .
2. Press MENU
/
or –/+.
The sub-menu is displayed.
•The channel No. is displayed as a PR No.
3. Press MENU
/
or –/+ to select the
channel number.
4. PressVOLUME –/+ to start searching for
theTV channel.
or is displayed on the screen.
When a TV channel is received, the or display goes out, and the TV
station is preset to the currently selected channel No.
•If the TV channel you want to preset is not displayed, repeat step 4 until the TV finds the
TV channel you want to preset.
•To stop the Manual Channel Preset function, press any button other than the VOLUME
–/+ button.
If the picture is not clear:
Use the Fine function to fine-tune the TV station.
1. Press MENU
/
to select FINE .
2. Hold VOLUME –/+ down to fine-tune theTV station
so that the best image is displayed on screen.
or indicates that the TV station is being
fine-tuned.
5. Press MENU
/
to select SOUND SYSTEM .
6. PressVOLUME –/+ to select the appropriate
sound system.
•For the sound systems in each country or region, refer to the
table “Broadcasting systems”on page 22.
7. Press MENU
/
to select MANUAL .
8. Repeat steps 3 to 7 if you want to preset anotherTV station to a
channel.
9. Press DISPLAY to turn the display off.
Preparation
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
SEARCH BY VOL-+
DISPLAY
Channel
No.
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 3 VL
PROGRAM BY -+ EXIT BY
FINE BY VOL-+
DISPLAY
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 3 VL
PROGRAM BY -+ EXIT BY
CHANGE BY VOL-+
DISPLAY

9

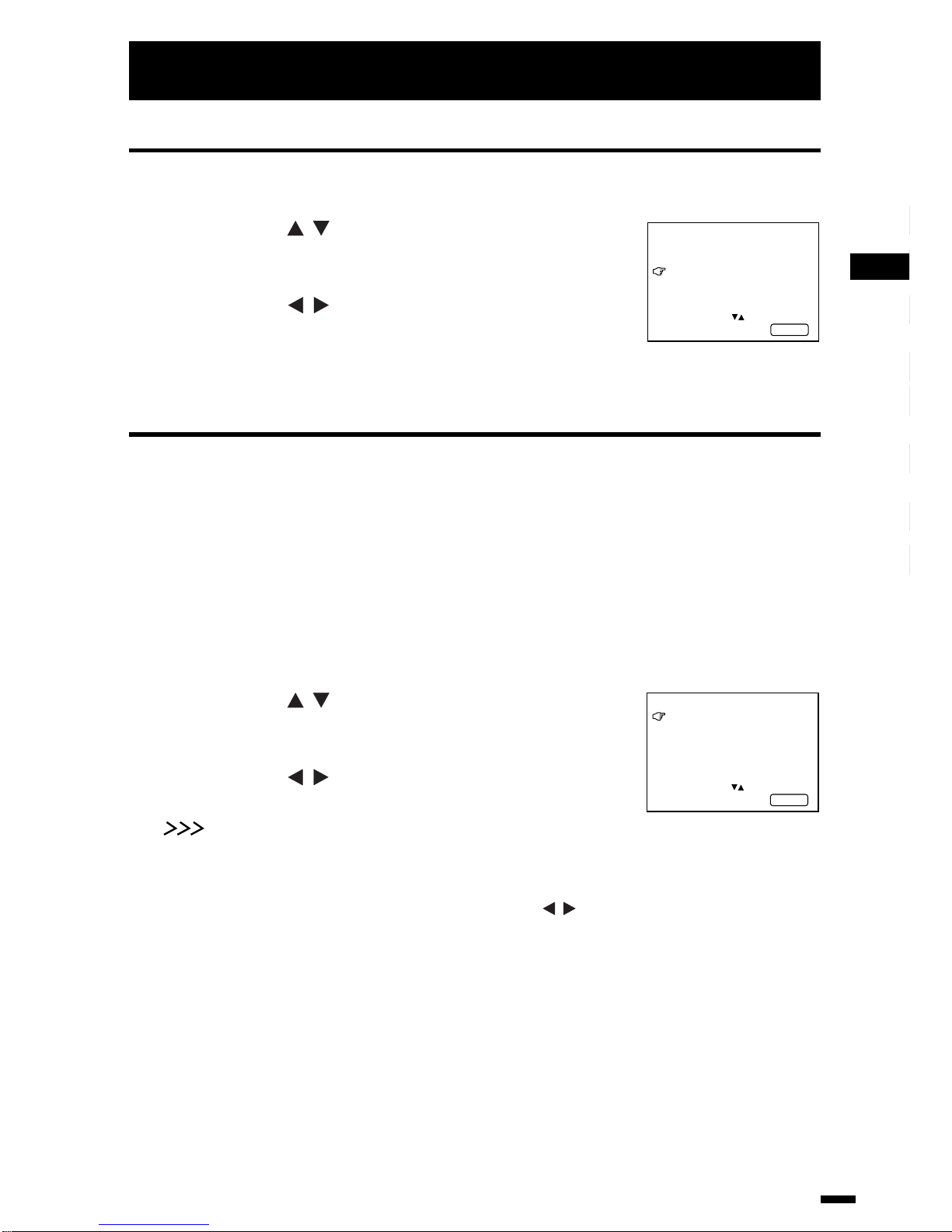

■Skip
You can set undesired channels to be skipped.
Channels set to be skipped cannot be selected by the CHANNEL –/+ buttons nor
the CHANNEL SCAN button.
•Channels to which a station has not been preset are automatically set to be skipped.
1. Press MENU
/
to select MANUAL CH
PRESET .
2. Press MENU
/
or –/+.
The sub-menu is displayed.
3. Press MENU
/
to select SKIP .
•The channel No. is displayed as a PR No.
4. Press MENU
/
or –/+ to select the channel you want to skip.
5. PressVOLUME –/+ to select YES .
The channel you selected is set to be skipped.
To cancel the Skip:
select NO .
6. Repeat steps 4 and 5 if you want to set another channel to skip.
7. Press DISPLAY to turn the display off.
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
YES/NO BY VOL-+
DISPLAY
Channel
No.
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
SEARCH BY VOL-+
DISPLAY
Preparation

10
1. Press the POWER button to
turn yourTV on.
•If your TV does not turn on, press the
Main power button on the TV then
press the POWER button again.
•You can also turn on your TV by
pressing any of the following buttons;
–the CHANNEL –/+ button
–the Number buttons
–the TV/VIDEO button
2. Select a channel.
■Press the CHANNEL –/+
button.
•Up/down selection cannot be selected
for channels to which the Skip has
been set to YES . (See page 9.)
■Press the Number buttons
to enter the channel
number.
•If you want to enter a two-digit
number, press the -/-- button to select
the two digit mode “--”, then enter the
channel number.
If the colour is abnormal:
Repeatedly press the COLOUR
SYSTEM button to select the
appropriate colour system. For
details, see “Colour System”on
page11.
3. PressVOLUME –/+ to adjust
the sound.
If the sound is abnormal:
Repeatedly press the SOUND
SYSTEM button to select the
appropriate sound system. For
details, see “Sound System”on
page11.
4. To turn yourTV off, press
POWER.
•We recommend that you press the
Main power button on the TV to turn
the main power off if you do not plan
to use your TV for a long time or if you
wish to save energy.
Viewing Images from an
External Device:
Press the TV/VIDEO button to
select the VIDEO mode.
•You can also use the Input function to
select the VIDEO mode. For details,
refer to page 14.
Basic operation
ECO
SENSOR
OFF
TIMER
MODE
CHANNEL
SCAN
REVEAL
SUBPAGE CANCEL
TV
TEXT
HOLD
RM-C90
INDEX SIZE
SYSTEM
COLOUR SOUND MUTING
MENU
CHANNEL
RETURN+
POWER
DISPLAY
TV/VIDEO
TV/TEXT
VOLUME
123
456
789
0-/--
•The illustration below is for the remote
control RM-C90 supplied with TEE series
models.
