Integrated Washing Machine
Integreerbare wasmachine
Lave-linge intégrable
Modell: IW 1409.1W

2
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words
(Warning!, Caution!) emphasize information
that is particularly important for your safety or
correct functioning of the appliance.
The information marked with this symbol
provides additional instructions and practical
tips on the use of the appliance.
Tips and information about economical and
ecological use of the machine are marked
with this symbol.
Should any problems arise, this booklet provides
instructions on how to solve them by yourself; see
section “Something not working?”.
If this information is not sufficient, please contact our
nearest SERVICE CENTRE.
Printed on recycled paper.
People who think ecologically, act accordingly…
Technical data
Height x Width x Depth 82 x 60 x 54.5 cm
Depth with door opened 95 cm
Height adjustment ±13 mm approx.
Net weight 74 kg approx.
Load (depending on programme) 5 kg max.
Use domestic
Drum speed during washing max. 55 rpm
Drum speed during spinning 1400 / 900 / 700 / 500 rpm
Water pressure 0.05-0.8 MPa
This appliance complies with the following EC directives:
73/23/EEC of 19.2.1973 “Low voltage directive”, including directive 93 / 68 / EEC;
89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.

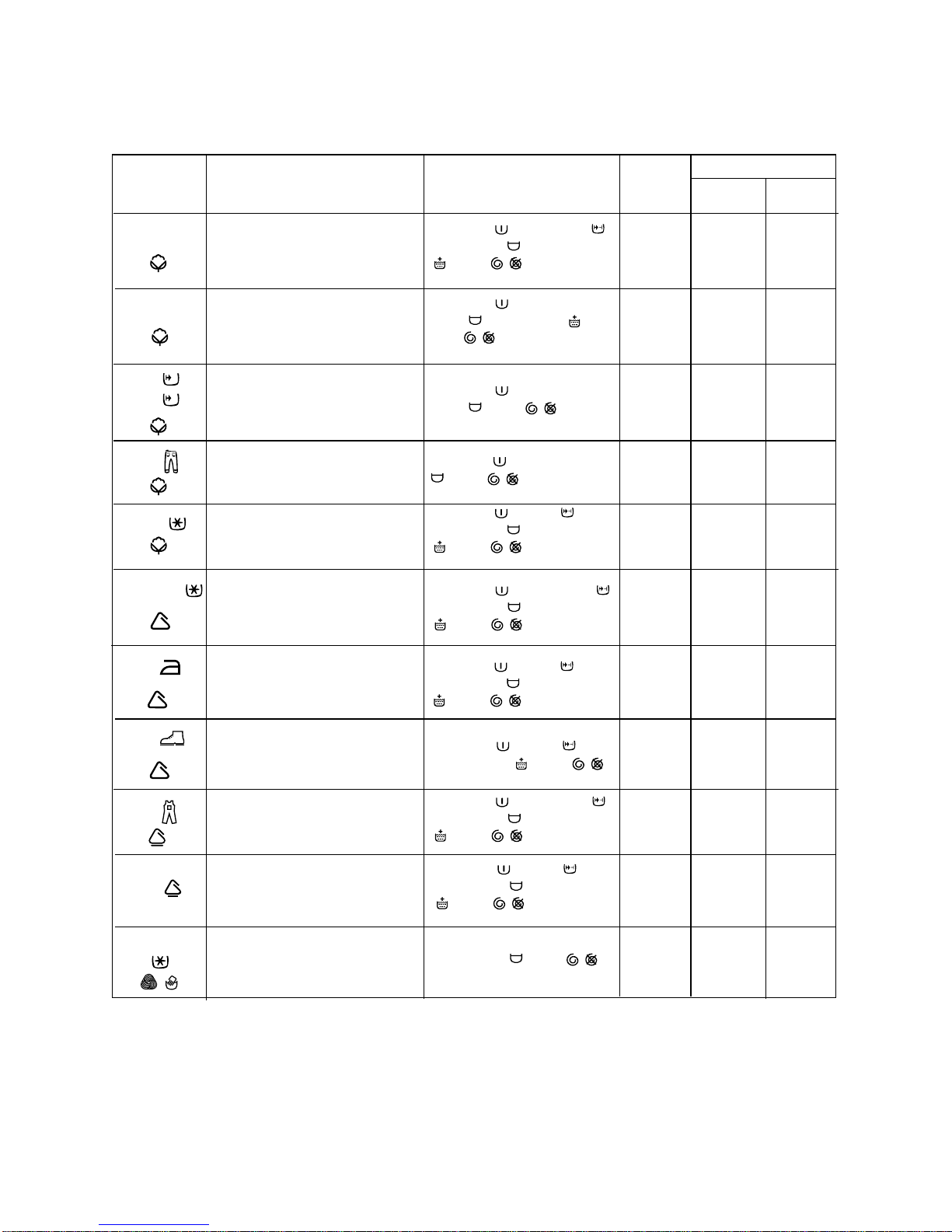

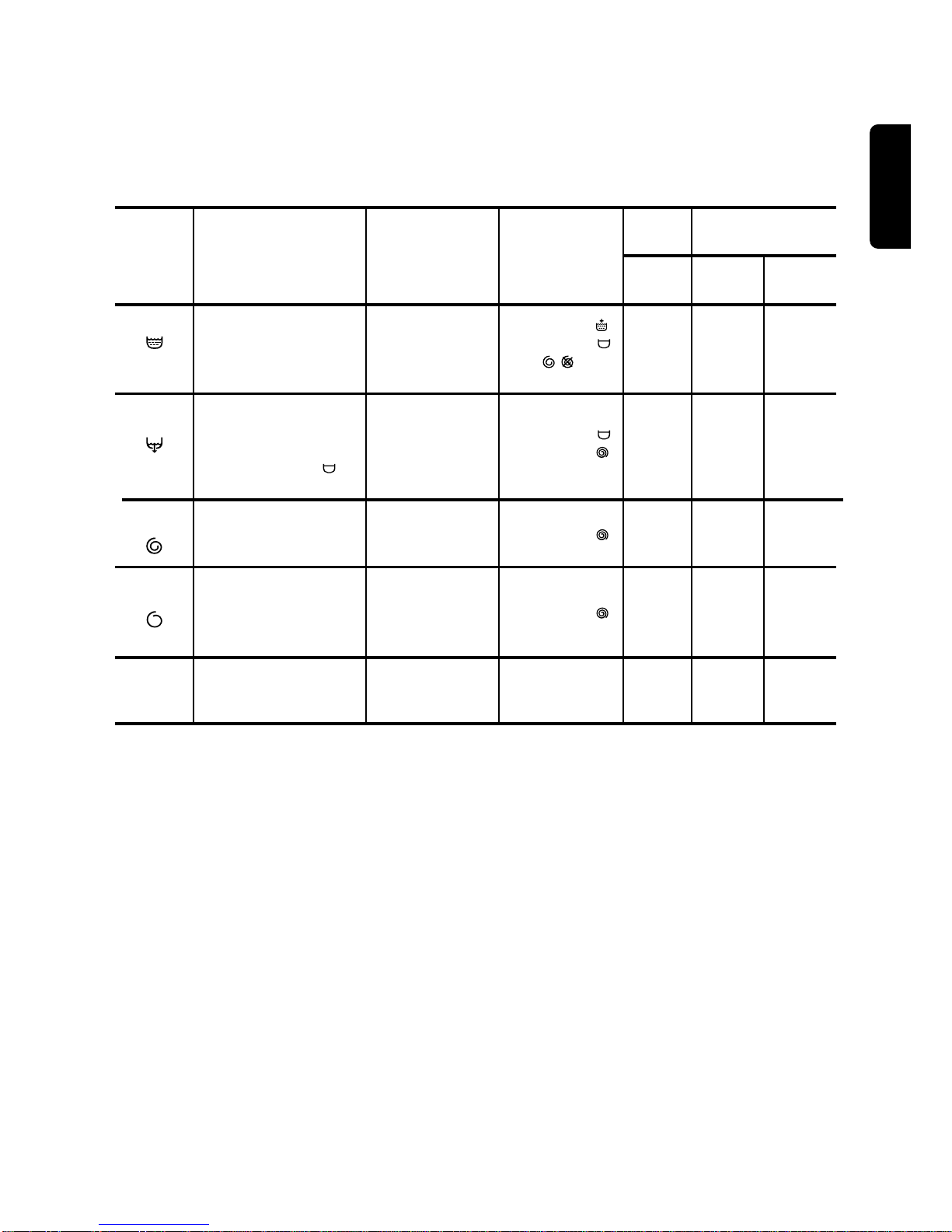

Programme charts 14-15
Wash programmes 14
Special programmes 15
Cleaning and maintenance 16
After each wash 16
Periodical cleaning 16
Bodywork 16
Detergent dispenser drawer 16
Drain filter 16
Water inlet filter 16
Emergency emptying out 17
Frost precautions 17
Something not working? 18
Troubleshooting 18
Unsatisfactory washing results 20
Service 21
Instructions for installation and electrical
connection 22
Safety instructions for the installer 22
Dimensions of the appliance 22
Front view and side view 22
Rear view 22
Installation 23
Unpacking 23
Positioning 23
Levelling 24
Water inlet 24
Water drainage 24
Electrical connection 25
Permanent connection 25
Bulding-in 25
Preparation and assembly of the door 25
Safety instructions 4
Discarding 5
Tips for environmental protection 5
Main features of your washer 5
Description of the appliance 6
Control panel 6
Mains-on light 6
ON/OFF button 6
Programme Option buttons 6
SPIN SPEED 6-7
PREWASH 7
QUICK 7
RINSE PLUS 7
RINSE HOLD 7
BIO button 7
DELAY START button 7
Display 7-8
START/PAUSE button 8
Programme progress display 8
Programme selector dial 8
Programme Information 9
Detergent dispenser drawer 10
Before the first wash 10
Preparing the wash cycle 10
Sorting out and preparing the laundry 10
Weight of laundry 10
Types of fabric and care labels 11
Detergents and additives 11
Which detergent and additive? 11
How much detergent? 11
Liquid detergent 11
Adding a water softener 11
Information on water hardness 11
How to wash 12
Load the laundry 12
Add detergent and additive 12
Switch the machine on 12
Select the desired wash programme 12
Select the spin speed or NO SPIN option 12
Select the required option(s) 12
Select the DELAY START option 13
Start the programme 13
Cancelling a programme 13
Altering an option or a running programme 13
Opening the door after the programme has started 13
At the end of the programme 13
ENGLISH
3
Contents

The safety of KÜPPERSBUSCH appliances
complies with the industry standards and with legal
requirements on the safety of appliances. However,
as manufacturers, we feel it is our duty to provide the
following safety notes.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Unplug the appliance before carrying out any
cleaning or maintenance operations.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• Never spray the machine with a jet of water.
Danger of electric shock!
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
• Let the water cool down before carrying out
emergency emptying or before opening the door in
an emergency.
Positioning, connection, starting up
• Follow the instructions for positioning and
connection.
• Carry out a first wash without laundry (COTTONS
95, with half the amount of detergent) in order to
remove any manufacturing residue from the tub
and the drum.
• Should the machine be purchased in winter, when
temperatures can be below 0°, leave the appliance
for 24 hours at ambient temperature before starting
it.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, they should be carefully supervised and
not be allowed to play with the appliance - there is
a risk that they could become trapped inside.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
Safety instructions
4
• Make sure that children or pets do not climb into the
drum. To avoid this the machine incorporates a
special feature. To activate this device, rotate the
button (without pressing it) inside the door
clockwise until the groove is horizontal. If necessary
use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise
until the groove is vertical.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
Proper use
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any possible damage that might
occur.
• For safety reasons, the appliance must not be
modified.
• Use only detergents suitable for washing machines
and follow the manufacturer’s instructions.
• Garments which have been in contact with
flammable solvents should not be machine
washed.
• Do not use your machine for dry cleaning.
• Dyes and bleaching agents may only be used if
specifically permitted by the manufacturer of these
products. We cannot be held responsible for any
damage.
• Always unplug the appliance and turn off the water
tap after use.
P1131

ENGLISH
5
Discarding
Tips for environmental protection
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• Use the energy saving programme when washing
normally soiled garments (E60-E40).
• The machine works more economically if it is fully
loaded.
• When small loads are washed, use only half to two
thirds of the recommended amount of detergent.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• If the water has a medium or high degree of
hardness (starting from degree of hardness II, see
“Detergents and additives”) water softeners must
be added.
The amount of detergent can then be adjusted to
degree of hardness I (= soft).
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
• Programme and temperature setting using the
programme selector.
•Energy saving programme for normally soiled
cotton items (E60-E40).
•Speed for the final spin can be reduced to 900-
700 or 500 rpm.
•RINSE HOLD can be added: the laundry is left
immersed in the final rinse water to avoid the
formation of creases.
•The possibility of selecting all the other options
offered by this machine gives you truly “customised
washing”.
•Delay timer: programme start can be delayed from
30 min - 60 min - 90 min, 2 hours and then by 1
hour up to max. 23 hours (e.g. to times with a more
economical power rate).
•Programme progress display showing the
programme steps selected and the programme
phase which is running.
• Because of its gentle washing action, the special
wool cycle washes your garments with extreme
care, without felting them.
•3-compartment drawer for detergent and fabric
softener.
•Unbalance detection device: secure position and
silent operation of the appliance.
Main features of your washing machine

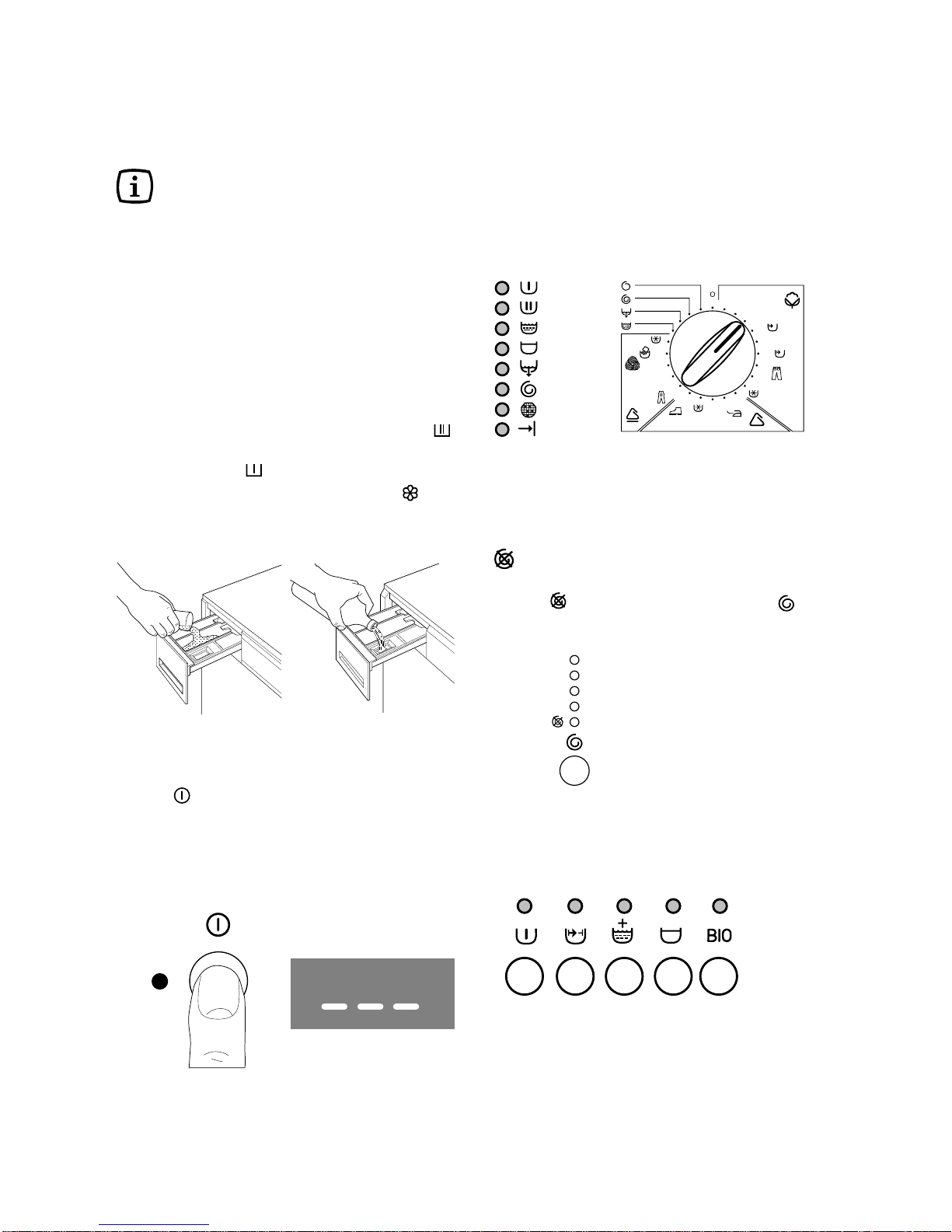

Control panel
1 Mains-on light
This light comes on when the ON/OFF button is
pressed, and goes out when it is pressed again.
2 ON/OFF button
Press this button to switch the machine on. Press it
again to switch the machine off.
Programme Option buttons
Depending on the programme, different functions can
be combined. These must be selected after choosing
the desired programme and before depressing the
START/PAUSE button.
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again, the
pilot lights go out.
If an incorrect option is selected, the pilot lights flash
for about 2 seconds and the message Err is displayed.
An acoustic signal sounds.
3 SPIN SPEED
Press this button to reduce the maximum speed of
the final speed proposed by the machine for the
selected programme or to select NO SPIN option .
12 3456789101112 13
40°
40°
40°
40°
95°
1400
900
700
500
60°
E60°
E40°
60°
40°
30°
60°
30°
30°
40°
30°
Front view
Description of the appliance
6
Detergent drawer
Control panel
Door
Drain filter
Adjustable feet
40°
40°
40°
40°
95°
1400
900
700
500
60°
E60°
E40°
60°
40°
30°
60°
30°
30°
40°
30°

ENGLISH
7
The maximum spin speeds are:
- for cotton 1400 rpm,
- for synthetics, Shoes and wool / handwash
900 rpm
- for delicates 700 rpm.
Select NO SPIN option for extremely delicate
items (curtains, for example). All the spin phases are
supressed. The machine performs some additional
rinses in cotton and synthetics programmes.
4 PREWASH
The machine performs a prewash cycle at 30°C max.
The prewash cycle ends with a short spin in
programmes for Cotton , Jeans and
Synthetics , and with
emptying of the water only for Delicates and
Shoes .
This option is not available with the wool /
handwash . For use when washing
heavily soiled laundry.
5 QUICK
By pressing this button the washing time is reduced.
For use when washing lightly soiled laundry.
This option is not available with the wool /
handwash , economy programmes
“E” and 60° - 40° and Jeans .
6 RINSE PLUS
Can be used with all programmes except the wool
/ handwash programme. The machine will
add 2 rinses for cottons, synthetics and delicates.
This option is recommended for people who are
allergic to detergents and in areas where the water is
very soft.
7 RINSE HOLD
When this button is pressed, the last rinse water is
not emptied out, to prevent the fabrics from creasing.
When the programme has finished, the pilot lights
and are on. The light of the START/PAUSE
button goes off to indicate that the water must be
emptied out. A blinking zero appears on the display.
To empty out water there are 2 possibilities:
•Select programme (draining): and depress the
START/PAUSE button
The water is emptied out without spinning.
•Select programme (spin) or (delicate spin).
Select the spin speed by means of the relevant
button and then depress the START/PAUSE
button . The water is emptied out and the
laundry is spun at the selected spin speed.
Attention!
Before selecting programme , or the
selector dial has to be positioned on O(cancelling).
8“BIO” button
This function can be selected for cottons and
synthetics with a washing temperature of 40 or more
degrees.
The machine will maintain a temperature of 40° for
about 10 minutes to enable the enzymes contained
in the detergent to eliminate the dirt.
To be used for laundry with “stubborn” stains.
This function cannot be used with PREWASH.
9 DELAY START button
The wash programme can be delayed from 30 min -
60 min - 90 min, 2 hours and then by 1 hour up to a
maximum of 23 hours by means of this button.
Selecting the delayed start
• Select the programme and the required options.
• Select the delay start.
• Depress START/PAUSE button : the machine
starts its countdown.
The programme will start after the selected delay has
expired. The DELAY START cannot be used with
and or programmes.
Cancelling the delayed start
• Depress START/PAUSE button .
• Depress DELAY START button until «0’» is
displayed.
• Depress START/PAUSE button again.
10Display
The display shows the following information:
• if the programme selector dial is on the RESET O
position, three flashing dashes appear
immediately after pressing the ON/OFF button to
indicate that the machine is ready to receive
instructions for the required wash programme;
•Duration of the selected wash programme,
calculated automatically on the basis of the
maximum recommended load for each type of
fabric.
• When the programme has finished, a flashing
zero is displayed;

EE4400= the door has not been closed
To eliminate the problem, see paragraph “Something
not working”.
If at the end of the programme the pilot light
illuminates this means that the drain filter must be
cleaned.
13Programme selector dial
The programme selector determines the type of
washing cycle (e.g. water level, drum movement,
number of rinses) and the washing temperature
according to the type of laundry.
The selector is divided into 5 sectors:
• Cotton / Jeans
• Synthetics / Shoes programme
• Delicates / Baby programme
• Wool / Handwash
• Special programmes ( , , , )
• RESET programme O.
The selector dial can be turned either clockwise or
anticlockwise.
Position E60° - E40°corresponds to the
ENERGY SAVING programme.
●Position corresponds to COLD WASH. To be
used for extremely delicate items.
●O= Reset programme
E
40°
40°
40°
40°
95° 60°
E60°
E40°
60°
40°
30°
60°
30°
30°
40°
30°
PREWASH
WASH
RINSES
RINSE HOLD
DRAIN
SPIN
FILTER
END
8
•Delayed start, programmed using the special
button.
The selected delay (23 hours max.) is indicated in
the display. The countdown is updated every hour
and when remain the last 2 hours each 30
minutes.
•Incorrect option selection. If an option which is
not compatible with the set wash programme is
selected, the message Err is displayed for 2
seconds.
•Alarm code indicating a fault in the machine
operation (see pages 18-20).
11START/PAUSE button
This button has two functions:
•Start:
After having selected the required programme, press
this button to start the machine; the corresponding
pilot light stops flashing.
If you have selected the delayed start, the machine
begins its countdown. The duration of the
programme or the delay appears on the display.
•Pause
To interrupt a programme which is running, depress
the START/PAUSE button : the corresponding
pilot light starts start to
flash.
To restart the programme from the point at which it
was interrupted, press the START/PAUSE button
again.
Important!
By depressing simultaneously START/PAUSE
and buttons for about 3 seconds the acoustic
signal which sounds when selecting an incorrect
option and at the end of the cycle is suppressed.
12Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme has
finished, the END pilot light comes on.
The END pilot light flashes in the event of
operating problems.
At the same time one of the following lights starts to
flash and an alarm code appears on the display.
EE1100= the machine does not fill
EE2200= the machine does not empty

ENGLISH
9
Programme information
COTTON 60° - 40° (DAILY)
This programme reduces the washing time. It is
recommended for lightly soiled cottons items, which
have been worn for short time.
COTTON 40°
Special programme suitable for washing casual
garments as jeans pants, jeans shirts, t-shirt of
special technical fabrics.
Max load: Kg 3
EASY IRON 40°
Selecting this programme the laundry is gently
washed and spun to avoid any creasing. In this way
ironing is easier.
Furthermore the machine will perform additional
rinses.
SHOES 40°
With this programme it is possible to wash one pair
of sport shoes depending on their size. The shoes
would be gently washed and spun at the washing
temperature of 40°C.
Important! You will find two bags in the drum. Put
only one shoe in each bag. It is possible to wash two
shoes together if they are small.
Note! Don't wash your sport shoes together with
laundry.
BABY CYCLE 40°
With this programme it is possible to wash at 40°C
very delicate garments e.g. shirts, clothing, baby
jumpers, saloppettes etc.
WOOL / HANDWASH /
Washing programmes for machine washable wool
as well as for hand washable woollens and
delicate fabrics with the “hand washing” care symbol
.
RINSES
With this programme it is possible to rinse and spin
garments which have been washed by hand.
The machine performs 3 rinses, followed by a final
spin at maximum speed.
The spin speed can be reduced by depressing Spin
button .
The final spin is foreseen only for cotton items as in
the spin programme.
DRAIN
For draining out the water of the last rinse in
programmes with the Rinse Hold option.
First turn the programme selector dial to “O” position,
then select the Drain programme and depress
the Start Pause button.
SPIN
Separate long spin for cotton items at the max.
speed proposed by the machine (1400 rpm).
You can reduce the speed, if needed, by means of
the corresponding button to adapt it to the laundry to
be spun.
DELICATE SPIN
Separate short spin for synthetic, delicate, wool and
handwashed items.
The max.spin speed is di 700 r.p.m.
You can reduce the speed, if needed, by means of
the corresponding button to adapt it to the laundry to
be spun.

Sorting out and preparing the laundry
• Sort out the laundry according to type of fabrics and
care labels (see “Types of fabric and care labels”).
• Empty pockets.
• Remove any metal parts (safety pins, clips, etc.).
• To prevent the laundry from getting damaged and
forming bundles, it is advisable to close zips, button up
pillowcases and quilt covers and tie up loose straps
such as those of aprons.
• Turn double faced items inside out (sleeping bags,
anoraks, etc.)
• Turn coloured knitted fabrics, woollens and fabrics with
trim inside out.
• Wash small and delicate items (baby socks, tights)
inside a laundry net or in a pillow case closed with a
zip, or in larger socks.
• Treat curtains with special care. Remove all metal or
plastic hooks or put them in a net or a bag. We decline
any responsibility in case of damage.
• Whites and coloureds must be washed separately:
white items can loose their whiteness.
• New coloured fabrics often have excess dyes; it is
advisable to wash them separately for the first time.
• Wash small and large items together; this improves the
washing result and the laundry is better distributed
during spinning.
Preparing the wash cycle
10
Compartment for prewash detergent. The
detergent is added at the beginning of the
wash programme.
Compartment for powder or liquid detergent
used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric
softener, starch).
It is emptied at the last rinse.
The quantity of additive product must not
exceed the «MAX» mark in the drawer.
Detergent dispenser drawer
Before your first wash, we recommend that you run a
cotton cycle at 95°C, without any laundry in the
machine, to remove any manufacturing residue from
the drum and tub.
Before the first wash
Sort of laundry Approximate
dry weights
1200 g
300-600 g
700 g
500 g
100 g
200 g
100 g
200 g
200 g
200-250 g
200-300 g
250 g
Bathrobes
Work shirts
Quilt covers
Sheets
Blouses
Hand towels
Tea towels
Shirts
Pillowcases
Night-gowns/Pyjamas
Tablecloths
Underwear
Pour 1/2 a measure of detergent into the dispenser
drawer and start the machine.
• Shake out garments before putting them into the
machine.
• Insert each garment separately.
Weight of laundry

ENGLISH
Which detergent and additive?
Use only detergents and additives for washing
machines. Follow the manufacturer’s instructions.
How much detergent?
The quantity depends on:
• the load:
if the manufacturer does not provide any
indications on the amount of detergent for small
loads, use about one third less than the suggested
amount for half loads and half the amount for very
small loads;
• the degree of soil:
use a small amount of detergent for lightly soiled
garments. Judge the amount according to the
detergent manufacturer’s instructions and size of
the load;
• the water hardness:
the harder the water, the more detergent required.
Instructions according to water hardness are given
on the detergent pack.
Liquid detergent
Liquid detergent can be poured directly into the main
wash compartment of the dispenser drawer
immediately before starting the programme, or a
special dispenser can be used that is placed directly
in the drum. Measure the detergent according to the
manufacturer’s instructions.
Types of fabric and care labels
The labels on garments help you to select the most
suitable wash programme. The laundry should be
sorted out according to the type of fabric and the
instructions indicated on care labels.
Temperatures indicated on labels are always
maximum temperatures.
Cotton
Linen and cottons marked with this symbol can be
washed at high temperatures.
Cotton
Linen and cottons marked with this symbol are
colourfast and can be washed at 60°C.
Cotton
Garments marked with these symbols have delicate
colours, therefore the washing temperature must not
exceed these values.
Synthetics
Mixed and synthetic fabrics marked with these
symbols require a gentle wash programme and they
must therefore be washed using the specific
programme.
60
40
30
40
60
95
Detergents and additives
Degree of
hardness French degrees °TH
0-15
16-25
26-37
more than 37
I - soft
II - medium
III - hard
IV - very hard
0-7
7-14
14-21
more than 21
German
degrees °dH
11
Delicates
Microfibres, synthetics or curtains marked with these
symbols require a very gentle treatment.
The DELICATES programme is suitable for this type
of fabric.
Woollens and particularly delicate items
Fabrics such as wool, wool mix or silk marked with
this symbol are particularly sensitive to machine
washing.
The WOOLLENS programme is suitable for this type
of fabric.
The wool wash cycle of this machine has been
approved by Woolmark for the washing of machine
washable Woolmark products provided that the
garments are washed according to the instructions
on the garment label and those issued by the
manufacturer of this washing machine. M9605.
If the label has the symbol (do not wash),
garments must not be machine washed!
30
40
30
40
Adding a water softener
(descaling product)
A water softener must be added when water has a
medium-high degree of hardness (from degree of
hardness II). Follow the manufacturer’s instructions.
The quantity of detergent can then always be
adjusted to degree of hardness I (= soft). Information
on water hardness can be obtained from your local
water supply authority.
Information on water hardness

Select the desired wash programme
• Turn the programme selector dial to the desired
position: the lights corresponding to the different
phases making up the selected programme light
on.
The display shows the duration of the programmes in
hours and minutes.
Select the spin speed or NO SPIN option
• To select the desired spin speed or NO SPIN
option , press the SPIN SPEED button : the
corresponding light comes on.
Select the required option(s)
1400
900
700
500
40°
40°
40°
40°
95° 60°
E60°
E40°
60°
40°
30°
60°
30°
30°
40°
30°
12
How to wash
Load the laundry
• Open the door.
• Place the laundry in the drum, one item at a time.
Distribute laundry as evenly as possible. Close the
door.
Add detergent and additive
• Pull the drawer out till it stops.
• Pour the main wash detergent into compartment .
If you wish to perform a prewash, pour detergent
into compartment too.
• Pour the fabric softener into compartment
without exceeding the “MAX” mark.
• Close the drawer, pushing it fully in.
Switch the machine on
• To switch the machine on, press the ON/OFF
button : if the programme selector dial is on the
RESET Oposition, three flashing dashes will be
displayed. If the programme selector dial is
positioned on a programme of the previous
washing, a flashing zero is displayed and the
buzzer will sound.
0

ENGLISH
Altering an option or a running
programme
It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause the
washing machine by pressing the START/PAUSE
button .
Changing a running programme is possible only by
resetting it. Turn theprogramme selector dial to O
and then to the new programme position. The
washing water in the tub will not emptied out.
Start the new programme by pressing the
START/PAUSE button .
Opening the door after the programme
has started
First set the machine to PAUSE by pressing the
START/PAUSE button.
If the door does not open, this means that the
machine is already heating, that the water level is
above the bottom edge of the door or that the drum
is turning.
If you cannot open the door but you need to open it
you have to switch the machine off by depressing the
ON/OFF button . After about 3 minutes the door
can be opened (pay attention to the water level and
temperature!). To restart the programme depress
ON/OFF button again after closing the door.
At the end of the programme
The machine stops automatically and a flashing zero
is displayed. The pilot light of the START button
goes off and the END pilot light illuminates.
• Release of the lock is indicated by an audible signal.
• If the RINSE HOLD option has been selected,
the door is locked, the corresponding pilot light on
the programme progress display stays on to
indicate that the water must be emptied out before
opening the door. To drain or spin, see paragraphe
7 on page 7.
• At the end of the programme turn the programme
selector dial to RESET O.
• Switch the machine off by pressing the ON/OFF
button . The mains-on light goes off.
• Remove the laundry from the drum.
Check that the drum is empty so as to avoid a
subsequent wash being damaged by any forgotten
items.
• Close the water tap.
• Leave the door open to prevent the formation of
mildew and unpleasant smells.
Select the DELAY START option
• To delay starting of a programme, press the
DELAY START button before starting the
machine. The figures corresponding to the
selected delay will be displayed for about 3
seconds, after which the duration of the selected
programme will appear on the display.
When the START/PAUSE button is pressed, the
selected delay will again appear on the display and
the machine starts its countdown.
During this period it is possible to load other laundry.
To do this:
• press START/PAUSE button
• open the door and load the
laundry
• close the door and press START/PAUSE again
Start the programme
• To start the selected programme, press the
START/PAUSE button ; the corresponding light
stops flashing.
The pilot light corresponding to the wash phase
which is running is on.
If you have selected the delayed start the machine
starts its countdown.
Cancelling a programme
To cancel a programme which is running, turn the
programme selector dial to the RESET Oposition:
three flashing dashes will be displayed. Now you can
select another programme.
13

14
Programme chart
WASH PROGRAMMES
Programme
Fabrics Additional Functions Max. load Energy
kWh Water
lt
Consumptions*
E60°** - E40°
White and fast coloured cotton and
linen items, shirts, blouses,
underwear, towels
Jeans
(see page 9)
Non-fast coloured cotton and linen
items, shirts, blouses, underwear
PREWASH - BIO - RINSE
HOLD - RINSE PLUS -
SPIN
/
5 kg 0.85 49
5 kg
3 kg
5 kg
1.2
0.45
0.65
49
67
49
2 kg 0.85 52
2 kg 0.25 52
1 kg 0.35 53
5 kg 2.0 53
60°
40°
40°
Lightly soiled white and coloured
cotton items e.g. shirts, blouses,
underwear, towels
PREWASH - BIO - RINSE
HOLD - SPIN
/
PREWASH - QUICK ,
RINSE HOLD - RINSE PLUS
- SPIN
/
PREWASH - RINSE HOLD
- SPIN
/
60° - 30° -
30° -
30°
30° - 40° -
Fast coloured synthetic fabrics,
non-shrink shirts, underwear,
blouses
PREWASH - BIO* - QUICK
RINSE HOLD - RINSE PLUS
- SPIN
/
1 kg 0.35 59
40°
Delicate synthetic items
(see page 9)
PREWASH - QUICK
RINSE HOLD - RINSE PLUS
- SPIN
/
1 pair 0.5 56
40°
Shoes
(see page 10)
PREWASH - QUICK
- RINSE PLUS - SPIN
/
Delicate fabrics, for example
curtains
Wool, wool mix, silk, items with “
hand wash” label
PREWASH -QUICK
RINSE HOLD - RINSE PLUS
- SPIN
/
2 kg 0.5 52
40°
Delicate synthetics and mixed
fabrics, shirts, baby jumpers etc
PREWASH - BIO - QUICK
RINSE HOLD - RINSE PLUS
- SPIN
/
RINSE HOLD - SPIN
/
White cotton and linen, for
example normally soiled work
garments, sheets, household linen,
underwear, towels
95° - 60° PREWASH - BIO - QUICK
RINSE HOLD - RINSE PLUS
- SPIN
/
ECONOMY
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It
corresponds to the highest temperature for each wash programme.
**In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the
E60°C wash programme for cotton.

ENGLISH
15
Programme chart
*The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
Special programmes
Programme
3 rinses with liquid
additive.
Lon Spin.
The water is
emptied out
Long spin
Short spin
For cancelling the
wash programme
which is running
RINSE PLUS
RINSE HOLD
SPIN
/
RINSE HOLD
SPIN SPEED
SPIN SPEED
SPIN SPEED
Rinses
Drain
Spin
Short spin
Reset
O
This programme can be
used for rinsing hand
washed cotton garments
For emptying out the
last rinse water in
programmes with the
Rinse Hold option
Separate spin for all
fabrics
Separate spin for
synthetic, delicate and
wool items
Cancel
Type of laundry Programme
phases Additional functions
5 kg
-
5 kg
2 kg
0.08
-
-
-
Max.
load
Consumption*
Energy
kWh
45
-
-
-
Water
lt.

After each wash
• At the end of the wash programme, pull the
dispenser drawer out a little to let it dry.
• Leave the door ajar to allow air to circulate.
If the machine is not used for a prolonged
period:
•Close the water tap and unplug the appliance.

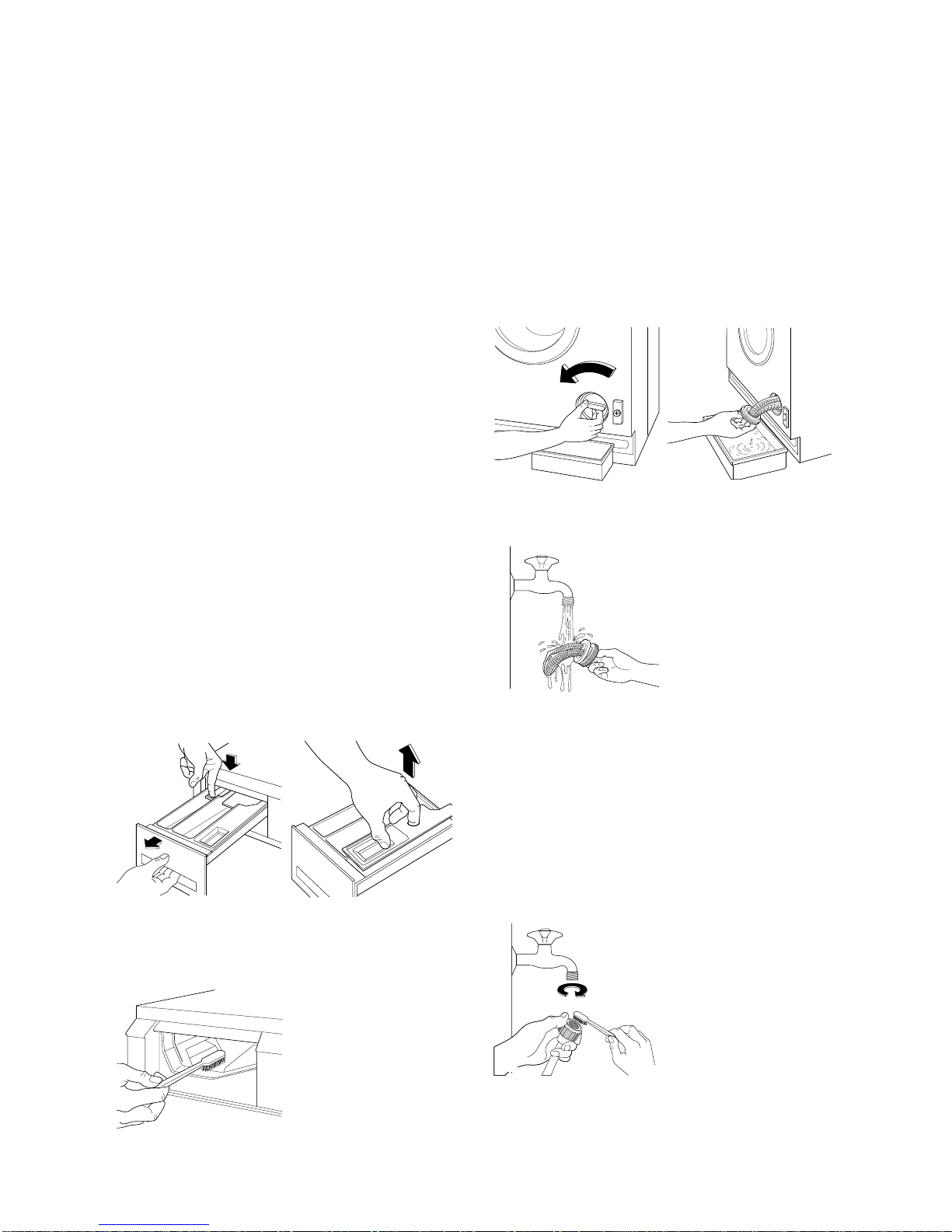

Periodical cleaning
Bodywork
• Clean the outside of the machine with warm water
and a neutral, non-abrasive household detergent.
Rinse with clean water and dry with a soft cloth.
Important: do not use methylated spirits, solvents or
similar products to clean the bodywork.
Detergent dispenser drawer
After a while, detergents and fabric softeners leave
deposits in the drawer.
• Clean the drawer, from time to time, by rinsing it
under a running tap. To remove the drawer from
the machine, press the button in the rear left-hand
corner.
• To facilitate cleaning, the top part of the additive
compartment can be removed.
• Detergent can also accumulate inside the drawer
recess: clean it with an old toothbrush.
• Refit the drawer after cleaning.
Drain filter
The drain filter collects threads and small objects
inadvertently left in the laundry. Check regularly that
the filter is clean.
• Place a container under the filter and unscrew it;
some water will come out of the filter.
• Pull out the filter.
• Clean the filter under a running tap, then refit it,
screwing it fully in.
Water inlet filter
If you notice that the machine is taking longer to fill,
check that the filter in the water inlet hose is not
blocked.
• Turn off the water tap.
• Unscrew the hose from the tap.
• Clean the filter with a stiff brush.
• Screw the hose back onto the tap.
16
Cleaning and maintenance

ENGLISH
17
Emergency emptying out
If the water is not discharged (pump is blocked, filter
or drain hose are clogged), proceed as follows to
empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled;
• place a bowl on the floor;
• put the drain hose end into the bowl and let the
water come out.
Should it not be possible to have access to the drain
hose because, for example the appliance is built in
the kitchen furniture, slightly loosen the drain filter
after placing a bowl on the floor to let the water come
out slowly.
At the end screw the filter again.
Frost precautions
If the machine is installed in a place where the
temperature could drop below 0°C, proceed as
follows:
• Close the water tap and unscrew the water inlet
hose from the tap.
• Place the end of the drain hose and the inlet hose
in a bowl placed on the floor.
• Select the DRAIN programme and run it until
the machine stops.
• Turn the programme selector dial to RESET O.
• Press the ON/OFF button to switch the
machine off.
• Remove the plug from the power socket.
• Screw the water inlet hose back on and put the
drain hose back in its place.
By doing this, any water remaining in the machine is
removed, avoiding the formation of ice and,
consequently, breakage of the parts involved.
When you use the machine again, make sure that
the ambient temperature is above 0°C.

If, during the spin cycle, the machine makes an unusual whistling noise, different from the
noise made by traditional washing machines, this is due to a new type of motor.
If water is not visible in the drum, this is due to the modern technology of new washing
machines that use less water than traditional machines.
Troubleshooting
If a problem arises, you can try to solve it yourself following the instructions below. If
you call out an engineer when one of the following problems arises, or to repair a fault due to incorrect use, the
call-out will be charged even if requested within the guarantee period.
During machine operation the following alarm codes may be displayed:
-EE1100: problem with the water supply
-EE2200: problem with water draining
-EE4400: door open
At the same time the buzzer sounds.
Once the problem has been eliminated, press the START/PAUSE button to restart the programme. If after
all checks, the problem persists, contact your local Service Centre.
18
Something not working?
Problem
• The machine does not
work.
• The machine does not fill.
Possible cause
• The water tap is closed (EE1100).
• The water inlet hose is squashed
or kinked (EE1100).
• The small filter of the water inlet
hose is clogged (EE1100).
• The door is not properly closed
(EE4400).
Solution
• Depress the button.
• Replace the fuse.
• Close the door; the click of the
lock should be heard.
• Insert the plug.
• Press the button.
• Check the selected delay on the
display.
• The ON/OFF button has not
been depressed.
• The main electrical fuse has blown.
• The door is not properly closed
(EE4400).
• The plug is not connected.
• The START button has not been
pressed.
• The DELAY START option has
been selected.
• Open the water tap.
• Check the whole length of the
hose and remove the kink.
• Clean the filter.
• Close the door.
• The machine fills then
empties immediately.
• The end of the drain hose is too
low. • Place the hose at the right height (see Installation section).

ENGLISH
19
Problem
• The machine does not
empty and/or does not
spin.
• There is water on the floor.
Possible cause
• Too much detergent has been
used.
• An unsuitable detergent has been
used that creates too much foam.
• One of the connectors on the
water inlet hose is leaking.
• The drain filter has not been
properly screwed on after
cleaning.
Solution
• The drain hose is squashed or
kinked (EE2200).
• The drain filter or the drain hose
are clogged (EE2200).
• The RINSE HOLD option or
(NO SPIN) has been selected.
• The laundry is not evenly
distributed inside the drum.
• The machine vibrates or is
noisy.
• The transit bolts have not been
removed.
• The feet have not been adjusted.
• There is little laundry in the drum.
• Check that the machine has been
unpacked as described in the
Installation section.
• Carefully level the machine.
• Correct operation of the machine
is not affected.
• The door will not open. • The programme is still running.
• The water level is above the
bottom edge of the door.
• The machine is heating the water.
• Wait until the end of the
programme before opening the
door.
• Before opening the door, the
water must be emptied out.
• Wait until the end of the heating
phase.
• Check the whole length of the
hose and remove the kink.
• Clean the filter or check the hose.
• Empty out the water.
• Redistribute the laundry manually
in the drum.
• Measure detergent according to
the manufacturer’s instructions.
• Use a suitable washing machine
detergent.
• Check that the hose is firmly
screwed on at both ends.
• Fully screw the filter into place.

20
Problem
• Spinning starts late or the
machine does not spin.
Possible cause Solution
• The unbalance detection device
that prevents excessive vibration
during spinning and ensures a
stable position has cut in.
• If the laundry is not evenly
distributed inside the drum at the
beginning of the spin cycle, the
machine detects this and tries to
redistribute it more evenly by
means of a few drum rotations.
Only when the laundry is more
evenly distributed will the spin
cycle be performed, eventually at
a lower speed, if the laundry is
not yet evenly distributed. If, after
about 10 minutes, the laundry is
still tangled, the machine will not
spin. Therefore, if the laundry is
still wet at the end of the cycle, it
is advisable to redistribute it
manually inside the drum and to
select the spin programme again.
Unsatisfactory washing results
If the laundry looks grey and lime scale is found
in the drum
• Too little detergent has been used.
• An unsuitable detergent has been used.
• Stubborn stains have not been treated prior to
washing.
• The programme/temperature has not been
correctly selected.
If grey stains remain on the laundry
• Laundry stained with ointments, grease or oil has
been washed with an insufficient amount of
detergent.
• The temperature selected for the wash programme
was too low.
• Fabric softener - especially the concentrated type -
has come into direct contact with the laundry.
Wash these stains immediately and pour fabric
softener carefully.
Foam is still visible even after the last rinse
• Modern detergents often produce foam, even in
the last rinse. However the laundry has been
completely rinsed.
White residue is left on the laundry
• This is due to insoluble components in modern
detergents and is therefore not the result of
insufficient rinsing. Shake or brush the laundry. In
future, it may be better to turn garments inside out
before washing them. Check the choice of
detergent; try using liquid detergents.
