Kalley K-LED32HDXT2 User manual
KALLEY
SERVICEMANUALK-LED32HDXT2
1.Caution…………………………………………………………………………
2.specification……………………………………………………………………
3.AlignmentProcedure…………………………………………………………
4．SchemeDiagram……………………………………………………………
5.Troubleshooting………………………………………………………………
6. Explode drawing................................................................................................
Thismanualisthelatestatthetimeofprinting,anddoesnotincludethemodificationwhichmaybemadeaftertheprinting,bytheconstantimprovementofproduct
CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVIC EABLE
PAR TS INS IDE . RE FER SER VIC ING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4
18.
This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restorenormal operationby following the detailedprocedurein your operatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

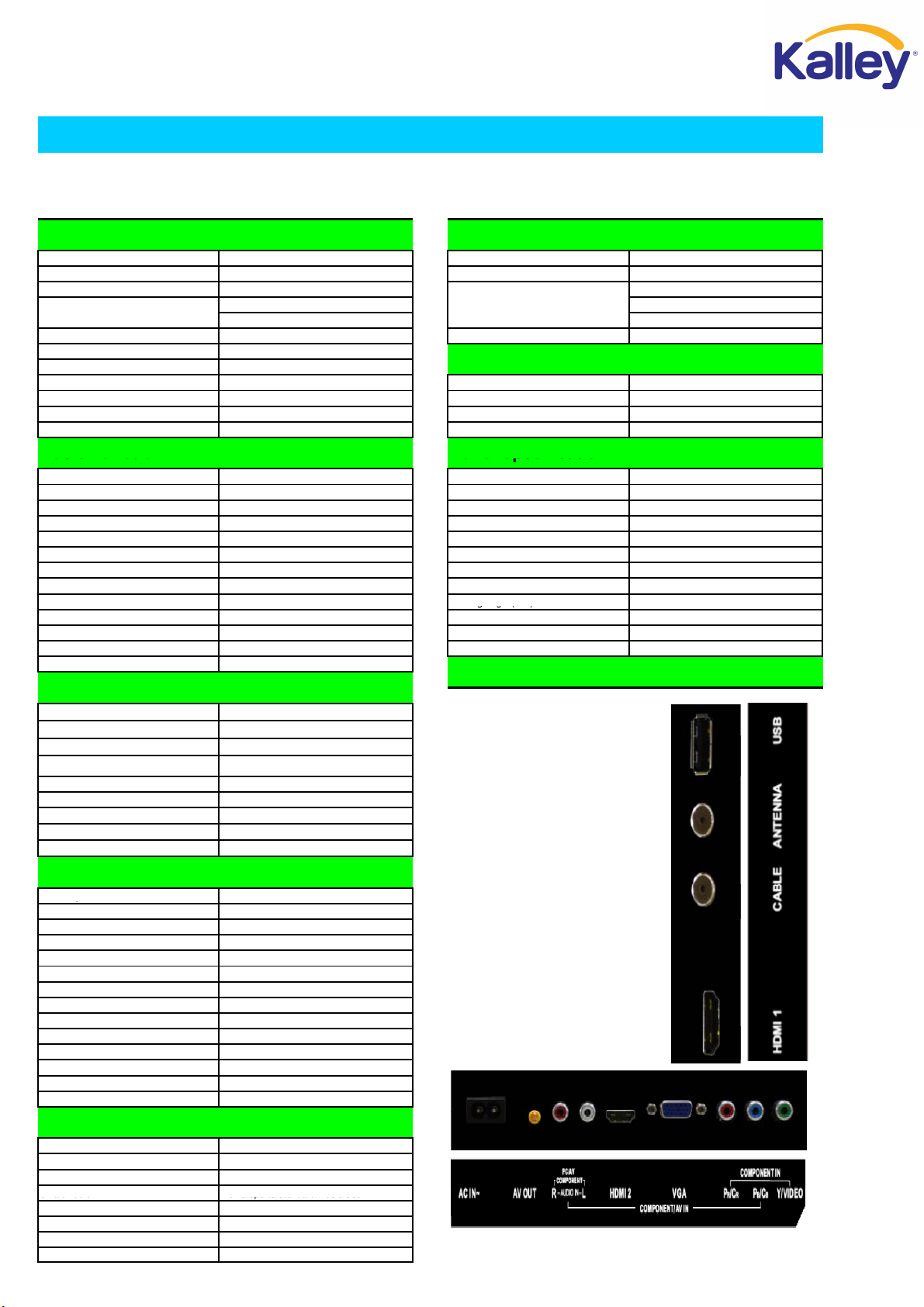

PRODUCT SPECIFICATION RELEASE
Product Type LCD TV Music MP3
Chassis MS306DPA Picture JPEG、BMP、PNG
OSD Language English/Portuguese/Spanish H.264、MPEG4、MPEG2
NTSC-M,PAL M/N
Basic Information
Model: K-LED32HDXT2
Version：1.0 Issued On: 2015-8-22
Video
Media Format
TV System
ISDB-T
AV System PAL、NTSC File TXT
Channels(Analog) Antenna：2～69；CATV：1～125
DTV Channels(Digital) Antenna：7～69
Power Supply AC 110V-240V 50/60Hz Component Video Format YPBPR：up to 1080P
Power Consumption（TV On）45W DVI Video Format Up to XGA for HDMI-PC
Power Consumption（Standby）≤0.5W HDMI Video Format up to 1080P
Certification CB PC Compatibility Up to SXGA
Signal Format Capability
TV
System
Basic Function Panel S
p
ecification
EPG Yes(at DTV) Backlight Unit LED
Subtitle --- Panel supplier CSOT(ST3151A05-8)
Parental Control Yes(at DTV) Aspect Ratio 16:9
Lock Yes Panel Size (inch) 31.5"
V-Chip --- Display Resolution 1366*768
CCD (Closed Caption) Yes Brightness (cd/m2)(typ.) 240
Sleep Timer Yes Contrast Ratio 3000:1
Teletext --- Response Time (G to G) 6.5ms
Nicam --- Viewing Angle (H/V) 178°/178°
as c u ct o
a e Spec cat o
gg( )
MTS Yes Life Time(Typ.) ＞30,000hrs
Screen Saver Yes Color 16.7 M(8bit)
System Update Yes Refresh Rate 60Hz
Hotel Mode Optional(In factory mode)
Side
Natura Light Technology ---
REC Yes(at DTV)
GINGA ---
Special Function Terminals
Analog / Digital Signal Receiver Yes
MHL ---
Game Yes
Startup Setting ---
Card Reader ---
On/Off Timers Yes
DCC（Dynamic Contrast Control）---
y
Backlight Adjustable Yes (0~100)
Color Temperature Medium/Warm/Cool
Picture Mode Standard/Dynamic/Mild/User
Picture Size Auto/4:3/16:9 /Zoom1/Zoom2/Panorama
DLTI Yes
DCTI Yes
Comb Filter 3D
Dynamic Noise Reduction Yes
Adaptive Deinterlacing 3D
Motion Compensation
Yes
Down
Motion Compensation Yes
Down
Dynamic Skin Correction Yes
Black Stretch Yes
Blue Stretch Yes
Speakers Integrated speakers (Bottom side)
Audio Power Output（THD=7%）2×5W
Smart Volume Yes(ON/OFF)
Smart Audio Movie/Sports/Standard/Music/User
Sound
Smart
Audio
Movie/Sports/Standard/Music/User
Sound Control Volume, Balance,5 Band EQ
Surround Sound Yes
Sound Scene ---
DD (Dolby Digital ) Yes

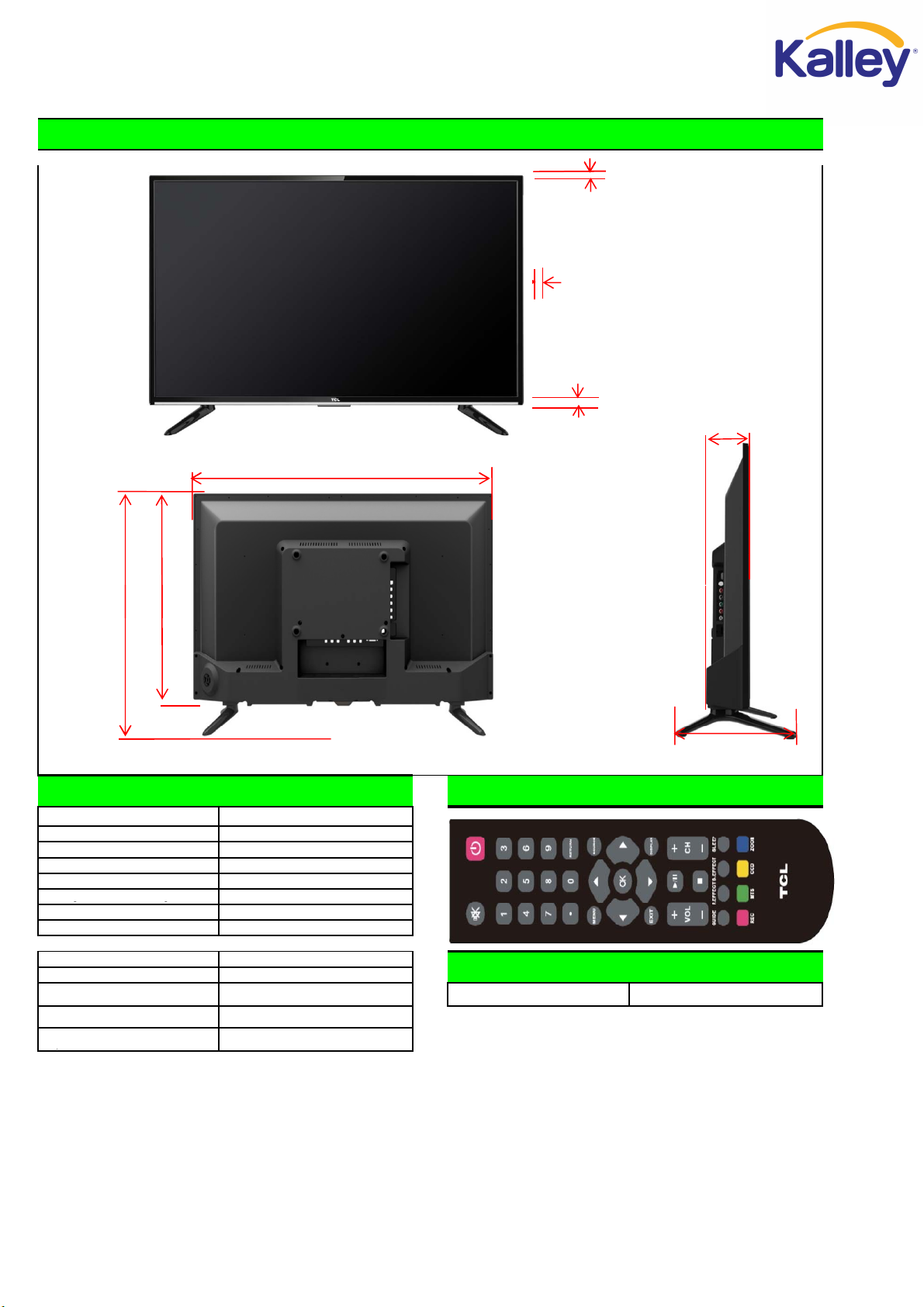

Mechanical ID Picture
Unit:mm
16.1
Unit:mm
16.1
16.1
736
81
18.
736
432.3474.6
197.8
Mechanical Ke
y
S
p
ecification
Carton Dimensions LxWxH（mm）837*122*503
Container Loading---20 feet（pcs）472
Container Loading---40 feet（pcs）1004
Container Loading--40 feet High（pcs）1180
Net Weight With Stand （Kg）4.8
Net Weight Without Stand （Kg）4.72
Remote ID Picture
197.8
g
g
Gross Weight With Packaging（Kg）6.1(普通纸箱）
VESA Mounting Dimensions LxH（mm）200X150
Operation Manual English(Default)
Remote Control and batteries RC200(TCL LOGO,with two batteries)
Base Stand Integrated Packaging Wall Mount WMB233
AC power cord 1 pc
Adapt Cable Wire For AV Or YPBPR ---
Optional Accessories
p
Alignment Procedure
066HULHV02'(/˖0606%06&06'06*06306%306&306'3
VERSION˖V3.0
PREPARED BY : DATE : 2014-1-24
APPROVED BY : LUOSG DATE:
History Description of major changes Release
Date
Changed by
V1.0 2013-04-28
V2.0 Add usb update table on Page 10 2013-12-28 Zhangjin
V3.0 Add USB port number set on Page 7 2014-1-24 Gongjunzan
2YHUYLHZ
06VHULHVFKDVVLVLVGHVLJQHGIRU$VLD3DFLILF6RXWK$PHULFDPDUNHW%RWK)XOO+'SDQHODQG+'SDQHOFDQEHFRPSDWLEOH7KHVLJQDOVRXUFHVLQFOXGH79$9<3%35<&%&59*$+'0,DQG86%)RU<3%35+'0,VRXUFH)RUPDWXSWRSFDQEHVXSSRUWHG86%VXSSRUWLPDJHDXGLRDQGYLGHRXSWR+SOD\LQJ7KHZKROHSURFHVVRIDOLJQPHQWLQFOXGHV$'&FDOLEUDWLRQDQG:KLWH%DODQFHDGMXVWPHQWV
)DFWRU\0HQXǃ0HWKRGVRI(QWHULQJ
0HWKRG˖8VLQJWKHUHPRWHHQWHUWKHĀ3LFWXUHāVXEPHQXLQWKH26'FKRRVLQJWKHĀFRQWUDVWāLWHPDQGSUHVVWKHDQGLQVHULHV)DFWRU\0HQXZLOODSSHDULQWKHOHIWWRSRIVFUHHQ0HWKRG˖3UHVV5(7851EXWWRQZKHQ)$&725<+27.(<LVHQDEOHG21*HQHUDOLQWURGXFWLRQ
)$&725<0(18
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV)$&+27.(<2)))DFWRU\KRWNH\6ZLWFK2))216KRXOGEH2))DIWHUIDFWRU\DOLJQPHQW2.
:$50832))2))˖7KHVHWZRXOGHQWHUVWDQGE\PRGHDIWHUPLQXWHVZLWKRXWLQSXWVLJQDO˗21˖$JLQJPRGH$JLQJWLPHZLOOGLVSOD\RQWKHOHIWERWWRPRIVFUHHQ2.$'&$'&FDOLEUDWLRQ˄UHIHUDVIROORZ˅2.:+,7(%$/$1&(:KLWH%DODQFHGDWDDGMXVWPHQW˄UHIHUDVIROORZ˅7KHEDODQFHGDWDLVVHWE\3(EHIRUHWKHPDVVSURGXFWLRQ'RQRWQHHGDGMXVW2.6+23'25HVHWWKHVHWDIWHUSURGXFWLRQDOLJQPHQW7KLVRSHUDWLRQZLOOUHPRYHDOOXQQHFHVVDU\IDFWRU\YDOXH7KHIDFWRU\KRWNH\ZLOOEHWXUQRII2.190UHVHW'26\VWHPLQLWLDOL]DWLRQ5HVWRUHDOOGDWDH[FHSWWKH:KLWH%DODQFHDQG$'&GDWD2QO\IRU5'2.6(7)$&&+'23UHVHWVSHFLILFIDFWRU\FKDQQHOVIRUVSHFLILFIDFWRU\3UHVVOHIWDQGULJKWEXWWRQWRVHOHFWWKHIDFWRU\DQGWKHQSUHVV2.WRFRQILUP2.32:(521/$6721$OZD\VWXUQVRQ79ZKHQ$&SRZHURQ67%˖$OZD\VJRHVWRVWDQGE\PRGHZKHQ$&SRZHURQ/$67˖5HVWRUHWKHVWDWXVEHIRUHWKHODVW$&SRZHURII

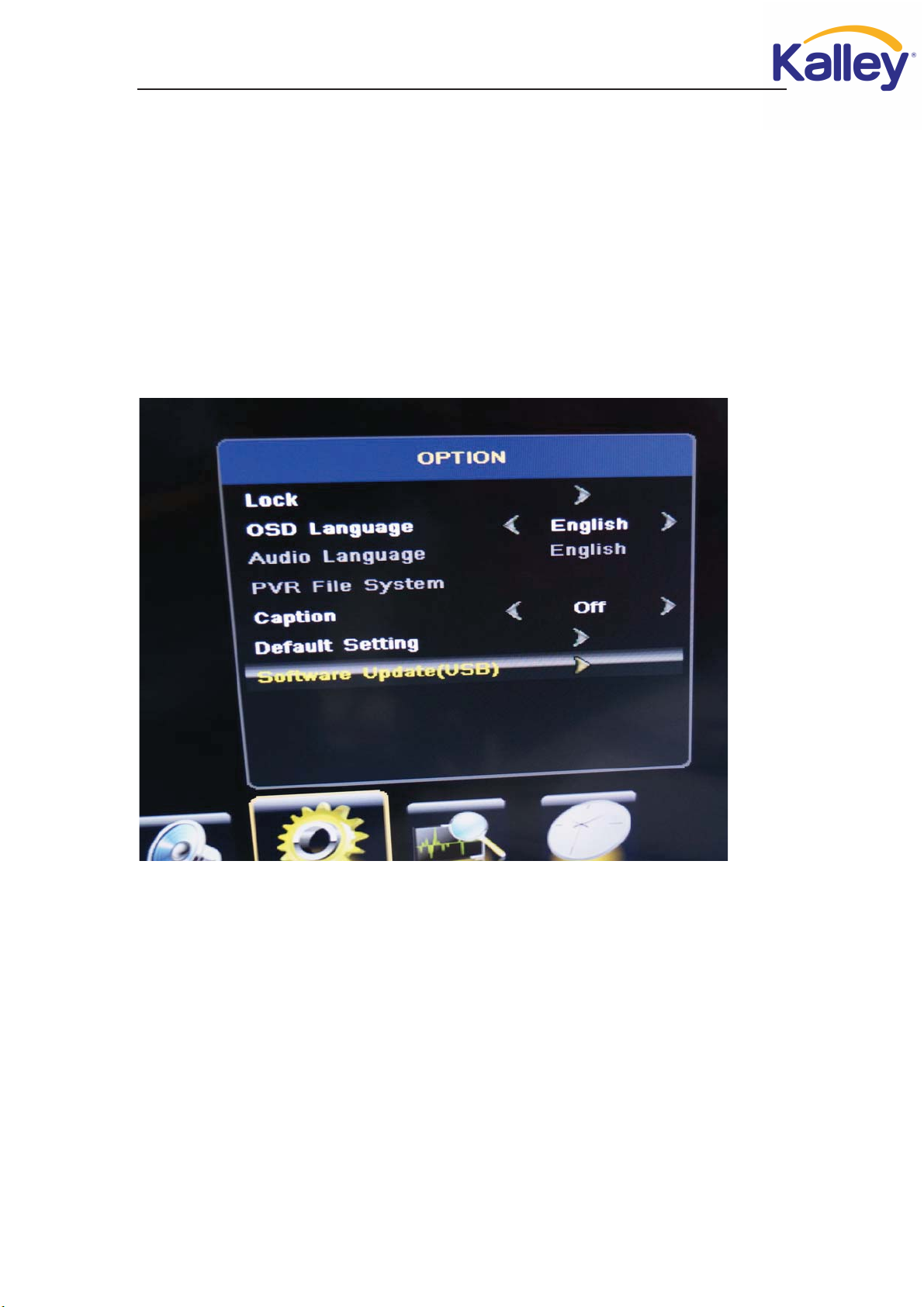

2.86%83'$7(86%XSGDWHˈ
˄UHIHUDVIROORZ˅
2.5HORDG()%,WHPĂ7KLVLWHPRQO\IDFWRU\XVHGˈ1RWH%HORZWKHIDFWRU\PHQXVRPHPRGHOLQIRUPDWLRQDUHVKRZHGLQFOXGLQJVRIWZDUHYHUVLRQ3URMHFW1DPH6,$&39HUVLRQDQG6:UHOHDVHWLPH

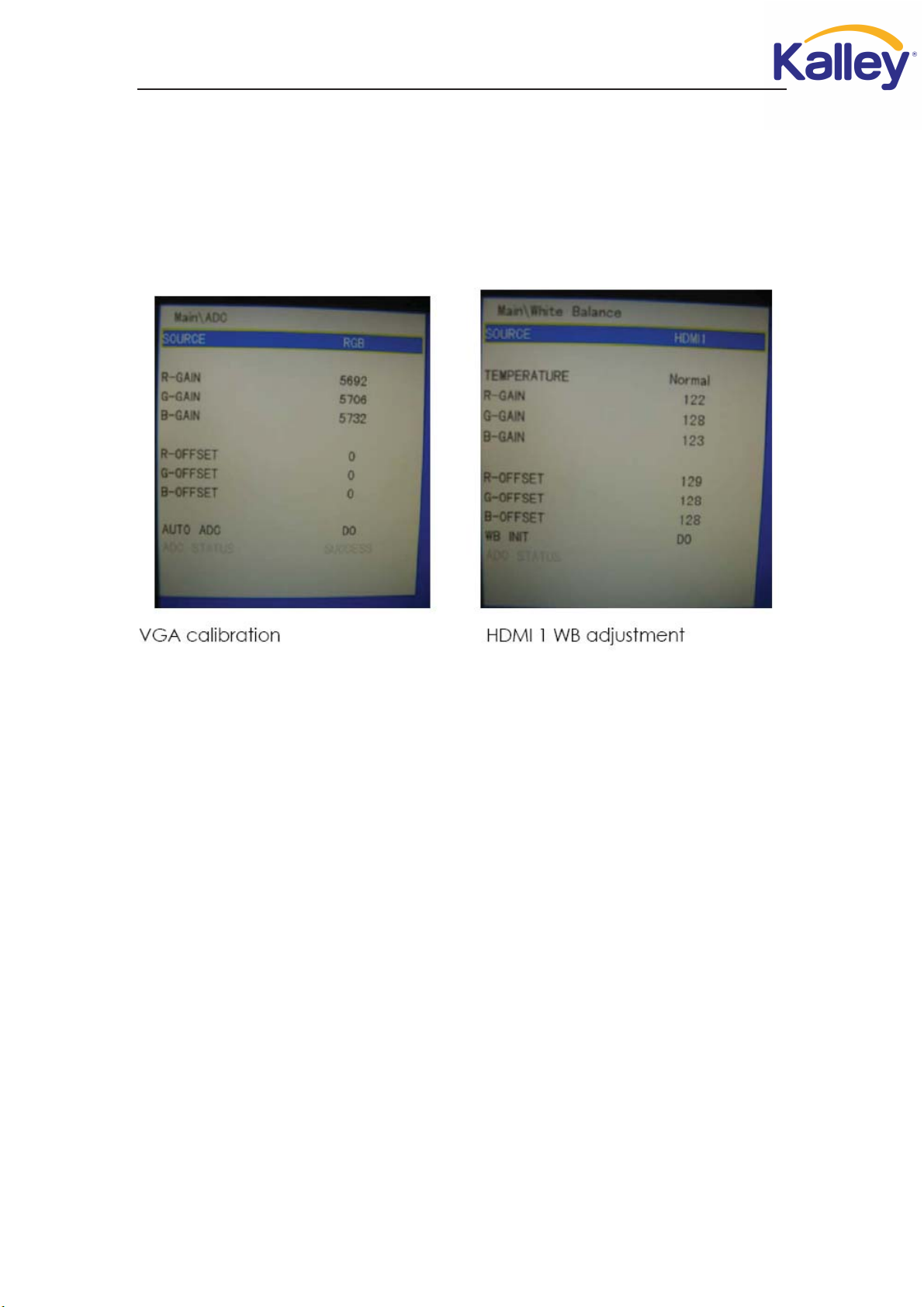

$'&6XEPHQX
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV
6RXUFH5*%<3E3U+'6RXUFHVQHHGFDOLEUDWLRQ5*%PHDQV3&DQG<3E3U+'PHDQV<3E3U2.5*$,15*$,12.**$,15*$,12.%*$,15*$,12.52))6(7%2))6(72.*2))6(7%2))6(72.%2))6(7%2))6(72.$872$'&:$,72.:LWKDSSURSULDWHSDWWHUQPHQWLRQHGEHORZLQSXWWHGSUHVVOHIWRUULJKWNH\WRVWDUWDXWRFDOLEUDWLRQ2.
:+,7(%$/$1&(6XEPHQX
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV6RXUFH&XUUHQW6RXUFH&XUUHQW6RXUFH79$9$9<3E3U+'0,QHHGDGMXVWPHQW2.&2/257(031250$/0HGLXP&RRO:DUH2.5*$,15*$,12.**$,1**$,12.%*$,1%*$,12.52))6(752))6(72.*2))6(7*2))6(72.%2))6(7%2))6(72.:%,1,7'221/<)255' 2.7KHILUVWVWHSLVWRDGMXVW+'0,
'HVLJQ0HQXǃ0HWKRGVRI(QWHULQJ
˖0HWKRG˖8VLQJWKHUHPRWHHQWHUWKHĀ3LFWXUHāVXEPHQXLQWKH26'FKRRVLQJWKHĀFRQWUDVWāLWHPDQGSUHVVWKHDQGLQVHULHV'HVLJQ0HQXZLOODSSHDULQWKHOHIWWRSRIVFUHHQ0HWKRG3UHVV5(7851EXWWRQZKHQ'(6,*1+27.(<LVHQDEOHG21
ǃ*HQHUDOLQWURGXFWLRQ'(6,*10(18
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV'(6,*1+27.(<2))212))2.)$&725<0(18212))2.6+23,1,7'HIDXOWVHWWLQJVXEPHQXDIWHUSURGXFWLRQDOLJQPHQWUHIHUWR2.27+(52WKHUVHW2QO\IRU5' 2.6(59,&(0(18$IWHUVHUYLFHPHQXGHVFULSWLRQ2.3$5$06(77,1*3DUDPHWHUVHWWLQJVXEPHQX2.+27(/0(18+RWHOVXEPHQX˄QRWDGMXVW˅2.
6+23,1,7VXEPHQX
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV9ROXPHDGMXVWDEOH2.3,&02'(67$1'$5'6WDQGDUG%ULJKW0LOG8VHU2.6281'02'(67(5(20RYLH6SRUWV6WDQGDUG0XVLF8VHU2.&KDQQHO2./DQJXDJH(QJOLVK8SWRODQJXDJHVRSWLRQDO2.&2/256<6$872$872ǃ3$/ǃ6(&$02.6281'6<6'.'.ǃ%*ǃ,ǃ012.35(6(7&+DGMXVWDEOH2.&2/257(031250$/0HGLXP&RRO:DUH2.
2WKHU
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV9,)
9,)DGMXVW
˄QRWDGMXVW˅2.
9,)
9,)DGMXVW
˄QRWDGMXVW˅2.9,)
9,)DGMXVW
˄QRWDGMXVW˅2.40$3$'-867!!!34GHEXJ˄QRWDGMXVW˅2.66&!!!66&DGMXVW2.'%&(1$%/('%&DGMXVW˄QRWDGMXVW˅2.%3˄QRWDGMXVW˅2.&3˄QRWDGMXVW˅2.'%&02'(˄QRWDGMXVW˅2.0,8'46˄QRWDGMXVW˅0,8'46˄QRWDGMXVW˅3$5$06(76
6(77,1*
,7(06'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV%ULJKWQHVV&XUYH%ULJKWQHVVFXUYH([FOXVLYHO\XVHGE\5'2.&RQWUDVW&XUYH&RQWUDVWFXUYH([FOXVLYHO\XVHGE\5'2.6DWXUDWLRQ&XUYH6DWXUDWLRQFXUYH([FOXVLYHO\XVHGE\5'2.+XH&XUYH+XHFXUYH([FOXVLYHO\XVHGE\5'2.6KDUSQHVV&XUYH6KDUSQHVVFXUYH([FOXVLYHO\XVHGE\5'2.9ROXPH&XUYH9ROXPHFXUYH([FOXVLYHO\XVHGE\5'2.%DFN/LJKW&XUYH%DFN/LJKWFXUYH([FOXVLYHO\XVHGE\5'2.2YHU6FDQ([FOXVLYHO\XVHGE\5'
ǃ6HUYLFH0HQXǃ0HWKRGVRI(QWHULQJ
8VLQJWKHUHPRWHHQWHUWKHĀ3LFWXUHāVXEPHQXLQWKH26'FKRRVLQJWKHĀFRQWUDVWāLWHPDQGSUHVVWKHDQGLQVHULHV6HUYLFH0HQXZLOODSSHDULQWKHOHIWWRSRIVFUHHQ6(59,&(0(18˖
,7(0'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV6:126RIWZDUH9HUVLRQ2.'$7('DWHDQGWLPHRIVRIWZDUHUHOHDVLQJ2.3URMHFW1DPH0RGXOHQDPH2.6,$&39(56,216,$&39(56,212.&KDVVLV06&KDVVLVQDPH2.3$1(/1$0(31RISDQHO2.1*352-(&7,'!!!6HOHFWSDQHO,'1XPEHU2.&21),*!!!3URMHFW6HOHFWVXEPHQX86%83'$7(!!!86%83'$7(RN+27(/(1$%/(2))+27(/0(186:,7&+12786(5HORDG()%,WHP'R2QO\IRUIDFWRU\DGMXVW2.&21),*VXEPHQX
,7(0'HIDXOW6HWWLQJ'HVFULSWLRQ6WDWXV
(UDVH+'&3.H\'R2QO\IRU5'
2.
5HVHW+'&3.H\'R2QO\IRU5'
2.
8VE+GFSNH\8SGDWH'R2QO\IRU5'
2.
86%3RUW1XPVHW
USB port number set (1 or 2)2.
'HEXJJLQJ*HQHUDO6WHSVRIGHEXJJLQJ
$FFRUGLQJWRWKHUHTXLUHPHQWRIWKHRUGHUEHORZVWHSVDUHQHHGHGIRUDSSURSULDWHVHWWLQJ(QWHUWKH)DFWRU\0HQXHQDEOH)$&+27.(<&KHFN3URMHFW,'DQGWKHYHUVLRQRIVRIWZDUHUHOHDVHGDWHGLVSOD\HGDWWKHERWWRPRI)DFWRU\0HQX(QWHU'HVLJQ0HQXFKRRVH6(59,&(0(18!3URMHFW,'FKRRVHFRUUHVSRQGLQJ3URMHFW,'QXPEHURIWKHSURGXFW5HIHUWRWKHĀ9352-(&7,'āLQWKH%20OLVW
5HWXUQWR)DFWRU\0HQXFKHFNWKH3URGXFWPRGHO&KRRVH)DFWRU\0HQX!1905(6(7DQGSUHVVWKHULJKWEXWWRQRIWKHUHPRWHDQGZDLWXQWLOSURPSW2.DSSHDUV5HVWDUWWKHVHW$FFRUGLQJWRWKHUHTXLUHPHQWRIWKHRUGHU6HWWKHLWHPVRI6+23,1,7DQG+RWHO0HQXHWF$IWHUDJLQJXQGHUQRUPDOWHPSHUDWXUHFDOLEUDWH$'&DQGDGMXVWZKLWHEDODQFH&KRRVH)DFWRU\0HQX!6+23DQGSUHVVWKHEXWWRQRIUHPRWHWRLQLWLDOL]HWKHVHW1RWH$IWHUVWHS+RWHO0HQXZLOOEHGLVDEOHGE\GHIDXOW7KHUHIRUHLIWKHRUGHUUHTXLUHVKRWHOIXQFWLRQLWLVQHFHVVDU\WRHQDEOHKRWHOIXQFWLRQE\VHW'HVLJQ0(18!6HUYLFH0HQX!+27(/(1$%/(WR21
(TXLSPHQWV

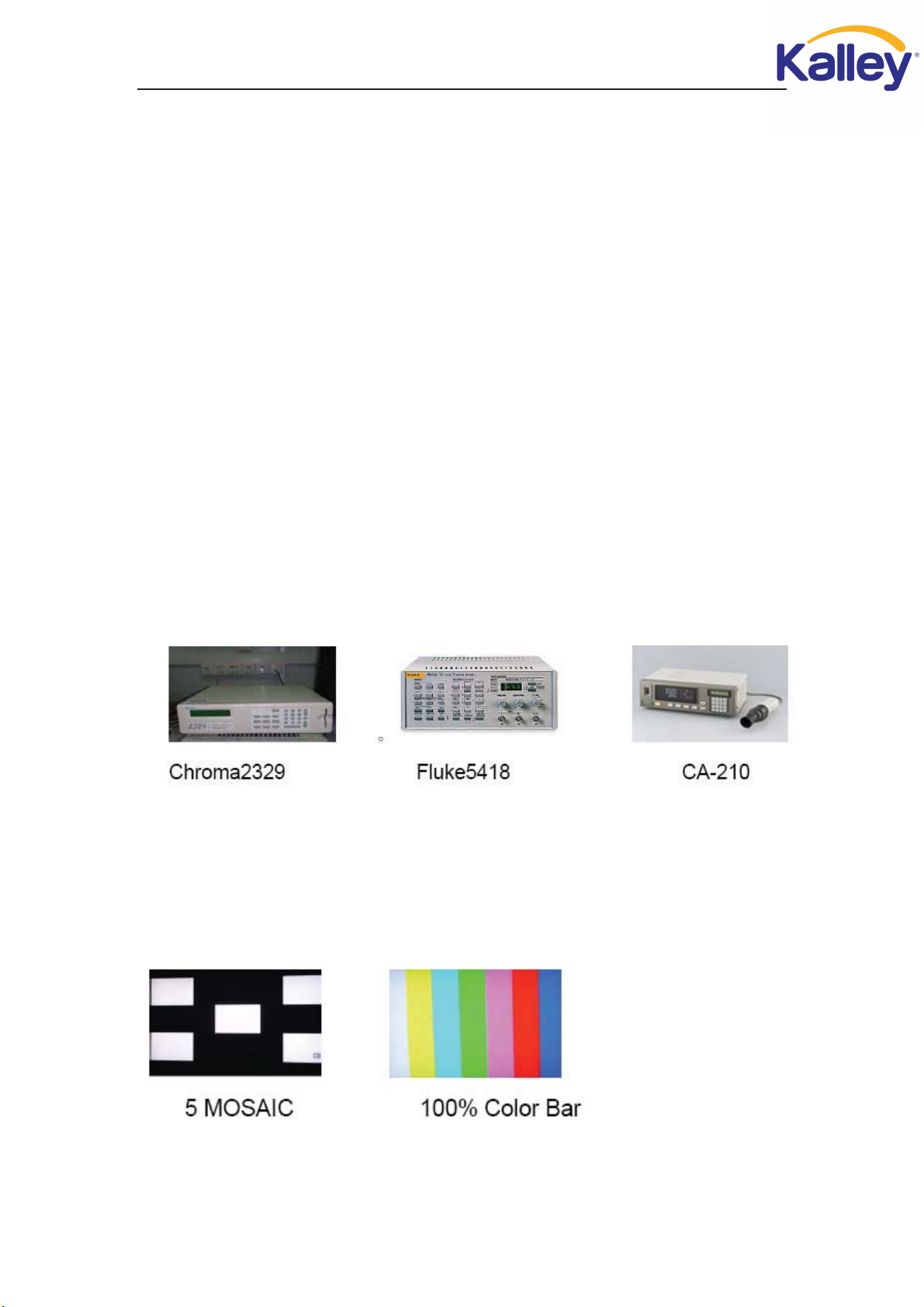

g&RORU$QDO\]HU&$g9LGHR3DWWHUQ*HQHUDWRU&KURPDg&RORU793DWWHUQ*HQHUDWRU30)OXNHg9*$FDEOH$95&$FDEOH<3%3%5&$FDEOH+'0,FDEOHHWF
$'&&DOLEUDWLRQ6LJQDODQGJHQHUDWRU3&
&KURPD3DWWHUQ7LPLQJ;#+]026$,&
<3%35
&KURPDSDWWHUQ7LPLQJ&RORU%DUS
6WHSVRI&DOLEUDWLRQ
$FFHVVWRWKH)DFWRU\PHQX!$'&
VHOHFW5*%VRXUFHDQGVHHWKH026$,&DSSHDURQWKHVFUHHQ
6HOHFW$872$'&3UHVVWKHULJKWEXWWRQRQWKH\RXUUHPRWHWRFDOLEUDWHWKH$'&DXWRPDWLFDOO\
6HOHFW<3%35VRXUFHDQG5HSHDWVWHS:KHQWKH2.DSSHDUVWKHFDOLEUDWLRQKDVEHHQILQLVKHGVXFFHVVIXOO\
:KLWH%DODQFHDGMXVWPHQWV0DQXDO
%HIRUHDGMXVWPHQW\RXPXVWPDNHVXUHWKH$'&VWDWXVRQO\3&DQG<3E3ULVĀVXFFHVVāDQG&RORU$QDO\]HUKDVEHHQFDOLEUDWHG2QO\$9<3E3U3&+'0,QHHGWREHDGMXVWHG+'0,VKRXOGEHWKHILUVW
6LJQDODQGJHQHUDWRU
7KHSDWWHUQRIWKHVLJQDOVKRXOGEHXVHGDUH:KLWH&KURPDSDWWHUQDQG*UH\SDWWHUQ7KHIRUPDWRIVLJQDODUHUHVSHFWLYHO\3IRU+'0,&KURPD7LPLQJ3$/&KURPD7LPLQJIRU$9;#+]&KURPD7LPLQJIRU9*$DQG3&KURPD7LPLQJIRU<3E3U
6WHSVRIDGMXVWPHQW
(QWHUWKHIDFWRU\PHQX!:KLWH%DODQFHVHOHFWVRXUFH+'0,DQG1RUPDO7HPSHUDWXUH,QSXWJUH\VLJQDOLQSIRUPDW&KDQJH52))6(7DQG%2))6(7WRPDNHVXUHWKHYDOXHRIFRORUFRRUGLQDWLRQHTXDOWR; < ,QSXWZKLWHVLJQDOLQSIRUPDW&KDQJH5*$,1DQG%*$,1WRPDNHVXUHWKHYDOXHRIFRORUFRRUGLQDWLRQHTXDOWR; <
5HSHDWVWHSüXQWLOERWKRIWKHYDOXHRIFRORUFRRUGLQDWLRQRIZKLWHDQGJUH\HTXDOWR; < )RU&22/DQG:$50FRORUWHPSHUDWXUHMXVWUHSHDWVWHSü7KHFRORUFRRUGLQDWLRQZHUHFRPPHQGIRU&22/DQG:$50FRORUWHPSHUDWXUHLVUHVSHFWLYHO\; < DQG; < $IWHUWKHDGMXVWPHQWRI+'0,\RXFDQVZLWFKWRRWKHUVRXUFH$93&DQG<3E3UDQGUHSHDWVWHSüWRGRWKH:%DGMXVWPHQW
1RWH
)RUVRPHVPDOOVL]H/('SDQHOWKHFRORUFRRUGLQDWLRQRIVSHFLILFDWLRQVLVQRW; < DQGZHUHFRPPHQG\RXDGRSWWKHYDOXHVIURPSDQHOVSHFLILFDWLRQV
$'&&DOLEUDWLRQDQG:KLWH%DODQFH$GMXVWPHQWDXWRPDWLF
7KHSURFHVVRIDGMXVWLQJ$'&DQG:KLWH%DODQFHDXWRPDWLFDOO\LVRXWRIWKHUDQJHRIWKLVILOH3OHDVHUHIHUWRWKHUHOHYDQWWHFKQLFDOILOHRI+XL=KRXIDFWRU\RI7&/
&KLSOLVWRIVRIWZDUHSURJUDPPLQJEHIRUH607
)ROORZLQJFKLSVPXVWEHSURJUDPPHGEHIRUH607E\WRROV
3RVLWLRQ
&KLSW\SH6
6RIWZDUHGHVFULSWLRQ
8EN25Q32+'0,+'&3.H\6\VWHP6RIWZDUHHWF
6RIWZDUHXSGDWH
0HWKRGRI6:XSGDWH
˅
'RZQORDGWKHELQILOHWRWKHURRWGLUHFWRU\RI\RXU86%GHYLFH'RQRWFKDQJHWKHILOHQDPH7KHQLQVHUWWKH86%GHYLFHWR86%LQWHUIDFHRI79VHW066HULHVZLWKLWVXSJUDGHILOHFRUUHVSRQGLQJUHODWLRQDVWKHWDEOHEHORZVKRZ&KDVVLV1DPH6DOHVDUHD8SJUDGHILOHQDPH5HPDUN$306B$3B***ELQ06063/$06B/$B***ELQ06%06%3$306%B***ELQ'9%706&06&3$306&B***ELQ'9%706'06'3/$06'B***ELQ,6'%71DPHRI%UD]LOYHUVLRQZLOOEHFKDQJHGDIWHULWVXSGDWLQJ06*/$06*B***ELQ'9%7
˅
Upgrading method 1
ˈ
XVLQJWKHUHPRWHHQWHUWKHĀ3LFWXUHāVXEPHQXRIWKH26'FKRRVLQJWKHĀFRQWUDVWāLWHPDQGSUHVVDQGLQVHULHV)DFWRU\0HQXZLOODSSHDULQWKHOHIWWRSRIVFUHHQ
6HOHFWWKHĀ86%83'$7(āLWHPSUHVVOHIWRUULJKWNH\WRHQWHUWKHXSGDWHER[

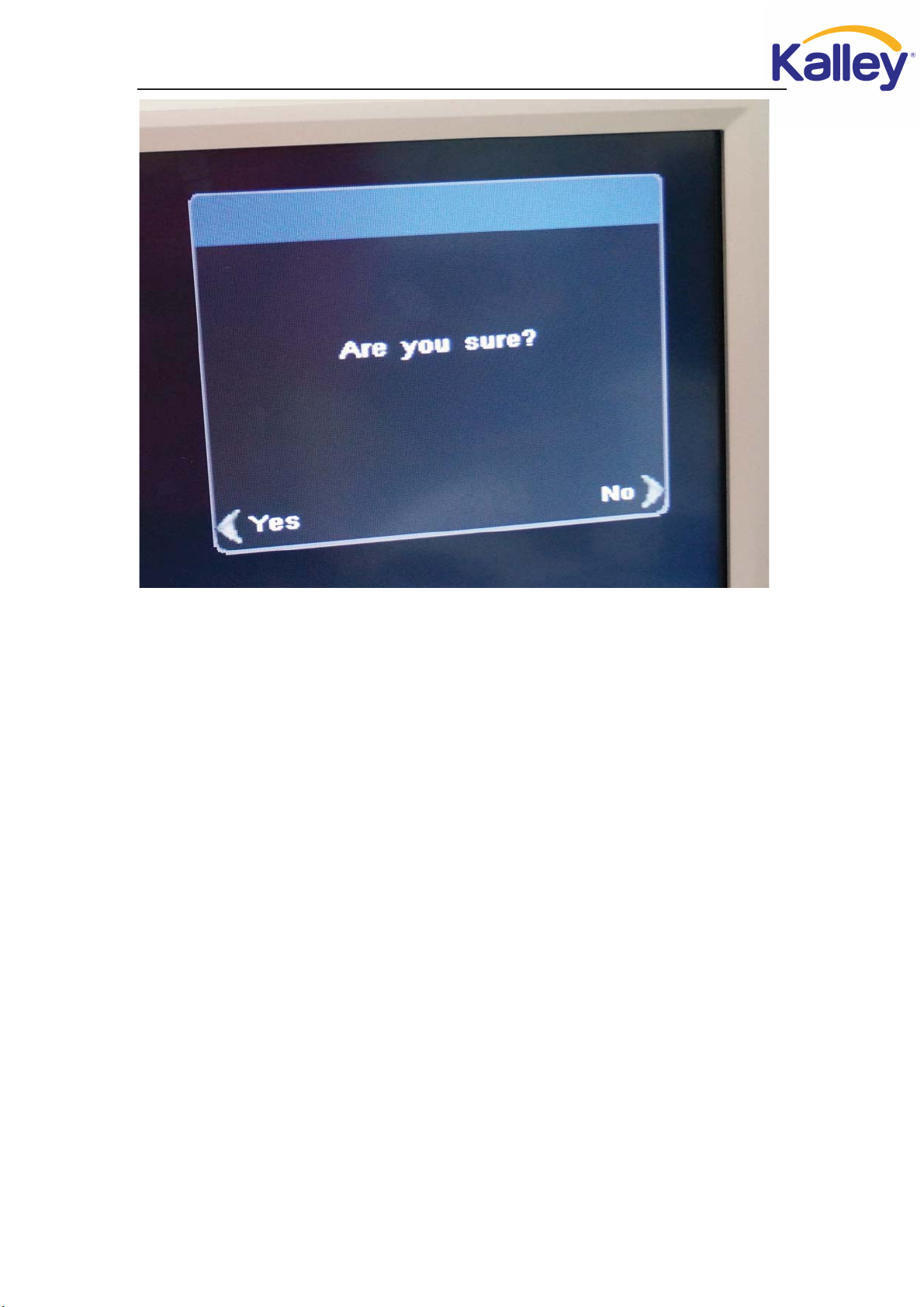

6HOHFWĀ<(6āRIWKHGLDORJER[DQGSUHVV2.EXWWRQWRVWDUWWKHXSGDWH
\RXZLOOVHHDSURJUHVVER[RQWKHVFUHHQ
$IWHUXSGDWLQJWKHVHWZLOOUHVHWDXWRPDWLFDOO\3
˅
Upgrading method 2
1
ˈ
3UHVVWKHĀ0(81āEXWWRQRI5HPRWH&RQWUROWKHQVHOHFWWKHĀ6RIWZDUH8SGDWH8!āLWHPLQĀ2SWLRQāVXEPHQXSUHVVOHIWRUULJKWNH\WRHQWHUWKHXSGDWHER[
ˈ
3UHVVOHIWEXWWRQ6HOHFWĀ<(6āRIWKHGLDORJER[DQGWRVWDUWWKHXSGDWH\RXZLOOVHHDSURJUHVVER[RQWKHVFUHHQ
ˈ
$IWHUXSGDWLQJWKHVHWZLOOUHVHWDXWRPDWLFDOO\
3URMHFW,'VHOHFWLQJ
3UHVVWKH0HQXEXWWRQRIUHPRWHFRQWUROWKHQVHOHFW&RQWUDVWLWHPRI3LFWXUHVXEPHQXSUHVVFRQVHFXWLYHO\WKHUH\RXJRWKH'HVLJQ0HQX6HOHFWWKH6(59,&(0(18LWHPSUHVV2.DQG5,*+7EXWWRQRIWKHUHPRWHWRHQWHUVXEPHQX6HOHFWWKH352-(&7,'LWHPSUHVV2.RU5,*+7EXWWRQRIWKHUHPRWHWRHQWHUWKHVXEPHQX3UHVVWKHULJKWRUOHIWEXWWRQRIWKHUHPRWHWRVHOHFWWKH,'\RXZDQW$IWHU,'VHOHFWLRQSUHVV0(18EXWWRQRIWKHUHPRWHWRH[LW'(6,*10(18)LQDOO\GR$&SRZHURQRII
Table of contents
Other Kalley TV manuals
