2
CONTENTS BEFORE USE
Warning
Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of
the output level.
General:
• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded
data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short
circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to
evaporate.
Remote control (RC-406):
• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or
equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used
batteries promptly. If swallowed, contact a physician immediately.
BEFORE USE 2
BASICS 3
GETTING STARTED 4
RADIO 5
CD / USB / iPod / ANDROID 7
AUX 9
DISPLAY SETTINGS 9
AUDIO SETTINGS 10
TROUBLESHOOTING 11
MORE INFORMATION 12
SPECIFICATIONS 13
INSTALLATION /
CONNECTION 14
How to read this manual
• Operations are explained mainly
using buttons on the faceplate of
.
• [
XX ] indicates the selected items.
• ( 
XX ) indicates references are
available on the stated page.
Maintenance
Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.
Cleaning the connector: Detach the faceplate and clean the connector
gently with a cotton swab, being careful not to damage the connector.
Handling discs:
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.
Connector (on the reverse
side of the faceplate)
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 2JS_KWD_KDC_364U_102UR_EN_EN_f.indd 2 14/10/2014 4:56:28 PM14/10/2014 4:56:28 PM

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
3
BASICS
To On the faceplate On the remote control
Turn on the power Press .
• Press and hold to turn off the power.
Press and hold SRC to turn off the power.
( Pressing SRC does not turn on the power. )
Adjust the volume Turn the volume knob. Press or .
Press ATT during playback to attenuate the sound.
• Press again to cancel.
Select a source Press repeatedly. Press SRC repeatedly.
Change the display
information
Press repeatedly.
• Press and hold to scroll the current display information. ( not available )

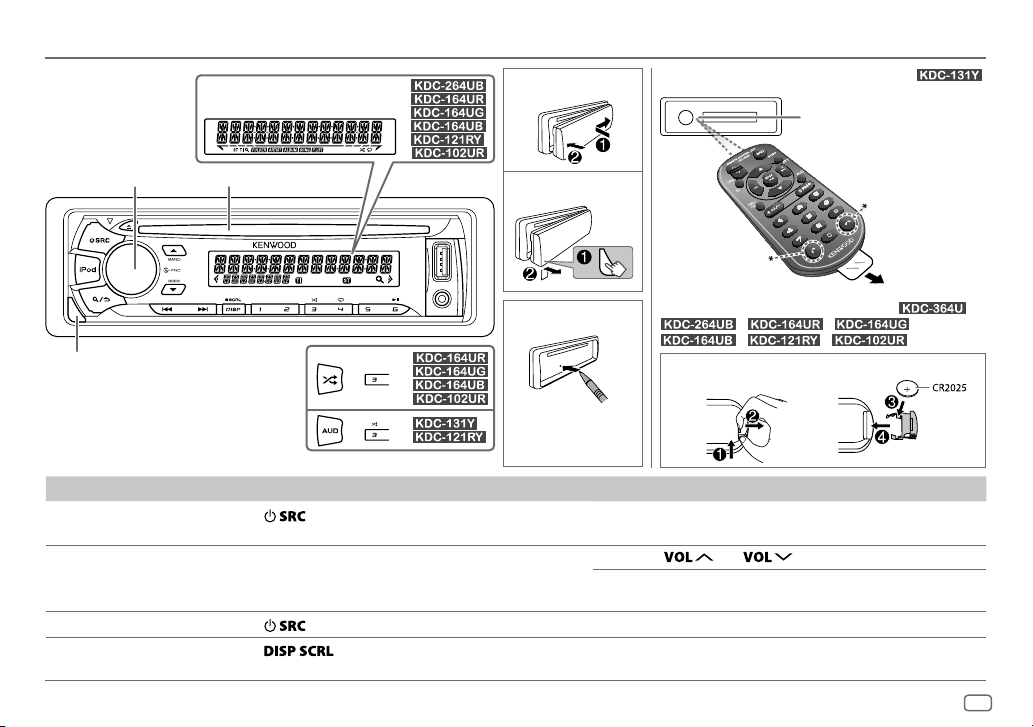

Faceplate
How to reset
Attach
Detach
Remote control (RC-406) (supplied for )
ENGLISH
Pull out the
insulation sheet
when using for
the first time.
Your preset
adjustments will
also be erased.
How to replace the battery
Remote sensor (Do not
expose to bright sunlight.)
Volume knob
(turn/press)
Detach button
Loading slot
Display window
*
Not used
Remote control functions are not available for
/ / /
/ / /
.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 3JS_KWD_KDC_364U_102UR_EN_EN_f.indd 3 14/10/2014 4:56:29 PM14/10/2014 4:56:29 PM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
GETTING STARTED
Select the display language and cancel the demonstration
When you turn on the power (or after you reset the unit), the display
shows: “SELLANGUAGE” “PRESS” “VOLUMEKNOB”
1 Turn the volume knob to select [ ENG ] (English) or [ RUS ] (Russian),
then press the knob.
[
ENG ] is selected for the initial setup.
Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME
KNOB”.
2 Press the volume knob.
[
YES ] is selected for the initial setup.
3 Press the volume knob again.
“DEMOOFF” appears.

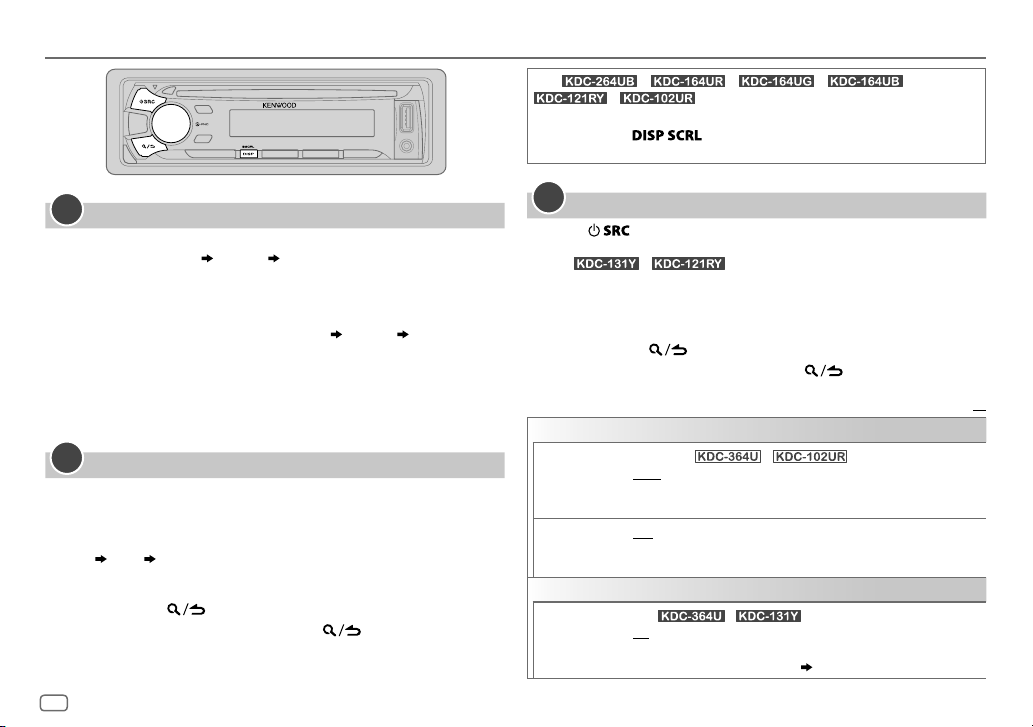

Set the clock
1 Press the volume knob to enter [
FUNCTION ].
2 Turn the volume knob to select [ CLOCK ], then press the knob.
3 Turn the volume knob to select [ CLOCK ADJUST ], then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Day Hour Minute
5 Turn the volume knob to select [ CLOCK FORMAT ], then press the knob.
6 Turn the volume knob to select [ 12H ] or [ 24H ], then press the knob.
7 Press and hold to exit.
To return to the previous setting item, press .
1
2
(For / / / /
/ )
While in clock display screen...
Press and hold to enter clock adjustment mode directly.
Then, perform step 4to set the clock.
Set the initial settings
1 Press to enter STANDBY.
2 Press the volume knob to enter [ FUNCTION ].
For / , pressing AUD enter [
AUDIO CONTROL ]
directly.
3 Turn the volume knob to make a selection (see the following table),
then press the knob.
4 Repeat step 3until the desired item is selected or activated.
5 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
AUDIO CONTROL
SWITCH
PREOUT
(Except for / )
REAR
/ SUB-W : Selects whether rear speakers or a subwoofer are
connected to the line out terminals on the rear (through an external
amplifier).
SP SELECT OFF / 5/4 / 6 × 9/6 / OEM : Selects according to the speaker size (5inches
or 4inches, 6×9inches or 6inches) or OEM speakers for optimum
performance.
DISPLAY
EASY MENU (For / )
ON
:Both display and button illumination change to white color when
entering [
FUNCTION ].; OFF :Both display and button illumination
remain as [
COLOR  SELECT ] color. (  9 )
3
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 4JS_KWD_KDC_364U_102UR_EN_EN_f.indd 4 14/10/2014 4:56:29 PM14/10/2014 4:56:29 PM

ENGLISH 5
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
TUNER SETTING
PRESET TYPE NORMAL
:Memorizes one station for each preset button in each band (FM1/
FM2/ FM3/ MW/ LW).;
MIX :Memorizes one station for each preset button,
regardless of the selected band.
SYSTEM
KEY BEEP ON
:Activates the keypress tone.; OFF :Deactivates.
SOURCE SELECT
BUILT-IN AUX ON
:Enables AUX in source selection.; OFF :Disables. (  9 )
P-OFF WAIT Applicable only when the demonstration mode is turned off.
Sets the duration when the unit will automatically turn off (while in standby
mode) to save the battery.
20M : 20minutes; 40M : 40minutes; 60M : 60minutes;
WAIT TIME – – – :Cancels
CD READ 1 :Automatically distinguishes between audio file disc and music CD.;
2 : Forces to play as a music CD. No sound can be heard if an audio file disc is
played.
F/W UPDATE
UPDATE SYSTEM
F/W UP xx.xx YES
:Starts upgrading the firmware.; NO :Cancels (upgrading is not
activated).
For details on how to update the firmware, see: www.kenwood.com/cs/ce/
CLOCK
CLOCK DISPLAY ON
:The clock time is shown on the display even when the unit is turned off.;
OFF :Cancels.
ENGLISH Selected language is use as the display langauge for [ FUNCTION ] menu
and Tag information (folder name, file name, song title, artist name, album
name) if applicable.
РУССКИЙ
GETTING STARTED RADIO
Search for a station
1 Press repeatedly to select TUNER.
2 Press repeatedly (or press / on RC-406)
to select FM1/ FM2/ FM3/ MW/ LW.
3 Press S/T(or press S/ on RC-406) to search for a
station.
• To change the searching method for S/T: Press
repeatedly.
AUTO1 : Automatically search for a station.
AUTO2 : Search for a preset station.
MANUAL : Manually search for a station.
• To store a station: Press and hold one of the number buttons
(1to6).
• To select a stored station: Press one of the number buttons (1to6)
(or press one of the number buttons (1to6) on RC-406).
Direct Access Tuning (using RC-406) (for )
1 Press DIRECT to enter Direct Access Tuning.
“– – – • –” (for FM) or “– – – –” (for MW/ LW) appears on the display.
2 Press the number buttons to enter a frequency.
3 Press to search for a station.
• To cancel, press or DIRECT.
• If no operation is done for 10seconds after step2, Direct Access
Tuning is automatically canceled.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 5JS_KWD_KDC_364U_102UR_EN_EN_f.indd 5 14/10/2014 4:56:30 PM14/10/2014 4:56:30 PM

6
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Other settings
1 Press the volume knob to enter [
FUNCTION ].
2 Turn the volume knob to make a selection (see the following table), then
press the knob.
3 Repeat step 2until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
TUNER SETTING
LOCAL SEEK* ON
: Searches only stations with good reception. ; OFF : Cancels.
•
Settings made are applicable only to the selected source/station. Once you change
the source/station, you need to make the settings again.
AUTO
MEMORY
YES :Automatically starts memorizing 6 stations with good reception.; NO :Cancels.
•
Selectable only if [ NORMAL ] is selected for [ PRESET TYP E]. (  5 )
MONO SET ON :Improves the FM reception, but the stereo effect may be lost.; OFF :Cancels.
NEWS SET ON :The unit will temporarily switch to News Programme if available. ; OFF :Cancels.
REGIONAL ON : Switches to another station only in the specific region using the “AF” control.;
OFF :Cancels.
AF SET ON : Automatically searches for another station broadcasting the same program
in the same Radio Data System network with better reception when the current
reception is poor.;
OFF :Cancels.
TI* ON : Allows the unit to temporarily switch to Traffic Information if available (“TI”
lights up).;
OFF : Cancels.
PTY SEARCH Press the volume knob to enter PTY language selection. Turn the volume knob to
select the PTY language (
ENGLISH / FRENCH / GERMAN ), then press the knob.
Selects the available Program Type (see the following), then, press
S/ T to
start.
CLOCK
TIME SYNC ON
:Synchronizes the unit’s time to the Radio Data System station
time.;
OFF :Cancels.
* Only for FM source.
• [ LOCAL SEEK ]/ [ MONO SET ]/ [ NEWS SET ]/ [ REGIONAL ]/ [ AF SET ]/ [ TI ]/
[
PTY SEARCH ] is selectable only when the band is FM1/ FM2/ FM3.
• Available Program Type:
SPEECH : NEWS , AFFAIRS , INFO (information), SPORT , EDUCATE , DRAMA ,
CULTURE , SCIENCE , VARIED , WEATHER , FINANCE , CHILDREN ,
SOCIAL , RELIGION , PHONE IN , TRAVEL , LEISURE , DOCUMENT
MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M
(music), CLASSICS , OTHER M (music), JAZZ , COUNTRY , NATION M
(music), OLDIES , FOLK M (music)
The unit will search for the Program Type categorized under
[
SPEECH ] or [ MUSIC ] if selected.
• If the volume is adjusted during reception of traffic information,
alarm or news bulletin, the adjusted volume is memorized
automatically. It will be applied the next time traffic information,
alarm or news bulletin is turned on.
RADIO
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 6JS_KWD_KDC_364U_102UR_EN_EN_f.indd 6 14/10/2014 4:56:30 PM14/10/2014 4:56:30 PM

ENGLISH 7
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

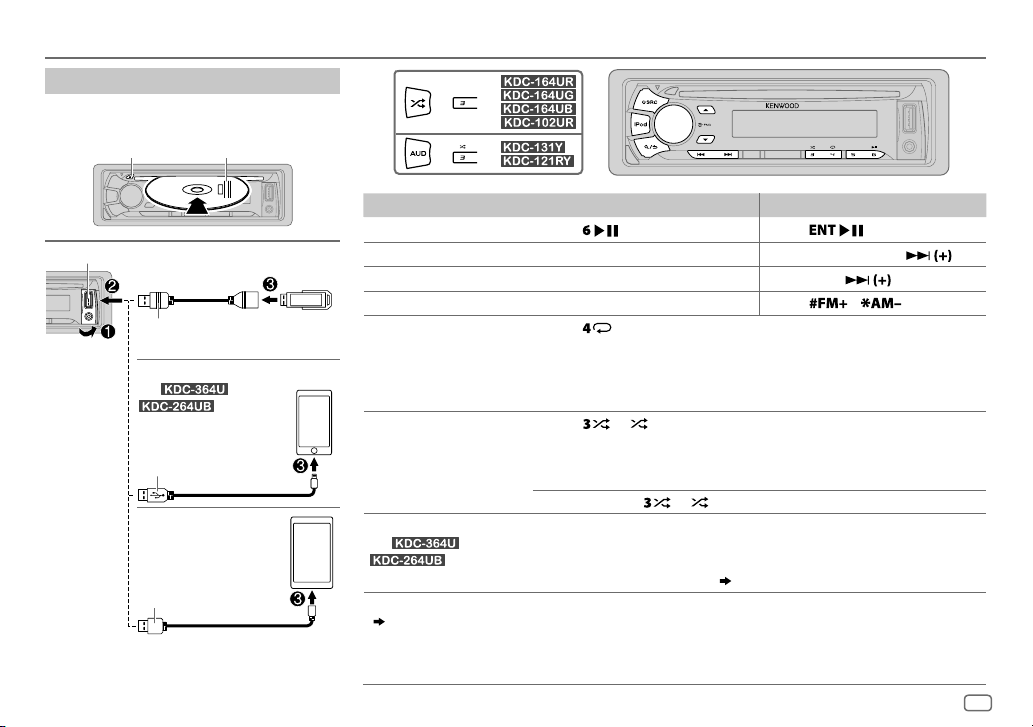

CD / USB / iPod / ANDROID
Start playback
The source changes automatically and
playback starts.
*1
KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type
*2
Do not leave the cable inside the car when not using.
To On the faceplate On the remote control
Playback / pause Press . Press .
Reverse / Fast-forward*4Press and hold S/T. Press and hold S/ .
Select a track/file Press S/T. Press S/ .
Select a folder*5Press J/K.Press / .
Repeat play*6Press repeatedly.
TRACK REPEAT / REPEAT OFF : Audio CD
FILE REPEAT / FOLDER REPEAT / REPEAT OFF : MP3/WMA/WAV file, iPod or
ANDROID
FILE REPEAT / REPEAT OFF : KME Light/ KMC file*7
Random play*6Press or repeatedly.
DISC RANDOM / RANDOM OFF : Audio CD
FOLDER RANDOM / RANDOM OFF : MP3/WMA/WAV file, KME Light/ KMC
file, iPod or ANDROID
Press and hold or to select
ALL RANDOM .*8
Select control mode
(for /
)
While in iPod source, press and hold iPod.
MODE ON : Control from the iPod*9
MODE OFF : Control from the unit
While in ANDROID source, ( 8 , [ ANDROID SETUP ] )
Select music drive
(
8 , [ MUSIC DRIVE] )
Press 5repeatedly.
The stored songs in the following start playback.
• Selected internal or external memory of a smartphone (Mass Storage
Class).
• Selected drive of a multiple drives device.
Label side M Eject disc
USB input terminal
CA-U1EX (max.: 500mA)
(optional accessory)
Micro USB 2.0 cable
*2
(commercially available)
KCA-iP102 / KCA-iP103 (optional
accessory)
*1
or accessory cable
of the iPod/iPhone
*2
USB
iPod/iPhone
(for /
)
ANDROID*3
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 7JS_KWD_KDC_364U_102UR_EN_EN_f.indd 7 14/10/2014 4:56:30 PM14/10/2014 4:56:30 PM

8
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CD / USB / iPod / ANDROID
*3
When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is
shown. Follow the instructions to install the application. You can also install the latest version
of KENWOOD MUSIC PLAY application on your Android device before connecting. ( 
12 )
*4
For ANDROID: Applicable only when [ BROWSE MODE ] is selected. ( [ ANDROID SETUP ])
*5
For CD: Only for MP3/WMA files. This does not work for iPod/ ANDROID.
*6
For iPod/ ANDROID: Applicable only when [ MODE OFF ]/ [ BROWSE MODE ] is selected.
*7
KME Light : KENWOOD Music Editor Light, KMC : KENWOOD Music Control (  12 )
*8
For CD: Only for MP3/WMA files.
*9
You can still play/pause, file skip, fast-forward or reverse files from the unit.
Select a file from a folder/list
1 Press .
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.
Quick Search
If you have many files, you can search through them quickly.
For USB (for KME Light/ KMC files):
Press S/Tto search at a preset skip search ratio. ( [
SKIP SEARCH ])
Press and hold S/Tto search at a 10
% ratio.
• Not applicable for CD and MP3/WMA/WAV files.
For iPod:
You can search for a file according to the first character.
Turn the volume knob quickly to enter character search.
Turn the volume knob to select the character.
To search for a character other than A to Z and 0to9, enter only
“
*”.
Press S/Tto move to the entry position.
• You can enter up to 3characters.
Press the volume knob to start searching.
• To return to the root folder/ first file/ top menu, press 5.
• To return to the previous setting item, press .
• To cancel, press and hold .
• For iPod, applicable only when [
MODE OFF ] is selected. (  7 )
• For ANDROID, applicable only when [
BROWSE MODE ] is selected.
([
ANDROID SETUP ])
Direct Music Search (using RC-406) (for )
1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press to search for music.
• To cancel, press or DIRECT.
• Not available if Random Play is selected.
• Not applicable for iPod, ANDROID, KME Light/ KMC file.
Listen to TuneIn Radio/ TuneIn Radio Pro/ Aupeo
(for / )
While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect
the iPod/iPhone to the USB input terminal of the unit.
• The unit will output the sound from these applications.
Other settings
1 Press the volume knob to enter [
FUNCTION ].
2 Turn the volume knob to make a selection (see the following
table), then press the knob.
3 Repeat step 2until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press .
Default: XX
ANDROID SETUP
BROWSE MODE : Control from the unit (using KENWOOD MUSIC PLAY application).;
HAND MODE :Control other media player applications from the Android device (without
using KENWOOD MUSIC PLAY application). However, you can still play/pause and file skip
from the unit.
USB
MUSIC DRIVE DRIVE CHANGE
:The next drive ([ DRIVE 1 ] to [ DRIVE 5 ]) is selected
automatically and playback starts.
Repeat steps
1 to 3 to select the following drives.
SKIP SEARCH 0.5% / 1% / 5% / 10% : While listening to iPod, ANDROID or KME Light/
KMC file, selects the skip search ratio over the total files.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 8JS_KWD_KDC_364U_102UR_EN_EN_f.indd 8 14/10/2014 4:56:31 PM14/10/2014 4:56:31 PM

ENGLISH 9
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUX
Preparation:
Select [
ON ] for [ BUILT-IN AUX ]. (  5 )
Start listening
1 Connect a portable audio player (commercially available).
2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.
Set the AUX name
While listening to a portable audio player connected to the unit...
1 Press the volume knob to enter [ FUNCTION ].
2 Turn the volume knob to select [ SYSTEM ], then press the knob.
3 Turn the volume knob to select [ AUX NAME SET ], then press the knob.
4 Turn the volume knob to make a selection, then press the knob.
AUX (default)/ DVD / PORTABLE / GAME / VIDEO / TV
5 Press and hold to exit.
To return to the previous setting item, press .
Muting upon the reception of a phone call
Connect the MUTE wire to your telephone using a commercial
telephone accessory. ( 
15 )
When a call comes in, “CALL” appears. (The audio system pauses.)
• To continue listening to the audio system during a call, press .
“CALL” disappears and the audio system resumes.
When the call ends, “CALL” disappears. (The audio system resumes.)
Auxiliary input jack
Portable audio player
3.5mm stereo mini plug with “L” shaped
connector (commercially available)
DISPLAY SETTINGS
1 Press the volume knob to enter [ FUNCTION ].
2 Turn the volume knob to select [ DISPLAY ], then press the knob.
3 Turn the volume knob to make a selection (see the following table),
then press the knob.
4 Repeat step 3until the desired item is selected/activated or follow
the instructions stated on the selected item.
5 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
COLOR
SELECT
*
1
VARIABLE SCAN / CUSTOM R/G/B / preset colors*
2
: Selects your
preferred key and display illumination color.
You can create your own color (when [
CUSTOM R/G/B ] or preset colors*
2
is selected). The color you have created can stored in [
CUSTOM R/G/B ].
1 Press and hold the volume knob to enter the detailed color
adjustment.
2 Press S / T to select the color ( R / G / B ) to adjust.
3 Turn the volume knob to adjust the level ( 0 — 9 ), then press the
knob.
DIMMER ON :Dims the display illumination (and button illumination*
1
).;
OFF :Cancels.
BRIGHTNESS 0 — 31 : Selects your preferred brightness level for display illumination
(and button illumination*
1
).
TEXT SCROLL AUTO / ONCE :Selects whether to scroll the display information
automatically, or scroll only once.;
OFF :Cancels.
*1
For / .
*2
Preset colors: RED1 / RED2 / RED3 / PURPLE1 / PURPLE2 / PURPLE3 / PURPLE4 / BLUE1 /
BLUE2
/ BLUE3 / SKYBLUE1 / SKYBLUE2 / LIGHTBLUE / AQUA1 / AQUA2 / GREEN1 /
GREEN2
/ GREEN3 / YELLOWGREEN1 / YELLOWGREEN2 / YELLOW / ORANGE1 /
ORANGE2
/ ORANGERED
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 9JS_KWD_KDC_364U_102UR_EN_EN_f.indd 9 14/10/2014 4:56:31 PM14/10/2014 4:56:31 PM

10
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUDIO SETTINGS
While listening to any source...
1 Press the volume knob to enter [ FUNCTION ].
2 Turn the volume knob to select [ AUDIO CONTROL ], then press the knob.
For / , pressing AUD enter [
AUDIO CONTROL ]
directly.
3 Turn the volume knob to make a selection (see the following table),
then press the knob.
4 Repeat step 3until the desired item is selected or activated.
5 Press and hold to exit.
(or using RC-406) (for )
1 Press AUD to enter [ AUDIO CONTROL ].
2 Press J/Kto make a selection, then press .
To return to the previous setting item, press .
Default: XX
SUB-W LEVEL* –15 to +15 ( 0 ) Adjusts the subwoofer output level.
BASS LEVEL –8 to +8 ( +6 )Adjusts the level to memorize for each source. (Before
making an adjustment, select the source you want to
adjust.)
MID LEVEL –8 to +8 ( +5 )
TRE LEVEL –8 to +8 ( 0 )
EQ PRO
BASS ADJUST BASS CTR FRQ 60
/ 80 / 100 / 200 or 60HZ / 80HZ / 100HZ / 200HZ :
Selects the center frequency.
BASS LEVEL –8 to +8 ( +6 ):Adjusts the level.
BASS Q FACTOR 1.00 / 1.25 / 1.50 / 2.00 :Adjusts the quality factor.
BASS EXTEND ON :Turns on the extended bass.; OFF :Cancels.
MID ADJUST MID CTR FRQ 0.5K / 1.0K / 1.5K / 2.5K or 0.5KHZ / 1.0KHZ / 1.5KHZ /
2.5KHZ :Selects the center frequency.
MID LEVEL –8 to +8 ( +5 ):Adjusts the level.
MID Q FACTOR 0.75 / 1.00 / 1.25 :Adjusts the quality factor.
TRE ADJUST TRE CTR FRQ 10.0K / 12.5K / 15.0K / 17.5K or 10.0KHZ / 12.5KHZ /
15.0KHZ / 17.5KHZ :Selects the center frequency.
TRE LEVEL –8 to +8 ( 0 ):Adjusts the level.
PRESET EQ DRIVE EQ / TOP40 / POWERFUL / ROCK / POPS / EASY / JAZZ /
NATURAL / USER :Selects a preset equalizer suitable to the music
genre. (Select [
USER ] to use the customized settings.)
[
DRIVE EQ ] is a preset equalizer that reduces noise outside the car or
running noise of the tyres.
BASS BOOST LV1 / LV2 / LV3 or LEVEL1 / LEVEL2 / LEVEL3 :Selects your preferred
bass boost level.;
OFF :Cancels.
LOUDNESS LV1 / LV2 or LEVEL1 / LEVEL2 : Selects your preferred low and high
frequencies boost to produce a well-balanced sound at a low volume
level.
; OFF :Cancels.
SUBWOOFER SET* ON :Turns on the subwoofer output.; OFF :Cancels.
LPF SUBWOOFER* THROUGH :All signals are sent to the subwoofer.; 85HZ / 120HZ /
160HZ :Audio signals with frequencies lower than 85Hz/ 120Hz/
160Hz are sent to the subwoofer.
SUB-W PHASE* REVERSE (180°)/ NORMAL (0°):Selects the phase of the subwoofer
output to be in line with the speaker output for optimum
performance. (Selectable only if a setting other than [
THROUGH ] is
selected for [
LPF SUBWOOFER ].)
HPF
(For )
THROUGH :All signals are sent to the speakers.; 100HZ / 120HZ /
150HZ :Audio signals with frequencies higher than 100Hz/ 120Hz/
150Hz are sent to the speakers.
FADER R15 to F15 ( 0 ):Adjusts the rear and front speaker output balance.
BALANCE L15 to R15 ( 0 ):Adjusts the left and right speaker output balance.
VOLUME OFFSET For AUX: –8 to +8 ( 0 ) ; For other sources: –8 to 0 :Presets the volume
adjustment level of each source. (Before adjustment, select the source
you want to adjust.)
SOUND RECNSTR
(Sound
reconstruction)
ON :Creates realistic sound by compensating the high-frequency
components and restoring the rise-time of the waveform that are lost
in audio data compression.;
OFF :Cancels.
• [ SUB-W LEVEL ]/ [ SUBWOOFER SET ]/ [ LPF SUBWOOFER ]/ [ SUB-W PHASE ] is
selectable only if [
SWITCH PREOUT ] is set to [ SUB-W ]. (  4 )
• [
SUB-W LEVEL ]/ [ LPF SUBWOOFER ]/ [ SUB-W PHASE ] is selectable only if
[
SUBWOOFER SET ] is set to [ ON ].
* Except for .
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 10JS_KWD_KDC_364U_102UR_EN_EN_f.indd 10 14/10/2014 4:56:32 PM14/10/2014 4:56:32 PM

ENGLISH 11
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
TROUBLESHOOTING
Symptom Remedy
General
Sound cannot be heard.
•
Adjust the volume to the optimum level.
•
Check the cords and connections.
“MISWIRING CHECK WIRING
THEN PWR ON” appears.
Turn the power off, then check to be sure the terminals
of the speaker wires are insulated properly. Turn the
power on again.
“PROTECTING SEND SERVICE”
appears.
Send the unit to the nearest service center.
•
Sound cannot be heard.
•
The unit does not turn on.
•
Information shown on the
display is incorrect.
Clean the connectors. ( 
2 )
The unit does not work at all. Reset the unit. ( 
3 )
Radio
•
Radio reception is poor.
•
Static noise while listening
to the radio.
•
Connect the antenna firmly.
•
Pull the antenna out all the way.
CD / USB / iPod
Disc cannot be ejected. Press and hold
M to forcibly eject the disc. Be careful
not to drop the disc when it is ejected. If this does not
solve the problem, reset the unit. ( 
3 )
Noise is generated. Skip to another track or change the disc.
Tracks do not play back as
you intended them to play.
Playback order is determined when files are recorded.
“READING” keeps flashing. Do not use too many hierarchical levels or folders.
Elapsed playing time is not
correct.
This is caused by how the tracks are recorded.
Correct characters are not
displayed (e.g. album name).
This unit can only display uppercase letters, numbers,
and a limited number of symbols. Uppercase Cyrillic
letters can also be displayed if [
РУССКИЙ ] is selected.
(
5 )
Symptom Remedy
CD / USB / iPod
“NA FILE” Make sure the disc contains supported audio files. (  12 )
“NO DISC” Insert a playable disc into the loading slot.
“TOC ERROR” Make sure the disc is clean and inserted properly.
“PLEASE EJECT” Reset the unit. If this does not solve the problem, consult
your nearest service center.
“READ ERROR” Copy the files and folders onto the USB device again. If this
does not solve the problem, reset the USB device or use
another USB device.
“NO DEVICE” Connect a USB device, and change the source to USB again.
“COPY PRO” A copy-protected file is played.
“NA DEVICE” Connect a supported USB device, and check the
connections.
“NO MUSIC” Connect a USB device that contains playable audio files.
“iPod ERROR”
•
Reconnect the iPod.
•
Reset the iPod.
ANDROID
•
Sound cannot be heard
during playback.
•
Sound output only
from the Android
device.
•
Reconnect the Android device.
•
If in [ HAND MODE ], launch any media player
application on the Android device and start playback.
•
If in [ HAND MODE ], relaunch the current media player
application or use another media player application.
•
Restart the Android device.
•
If this does not solve the problem, the connected
Android device is unable to route the audio signal to
unit. ( 
12 )
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 11JS_KWD_KDC_364U_102UR_EN_EN_f.indd 11 14/10/2014 4:56:32 PM14/10/2014 4:56:32 PM

12
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
MORE INFORMATIONTROUBLESHOOTING
General
•
This unit can only play the following CDs:
•
Detailed information and notes about the playable audio
files are stated in an online manual on the following web
site: www.kenwood.com/cs/ce/audiofile/
Playable files
•
Playable audio file: MP3 (.mp3), WMA (.wma)
•
Playable disc media: CD-R/CD-RW/CD-ROM
•
Playable disc file format: ISO 9660 Level 1/2, Joliet, Long
file name.
•
Playable USB device file system: FAT12, FAT16, FAT32
Even when audio files comply with the standards listed
above, playback may be impossible depending on the types
or conditions of media or device.
Unplayable discs
•
Discs that are not round.
•
Discs with coloring on the recording surface or discs that
are dirty.
•
Recordable/ReWritable discs that have not been
finalized.
•
8cm CD. Attempting to insert using an adapter may
cause malfunction.
About USB devices
•
This unit can play MP3/WMA/WAV files stored on a USB
mass storage class device.
•
You cannot connect a USB device via a USB hub.
•
Connecting a cable whose total length is longer than 5m
may result in abnormal playback.
•
This unit cannot recognize a USB device whose rating is
other than 5V and exceeds 1A.
About KENWOOD Music Editor Light and KENWOOD
Music Control
•
This unit supports the PC application KENWOOD Music
Editor Light and Android™ application KENWOOD Music
Control.
•
When you play audio files with song data added using
the KENWOOD Music Editor Light or KENWOOD Music
Control, you can search for audio files by Genres, Artists,
Albums, Playlists, and Songs.
•
KENWOOD Music Editor Light and KENWOOD Music
Control are available on the following web site:
www.kenwood.com/cs/ce/
About iPod/iPhone
Made for
-
iPod touch (2nd, 3rd, 4th, and 5th generation)
-
iPod classic
-
iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
-
iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C
•
For the latest compatible list and software versions of
iPhone/iPod, see: www.kenwood.com/cs/ce/ipod
•
You cannot operate iPod if “KENWOOD” or “ ” is
displayed on iPod.
About Android device
•
This unit supports Android OS 4.1 and above.
•
Some Android devices (with OS 4.1 and above) may not
fully support Android Open Accessory (AOA) 2.0.
•
If the Android device supports both mass storage class
device and AOA 2.0, this unit always playback via AOA
2.0 as priority.
•
For more information and the latest compatible list, see:
www.kenwood.com/cs/ce/
Symptom Remedy
ANDROID
Cannot playback at
[
BROWSE MODE ].
•
Make sure KENWOOD MUSIC
PLAY APP is installed on the
Android device. ( 
8 )
•
Reconnect the Android device
and make the appropriate
setting in [
ANDROID SETUP ].
(
8 )
•
If this does not solve the
problem, the connected
Android device does not support
[
BROWSE MODE ]. (  About
Android device
)
“NO DEVICE” or
“READING” keeps
flashing.
•
Switch off the developer options
on the Android device.
•
Reconnect the Android device.
•
If this does not solve the
problem, the connected
Android device does not support
[
BROWSE MODE ]. (  About
Android device
)
Playback is
intermittent or
sound skips.
Turn off the power saving mode
on the Android device.
“ANDROID ERROR” /
“NADEVICE”
•
Reconnect the Android device.
•
Restart the Android device.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 12JS_KWD_KDC_364U_102UR_EN_EN_f.indd 12 14/10/2014 4:56:32 PM14/10/2014 4:56:32 PM

ENGLISH 13
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
SPECIFICATIONS
Tuner
FM Frequency Range 87.5MHz — 108.0MHz (50kHz space)
Usable Sensitivity (S/N=26dB) 0.71μV/75Ω
Quieting Sensitivity
(DINS/N=46dB)
2.0μV/75Ω
Frequency Response (±3dB) 30Hz — 15kHz
Signal-to-Noise Ratio (MONO) 64dB
Stereo Separation (1kHz) 40dB
MW Frequency Range 531kHz — 1611kHz (9kHz space)
Usable Sensitivity (S/N=20dB) 28.2μV
LW Frequency Range 153kHz — 279kHz (9kHz space)
Usable Sensitivity (S/N=20dB) 50μV
CD player
Laser Diode GaAIAs
Digital Filter (D/A) 8 times over sampling
Spindle Speed 500rpm — 200rpm (CLV)
Wow & Flutter Below measurable limit
Frequency Response (±1dB) 20Hz — 20kHz
Total Harmonic Distortion (1kHz) 0.01%
Signal-to-Noise Ratio (1kHz) 105 dB
Dynamic Range 90dB
Channel Separation 85dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
USB
USB Standard USB1.1, USB2.0
File System FAT12/16/32
Maximum Supply Current DC5V 1A
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
WAV Decode Linear-PCM
Audio
Maximum Output Power 50W×4
Full Bandwidth Power 22W×4 (at less than 1% THD)
Speaker Impedance 4Ω—8Ω
Tone Action Bass 200Hz±8dB
Middle 2.5kHz±8dB
Treble 12.5kHz±8dB
Preout Level/Load (CD) (Except for )
2500mV/10kΩ
Preout Impedance ≤600Ω
Auxiliary

Frequency Response (±3dB) 20Hz—20kHz
Input Maximum Voltage 1000mV
Input Impedance 30kΩ
General

Operating Voltage 14.4V (10.5V—16V allowable)
Maximum Current Consumption 10A
Operational Temperature Range 0°C—+40°C
Installation Size (W×H×D) 182mm×53mm×159mm
Weight 1.2kg
Subject to change without notice.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 13JS_KWD_KDC_364U_102UR_EN_EN_f.indd 13 14/10/2014 4:56:32 PM14/10/2014 4:56:32 PM

14
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION / CONNECTION
Warning
•
The unit can only be used with a 12V DC power supply, negative ground.
•
Disconnect the battery’s negative terminal before wiring and mounting.
•
Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis
or Ground wire (black) to prevent a short circuit.
•
Insulate unconnected wires with vinyl tape to prevent a short circuit.
•
Be sure to ground this unit to the car’s chassis again after installation.
Caution
•
For safety’s sake, leave wiring and mounting to professionals. Consult the car
audio dealer.
•
Install this unit in the console of your vehicle. Do not touch the metal parts of
this unit during and shortly after use of the unit. Metal parts such as the heat
sink and enclosure become hot.
•
Do not connect the [ wires of speakers to the car chassis or Ground wire
(black), or connect them in parallel.
• Mount the unit at an angle of less than 30º.
•
If your vehicle wiring harness does not have the ignition terminal, connect
Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V
DC power supply and is turned on and off by the ignition key.
•
Keep all cables away from heat dissipate metal parts.
•
After the unit is installed, check whether the brake lamps, blinkers, wipers, etc.
on the car are working properly.
•
If the fuse blows, first make sure the wires are not touching car’s chassis, then
replace the old fuse with one that has the same rating.
Basic procedure
1 Remove the key from the ignition switch, then disconnect
the [terminal of the car battery.
2 Connect the wires properly.
See Wiring connection. ( 
15 )
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the [terminal of the car battery.
5 Reset the unit. (  3 )
Do the required wiring.
(
15 )
Dashboard of
your car
Bend the appropriate tabs to hold the
mounting sleeve firmly in place.

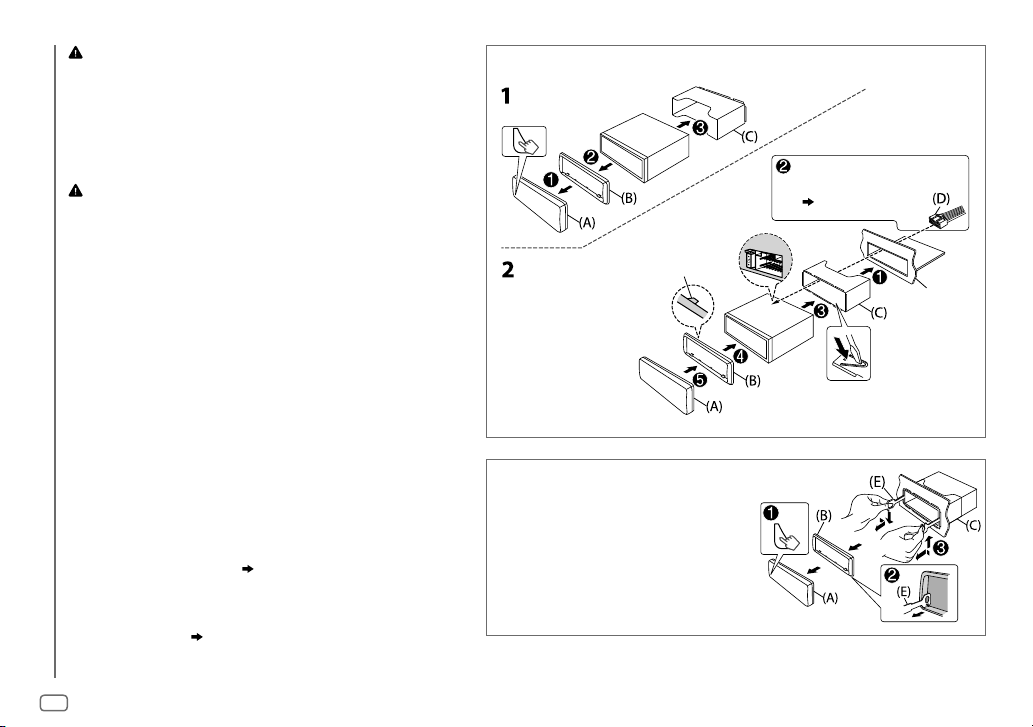

How to remove the unit
1 Detach the faceplate.
2 Fit the catch pin on the extraction
keys into the holes on both sides
of the trim plate, then pull it out.
3 Insert the extraction keys deeply
into the slots on each side, then
follow the arrows as shown on the
right.
Installing the unit (in-dash mounting)
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 14JS_KWD_KDC_364U_102UR_EN_EN_f.indd 14 14/10/2014 4:56:32 PM14/10/2014 4:56:32 PM

ENGLISH 15
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
REMOTE CONT
STEERINGWHEEL
REMOTE INPUT
P. CONT
ANT CONT
MUTE
Part list for
installation
(A) Faceplate
Wiring connection
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
Fuse (10A)
*
: Not available
Rear/ Front/ Subwoofer
output
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel
remote control adapter
Blue/White
(Power control
wire/ Antenna
control wire)
Brown
(Mute control wire)
To the power control
terminal when using the
optional power amplifier
or to the antenna control
terminal in the vehicle
To the terminal that
is grounded when the
telephone rings or during
conversation ( 
9 )
(To connect the Kenwood
navigation system,
refer your navigations
manual.)
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple
]
: Rear speaker (right)
B2 Purple/black
[
B3 Gray
]
: Front speaker (right)
B4 Gray/black
[
B5 White
]
: Front speaker (left)
B6 White/black
[
B7 Green
]
: Rear speaker (left)
B8 Green/black
[
ISO connectors
Connecting the ISO connectors on some VW/Audi or
Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Unit
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
If no connections are made, do not let the wire come out
from the tab.
When connecting to an external amplifier,
connect its ground wire to the car’s chassis
to avoid damaging the unit.
JS_KWD_KDC_364U_102UR_EN_EN_f.indd 15JS_KWD_KDC_364U_102UR_EN_EN_f.indd 15 6/11/2014 1:48:26 PM6/11/2014 1:48:26 PM

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
2
INHALT VOR DER INBETRIEBNAHME
Warnung
Bedienen Sie keine Funktion, die Ihre Aufmerksamkeit vom Straßenverkehr ablenkt.
Vorsicht
Lautstärkeeinstellung:
• Stellen Sie die Lautstärke so ein, dass Sie immer noch Geräusche von außerhalb des Fahrzeugs hören können, um Unfälle zu vermeiden.
• Senken Sie die Lautstärke vor dem Abspielen digitaler Tonquellen, um Beschädigung der Lautsprecher durch plötzliche
Tonspitzen zu vermeiden.
Allgemeines:
• Vermeiden Sie Verwendung des externen Geräts, wenn dieses das sichere Fahren behindern kann.
• Stellen Sie sicher, dass alle wichtigen Daten gesichert sind. Wir übernehmen keine Haftung für jeglichen Verlust
aufgenommener Daten.
• Stellen Sie sicher, dass keine Metallgegenstände (wie etwa Münzen oder Werkzeuge) ins Innere des Geräts gelangen und
Kurzschlüsse verursachen.
• Wenn ein Disc-Fehler durch Kondensationsbildung auf der Laserlinse auftritt, werfen Sie die Disc aus und warten Sie eine Zeit
lang, bis die Kondensation getrocknet ist.
Fernbedienung (RC-406):
• Lassen Sie die Fernbedienung nicht an heißen Orten wie beispielsweise auf dem Armaturenbrett liegen.
• Es besteht die Gefahr, dass die Lithiumbatterie explodiert, wenn sie verkehrt eingesetzt wird. Ersetzen sie sie ausschließlich
durch eine des gleichen oder eines gleichwertigen Typs.
• Akkus oder Batterien dürfen keiner großen Hitze, wie beispielsweise Sonneneinstrahlung, Feuer oder Ähnlichem, ausgesetzt werden.
• Bewahren Sie Batterie bis zur Verwendung außerhalb der Reichweite von Kindern und in der Originalverpackung auf. Entsorgen
Sie gebrauchte Batterien umgehend. Bei Verschlucken der Batterie sofort einen Arzt aufsuchen.
VOR DER INBETRIEBNAHME 2
GRUNDLAGEN 3
ERSTE SCHRITTE 4
RADIO 5
CD / USB / iPod / ANDROID 7
AUX 9
DISPLAY-EINSTELLUNGEN 9
AUDIOEINSTELLUNGEN 10
FEHLERSUCHE 11
WEITERE INFORMATIONEN 12
TECHNISCHE DATEN 13
EINBAU / ANSCHLUSS 14
Wie Sie diese Anleitung lesen
• Die Bedienung wird im Wesentlichen
anhand der Tasten auf der Frontblende
des erläutert.
• [ XX ] zeigt die gewählten Punkte an.
• (  XX ) zeigt an, das
Bezugsinformationen auf der
angegebenen Seitennummer
vorhanden sind.
Wartung
Reinigung des Geräts: Wischen Sie die Frontblende mit einem trockenen Silikonlappen oder weichen Lappen sauber.
Reinigung des Steckverbinders: Die Frontblende abnehmen und den Anschluss sanft
mit einem Wattetupfer oder Lappen reinigen, wobei darauf geachtet werden muss, die
Anschlusskontakte nicht zu beschädigen.
Handhabung von Discs:
• Berühren Sie nicht die Aufnahme-Oberfläche der Disc.
• Kleben Sie keine Aufkleber oder ähnliches auf eine Disc. Verwenden Sie dem
entsprechend auch keine Discs, auf denen sich bereits ein Aufkleber befindet.
• Verwenden Sie kein Zubehör für die Disc.
• Reinigen Sie CDs stets von der Mitte einer Disc nach außen hin.
• Reinigen Sie die Disc mit einem trockenen Silikonlappen oder weichen Lappen. Verwenden Sie keine Lösungsmittel.
• Ziehen Sie Discs beim Entfernen aus dem Gerät horizontal heraus.
• Entfernen Sie vor dem Einsetzen einer Disc die Grate vom Mittenloch und der Disc-Kante.
Anschluss (an der Rückseite der
Frontblende)
JS_KWD_KDC_364U_GE.indd 2JS_KWD_KDC_364U_GE.indd 2 7/18/2014 2:57:59 PM7/18/2014 2:57:59 PM

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
3
GRUNDLAGEN
Zum Auf der Frontblende An der Fernbedienung
Einschalten Drücken Sie .
• Zum Ausschalten halten Sie die Taste gedrückt.
Zum Ausschalten halten Sie
SRC gedrückt.
( Durch Drücken von SRC wird die Stromversorgung nicht eingeschaltet. )
Einstellen der Lautstärke Drehen Sie den Lautstärke-Regler. Drücken Sie oder .
Drücken Sie ATT während der Wiedergabe, um den Ton stummzuschalten.
• Zum Abbrechen drücken Sie die Taste erneut.
Quelle auswählen Drücken Sie wiederholt. Drücken Sie
SRC wiederholt.
Ändern der
Display-Information Drücken Sie wiederholt.
• Halten Sie die Taste gedrückt, um die Display-Informationen zu scrollen. ( nicht verfügbar )
Frontblende
Rücksetzen
Anbringen
Abnehmen
Fernbedienung (RC-406) (mitgeliefert für )
DEUTSCH
Bei der ersten
Verwendung
ziehen Sie das
Schutzblatt heraus.
Ihre vorgegebenen
Einstellungen werden
ebenfalls gelöscht.
Ersetzen der Batterie
Fernbedienungssensor (Nicht
hellem Sonnenlicht aussetzen.)
Lautstärke-Regler
(drehen/drücken)
Abnehmen-Taste
Ladeschlitz
Displayfenster
*
Nicht verwendet
Die Fernbedienungsfunktionen sind nicht für /
/ / /
/ / verfügbar.
JS_KWD_KDC_364U_102UR_EN_GE.indd 3JS_KWD_KDC_364U_102UR_EN_GE.indd 3 20-Oct-14 2:49:27 PM20-Oct-14 2:49:27 PM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ERSTE SCHRITTE
Wählen Sie die Anzeigesprache und brechen Sie die
Demonstration ab
Wenn Sie die Stromversorgung einschalten (nach dem Rücksetzen des Geräts),
erscheint folgende Anzeige im Display:“SELLANGUAGE” “PRESS” “VOLUMEKNOB”
1 Drehen Sie den Lautstärke-Regler zum Wählen von [ ENG ] (Englisch) oder
[
RUS ] (Russisch), und drücken Sie dann den Regler.
[ ENG ] ist für das ursprüngliche Setup gewählt.
Dann erscheint folgendes in der Anzeige: “CANCEL DEMO” “PRESS” “VOLUME
KNOB”.
2 Drücken Sie den Lautstärke-Regler.
[ YES ] ist für das ursprüngliche Setup gewählt.
3 Drücken Sie den Lautstärke-Regler erneut.
“DEMOOFF” erscheint.
Stellen Sie die Uhr ein
1 Drücken Sie den Lautstärke-Regler, um auf [
FUNCTION ] zu schalten.
2 Drehen Sie den Lautstärke-Regler zum Wählen von [ CLOCK ], und drücken
Sie dann den Regler.
3 Drehen Sie den Lautstärke-Regler zum Wählen von [ CLOCK ADJUST ], und
drücken Sie dann den Regler.
4 Drehen Sie den Lautstärke-Regler, um die Einstellungen vorzunehmen,
und drücken Sie dann den Regler.
Tag Stunde Minute
5 Drehen Sie den Lautstärke-Regler zum Wählen von [ CLOCK FORMAT ], und
drücken Sie dann den Regler.
6 Drehen Sie den Lautstärke-Regler zum Wählen von [ 12H ] oder [ 24H ], und
drücken Sie dann den Regler.
7 Halten Sie zum Beenden gedrückt.
Zum Zurückschalten zum vorherigen Einstellelement drücken Sie .
1
2
(Für / / / /
/ )
Während der Uhr-Anzeigebildschirm erscheint...
Halten Sie gedrückt, um den Uhreinstellmodus direkt
einzuschalten.
Dann führen Sie Schritt 4 zum Einstellen der Uhr aus.
Festlegen der Anfangseinstellungen
1 Drücken Sie , um auf STANDBY zu schalten.
2 Drücken Sie den Lautstärke-Regler, um auf [ FUNCTION ] zu schalten.
Für / wird durch Drücken von AUD die Eingabe [ AUDIO
CONTROL ] direkt vorgenommen.
3 Drehen Sie den Lautstärke-Regler, um eine Auswahl zu treffen (siehe
folgende Tabelle), und drücken Sie dann den Regler.
4 Wiederholen Sie Schritt 3, bis der gewünschte Gegenstand gewählt
oder aktiviert ist.
5 Halten Sie zum Beenden gedrückt.
Zum Zurückschalten zum vorherigen Einstellelement drücken Sie .
Standard:
XX
AUDIO CONTROL
SWITCH
PREOUT
(Außer bei / )
REAR
/ SUB-W : Wählt, ob hintere Lautsprecher oder ein Subwoofer an die Line-Out-
Buchsen an der Rückseite angeschlossen sind (über einen externenVerstärker).
SP SELECT OFF / 5/4 / 6 × 9/6 / OEM : Auswahl entsprechend der Lautsprechergröße (5 Zoll oder
4 Zoll, 6×9 Zoll oder 6 Zoll) oder OEM-Lautsprechern für optimale Leistung.
DISPLAY
EASY MENU (Für / )
ON
:Sowohl die Anzeige als auch dieTastenbeleuchtung wechseln aufWeiß um, wenn
[
FUNCTION ] eingegeben wird.; OFF :Sowohl Anzeige als auchTastenbeleuchtung
bleiben als Farbe von [
COLOR SELECT ]. (  9 )
3
JS_KWD_KDC_364U_102UR_EN_GE.indd 4JS_KWD_KDC_364U_102UR_EN_GE.indd 4 20-Oct-14 3:04:46 PM20-Oct-14 3:04:46 PM
