kincrome K13203 User manual

1/2” DRIVE AIR
IMPACT WRENCH
STUBBY
K13203
ED1 Sept 15
COMPACT
AND
LIGHT
WEIGHT
TWIN
HAMMER
MECHANISM
LOW
MAX AIR
CONSUMPTION
610NM
TORQUE
ONLY
122MM
LONG

1
1/2” IMPACT WRENCH STUBBY
Table of Contents
Know Your Product...................................................................................................1
General Safety Instructions.....................................................................................2
Additional Safety Instructions..................................................................................3
Operation...................................................................................................................4-5
Maintenance & Warranty.........................................................................................5
Parts Breakdown......................................................................................................6
Know your product
1. Air Inlet
2. Exhaust
3. Trigger
4. Speed Dial
5. Forward/Reverse Button
6. ½” Anvil
7. Nitto Style Fitting
Model No:...................................................................................................................K13203
Description: ..............................................................................................................Impact Wrench Stubby
Max Torque................................................................................................................610Nm (450ft.lb)
Air Inlet:..................................................................................................................... ¼”
Overall Length: .......................................................................................................122mm
Overall Width: ..........................................................................................................64mm
Overall Height:..........................................................................................................198MM
Drive type:..................................................................................................................½” (Square)
Clutch Type:...............................................................................................................Twin Hammer
Free Speed:................................................................................................................9000RPM
Average Air Consumption .......................................................................................119LPM(4.2CFM)
Air Pressure Maximum:...........................................................................................90PSI
Max Hose Length: ....................................................................................................10metres
Min. Hose Inner Diameter:......................................................................................3/8” (10MM)
Weight .......................................................................................................................1.3Kg
3
4
5
1
2
5
6
7

2
1/2” IMPACT WRENCH STUBBY
General Safety Warnings
Save all warnings and instructions for future reference.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in serious injury.
1) Work Area
a. Keep the work area clean and well lit. Cluttered benches and dark areas increase the risks of electric shock, fire, and
injury to persons.
b. Keep bystanders, children, and visitors away while operating the tool. Distractions are able to result in the loss of control
of the tool.
c. Keep children and bystanders away while operating any powered products. Distractions can cause you to lose control.
2) Personal Safety
a. Stay alert. Watch what you are doing and use common sense when operating the tool. Do not use the tool while tired or
under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool increases the risk of
injury to persons.
b. Dress properly. Do not wear loose clothing or jewellery. Contain long hair. Keep hair, clothing, and gloves away from
moving parts. Loose clothes, jewellery, or long hair increases the risk of injury to persons as a result of being caught in
moving parts.
c. Avoid unintentional starting. Be sure the switch is off before connecting to the air supply. Do not carry the tool with your
finger on the switch or connect the tool to the air supply with the switch on.
d. Remove adjusting keys and wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of
the tool increases the risk of personal injury.
e. Do not overreach. Keep proper footing and balance at all times.Proper footing and balance enables better control of the tool
in unexpected situations.
f. Use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable conditions. Wear
heavy-duty work gloves during use.
g. Always wear eye protection. Wear approved safety eye protection.
h. Always wear hearing protection when using the tool. Prolonged exposure to high intensity noise can contribute to
hearing loss.
3) Tool Use andCare
a. Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or
against the body is unstable and can lead to loss of control.
b. Do not force the tool. Use the correct tool for the application. The correct tool will do the job better and safer at the rate for
which the tool is designed.
c. Do not use the tool if the switch does not turn the tool on or off. Any tool that cannot be controlled with the switch is
dangerous and must be repaired, at an authorised repair agent.
d. Disconnect the tool from the air source before making any adjustments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the tool unintentionally. Turn off and detach the air supply, safely
discharge any residual air pressure, and release the throttle and/or turn the switch to its off position before leaving the
work area.
e. Store the tool when it is idle out of reach of children and other untrained persons. A tool is dangerous in the hands of
untrained users.
f. Maintain the tool with care. A properly maintained tool is easier to control.
g. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that affects the tool’s
operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
h. Use only accessories that are identified by the manufacturer for the specific tool model. Use of an accessory not intended
for use with the specific tool model, increases the risk of injury to persons.

3
1/2” IMPACT WRENCH STUBBY
4) Service
a. Tool service must be performed only by qualified repair personnel.
b. When servicinga tool, use only identical replacement parts. Use only authorized parts.
c. Use only the lubricants specified by the manufacturer.
5) Additional Safety Warnings
a. The warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
b. Only use with accessories rated to handle the forces exerted by this tool during operation. Other accessories not designed
for the forces generated may break and forcefully launch pieces.
c. Attach all accessories properly to the tool before connecting the air supply. A loose accessory may detach or break
during operation.
d. Thoroughly read and unserstand the manual for the air compressor used to power this tool. Install an in-line shutoff
valve to allow immediate control over the air supply in an emergency, even if a hose is ruptured.
e. Use this tool with both hands only. Using tools with only one hand can result in loss of control.
f. Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the tool
out of your control.
g. Do not force the tool. Use a larger one if needed.
h. Use a torque wrench to verify tightness of all fasteners after use (If required).
i. Do not hold sockets, anvil or adapters during use.
j. Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have
regular medical check-ups to ensure medical problems are not being caused or worsened from use. Pregnant women
or people who have impaired blood circulation to the hand, past hand injuries, nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool. If you feel any symptoms related to vibration (such as tingling, numbness, and
white or blue fingers),stop using the tool and seek medical advice as soon as possible.
k. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of
vibration-related injury.
l. Wear suitable gloves to reduce the vibration effects on the user.
6) Description of Symbols
The followingsymbols could be shown on the tool:
Read the instructionmanual before use. Risk of Explosion
Wear Ear Protection WearEye Protection
no No-load speed, Free SpeedCFMCubic Feet per Minute flow
.../min, RPMRevolutionsor reciprocationper minute SCFMCubic Feet per Minute flow at
standard conditions
PSIPounds per square inch of pressure NPT National pipe thread, tapered
ft-lbFoot-pounds of torqueBPMBeats/ Blows per minute
Nm Newton meters of force BSP

4
1/2” IMPACT WRENCH STUBBY
ImpactWrench User Instructions
7) Before Starting
TO PREVENT SERIOUS INJURY FROM EXPLOSION:
Verify compressor is off before setup. Use only clean, dry,
regulated, compressed air to power this tool. Do not use
oxygen, carbon dioxide, combustible gases, or any other
bottled gas as a power source for this tool.
1. It is recommended afilter, regulator with pressure gauge, oiler,
in-line shut-off valve, and quick coupler be fitted for optimal
operation, as shown on Figure A.
2. An in-line shut-off ball valve is animportant safety device,
it will shut-off the air supply even if the air hoseis ruptured.
The shut-off valve should be a ball valve becauseit can be
closedquickly.
Note: If an automatic oiler system is not used, add a 4 to 5 drops of Kincrome Air Tool Oil the airinlet before operation. Add 1 to 2
drops every hour for continual use.
3. Attachanair hose to the compressor’s air outlet. Connect the air hose to the air inlet (5) of the tool. Other components,
such as a quick connect fitting and quick connect coupler, will make operation more efficient, but are not required.
WARNING! Do not install a quick coupler directly on the tool. Couplers contains an air valve that will allow the air tool to
retain pressure and inadvertently operate after the air supply is disconnected.
4. Theair hose must be long enough to reachthe work area and allow free movement while working.
5. Turn on theair compressor according to the manufacturer’s directions and allow the tank to build up pressure until it cuts-off.
6. Adjust theair compressor’s regulator so that the air output is at the tools recommended working pressure, the output must
not exceed the tool’s maximum air pressure at any time. Adjust the pressure gradually, while checking the air outputgauge to
set theoptimalpressure range.
7. Inspect all air connections for leaks. Repair any leaks.
8. If the tool is not being used, turn off and detach the air supply, safely discharge any residual air pressure, and releasethe
trigger (2) and/or turnthe tools switch to its off position to prevent inadvertentoperation.
8) Operation
1. Screw in the Nitto Style Fitting (7) to the air inlet (1). Thread(teflon) tape may be required to ensure a leak free seal.
2. Connect the air hose to the air inlet (1) of the tool.
3. Pushand lock a 1/2” drive socket (not included) onto the Anvil(6). (Use only Impact Rated Kincrome Sockets)
4. The Impact Wrench can be used in either Forward or Reverse direction by pushing the forward/reverse button (5) backwards
or forwards.
Note: There are 3 speed/torque settings for the forward and 1 speed for the reverse direction.
5. For forward, from the front of the impact wrench push the forward/reverse button (5) backwards.
6. For Reverse, from the back of the impact wrench push the forward/reverse button (5) forwards.
7. To tighten a nut or bolt, place the socket (not included) over the nut or bolt head ofbolt you wish to tighten.
8. Holdthe handle firmly and place other hand on top of the tool. Then gently squeeze the trigger (3). When the nut or bolt is
tightened or loosened, releasethe trigger (3).
9. To loosen, set the forward/reverse button (5) to the Reverse setting.
10. Place socket (not included) over desired nut or bolt head, hold the handle firmly and place other hand on top of tool and gently
squeezethe trigger (3). When the nutor boltis tightenedor loosened, release the trigger (3).
11. If tool requires more power to accomplish task in forward or reverse, ensure that the tool is receiving sufficient, un-obstructed
airflow (CFM), increase/decrease the pressure (PSI) output of regulator ensuring you do not exceed the rated maximum inlet
air pressure of the tool.
Caution: Do not exceed tool’s maximum air pressure rating (90 PSI). If tool still does not have sufficient force at maximum inlet air
pressure andsufficient airflow, then a larger toolmay be required.
Figure A

5
1/2” IMPACT WRENCH STUBBY
To change the speed setting
1. To select slow speed/high torque rotate the speed dial (4) to the left.
2. To select medium speed/medium torque rotate the speed dial (4) to the central position.
3. To select fast speed/low torque dial rotate the speed dial (4) to the right position.
9) Cleaning, Maintenance, and Lubrication
Note: These procedures are in addition to the regular checks and maintenance explained as part of the regular operation of the
air-operated tool.
The air motor and bearinguses compressed air to power the tool. Moisture in compressed air will rust the motor components, you
must lubricate the motor daily with Kincrome air tool oil.
Lubrication
1. Disconnect the tool from the air supply holding it sothe air inlet (1) faces up.
2. Hold the trigger (3) down andput 4 to 5 drops of Kincrome Air Tool Oil inthe air inlet. Holding the trigger down helps circulate
oilinthe motor.
3. Connect the tool to air supply, cover the exhaust (2) witha towel and run for a few seconds.
WARNING! Any excess oil in the motor is immediately expelled from the exhaust (2) .Always direct exhaust (2) away from
people or objects.
Storage
1. Avoid storing the tool in a location subject to high humidity. If the tool is left as it is used, the residual moisture inside the tool
can causerust. Before storing and after operation, oil the tool andrun it for a short time.
2. Regular inspection should be carried out of spindles, threads, and clamping devices in-respect of wear and for location of
abrasive products.
10) Warranty
Warranty given by KincromeAustralia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria (Tel [phone]).
The applicable warranty period (24 months) commences on the date that the product is purchased.If this product has materials or
workmanship defects (other than defects caused by abnormal or non warranted use) you can, at your cost, send the product to place
of purchase, anauthorised Kincromeservice agent or oneof Kincromes addresses for repair or replacement. Your rights under this
warranty are in addition to any other rights you have under the Australian Consumer Law or other applicable laws. Our goods come
with guarantees that cannot be excluded under the Australian ConsumerLaw. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have thegoods repaired or replaced if the goods fail to be of acceptable quality and the failure doesnot amount to a major failure.
For further details please visit www.kincrome.com.au or call us. Due to minor changes in design or manufacture, the product you
purchase may sometimes differ from the one shown on the packaging..
IMPORTANT! If the tool fails to operate correctly, call customer service on 1800 657 528 for advice on the best resolution for your
situation. Ifa resolution cannot be achieved over the phone please take the tool and all related accessories to an authorised service
centre or place of purchaseshowing proof of purchase for assistance.

6
1/2” IMPACT WRENCH STUBBY

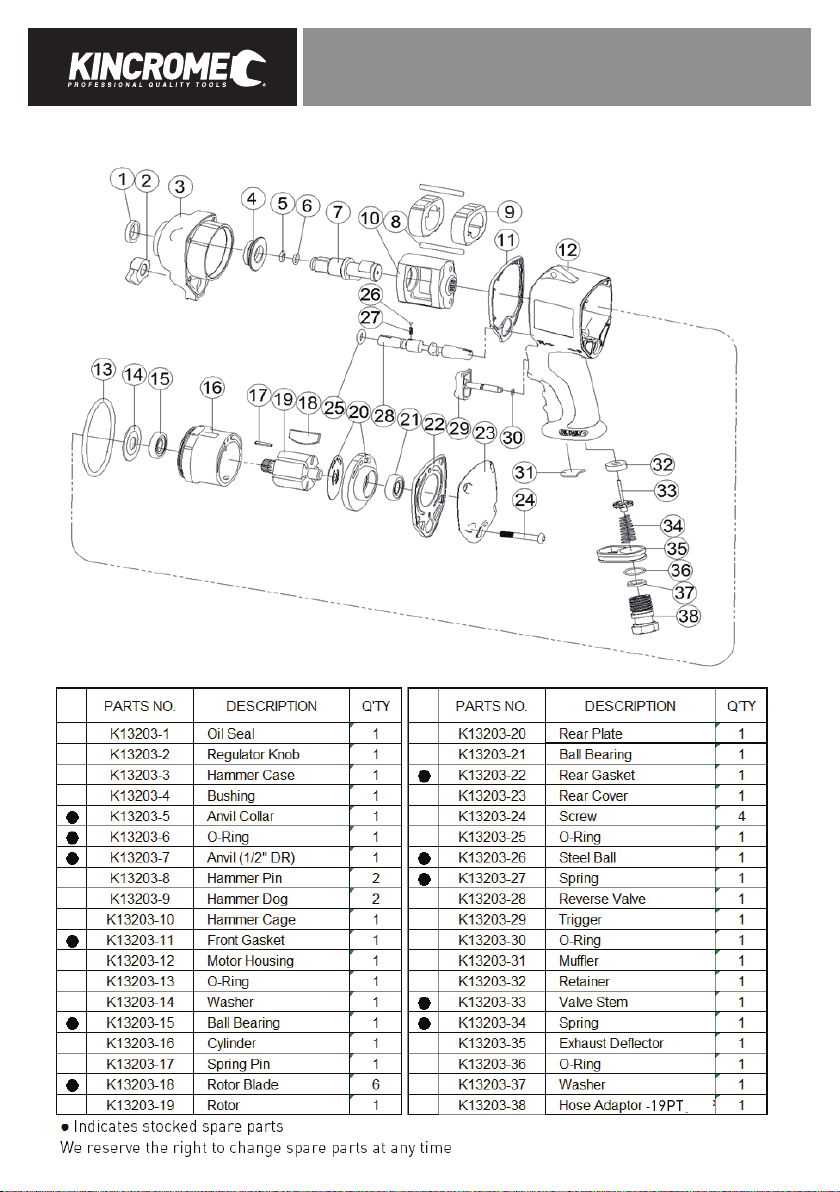

11) Parts Breakdown

www.kincrome.com.au
