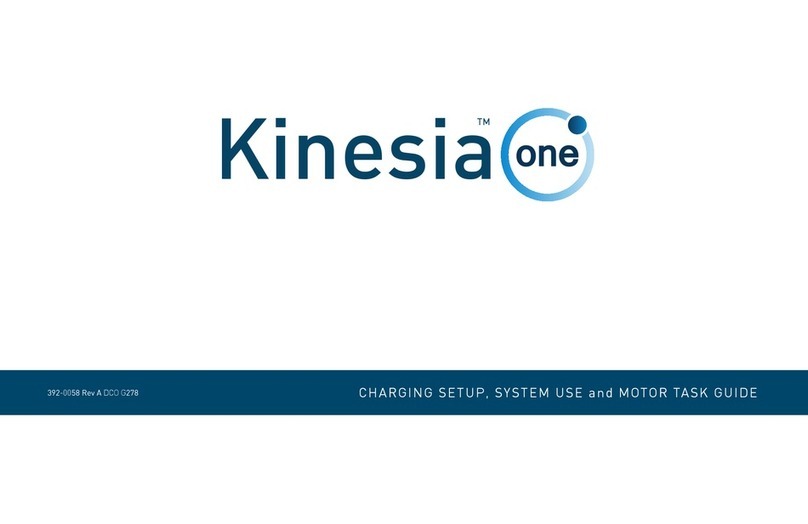

Kinesia ONE User manual

CHARGING SETUP, SYSTEM USE and MOTOR TASK GUIDE
392-0058 Rev B DCO G312
Kinesia
TM

3. Place the iPad on a table and
connect the white cable as
shown.
4. The charge cables have been
connected to the wall adapter.
Plug the adapter into a nearby
outlet.
5. Place the Kinesia sensor label
down on the charging pad.
1. Remove all components from
the box and place on a desk or
table with a wall outlet nearby.
2. Place the charging pad on
the table with the white
rectangular image facing up.
6. It can take up to 4 hours before
the Kinesia sensor is fully
charged.
KINESIA SENSOR
SENSOR CHARGE PAD
HEEL CLIP
TABLET POWER
CABLE (WHITE)
TABLET
WALL OUTLET PLUG
CHARGING SETUP GUIDE
The Kinesia sensor should be placed on the
charge pad, label facing down. When properly
placed, the light will change to blue.
When the charge pad is plugged
in, a green light will appear on
the front.
Kinesia
TM

Kinesia
KinesiaOne
7. Pull out the tablet’s stand and
place the tablet in front of you.
8. Turn on the tablet by holding
down the power button.
9. Slide your nger across the
screen to unlock the device.
10.Tap the Kinesia One app icon. 11. Tap My Tests.12.Follow the app instructions to
complete the tests.
power button
Pull out stand
from notch
Side view, showing
stand set up
TABLET
STAND
SYSTEM USE GUIDE

Task Side Instructions Example
Arms Resting Both
Remain seated with both hands in your lap.
Keep your hands relaxed and allow them to hang between your legs.
Your hands should not be touching.
Arms
Extended Both Fully extend both arms forward with palms down.
Your hands should not be touching.
Touch Nose Sensor side
Fully extend your arm forward with palm down.
Slowlybringyourindexngertoyournoseandextendyourarmagain.
Slowly repeat this pattern.
Finger Taps Sensor side
Alternatebetweentouchingyourindexngertoyourthumbandopening
them as wide as you can.
Repeat this pattern as quickly as you can.
Hand Grasps Sensor side Alternatebetweenyourhandinastandngersfullyextended.
Repeat this pattern as quickly as you can.
Wrist
Rotation Sensor side
Fullyextendyourarmforwardwithngersextended.
Alternate between your palm fully up and down.
Repeat this pattern as quickly as you can.
Toe Taps Sensor side
Sitinachairwithbothfeetatontheoor.Tapyourlefttoeashighandas
fast as you can without lifting your heel.
Do not move your other foot. Repeat this pattern as quickly as you can.
Leg Lifts Sensor Side
Sitinachairwithbothfeetatontheoor.Raiseandloweryourrightfoot
to the ground as high and as fast as you can.
Do not move your other foot. Repeat this pattern as quickly as you can.
Gait Both Stand up and walk approximately 16 feet away from the tablet along a
straight path at a normal speed, turn in place, and walk back to the tablet.
