KINEXON ePaper Tag User manual

THE KINEXON ePaper Tag (Non-Rechargeable) -
User Manual
Paperless Logistics/Manufacturing
Exported on 03/18/2022

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
– 2
Table of Contents
1 Introduction ............................................................................................................4
2 Safety Information ..................................................................................................6
3 Disclaimer................................................................................................................7
4 Intended Use ...........................................................................................................8
5 Key Facts..................................................................................................................9
6 External Interfaces ................................................................................................12
6.1 Wireless Connection ................................................................................................................... 12
6.2 Interaction Buttons..................................................................................................................... 12
6.3 Visual LEDs................................................................................................................................... 13
6.4 Tag Battery .................................................................................................................................. 14
7 Hardware Variants ................................................................................................15
8 Accessories ............................................................................................................16
8.1 Holder .......................................................................................................................................... 16
9 Regulatory and Legal Information .......................................................................17
9.1 FCC Compliance .......................................................................................................................... 17
9.2 ISED Caution................................................................................................................................ 17

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
– 3
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Introduction(see page 4)
Safety Information(see page 6)
Disclaimer(see page 7)
Intended Use(see page 8)
Key Facts(see page 9)
RF Specifications(see page 9)
Physical Specifications(see page 9)
Environmental Specifications(see page 10)
Mechanical Drawing(see page 11)
Label Specifications(see page 11)
External Interfaces(see page 12)
Wireless Connection(see page 12)
Interaction Buttons(see page 12)
Visual LEDs(see page 13)
Tag Battery(see page 14)
Hardware Variants(see page 15)
Accessories(see page 16)
Holder(see page 16)
Regulatory and Legal Information(see page 17)
FCC Compliance(see page 17)
ISED Caution(see page 17)

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Introduction– 4
•
•
•
•
1 Introduction
The KINEXON ePaper Tag is the Ultra-Wideband basic component for a paperless material and goods handling in
industry. The ePaper solution combines high precision UWB localization technology with smart process
visualization. The KINEXON ePaper Tag can be placed on workpieces and load carriers without leaving any residue
to track their entire value-added process. In addition, an integrated display automatically informs about production
steps that have already been completed and those that are still pending. As a result, all information is digitized,
repeated and printing processes are eliminated. KINEXON ePaper solution is flexible and provides complete control
and maximum flexibility for dynamic production.
The combination of high precision real time localization and smart visualization is the key to a paperless
production. There are various potential use cases such as:
ePaper-based workflow-instructions for shop floor employees.
Real-time interaction through configurable button (e.g. signal for replenishment).
Dynamic labeling with current status of the product or material.
Digitization of all production & process relevant information.

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Introduction– 5

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Safety Information– 6
•
•
•
•
•
•
•
•
•
2 Safety Information
Read and follow all instructions before using the KINEXON ePaper Tag.
Never open the case of the KINEXON ePaper Tag. There are no user serviceable parts or replaceable parts
inside the case.
Do not use the KINEXON ePaper Tagif it has been damaged.
Use the Tag according to the following specifications. KINEXON will not take any responsibility or liability in
case of accidents caused by misuse of the battery:
Stop using the device immediately and stay away from battery if:
The battery was exposed to high temperatures (60 °Cor above).
The battery shows signs of leakage.
There is a noticeable odor coming from the battery.
Avoid directly hitting or dropping the battery.

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Disclaimer– 7
3 Disclaimer
The information in this document is subject to change without notice. KINEXON GmbH assumes no responsibility
for inaccuracies or omissions and specifically disclaims any liabilities, losses, or risks, personal or otherwise,
incurred as a consequence, directly or indirectly, of the use or application of any of the contents of this document.
For the latest documentation, contact KINEXON GmbH.

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Intended Use– 8
4 Intended Use
This manual describes the setup and use of theKINEXONePaper Tag. Use this product only for the purpose it was
designed for.

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Key Facts– 9
5 Key Facts
RF Specifications
Positioning Principle Real Time Location System (RTLS), Radio-based, Ultra-wideband
(UWB)
Frequency Range UWB (IEEE 802.15.4a):
UWB Channel 3 (4.25 - 4.75 GHz, Low Duty Cycle Interference
Mitigation (LDC) according to EN 302 065-1)
UWB Channel 5 (6.25 - 6.75 GHz)
Average EIRP < -41 dBm / 1 MHz
Peak EIRP < 0 dBm / 50 MHz
Update Rate Configurable, typically 1 Hz in motion, 0.1 Hz in standstill
Positioning Data 3D (x, y, z)
Positioning Accuracy < 20 cm (depending on environment)
Physical Specifications
Display 4.2“, 85 x 64 mm (400x300 pixel)
2-color: black/white, display update time 3 s (25°C)
3-color: black/white/red, display update time 14 s (25°C)
Button Two buttons for status and manual event trigger (event sent via
RF)
Indicators Two LEDs (Status and Action)
Accelerometer 3-axis, +/-2 g to +/-16g, up to 200 Hz
Battery Built-in10Ah replaceable Li primary battery
Battery Lifetime Up to 5 years (depending on update rate)
System Power 3.0V / 200 mA

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Key Facts– 10
•
•
•
•
•
•
•
•
•
•
•
•
Physical Specifications
MaterialAcrylonitrile styrene acrylate (ASA)
Weight 197g
Dimensions Device only: (141 x 104.3 x 14.2) mm
Incl. holder: (168.8 x 104.3 x 24.6) mm
Environmental Specifications
Operating Temperature 0 °C to +50 °Cincl. battery
Storage Temperature -20 °C to +30 °C incl. battery
Protection Class IP67
Regulatory Compliance (cert. ongoing) FCC Part 15 subpart C
15.250 (for indoor and outdoor use)
ETSI EN 302065-1
ETSI EN 303883
ETSI TS 103361
SRRC
Draft EN 301 489 - 1, -33
EN 61000-4-2, -4-3
EN 62479
1999/519/EC
UN 38.3
IEC 62133

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Key Facts– 11
Mechanical Drawing
Label Specifications
Device -
Outer
Size: (59.5 x
15.5) mm

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
External Interfaces– 12
•
•
•
6 External Interfaces
6.1 Wireless Connection
For wireless connection a Ultra-Wideband (UWB) interface according to IEEE 802.15.4 standard is implemented.
6.2 Interaction Buttons
Action Button (Upper Button)
Description Duration Effect
Short (normal) press 150ms Toggles alarm mode status (on or off). The content of
ePaper display shown for each mode can be
configured on the RIoT web interface
Very long press >8s Hardware reset
Status Button (Lower Button)
Description Duration Effect
Short (normal) press 150ms If there is only one page configured on the RIoT
web interface, the Tag refreshes the ePaper
display
If there is more than one page configured on the
RIoT web interface, the Tag switches the ePaper
display to the next available page
If the last page is already shown, the Tag switches
the ePaper display back to the first page

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
External Interfaces– 13

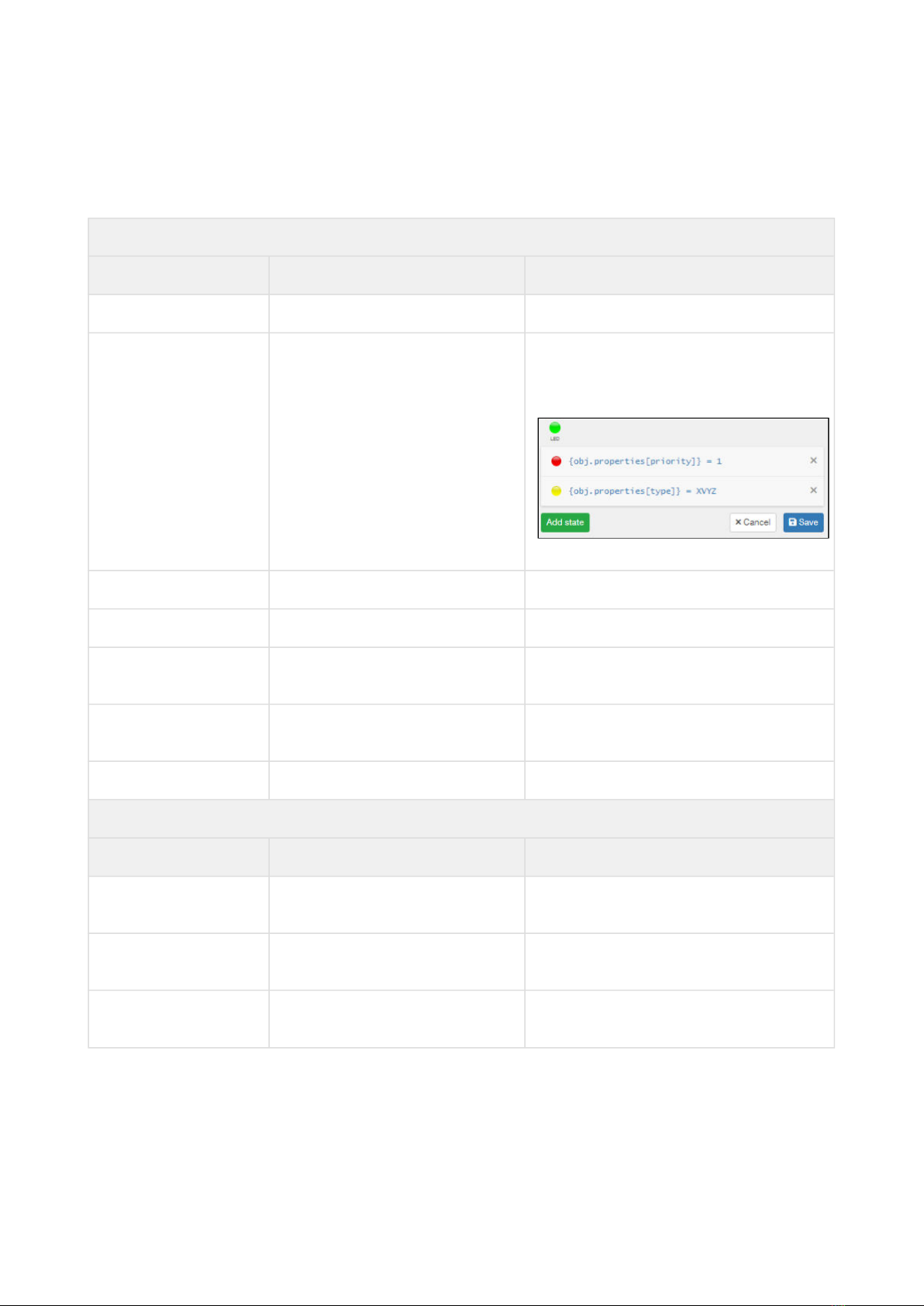

6.3 Visual LEDs
Info LED (Left LED)
Color Type & Duration Explanation
Red Constant, 1s Either action or status button was pressed
Dynamic Dynamic Further info LED behavior including color &
blinking duration can be configured on the
RIoT web interface
Power-on reset
Green Constant, ~1s Tag bootloader is starting
Yellow Constant, ~7s Tag in Bootloader and waiting for
connection
Purple Constant, duration depends on
firmware size
Tag is being bootloaded with new firmware
Status LED (Right LED)
Color Type & Duration Explanation
Blue/Green alternating flashing, infinite Tag is running, the speed of flashing equals
update rate of Aloha uplink
Blue/Red alternating flashing, infinite Tag is running with low battery, the speed of
flashing equals update rate of Aloha uplink
Red flashing, 1s Tag is going to reset due to unrecoverable
internal error detected by firmware

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
External Interfaces– 14
6.4 Tag Battery
A primary soft cell non-rechargeable battery is used
Type CP7839109
Nominal Voltage 3.0V
Capacity 10000mAh
Size (8.0 x 40.0 x 110) mm
Weight 63.0g

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Hardware Variants– 15
7 Hardware Variants
Variant Description
KNX-T5.1-1.1-x ePaper Tag with non-rechargeable battery, b/w/r display
KNX-T5.1-1.4-x ePaper Tag with non-rechargeable battery, b/w display
KNX-T5.1-4.1-x ePaper Tag with non-rechargeable battery, b/w/r display,
Bluetooth
KNX-T5.1-4.4-x ePaper Tag with non-rechargeable battery, b/w display, Bluetooth
KNX-T5.1-2.2-x ePaper Tag with rechargeable battery, b/w/r display
KNX-T5.1-2.5-x ePaper Tag with rechargeable battery, b/w display
KNX-T5.1-5.2-x ePaper Tag with rechargeable battery, b/w/r display, Bluetooth
KNX-T5.1-5.5-x ePaper Tag with rechargeable battery, b/w display, Bluetooth

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Accessories– 16
•
•
•
•
8 Accessories
8.1 Holder
The KINEXON ePaper Tag is clipped to the holder. The holder can be mounted using following options:
Velcro tape: recommended width of tape is 15mm.
Zip-tights: maximum width of zip-tights is 15mm.
Magnets: 18x8x4 N45 magnets hold into place with crushing-ribs that can be pressed in manually.
Screws: lateral placing usingcountersink screws (dmax=3.5mm, dheadmax=7.2 mm), central placing
usingcylinder head, pan head, button head screws (dmax=5 mm, dheadmax=9.5 mm).

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Regulatory and Legal Information– 17
•
•
•
•
9 Regulatory and Legal Information
The KINEXON ePaper Tag has been designed to be in compliance with both the U.S. FCC Part 15 subpart F
regulations, section 15.250 and with the European Union ETSI EN 302 065 standards. Two different versions of the
KINEXON ePaper Tagare available, one version supports the FCC emissions mask (Region 1) and the second
supports the ETSI standard mask (Region 2).
9.1 FCC Compliance
This device complies with 47 CFR Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment. This device may not be employed for the operation of toys. Operation onboard an aircraft, a ship or a
satellite is prohibited. The use of this device mounted on outdoor structures, e.g., on the outside of a building or on
a telephone pole, or any fixed outdoors infrastructure is prohibited.
Moreover, the following statements apply:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
User information according to FCC 15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation.
User information according to FCC 15.21
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
9.2 ISED Caution
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.

Paperless Logistics/Manufacturing – THE KINEXON ePaper Tag (Non-Rechargeable) - User Manual
Regulatory and Legal Information– 18
These devices are not permitted for operation on board aircraft or satellites and shall also not be used for operating
toys. The use this device mounted on a fixed outdoor infrastructure, including antennas mounted on outdoor
structures such as poles or buildings, is not permitted, except for operation on board ships or land vehicles.
Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation,
Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes:
(1) Cet appareil ne doit pas causer d'interférences
(2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un
fonctionnement indésirable de l'appareil.
Les appareils ne peuvent pas être utilisés à bord d'aéronefs ou de satellites et ils ne peuvent pas être utilisés pour
faire fonctionner des jouets. L'utilisation de cet appareil monté sur une infrastructure fixe d’extérieur, comprenant
les antennes montées sur des structures externes telles que des poteaux ou des bâtiments, n’est pas autorisée, sauf
lorsque les structures en question sont des bateaux ou des véhicules terrestres.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux radiations IC RSS-102 établies pour un environnement
non contrôlé.
Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
