INSTALLATION INSTRUCTIONS
27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN
MICROWAVE/OVEN COMBINATION
INSTRUCTIONS D'INSTALLATION
FOUR CONVENTIONNEL ET FOUR À MICRO-ONDES
ÉLECTRIQUES, COMBINÉS ET ENCASTRÉS
DE 27" (68,6 CM) ET 30" (76,2 CM)
W10516785A
Table of Contents/Table des matières
BUILT-IN MICROWAVE/OVEN COMBINATION SAFETY...........2
INSTALLATION REQUIREMENTS................................................2
Tools and Parts ............................................................................2
Built-In Microwave/Oven Combination
Location Requirements................................................................2
Electrical Requirements ...............................................................4
INSTALLATION INSTRUCTIONS..................................................5
Prepare Built-In Microwave/Oven Combination..........................5
Remove Oven Door......................................................................5
Make Electrical Connection .........................................................5
Install Oven...................................................................................6
Install Warming Drawer Deflector Kit
(only for ovens installed above warming drawers) ......................7
Complete Installation ...................................................................8
SÉCURITÉ DU FOUR À MICRO-ONDES ET DU FOUR
CONVENTIONNEL COMBINÉS ET ENCASTRÉS........................9
EXIGENCES D'INSTALLATION.....................................................9
Outils et pièces.............................................................................9
Exigences d'emplacement de l'ensemble
four à micro-ondes et four conventionnel encastrés...................9
Spécifications électriques ..........................................................11
INSTRUCTIONS D'INSTALLATION.............................................11
Préparation de l'ensemble des fours encastrés
(micro-ondes/conventionnel) .....................................................11
Dépose de la porte du four ........................................................12
Raccordement électrique...........................................................12
Installation du four......................................................................13
Installation de l'ensemble déflecteur du tiroir-réchaud
(uniquement pour les fours installés au-dessus
d'un tiroir-réchaud).....................................................................15
Achever l'installation ..................................................................15
IMPORTANT:
Save for local electrical inspector's use.
IMPORTANT :
À conserver pour consultation par l'inspecteur local des installations électriques.

2
BUILT-IN MICROWAVE/OVEN COMBINATION SAFETY
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed here.
Tools needed
■Phillips screwdriver
■Measuring tape
■Drill (for wall cabinet installations)
■1" (25 mm) drill bit (for wall cabinet installations)
■Level
■Flat-blade screwdriver
Parts needed
■UL listed or CSA approved conduit connector
■UL listed wire connectors
■Warming Drawer Deflector Kit (for ovens installed above a
warming drawer)
Order Part Number W10489566B for white 27" (68.6 cm) kit
Order Part Number W10489564B for black 27" (68.6 cm) kit
Order Part Number W10489568A for stainless steel 27"
(68.6 cm) kit
Order Part Number W10489567B for white 30" (76.2 cm) kit
Order Part Number W10489565B for black 30" (76.2 cm) kit
Order Part Number W10489569A for stainless steel 30"
(76.2 cm) kit
To order, see the “Assistance or Service” section of the Use
and Care Guide.
Parts supplied
■Four #8–14 x 1" screws
■Bottom vent
■Two #8–18 x ³⁄₈" screws - bottom vent
■Four grommets*
Check local codes. Check existing electrical supply. See
“Electrical Requirements.”
It is recommended that all electrical connections be made by a
licensed, qualified electrical installer.
*Grommets are not required or included with models KEMS379B,
KEMS309B and KEHU309B.
Built-In Microwave/Oven Combination
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
■Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance with oven.
■Recessed installation area must provide complete enclosure
around the recessed portion of the oven.
■Grounded electrical supply is required. See “Electrical
Requirements” section.
■Electrical supply junction box should be located 3" (7.6 cm)
maximum below the support surface when the oven is
installed in a wall cabinet. A 1" (2.5 cm) minimum diameter
hole should have been drilled in the left rear corner of the
support surface to pass the appliance cable through to the
junction box.
■Oven support surface must be solid, level and flush with
bottom of cabinet cutout. Floor must be able to support a
total weight (microwave and built-in oven) of 208 lbs (95 kg)
for 27" (68.6 cm) models or 249 lbs (113 kg) for 30" (76.2 cm)
models.
IMPORTANT: To avoid damage to your cabinets, check with
your builder or cabinet supplier to make sure that the
materials used will not discolor, delaminate or sustain other
damage. This oven has been designed in accordance with
the requirements of UL and CSA International and complies
with the maximum allowable wood cabinet temperatures of
194°F (90°C).
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

3
Product Dimensions
27" (68.6 cm) and 30" (76.2 cm) Ovens
Cabinet Dimensions
27" (68.6 cm) and 30" (76.2 cm) Ovens
*NOTE: The cabinet height can be between 41" (104.1 cm) and
41½" (105.6 cm) for microwave/oven combination.
27" (68.6 cm) models
A. 42
⁹⁄₁₆ " (108.0 cm) overall height
B. 25
⁷⁄₁₆ " (64.6 cm) recessed
width
C. 41" (104.1 cm) recessed height
D. 23
¹⁄₄ " (59.1 cm) max. recessed
depth
E. 27" (68.6 cm) overall width
30" (76.2 cm) models
A.
42⁹⁄₁₆ " (108.0 cm) overall height
B. 28
¹⁄₂ " (72.3 cm) recessed width
C. 41" (104.1 cm) recessed height
D. 23
¹⁄₄ " (59.1 cm) max. recessed
depth
E. 30" (76.2 cm) overall width
B
A
C
D
E
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 19
¹⁄₄ " (48.9 cm) bottom of
cutout to floor is
recommended.
4"-19
¹⁄₄ " (10.2-48.9 cm) bottom
of cutout to floor is acceptable.
D. 25
¹⁄₂ " (64.8 cm) cutout width
E. 1
¹⁄₂ " (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 41
⁵⁄₁₆ " (105 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 19
¹⁄₄ " (48.9 cm) bottom of
cutout to floor is
recommended.
4"-19
¹⁄₄ " (10.2-48.9 cm) bottom
of cutout to floor is acceptable.
D. 28
¹⁄₂ " (72.4 cm) cutout width
E. 1
¹⁄₂ " (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 41
⁵⁄₁₆ " (105 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
F
E
A
D
G
B
C

4
Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and wire gauge are in accordance with local
codes.
Check with a qualified electrical installer if you are not sure the
oven is properly grounded.
This oven must be connected to a grounded metal, permanent
wiring system.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/
NFPA 70-latest edition or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and
all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■Oven must be connected to the proper electrical voltage,
amperage, and frequency as specified on the model/serial
number rating plate. See the following illustration.
■Models rated from 7.3 to 9.6 kW at 240 volts (5.4 to 7.4 kW at
208 volts) require a separate 40-amp circuit. Models rated at
4.8 kW and below at 240 volts (3.6 kW and below at
208 volts) require a separate 20-amp circuit.
■A circuit breaker is recommended.
■Connect directly to the fused disconnect (or circuit breaker
box) through flexible, armored or nonmetallic sheathed,
copper cable (with grounding wire). See “Make Electrical
Connection” section.
■Flexible conduit from the oven should be connected directly
to the junction box.
■Do not cut the conduit. The length of conduit provided is for
serviceability of the oven.
■A UL listed or CSA approved conduit connector must be
provided.
■If the house has aluminum wiring, follow the procedure
below:
1. Connect a section of solid copper wire to the ends of the
flexible conduit leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer's recommended
procedure. Aluminum/copper connection must conform with
local codes and industry accepted wiring practices.
For power requirements, refer to the following table.
*L1 includes both the microwave and the oven, and L2 includes
only the oven. Amperage values noted above are for information
purposes only: the units are rated in watts.

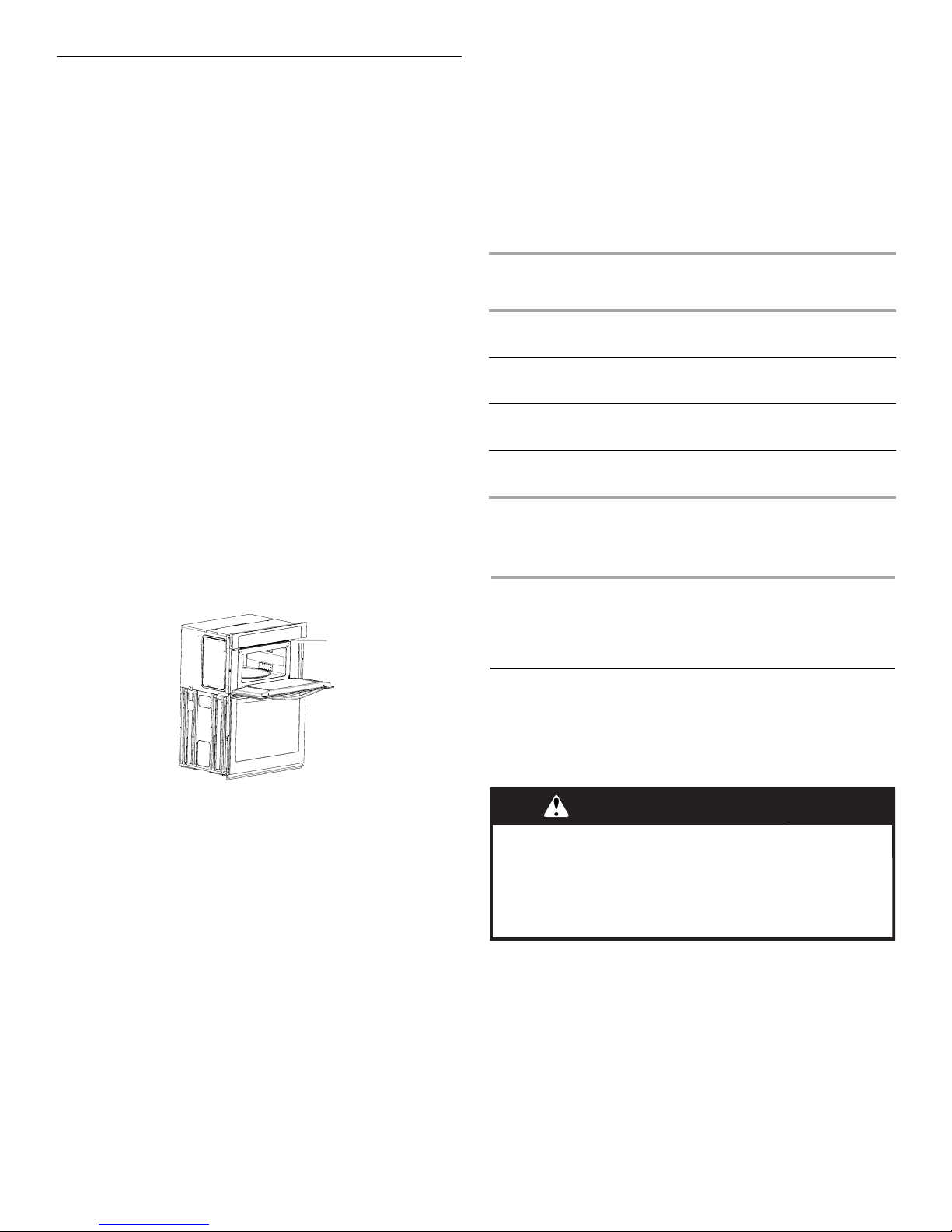

A. Model/serial number plate
A
Model Voltage Amperage
(L1)* Amperage (L2)* Rating (kW)
MMW9730 120/240
129/208
30
28
15
15
7.2
5.9
WOC54EC0,
WOC95EC0 120/240
120/208
30
28
15
15
7.2
5.9
WOC54EC7 120/240
120/208
30
28
15
15
7.2
5.9
KEMS309 120/240
120/208
33
31
15
15
8.0
6.6

5
INSTALLATION INSTRUCTIONS
Prepare Built-In Microwave/Oven
Combination
1. Decide on the final location for the oven. Locate existing
wiring to avoid drilling into or severing wiring during
installation.
2. To avoid floor damage, set the oven onto cardboard prior to
installation. Do not use handle or any portion of the front
frame for lifting.
3. Remove the shipping materials and tape from the oven.
4. Remove the hardware package from inside the bag
containing literature.
5. Remove and set aside racks and other parts from inside the
oven.
6. Move oven and cardboard close to the oven’s final location.
Remove Oven Door
IMPORTANT: Use both hands to remove oven door(s).
1. Open the oven door.
2. Locate the oven door latches in both corners of the oven
door, and rotate the latches forward to the unlocked position.
3. Grasp the edges of the oven door with both hands and close
the oven door until it will no longer close. Lift and pull oven
door toward you and remove. Set the oven door aside on a
covered work surface.
Make Electrical Connection
IMPORTANT: For model KEHU309B, you must use 6 gauge
copper or 4 gauge aluminum wire.
This oven is manufactured with a neutral (white) power supply
wire and a cabinet-connected green (or bare) ground wire twisted
together.
1. Disconnect power.
2. Feed the flexible conduit from the oven through the opening
in the cabinet.
3. Remove junction box cover, if it is present.
4. Install a UL listed or CSA approved conduit connector to the
junction box.
5. Route the flexible conduit from the oven to the junction box
through a UL listed or CSA approved conduit connector.
6. Tighten screws on conduit connector.
7. See “Electrical Connection Options Chart” to complete
installation for your type of electrical connection.
A. Oven door latch in locked
position B. Oven door latch in unlocked
position
WARNING
Excessive Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
A
B
A. UL listed or CSA approved conduit connector
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge solid copper wire.
Electrically ground oven.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 6 gauge copper or 4 gauge aluminum wire.
Electrically ground oven.
Failure to follow these instructions can result in death,
fire, or electrical shock.
A

6
Electrical Connection Options Chart
4-Wire Cable from Home Power Supply
IMPORTANT: Use the 4-wire cable from home power supply in
the U.S. where local codes do not allow grounding through
neutral, New Branch circuit installations (1996 NEC), mobile
homes and recreational vehicles, new construction and in
Canada.
1. Connect the 2 black wires (B) together using a UL listed wire
connector.
2. Connect the 2 red wires (C) together using a UL listed wire
connector.
3. Untwist white wire from green (or bare) ground wire coming
from the oven.
4. Connect the 2 white wires (F) together using a UL listed wire
connector.
5. Connect the green (or bare) ground wire (H) from the oven
cable to the green (or bare) ground wire (in the junction box)
using a UL listed wire connector.
6. Install junction box cover.
3-Wire Cable from Home Power Supply - U.S. Only
IMPORTANT: Use the 3-wire cable from home power supply
where local codes permit a 3-wire connection.
1. Connect the 2 black wires (C) together using a UL listed wire
connector.
2. Connect the 2 white wires (D) and the green (or bare) ground
wire (of the oven cable) using a UL listed wire connector.
3. Connect the 2 red wires (G) together using a UL listed wire
connector.
4. Install junction box cover.
Install Oven
1. Using 2 or more people, lift oven partially into cabinet cutout.
Use the oven opening as an area to grip.
NOTE: Push against seal area of oven front frame when
pushing oven into cabinet. Do not push against outside
edges.
2. Push against seal area of front frame to push oven completely
into cabinet and center oven into cabinet cutout.
If your home has: Go to section:
4-wire 4-wire Cable from Home
Power Supply
3-wire 3-wire Cable from Home
Power Supply
A. Cable from home power supply
B. Black wires
C. Red wires
D. 4-wire flexible conduit from oven
E. Junction box
F. Wh ite wi res
G. UL listed wire connectors
H. Green (or bare) ground wires
I. UL listed or CSA approved
conduit connector
½"
(1.3 cm)
½"
(1.3 cm)
A
B
C
D
E
F
G
H
I
A. Cable from home power
supply
B. Junction box
C. Black wires
D. White wires
E. Green (or bare) ground wire
(from oven)
F. 4-wire flexible conduit from
oven
G. Red wires
H. UL listed wire connectors
I. UL listed or CSA approved
conduit connector
B
C
D
E
F
H
G
A
I

7
3. Push oven completely into cabinet and center oven into
cabinet cutout.
NOTE: If you have model KEMS379B, KEMS309B or
KEHU309B, proceed to Step 5.
4. Insert the grommet into the mounting rail hole using a flat-
blade screwdriver. Insert the screwdriver into the grommet
and turn ¹⁄₄ turn counterclockwise. Make sure the grommet
stays in position.
IMPORTANT: If the grommet is not installed, the front frame
will be damaged.
5. Securely fasten oven to cabinet using the #8–14 x 1" screws
provided. Insert the screws through hole in the grommet. Do
not overtighten screws.
6. On some models, the oven vent is recessed inside the
packaging. See the following instructions to install.
■Insert the vent tabs (B) into slots (A) in the oven frame.
■With one #8–18 x ³⁄₈" screw (C) for each side of the vent,
fasten vent securely to the oven.
7. Replace oven racks.
8. Replace oven door by inserting ends of hinges into hinge
slots in the oven frame.
9. Push hinges in as far as they will go and open the oven door.
You should feel the oven door drop into place.
10. Rotate both hinge latches back to the locked position.
11. Check that door is free to open and close. If it is not, repeat
the removal and installation procedures. See “Prepare Built-In
Microwave/Oven Combination” section.
12. Reconnect power.
13. Display panel will light briefly, and “PF” should appear in the
display.
14. If display panel does not light, please reference the
“Assistance or Service” section of the Use and Care Guide or
contact the dealer from whom you purchased your oven.
Install Warming Drawer Deflector Kit (only
for ovens installed above warming
drawers)
On combo microwave/oven models installed above a warming
drawer, a warming drawer deflector kit must be installed. See the
“Tools and Parts” section for ordering information.
Parts Supplied
Install Deflector Kit
1. Align the deflector (B) with the vent (C) as shown.
2. Using two #8-18 x ¼" screws (A) on each side of the deflector
(B), fasten the deflector securely to the vent.
NOTE: On 27" (68.6 cm) models, only one #8–18 x ¼" screw
is used on each side.
3. Align vent tab (B) with oven frame (A) as shown.
A. Mounting rail
B. Mounting rail hole
C. Grommet
A. Oven frame slot
B. Vent tab
C. #8–18 x ³⁄₈" screw
D. Oven vent
A
B
C
A
B
DC
A. Phillips head screws (4)
only 2 screws for 27" (68.6 cm) size
B. Warming drawer deflector (1)
A. #8–18 x
¹⁄₄ " screws
B. Warming drawer deflector
C. Vent
B
A
C
B
A

8
4. Using one #8-18 x ³⁄₈" screw (E) on each side of the vent tab
(B), fasten the vent securely to the oven.
Complete Installation
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven use and cleaning, read the Use and Care Guide.
Check Operation of Lower Oven
1. Turn power on.
2. At first use, set up the clock and any other preferences, if
available. For more information, read the Use and Care
Guide.
3. Press BROIL.
4. Set the temperature.
5. Press START.
If oven does not operate, check the following:
■Household fuse is intact and tight; or circuit breaker has
not tripped.
■Electrical supply is connected.
■See “Troubleshooting” section in the Use and Care Guide.
6. When oven has been on for 5 minutes, feel for heat.
If you do not feel heat or if an error message appears in the
display, turn off the oven and contact a qualified technician.
7. Press CANCEL OVEN.
Check Operation of Microwave Oven
1. Fill a microwave-safe container with 1 cup (250 mL) of water
and place container inside microwave oven. Close door
firmly.
2. Press COOK and set microwave oven cook time to
“2:00” minutes.
3. Press START. The interior microwave oven light should be on,
and the remaining cooking time should be displayed.
When display reads “1:00” minute, open microwave oven
door. The microwave should stop cooking. Close door firmly.
The interior microwave oven light should turn off.
4. Press START. Microwave oven should begin cooking, and the
microwave oven interior light should be on.
Let microwave oven complete cooking time. A tone will
sound 4 times at the end of the cooking time, and the
microwave oven will shut off.
5. Open microwave oven door and slowly remove container.
Water in container should be hot.
If you need Assistance or Service:
Please reference the “Assistance or Service” section of the Use
and Care Guide or contact the dealer from whom you purchased
your built-in and microwave ovens.
A. Oven frame
B. Vent tab
C. Oven vent
D. Warming drawer deflector
E. #8–18 x
³⁄₈ " screw
A
C
D
B
E

9
SÉCURITÉ DU FOUR À MICRO-ONDES ET DU FOUR
CONVENTIONNEL COMBINÉS ET ENCASTRÉS
EXIGENCES D'INSTALLATION
Outils et pièces
Rassembler les outils et pièces nécessaires avant d’entreprendre
l’installation. Lire et observer les instructions fournies avec
chacun des outils de la liste ci-dessous.
Outils nécessaires
■Tournevis Phillips
■Mètre ruban
■Perceuse (pour l’installation dans un placard mural)
■Foret de 1" (25 mm) (pour installation dans un placard mural)
■Niveau
■Tournevis à lame plate
Pièces nécessaires
■Connecteur de conduit (homologation UL ou CSA)
■Connecteurs de fils (homologation UL)
■Ensemble de déflecteur pour tiroir-réchaud (pour les fours
installés par-dessus un tiroir-réchaud)
Commander la pièce W10489566B pour l’ensemble blanc de
27" (68,6 cm)
Commander la pièce W10489564B pour l’ensemble noir de
27" (68,6 cm)
Commander la pièce W10489568A pour l’ensemble en acier
inoxydable de 27" (68,6 cm)
Commander la pièce W10489567B pour l’ensemble blanc de
30" (76,2 cm)
Commander la pièce W10489565B pour l’ensemble noir de
30" (76,2 cm)
Commander la pièce W10489569A pour l’ensemble en acier
inoxydable de 30" (76,2 cm)
Pour commander, voir la section “Assistance ou service” du
Guide d’utilisation et d’entretien.
Pièces fournies
■Deux vis n° 8–14 x 1"
■Évent du bas
■Deux vis n° 8–18 x ³⁄₈" - Évent du bas
■Quatre œillets*
Consulter les codes locaux. Vérifier l’alimentation électrique
existante. Voir “Spécifications électriques”.
Il est recommandé de faire réaliser tous les raccordements
électriques par un électricien qualifié agréé.
*Les œillets ne sont pas nécessaires et ne sont pas inclus avec
les modèles KEMS379B, KEMS309B et KEHU309B.
Exigences d'emplacement de l'ensemble
four à micro-ondes et four conventionnel
encastrés
IMPORTANT : Observer les dispositions de tous les codes et
règlements en vigueur.
■Respecter les dimensions indiquées pour la cavité
d'installation entre les placards. Ces dimensions prennent en
compte les dégagements de séparation minimaux
nécessaires.
■L'espace d'installation doit permettre la formation d'une
enceinte complète autour de la partie encastrée du four.
■Une source d'électricité avec liaison à la terre est nécessaire.
Voir la section “Spécifications électriques”.
■ Le boîtier de raccordement doit être situé au maximum à
3" (7,6 cm) au-dessous de la surface de support lorsque le four
est installé dans un placard mural. Un trou de diamètre 1"
(2,5 cm) ou plus doit avoir été percé dans l'angle arrière gauche
ou droit de la surface de support pour le passage du câble
d'alimentation de l'appareil jusqu'au boîtier de connexion.
Risque possible de décès ou de blessure grave si vous ne
suivez pas immédiatement les instructions.
Risque possible de décès ou de blessure grave si vous
ne suivez pas les instructions.
Tous les messages de sécurité vous diront quel est le danger potentiel et vous disent comment réduire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
Votre sécurité et celle des autres est très importante.
Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager. Assurez-vous de
toujours lire tous les messages de sécurité et de vous y conformer.
AVERTISSEMENT
DANGER
Voici le symbole d’alerte de sécurité.
Ce symbole d’alerte de sécurité vous signale les dangers potentiels de décès et de blessures graves à vous
et à d’autres.
Tous les messages de sécurité suivront le symbole d’alerte de sécurité et le mot “DANGER” ou
“AVERTISSEMENT”. Ces mots signifient :

10
■La surface de support du four doit être robuste, horizontale et
en affleurement avec le bas de la cavité d’encastrement du
placard. Le plancher doit être capable de supporter un poids
total (four à micro-ondes et four encastré) de 208 lb (95 kg)
pour les modèles de 27" (68,6 cm) ou de 249 lb (113 kg) pour
les modèles de 30" (76,2 cm).
IMPORTANT : Afin d'éviter tout dommage aux placards,
consulter le constructeur de la maison ou le fabricant des
placards afin de déterminer si les matériaux utilisés pourraient
subir un changement de couleur, une déstratification ou d'autres
dommages. Ce four a été conçu conformément aux exigences
des normes UL et CSA International et respecte les températures
maximales autorisées de 194°F (90°C) pour les placards en bois.
Dimensions du produit
Fours de 27" (68,6 cm) et 30" (76,2 cm)
Dimensions du placard
Fours de 27" (68,6 cm) et 30" (76,2 cm)
*REMARQUE : Pour l’ensemble four à micro-ondes/four
traditionnel, la hauteur du placard peut être comprise entre 41"
(104,1 cm) et 41¹⁄₂" (105,6 cm).
Modèles de 27" (68,6 cm)
A. Hauteur hors-tout
42
⁹⁄₁₆ " (108 cm)
B. Largeur d'encastrement
25
⁷⁄₁₆ " (64,6 cm)
C. Hauteur d'encastrement
41" (104,1 cm)
D. Profondeur d'encastrement
23
¹⁄₄ " (59,1 cm) max.
E. Largeur hors-tout
27" (68,6 cm)
Modèles de 30" (76,2 cm)
A. Hauteur hors-tout
42
⁹⁄₁₆ " (108 cm)
B. Largeur d'encastrement
28¹
⁄₂ " (72,3 cm)
C. Hauteur d'encastrement
41" (104,1 cm)
D. Profondeur d'encastrement
23
¹⁄₄ " (59,1 cm) max.
E. Largeur hors-tout
30" (76,2 cm)
B
A
C
D
E
Modèles de 27" (68,6 cm)
A. Largeur du placard
27" (68,6 cm) min.
B. 1" (2,5 cm) entre le sommet de
l'ouverture et le bas de la porte
du placard supérieur
C. Une hauteur de 19
¹⁄₄ " (48,9 cm)
entre le bas de l'ouverture et le
plancher est recommandée.
Une hauteur de 4" (10,2 cm) à
19
¹⁄₄ " (48,9 cm) entre le bas de
l'ouverture et le plancher est
acceptable.
D. Largeur de l'ouverture
25½" (64,8 cm)
E. 1½" (3,8 cm) min. entre le bas
de l'ouverture et le haut de la
porte du placard
F. Hauteur de l'ouverture
recommandée 41
⁵⁄₁₆ '' (105 cm)*
G. Profondeur de l'ouverture 24"
(60,7 cm)
Modèles de 30" (76,2 cm)
A. Largeur du placard
30" (76,2 cm) min.
B. 1" (2,5 cm) entre le sommet de
l'ouverture et le bas de la porte
du placard supérieur
C. Une hauteur de 19
¹⁄₄ " (48,9 cm)
entre le bas de l'ouverture et le
plancher est recommandée.
Une hauteur de 4" (10,2 cm) à
19
¹⁄₄ " (48,9 cm) entre le bas de
l'ouverture et le plancher est
acceptable.
D. Largeur de l'ouverture
28½" (72,4 cm)
E. 1½" (3,8 cm) min. entre le bas de
l'ouverture et le haut de la porte
du placard
F. Hauteur de l'ouverture
recommandée 41
⁵⁄₁₆ ''
(105 cm)*
G. Profondeur de l'ouverture 24"
(60,7 cm)
F
E
A
D
G
B
C
