SERVICE MANUAL
LED TV
Chassis
MSD6586
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING
65DU47-T2
Model No.
1-1. Table of Contents
1. General Information...........................................................................
1-1. Table of Contents
1-3. Important Notice
1
Chapter 1: General Information
1
3
1-2. General Guidelines
1-4. How to Read this Service Manual
3
5
6SHFL¿FDWLRQV....................................................................................
Service Manual
Model No.:
- 01 -
3. Location of Controls and Components...........................................
3-1. Board Location
3-2. Main Board
4. Disassemble and Assemble..........................................................
4-1 Remove the Stand Base
6
7
7
7
11
11
4-2 Remove the Back Cover 11
4-3 Remove the Adhesive Tape 11
4-4 Remove the Main Board 12
4-5 Remove the Speaker 12
4-6 Remove the Remote Control Board 13
5. Installation Instructions..…....………………...........………….........14
5-1 External Equipment Connections 14
6. Electrical Parts…....………………...........…………......................... 15

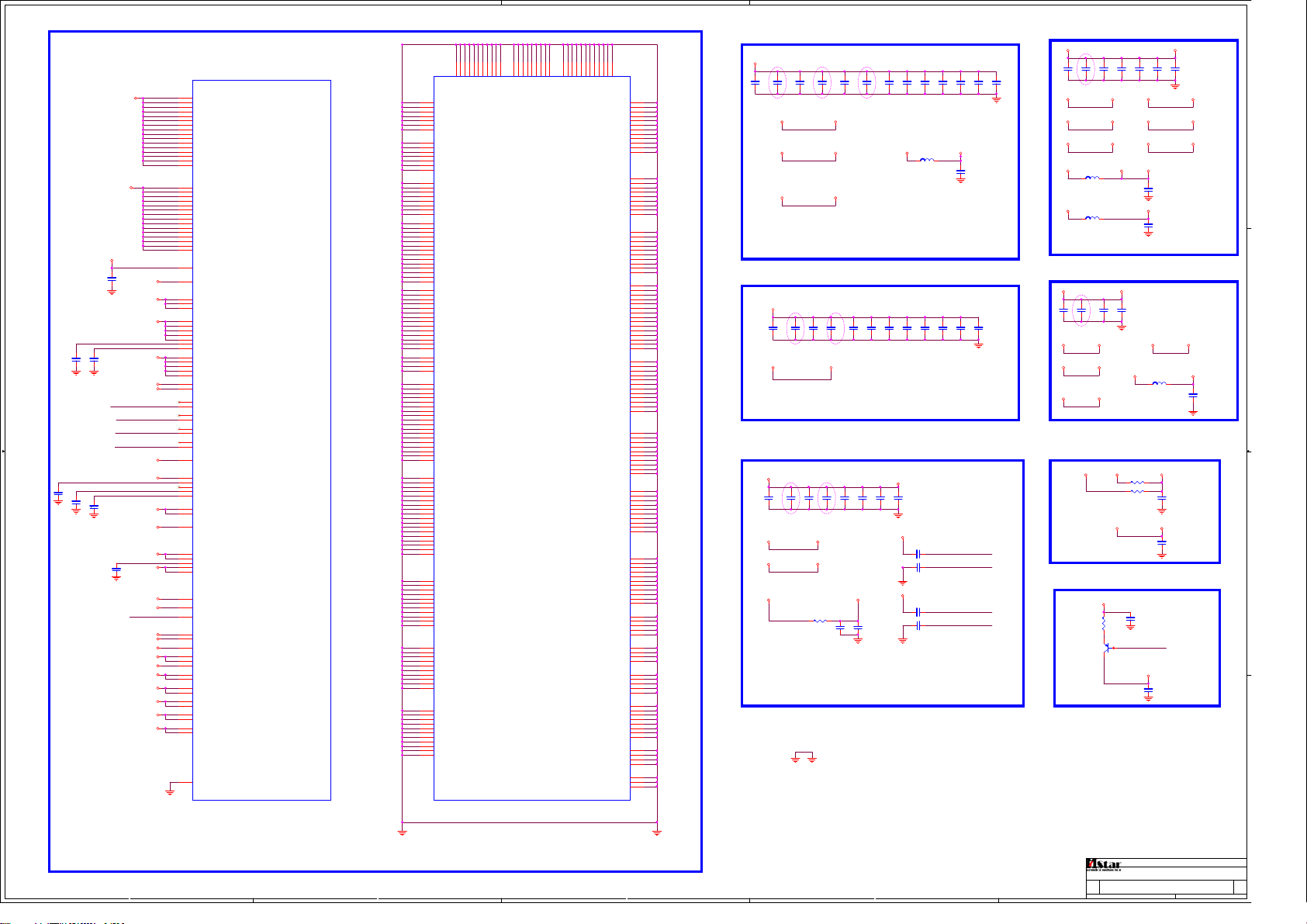

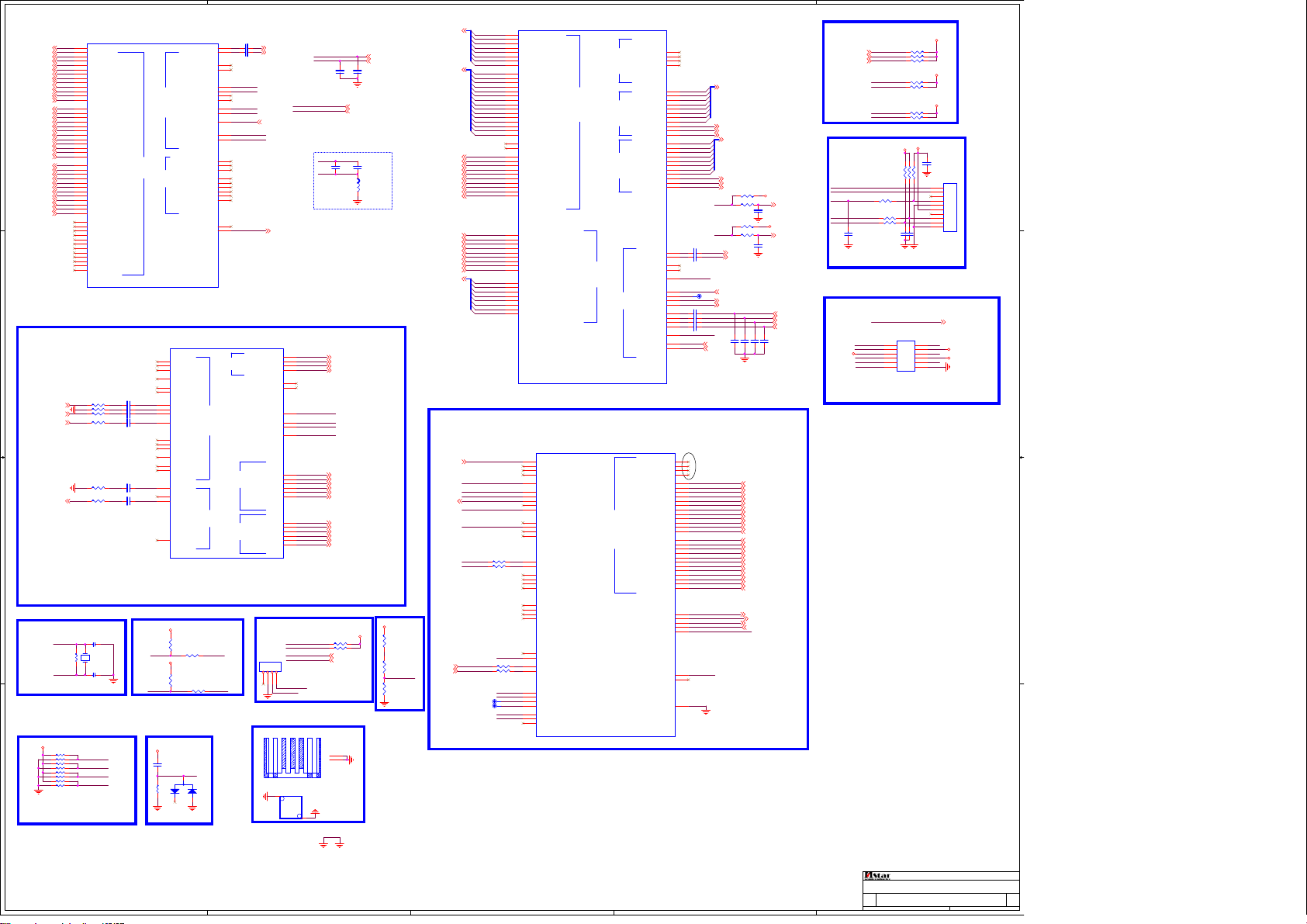

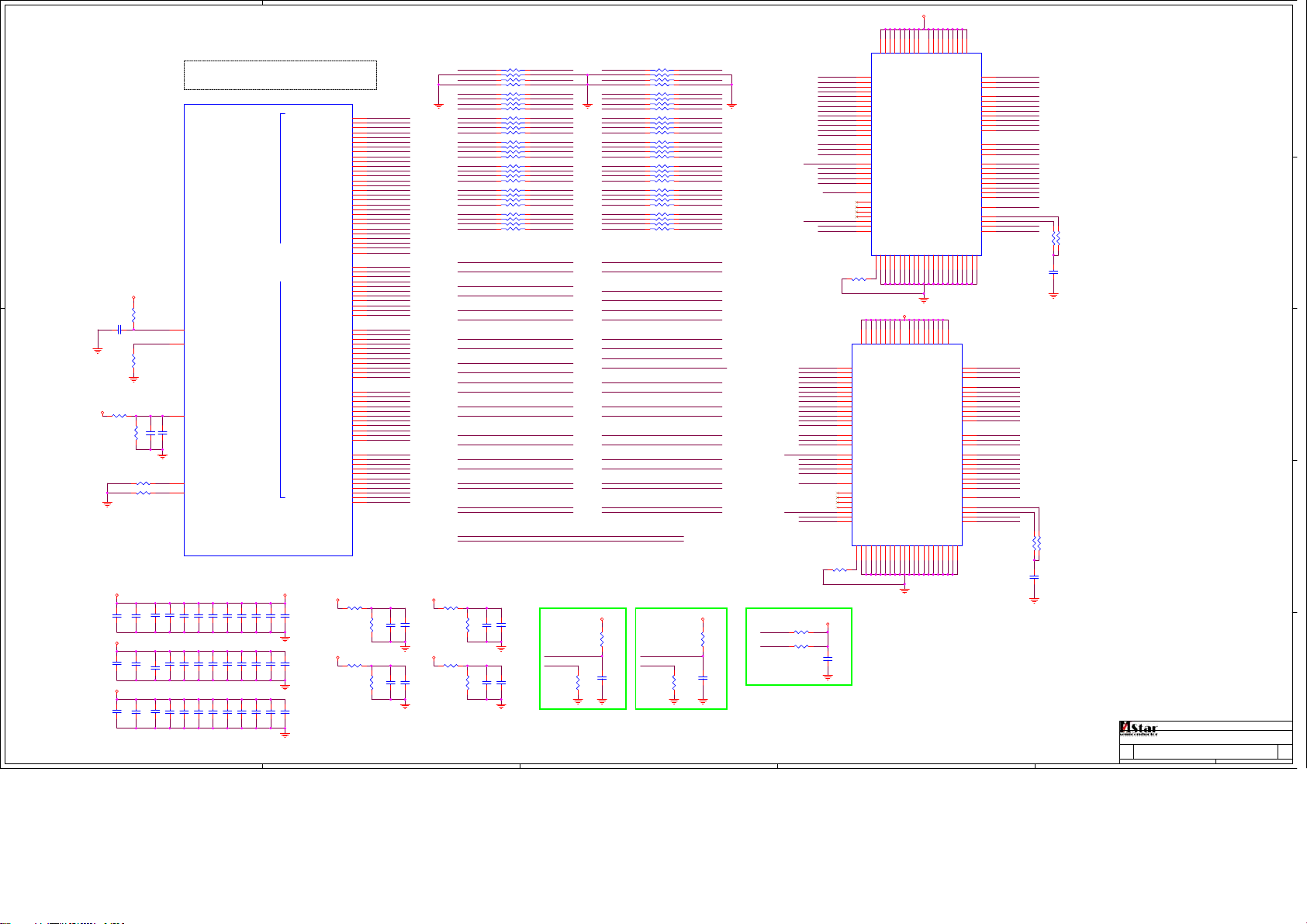

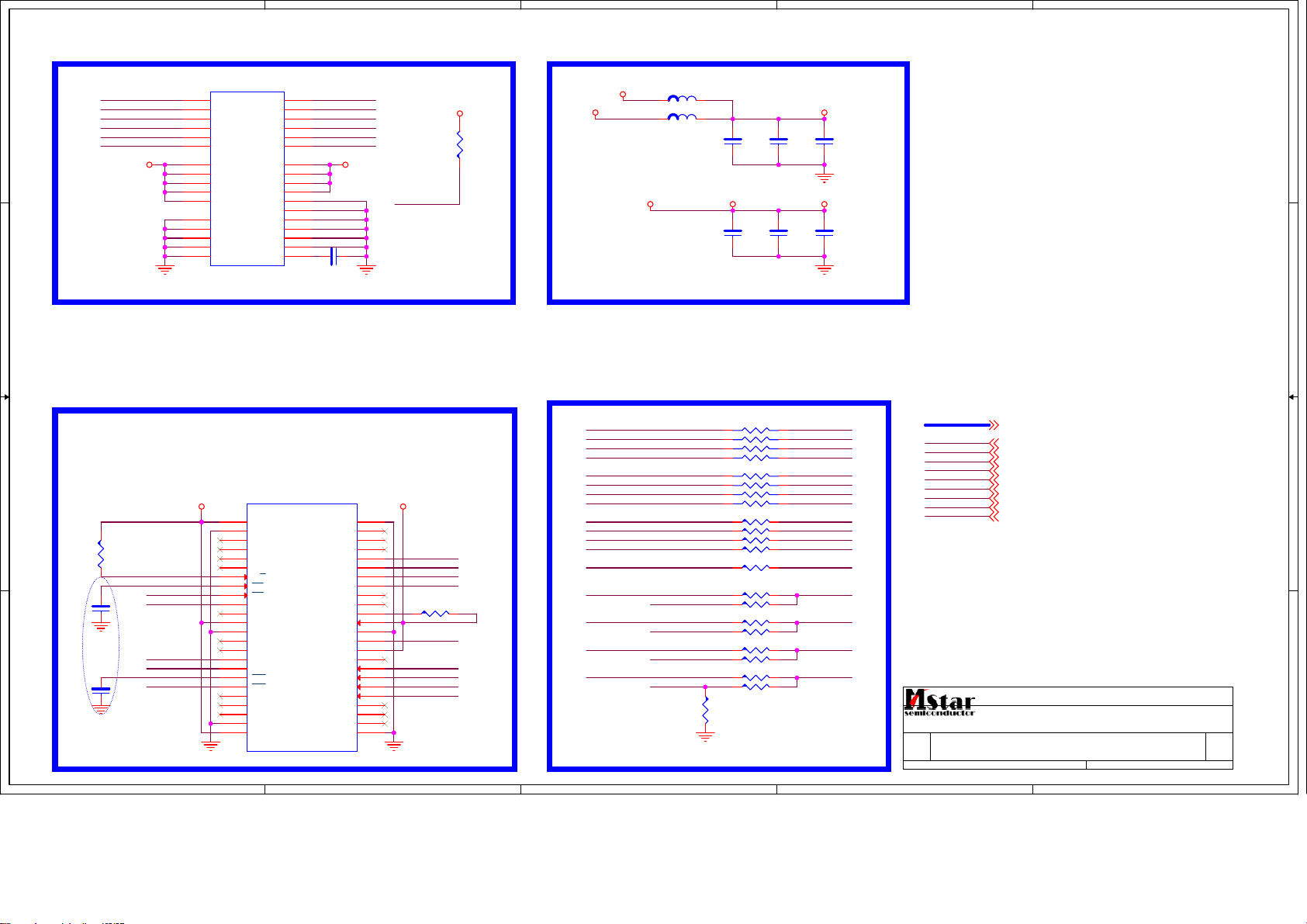

6-2. Circuit Diagram
6-3. Wiring Connection Diagram
16
25
3-3. LED Panel 9
6-1. Block Diagram 15
7
3-4. Connector Definition 10
7. Trouble Shooting....………………...........…………....................... 26
7-1. Simple Check 26
7-2. Mainboard failure check 27
7-3. Panel Failure 35
1-2. General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts
which have been overheated or damaged by the short circuit.
After servicing, see to it that all the protective devices such as insulation barriers, insulation
papers shields are properly installed.
After servicing, make the following leakage current checks to prevent the customer from
being exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive
1-3. Important Notice
1-3-1. Follow the regulations and warnings
Most important thing is to list up the potential hazard or risk for the service personnel to
open the units and disassemble the units. For example, we need to describe properly
how to avoid the possibility to get electrical shock from the live power supply or charged
electrical parts (even the power is off).
This symbol indicates that high voltage is present inside.It is dangerous to
make any king of contact with any inside part of this product.
This symbol indicates that there are important operating and maintenance
instructions in the literture accompanying the appliance.
1-3-2. Be careful to the electrical shock
to rain or excessive moisture. This TV must not be exposed to dripping or splashing water,
1-3-3. Electro static discharge (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatically Sensitive (ES) Devices. The following
techniques should be used to help reduce the incidence of component damage caused by
electros static discharge (ESD).
1-3-4. About lead free solder (PbF)
This product is manufactured using lead-free solder as a part of a movement within the
consumer products industry at large to be environmentally responsible. Lead-free solder
must be used in the servicing and repairing of this product.
Special parts which have purposes of fire retardant (resistors), high-quality sound
(capacitors), low noise (resistors), etc. are used.
When replacing any of components, be sure to use only manufacture's specified parts
shown in the parts list.
Safety Component
Service Manual
Model No.:
- 02 -
1-3-6 Safety Check after Repairment
- 03 -
Service Manual
Model No.:
in the original positions, or whether there are the positions which are deteriorated around
the serviced places serviced or not. Check the insulation between the antenna terminal or
external metal and the AC cord plug blades. And be sure the safety of that.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power source before;
a. Removing or reinstalling any component, circuit board module or any other receiver
assembly.
b. Disconnecting or reconnecting any receiver electrical plug or other electrical
connection.
c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic
capacitors may result in an explosion hazard.
2. Test high voltage only by measuring it with an appropriate high voltage meter or other
voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage
probe.
Do not test high voltage by "drawing an arc".
5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this
service manual might be equipped.
CAUTION: eiver.
3. Do not spray chemicals on or near this receiver or any of its assemblies.
4. Unless specified otherwise in this service manual, clean electrical contacts only by
applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or
comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume)
isopropyl alcohol (90%-99% strength).
CAUTION:Capacitors may result in an explosion hazard.
6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless
all solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before
connecting the test receiver positive lead.
Always remove the test receiver ground lead last. Capacitors may result in an explosion
hazard.
9. Remove the antenna terminal on TV and turn on the TV.
10. Insulation resistance between the cord plug terminals and the eternal exposure metal
should be more than Mohm by using the 500V insulation resistance meter.
11. If the insulation resistance is less than M ohm, the inspection repair should be required.
If you have not the 500V insulation resistance meter, use a Tester. External exposure
metal: Antenna terminal Headphone jack
Service Manual
Model No.:
- 04 -
Electrostatically Sensitive (ES) Devices
1-3-7. Ordering Spare Parts
1. Immediately before handling any semiconductor component or semiconductor-
equipped assembly, drain off any electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commercially available discharging wrist
strap device, which should be removed to prevent potential shock reasons prior to applying
power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly
on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
to damage ES devices.
7. Immediately before removing the protective material from the leads of a replacement
ES device, touch the protective material to the chassis or circuit assembly into which the
device will be installed.
CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other
safety precautions.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
Some semiconductor (solid-state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive (ES) Devices.
Examples of typical ES devices are integrated circuits and some field-effect transistors
and semiconductor "chip" components. The following techniques should be used to help
reduce the ncidence of component damage caused by static by static electricity.
4. Use only an anti-static type solder removal device. Some solder removal devices not
6. Do not remove a replacement ES device from its protective package until immediately
before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive material).
8. Minimize bodily motions when handling unpackaged replacement ES devices.
(Otherwise harmless motion such as the brushing together of your clothes fabric or the
an ES device.)
Please include the following informations when you order parts. (Particularly the Version
letter)
1. Model number, Serial number and Software Version
The model number and Serial number can be found on the back of each product and the
Software Version can be found at the Spare Parts List.
2. Spare Part No. and Description
- 05 -
Service Manual
Model No.:
1-3-8. Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of
products, which may differ from your products in some way.
1-4. How to Read this Service Manual
Using Icons:
each icon is described in the table below:
Note:
A “note” provides information that is not indispensable, but may nevertheless be valuable
to the reader, such as tips and tricks.
Caution:
A “caution” is used when there is danger that the reader, through incorrect manipulation,
may damage equipment, loose data, get an unexpected result or has to restart(part of) a
procedure.
Warning:
A “warning” is used when there is danger of personal injury.
Reference:
A “reference” guides the reader to other places in this binder or in this manual, where he/
Service Manual
Model No.:
- 06 -
6SHFL¿FDWLRQVModel 65DU47-T2
Screen Size65 inch
Aspect Ratio 16:9
Resolution 3840*1920
Response Time (ms) (GRAY TO
GRAY)
Angel ofView
Color Display16.7M
No. ofPreset Channels
OSD LanguageEn
Color SystemPAL/SECAM
Audio SystemDK, BG, I
Audio Output Power
(Built-in) (W) 10W *2
Audio Output Power
(outer) (W) No
Total Power Input (W) 198W
Voltage Range (V)
Power Frequency (Hz) 50~60Hz
AC 100-240V
500(DTV);100(ATV)
160°/150°
20
glish, Russian
- 07 -
Service Manual
Model No.:

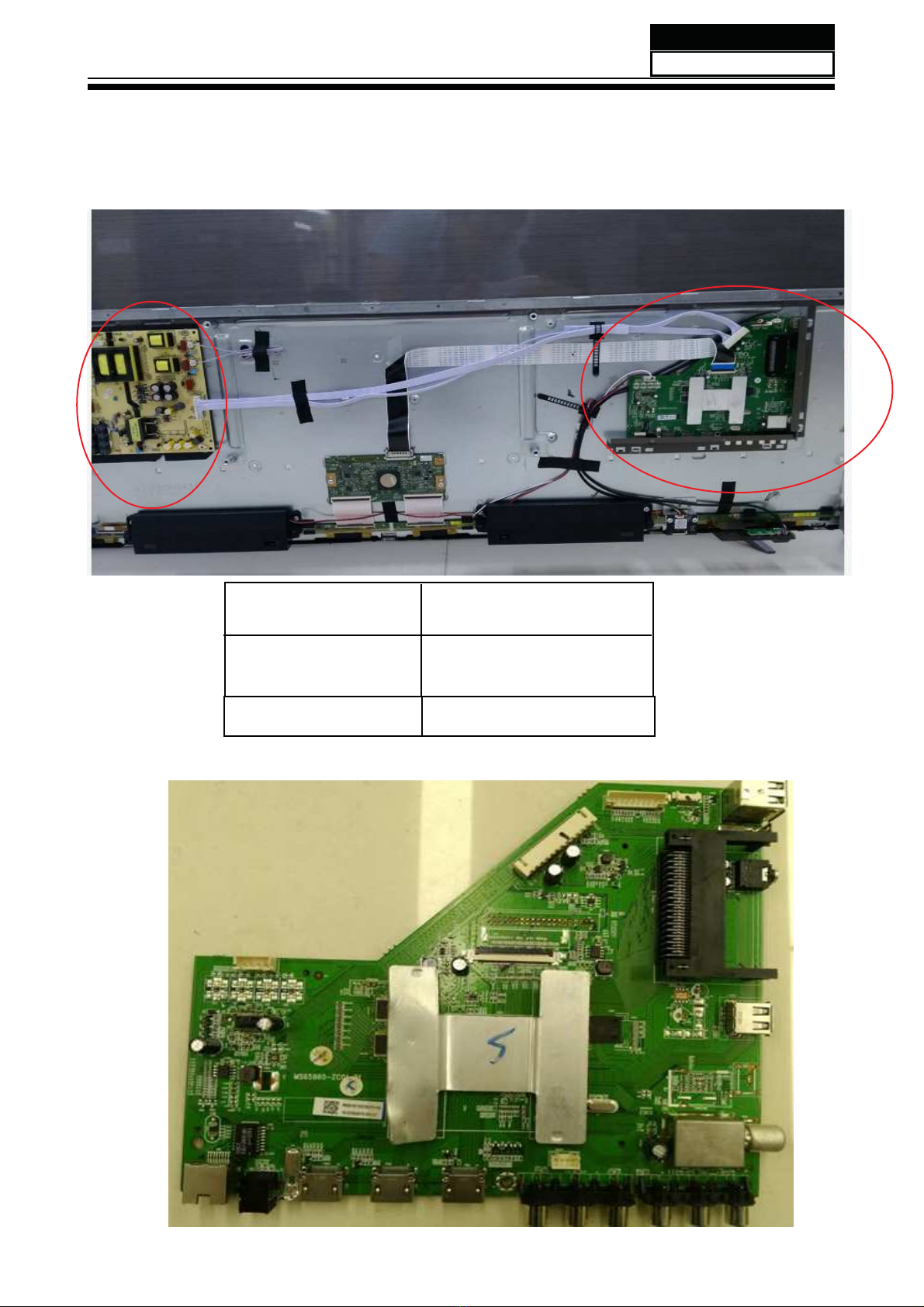

3. Location of Controls and Components
3-1 Board Location
No. Description
A Board Power board
3-2 Main Board
B Board Main board
Service Manual
Model No.:
- 08 -
3-2-1 Function Description:
Main Board
Process signal which incept from exterior equipment then translate into signal that panel
can display.
Main board connector
Pin number Signal name Description
1 RSPK+ RSPK+
2 RSPK- RSPK-
3 LSPK- LSPK-
4 LSPK+ LSPK+
Keypad and remote connector ( CN201 )
9Speaker connector (CN601)
3-3. LED Panel
- 09 -
Service Manual
Model No.:
Service Manual
Model No.:
- 10 -

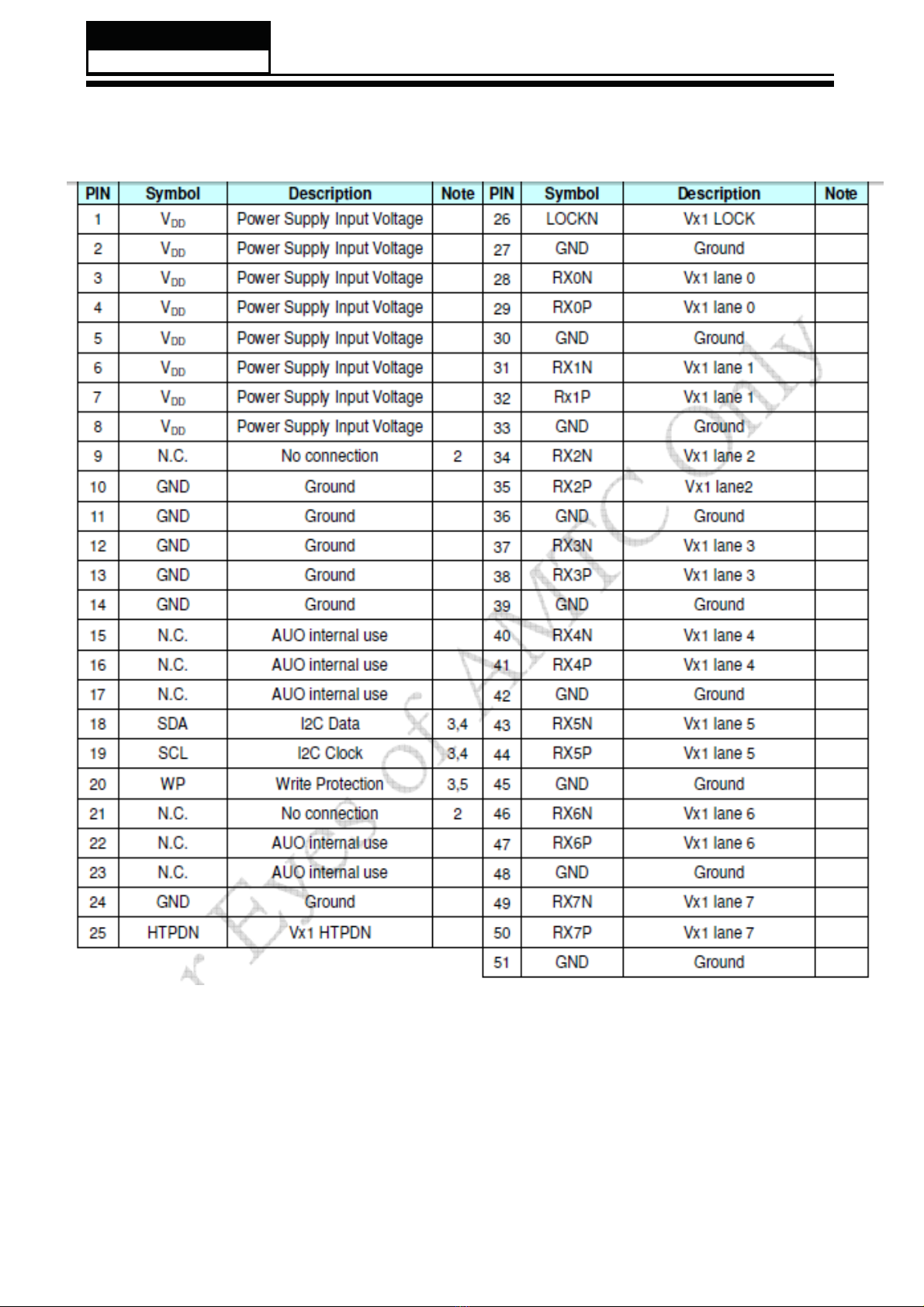

3-4.Connector Definition
3-4.Connector Definition
4. Disassemble and assemble
Remove the adhesive tape indicated on the
faces upward
4-2 Remove the Back Cover unit.
Service Manual
Model No.:
- 11 -

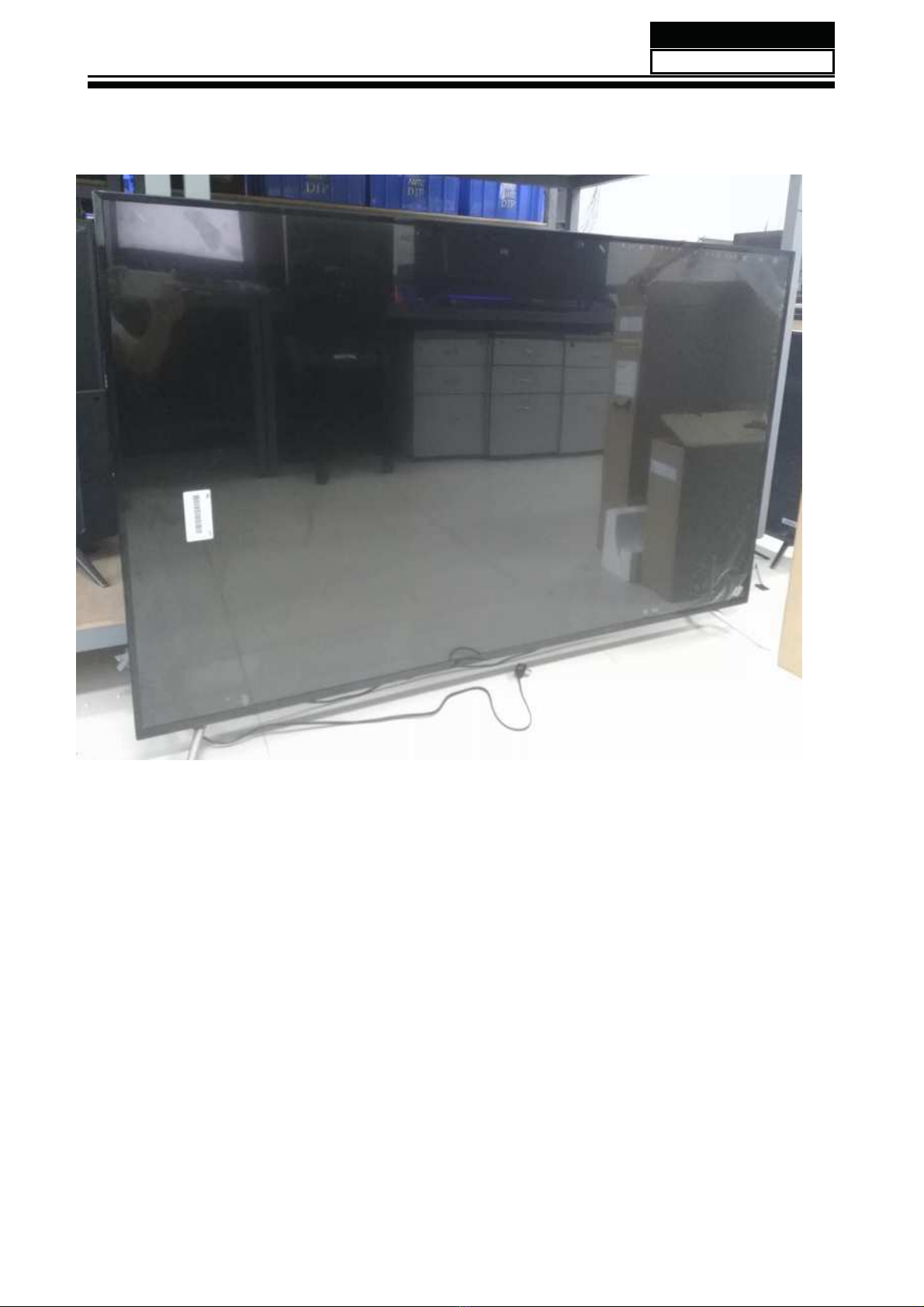

4-1 Remove the Stand Base
4-3. Remove the adhesive tape
4-4 Remove the Main board
Service Manual
Model No.:
- 12 -
4-5 Remove the speaker
Take out the speaker

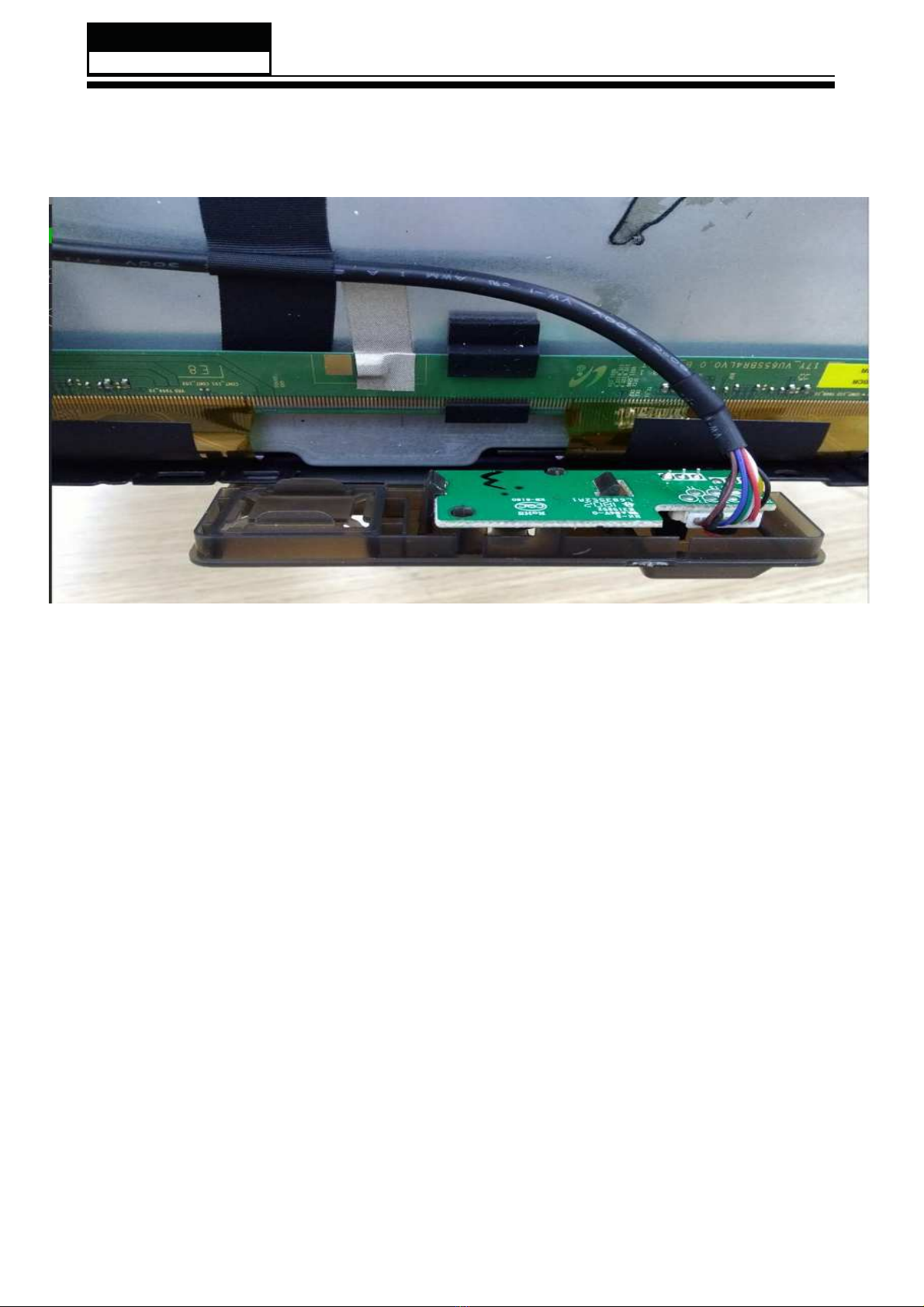

4-6 Remove the remote control board
take out the remote control
board
Service Manual
Model No.:
- 13 -
5. Installation Instructions
5-1 External Equipment Connections
Service Manual
Model No.:
- 14 -
Accessories
Remote control refers to user manual.Remote control refers to user manual.
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Power Supply
H:ON
L:OFF
ON
OFF
12.46V
12.46V 5.17V
VDDC Power
R2
Note
：能提供最大平均电流
8A
。
远端反馈
,
即
从
IC
底部引线
L
+1.15V_VDDC
H
H
LL
H
L
H
33K
28.696K
27.049K
24.087K
0.96V
1.02V
1.05V
1.10V
VID[0]VID[1] R2
靠近
DC-DC
R1
远端反馈
,
即
从
IC
底部引线
有
DVFS
功能，此
DCDC
不能更改
靠近
DC-DC
R1
VDDC_CPU Power
靠近
DCDC
Vout=0.828V*(1+R1/50K)
Note
：能提供最大平均电流
5A
。
Addr 0x80
R2=50K
R124:
538
和
6586
统一为
15K
积分电路
Inverter controler
down
up
out
V =0.768X(1+R /R )
1.5A Max
实测
1.54V
Irms=913mA
，
Imax=2.47A
。
74mVPP
DDR Power
<1A 5V Input--->Output 3.3V
3.3V DC-DC
加一级开关，降低在待机状态下的功耗。
H:ON
L:OFF
390mA 220mA
实测
3.33V
Irms=913mA
，
Imax=2.47A
。
74mVPP
实测
3.30V
Irms=660mA
，
Imax=720mA
。
冲击
0.9A
。
Vout=0.6V*(1+R1/R2) TPS54821
Vout=0.768V*(1+R1/R2) TPS54628
Vout=0.6V*(1+R1/R2) TPS56528
V =0.6X(1+R /R )
out up down
BL-ON/OFF
PWR_ON/OFF#
BL-ADJUST
PWR_ON/OFF#
+1.10V_VDDC
+1.05_VDDC_CPU
BL-ON/OFF
BL-ADJUST
EN
V_SNS
V_SNS
EN
+12V_Normal +5V_Normal
+5V_Normal
+12V_Normal
+5V_Standby
+3.3V_Standby
+12V_Normal
+1.10V_VDDC
+12V_Normal +1.05_VDDC_CPU
+1.5V_DDR
+1.5V_DDR
+5V_Standby
+5V_Standby
+3.3V_Standby
+3.3V_Standby +3.3V_Normal
+12V_Normal
+1.10V_VDDC
PWR-ON/OFF 1,2
PWR_ON/OFF# 2
VID_0 2
VID_1 2
I2C-SDA 2,6
I2C-SCL 2,6
VBL_CTRL 2
BRI_ADJ 2
PWR-ON/OFF 1,2
Title
Size Document Number Rev
Date: Sheet of
System power
V1.0
MSD6A538/6586
Custom
113Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
System power
V1.0
MSD6A538/6586
Custom
113Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
System power
V1.0
MSD6A538/6586
Custom
113Saturday, February 25, 2017
CD88
0.1uF
C39 10uF/6.3V
TPS563201
SOT23-6
U17
IC-DCDC/TPS563201BADC,3A,18V,TSOT23-6 Silergy
，基准
0.768V
，轻载高效
GND
1
LX 2
VIN
3
FB 4
EN
5
BS 6
R127
1M
MSH6110A
U104
5V
3
SDA
4
EN
1
FB 2
PVDD
8
BST 7
SCL 5
LX 6
PowerPAD
9
+
EC105
220uF/16V
12
RD40 1K
R114 NC
C78
10uF
C103
220pF
RD141
220K
R41
22K,1%
C3580.1uF
C110
0.1uF
C76
10uF
C130
10uF/6.3V
CC0603
L102
3.3uH/8A
12
C85
NC/0.1uF
R109
NC/150K/1%
CD92
0.1uF
R111
NC/220K/1%
C225 22PF/50V/NPO
C19 NC/10uF/6.3V
R124 15K/1%
C88
10uF
H3
FOR
侧端子螺丝
1
1
2
2
C128
10uF/6.3V
CC0603
C84
10uF
C75
0.1uF
C122
10uF/6.3V
CC0603
C17
10uF
C89
10uF
CD46
NC/2.2uF
R113 NC
C79 10uF/6.3V
R112
NC
C127
0.1uF
C107
10uF/6.3V
CC0603
H2
FOR
侧端子螺丝
1
1
2
2
J16
13pin-2.5mm
1
2
3
4
5
6
7
8
9
10
11
12
13
C360
1uF
R269
4.7K
C77
10uF
C73
0.1uF
CD104
NC/100pF
Q4
3904
1
2 3
C70 NC/10uF/6.3V
C123
0.1uF
R110
NC
R104
10K
U25
TPS54821RHL//NC
SS/TR 9
PVIN
4
GND
2
EN 10
GND
3
RT/CLK
1
PH 11
PVIN
5
VIN
6
V_SNS
7
PWPO
15
COMP 8
PH 12
BOOT 13
PWRGD 14
C83
10uF/6.3V
C82
0.022uF
C118
0.1uF
CD97
10uF
C371
0.1uF
Q8
AO3401
R106 0R
R57
1K,1%
R120
100K
RD157 100R
R105 20K/1%
R167 100R
C129
10uF/6.3V
CC0603
C364
8.2nF
Q101
NC/2N7002
1
32
+
EC106
NC/220uF/16V
12
H8
NC
1
2
3
4
5
6
7
8
9
RD145
75K
C80
39pF
CD87
10uF
C673
10uF/6.3V
R115 NC/4.7K
C125
0.1uF
R116 NC/4.7K
CD93
10uF
C93
0.1uF
C81
3900pF
C124
10uF/16V
CC0805
L19
SWPA8040S2R2NT/5A
12
U23
TPS56528
AGND 9
SS
4
BST 7
EN
1
AGND
5
FB 2
VREG5
3
VIN
8
SW 6
C91
NC/33pF
R49
8.2K
C108
0.1uF
CD94
10uF
RD136
120K
R54
4.7K
C71
0.1uF
L14
SWPA8040S2R2NT/5A
12
R102
NC
C119
330pF
+
EC107
220uF/16V
12
R215
100K
C121
10uF/6.3V
CC0603
R43 100K
C87
10uF
R122
NC
C86
10uF
C106
10uF/6.3V
CC0603
R159
4.7K
R45
0K
C90
10uF
C288
10uF/16V
R103 100R
R44
36K
L8 2.2UH/2.5A
R108
33K/1%
LD22 2.2uH_2A
R123 10K
R42 51K
C72
0.1uF
R107
10K
C365
0.1uF
C105
10uF/6.3V
CC0603
C120
10uF/6.3V
CC0603
TLV62561
UD8
IC-DCDC/TLV62561,1A,5.5V,SOT23-5 Silergy
，基准
0.6V
，轻载高效
GND
2
LX 3
VIN
4
OUT/FB 5
EN
1
RD140
100K
C290
10uF/16V
C74
10uF/16
R37
20K/1%
C289
0.1uF
R12 100K
C126
0.1uF
Q102
NC/2N7002
1
32
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
20mA,15mil
20mA,15mil
60mA,15mil
20mA,15mil
10mA,15mil
CORE Power
CPU Power
Standby Power 3.3V
20mA,15mil
40mA,15mil
10mA,15mil
40mA,15mil
60mA,15mil
eMMC/Nand Power
Normal Power 3.3V
40mA,15mil
50mA,15mil
50mA,15mil
50mA,15mil
20mA,15mil
50mA,15mil
DDR3
Internel LDO
20mA,25mil
80mA,25mil
180mA,25mil
2300mA,100mil
2300mA,100mil
4200mA,100mil
30mA,15mil
EMMC:1.8V
Nand:3.3V
EMMC_CTRL
EMMC_CTRL
AVDD_DDR_VBN_A_DM
AVDD_DDR_VBP_B_DM
AVDD_DDR_VBN_B_DM
AVDD_DDR_VBP_A_DM
AVDD_DDR_VBP_A_DM
AVDD_DDR_VBN_A_DM
AVDD_DDR_VBP_B_DM
AVDD_DDR_VBN_B_DM
VDDC
AVDD_DMPLL
AVDD15_MOD
AVDD_AU33 AVDD_EAR33
AVDD_DDR_LDO_B
VDDP_NAND_A
VCC3.3V
AVDD_NODIE
AVDD_DDR3_1V5
AVDD_USB+3.3V_Standby
AVDD33_LAN+3.3V_Standby
AVDD_NODIE
AVDD_DADC
AVDD33_ADC
+3.3V_Standby
+3.3V_Standby
+3.3V_Standby
+3.3V_Standby
+3.3V_Standby
+3.3V_Normal
+3.3V_Normal
+3.3V_Normal
AVDD3P3_MHL3
VDDP33
AVDD_MOD
+3.3V_Normal AVDD_PLL
+3.3V_Normal VDDP_NAND_A
VDDP_NAND_C+3.3V_Normal
AVDD_LPLL
+3.3V_Normal
+1.5V_DDR
+1.5V_DDR
AVDD_DDR3_1V5
+1.10V_VDDC
+1.10V_VDDC AVDDL_MOD
+1.10V_VDDC AVDDL_MHL3
DVDD_DDR+1.10V_VDDC
+1.05_VDDC_CPU VDDC_CPU
+1.05_VDDC_CPU
+1.10V_VDDC VDDC
AVDD_DDR
+1.5V_DDR
VCC3.3VA
+3.3V_Standby
VCC3.3V+3.3V_Normal
+1.5V_DDR
+1.8V_Normal
AVDDL_MOD
VDDC_CPU
DVDD_NODIE
DVDD_DDR
AVDD_DDR
AVDD_DDR3_1V5
AVDD_DDR3_1V5
AVDD_DDR3_1V5
VDDP_NAND_A
VDDP_NAND_C
AVDD_PLL
AVDD_LPLL
VDDP33
AVDD_AU33
AVDD33_ADC
AVDD_USB
+3.3V_Standby AVDD_USB3
AVDD_USB3
AVDD33_LAN
AVDD_DADC
AVDD_DMPLL
AVDD_MOD
AVDD15_MOD
AVDDL_MHL3
AVDD3P3_MHL3
AVDD_DDR_LDO_B
AVDD_DDR
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE
1.0
MSD6A538/6586
Custom
114Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE
1.0
MSD6A538/6586
Custom
114Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE
1.0
MSD6A538/6586
Custom
114Saturday, February 25, 2017
C330
10uF/6.3V
CC0603
C319
0.1uF
C329
10uF/6.3V
CC0603
C309
10uF/6.3V
CC0603
C302
2.2uF
CC0402
C345
NC/0.1uF
C366
2.2uF/NC
C369 0.47uF
C324
1uF
C321
0.1uF
C326
NC
CC0402
C314
0.1uF
C354
0.1uF
C304
0.1uF
C301
10uF/6.3V
CC0603
C337
0.1uF
C343
1uF
CC0402
C334
0.1uF
R306
0R/NC
C347
NC/0.1uF
C356
0.1uF
C362
0.1uF
L301 FB/120R
C367 NC/0.47uF
R302 NC/0R
C315
0.1uF
C342
NC/100nF
C325
2.2uF
CC0402
L303 FB/120R
L302 FB/120R
C349
NC
CC0603
C320
0.1uF
C363
0.1uF
C352
0.1uF
C306
0.1uF
C333
2.2uF
CC0402
C336
0.1uF
C322
0.1uF
C327
0.1uF
C368 NC/0.47uF
C305
0.1uF
C338
0.1uF
C344
0.1uF
C370 0.47uF
C307
0.1uF
C323
0.1uF
C355
0.1uF
C300
0.1uF
C312
2.2uF
CC0402
C353
0.1uF
C331
10uF/6.3V
CC0603
C341
NC/100nF
C339
0.1uF
R301 0R
C308
0.1uF
C317
0.1uF
C350
2.2uF
CC0402
C357
NC
C351
NC
CC0402
L304 FB/120R
C311
NC
CC0603
Q301
MMBT2907/NC
C359
0.1uF/NC
C303
NC
CC0402C318
0.1uF
C340
0.1uF
C310
10uF/6.3V
CC0603
C335
0.1uF
U201F
MSD6A538
AVDDL_MHL3
N7
AVDDL_MHL3
N8
AVDDL_MOD
R10
AVDD3P3_ETH
W8
AVDD_AU33
U8
AVDD_MOD
AA14
AVDD_NODIE
Y7
VDDP
AB14
AVDD3P3_DMPLL
AA9
DVDD_NODIE
Y12
AVDD3P3_DADC
W7
AVDD_PLL_A
Y13
GND_EFUSE
P22
VDDP_3318_A
AA10
AVDD3P3_USB
U7
DVDD_DDR
M10
DVDD_DDR
N10
VDDC
G7
VDDC
G8
VDDC
L7
AVDD3P3_ADC
V7
AVDD_DDR_VBP_A_DM
M13
VDDC_CPU
V19
VDDC_CPU
V20
VDDC_CPU
V18
VDDC_CPU
W20
AVDD_EAR33
U9
AVDD_LPLL
AA13
AVDD15_MOD
K15
AVDD_PLL_B
Y14
AVDD_DDR_A
M15
AVDD15_MOD
K16
AVDD_DDR_VBP_A
J27
AVDD_LPLL
AB13
VDDP
AB15
AVDD3P3_USB
T7
AVDD3P3_ADC
V8
AVDD3P3_MHL3
AA12
AVDD3P3_MHL3
AB12
DVDD_DDR
N9
AVDD_DDR_B
K12
AVDDL_MOD
T13
AVDDL_MOD
AH23
VDDC_CPU
W18
VDDC_CPU
W19
PADA_EMMC_CTRL
AE15
AVDD_DDR_VBN_A_DM
N13 AVDD_DDR_VBN_A
K28
VDDP_3318_C
AB11
VDDC
J9
VDDC
K7
VDDC
K8
VDDC
K9
VDDC
M7 VDDC
M8 VDDC
M9
VDDC_CPU
W21
VDDC_CPU
Y19
VDDC_CPU
Y20
VDDC_CPU
Y21
VDDC_CPU
Y22
VDDC_CPU
AA19
VDDC_CPU
AA20
VDDC_CPU
AA21
VDDC_CPU
AA22
VDDC
H7
VDDC
L8
VDDC
L9
VDDC
H8
VDDC
J7
VDDC
J8
AVDD_DDR_B
K13
AVDD_DDR_B
K14
AVDD_DDR_B
J12
AVDD_DDR_B
J13
AVDD_DDR_DRAM
K21
AVDD_DDR_DRAM
K26
AVDD_DDR_A
M14
AVDD_DDR_A
N14
AVDD_DDR_A
P14
AVDD_DDR_A
N15
AVDD3P3_USB3
T8
NC
H27
NC
L13
NC
G28
NC
L12
AVDD_DDR_LDO_B
J14
NC
J18
NC
Y15
NC
AA15
AVDDL_MHL3_CAP
W10
AVDDL_MOD_CAP
W15
C332
NC
CC0603
C346
NC/0.1uF
U201G
MSD6A538
GND
A17
GND
A28
GND
B9
GND
B16
GND
B23
GND
B25
GND
B27
GND
C3
GND
C11
GND
D14
GND
D16
GND
D20
GND
D22
GND
D26
GND
D28
GND
G17
GND
G18
GND
G19
GND
G20
GND
G21
GND
G22
GND
G23
GND
H15
GND
H16
GND
H17
GND
H18
GND
H19
GND
H20
GND
H21
GND
H22
GND
H23
GND
H24
GND
J22
GND R12
GND R13
GND R14
GND
J23
GND
J25
GND
H14
GND
H25
GND
D12
GND
E2
GND
E7
GND
E8
GND
E9
GND
E10
GND
E21
GND
E23
GND
E25
GND
E27
GND
F7
GND
F8
GND
F9
GND
F10
GND R18
GND V12
GND V13
GND V14
GND V17
GND AB8
GND AB9
GND AB16
GND AB17
GND AB18
GND AC7
GND AC8
GND AC9
GND
A24
GND
A26
GND
B18
GND
C8
GND
C13
GND
C20
GND
C21
GND
C22
GND
D7
GND
D8
GND
D9
GND
G24
GND
G25
GND
A15 GND
A8
GND
G9
GND
G10
GND
G12
GND
G13
GND
G11
GND
G14
GND
G15
GND
G16
GND T17
GND T20
GND U10
GND U13
GND U17
GND U18
GND U19
GND U20
GND V10
GND V11
GND V21
GND V22
GND V23
GND W17
GND W23
GND Y9
GND Y10
GND Y16
GND Y17
GND Y24
GND AA7
GND AA8
GND AA17
GND AA18
GND AA23
GND AA25
GND AD7
GND AD8
GND
A1
GND
B14
GND
C12
GND
D24
GND
E19
GND
K22
GND W9
GND W11
GND W24
GND W25
GND Y23
GND AA16
GND AA24
GND AD9
GND
D18
GND R15
GND AB7
GND
G27
GND
H9
GND
H10
GND
H11
GND
H12
GND
H13
GND
J16
GND
J17
GND
J21
GND
L15
GND
L16
GND M16
GND M22
GND N21
GND N22
GND P7
GND P13
GND P15
GND T18
GND T19
GND U11
GND U12
GND U21
GND U22
GND V24
GND V25
GND AE8
GND AE9
GND AF2
GND AF8
GND AG2
GND AH1
GND AH28
GND
J19
GND
K17
GND
K18
GND N16
GND
E11
GND
E13
GND
E15
GND
E17
GND
K23
GND
K24
GND
K25
GND R19
GND T26
GND AF23
GND AG12
GND
H1
GND M3
GND V26
GND W26
GND Y26
GND AA27
GND AB28
GND AC14
GND AD28
GND AE14
GND AG6
GND AH11
GND AF9
GND
J10
GND
J11
GND
K19
GND
K20
GND
L17
GND
L18
GND
L19
GND
L20
GND M12
GND M17
GND M18
GND M19
GND M20
GND N12
GND N17
GND N18
GND N19
GND N20
GND P12
GND P16
GND P18
GND P19
GND P20
GND R17
GND V16
GND W16
GND AF10
GND
D6
GND
K11 GND
K10
GND
L11
GND
L23
GND
L24
GND M11
GND M23
GND N11
GND P9
GND P10
GND P11
GND R9
GND R11
GND T9
GND T10
GND T11
GND T12
GND
J15
GND
J26
GND R8
GND R7
GND V9
GND R1
GND W22
GND Y18
GND AB19
GND AB20
GND AB21
GND AB22
GND Y8
GND
L14
GND AA11
GND Y11
GND W12
GND W13
GND W14
GND AF14
GND AF15
GND
D10
GND M21
GND V15
GND AE3
GND AE27
GND AF24
GND AG26
GND AC27
GND P8
GND
L10
C328
0.1uF
C348
10uF/6.3V
CC0603
R307 0R
C313
NC
CC0402
5
5
4
4
3
3
2
2
1
1
E E
D D
C C
B B
A A
DDR3 : MR410=240R/1%
LPDDR3 : MR410=0.1uF
BA2,CSB1,CSB2 need GND shielding
DDR3 4G bit 1866MHz
Close to DDR POWER PIN
CSB terminator
D-MVREFCA-T2
D-MVREFDQ-T2
D-MVREFCA-T1
D-MVREFDQ-T1
D_DDR3_A12
D_DDR3_A9
D_DDR3_A5
D_DDR3_A14
D_DDR3_A2
D_DDR3_A10
D_DDR3_A1
D_DDR3_A3
D_DDR3_A11
D_DDR3_A4
D_DDR3_A8
D_DDR3_A13
D_DDR3_A7
D_DDR3_A6
D_DDR3_A0
D_DDR3_A15
D_DDR3_CSB1
D_DDR3_CSB2
D_DDR3_CASZ
D_DDR3_RASZ
D_DDR3_ODT
D_DDR3_WEZ
D_DDR3_RESET
D_DDR3_MCLKZ
D_DDR3_MCLK
D_DDR3_CKE
D_DDR3_BA0
D_DDR3_BA1
D_DDR3_BA2
D_DDR3_DQS2
D_DDR3_DQS2B
D_DDR3_DQ23
D_DDR3_DQ22
D_DDR3_DQ19
D_DDR3_DQ18
D_DDR3_DQ16
D_DDR3_DQ21
D_DDR3_DQ20
D_DDR3_DQ17
D_DDR3_DM2
D_DDR3_DQ15
D_DDR3_DQ14
D_DDR3_DQ9
D_DDR3_DQ8
D_DDR3_DQ11
D_DDR3_DQ10
D_DDR3_DQ13
D_DDR3_DQ12
D_DDR3_DM1
D_DDR3_DQS1B
D_DDR3_DQS1
D-DDR3-CKE-T1 D-DDR3-CKE-T2
D-DDR3-RESET-T2D-DDR3-RESET-T1
D-CSB1
D-CSB2
D_DDR3_DQ3
D_DDR3_DQ2
D_DDR3_DQ5
D_DDR3_DQ4
D_DDR3_DQ0
D_DDR3_DQ7
D_DDR3_DQ6
D_DDR3_DQ1
D_DDR3_DM0
D_DDR3_DQS0B
D_DDR3_DQS0
D_DDR3_DM3
D_DDR3_DQS3
D_DDR3_DQS3B
D_DDR3_DQ27
D_DDR3_DQ26
D_DDR3_DQ28
D_DDR3_DQ31
D_DDR3_DQ30
D_DDR3_DQ24
D_DDR3_DQ25
D_DDR3_DQ29
D_DDR3_CSB2
D-MVREFDQ-T1
D-DDR3-A10-T2
D-DDR3-A11-T2
D-DDR3-A0-T2
D-DDR3-BA0-T2
D-DDR3-BA1-T2
D-DDR3-A8-T2
D-DDR3-A9-T2
D-DDR3-A1-T2
D-DDR3-A2-T2
D-DDR3-A3-T2
D-DDR3-A4-T2
D-DDR3-A12-T2
D-DDR3-DQS2
D-DDR3-DQ27
D-DDR3-A5-T2
D-DDR3-A6-T2
D-DDR3-A7-T2
D-DDR3-BA2-T2
D-DDR3-DQS3B
D-DDR3-DQS3
D-DDR3-DQ29
D-DDR3-DQ25
D-DDR3-DQS2B
D-DDR3-DQ17
D-DDR3-DQ30
D-DDR3-DQ28
D-DDR3-DQ31
D-DDR3-DQ26
D-DDR3-DQ22
D-DDR3-DQ20
D-DDR3-DQ16
D-DDR3-DQ19
D-DDR3-DM2
D-DDR3-DQ24
D-DDR3-RESET-T2
D-DDR3-DM3
D-DDR3-DQ18
D-DDR3-DQ21
D-DDR3-DQ23
D-DDR3-CASZ-T2
D-DDR3-RASZ-T2
D-DDR3-WEZ-T2
D-DDR3-ODT-T2
D-DDR3-CKE-T2
D-DDR3-A14-T1
D-DDR3-A13-T1
D-MVREFCA-T2
D-MVREFDQ-T2
D-DDR3_MCLKZ
D-DDR3_MCLK
D-DDR3-A10-T1
D-DDR3-A11-T1
D-DDR3-A12-T1
D-DDR3-A0-T1
D-DDR3-A8-T1
D-DDR3-BA1-T1
D-DDR3-BA2-T1
D-DDR3-A1-T1
D-DDR3-A2-T1
D-DDR3-A9-T1
D-DDR3-A4-T1
D-DDR3-A5-T1
D-DDR3-A6-T1
D-DDR3-A7-T1
D-DDR3-ODT-T1
D-DDR3-BA0-T1
D-DDR3-RASZ-T1
D-DDR3-WEZ-T1
D-DDR3-CASZ-T1
D-DDR3-A3-T1
D-DDR3-A15-T2
D-CSB2
D-DDR3-A15-T1
D-CSB1
D-DDR3-DQ13
D-DDR3-DQ15
D-DDR3-CKE-T1
D-DDR3-RESET-T1
D-DDR3-DQ12
D-DDR3-DQ8
D-DDR3-DQS0
D-DDR3-DQ9
D-DDR3-DQ11
D-DDR3-DQ10
D-DDR3-DQ1
D-DDR3-DQ3
D-DDR3-DQ2
D-DDR3-DQ5
D-DDR3-DQ14
D-DDR3-DQ4
D-DDR3-DQ0
D-DDR3-DM1
D-DDR3-DQS0B
D-DDR3-DM0
D-DDR3-A14-T2
D-DDR3-A13-T2
D-DDR3-DQS1
D-DDR3-DQS1B
D-DDR3-DQ7
D-DDR3-DQ6
D_DDR3-MCLKZ
D_DDR3-MCLK
D-MVREFCA-T1
D_DDR3_ODTD-DDR3-ODT-T1
D-DDR3-DQS3D_DDR3_DQS3
D-DDR3-DQS3BD_DDR3_DQS3B
D_DDR3-MCLKD_DDR3_MCLK D-DDR3_MCLK
D_DDR3-MCLKZD_DDR3_MCLKZ D-DDR3_MCLKZ
D-DDR3-DQS0BD_DDR3_DQS0B
D-DDR3-DQS0D_DDR3_DQS0
D_DDR3_A11
D_DDR3_A12
D_DDR3_BA1
D_DDR3_A10
D_DDR3_BA2
D_DDR3_CKE
D_DDR3_A1
D_DDR3_A4
D-DDR3-A10-T2
D-DDR3-BA1-T1
D-DDR3-A12-T1
D-DDR3-A1-T2
D-DDR3-A11-T2
D-DDR3-A4-T1
D-DDR3-A10-T1
D-DDR3-A12-T2
D-DDR3-BA1-T2
D-DDR3-A4-T2
D-DDR3-BA2-T1
D-DDR3-CKE-T1 D-DDR3-CKE-T2
D-DDR3-BA2-T2
D-DDR3-A1-T1
D-DDR3-A11-T1
D_DDR3_A13
D_DDR3_RESET
D-DDR3-A9-T1
D-DDR3-A13-T2
D-DDR3-A9-T2
D-DDR3-A13-T1
D_DDR3_A9
D_DDR3_RESET
D_DDR3_A9
D_DDR3_A13
D-DDR3-RESET-T1 D-DDR3-RESET-T2
D_DDR3_A6D-DDR3-A6-T1 D_DDR3_A6 D-DDR3-A6-T2
D-DDR3-A5-T2D-DDR3-A5-T1
D_DDR3_A3
D_DDR3_A5
D_DDR3_A12
D_DDR3_A3
D_DDR3_A5
D-DDR3-A3-T2D-DDR3-A3-T1
D_DDR3_A10
D_DDR3_BA2
D_DDR3_CKE
D_DDR3_A1
D_DDR3_A11
D_DDR3_A14D-DDR3-A14-T1 D-DDR3-A14-T2D_DDR3_A14
D_DDR3_A4
D_DDR3_BA1
D_DDR3_RASZ D-DDR3-RASZ-T2D-DDR3-RASZ-T1 D_DDR3_RASZ
D-CSB1 D_DDR3_CSB1
D_DDR3_A15 D-DDR3-A15-T2
D-DDR3-A8-T2D-DDR3-A8-T1 D_DDR3_A8D_DDR3_A8
D-DDR3-A2-T1 D-DDR3-A2-T2D_DDR3_A2
D-DDR3-DQ19D_DDR3_DQ19
D-DDR3-CASZ-T2
D_DDR3_WEZ
D_DDR3_CASZ
D_DDR3_A0
D_DDR3_A2
D_DDR3_DQ14 D-DDR3-DQ14
D-DDR3-WEZ-T1
D-DDR3-CASZ-T1
D-DDR3-A0-T2
D-DDR3-WEZ-T2
D-DDR3-A0-T1
D-DDR3-DQ25D_DDR3_DQ25D_DDR3_DQ2 D-DDR3-DQ2
D_DDR3_DQ12 D-DDR3-DQ12
D_DDR3_DQ13 D-DDR3-DQ13
D_DDR3_DQ10 D-DDR3-DQ10
D_DDR3_WEZ
D_DDR3_CASZ
D_DDR3_A0
D-DDR3-DQ16D_DDR3_DQ16
D-DDR3-DQ18D_DDR3_DQ18
D-DDR3-DM3D_DDR3_DM3
D-DDR3-DQ27D_DDR3_DQ27
D-DDR3-DQ28D_DDR3_DQ28
D-DDR3-A7-T1 D-DDR3-A7-T2D_DDR3_A7
D-DDR3-DQ20D_DDR3_DQ20
D-DDR3-DQ22D_DDR3_DQ22
D_DDR3_DQ9 D-DDR3-DQ9
D_DDR3_DQ0 D-DDR3-DQ0
D_DDR3_DQ3 D-DDR3-DQ3
D_DDR3_DQ1 D-DDR3-DQ1
D_DDR3_DQ15 D-DDR3-DQ15
D_DDR3_A7
D-DDR3-DQ23D_DDR3_DQ23
D-DDR3-DQ21D_DDR3_DQ21
D_DDR3_DQ11 D-DDR3-DQ11
D-DDR3-DQ30D_DDR3_DQ30
D-DDR3-DQ26D_DDR3_DQ26
D_DDR3_DM0 D-DDR3-DM0
D_DDR3_A15D-DDR3-A15-T1
D_DDR3_DQ4 D-DDR3-DQ4
D_DDR3_DQ6 D-DDR3-DQ6
D_DDR3_DQ5 D-DDR3-DQ5
D_DDR3_DQ8 D-DDR3-DQ8
D-DDR3-DQ24D_DDR3_DQ24
D-DDR3-DQ17D_DDR3_DQ17
D_DDR3_DQ7 D-DDR3-DQ7
D_DDR3_DM1 D-DDR3-DM1
D_DDR3_DQ29 D-DDR3-DQ29
D-DDR3-ODT-T2D_DDR3_ODT
D_DDR3_DM2 D-DDR3-DM2
D-DDR3-DQS2BD_DDR3_DQS2B
D-DDR3-DQS2D_DDR3_DQS2
D_DDR3_DQS1B D-DDR3-DQS1B
D_DDR3_DQS1 D-DDR3-DQS1
D-DDR3-BA0-T2D_DDR3_BA0D-DDR3-BA0-T1 D_DDR3_BA0
D-CSB2
D_DDR3_DQ31 D-DDR3-DQ31
AVDD_DDR1_S
AVDD_DDR1_S
AVDD_DDR1_S
AVDD_DDR1_S
+1.5V_DDR AVDD_DDR1_S
AVDD_DDR1_S
AVDD_DDR1_S
AVDD_DDR1_S
AVDD_DDR1_S
AVDD_DDR1_S AVDD_DDR1_S
+1.5V_DDR
+1.5V_DDR
+1.5V_DDR
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE DRAM
1.0
MSD6A538/6586
Custom
114Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE DRAM
1.0
MSD6A538/6586
Custom
114Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE DRAM
1.0
MSD6A538/6586
Custom
114Saturday, February 25, 2017
CB419
0.1uF
CB423
0.1uF
CB439
0.1uF
MR400
1K/1%
CB407
0.1uF
MR416 470R
MR410
240R/1%
C400
0.1uF
CB433
0.1uF
CB403
10nF
MR418
1K/1%
CB405
10uF/6.3V
C403
0.1uF
C405
0.1uF
CB400
0.1uF
C424
0.1uF
C404
1nF
C401
1nF
7531
8642
RP41682RX4
CB404
10nF
MR417
1K/1%
CB411
0.1uF
CB426
0.1uF
MR404 56R
7531
8642
RP40682RX4
CB438
0.1uF
RM400
2K
7531
8642
RP40082RX4
C423
1nF
CB421
0.1uF
CB424
0.1uF
CB422
0.1uF
C425
NC/10nF
CB408
0.1uF
7531
8642
RP41182RX4
7531
8642
RP4040RX4
CB413
0.1uF
RM405
2K
MR401 56R
7531
8642
RP40782RX4
CB429
0.1uF
MU401
NT5CB256M16DP-EK
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10
L7
A11
R7
A12
N7
DQU0 D7
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQSU C7
/DQSU B7
DMU D3
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
DQSL F3
/DQSL G3
DML E7
BA0
M2
BA1
N8
BA2
M3
/CS
L2
/RAS
J3
/CAS
K3
/WE
L3
CK J7
/CK K7
CKE K9
ODT
K1
/RESET T2
VREFCA
M8
VREFDQ H1
ZQ
L8
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
VDDQ D2
VDDQ E9
VDDQ F1
VDDQ H2
VDDQ H9
VSSQ
B9
VSSQ
B1
VSSQ
D1 VSSQ
D8 VSSQ
E2 VSSQ
E8 VSSQ
F9 VSSQ
G1 VSSQ
G9
VDD B2
VDD D9
VDD G7
VDD K2
VDD K8
VDD N1
VDD N9
VDD R1
VDD R9
VSS
A9 VSS
E1 VSS
G8 VSS
J2 VSS
J8 VSS
M1 VSS
M9 VSS
P1 VSS
P9 VSS
T1 VSS
T9
NC1
J1
NC2
J9
NC3
L1
NC4
L9
NC5
M7
A13
T3
NC7
T7
VSS
B3
MR403 56R
C421
1nF
RM404
2K
MR402 56R
CB435
0.1uF
CB425
0.1uF
MR419
1K/1%
CB414
0.1uF
CB432
0.1uF
MR406
240R/1%
MR413
1K/1%
CB409
0.1uF
MIU1
U201A
MSD6A538
A-CKE
G26
A-RST
H26
DRAM_VREF
L26
ZQ
K27
ZQ1
M25
B-A0 E14
B-A1 B11
B-A2 D15
B-A3 D13
B-A4 B12
B-A5 E12
B-A6 A12
B-A7 F14
B-A8 E16
B-A9 C9
B-A10 B13
B-A11 D17
B-A12 F18
B-A13 A9
B-A14 A11
B-A15 F17
B-BA0 F13
B-BA1 F19
B-BA2 F12
B-RASZ F16
B-CASZ B10
B-WEZ C10
B-ODT F11
B-CKE C14
B-RST F15
B-MCLK C15
B-MCLKZ A14
B-CSB1 B8
B-CSB2 D11
B-DQ[0] D23
B-DQ[1] D19
B-DQ[2] E22
B-DQ[3] E18
B-DQ[4] B21
B-DQ[5] B15
B-DQ[6] A21
B-DQ[7] C16
B-DQM[0] C17
B-DQS[0] B19
B-DQSB[0] C19
B-DQ[8]/DQU0 B17
B-DQ[9]/DQU1 E20
B-DQ[10]/DQU2 F20
B-DQ[11]/DQU3 B20
B-DQ[12]/DQU4 D21
B-DQ[13]/DQU5 F23
B-DQ[14]/DQU6 F21
B-DQ[15]/DQU7 F22
B-DQM[1] A20
B-DQS[1] A18
B-DQSB[1] C18
B-DQ[16]/DQL0 B28
B-DQ[17]/DQL1 F24
B-DQ[18]/DQL2 C28
B-DQ[19]/DQL3 F25
B-DQ[20]/DQL4 F28
B-DQ[21]/DQL5 B22
B-DQ[22]/DQL6 E28
B-DQ[23]/DQL7 C23
B-DQM[2] A23
B-DQS[2] B26
B-DQSB[2] C26
B-DQ[24]/DQU0 C24
B-DQ[25]/DQU1 F27
B-DQ[26]/DQU2 D25
B-DQ[27]/DQU3 C27
B-DQ[28]/DQU4 F26
B-DQ[29]/DQU5 E26
B-DQ[30]/DQU6 E24
B-DQ[31]/DQU7 D27
B-DQM[3] A27
B-DQS[3] C25
B-DQSB[3] B24
RM403
2K
7531
8642
RP41382RX4
CB436
0.1uF
CB406
10uF/6.3V
CB420
0.1uF
MR412
1K/1%
MR411
1K/1%
CB427
0.1uF
7531
8642
RP41082RX4
CB415
0.1uF
7531
8642
RP41482RX4
CB402 10nF
CB434
0.1uF
7531
8642
RP40882RX4
CB417
0.1uF
MR408
1K/1%
MR409
240R/1%
CB431
0.1uF
CB428
0.1uF
C402
1nF
MR414
1K/1%
RM402
2K
CB430
0.1uF
CB418
0.1uF
CB416
0.1uF
MR405
240R/1%
7531
8642
RP40982RX4
CB412
0.1uF
C420
0.1uF
MR415 470R
CB401 10nF
CB410
0.1uF
MR407
1K/1%
CB437
0.1uF
7531
8642
RP41282RX4
MU400
NT5CB256M16DP-EK
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10
L7
A11
R7
A12
N7
DQU0 D7
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQSU C7
/DQSU B7
DMU D3
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
DQSL F3
/DQSL G3
DML E7
BA0
M2
BA1
N8
BA2
M3
/CS
L2
/RAS
J3
/CAS
K3
/WE
L3
CK J7
/CK K7
CKE K9
ODT
K1
/RESET T2
VREFCA
M8
VREFDQ H1
ZQ
L8
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
VDDQ D2
VDDQ E9
VDDQ F1
VDDQ H2
VDDQ H9
VSSQ
B9
VSSQ
B1
VSSQ
D1 VSSQ
D8 VSSQ
E2 VSSQ
E8 VSSQ
F9 VSSQ
G1 VSSQ
G9
VDD B2
VDD D9
VDD G7
VDD K2
VDD K8
VDD N1
VDD N9
VDD R1
VDD R9
VSS
A9 VSS
E1 VSS
G8 VSS
J2 VSS
J8 VSS
M1 VSS
M9 VSS
P1 VSS
P9 VSS
T1 VSS
T9
NC1
J1
NC2
J9
NC3
L1
NC4
L9
NC5
M7
A13
T3
NC7
T7
VSS
B3
RM401
2K
7531
8642
RP4050RX4
C422
0.1uF
7531
8642
RP41582RX4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Note : Port A needs shielding ground all signal pair Audio Block
靠近
mstar IC
Close to MST IC
with width trace
HDMI/Audio Block GPIO Pull up
RGB/CVBS/PHY/USB Block
PCMCIA/TS/NAND/FE
Crystal
IR&KEY
Heat Sink
LVDS/GPIO
538/6586
都不支持
USB3.0
！
预留的线路可以删除
C2
NOTE:
晶体频偏需要小于
30PPM
C1=C2=2*CL-5
C1
FOR TEST
LED UART
CHIP_CONFIG[3:0]
{PAD_PM_LED1,PAD_PM_SPI_DI,PAD_PM_LED0,PAD_PWM_PM}
Value Description
4'b1010 1 ARM boot from ROM; outer storage is eMMC
4'b1011 ARM boot from ROM; outer storage is NAND
Config RESET
AUVAG
AUVRM
HP_Audio-L
HP_Audio-R
SPDIF_OUT
SPK_L
SPK_R
SPK_R
SPK_L
HP_Audio-R
HP_Audio-L
AUVAG
AUVRM
DISEQC
IFAGC_S
NAND-AD7
NAND-AD0
NAND-AD1
NAND-AD2
NAND-AD3
NAND-AD4
NAND-AD5
NAND-AD6
IFAGC_S
IFAGC
T_SCL
T_SDA
LNB_SEL
LNB_EN
TS_D7
TS_D6
TS_D5
TS_D4
TS_SYNC
TS_VLD
TS_CLK
TS_D0
TS_D3
TS_D2
TS_D1
TS_MOCLK
TS_MOVLD
TS_MOSYNC
PCM_OE_N
PCM_IORD_N
PCM_CD_N
PCM_CE_N
PCM_IOWR_N
PCM_IRQA_N
PCM_RESET
PCM_WE_N
PCM_WAIT_N
PCM_REG_N
IFAGC
NAND-REZ
NAND-RBZ
NAND-WPZ
NAND-CEZ1
NAND-CLE
NAND-WEZ
NAND-ALE
NAND-CEZ
NAND-DQS
PCM_D2
PCM_D0
PCM_D3
PCM_D4
PCM_D5
PCM_D6
PCM_D7
PCM_D1
PCM_A8
PCM_A11
PCM_A13
PCM_A0
PCM_A1
PCM_A2
PCM_A3
PCM_A4
PCM_A5
PCM_A6
PCM_A9
PCM_A12
PCM_A7
PCM_A10
PCM_A14
TS_MDO7
TS_MDO6
TS_MDO5
TS_MDO4
TS_MDO3
TS_MDO2
TS_MDO1
TS_MDO0
DIFM
DIFP
T_SCL
T_SDA
I2C-SCL
I2C-SDA
XTALI
System-RST
VCOM
IR-in
XTALO
MDI_RP
MDI_RN
MDI_TP
MDI_TN
CVBS1
A2M
ACKP
A0M
A4M
A1P
ACKM
A3P
A1M
A2P
A4P
A3M
A0P
VID_1
PM_LED1
PM_LED0
UART-RX
UART-TX
PANEL_ON/OFF
POWER_DETECT
BRI_ADJ
PM_PWM
B3P
B1M
B2P
B3M
B0P
B4P
B2M
BCKP
B0M
B4M
B1P
BCKM
VID_2
KEY1-in
KEY0-in
VID_3
VID_0
I2C-SCL
I2C-SDA
AMP-MUTE
LED-G
VID_0
VID_1
SPI-SDI
XTALI
XTALO
LED-R
IRDAT
KEY0-in
LED_R
KEY1-in
IR-in
LED_G
KEY1_IN
KEY0_IN
PWR_ON/OFF#
LED_G
KEY0_IN
USB3_D+
IRDAT
USB3_D-
KEY1_IN
PWR_ON/OFF#
LED_R
RIN1
GIN1N
BIN1
GIN1
LED-G LED_G
LED-R LED_R UART-RX
UART-TX
UART-RX
UART-TX
POWER_DETECT
SPI-SDI
PM_LED1
PM_LED0
PM_PWM
System-RST
UART-TX
UART-RX
+3.3V_Normal
+3.3V_Standby
3.3V_TUNER
3.3V_TUNER
3.3V_TUNER
+5V_Standby
+3.3V_Standby
+5V_Standby
+12V_Normal
+5V_Normal
+3.3V_Standby
+3.3V_Standby
+5V_Standby
+12V_Normal
+3.3V_Standby +5V_Standby
HDMI1-SCL 8
HDMI1-SDA 8
HDMI1-HPD 8
HDMI1-Detect 8
HDMI1-RX0N
8
HDMI1-RX1P
8
HDMI1-RX1N
8
HDMI1-RX2P
8
HDMI1-RX2N
8
HDMI1-CLKP
8
HDMI1-CLKN
8
HDMI1-RX0P
8
HDMI-CEC8
HDMI2-SCL 8
HDMI2-SDA 8
HDMI2-HPD 8
HDMI2-RX0N
8
HDMI2-RX1P
8HDMI2-RX1N
8
HDMI2-RX2P
8HDMI2-RX2N
8
HDMI2-CLKP
8HDMI2-CLKN
8
HDMI2-RX0P
8
HDMI2-Detect 8
HDMI3-SCL 8
HDMI3-SDA 8
HDMI3-HPD 8
HDMI3-RX0N
8
HDMI3-RX1P
8HDMI3-RX1N
8
HDMI3-RX2P
8HDMI3-RX2N
8
HDMI3-CLKP
8HDMI3-CLKN
8
HDMI3-RX0P
8
HDMI3-Detect 8
SPK_L 12
SPK_R 12
EARPHONE_OUTR12
EARPHONE_OUTL 12
AV_AUL 7
AV_AUR 7
HDMI-ARC 8
SPDIF_OUT 7
DISEQC 9
NAND-AD[7:0]5
IFAGC-S 9
LNB_EN 9
TUNER_SCL 9
TUNER_SDA 9
TS_CLK 11
TS_SYNC 11
TS_VLD 11
TS_D[7:0] 11
TS_MOCLK 11
TS_MOSYNC 11
TS_MOVLD 11
QM-S 9
QP-S 9
IM-S 9
IP-S 9
PCM_IRQA_N
11
PCM_RESET
11
PCM_IOWR_N
11
PCM_CD_N
11
PCM_OE_N
11
PCM_IORD_N
11
PCM_CE_N
11
PCM_WE_N
11
PCM_REG_N
11
PCM_WAIT_N
11
LNB_SEL 9
NAND-DQS 5
NAND-CEZ1 5
NAND-WEZ 5
NAND-WPZ 5
NAND-REZ 5
NAND-ALE 5
NAND-CEZ 5
NAND-CLE 5
NAND-RBZ 5
IF_AGC 9
PCM_A[14:0]11
TS_MDO[7:0] 11
PCM_D[7:0]11
DIFP 9
DIFM 9
AMP-MUTE 12
USB1_D- 10
USB2_D- 10
USB3_D- 10
USB1_D+ 10
USB2_D+ 10
USB3_D+ 10
MDI_TP 7
MDI_TN 7
MDI_RP 7
MDI_RN 7
AV-IN7
A3M 6
A0M 6
ACKM 6
A2M 6
A1M 6
A4P 6
A1P 6
A3P 6
A0P 6
ACKP 6
A2P 6
A4M 6
PWR-ON/OFF 1
PANEL_ON/OFF
6
VBL_CTRL 1
BRI_ADJ 1
B3P 6
B0M 6
BCKP 6
B2P 6
B4M 6
B1P 6
B3M 6
BCKM 6
B2M 6
B1M 6
B0P 6
B4P 6
VID_0 1
VID_1 1
USB_SSTXN 10
USB4_D- 10
USB4_D+ 10
USB_SSRXP 10
USB_SSRXN 10
USB_SSTXP 10
HP_DET 12
WIFI_EN 10
I2C-SCL 1,6
I2C-SDA 1,6
PWR_ON/OFF# 1
YPBPR_Y 7
YPBPR_PB 7
YPBPR_PR 7
UART-RX 8
UART-TX 8
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE
1.0
MSD6A538/6586
Custom
314Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE
1.0
MSD6A538/6586
Custom
314Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
MSD6A538PYE
1.0
MSD6A538/6586
Custom
314Saturday, February 25, 2017
CN201
IR
1
12
23
34
45
56
67
78
89
910
10
C226 47nF
R244
1K
T1
TP
1
2
3
4
5
6
7
8
9
10
11
12
R210 4.7K
R263
NC/4.7K
R211 10K
C206 2.2uF
RD53 1K
R257
1K
D201
BAT54C
3
1
2
CD52
22pF/50V/NPO
R275 2.2K
CD47
33pF/50V/NPO
S2
NC/Heat-sink64X52
1
2
TP204
1
C221 0.1uF
CI
TS2
(I n/Out)
TS0
PCM CIA
Front
End
EM M C
TS1
(I n)
(I n)
NAND
U201B
MSD6A538
TS2CLK N24
TS2SYNC P25
TS2VALID N25
TS2DATA [0] M24
TS0CLK AF19
TS0SYNC AG19
TS0VALID AH17
TS0DATA_[0] AH20
TS0DATA_[1] AG20
TS0DATA_[2] AF17
TS0DATA_[3] AH18
TS0DATA_[4] AG17
TS0DATA_[5] AF20
TS0DATA_[6] AG18
TS0DATA_[7] AF18
TGPIO0 AD3
TGPIO1 AE2
TGPIO2 AF3
TGPIO3 AE4
IFAGC_T AC1
IM_T AC3
SIFM AD2
SIFP AD1
IP_T AC2
TS1DATA_[0] U23
TS1CLK R23
TS1SYNC T24
TS1VALID P24
PCMDATA[6]/CI_DATA[6]
AD24
PCMIORD/CI_RD
AG21
PCMDATA[7]/CI_DATA[7]
AD23
PCMIOWR/CI_WR
AC17
PCMDATA[2]/CI_DATA[2]
AB25
PCMADR[1]/CI_A[1]
AE23
PCMADR[2]/CI_A[2]
AC22
PCMADR[10]/CI_A[10]/SDIO_D2
AD20
PCMADR[12]/CI_A[12]
AD18
PCMADR[6]/CI_A[6]
AD21
PCMADR[13]/CI_A[13]
AE18
PCMDATA[3]/CI_DATA[3]
AD25
PCMIRQA/CI_INT
AE17
PCMCD/CI_CD
AH21
PCMOEN
AE21
PCMWAIT/CIWACK
AD16
PCMADR[8]/CI_A[8]/SDIO_D0
AC19
PCMADR[11]/CI_A[11]/SDIO_D3
AD19
PCMREG/CI_CLK
AF22
PCMDATA[0]/CI_DATA[0]
AC25
PCMADR[0]/CI_A[0]
AE24
PCMDATA[1]/CI_DATA[1]
AG23
PCMADR[5]/CI_A[5]
AG22
PCMADR[3]/CI_A[3]
AD22
PCMRST/CI_RST
AC16
PCMWEN
AD17
PCMDATA[4]/CI_DATA[4]
AC24
PCMADR[9]/CI_A[9]/SDIO_D1
AF21
PCMADR[7]/CI_A[7]
AC20
PCMCEN/CI_CS
AC18
PCMADR[4]/CI_A[4]
AC21
PCMADR[14]/CI_A[14]
AE20
PCMDATA[5]/CI_DATA[5]
AC23
TS1DATA_[1] T25
TS1DATA_[2] N23
TS1DATA_[3] P23
TS1DATA_[4] U24
TS1DATA_[5] T23
TS1DATA_[6] R25
TS1DATA_[7] R24
IFAGC_S AG4
IP_S AH2
IM_S AH3
QP_S AF4
QM_S AG3
GPIO15/DiSEqC_out AG5
GPIO18/DiSEqC_in AF5
PCM2_CE_N/SDIO_CLK
AB24
PCM2_IRQA_N/SDIO_CMD
AB23
NAND_ALE/EMMC_IO15
AC13
NAND_WPZ/EMMC_IO17
AD12
NAND_CEZ/EMMC_IO9/EMMC_CMD
AG11
NAND_CLE/EMMC_IO14
AC12
NAND_REZ/EMMC_IO10/EMMC_CLK
AF11
NAND_WEZ/EMMCIO16
AD13
NAND_RBZ/EMMC_IO11/EMMC_RSTn
AG10
NAND_CEZ1/EMMC_IO12
AE12
NAND_DQS/EMMC_IO8
AD14
NAND_AD0/EMMC_IO6/EMMC_D[6]
AG15
NAND_AD1/EMMC_IO7/EMMC_D[7]
AH15
NAND_AD2/EMMC_IO2/EMMC_D[2]
AH14
NAND_AD3/EMMC_IO1/EMMC_D[1]
AG14
NAND_AD4/EMMC_IO0/EMMC_D[0]
AG13
NAND_AD5/EMMC_IO3/EMMC_D[3]
AF13
NAND_AD6/EMMC_IO4/EMMC_D[4]
AH12
NAND_AD7/EMMC_IO5/EMMC_D[5]
AF12
C234 47nF
R214 0R
RD428.2K
R235 33R
R239 100R
R251
100K
R217 0R
R247 4.7K
CD51
100pF/50V/NPO
C227 47nF
RGB
CV BS
USB
PHY
USB3 .0
U201E
MSD6A538
GIN0P
U1 GIN0M
V3
HSYNC0
P6
VSYNC0
R5
GIN1P
V4
HSYNC1
T6
VSYNC1
R6
GIN2M
Y5
CVBS0
T5
CVBS1
U4
VCOM
V2
CVBSOUT1
U5
HWRESET L27
XIN AG1
XOUT AF1
IRIN AE5
USB0_DM B7
USB0_DP C7
USB1_DM B6
USB1_DP A6
RIN0P
V1
BIN0P
U2
RIN1P
U6
GIN1M
V6
BIN1P
V5
RIN2P
Y6
GIN2P
W6
BIN2P
W5
USB2_DM C6
USB2_DP A5
TN B3
TP A3
RN B4
RP C4
GPIO19/LED[0] R27
GPIO20/LED[1] R26
NC AF7
NC AG7
USB_DM_PSS AG8
USB_DP_PSS AH8
NC AH9
NC AG9
C218 0.1uF
R261
NC/4.7K
HS1
Heat Sink/CAR2500P2LF6
11
22
HDMI
Ana log
Audio
I2 S
SPDIF
U201C
MSD6A538
LINE_OUT_0L AB5
LINE_OUT_0R AB6
LINE_OUT_2L AC5
LINE_OUT_2R AC6
LINE_IN_0L Y3
LINE_IN_0R Y2
AUVAG AA2
AUVRM AA1
SPDIF_IN K6
SPDIF_OUT J5
I2S_OUT_BCK E6
I2S_OUT_MCK E5
I2S_OUT_WS F4
I2S_OUT_SD F6
RXA0N
N3
RXA0P
N2
RXA1N
P3
RXA1P
P2
RXA2N
P1
RXA2P
R3
RXACKN
M1
RXACKP
M2
DDCDA_CK
R2
DDCDA_DA
T3
HOTPLUGA
T2
RXB0N
J2
RXB0P
K3
RXB1N
K2
RXB1P
L3
RXB2N
L2
RXB2P
L1
RXBCKN
J3
RXBCKP
J1
DDCDB_CK
N5
DDCDB_DA
N6
HOTPLUGB
R4
RXD0N
F1
RXD0P
F2
RXD1N
G3
RXD1P
G2
RXD2N
H3
RXD2P
H2
RXDCKN
E1
RXDCKP
F3
DDCDD_CK
K5
DDCDD_DA
L5
HOTPLUGD
M6
ARC0 M4
CEC
P5
LINE_IN_2L Y1
LINE_IN_2R AA3
HOTPLUGA_HDMI20_5V
U3
HOTPLUGB_HDMI20_5V
P4
HOTPLUGD_HDMI20_5V
L4
EARPHONE_OUT_L AD5
EARPHONE_OUT_R AD6
RXC0N
B1
RXC0P
C1
RXC1N
C2
RXC1P
D3
RXC2N
D2
RXC2P
E3
RXCCKN
A2
RXCCKP
B2
DDCDC_CK
M5
DDCDC_DA
L6
HOTPLUGC
J4
HOTPLUGC_HDMI20_5V
H4
NC T21
NC R20
NC R21
I2S_OUT_SD1 F5
I2S_OUT_SD2 G5
C53
10uF/6.3V/X5R/0603
R245 4.7K
C211
22nF
CD50
100pF/50V/NPO
R209 4.7K
R228 33R
TP209
1
R238 100R
R272 2.2K
C239
2.2uF
C149
12pF
R240 4.7K
RD444.7K
C220 0.1uF
R243 4.7K/NC
C202
1nF
R248 NC
C210
0.1uF
R207 4.7K
CD55
22pF/50V/NPO
C217 0.1uF
TP210
1
C152
12pF
R249 NC
R229 33R
RD52 1K
PWM
SAR
SPI
I2 C
GPIO
/UART
LV DS
60 H z
PM
PM _UART
U201D
MSD6A538
SAR0
D4
SAR1
D5
SAR2
C5
SAR3
B5
PWM0
P27
PWM1
R28
PWM_PM
AF6
SPI_CK
G6
SPI_CZ1/GPIO_PM6
J6
SPI_DI
H6
SPI_DO
H5
DDCA_CK/UART0_RX
AD10
DDCA_DA/UART0_TX
AC10
DDCR_CK
P26
DDCR_DA
N26
GPIO3/EJ_TMS
M26
GPIO4/EJ_TDI
M27
TEST P21
GPIO5/EJ_TDO
M28
SAR5/PW_det
E4
A0M (G_ODD[3]) AE26
A0P (G_ODD[2]) AE28
A1M (G_ODD[1]) AF26
A1P (G_ODD[0]) AF27
A2M (B_ODD[7]) AG27
A2P (B_ODD[6]) AG28
ACKM (B_ODD[5]) AH27
ACKP (B_ODD[4]) AH26
A3M (B_ODD[3]) AF25
A3P (B_ODD[2]) AG25
A4M (B_ODD[1]) AG24
A4P (B_ODD[0]) AH24
B0M (R_ODD[7]) V27
B0P (R_ODD[6]) V28
B1P (R_ODD[4]) W27
B2M (R_ODD[3]) Y27
B2P (R_ODD[2]) AA26
BCKM (R_ODD[1]) AA28
BCKP (R_ODD[0]) AB26
B3M (G_ODD[7]) AB27
B4M (G_ODD[5]) AD26
B4P (G_ODD[4]) AD27
GPIO_PM0 AE6
GPIO_PM1/PM_TX1 AH6
GPIO_PM3 W2
GPIO_PM4/PW_ctrl W3
GPIO_PM5/PM_RX1 AH5
GPIO_PM7 AA5
GPIO_PM8 AA6
VID0
AB2
VID1
AB3
LED0
AD4
LED1
AC4
WOL
AE11
B1M (R_ODD[5]) W28
B3P (G_ODD[6]) AC26
GPIO2/EJ_TCK
N27
GPIO30/SCK4
AC11
GPIO31/SDA4
AD11
VID2
AA4
VID3
Y4
GPIO9/TX2
AC15
GPIO10/RX2
AD15
GPIO11/TX3
AF16
GPIO12/RX3
AG16
LVSYNC T27
LCK U27
LDE U26
LHSYNC T28
PWM2
N28
NC
T22
C219 0.1uF
R205 4.7K
CD56
22pF/50V/NPO
C203
1nF
R204 4.7K
R246 4.7K/NC
C229 47nF
Y1
24MHz/DIP
C201 2.2uF
C209
10uF/6.3V
CC0603
R206 4.7K
CD57
22pF/50V/NPO
C235 47nF
R236 100R
R241 NC
R226 33R
RD438.2K
R132
1M
C216 0.1uF
R250 4.7K
R202 4.7K
RD49 1K
C228 47nF
R237 100R
L201
FB/200mA/1Kohm
R216 10K
R252
10K
R242 NC
CN205
NC/CON4-2.0
1
2
3
4
R227 68R
R234 68R
C213
22nF
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
公板装
8G
eMMC
Nand
靠近主
IC
放置
NET
EMMC Damping 22R
Nand Damping 0R
EMMC 1.8V
Nand 3.3V
SAMSUNG EMMC R527
需上件
NAND_REZ
NAND_CEZ
NAND_DQS
EMMC_D4NAND_D6
EMMC_D3NAND_D5
EMMC_D0NAND_D4
EMMC_D5NAND_D7
EMMC_D2NAND_D2
EMMC_D7NAND_D1
EMMC_D6NAND_D0
EMMC_D1NAND_D3
NAND-CEZNAND-CEZ
NAND-REZNAND-REZ
NAND-AD0
NAND-AD1
NAND-AD2
NAND-AD3
NAND-AD4
NAND-AD5
NAND-AD6
NAND-AD7
NAND_RBZ NAND-RBZ
EMMC_DS
EMMC_D7
EMMC_RST
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D1
EMMC_D2
EMMC_CLK
EMMC_CMD
EMMC_D3
EMMC_D0
NAND_DQS
NAND_RBZ
NAND_REZ
NAND_ALE
NAND_CLE
NAND_CEZ
NAND_WEZ
NAND_D7
NAND_D4
NAND_D5
NAND_D6
NAND_D1
NAND_D2
NAND_D3
NAND_D0
NAND_CEZ1
NAND_WPZ
NAND-DQS
NAND-CLENAND_CLE
NAND-CEZ1NAND_CEZ1
NAND-WEZNAND_WEZ
NAND-WPZ
NAND-ALENAND_ALE
NAND_WPZ
EMMC_RST
EMMC_CLK
EMMC_CMD
EMMC_DS
NAND-WEZ
NAND-WPZ
NAND-CLE
NAND-RBZ
NAND-ALE
NAND-CEZ1
NAND-DQS
NAND-REZ
NAND-CEZ
EMMC_CMD
+3.3V_EMMCEMMC_VIO
+3.3V_NAND +3.3V_NAND
+3.3V_EMMC+3.3V_Normal
+3.3V_Normal EMMC_VIO
+1.8V_Normal
+3.3V_NAND
EMMC_VIO
NAND-CEZ1 2
NAND-WEZ 2
NAND-WPZ 2
NAND-ALE 2
NAND-CLE 2
NAND-RBZ 2
NAND-AD[7:0] 2
NAND-DQS 2
NAND-REZ 2
NAND-CEZ 2
Title
Size Document Number Rev
Date: Sheet of
eMMC & NAND & SD Card
V1.0
MSD6A538/6586
Custom
514Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
eMMC & NAND & SD Card
V1.0
MSD6A538/6586
Custom
514Saturday, February 25, 2017
Title
Size Document Number Rev
Date: Sheet of
eMMC & NAND & SD Card
V1.0
MSD6A538/6586
Custom
514Saturday, February 25, 2017
R527
0R/NC
L501 0R/NC
7531
8642
RP501 0RX4
R517 0R
R513
10K
R522 0R
R524 0R
R518 22R/NC
R512 0R
C504
2.2uF
U501
eMMC/NC
VDD U9
VDD T10
VDD N5
VDD M6
VDD_IF
AA3
VDD_IF
AA5
VDD_IF
Y4 VDD_IF
W4 VDD_IF
K6
CREG/VDDi K2
VSS
K4
CLK
W6
CMD
W5
D0
H3
D1
H4
D2
H5
D3
J2
VSS M7
VSS P5
VSS R10
VSS U8
VSS
Y2
VSS
Y5
VSS
AA4
VSS
AA6
D4 J3
D5 J4
D7 J6
RESET U5
D6 J5
VSS H6
VSS T5
DS R5
L502 NC/0R
R520 0R
R521 22R/NC
C507
0.1uF
C503
2.2uF/NC
R514 0R
C509
2.2uF/NC
CC0402
R515 0R
U502
4GB SLC NAND
R/B
7
RE
8
CE
9
NC
10
NC
11
VCC
12
VSS
13
NC
14
NC
15
CLE
16
ALE
17
WE
18
WP
19
NC 48
NC 47
NC 46
NC 45
D7 44
D6 43
D5 42
D4 41
VCC 37
VSS 36
NC 35
Vccq 34
NC 33
D3 32
D2 31
D1 30
D0 29
NC
1
NC
2
NC
3
NC
4
NC
5
NC
6
NC
20
NC
21
NC
22
NC
23
NC
24 NC 25
NC 26
NC 27
NC 28
NC 38
Vccq 39
NC 40
R511 0R
C516
33pF
R516 0R
R526
10K/NC
7531
8642
RP502 0RX4
R519 0R
R525 22R/NCC517
33pF
C502
0.1uF/NC
C501
0.1uF/NC
R523 22R/NC
C506
0.1uF
Table of contents
Other Kivi LED TV manuals
