Klasse KUD-WD1133S User manual

Service Manual
Drum Washing Machine
KUD-WD1133S

DRUMWASHINGMACHINE
SERVICEGUIDE
"What is Drum Washing machine.............................................................2
"Product Spec.............................................................................................5
"Diagram of operation Principles and Parts Classification......................6
"Classification per Assy..............................................................................7
"Parts list for each Assy.............................................................................8
"Control Part Function Spec. .....................................................................20
"PCB Pin Arrangement .............................................................................45
"Electronic Parts List Spec. .......................................................................46
"Power Defect.............................................................................................61
"Noise Defect..............................................................................................62
"Wirng Diagram .........................................................................................63
"Installation ................................................................................................64

2
Water consumption is reduced by using the power of the laundry falling (free-fall) created when rotating
the drum resembling a sieve net. With temperature control system, this drum washing machine saves
energy and improves washing performance at the same time.
"WhatisDrumWashingMachine?
1.DrumWashingMachine
"Simultaneous supply of cold#hot water
As cold and hot water is supplied at the same time, heating time and energy is saved.
"Top-quality popup dial
The top-quality popup dial is used only during washing process.
"Dust filter
Filter to remove foreign substances, such as naps generated during washing, etc., is installed inside the
drum.
"DD inverter motor
The direct-drive type, of which motor is directly connected to drum without an interim clutch,
significantly reduces noise and vibration.
"Heating device is installed to enable boiling of the laundry.
"Large door creates grand appearance and makes it easy to put in and out the laundry.
"For pump drainage, the powerful pump speeds up drainage process.
2.Featuresof DrumWashingMachine

3
#DD Control: Direct drive type of direct connection between drum and motor
#Rotation by powerful high-performance BLDC motor
#Pump drainage type for built-in installation
3.PowerSystemof#KLASSE$DrumWashingMachine
Drainage Motor BLDC Motor
Turbo
Drum
The
Laundry

4
$Washing
When rotating drum after putting in the laundry and detergent into the drum, the laundry are rotated by
protrusions (lifters) attached inside the drum.
Washing is carried out with bending and impact actions generated by falling of the laundry to the top
part of drum.
%Rinsing
Rinsing cleanly washes out detergent and dirt removed from the laundry after washing cycle.
&Spin-drying
Weak, standard and strong cycles can be selected according to types of fabrics to be washed. Spin-
drying is carried out by rotation (the centrifugal force) of drum according to the designated speed.
'Drainage
Pump Drainage: Powerful pump for built-in installation and application of filter to remove foreign
substances
rumWa
4.MajorFunctionsofDrumWashingMachine

5

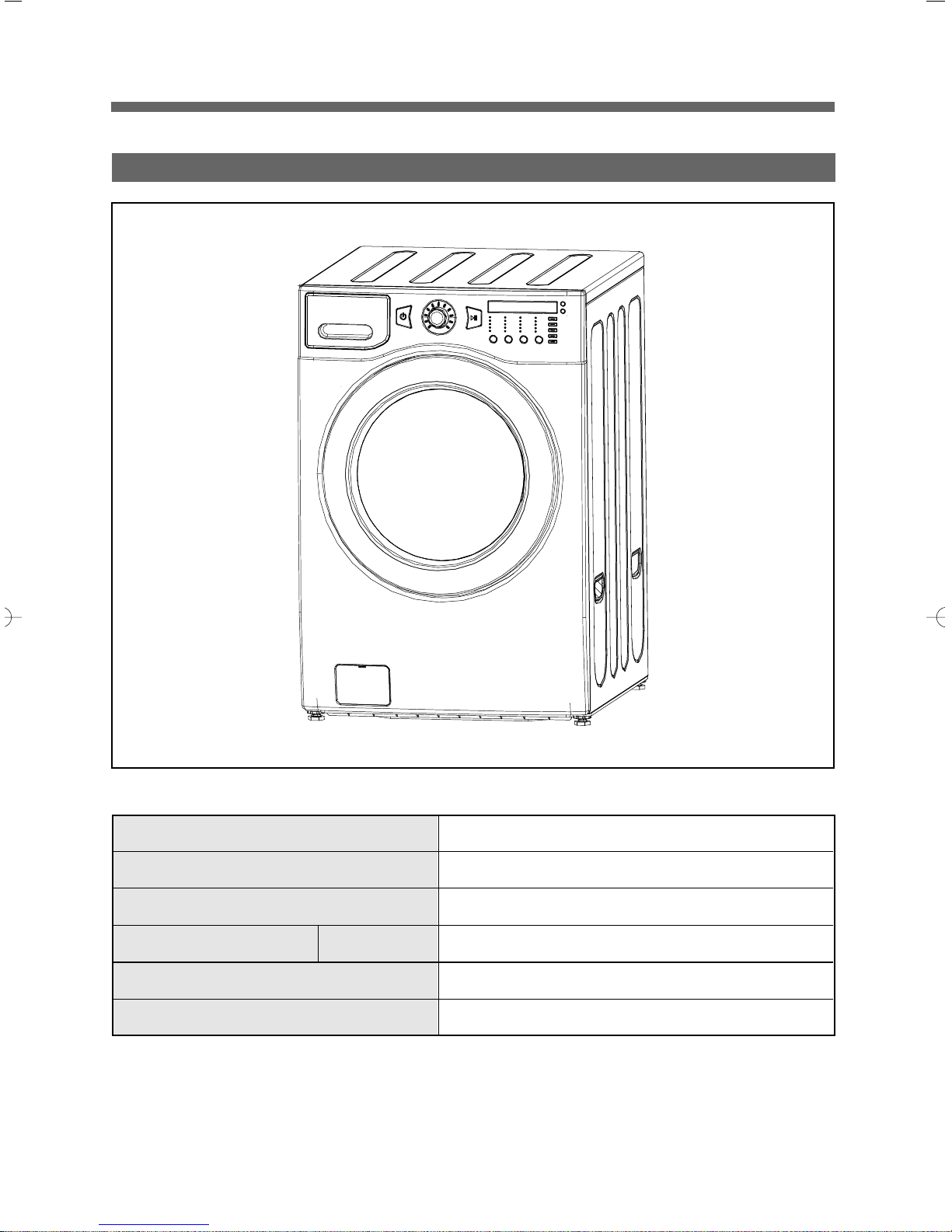

"ProductSpec
ProductSpec.
External Measurements (inches) 27"(width) x 31.8"(depth) x 40.1"(height)
Weight 198.4lbm
Rated Supply Power 120V 60Hz
Rated Consumption Power Washing 200W (1100W during heating)
Washing Method Drum type
Water Pressure 29kPa ~ 784kPa(0.3kgf/kg~8kgf/kg)

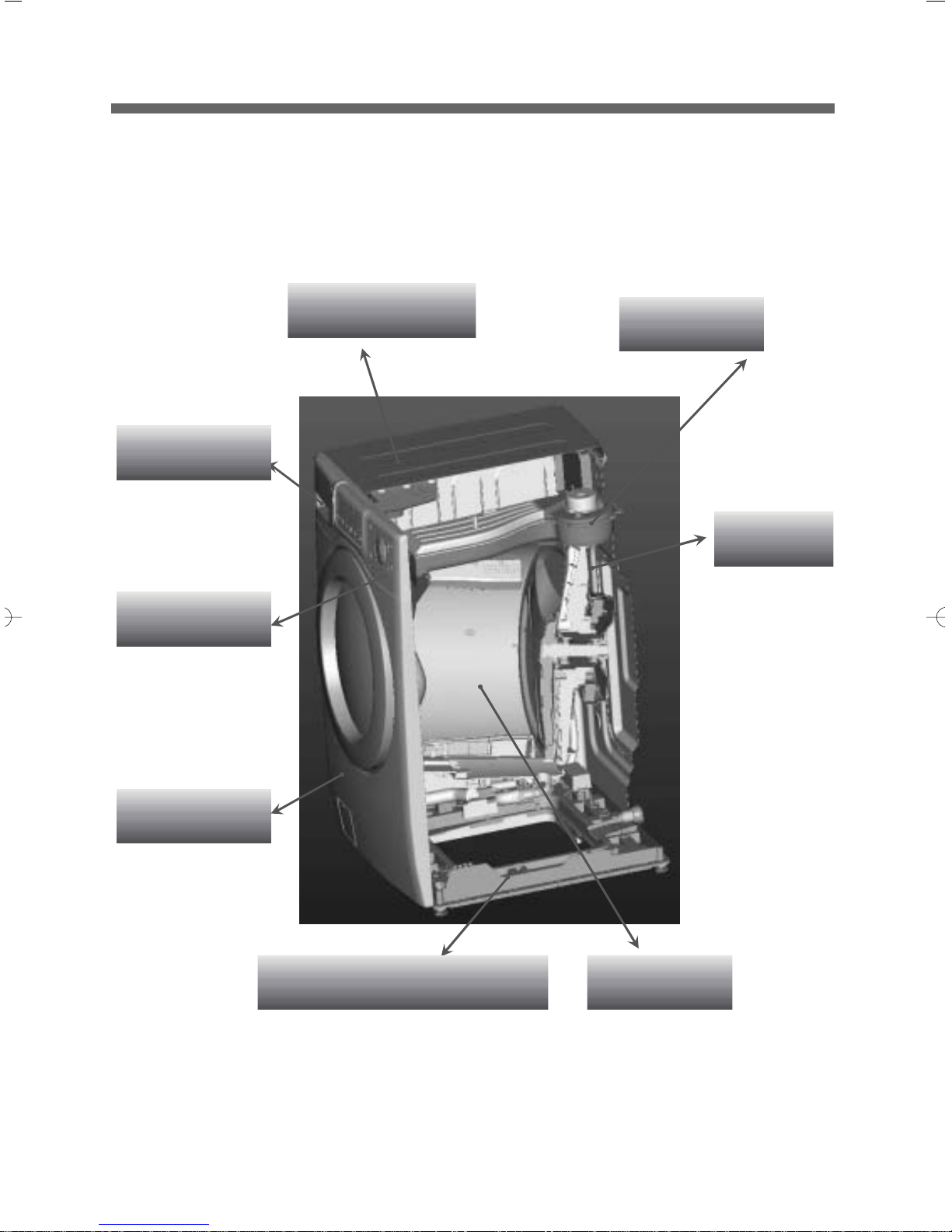

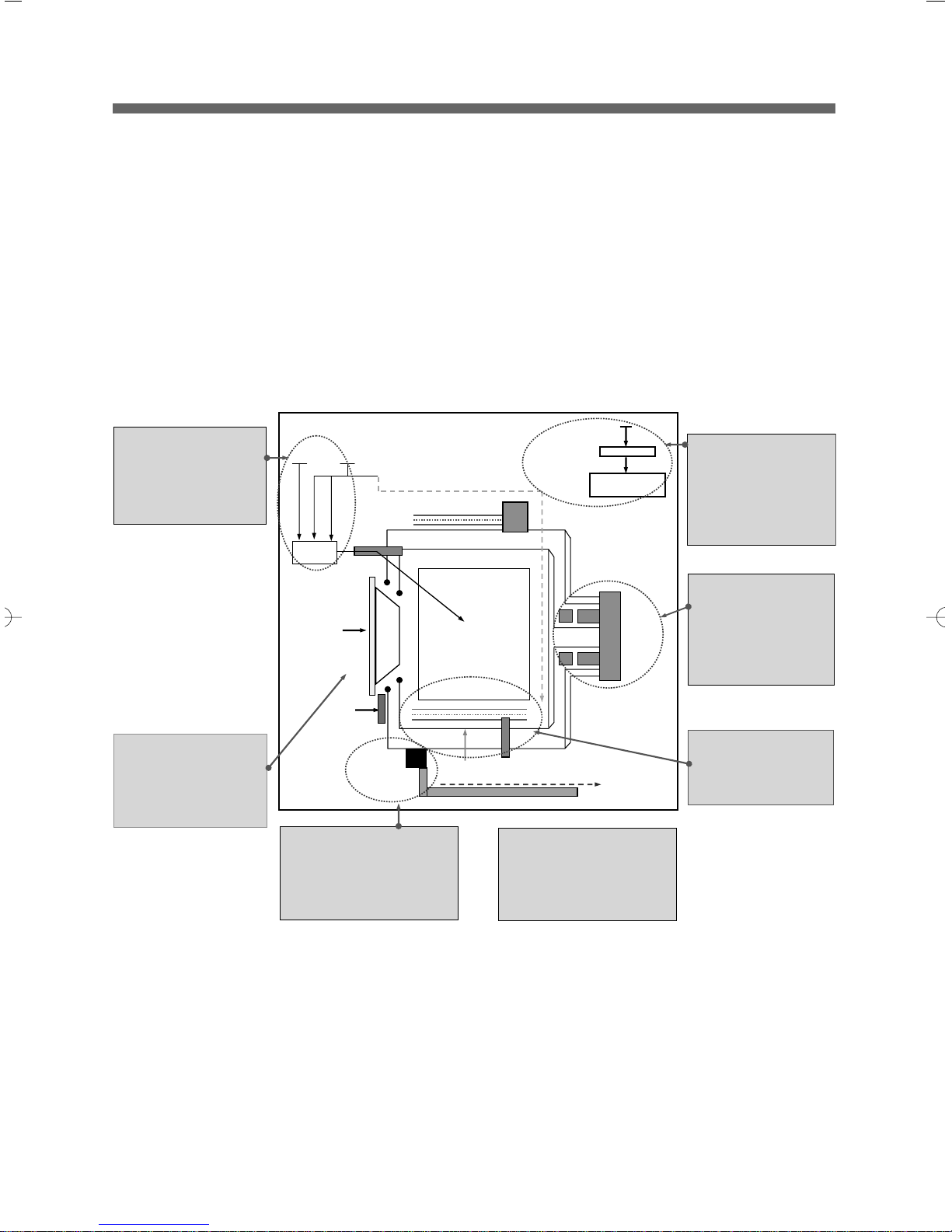

"DiagramofOperationPrinciplesandPartsClassification
6
4. WATER SUPPLY PART
• Cold Water: 3 holes
Cold water, pre-washing
• Hot Water: 1 hole
• Water supply box, hose
5. DOOR
• Door lock S/W
- Lock hinge
• Door AS: Glass
• Gasket
6. DRAINAGE PART
• Drainage pump
• Valve housing
• Hose
7. SUPPORTER
• Base
• Damper AS: 4
• Spring: 2
3. HEATING PART
• Water Heater: 1000W
•Washing temperature
sensor
2. DRIVING PART
• BLDC motor
• Drum
• Bearing
• Spider/ shaft
• Tub
• Weight balancer
1. CONTROL PART
• Main PCB
• Front PCB
• Harness
• Noise filter
• Power Cord: 15A

7
"ClassificationperASSY
PLATE TOP AS CABINETAS
DUCTAS
INLETBOX AS
PANEL F AS
CABINET F AS
BASE U AS TUB AS

8
1.CABINETAS
"PARTSLISTFOREACHASSY

9
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
C01 CABINET 3610811740 SGCC 0.8t, Painting 1
C02 FRAME LOWER 3612206700 SBHG 1.2T 1 1 Piece SVC
C03 FRAME TOP L 3612206500 SGCC 1.6T 1 part
C04 FRAME TOP R 3612206600 SGCC 1.6T 1
C05 FRAME UPPER 3612208200 SBHG 1.2T 1
C06 STOPPER SPRING 3615202200 POM 2
C07 FIXTURE PLATE 3612008000 POM 8
C08 SCREW TAPPING 7121401211 T2S PAN 4X12 MFZN 8
C09 NOZZLE AIR 3618103110 PP 1
C10 HANDLE CABINET 3612608100 PP 2
C11 COVER BACK AS 3611425530 COVER B + PAD CABINET 1
C12 SENSOR PRESSURE 3614825220 DWD-130RP 1
C13 UNIT DRAIN PUMP AS 36189L5600 PUMP+FILTER 1
C13-1 FILTER PUMP 3611910200 13KG HANYU FILTER 1
C14 HOSE DRAIN I 3613271300 ST+EL 1,010mm 1 1 Piece SVC
-ABSORBER HOSE DRAIN 3610115600 T10, 60x130 1 Part
-CLAMP HOSE 3611203900 SK5 D=26 2 FixHosedrain I
C15 HOSE WATER REMAIN 3613271410 EPDM, 13kg, UL 3t Round bending 1
C16 CAP WATER REMAIN 3610916800 PP 1
C17 CUFF DRAIN HOSE 3616802600 PP 1
C18 PCB AS PRPSSWAD24 USA WASHER, UL 1WASHER
C19 COVER PCB M 3611427700 UL,ABS,VE-0856, MAIN PCB COVER 1
C20 HOSE SIPHON 3613272210 EPDM, 13kg, UL 3t L=270 1
C21 CLAMP HOSE 3611203900 (26 1
- HARNESS AS 3612796T00 UL, 13kg Wash, Non bubble 1

10
rumWa
2.BASEUAS
B06
B01
B04
B03
B02
B5
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
B01 REACTOR 52G043A110 RT-047K,L=150mm 1
B02 BASE U 3610392700 PP 1
B03 SUPPORTER LEG 3615303600 3.0T 4
B04 FIXTURE LEG 3612006400 ABS, DWD-100DR 4
Foot+Special bolt,
B05 FOOT AS 3612100700 Double insert type 4
Hybra-Nylon66
B06 PROTECTOR HEATER 3618304600 SECC 0.35T 1

11

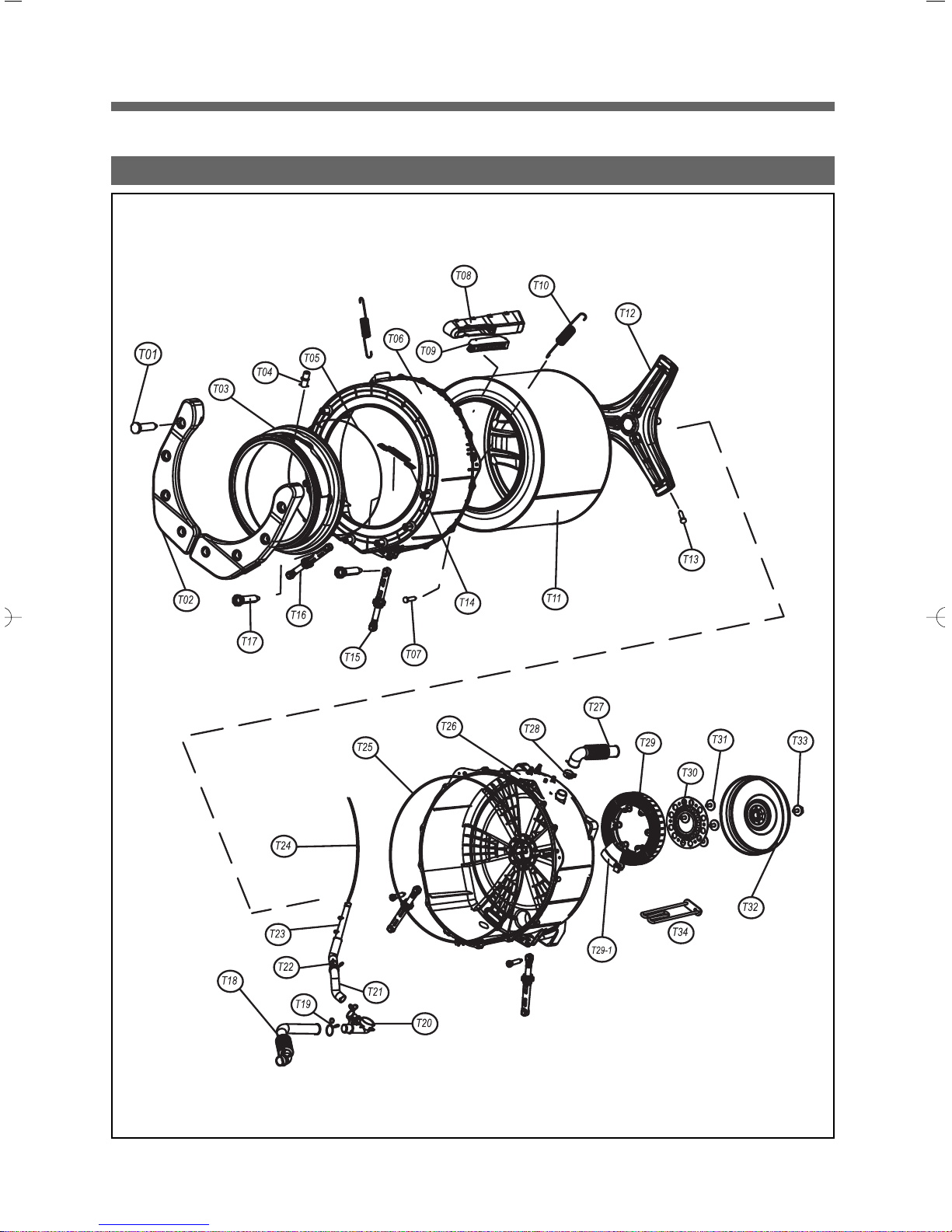

3.TUBAS

12
rumWa
NNoo..PPaarrttNNaammeePPaarrttCCooddeeQQtt''yySSppeecciiffiiccaattiioonnssCCoolloorrRReemmaarrkkss
T01 SPECIAL SCREW 3616029400 8 SWCH 8.5x30 NA Fix Balance W.to Tub F
T02 BALANCER WEIGHT AS(L) 3616106900 1 13kg Drum NA
-BALANCER WEIGHT AS(R) 3616106800 1 13kg Drum NA
T03 GASKET 3612322000 1 EPDM, 13kg, Wash only NA
Nozzle shower
T04 NOZZLE SHOWER 3618104000 1 PP NA
T05 CLAMP GASKET AS 3611205300 1 Gasket, 13kg Drum NA
T06 TUB FRONT 3618828Y00 1 FRPP, 13kg Drum NA
T07 SPECIAL SCREW(TUB) 3616029800 15 SWCH 6.5x30 NA Fix Tub F & R
T08 LIFTER BODY 361A400700 3 PP, 13kg Drum Gray
T09 CAP FILTER 3610917310 3 ABS, Non-Nano, 13kg Gray
-FILTER 3611908410 3 ABS, Non-Nano, 13kg Gray STS mesh insert injection
T10 SPRING SUSPENSION 3615114800 2 13KG DRUM NA
T11 DRUM AS 3617008X00 1 SUS, 13kg NA
T12 SPIDER AS 361A300600 1 13kg, ALDC+S45C NA
T13 SPECIAL SCREW(SPIDER) 3616029500 6 STS 430, 8x25 NA
T14 FIXTURE HEATER 3612006700 1 STS 430 NA
T15 DAMPER FRICTION 361A700300 2 AWECO,HP3 60N/ NA Tub F&R right
9mm Buffer4.0
T16 DAMPER FRICTION 361A700110 2 70N AKS ST=170-260 DL=197.5 NA Tub F&R left
T17 DAMPER PIN 361A700200 8 AKS D=14.5 NA Tub & Base U
T18 HOSE DRAIN 3613269000 1 EPDM,PUMP NA
T19 CLAMP HOSE 3611203410 2 SK5, D=33 NA
T20 DRAIN HOUSING I 36196TAM00 1 PP, Pump NA
T21 HOSE AIR TRAP 3613269700 1 EPDM, 13kg Drum NA
T22 CLAMP HOSE 3611204700 2 SK5, D=26 NA
T23 AIR TRAP 361A500101 1 PP NA
T24 HOSE AIR 3613270600 1 ID=3.0, D=8, L=960mm NA
T25 GASKET TUB 3612321100 1 EPDR FORM, 13kg NA
T26 TUB REAR 3618828Z00 1 FRPP, 13kg Drum NA
T27 HOSE AIR 3613266300 1 EPDM,DWD-110RP NA
T28 CLAMP HOSE 3611203400 2 SK5, MFZN, D=35 NA
T29 UNIT STATOR BLDC 36189L4840 1 30T,36Slot,2Snesor, NA
T29-1 BLDC HALL IC 3426D01002 1 PCB HOLDER AS NA
T30 BRACK HOUSING 3610609700 1 SESEN, 2.5T NA
T31 SPECIAL BOLT AS 3616063400 6 SWCH M8+Silock, 58mm NA Fix Stator to Tub R
T32 UNIT ROTOR BLDC 36189L4900 1 Magnet24,Serration,WR1238F001 NA
T33 SPECIAL BOLOT AS 3616029600 1 SWCH,10x30,F/L Bolt,S.P/W NA Fix Rotor to Spider Shaft
T34 HEATER WASH 3612801740 1 UL.120V1.0KW6.7W/SQ.S NA
TS.1R3A515003.L/W
CCoossttiinn
UUSSDD(($$))

13
4.INLETBOXAS
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
- AS INLET BOX 3617510700 DWD-WD1131 1
I01 INLET BOX 3617510800 PP 1
I02 NOZZLE AS 3618104800 TOP+UNDER )* 1
I03 HOSE INLET 3613270300 EPDM 1
I04 CLAMP AS 3611203200 +60 2
I05 HOSE WATER SUPPLY 3613270900 EPDM, ID9.9 0D14.5 L=410mm 1
I06 HOSE WATER SUPPLY 3613270900 EPDM, ID9.9 0D14.5 L=380mm 1
I07 HOSE WATER SUPPLY 3613270900 EPDM, ID9.9 0D14.5 L=230mm 2
I08 HOSE WATER SUPPLY 3613270900 EPDM, ID9.9 0D14.5 L=530mm 1
I09 PIPE JOINT(HOSE INLET) 3614413300 PP 1
I10 HOSE SHOWER 3613270110 EPDM, ID=8.5 L=550 1
I11 CLAMP SPRING 3611203800 ID=15.5 T=0.6 B=10 10
I12 VALVE INLET 3615416701 120/60Hz UL BITRON 1WAY 1
I13 VALVE INLET 3615416931 120/60Hz UL BITRON 3WAY 1

14
rumWa

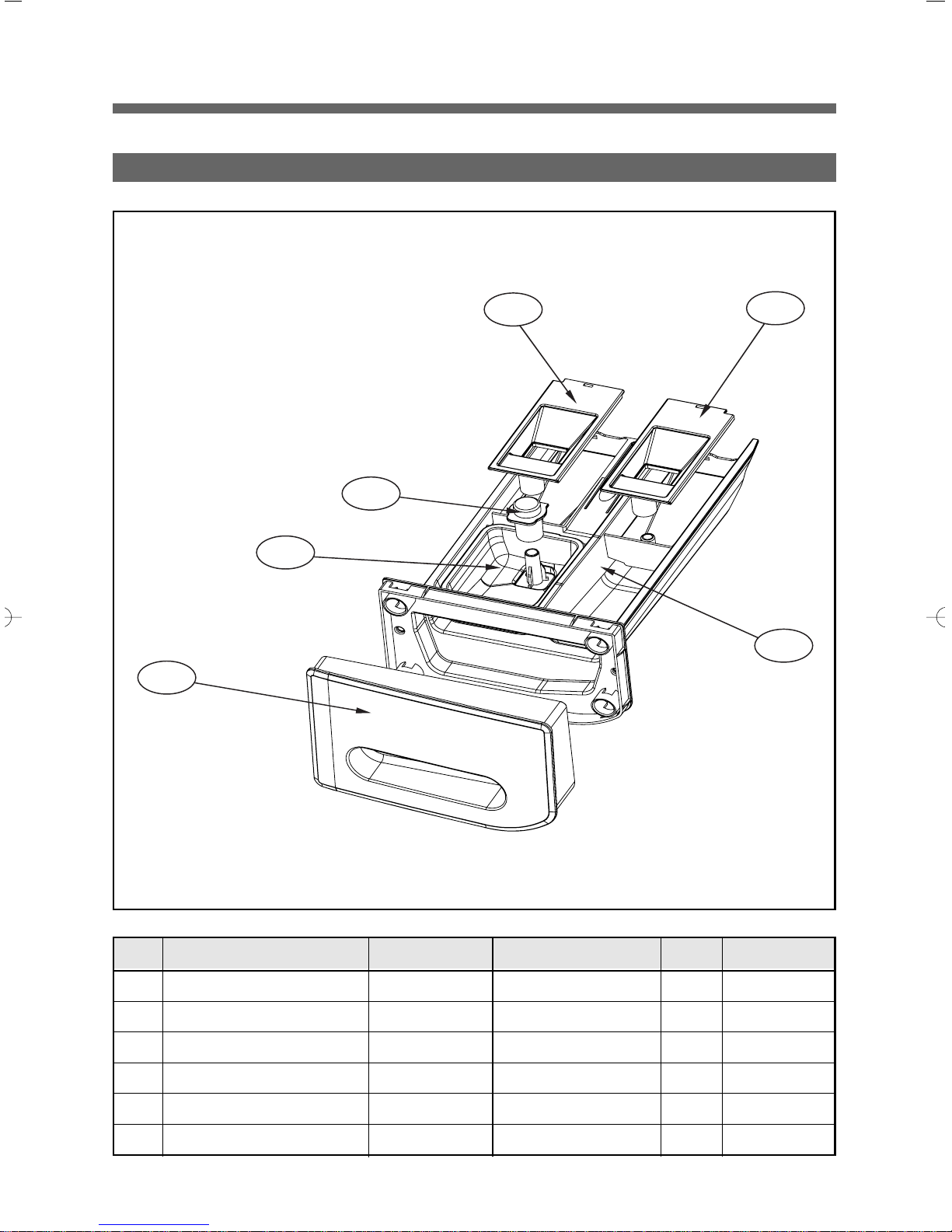

5.CASEDETERGENTAS
A04 A03
A02
A06
A05
A01
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
A01 CASE HANDLE 3611145500 ABS 1
A02 CASE DETERGENT 3611145600 PP 1
A03 CAP SOFTENER 3610917800 PP 1
A04 CAP BLEACH 3610917900 PP 1
A05 CASE LIQUID 3611145700 PP 1
A06 CAP LIQUID 3610918000 PP 1

15
6.CABINETFAS
F01
F21
F02
F12
F09
F10
F18
F05
F07
F08
F11
F14
F17
F15
F13
F16
F06
F23
F22
F04
F03
F19
F20

16
rumWa
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
F01 CABINET F 3610811820 SECD 1.0T PUMP 1
F02 SUPPORT HINGE 3615304000 SGCC 1.6T 1
F03 LABEL SAFETY R 3613555800 PVC,130RP'S Cab. F Safety Label 1
F04 LABEL WARNING 3613558500 PVC,130RP'S Cab. F Warning Label 1
- LABEL RATING 3613558200 PVC, UL ASKO Rating label 1
F05 FRAME DOOR INNER 3612206800 TB53 1
F06 STOPPER DOOR 3615202300 PP 1
F07 DOOR GLASS 361A110600 GLASS 1
F08 PROTECTOR GLASS 3618304300 ABS(Transparent) 1
F09 HINGE DOOR 3612902900 ALDC 1
F10 CAP HINGE DOOR 3610916500 POM 4
F11 FRAME DOOR OUTER 3612206900 ABS 1
F12 SCREW TAPPING 7115402008 T1S FLT 4x20 SUS430 16
F13 COVER HANDLE 3611426700 ABS 1
F14 HANDLE DOOR 3612609000 ABS 1
F15 HOOK DOOR 3613100800 ZNDC 1
F16 SPRING HOOK 3615113700 SUS ID=4.3, NI=7, D=,0.9 2
F17 PIN HANDLE 3618200100 SUS D=3.0 1
F18 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 4
F19 SWITCH DOOR LOCK 3619046410 DF F11 110 125V 16A PTC-SOLENOID 1
F20 SCREW TAPPING 7122401608 T2S TRS 4X16 SUS 430 2
F21 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 4
F22 CASE PUMP 3611141400 PP 1
F23 COVER PUMP 3611426800 ABS 1

17
7.PANELFAS
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
- PANEL-F AS 3614287300 DWD-WD1131 1
F01 PANEL-F 3614287200 ABS + SILK PRINT 1
F02 BUTTON POWER 3616635900 ABS 1
F03 BUTTON START 3616636000 ABS 1
F04 SPRING BUTTON 3615115700 SUS304 2
F05 DECO COURSE 3611685400 ABS 1
F06 WINDOW COURSE 3615504800 ABS(Transparent) (TR558) 1
F07 WINDOW DISPLAY 3615504900 ABS(Transparent) (UT-0510) 1
F08 BUTTON FUNCTION 3616636100 ABS 1
F09 WINDOW FUNCTION 3615505000 ABS 1
F10 BUTTON OPTION 3616636200 TR 558 ABS(Transparent) 1
- SCREW TAPPING 7122401411 T2 TRS 4x14 MFZN 7
F11 BUTTON TIME 3616636300 ABS 1
F12 PCB -F AS PRPAFR9X00 DWD-WD1131 1
F13 CUSTOM LED 3613052900 ABS 1
F14 CASE PCB-F 3611145300 ABS(5VB, VE-0856),UL 1
F15 BUTTON DIAL AS 3616634700 DWD-130RP 1
F16 HOLDER COURSE 3613053000 ABS(5VB, VE-0856),UL 1
F17 HOLDER LED 3613053100 ABS(5VB, VE-0856),UL 1
F18 HOLDER OPTION 3613053200 ABS(5VB, VE-0856),UL 1

18
rumWa
8.PLATETAS
T01
T02
T03
NNooPPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnQQtttt''yyRReemmaarrkkss
T01 PLATE TOP 3614533010 SECD 1.2T 1
T02 PLATE SUPPORTER AS 3615304110 ABS + EPDM 2
- SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 4
T03 LABEL CAUTION 3613553831 PVC 1
-ENERGY GUIDE 3613558310 Energy Label, 13kg Drum 1

19
rumWa
9.ACCESSORY
A01 A02 A03 A04 A05
NNoo..PPaarrttNNaammeePPaarrttCCooddeeDDeessccrriippttiioonnssQQtt''yyRReemmaarrkkss
A01 HOSE DRAIN O AS 3613268500 DWD-800W, L=1,500 1
GUIDE DRAIN HOSE 3612502300 PP 1
A02 HOSE INLET AS 3613271500 REFLEX, PVC 1.3M 1 Cold
HOSE INLET AS 3613271510 REFLEX, PVC 1.3M 1 Hot
A03 UNIT SVC WRENCH 36189L3X00 PO+Coating, 2.3T DWD-110RP 1
A04 MANUAL OWNERS 4589A61600 ASKO Manual 1 English & French
A05 CAP HOLDER 3610916400 PP, DWD-10RP 4
