Kobalt K18LD-26A User manual
1
kobalttools.com
AB13360
KOBALT® and the K Design® are registered
trademarks of LF, LLC. All Rights Reserved.
18-VOLT
LITHIUM-ION
DRILL/DRIVER
ITEM #0233310
MODEL #K18LD-26A
Français p. 19
Español p. 37
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST,
Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
2
kobalttools.com
TABLE OF CONTENTS
..............................................................2
Safety Information .................................................................3
Preparation ......................................................................6
Package Contents .................................................................7
Operating Instructions ..............................................................8
Care and Maintenance ............................................................17
Troubleshooting..................................................................18
Warranty .......................................................................18
PRODUCT SPECIFICATIONS
Component
Motor 18 Volt DC
Switch VSR (Variable Speed Reversible)
No-load speed 0-400/0-1650 RPM
Clutch settings 23+1
Chuck capacity 1/2 in.
Maximum torque 415 in. lbs
3
kobalttools.com
SAFETY INFORMATION
Know the Tool
Keep this manual available for future reference.
Important
Read All Instructions Thoroughly
General Safety Rules For All Power Tools
WARNING: Read all safety warnings and all instructions. Failure to follow all warnings and
Save all warnings and instructions for future reference
The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery
operated (cordless) power tool.
Work Area Safety
Cluttered and dark areas invite accidents.
liquids, gases or dust. Power tools create sparks, which may ignite the dust or fumes.
Distractions can cause you
to lose control.
Electrical Safety
adaptor plugs with earthed (grounded) power tools.
reduce the risk of electric shock.
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Water entering a power tool will increase
the risk of electric shock.
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
Use
of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground-fault circuit
interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
4
kobalttools.com
SAFETY INFORMATION
Personal Safety
medication. A moment of inattention while operating power tools may result in serious personal
Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection, used for appropriate
connecting to a power source and/or battery pack, picking up or carrying the tool. Carrying
accidents.
A wrench or a key left
This enables better control of
the power tool in unexpected situations.
away from moving parts.
these are connected and properly used.
Power Tool Use and Care
The correct
Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
Such
preventive safety measures reduce the risk of starting the power tool accidentally.
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
into account the working conditions and the work to be performed. Use of the power tool for
5
kobalttools.com
SAFETY INFORMATION
Battery Tool Use and Care
A charger that is suitable for
Use of any other battery
from one terminal to another.
Liquid
Service
parts. This will ensure that the safety of the power tool is maintained.
the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an electric shock.
Clamping devices or a vise will hold the workpiece in place better and
more safely than holding it by hand.
The tool
as well as when transporting and storing it, always set the rotational direction switch to the
center position.
There is risk of explosion.
secure stance. The power tool is guided more securely with both hands.
6
kobalttools.com
SAFETY INFORMATION
WARNING: Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contains chemicals known to the state of California to cause cancer,
birth defects or other reproductive harm.
— Lead from lead-based paints.
— Crystalline silica from bricks, cement, and other masonry products.
— Arsenic and chromium from chemically treated lumber.
— Work in a well-ventilated area.
out microscopic particles.
Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other
construction activities. Wear protective clothing and wash exposed areas with soap and water.
Allowing dust to get into your mouth or eyes or to lie on the skin may promote absorption of
harmful chemicals.
PREPARATION

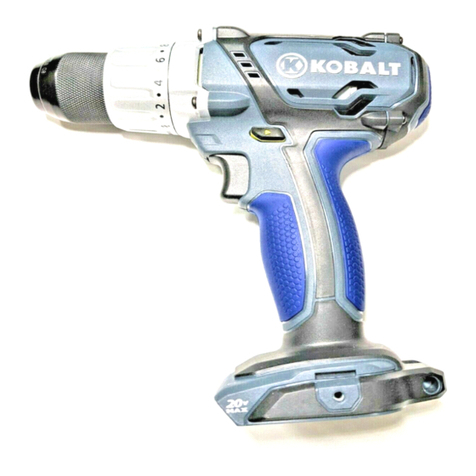

Know Your Cordless Drill/Driver
requirements.
7
kobalttools.com
PACKAGE CONTENTS
C
D
A
G F
I
B
E
H
Part Description
A Variable-speed trigger switch
B Direction-of-rotation selector (forward/center lock/reverse)
C
D LED work light
E Handle
F Gear selector
G Keyless chuck
H Belt clip (1)
I Screw (1)
WARNING: Do not allow familiarity with the drill/driver to cause carelessness. Remember that
become familiar with all of the operating features and safety instructions.
8
kobalttools.com
OPERATING INSTRUCTIONS
1. To Attach Battery Pack
a. Place the direction-of-rotation selector (B) in the
center (locked) position.
b. Align the raised portion on the battery pack (not
included) with the grooves on the bottom of the
drill/driver, and then slide the battery pack onto the
drill/driver as shown.
c. Make sure that the latch on the battery pack snaps
into place and the battery pack is secured to the drill/
driver before beginning operation.
NOTICE: When placing the battery pack on the tool, be
sure that the raised rib on battery pack aligns with the
groove on the drill/driver and the latches snap into place
properly. Improper assembly of the battery pack can cause
damage to internal components.
To Detach Battery Pack (Fig. 1)
a. Make sure that the trigger switch (A) is in the “OFF”
position.
b. Press the battery-release button to release the battery
pack.
c. Pull forward on the battery pack to remove it from the
drill/driver.
WARNING: Battery tools are always in operating
condition. Therefore, the direction-of-rotation selector
should always be locked (center) when the tool is not in
use or when carrying the tool at your side.
2. Trigger Switch
To turn the drill/driver ON, depress the trigger switch
(A). To turn it OFF, release the trigger switch.
Variable Speed
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
DETACH
ATTACH
1
2
A
A
9
kobalttools.com
OPERATING INSTRUCTIONS
The drill/driver has a two-speed gear box designed
for drilling or driving at two different variable-speed
ranges. A gear selector (F) is located on the top of the
drill/driver to select either 1(Low) or 2 (High) speed.
When set to 1, the drill/driver will deliver lower speeds
and increased power and torque.
When set to 2, the drill/driver will deliver higher speeds
and reduced power and torque.
Use 1for high power and high torque applications and
2for fast drilling or driving applications.
Use 1for starting holes without a center punch, drilling
metals, plastics or ceramics, or in applications that
require a higher torque.
2is better for drilling wood and wood composites and
for using abrasive and polishing accessories.
NOTICE: Never change gears while the tool is running.
Failure to obey this caution could result in serious damage
to the drill/driver.
NOTICE: Avoid running the drill/driver at 1speed for
extended periods of time. Running at 1speed under
constant use may cause the drill/driver to become
overheated. If this occurs, cool the drill/driver by running it
without a load at 2speed.
3F
F
10
kobalttools.com
OPERATING INSTRUCTIONS
4. Direction-of-Rotation Selector
(Forward/Center Lock/Reverse)
The direction of bit rotation is reversible and is
controlled by a selector located above the trigger
switch (A). With the drill/driver held in the normal
operating position, pointing away from you:
a. Position the direction-of-rotation selector (B) to the
left of the tool for forward rotation.
b. Position the direction-of-rotation selector to the right
of the tool for reverse rotation.
c. Setting the switch in the OFF (center lock) position
helps reduce the possibility of accidental starting
when not in use.
NOTICE: To prevent gear damage, always allow the
drill/driver to come to a complete stop before changing
the direction of rotation.
NOTICE: The drill/driver will not run unless the direction-
of-rotation selector is engaged fully to the left or right.
Electric Brake
To stop the drill/driver, release the trigger switch
and allow the tool to come to a complete stop. The
electric brake quickly stops the rotation. This feature
engages automatically when you release the trigger
switch.
NOTICE: This drill/driver is equipped with an electric
brake. When the brake is functioning properly, sparks
may be visible through the vent slots in the housing.
This is normal and is the action of the brake.
FORWARD
REVERSE
4
B
A
11
kobalttools.com
OPERATING INSTRUCTIONS
5. Keyless Chuck
The drill/driver has a keyless chuck (G) to tighten or
the chuck indicate the direction in which to rotate
the chuck body in order to GRIP (tighten) or OPEN
WARNING: Do not hold the chuck body with one
hand and use the power of the drill/driver to tighten the
your hand, or your hand could slip and come in contact
with the rotating bit. This could cause an accident
6.
settings and 1 drilling setting. The higher the torque
setting, the more force the drill/driver produces to
When using the drill/driver for different driving
applications, it is necessary to increase or decrease
the torque to help prevent the possibility of
damaging screw heads, threads, workpiece, etc.
and the type of bit, fastener, and material you will
be using. In general, use greater torque for larger
screws. If the torque is too high, the screws may be
damaged or broken. For delicate operations, such
as removing a partially stripped screw, use a low
torque setting. For operations such as driving into
hardwood, use a higher torque setting.
CAUTION: Do not change the torque setting when
the tool is running.
5
G
C
6
12
kobalttools.com
OPERATING INSTRUCTIONS
7. Drill Mode
Select the drill mode for drilling and other heavy-
duty applications. To select the drill mode, rotate the
C) until the drill icon aligns
with the torque indicator and clicks into position.
8. LED Work Light
The LED work light (D), located above the trigger
switch (A), will illuminate when the trigger switch is
depressed. This provides additional light on the surface
of the workpiece for operation in lower-light areas. The
LED work light will turn off when the trigger switch is
released.
9. Installing The Belt Clip
a. Align the rib of the belt clip (H) with the hole on the
base of the drill.
b. Insert the screw (I) and tighten the screw securely
with a Phillips screwdriver (not included).
Removing the Belt Clip (Fig. 9)
a. Use a screwdriver to loosen the screw (I) that
attaches the belt clip (H) to the drill.
b. Remove the screw and the belt clip.
C
7
8
D
A
HI
9
H
13
kobalttools.com
OPERATING INSTRUCTIONS
10. Installing Bits
a. Lock the trigger switch by placing the direction-of-
rotation selector (B) in the OFF (center) position.
opening is slightly larger than the shank of the bit you
intend to use.
c. Insert the bit.
NOTICE: Rotate the chuck body in the direction of the
WARNING: Make sure to insert the drill bit straight
shown in Fig. 10a. This could cause the drill bit to be
thrown from the drill/driver, resulting in possibly serious
10
G
10a
14
kobalttools.com
OPERATING INSTRUCTIONS
11. Removing Bits
a. Lock the trigger switch by placing the direction-of-
rotation selector (B) in the OFF (center) position.
NOTICE: Rotate the chuck body in the reverse direction
c. Remove the drill bit.
WARNING: Always wear safety goggles or safety
glasses with side shields during power tool operation or
when blowing dust. If operation is dusty, also wear a dust
mask.
WARNING: Battery tools are always in operating
condition. Therefore, the direction-of-rotation selector
should always be locked (center) when not in use or
carrying the drill at your side.
12. Drilling
a. Check the direction-of-rotation selector for the correct
setting (forward or reverse).
b. Secure the material to be drilled in a vise or with
clamps to keep it from turning as the drill bit rotates.
point to be drilled.
d. Depress the trigger switch to start the drill/driver.
e. Move the drill bit into the workpiece, applying only
enough pressure to keep the bit cutting. Do not force
the drill/driver or apply side pressure to elongate a
hole. Let the tool do the work.
f. When drilling hard, smooth surfaces, use a center
punch to mark the desired location of the hole. This
will prevent the drill bit from slipping off center as the
hole is started.
stalls, stop the tool immediately. Remove the bit
from the workpiece and determine the reason for
12
11
15
kobalttools.com
OPERATING INSTRUCTIONS
h. To stop the drill/driver, release the trigger switch and allow the tool to come to a complete stop.
The electric brake quickly stops the rotation. This feature engages automatically when you release
the trigger switch.
NOTICE: This drill/driver is equipped with an electric brake. When the brake is functioning properly,
sparks may be visible through the vent slots in the housing. This is normal and is the action of the brake.
Wood Drilling
a. For maximum performance, use high-speed steel or brad-point bits for drilling wood.
b. Begin drilling at a very low speed to prevent the bit from slipping off the starting point.
c. Increase speed as the drill bit bites into the material.
d. When drilling “through” holes, place a block of wood behind the workpiece to prevent ragged or
splintered edges on the back side of the hole.
Metal Drilling
a. For maximum performance, use high-speed steel bits for drilling metal or steel.
b. When drilling metals, use light oil on the drill bit to keep it from overheating. The oil will prolong the
life of the bit and increase the drilling action.
c. Begin drilling at a very low speed to prevent the bit from slipping off the starting point.
d. Maintain a speed and pressure which will allow cutting without overheating the bit. Applying too
much pressure will:
— Overheat the drill/driver.
— Wear the bearings.
— Bend or burn bits.
— Produce off-center or irregular-shaped holes.
Masonry Drilling
a. For maximum performance, use carbide-tipped masonry bits when drilling holes in brick, tile,
concrete, etc.
b. Maintain a speed and pressure which will allow cutting without overheating the bit or drill/driver.
Applying too much pressure will:
— Overheat the drill/driver.
— Wear the bearings.
— Bend or burn bits.
— Produce off-center or irregular-shaped holes.
c. Apply light pressure and medium speed for best results in brick.
d. Apply additional pressure for hard materials, such as concrete.
e. When drilling holes in tile, practice on a scrap piece to determine the best speed and pressure.
f. Begin drilling at a very low speed to prevent the bit from slipping off the starting point.
16
kobalttools.com
OPERATING INSTRUCTIONS
13. Screw Driving
Try to use modern screws for easy driving and
improved grip.
a. Install the correct driver bit.
b. Ensure that the torque-setting ring is set to the most
suitable setting. If in doubt, start with a low setting
and gradually increase the setting until the most
suitable position is found. Do not change the torque
setting when the tool is running.
pressure to the trigger initially. Increase the speed
only when full control can be maintained.
shank diameter of the screw. The pilot hole will act as
a guide for the screw and will also make tightening
close to an edge of the material, a pilot hole will also
help to prevent splitting of the wood.
e. Use a countersinking bit (available separately) to accommodate the screw head, so that it does
not protrude from the surface.
pilot hole, but remember that there must be enough remaining material for the screw to grip! If
(as when using very hard woods) try using a lubricant such as soap; liquid soap is usually best.
h. To stop the drill/driver, release the trigger switch and allow the tool to come to a complete stop.
The electric brake quickly stops the rotation. This feature engages automatically when you release
the trigger switch.
NOTICE: This drill/driver is equipped with an electric brake. When the brake is functioning properly,
sparks may be visible through the vent slots in the housing. This is normal and is the action of
the brake.
13
17
kobalttools.com
CARE AND MAINTENANCE
General Maintenance
Before cleaning or performing any maintenance, remove the battery pack from the tool. For safe
and proper operation, always keep the tool and its ventilation slots clean. Always use only a soft, dry
cloth to clean your drill/driver; never use detergent or alcohol.
14. Chuck Removal
The chuck can be removed and replaced.
a. Lock the trigger switch by placing the direction-of-
rotation selector in the center position.
c. Use a screwdriver to remove the chuck screw by
turning it in a clockwise direction.
d. Insert a 5/16-in. or larger hex key into the chuck of
around the hex key.
e. Tap the hex key sharply with a mallet in a counter-
clockwise direction. This will loosen the chuck for
easy removal.
NOTICE: The chuck screw has left handed threads.
Attach a new chuck to the spindle and tighten the chuck
screw.
14
18
kobalttools.com
TROUBLESHOOTING
WARNING: Turn the switch to the “OFF” position and remove the battery pack from the tool
before performing troubleshooting procedures.
Problem Possible Cause Corrective Action
The drill/driver does not work Battery is depleted Charge the battery
Bit cannot be installed 1. Sleeve is not released
1. Release the sleeve
2. Use the appropriate bit
Motor overheating Cooling vents are obstructed Clean, clear vents. Do not cover
vents with hand during operation
5-YEAR HASSLE-FREE WARRANTY
years
This drill/driver is warranted for the original user to be free from defects in material and workmanship.
return the drill/driver along with proof of purchase to the place of purchase for a free replacement or
refund, or call 1-888-3KOBALT (1-888-356-2258) for warranty service.
This warranty is void if: defects in materials or workmanship or damages result from repairs or
parts; the damage is due to normal wear, damage is due to abuse (including overloading of the tool
beyond capacity), improper maintenance, neglect or accident; or the damage is due to the use of the
This warranty excludes blades, bits, bulbs and accessories.
to state.
Printed in China
KOBALT®and the K Design®are registered trademarks
of LF, LLC. All Rights Reserved.
1
kobalttools.com
AB13359
KOBALT® and the K Design® are registered
trademarks of LF, LLC. All Rights Reserved.
18-VOLT
CIRCULAR
SAW
ITEM #0233310
MODEL #K18LC-26A
Français p. 21
Español p. 41
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST,
Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
2
kobalttools.com
TABLE OF CONTENTS
..............................................................2
Safety Information .................................................................3
Preparation ......................................................................8
Contents ........................................................................9
Operating Instructions .............................................................11
Care and Maintenance ............................................................18
Troubleshooting..................................................................19
Warranty .......................................................................19
PRODUCT SPECIFICATIONS
Component
Motor 18V DC
No-load speed 4,500 RPM
Saw blade size 5-1/2 in.
Cutting angle 50°
Depth of cut at 90° 1-1/2 in.
Depth of cut at 45° 1 1/16 in.
Other manuals for K18LD-26A
1
This manual suits for next models
1
Table of contents
Other Kobalt Drill Driver manuals
