Konic KUD65MD686AS2 User manual

MODEL:KUD65MD686AS2

1

2

3

4
Specifications
11
9
8
7
6
5
Overview
External connection
Remote Control
35
36
35

General Description
5
(CEC ARC at HDMI2)

HDMI support resolution
2x8W
480I/P 576I/P 720P 1080I/P 2160P
KUD65MD686AS2
165W
65"
3840x2160
NTSC
NTSC:M;PAL: M/N;DVB-T/T2/S2
Specifications
6

CH+/-:Select channel.
VOL+/-:Adjust Volume.
Source Select.
1
Connect Coaxial out.
AV input.
Connect to an antenna or satellite
antenna.
7
3
5V 500mA
12
ARC

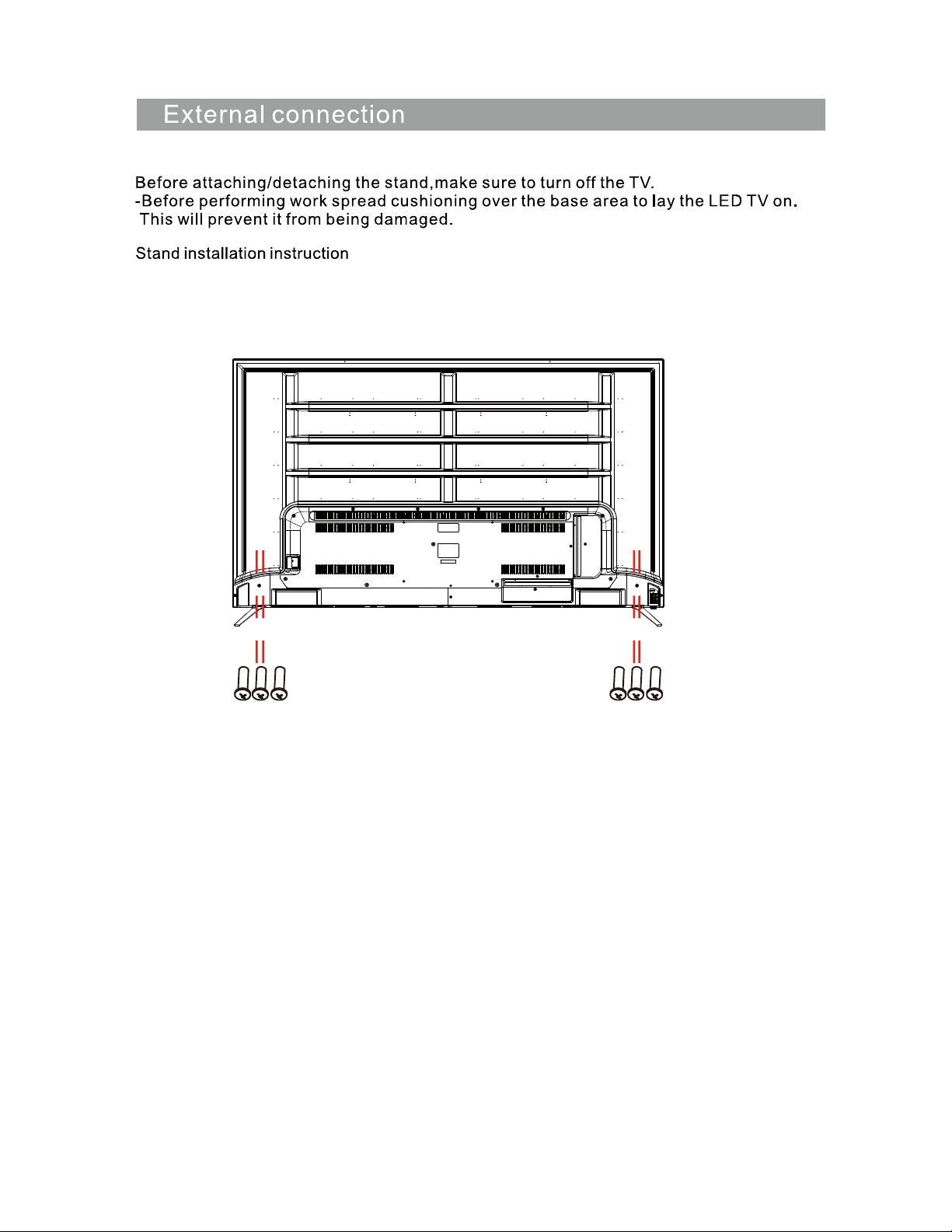

BM4X30(3pcs) BM4X30(3pcs)
8

9
(Only DTV/ATV)

10

Press input button and start changing settings.
11
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Advanced Channel Setup
Signal information
LCN On
Software Update(USB)

12
* Auto tuning
Select option of Auto Tuning under the up and down button.After pressing OK button, the
screen will appear the country list and you are able to choose what you want with arrow
button.Press OK button to start auto channel tuning and the screen show the programs
number.
* DVB-T Manual tuning
Select channel number with left and right button.Then press OK button to start manual tuning.
Program Edit
After choosing “program edit”option, you can press relevant button to edit program. The red button can
help you delete program and the green button is used to rename. You can press yellow button to move
and pres blue button to skip program. When you press O, all programs can be deleted.

13
LCN
Through the up and down button to select \"LCN\" option, then can use bleft and right uttons to
open or close the logical channel number.
Software update
Please prepare USB and relevant update files before software update. Then insert USB and choose this
option.You should do according to system hint and remember not to pull out USB before finishing software
update.
ATV Manual Tuning
Select the "ATV manual station search" option and press
OK to enter the next interface.After setting the sound
mode and other options, select the search function
through the left and right button.

Auto Tuning
DVB-S Manual Tuning
ATV Manual Tuning
Satellite Edit
Programme Edit
Advanced Channel Setup
Signal information
REGION AUCKLAND
Software Update(USB)
14
Auto Tuning
Photo1 Photo2
1 Select option of Auto Tuning under the
source of satellite and there will be different
operations you should know. As shown in photo1,
you can press OK to appear list and choose one of
satellite signal name under circumstance of
highlighted satellite option.
2 The system provides three channel types
including free, scramble, all. You can set the
service type as DTV/Radio/All and scan mode
can be modified to preset/audio/blind screen with
right button. Click word of search and auto tuning
can start.

15
* Satellite auto tuning setting
The Specific parameter setting includes userband/SRC Add. , frequency and position.
The userband have many options, such as 1/0, 2/1 , 4/3, 7/6. The range of frequency swing
and you can set according to your need. The position can change to A/B
DVB-S manual tuning
Press OK button to show satellite name list and choose one when TV is in main manual tuning.
The system give you three service type including free, scramble, all .Please note that
you are able to open/close network scan.
The unicable setting under DVB-S manual tuning is same with auto tuning.

16
Motor
First choose one satellite signal and press red button to set motor . You can modify specific direction for move
auto ,move continue , move step.In this main interface,Goto position and preference can be set after pressing
OK button. Please pay attention that the GotoX can change in the Diseqc1.3
Set l imit , location
Choose one satellite signal and press green button to set limit.Not only canyou set east and west limit, but also
you have access to disable limit.If you press yellow button, you are able to set location. When you choose
location by manual,other setting can not be modified.The system provides many location for you .After

17
you choose specific location , you have chance to set longitude angle.
Note: you also can set limit and location in the satellite edit interface.
Satellite edit
(1) Choose one of satellite signal list and press OK button to enter setting interface. The orbit positions you
can select are just 019.2E and 019.2W.For LNB type, the system provides many options to fit your
needs. You can open one or close all about Diseqc.Diseqc1.0 can switch from LNB1 to LNB4.
Diseqc1.1 can support LNB from 1 to 16.As motor, you should choose Diseqc kind and then set move
position. You are able move audio from east or west. If you don’t need it, you can set as stop.
The unicale setting is same with the circumstance of DVB-S auto tuning.
2 You should input satellite name, symbol rate, Polarity after pressing yellow button. Then you press OK
button and the satellite addition can successfully finish.

18
On the initial scan the receiver shall perform an automatic scan based on the Freeview NIT information found
on the “home transponder” at 12.483GHz. It shall find all transport streams and services referenced within the
NIT and shall tune in to the correct DVB structure, channel coding, modulation. However, the receiver shall
only display services that are referenced in the regional Freeview BAT selected by the user during initial setup.
Services not listed within the regional BAT shall not be displayed. See section 5.8 for more information. In
addition to an automatic search it shall be possible to perform a manual search where the tuning parameters are
entered manually. New channels shall be added to the service list. No duplicated channels, nor encrypted
channels shall be displayed in the service list.
DTH Tuning

Picture Mode
Choose the picture menu with left and
right button. Then the up and down
arrows can be used to select this item.
The picture mode can be switched to
standard/dynamic/mild/user
through right button.
Color temperature
Select the option of color temperature by the
above-mentioned way, then change its setting
with left and right button. The color temperature
can be cool, warm, user mode.
Noise Reduction
Select the option of noise reduction
by the above-mentioned way, then change
its setting with left and right button.The
color temperature can be low/middle/high
Aspect Ratio
You can select ZOOM1, ZOOM2, 16:9 or 4:3
with left and right button when the option of Aspect
Ratio is picked.
The value of These options including contrast,
Brightness, sharpness, saturation can adjust with
arrow button only in the user mode.
19
Back light 100
