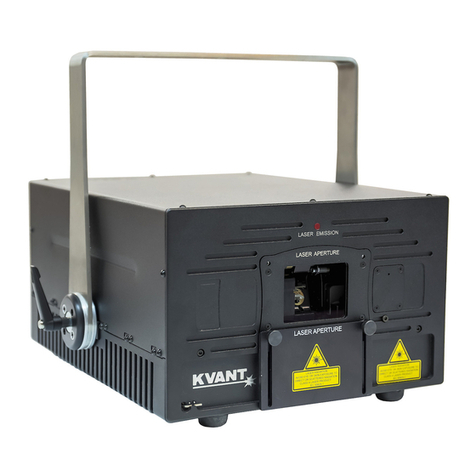

KVANT Clubmax FB4 Series Quick start guide

4
MODEL
SPECIFIC
OPERATIONAL
MANUAL

1. Introduction 3
2. General information 4
2.1 What is a laser and how does it work? 6
2.2 Laser Safety first! 7
2.3 Installation ofthe System 8
2.4 Control System 9
2.5 Scanning System 10
2.6 Connection Diagram 12
2.7 Multiple System Interlock 13
2.8 Switching ONsequence and User Interlock 14
2.9 Maintenance 16
3. Item Checklist 17
4. Optional Accessories 18
5. System Overview 19
5.1 Front View 20
5.2 Side View 21
5.3 Rear View 22
6. Beam Alignment 24
6.1 Beam Alignment [CM-3000 FB4] 25
6.2 Beam Alignment [CM-6000 FB4] 26
6.3 Beam Alignment [CM-10 FB4] 28
6.4 Beam Alignment [CM-15 FB4] 30
7. Technical Specifications 32
7.1 Beam Alignment [CM-3000 FB4] 33
7.2 Beam Alignment [CM-6000 FB4] 34
7.3 Beam Alignment [CM-10 FB4] 35
7.4 Beam Alignment [CM-15 FB4] 36

336
EN
1
Thank you for purchasing this KVANT product.
Toensure proper operation, please read this manual carefully before using the product.
After reading it, keep itinasafe place for future reference.

436
EN
i
2
The following chapters explain
important information about lasers in
general,basiclasersafetyandsometips
about how to use this device correctly.
Please spend some time reading
these information as some of them are
critical for safe and ecient operation
of this laser display system.
IEC 60825 - 1:2014
___W AT ________nm
Diode Laser
__ W MAX OUTPUT AT __ nm
__ W MAX OUTPUT AT __ nm
__ W MAX OUTPUT AT __ nm
LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
CLASS 4 LASER PRODUCT
IEC 60825-1:2014
CAUTION
LASER LIGHT IS BRIGHT AND
BLINDING DO NOT SHINE AT
AIRCRAFT OR VEHICLES AT
ANY DISTANCE
CAUTION
CLASS 4 VISIBLE
LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
This product is in conformity with performance
standards for laser products under 21 CFR
Part 1010.4 and 1040.11 except with respect
to those characteristics authorized by
Variance Number:
Effective Date:
2012-V-0620
Dec.31 . 2018
Date of Manufacture
spol. s.r.o.
Opavska 24, 831 01 Bratislava 37,Slovakia
Made in Slovakia
Max current at 110V: 3A
Max current at 230V: 3A
03 2021
Month Year
user manual
KVANT
KVANT

536
EN
!
Caution
!
This laser entertainment system
is rated as a Class IV laser product
and manufactured in accordance
to EN 60825-1:2014. Avoid eye
orskin exposure todirect orscattered
radiation. Wear protective goggles
of suitable optical density ifnecessary.
Ifthe laser isoperated inasituation where
health or property injury may occur the
operation must bestopped immediately.
!
The manufacturer and its distributors
cannot be held responsible for any
damages caused by improper use
or misuse of this KVANT laser system.
The owner/user is fully responsible for
using this product inaccordance tolaser
safety regulations ofthe country orstate
where the system isbeing used.
Handling precautions
This laser system isaprecision device that contains some
sensitive opto-electronics components. DO NOT drop
itorsubject ittophysical shock.
This laser system is not waterproof or dust-proof. Make
sure touse anappropriate cover orenclosure ifitisused
inthe rain, snow orsimilar severe environment conditions.
Do not leave the laser system in excessive heat such
asinacar whilst indirect sunlight. High temperatures could
cause some serious damage tothe system.
The laser system contains precision electronic circuitry.
Never attempt todisassemble the laser yourself.
Ifthe laser issuddenly brought infrom the cold into awarm
room, condensation may form on the laser and internal
parts.
If condensation forms on the laser body, do not use
the laser as this may damage the laser system. If there
iscondensation, wait until ithas evaporated before using it.
Please note that some other optical devices such
as cameras, camcorders, video projector etc. can
bedamaged ifexposed toexcessive laser radiation.

636
EN
2 .1
What isaLASER?
The laser isadevice that creates continuous visible light energy waves (streams ofphotons that are referred toas“laser
radiation”) with the same amplitude and phase that are flowing inthe same direction; meaning they are coherent – they
stick together and form alaser beam.
The width ofasingle wave ismeasured innano-meters and defines the colour and visibility ofthe laser beam. The visible
spectrum ofthe human eye isroughly between 400nm and 700nm, going from violet toadark red colour. Ahuman eye
ismost sensitive toagreen light ofaround 555nm, meaning that a1Wofgreen laser will always appear more visible than
1Wofany other colour laser. 1Wofquality laser light isvery powerful and although itdoesn’tsound like much itcan burn eye
retinas, skin and clothes oreven start afire!
Colours
Standard full colour analogue lasers use three primary
colours: Red, Green and Blue. By mixing those together
you can pretty much get any secondary colour:
Red + Blue = Magenta
Red + Green = YellowYellow
Green + Blue = Cyan
Red + Green + Blue = White
Of course the number and precision of the colours
is determined by the modulation, stability and linearity
of the system. If the system is not stable enough, it will
produce dierent colours every time it is used, making
itvirtually impossible tomatch the colours oftwo systems
atany one time. This isvery often the case with systems
from far east manufacturers and with re-branded lasers
that are being presented asEuropean makes.
Scanning System
Ascanning system isessentially two tiny mirrors, each
moving onXorYaxis. Byworking together they can “scan”
the laser beam over awide angle infront ofthe projector.
The scanning system can not only direct the laser beam
tospecific, static locations, but it can also create shapes
by rapidly moving the laser beam over a path. Once
a shape is scanned more than 20 times per second,
itappears static to the human eye. Soany shape drawn
byalaser isactually produced byone single laser beam
being moved bythese mirrors very quickly. Every scanning
system has amechanical limit ofhow fast itcan move its
mirrors and therefore how many points itcan display atany
one second and that isusually represented inPoints Per
Second atacertain scanning angle, i.e. 8 degrees.
How far does ittravel?
Technically, the laser light will travel forever until itstrikes
asurface and isabsorbed. Abetter question is – how far will
the light travel and still beuseful? Depending onthe power
output ofthe system and weather conditions, the laser can
bevisible for miles – that iswhy weneed tobecautious
about aircrafts when performing outdoor shows. And ifyou
get asystem that ispowerful enough then yes, itcan reach
the Moon.
What makes the laser visible inmid-air?
Mainly itisthe particles ofdust inthe air that the laser beam
hits onits path, scattering the light. This dust orfog iscalled
a“scattering medium”. That’swhy we“laserists” use haze
orsmoke machines tomake lasers more visible. Too much
of the haze or smoke will greatly attenuate the visibility,
but the right amount will make all the dierence between
noshow and agreat show.
When outdoors, lasers mainly reflect o dust and mist inthe
air but due tounpredictable wind conditions wecan never
make sure the hazers orsmoke machines will beeective
enough. And that’s why we use high power lasers for
outdoor shows – to substitute for the lack of dust, haze
and smoke.

736
EN
2.2
!
Before proceeding any further, please
read the following safety page very
carefully. It could help you avoid
dangerous and hazardous situations
which could lead to serious injury
orproperty damage. !
Any laser system classified asaClass
4 laser must be used with caution.
If you are an inexperienced laser
operator, we strongly recommend
that you attend alaser display safety
course before you use this laser
system in public areas. There are
various places in Europe where
you can attend quality training and
even a one day course will give you
agood amount ofvaluable information
tosafely start with.
Unless you are very competent with the use oflasers and
about the laser safety, make sure you atleast follow these
basic laser safety rules:
1. Never look directly into alaser beam
2. Never look directly into laser aperture if the laser
system isswitched on.
3. Be aware that lasers can burn the eye retina, skin
orcause fires ifnot used correctly.
4. Audience Scanning is a technique that involves
projecting laser eects directly into an audience.
Never perform Audience Scanning unless you: a) are
trained to do Audience Scanning; b) use a projector
that has the proper safety systems built in (such
as PASS); and c) have verified that the projected
light levels donot exceed the applicable MPE for the
jurisdiction. Otherwise, always project with the laser
above audience head level – atleast 3mabove floor
level.
5. When projecting the laser outdoors, avoid pointing the
laser at aircrafts, buses, trains, etc. Never leave the
laser system unattended when it’sswitched on.
6. Always check for reflective surfaces within the laser
range – these can be very dangerous (i.e. mirror
behind the bar inaclub could bounce the beam into
bar attendant’seye).
7. Never hesitate touse the Emergency STOP ifyou think
there’s a fault within the laser system or a potential
danger to a person/object caused by the laser
performance.

836
EN
2.3
!
The manufacturer isnot liable for damages
ora injury caused byimproper installation
of the system. The installation should
be carried by a qualified installer who
should follow the Laser Safety Regulations
ofrespective country.
Please follow these rules during the installation:
1. Donot connect the device topower supply during
the installation. Only connect the device topower
after the installation and mounting have been
completed.
2. Mount the system only tomounting point that isstrong,
secure and away from places where nonauthorised
person could get anaccess to.
3. Always make sure the system is properly tightened
down, and that itcannot get loose and move asaresult
of sound vibrations, cables pulled on, or similar
external disturbances.
4. Always attach a safety chain or cable between the
projector and its structure (such astruss).
5. Ensure that all the cables have enough length just
incase they get caught.
6. Ensure that the system isplaced atleast 20cm away
from walls orany other objects including drapes etc.
7. Ensure that the system isplaced well away from any
heat sources including spotlights, moving heads,
radiators, etc. Make sure there isasucient air-flow
around the laser system.
8. Itisessential that the fan openings are never covered
during the laser operation.
9. Always follow the Laser Safety Regulations
ofrespective country where the laser isbeing used.

936
EN
2.4
The overall performance ofany KVANT laser system isalso
dependent onthe control system that you use for operating
the laser aswell asthe correct device configuration inthe
laser control software.
Please make sure all the laser settings in your control
system are set correctly before you start using your Kvant
laser display system.

10 36
EN
2.5
The product warranty does not cover the damages
to the scanning system caused by improper use of the
scanning system orbyincorrect programming. Therefore
itisessential tounderstand how the scanning works and
where are the limits of it. In this manual we will explain
only the basics ofitbut itisthe responsibility ofevery user
toeducate themselves sothey can avoid damage being
caused tothe scanning system and costly repairs.
Alaser beam comes from alaser module and hits the two
moving mirrors ofthe scanning system. These mirrors are
mounted on the scanner shafts and are moved by the
scanner rotors, one onXand one onYaxis.
Aneect such astunnel (circle) isdisplayed byarepetitive
mechanical movement of the scanners. For each
scanning system and eect, there’s a maximal scan-rate
that is defined by mechanical load, scanner mirror size
and weight, complexity of displayed picture and size
ofthe projection (anangle under the laser beam isbeing
projected). A dierent scanning systems have dierent
scan-rate limits. It is essential to operate the scanning
system at scan-rates within its maximal limit at all times
toprevent itfrom overload damage.
How toestablish correct Scan-rate and maximal
number ofpoints inaneect
Each eect (picture) contains adierent number ofgraphical
points which defines the actual shape of the eect. The
more points an eect contains, the lower the maximum
scan rate will beinrelation tothe scanning angle.
Asanexample we’llwork with the star eect shown below
and with the parameters ofquality scanning system:
Let’s say the star eect is made of 300 graphical points
(including non-visible blanking points) and we know that
the maximal scan-rate of our scanning system is “35K”.
(The term “35K” refers toametric that isachieved when
the original ILDA test pattern is projected at 8 degrees,
and all ofits visual qualities are maintained. Note that all
other patterns may bescanned much wider, and insome
cases even faster, but the term “35K” only refers toasingle
test pattern, and single test condition). Wealso know that
wedisplay the star 35 times per second which isadefault
frame rate ofthe control software weare using.
Soweneed todisplay 300 points 35 times per second =
10.500 pps. This means that wecould display 3 of these
stars beside each other within one single laser eect and
that itwould bequite close tothe scanner limit (3 × 10.500
= 31.500pps). Given that the scanners noted above are
“35K” scanners, this seems easily achievable. However,
the projection of 3 separate stars necessitates a wider
scan angle, and – in general, the scan speed must
be reduced as the projection angle is increased. Thus,
itmay benecessary toeither lower the number ofpoints
within the eect ordrop down the scan-rate inthe control
software (FPS) toasafe level – which may result inflicker.

11 36
EN
Inthe following pictures you see the same star eect scanned atdierent scan rates atfull scanning angle (60degrees).
Picture 1: the scan rate and/ornumber
of points is too low. The corner
points are more visible than the lines
between them and the whole eect
flickers. The scan-rate and/ornumber
ofpoints needs tobeincreased.
Picture 2: the scan-rate and/
or number of points is about right.
The whole eect has more orless the
same intensity and does not flicker.
Picture 3: further increasing of the
scan-rate and/or number of points
results inthe eect starting todistort,
firstly around corners only. This
indicates that you are exceeding the
maximal scan rate of the scanning
system! If you operate the scanning
system at scan-rates higher than the
maximum scan-rate of the scanning
system the scanners will get damaged
irreversibly due to overheated coils
damaging rotor magnets.

12 36
EN
2.6
Please check that all the signal and power leads are
correctly installed and that the safety keys are inserted
inall necessary positions.
!
USA ONLY: Remote Interlock Bypass
must be inserted in the E-STOP
Remote aswell inorder todisable the
interlock.
i
Both E-STOP Remote safety key and
laser system safety key must beinserted
and switched toONposition inorder
todisable the interlock.

13 36
EN
2.7
Multiple laser projectors may be daisy chained and
controlled by asingle E-STOP Remote. Any event which
enables the Interlock on any laser projector inthe daisy
chain will trigger the safety Interlock for all the systems.
After the event has been corrected the START button
onthe E-STOP Remote must bepressed bythe operator
todisable the Interlock. After anEmission Delay period the
laser projectors will beready for use.

14 36
EN
2.8
!
Please make sure that all laser display
safety requirements are fulfilled
inaccordance with laws ofthe country
where this KVANT laser system isbeing
used before switching the system ON.
1. Connect the system as showed on Connection
Diagram.
2. Turn both E-STOP Remote and laser system safety
keys toONposition.
3. Release the E-STOP button bypulling itupwards.
4. Open the aperture window by loosening the bolt
atthe bottom ofthe aperture, adjust the masking plate
todesired position and tighten the bolt tosecure it.
5. Press the START button onthe E-STOP Remote.
6. After anEmission Delay Period the laser projector will
beready for use.
Interlock Enabled, Laser Output Terminated
The Interlock is latched enabled and the laser
projector’s beam output will be terminated if any of the
following events happen:
1. Power loss lasting greater than 2 seconds.
2. Mushroom emergency switch depressed.
3. #2 Key Switch on E-STOP Remote turned to OFF
position.
4. #1 Key Switch onlaser projector turned toOFF position.
5. Any other interruption toline No.1 ofthe cable leading
to the E-STOP Remote. This includes any user
interlocks connected in series in the line No.1 of this
cable. Refer toConnection Drawing below.
Restarting Laser After Interlock orPower Failure
Event
After the event has been corrected the START button
onthe E-STOP Remote must bepressed bythe operator
todisable the Interlock and after anEmission Delay period
the laser projector will beready for use.
Interlock Connection Diagram

15 36
EN
!
The E-STOP Remote is an integral
part of the laser projector. It is there
for the safety of the public as well
as the operator. Modifying or using
anything other than the E-STOP
Remote provided, inthe manner itwas
intended, may invalidate your laser
projector’svariance.
E-STOP Connection Drawing including User
Interlock option

16 36
EN
2.9
!
It is essential to regularly inspect the
condition of the silica gel granules
inside the cartridges. That can bedone
through the opening inthe middle ofthe
cartridge. If the colour of the granules
inside the cartridge is green, instead
ofbrown (brown iswhen they are dry),
itmeans they are soaked, and they must
bedried out. Inspect the cartridge every
time you open the optical compartment,
oratleast once amonth.
The drying out process ispretty simple:
1. Detach the cartridge from the cover and place itinto
the conventional oven - donot use microwave!!!
2. Heat the oven to120ºC (250ºF) and leave the cartridge
inside for about 3-4 hours, until all the moisture
isreleased.
3. Insert the cartridge back into its place and close the
optical compartment cover as soon as the cartridge
cools down. That way, it will absorb the maximum
amount of moisture from the inside of the optical
section.
!If the granules don’t turn brown during
this process, they must bereplaced with
new ones.
Drying agent cartridge
Drying agent cartridge (silica gel desiccant) helps toprevent
water condensation inside the optical compartment ofthe
laser system, which ismuch needed inhigh temperatures
and high humidity environments. The desiccant cartridge
isinstalled onthe inside ofthe optical compartment cover.
Aperture Window
To clean the aperture output window use a soft cloth
and medical grade isopropyl alcohol. If necessary, you
can remove the aperture output window by loosing the
4socket bolts and clean the inside ofthe window aswell.
Cooling Fans
Use compressed air for cleaning the bottom part of the
laser system. There are cooling fans located atthe bottom
of the heat sink and they are vital for correct operation
of the laser system. Please always ensure that they are
spinning freely.
You should perform this service every 2months ifthe laser
isused regularly oreven more often ifitisused industy
conditions.
Internal Optics
The cleaning of the internal optical components should
beperformed byanauthorised technician only. Incorrect
techniques orwrong choice ofchemicals used for cleaning
could cause serious damage to the laser system. Due
tothe fact that the optical compartment issplit and sealed
from the rest ofthe laser system itshouldn’tbenecessary
toperform this procedure more often than once ayear.
Maintenance: no user serviceable parts inside.
Please note that a laser light entering the aperture of your
laser projector (reflected or from another laser) or wrongly
reflected beams inside the projector can permanently
damage the laser sources.
The manufacturer’s warranty does not cover such damage.
Disposal of the equipment
The equipment is made of components and materials such
as metal, plastic, aluminium, which can be dismantled,
sorted and recycled in accordance with the Waste Act at
the end of the life of the equipment or when it is no longer
functional.
The equipment can also be handed over as a whole in
a collection yard.
wet silica gel dry silica gel

17 36
EN
3
Before starting, check that all the following items have been included with your laser system. Ifanything ismissing, contact
your supplier.
Item Number ofunits Descriptions
Item Number ofunits Descriptions
1x
KVANT Clubmax FB4 Laser
Display System
1x
Heavy duty flight case
1x
Emergency STOP remote
US version BUS ID: 1647
EU version BUS ID: 1648
1x
3-pin XLR Emergency Stop
Remote Cable
10m version BUS ID: 588
25m version BUS ID: 1618
1x
Remote Interlock Bypass (for
USA only)
BUS ID: 651
1x
ACPower cable with
powerCon TRUE1 connector
EU version BUS ID: 605
UK version BUS ID: 606
US version BUS ID: 607
2x
Set ofSafety Keys
1x
Network Signal Cable (cat5)
10m version BUS ID: 1041
25m version BUS ID: 1611
1x
User manual USB drive
BUS ID: 1054

18 36
EN
4
Here isalist ofoptional accessories that are compatible with Clubmax laser system.
Item Descriptions
SafetyScan lens attachment
bracket (lens isnot included).
This item iscompatible only
with this model version.
DiscoScan lens attachment
bracket (lens isnot included).
This item iscompatible only
with this model version.
4-way masking plate
Optical Bench
Rain cover

19 36
EN
5
KVANT Clubmax FB4 is a full colour, semiconductor diode
laser system designed for professional laser displays.
When operated correctly and in the right conditions the
Clubmax FB4 laser system is able to deliver a strong
performance in venues with up to 6000 people (CM-6800
FB4). The Clubmax FB4 can display virtually any colour
within the basic RGB palette and its secondary mixed
colours including white.
The system is air-cooled and designed so that there is
no airflow going through the optical compartment of the
system. This ensures that all important optical parts of the
system stay clean for longer, keeping the maintenance
time down to a minimum. This is a real advantage for all
the venues where lots of smoke or haze is used on a daily
basis.
This laser is IP rated to IP54, meaning that it is splash-proof.
It is however important to understand that this system
was designed for indoor use and therefore it must not be
exposed to rain, snow or excessive amounts of dust.

20 36
EN
5 .1
1. Laser aperture.
To clean the laser aperture window
from inside or to swap the aperture
plate for dierent type of aperture (i.e.
DiscoScan lens attachment bracket),
remove the four socket bolts that
hold the laser aperture in place and
remove it .
2. Aperture masking plate.
This metal masking plate can be
moved up and down when the locking
bolt is loosened. This useful safety
feature gives you an option to limit
the bottom of the laser output area
if necessary (for example to avoid
audience scanning) and also protects
the aperture glass during transport.
3. Attachment bracket.
The attachment bracket spins 360
degrees around the laser body whilst
it can be locked in desired position by
two small locking handles on sides.
Due to the sophisticated locking
mechanism there’s no need to use
excessive force when locking the
system in position.
4. Laser emission indicator.
When this indicator is lit up the laser
system is ready to emit the laser radia-
tion as soon as it receives instructions
from control software.
5. Optical compartment cover bolts.
To access the optical compartment of
the laser system undo 8 button hex
bolts and carefully remove the cover.
6. MicroWheel grating assembly port.
To open press the bottom of the cover.
Other manuals for Clubmax FB4 Series
1
This manual suits for next models
4
Table of contents
Other KVANT Projector manuals
