Lanner electronics FW-7650 Series User manual

FW-7650 Series
19” 1U Intel Pentium4 / Celeron Rackmount
Network Security Platform
User’s Manual

ii
Copyright and Disclaimers
© Copyright 2004 - Lanner Electronics Inc.
All Rights Reserved
The contents in this publication have been thoroughly checked and considered accurate. The
publisher and manufacturer of this product, Lanner Electronics, is not responsible for any
violation of patents or other rights of third parties resulting from its use. Neither does Lanner
Electronics assume any responsibility for any inaccuracies contained in this manual, nor make
any commitment to keep the information in this document up-to-date.
Lanner reserves the right to make improvements to this document and/or this product at any
given time without notice.
No part of this document may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means (electronic, mechanical, photocopying, recording, or otherwise, without
the formal consent from Lanner.
Trademark Acknowledgments
All products and/or brand names stated in this publication are the trademarks of their rightful
and associated companies.
Radio Frequency Emissions Notice
This equipment has been tested and found to comply with the digital device limits pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when operate in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area may cause harmful interference, in which case the user will
be required to correct the interference at his expense.

iii
Safety Instructions
The following information relates to the safety of installation and maintenance personnel. Read
all instructions before attempting to unpack, install or operate this equipment, especially before
connecting the power adapter.
Please keep the following in mind as you unpack and install this equipment:
Always follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not apply power into FW-7650 before installation or when disconnecting this
product from its original system setup.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Locate a safe and dry location to place this product. Keep it away from wet
surfaces/surroundings.
Never push an object of any kind into this product through openings or empty slots, as
you may damage parts.
Do not attach the power supply cabling to building surfaces. Do not allow anything to
rest on the power cabling or allow it to be abused by persons walking on it.
Distance your working area from moist floors, ungrounded power extension cables, and
unavailable safety grounds.
Avoid installation of this product during a lighting storm.
Damages caused by electrostatic discharge may result in total or intermittent system
failures. To minimize the possibility of ESD damage, an anti-static strap is highly
recommended.
When cleaning or servicing this unit, avoid using highly toxic or aerosol cleaners. Use a
clean damp cloth when wiping its surfaces.
Do not place this device in a tight and sealed location. Place the unit where it can access
sufficient airflow to its vent holes (openings along its sides). Never block or cover these
openings.
Do not disassemble this product on your own.

iv
Getting Technical Assistance
Should you encounter questions or problems with your FW-7650, Lanner Electronics is ready
to assist you within the guidelines of our product support programs. First, check the electronic
product documentation for assistance. If you still cannot find the solution to your problem,
contact Lanner sales team with the following information handy:
FW-7650 model name
Part number
Local network configuration details
The abnormal behavior and/or error messages reported by your network system
Your questions, or a description of the problem you are experiencing
Call, fax, or e-mail Lanner Electronics for technical support.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
About this Manual
This target audience of this manual includes users, administrators and technicians. This
publication is a useful reference when installing, configuring, operating and managing the
FW-7650. This breakdown and short descriptions of this manual’s contents are as follows:
Chapter 1 – Introduction provides an overview of the FW-7650 19” 1U
Rackmount network security appliance, including its related features,
application usage and technical specifications list. The chapter also
guides users through the pre and post installation process by listing safety
tips plus an overall detailed description of the control board and system
and their vital components.
Chapter 2 – Introduce Hardware Installation
Chapter 3 – Award BIOS Setup
Appendix A –summarizes the specification of the power supply
Appendix B –Watchdog Timer Introduction
Appendix C –Console Redirection
Appendix D– LCD Module and Key Pad

v
Table of Contents
Copyright and Disclaimers....................................................................................................ii
Trademark Acknowledgments...............................................................................................ii
Radio Frequency Emissions Notice..................................................................... ii
Safety Instructions............................................................................................... iii
Getting Technical Assistance.............................................................................. iv
About this Manual................................................................................................ iv
Table of Contents................................................................................................ v
C h a p t e r 1.........................................................................................................................1
Getting Started 1
1.1 Introduction.................................................................................................. 1
1.1.1 Features...............................................................................................................................1
1.2 Technical Specifications.............................................................................. 2
1.3 Packing Contents........................................................................................ 3
1.4 MB-X71 System Board................................................................................ 4
1.4.1 Board Layout........................................................................................................................4
1.4.2 Jumper Settings and I/O Connector.....................................................................................5
1.4.3 Connector PinAssignments.................................................................................................6
SFC1:Master/Slave Select ................................................................................. 6
CMOS1:Clear CMOS Data ............................................................................... 6
FAN1~3 : 3 Pin FAN Connector.................................................................... 6
LANA1~2 :Type 1 ( RJ-45)............................................................................... 6
LANA3~6 :Type 1 ( RJ-45).............................................................................. 7
COMA1: RS-232 Serial Port #1 Connector ( D-Sub) ................................ 7
PKMB1:PS/2 Keyboard & Mouse Connector (2x4 Header 2.54mm)..... 7
PSA1:20 Pin ATX Power Connector........................................................... 7
PSA1:20 Pin ATX Power Connector........................................................... 8
PS4P1:4-Pin Power Connector (P4-4P Male ).......................................... 8
KPA1：LCM Keypad...................................................................................... 8
LCMA1：LCM CONNECTOR....................................................................... 8
VGAB1 : External VGA Connector ( 12 Pin Header ) ...................................... 9
IDEA1 : IDE Interface Connector ( 44Pin 2.0mm Pitch Header ) .................... 9
PLRS1:Power LED,HD LED,Reset,Speaker Connector(11 Pin 2.54mm )..... 10
FDCA1 : Floppy Interface Connector ( 34 Pin Header )................................. 10
CF1:Compact Flash Connector...................................................................11
LEDE1：2x22 Pin......................................................................................... 12
IDEB1 : IDE Interface Connector ( 40Pin 2.54mm Pitch Header).................. 13
PCIB1:124 Pin Mini PCI Socket ..................................................................... 14
PCIB1:124 Pin Mini PCI Socket(Continued last page)............................... 15
1.5 FW-7650 19” 1U Rackmount Firewall Mechanisms.................................... 16
1.5.1 Face Panel...........................................................................................................................16
1.5.3 Rear View.............................................................................................................................17
C h a p t e r 2.......................................................................................................................18
FW-7650 Hardware Installation Guide..............................................................................18
2.1 Hardware Installation Guide........................................................................ 18
Chapter 3..............................................................................................................................22
Award BIOS Setup..............................................................................................................22
3.1 BIOS Setup ................................................................................................. 22
3.2 CMOS Setup Utility ...................................................................................... 23
3.3 Standard CMOS Features........................................................................... 25

vi
3.4 BIOS Features Setup .................................................................................. 27
3.5 Chipset Features Setup............................................................................... 30
3.6 Integrated Peripherals................................................................................. 32
3.7 Power Management Setup.......................................................................... 34
3.8 PnP/PCI Configuration ................................................................................ 36
3.9 PC Health Status......................................................................................... 40
3.10 Load Optimized Defaults............................................................................. 41
3.11 Supervisor/User Password Setting ........................................................... 41
3.12 Save and Exit Setup................................................................................... 41
3.13 Exit Without Saving ..................................................................................... 42
Appendix A...........................................................................................................................43
Power Supply 43
Appendix B ..........................................................................................................................44
Watchdog Timer 44
A p p e n d i x C...................................................................................................................46
Console Redirection ............................................................................................................46
A p p e n d i x D ..................................................................................................................47
LCD Module and Key Pad For FW-7650...........................................................................47
Terms and Conditions........................................................................................................................ 49
Warranty Policy 49
RMA Service 49

1
C h a p t e r 1
Getting Started
1.1 Introduction

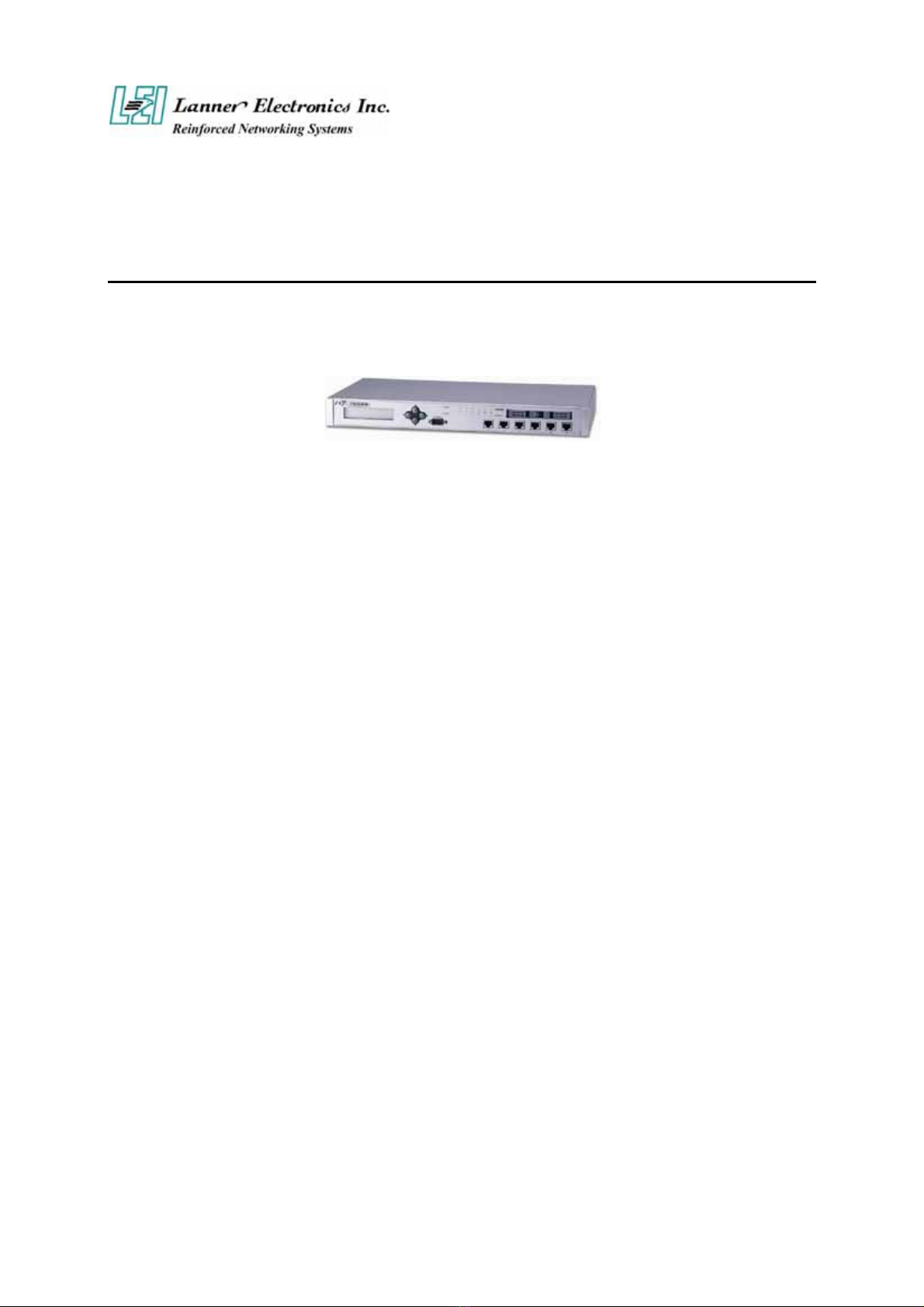

Figure 1 – FW-7650 Outlook
The FW-7650 is a 1U rackmount network security solution targeting the Enterprise market.
The FW-7650 supports Petium4 /Celeron processor with 400/533MHz FSB. It is designed
with an Intel 845GV as its northbridge and ICH4(82801DB) as its southbridge.; To enhance
network security appliance, FW-7650 comes with Intel 82540EM & 82551QM Ethernet chips
and six Ethernet LAN ports from 10/100Mbit up to Gigabit to provide an ideal
price/performance solution for building a wide range of desktop and set top boxes to thin
clients and web terminals powerful computing and multimedia performance for all the most
popular productivity and Internet applications.
Designed with the Plug-and-Serve concept in mind, the FW-7650 Series offers two DDR
200/266/333 DIMM Socket support up to 2GB RAM which provide full functionality and
performance to be used "exactly" where you need it as well. In addition, one ATA mode
CompactFlash type II socket used in installing OS avoiding service disruption caused by hard
disk's mechanical/magnetic failures.
The FW-7650 has a Mini PCI slot, users can expand their specifications and performance by
simply adding add-on cards to the slot. The FW-7650 is a powerful and flexible unit that can
meet the vast and various hardware requirement and performance needs of System Integrators,
OEM customers and software developers.
1.1.1 Features
Listed below are the key features of FW-7650.
Supports 2.5” HDD
Socket 478 for Intel®Pentium™4/Celeron Processor, up to 2.4GHz, 400/ 533MHZ FSB
Two DDR200/266/333 DIMM Socket, up to 2GB RAM
Supports Two Gigabit Ethernet ports, with two Intel 82540EM chipset. And Four 10/100
Ethernet ports, with four intel 82551QM chipset
Supports Compact Flash, Serial(RS-232), and Mini PCI.
19”1U Rackmount network security appliance
Suitable Network applications; Virtual Private Network(VPN), Firewall, IDS, …

2
1.2 Technical Specifications
Model Name FW-7650
SBC
SBC MB-X71
CPU Socket 478 for Intel®Pentium™4/Celeron Processor,
up to 2.4GHz,533MHZ FSB
Chipset Intel®845GV chipset (pin-to-pin compatible with
845G series); 82801DB I/O Controller Hub 4 (ICH4)
BIOS Award BIOS
Memory Two DDR200/266/333 DIMM Socket, up to 2GB RAM
Network interface
A. Two Intel 82540EM 32bit Gb Ethernet Controller (Colay
with 82551QM)
B. Four Intel 82551QM 10/100 Mb Ethernet Controller
SSD Two CompactFlash TypeII Socket
I/O Interface One DB-9 RS-232 connector
Expansion Slot One Mini-PCI slot
RTC Internal RTC with LI battery
Power 200W ATX Power Supply
Mechanical/ Environmental
Form Factor 19” 1U Rackmount
Operating Temperature 0 oC – 40 oC
Storage Temperature -20 oC – 70 oC
Humidity 5% - 95% RH, non-condersing
Chassis Material Steel
Dimension 428x303x44 mm
Net Weight 5.4 KGS
Certification CE, FCC CLASS A
Software support Linux 6.5 and above, Windows 2000/2003/ XP

3
1.3 Packing Contents
Carefully unpack your package and make sure that you have the following items.
FW-7650 Network security Platform
Console cable
1.8 meters long cross-over Ethernet cable
1.8 meters long straight-through Ethernet cable
Face panel name plate label
Power cable
Drivers and User’s Manual CD
Screw Set
Slid & Bracket Set
If you find anything missing or damaged, promptly contact your dealer for assistance.

4
1.4 MB-X71 System Board
MB-X71 is the system board bundled with the FW-7650 Network security platform. The
succeeding sections list all MB-X71 related jumper settings and connector pin assignments.
1.4.1 Board Layout
Figure 3 – MB-X71 Jumpers and Connectors

5
1.4.2 Jumper Settings and I/O Connector
The onboard jumper settings and I/O connector of MB-X71 are custom-tailored to fit the
FW-7650 functionality. Changing the jumper settings may result in system malfunction or
unforeseen damages.
Jumper Settings and I/O Connector Summary for MB-X71
JUMPER FUNCTION
CMOS1 Clear CMOS Data
SCF1 Master/Slave Select
FAN1-3 3 Pin Fan Connector
LANA1~2 Type 1 ( RJ-45 )
LANA3~6 Type 1 ( RJ-45)
COM1 RS232 Serial Port #1 Connector (D-Sub)
PKMB1 PS/2 Keyboard & Mouse Connector (2x4 Header 2.54mm )
PSA1 20 Pin ATX Power Connector
PS4P1 4-Pin Power Connector (P4-4P Male )
KPA1 LCM Keypad
LCMA1 LCM CONNECTOR
VGAB1 External VGA Connector ( 12 Pin Header )
IDEA1 IDE Interface Connector ( 44 Pin 2.0mm Pitch Header )
IDEB1 IDE Interface Connector ( 40 Pin 2.54mm Pitch Header )
PLRS1 Power LED, Reset, Speaker Connector
FDCA1 Floppy Interface Connector (34 Pin Header)
CF1 Compact Flash Connector
LEDE1 2x22 Pin
PCIB1 124 Pin Mini PCI Socket

6
1.4.3 Connector Pin Assignments
SFC1:Master/Slave Select
Compact Flash Card ATA Disk Chip SCF1
Master Slave 1-2
Slave Master 2-3(Default
CMOS1:Clear CMOS Data
CMOS1 Description
1-2 Normal (Default)
2-3 Clear CMOS
FAN1~3 : 3 Pin FAN Connector
Pin No. Description
1 Ground
2 +12V
3 FAN Status
LANA1~2 :Type 1 ( RJ-45)
Description
Pin No. Fast Ethernet Giga Ethernet
1TX+ MD0+
2TX- MD0-
3RX+ MD1+
4T45 MD2+
5T45 MD2-
6RX- MD1-
7T78 MD3+
8T78 MD3-
LANA1~2

7
LANA3~6 :Type 1 ( RJ-45)
Pin No. Description
1TX+
2TX-
3RX+
4T45
5T45
6RX-
7T78
8T78
COMA1: RS-232 Serial Port #1 Connector ( D-Sub)
Pin No. Description
1Data Carrier Detect ( DCDA # )
2Receive Data ( RXDA )
3 Transmit Data ( TXDA )
4Data Terminal Ready ( DTRA # )
5Ground ( GND )
6Data Set Ready ( DSRA # )
7Request To Send ( RTSA # )
8Clear To Send ( CTSA # )
9Ring Indicator ( RIA # )
PKMB1:PS/2 Keyboard & Mouse Connector (2x4 Header 2.54mm)
Pin No. Description Pin No. Description
1KBCLK 2GND
3NC 4KBDATA
5NC 6MSDATA
7MSCLK 8VCC
COMA1

8
PSA1:20 Pin ATX Power Connector
Pin No. Description Pin No. Description
1+3.3V 11 +3.3V
2+3.3V 12 -12V
3GND 13 GND
4+5V 14 SWITCH
5GND 15 GND
6+5V 16 GND
7GND 17 GND
8Power Good 18 -5V
9Stand-By 5V 19 +5V
10 +12V 20 +5V
PS4P1:4-Pin Power Connector (P4-4P Male )
Pin No. Description
1GND
2GND
3+12V
4+12V
KPA1 ： LCM Keypad
Pin No. Description
1KPA1
2KPA2
3KPA3
4KPA4
LCMA1 ： LCM CONNECTOR
Pin No. Description Pin No. Description
1VCC 2PGND
3LSTIN- 4VEE
5LAFD- 6LINIT-
7LPD1 8LPD0
9LPD3 10 LPD2
11 LPD5 12 LPD4
13 LPD7 14 LPD6
15 LCD 16 VCC

9

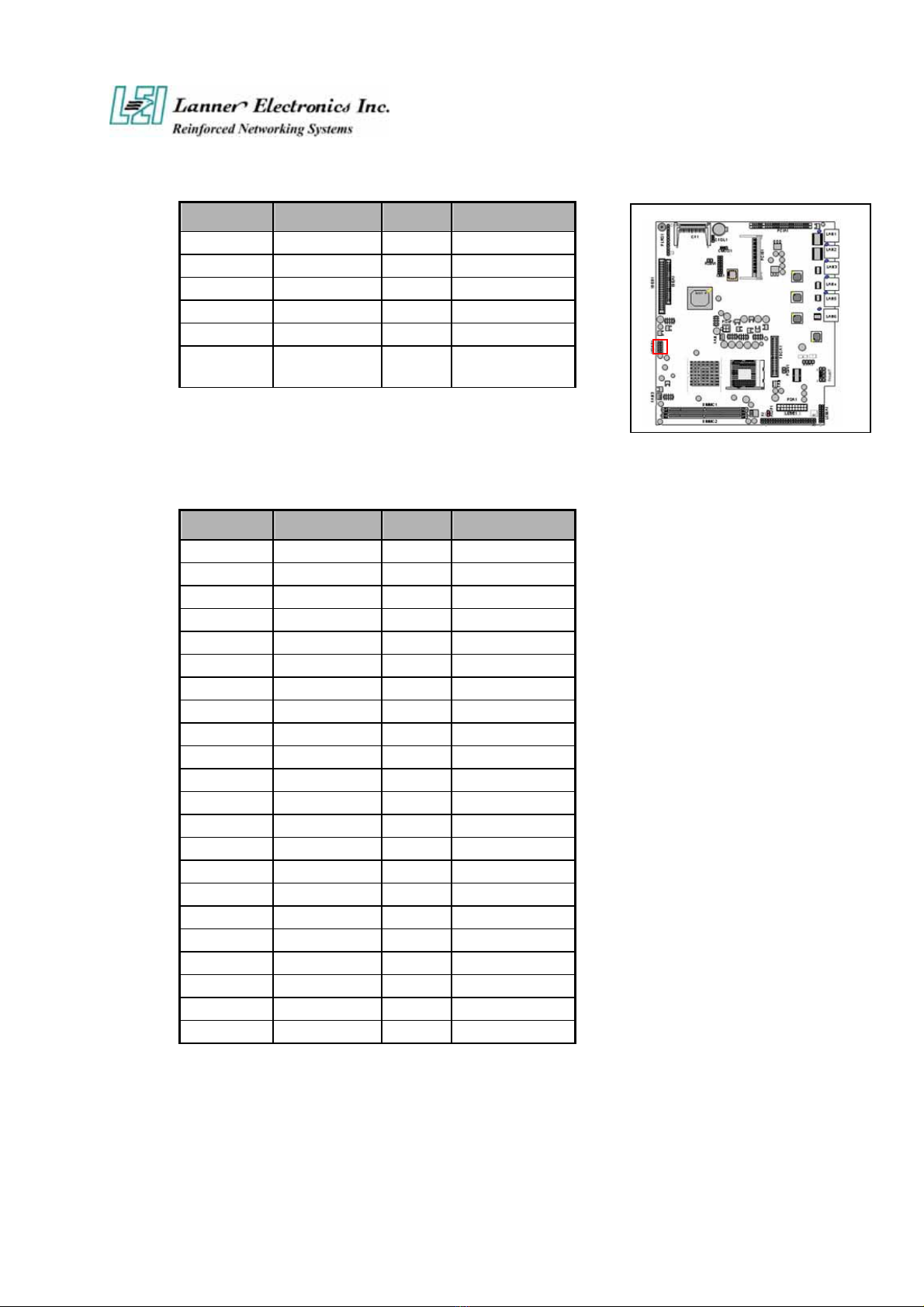

VGAB1 : External VGA Connector ( 12 Pin Header )
Pin No. Description Pin No. Description
1R2Ground
3G4Ground
5B6Ground
7H-SYNC 8Ground
9V-SYNC 10 Ground
11 Detect-display
Data 12 Deteck-display CLOCK
IDEA1 : IDE Interface Connector ( 44Pin 2.0mm Pitch Header )
Pin No. Description Pin No. Description
1Reset # 2Ground
3Data 7 4Data 8
5Data 6 6Data 9
7Data 5 8Data 10
9Data 4 10 Data 11
11 Data 3 12 Data 12
13 Data 2 14 Data 13
15 Data 1 16 Data 14
17 Data 0 18 Data 15
19 Ground 20 NC
21 DMA REQ # 22 Ground
23 IOW # 24 Ground
25 IOR # 26 Ground
27 IOCHRDY 28 Ground
29 DMAACK # 30 Ground
31 Interrupt 32 NC
33 SA 1 34 NC
35 SA 0 36 SA 2
37 HDC CS 0# 38 HDC CS 1#
39 HDD Active 40 Ground
41 VCC 42 VCC
43 Ground 44 NC

10
PLRS1:Power LED,HD LED,Reset,Speaker Connector(11 Pin 2.54mm )
Pin No. Description
1Power LED +
2 Power LED +
3 GND
4 HDD LED +
5 HDD LED -
6 RESET SW +
7 RESET SW – (GND)
8 External Speaker -
9Internal Buzzer -
10 NC
11 External Speaker +
FDCA1 : Floppy Interface Connector ( 34 Pin Header )
Pin No. Description Pin No. Description
1Ground 2Density Select
3Ground 4NC
5Ground 6DS1
7Ground 8Index #
9Ground 10 Motor Enable A #
11 Ground 12 Drive Select B #
13 Ground 14 Drive Select A #
15 Ground 16 Motor Enable B #
17 Ground 18 Direction #
19 Ground 20 Step #
21 Ground 22 Write Data #
23 Ground 24 Write Gate #
25 Ground 26 Track 0 #
27 Ground 28 Write Protect #
29 NC 30 Read Data #
31 Ground 32 Head Side Select #
33 NC 34 Disk Change #

11
CF1:Compact Flash Connector
Pin No. Description Pin No. Description
1GND 26 CD1-
2DATA3 27 DATA11
3DATA4 28 DATA12
4DATA5 29 DATA13
5DATA6 30 DATA14
6DATA7 31 DATA15
7 CE1# 32 CE2#
8 A10 33 VS1#
9 OE# 34 IOR#
10 A9 35 IOW#
11 A8 36 WE#
12 A7 37 READY#
13 CFVCC3 38 CFVCC3
14 A6 39 CSEL
15 A5 40 VS2#
16 A4 41 RESET
17 A3 42 WAIT#
18 A2 43 INPACK#
19 A1 44 REG#
20 A0 45 DASP#
21 DATA0 46 DIAG#
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 WP 49 DATA10
25 CD2- 50 GND

12
LEDE1 ： 2x22 Pin
Pin No. Description Pin No. Description
1POWER LED 2POWER LED
3 POWER LED STATUS 4 POWER LED STATUS
5 Lan1 Link/Active LED- 6 Lan1 Link/Active LED+
7 Lan1 100 LED- 8 Lan1 100 LED+
9 Lan1 1G LED- 10 Lan1 1G LED+
11 Lan2 Link/Active LED- 12 Lan2 Link/Active LED+
13 Lan2 100 LED- 14 Lan2 100 LED+
15 Lan2 1G LED- 16 Lan2 1G LED+
17 Lan3 Link/Active LED- 18 Lan3 Link/Active LED+
19 Lan3 100 LED- 20 Lan3 100 LED+
21 Lan3 1G LED- 22 Lan3 1G LED+
23 Lan4 Link/Active LED 24 Lan4 Link/Active LED
25 Lan4 100 LED 26 Lan4 100 LED
27 Lan4 1G LED 28 Lan4 1G LED
29 Lan5 Link/Active LED 30 Lan5 Link/Active LED
31 Lan5 100 LED 32 Lan5 100 LED
33 Lan5 1G LED 34 Lan5 1G LED
35 Lan6 Link/Active LED 36 Lan6 Link/Active LED
37 Lan6 100 LED 38 Lan6 100 LED
39 Lan6 1G LED 40 Lan6 1G LED
41 NC 42 NC
43 NC 44 NC

13
IDEB1 : IDE Interface Connector ( 40Pin 2.54mm Pitch Header)
Pin No. Description Pin No. Description
1Reset # 2Ground
3Data 7 4Data 8
5Data 6 6Data 9
7Data 5 8Data 10
9Data 4 10 Data 11
11 Data 3 12 Data 12
13 Data 2 14 Data 13
15 Data 1 16 Data 14
17 Data 0 18 Data 15
19 Ground 20 NC
21 DMA REQ# 22 Ground
23 IOW # 24 Ground
25 IOR # 26 Ground
27 IOCHRDY 28 Ground
29 DMAACK # 30 Ground
31 Interrupt 32 NC
33 SA1 34 PD80P / SD80P
35 SA0 36 SA2
37 HDC CS0 # 38 HDC CS1 #
39 HDD Active
LED # 40 Ground

14
PCIB1:124 Pin Mini PCI Socket
Pin No. Description Pin No. Description
1TIP 2RING
3 8PMJ-3 4 8PMJ-1
5 8PMJ-6 6 8PMJ-2
7 8PMJ-7 8 8PMJ-4
9 8PMJ-8 10 8PMJ-5
11 LED1_GRNP 12 LED2_YELP
13 LED1_GRNN 14 LED2_YELP
15 CHSGND 16 RESERVED
17 INT-B 18 +5V
19 +3.3V 20 INT-A
21 RESERVED 22 RESERVED
23 GROUND 24 3.3VAUX
25 CLK 26 RST
27 GROUND 28 +3.3V
29 REO 30 GNT
31 +3.3V 32 GROUND
33 AD31 34 PME
35 AD29 36 RESERVED
37 GROUND 38 AD30
39 AD27 40 +3.3V
41 AD25 42 AD28
43 RESERVED 44 AD26
45 C_BE-3 46 AD24
47 AD23 48 IDSEL
49 GROUND 50 GROUND
51 AD21 52 AD22
53 AD19 54 AD20
55 GROUND 56 PAR
57 AD17 58 AD18
59 C_BE-2 60 AD16
